SIST EN 15626:2025
(Main)Bitumens and bituminous binders - Determination of adhesivity of cut-back and fluxed bituminous binders by water immersion test - Aggregate method
Bitumens and bituminous binders - Determination of adhesivity of cut-back and fluxed bituminous binders by water immersion test - Aggregate method
This document specifies a method for the determination of the adhesivity of cut-back or fluxed bituminous binders coated onto aggregate when immersed in water.
The method can be used with a reference aggregate. In that case, it measures the intrinsic adhesion behaviour of a cut-back and fluxed bituminous binder. The method can also be used with a specific aggregate as used on a job site.
WARNING — The use of this document can involve hazardous materials, operations and equipment. This document does not purport to address all of the safety problems associated with its use. It is the responsibility of the user of this document to establish appropriate safety and health practices and to determine the applicability of regulatory limitations prior to use. For environmental reasons and to reduce emissions to air, water and soil, it is recommended to limit the use of products, solvents and energy to the minimum required for a valid test result.
Bitumen und bitumenhaltige Bindemittel - Bestimmung des Haftverhaltens von verschnittenen und gefluxten bitumenhaltigen Bindemitteln bei Wasserlagerung - Verfahren mit Gesteinskörnung
Dieses Dokument legt ein Verfahren für die Bestimmung des Haftverhaltens von verschnittenem oder gefluxtem bitumenhaltigen Bindemittel, mit dem Gesteinskörnung umhüllt ist, bei Wasserlagerung fest.
Das Verfahren kann in Verbindung mit einer Referenzgesteinskörnung angewendet werden. In diesem Fall wird damit das intrinsische Haftverhalten eines verschnittenen und gefluxten bitumenhaltigen Bindemittels gemessen. Das Verfahren kann ebenfalls in Verbindung mit einer bestimmten Gesteinskörnung angewendet werden, die auf einer Baustelle zum Einsatz kommt.
WARNUNG — Die Anwendung dieses Dokuments kann den Umgang mit gefährlichen Substanzen und Ausrüstungsteilen und die Ausführung gefährlicher Arbeitsgänge einschließen. Dieses Dokument erhebt nicht den Anspruch, alle mit seiner Anwendung verbundenen Sicherheitsprobleme anzusprechen. Es liegt in der Verantwortung des Anwenders dieses Dokuments, geeignete Sicherheits- und Gesundheitsschutzmaßnahmen vorzusehen und im Vorfeld die Anwendbarkeit von einschränkenden Vorschriften zu klären. Aus Umweltaspekten und um die Emissionen in Luft, Wasser und Boden zu reduzieren, wird empfohlen, die Mengen der Produkte, der Lösemittel und der Energiequellen auf das für eine zulässige Durchführung der Prüfung nötige Minimum zu begrenzen.
Bitumes et liants bitumineux - Détermination de l'adhésivité des liants bitumineux fluidifiés et fluxés par l'essai d'immersion dans l'eau - Méthode utilisant des granulats
Le présent document spécifie une méthode de détermination de l’adhésivité des liants bitumineux fluidifiés ou fluxés vis-à-vis de granulats après immersion du mélange dans l’eau.
La méthode peut être mise en œuvre avec un granulat de référence. Dans ce cas, elle mesure l’aptitude à l’adhésivité intrinsèque des liants bitumineux fluidifiés ou fluxés. La méthode peut également être mise en œuvre avec un granulat spécifique utilisé sur chantier.
AVERTISSEMENT — L'utilisation de ce document peut impliquer la mise en œuvre de produits, d'opérations et d'équipements à caractère dangereux. Le présent document n'est pas censé aborder tous les problèmes de sécurité concernés par son usage. Il incombe à son utilisateur d'établir des règles d'hygiène et de sécurité appropriées et de déterminer l'applicabilité des restrictions réglementaires avant utilisation. Pour des raisons environnementales et afin de réduire les émissions dans l’air, l’eau et les sols, il est recommandé de limiter l’utilisation de produits, de solvants et d’énergie au minimum requis pour obtenir un essai valide.
Bitumen in bitumenska veziva - Določanje obstojnosti rezanih in fluksiranih bitumenskih veziv s preskusom potapljanja v vodo - Metoda z agregatom
General Information
Relations
Standards Content (Sample)

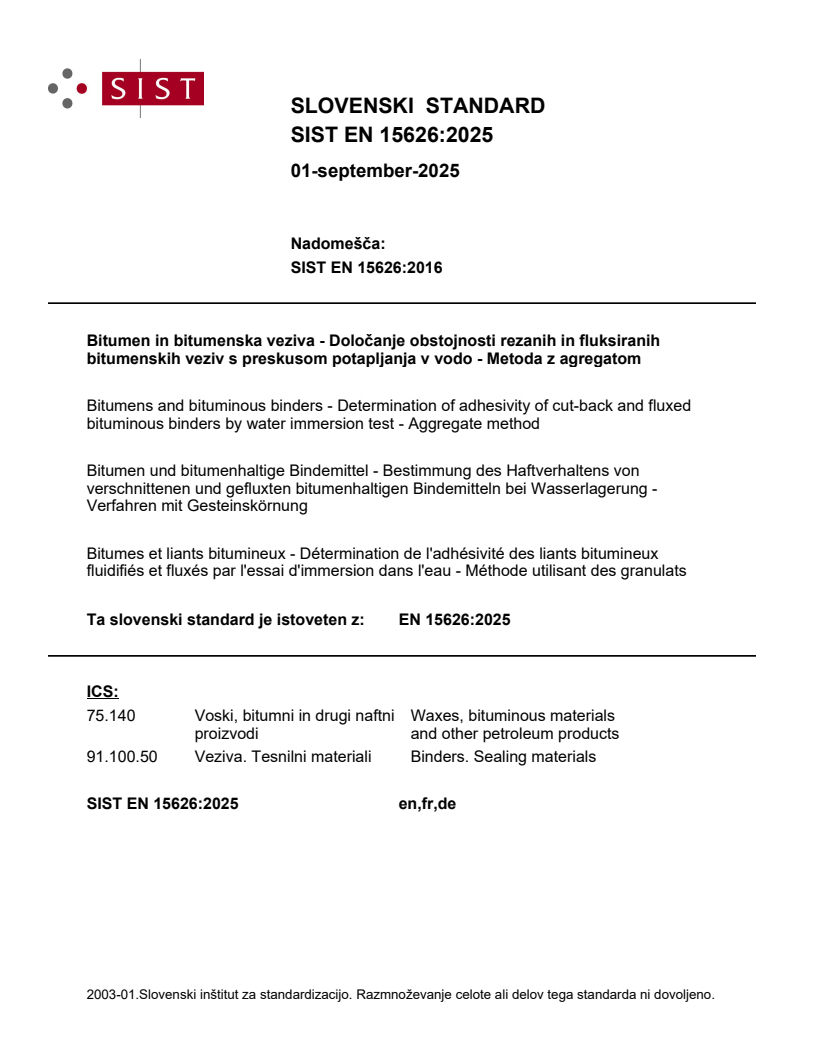

SLOVENSKI STANDARD
01-september-2025
Nadomešča:
SIST EN 15626:2016
Bitumen in bitumenska veziva - Določanje obstojnosti rezanih in fluksiranih
bitumenskih veziv s preskusom potapljanja v vodo - Metoda z agregatom
Bitumens and bituminous binders - Determination of adhesivity of cut-back and fluxed
bituminous binders by water immersion test - Aggregate method
Bitumen und bitumenhaltige Bindemittel - Bestimmung des Haftverhaltens von
verschnittenen und gefluxten bitumenhaltigen Bindemitteln bei Wasserlagerung -
Verfahren mit Gesteinskörnung
Bitumes et liants bitumineux - Détermination de l'adhésivité des liants bitumineux
fluidifiés et fluxés par l'essai d'immersion dans l'eau - Méthode utilisant des granulats
Ta slovenski standard je istoveten z: EN 15626:2025
ICS:
75.140 Voski, bitumni in drugi naftni Waxes, bituminous materials
proizvodi and other petroleum products
91.100.50 Veziva. Tesnilni materiali Binders. Sealing materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

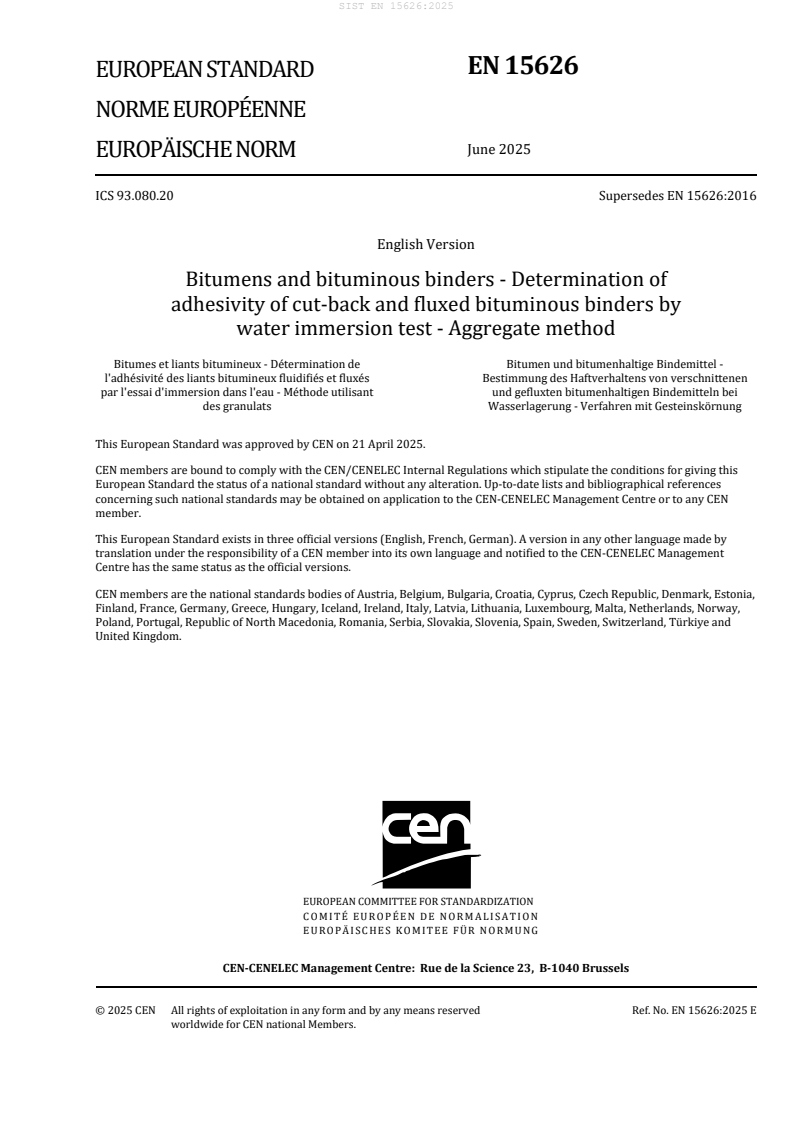

EN 15626
EUROPEAN STANDARD
NORME EUROPÉENNE
June 2025
EUROPÄISCHE NORM
ICS 93.080.20 Supersedes EN 15626:2016
English Version
Bitumens and bituminous binders - Determination of
adhesivity of cut-back and fluxed bituminous binders by
water immersion test - Aggregate method
Bitumes et liants bitumineux - Détermination de Bitumen und bitumenhaltige Bindemittel -
l'adhésivité des liants bitumineux fluidifiés et fluxés Bestimmung des Haftverhaltens von verschnittenen
par l'essai d'immersion dans l'eau - Méthode utilisant und gefluxten bitumenhaltigen Bindemitteln bei
des granulats Wasserlagerung - Verfahren mit Gesteinskörnung
This European Standard was approved by CEN on 21 April 2025.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15626:2025 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Principle . 5
5 Reagents and materials . 5
6 Apparatus . 5
7 Sampling . 6
8 Procedure. 6
8.1 Preparation of aggregates and binders . 6
8.2 Procedure for “high viscosity” binders . 8
8.3 Procedure for “low viscosity” cut-back and fluxed bituminous binders. 8
9 Expression of results . 9
10 Precision . 9
11 Test report . 10
Annex A (informative) Guidance for the visual assessment of coated surface area . 11
Bibliography . 12
European foreword
This document (EN 15626:2025) has been prepared by Technical Committee CEN/TC 336 “Bitumens and
bituminous binders”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by December 2025, and conflicting national standards shall
be withdrawn at the latest by December 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 15626:2016.
a) normative references were updated throughout the text (reference to EN 13702 was deleted in 8.1.3,
8.2.1 and 8.3.1);
b) removal of the use of a heating plate or heating device when mixing aggregates with binder in 8.2.2
and 8.3.2;
c) the binder is now poured onto the aggregates and the duration between removal of aggregates and
binder from the oven and the beginning of the mixing should not exceed 90 s (see 8.2.2 and 8.3.2);
d) curing and conditioning of the coated aggregate is conducted within a heat resistant glass dish and
in the form of a monolayer of materials instead of being placed into a beaker (see 8.2.2, 8.3.3 and
8.3.4);
e) assessment is conducted under water (which can be replaced if dirty) and with the help of an
appropriate lamp (see 8.3.5);
f) tolerance on the conditioning time (see 8.2.3, 8.3.3 and 8.3.4) is reduced from ±4 h to ±2 h;
g) the document has been editorially revised.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies a method for the determination of the adhesivity of cut-back or fluxed
bituminous binders coated onto aggregate when immersed in water.
The method can be used with a reference aggregate. In that case, it measures the intrinsic adhesion
behaviour of a cut-back and fluxed bituminous binder. The method can also be used with a specific
aggregate as used on a job site.
WARNING — The use of this document can involve hazardous materials, operations and equipment. This
document does not purport to address all of the safety problems associated with its use. It is the
responsibility of the user of this document to establish appropriate safety and health practices and to
determine the applicability of regulatory limitations prior to use. For environmental reasons and to
reduce emissions to air, water and soil, it is recommended to limit the use of products, solvents and
energy to the minimum required for a valid test result.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 58, Bitumen and bituminous binders — Sampling bituminous binders
EN 933-1, Tests for geometrical properties of aggregates — Part 1: Determination of particle size
distribution — Sieving method
EN 12594, Bitumens and bituminous binders — Preparation of test samples
EN 12597, Bitumens and bituminous binders — Terminology
EN 12846-2, Bitumen and bituminous binders — Determination of efflux time by the efflux viscometer —
Part 2: Cut-back and fluxed bituminous binders
EN 13043:2002, Aggregates for bituminous mixtures and surface treatments for roads, airfields and other
trafficked areas
EN 13302, Bitumen and bituminous binders — Determination of dynamic viscosity of bituminous binder
using a rotating spindle apparatus
EN 15322, Bitumen and bituminous binders — Framework for specifying cut-back and fluxed bituminous
binders
EN ISO 3696:1995, Water for analytical laboratory use — Specification and test methods (ISO 3696:1987)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 12597 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org
3.1
adhesion
ability of a binder to coat the surface of an aggregate and to remain bonded over time in the presence of
water
3.2
adhesivity
qualitative assessment of the adhesion (3.1)
3.3
ambient temperature
temperature between 18 °C and 28 °C
4 Principle
The binder is mixed thoroughly with a dry and clean aggregate under specified temperature conditions.
After specified pre-conditioning procedures depending on the viscosity of the binder, the mixture is
immersed in water. After a given time under specified conditions, the percentage of the aggregate surface
coated with binder is assessed visually.
The conformity to the adhesivity requirement in accordance with EN 15322 is then assessed while
measuring the binder adhesion with a reference aggregate.
5 Reagents and materials
5.1 Aggregate, being either a reference aggregate or an aggregate to be used on a specific job site. This
aggregate shall either:
— pass through a sieve having a mesh size of 10 mm and be retained on a sieve having a mesh size of
6,3 mm, both sieves in accordance with EN 13043:2002, Table 1 column “Basic set plus set 2”;
— pass through a sieve having a mesh size of 11,2 mm and be retained on a sieve having a mesh size of
8 mm, both sieves in accordance with EN 13043:2002, Table 1 column “Basic set plus set 1”.
Each country may define petrographically its own reference aggregates, for instance, in a national
informative annex.
5.2 Water, distilled or deionized, conforming to quality 3 of EN ISO 3696:1995.
5.3 Cleaning agents, conventionally used in a laboratory.
6 Apparatus
6.1 Ventilated oven, capable of maintaining a temperature of 60 °C with a maximum permissible
measurement error of ±3 °C in the working space.
6.2 Ventilated oven, capable of maintaining any temperature in the range of between 30 °C and 150 °C
with a maximum permissible measurement error of ±5 °C in the working space.
6.3 Spatula.
6.4 Heat resistant dishes, approximately 150 mm to 200 mm in diameter.
6.5 Two heat resistant glass dishes with cover, with a minimum surface area of 300 cm and a
minimum inner height of 20 mm.
NOTE A 200 mm diameter Petri dish with a minimum inner height of 20 mm satisfies these conditions.
6.6 Balance, having a suitable measuring range and having a maximum permissible measurement
error of ±1 g within the testing range.
6.7 Lid or Aluminium foil, suitable for use as a loose cover.
6.8 Timer, of any type, capable of measuring a time interval of 90 s.
7 Sampling
The laboratory sample shall be taken in accordance with EN 58 and the test sample shall be prepared in
accordance with EN 12594.
8 Procedure
8.1 Preparation of aggregates and binders
8.1.1 Wash the aggregate (5.1) with water (5.2) and dry it in the ventilated oven (6.2) at (110 ± 5) °C
until constant mass as defined in EN 933-1.
8.1.2 The quantities of aggregates needed for the tests to be carried out under 8.2 and 8.3 shall be
weighed into heat resistant dish(es) (6.4) by batches of (200 ± 2) g or (400 ± 4) g.
Depending on the binder to be tested, bring the aggregates in the dish(es) to be used for the mixing
procedure to the temperature indicated in Table 1 and maintain this temperature in the ventilated oven
(6.2) for at least 2 h.
8.1.3 A binder sample of a minimum amount of 200 g shall be prepared in accordance with EN 12594
and brought to the
...
