Pyrotechnic articles - Other pyrotechnic articles - Part 2: Requirements

This European standard specifies requirements for the construction and  performances of other pyrotechnic articles (except pyrotechnic articles for vehicles) of the following generic types:
- Semi-finished pyrotechnic products,
- Flash Cartridges,
- Other Cartridges,
- Pyrotechnic matches,
- Flares,
- Sound / Noise emitters,
- Gas generators,
- Smoke / Fog generators,
- Pyromechanical devices,
- Rockets and their motors,
- Heaters.

Pyrotechnische Gegenstände - Sonstige pyrotechnische Gegenstände - Teil 2: Anforderungen

Diese Europäische Norm legt die Anforderungen an die Konstruktion und die Leistung von sonstigen pyrotechnischen Gegenständen (außer pyrotechnischen Gegenständen für Fahrzeuge) für die folgenden Gegenstandstypen fest: ⎯ Fackeln; ⎯ Knallkartuschen; ⎯ Gasgeneratoren;
- Aufheizer;
- andere Kartuschen;
- pyromechanische Geräte;
- pyrotechnische Anzündhölzer;
- Raketen und Raketenmotoren;
- pyrotechnische Halbfertigerzeugnisse;
- Rauch-/Nebelgeneratoren;
- Schall-/Geräuscherzeuger.

Articles pyrotechniques - Autres articles pyrotechniques - Partie 2: Exigences

La présente Norme européenne spécifie les exigences de construction et de performances des autres articles pyrotechniques, à l’exception des articles pyrotechniques destinés aux véhicules, des dispositifs d’allumage et des cartouches pour outils actionnés par poudre, relevant des types génériques suivants :
-   torches et flammes ;
-   cartouches flash ;
-   générateurs de gaz ;
-   réchauffeurs/générateurs thermiques ;
-   autres cartouches ;
-   pyromécanismes ;
-   fusées et moteurs fusées ;
-   articles pyrotechniques semi-finis ;
-   fumigènes/générateurs d’aérosol ;
-   émetteurs sonores ;
-   disperseurs pyrotechniques de liquide.
La présente Norme européenne ne s’applique pas aux articles contenant des compositions pyrotechniques incluant l’une des substances suivantes :
-   arsenic ou composés d’arsenic ;
-   polychlorobenzènes ;
-   composés de mercure ;
-   composés de plomb (excepté ceux inclus dans les dispositifs d’allumage) ;
-   phosphore blanc ;
-   picrates ou acide picrique.
La présente Norme européenne ne s’applique pas aux articles pyrotechniques contenant des explosifs détonants autres que de la poudre noire et/ou de la composition flash, si ces explosifs détonants :
-   peuvent être extraits aisément de l’article pyrotechnique ; ou
-   peuvent entraîner l’amorçage d’explosifs secondaires ; ou
-   peuvent fonctionner de manière détonante même si l’article n’est pas conçu pour détoner et que l’article appartient à la catégorie P2.

Pirotehnični izdelki - Drugi pirotehnični izdelki - 2. del: Zahteve

Ta evropski standard določa zahteve glede zasnove in zmogljivosti drugih pirotehničnih izdelkov (razen pirotehničnih izdelkov za vozila) za naslednje generične izdelke:
– pirotehnični polizdelki,
– bliskovne kasete,
– druge kasete,
– pirotehnične vžigalice,
– svetlobni signali,
– oddajniki zvoka/hrupa,
– plinski generatorji,
– generatorji dima/megle,
– piromehanske naprave,
– rakete in njihovi motorji,
– grelniki.

General Information

Status
Published
Public Enquiry End Date
24-Jun-2011
Publication Date
01-Sep-2015
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
24-Aug-2015
Due Date
29-Oct-2015
Completion Date
02-Sep-2015

Relations

Buy Standard

Standard
EN 16263-2:2015
English language
18 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.YHPyrotechnische Gegenstände - Sonstige pyrotechnische Gegenstände - Teil 2: AnforderungenArticles pyrotechniques - Autres articles pyrotechniques - Partie 2: ExigencesPyrotechnic articles - Other pyrotechnic articles - Part 2: Requirements71.100.30Eksplozivi. PirotehnikaExplosives. PyrotechnicsICS:Ta slovenski standard je istoveten z:EN 16263-2:2015SIST EN 16263-2:2015en,fr,de01-oktober-2015SIST EN 16263-2:2015SLOVENSKI
STANDARD



SIST EN 16263-2:2015



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16263-2
August 2015 ICS 71.100.30 English Version
Pyrotechnic articles - Other pyrotechnic articles - Part 2: Requirements
Articles pyrotechniques - Autres articles pyrotechniques - Partie 2 : Exigences
Pyrotechnische Gegenstände - Sonstige pyrotechnische Gegenstände - Teil 2: Anforderungen This European Standard was approved by CEN on 6 February 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16263-2:2015 ESIST EN 16263-2:2015

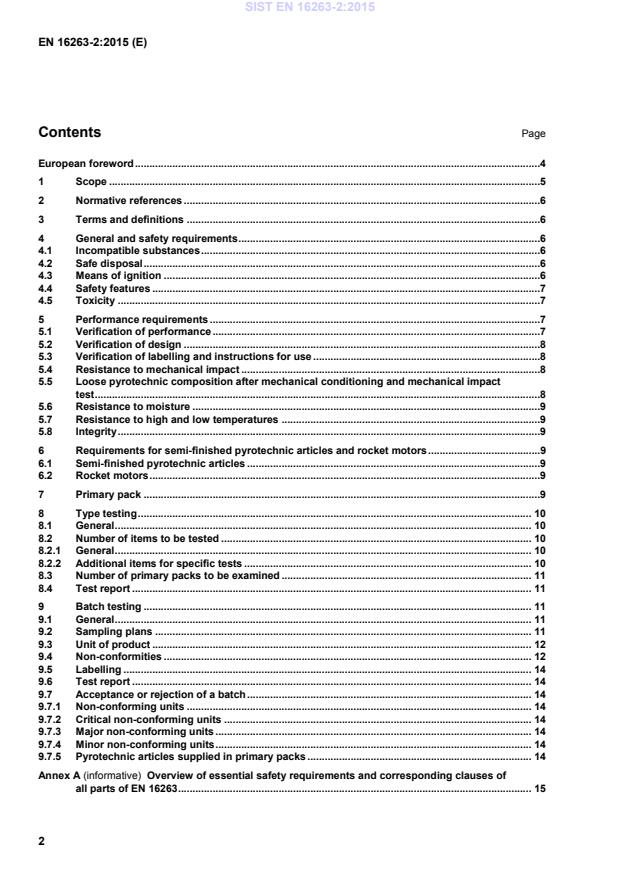

EN 16263-2:2015 (E) 2 Contents Page European foreword .4 1 Scope .5 2 Normative references .6 3 Terms and definitions .6 4 General and safety requirements .6 4.1 Incompatible substances .6 4.2 Safe disposal .6 4.3 Means of ignition .6 4.4 Safety features .7 4.5 Toxicity .7 5 Performance requirements .7 5.1 Verification of performance .7 5.2 Verification of design .8 5.3 Verification of labelling and instructions for use .8 5.4 Resistance to mechanical impact .8 5.5 Loose pyrotechnic composition after mechanical conditioning and mechanical impact test .8 5.6 Resistance to moisture .9 5.7 Resistance to high and low temperatures .9 5.8 Integrity .9 6 Requirements for semi-finished pyrotechnic articles and rocket motors .9 6.1 Semi-finished pyrotechnic articles .9 6.2 Rocket motors .9 7 Primary pack .9 8 Type testing . 10 8.1 General . 10 8.2 Number of items to be tested . 10 8.2.1 General . 10 8.2.2 Additional items for specific tests . 10 8.3 Number of primary packs to be examined . 11 8.4 Test report . 11 9 Batch testing . 11 9.1 General . 11 9.2 Sampling plans . 11 9.3 Unit of product . 12 9.4 Non-conformities . 12 9.5 Labelling . 14 9.6 Test report . 14 9.7 Acceptance or rejection of a batch . 14 9.7.1 Non-conforming units . 14 9.7.2 Critical non-conforming units . 14 9.7.3 Major non-conforming units . 14 9.7.4 Minor non-conforming units . 14 9.7.5 Pyrotechnic articles supplied in primary packs . 14 Annex A (informative)
Overview of essential safety requirements and corresponding clauses of all parts of EN 16263 . 15 SIST EN 16263-2:2015



EN 16263-2:2015 (E) 3 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 2007/23/EC on the placing on the market of pyrotechnic articles . 16 Annex ZB (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 2013/29/EU on the placing on the market of pyrotechnic articles . 17 Bibliography . 18
SIST EN 16263-2:2015



EN 16263-2:2015 (E) 4 European foreword This document (EN 16263-2:2015) has been prepared by Technical Committee CEN/TC 212 “Pyrotechnic articles”, the secretariat of which is held by NEN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by February 2016, and conflicting national standards shall be withdrawn at the latest by February 2016. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA or Annex ZB, which are an integral part of this document. This European standard is one of the series of standards as listed below: — EN 16263-1, Pyrotechnic articles — Other pyrotechnic articles — Part 1: Terminology; — EN 16263-2, Pyrotechnic articles — Other pyrotechnic articles — Part 2: Requirements; — EN 16263-3, Pyrotechnic articles — Other pyrotechnic articles — Part 3: Categories and types; — EN 16263-4, Pyrotechnic articles — Other pyrotechnic articles — Part 4: Test methods; — EN 16263-5, Pyrotechnic articles — Other pyrotechnic articles — Part 5: Minimum labelling requirements and instructions for use. According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 16263-2:2015



EN 16263-2:2015 (E) 5 1 Scope This European Standard specifies requirements for the construction and performances of other pyrotechnic articles, except pyrotechnic articles for vehicles, ignition devices and cartridges for powder actuated tools (PAT), of the following generic types: — flares; — flash devices; — gas generators; — heaters; — other cartridges; — pyromechanical devices; — rockets and rocket motors; — semi-finished pyrotechnic articles; — smoke / aerosol generators; — sound emitters; — pyrotechnic liquid dispersers. This European Standard does not apply for articles containing pyrotechnic compositions that include any of the following substances: — arsenic or arsenic compounds; — polychlorobenzenes; — mercury compounds; — lead compounds (except for those included in ignition devices); — white phosphorus; — picrates or picric acid. This European Standard does not apply to pyrotechnic articles that contain detonative explosives other than black powder and/or flash composition, if these detonative explosives: — can be easily extracted from the pyrotechnic article, or; — can initiate secondary explosives, or; — can function in a detonative manner although the article is not designed to detonate and the article belongs to the category P2. SIST EN 16263-2:2015



EN 16263-2:2015 (E) 6 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 16263-1:2015, Pyrotechnic articles — Other pyrotechnic articles — Part 1: Terminology EN 16263-3:2015, Pyrotechnic articles — Other pyrotechnic articles — Part 3: Categories and types EN 16263-4:2015, Pyrotechnic articles — Other pyrotechnic articles — Part 4: Test methods EN 16263-5:2015, Pyrotechnic articles — Other pyrotechnic articles — Part 5: Minimum labelling requirements and instructions for use prEN 16265:2013, Pyrotechnic articles — Other pyrotechnic articles — Ignition devices ISO 2859-1, Sampling procedures for inspection by attributes — Part 1: Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 16263-1:2015 apply. 4 General and safety requirements 4.1 Incompatible substances Pyrotechnic articles shall not contain incompatible substances as defined in EN 16263-1:2015, 2.2.23 unless effective measures have been taken to permanently segregate incompatible substances one from the other, effective measures have been taken to stabilize mixtures of incompatible substances, or the manufacturer can demonstrate that any mixtures of incompatible substances do not present a risk to safety. This requirement shall be verified by examination of the design from the manufacturer’s documentation. 4.2 Safe disposal Each pyrotechnic article shall be designed and manufactured in such a way that it can be disposed of safely by a suitable process with minimum effect on the environment. This requirement shall be verified by examination of the information about safe disposal in the instructions for use. 4.3 Means of ignition Any means of ignition shall be protected to avoid accidental initiation of the article. This requirement shall be verified by visual examination. For pyrotechnic articles equipped with ignition devices which are CE type certified, no further testing of the ignition devices is required. If the pyrotechnic article is equipped with ignition devices which are not CE type certified, the ignition devices shall comply with the following requirements of prEN 16265:2013: — safety features (see 4.5 and prEN 16265:2013, 5.5); SIST EN 16263-2:2015



EN 16263-2:2015 (E) 7 — mechanical resistance of leading wires (if any) or leading optical fibre (if any) (see prEN 16265:2013, 5.8.1 and 5.8.2); — determination of all-fire and no-fire thresholds (see prEN 16265:2013, 5.9); — electrical characteristics (see prEN 16265:2013, 5.11); — resistance to ESD (see prEN 16265:2013, 5.12). These tests may be performed on the articles or on subcomponents of the pyrotechnic articles which include their ignition device provided that their functioning remains representative of the normal behaviour of the ignition device in the article. Manufacturers may provide test reports proving these requirements are fulfilled. 4.4 Safety features Each pyrotechnic article shall be equipped with safety features which are appropriate to its mode of initiation. For articles that are sensitive to mechanical shocks, drops or other stimuli with the potential to cause unintended initiation, if the safety feature is not already a part of the included ignition device, the pyrotechnic article shall be equipped: — with a safe / arm device, a safety pin or any other device intended to stop propagation of ignition along the whole pyrotechnic train; or — with other means of protection to prevent inadvertent initiation. The presence of the safety features shall be checked by visual examination and their effectiveness shall be verified in accordance with EN 16263-4:2015, 5.7 (mechanical conditioning), 5.8 (mechanical impact test), and 5.13.1.2 (electrostatic discharge). No initiation shall take place during these tests and the safety features shall remain in their safe position. This last requirement shall be verified by visual examination. Integral safety features shall be checked by verification of construction and design according to 5.1 and their effectiveness shall be verified in accordance with EN 16263-4:2015, 5.7 (mechanical conditioning), 5.8 (mechanical impact test), and 5.13.1.2 (electrostatic discharge). No initiation shall take place during these tests and the safety features shall remain in their safe position. This last requirement shall be verified by function test in accordance EN 16263-4:2015, 5.10.3.4. When the user could be exposed to the pyrotechnic effects during the ignition operation, the pyrotechnic article shall be equipped with an appropriate delay to allow the user to retire to the safe firing distance or assume the safe article orientation for hand-held devices as specified in the instructions for use. This requirement shall be verified according to EN 16263-4:2015, 5.10.3.1 and 5.6. 4.5 Toxicity When the article is designed to generate toxic substances as intended use (e.g. pesticides), the manufacturer or importer shall supply corresponding information on the appropriate means of limiting exposure to these reaction products. This requirement shall be verified by examination of the instructions for use. 5 Performance requirements 5.1 Verification of performance When tested in accordance with EN 16263-4:2015, 5.10, each pyrotechnic article shall function completely and attain the performance characteristics specified by the manufacturer. SIST EN 16263-2:2015



EN 16263-2:2015 (E) 8 The articles that have been exposed to mechanical conditioning (EN 16263-4:2015, 5.7) and/or mechanical impact test (EN 16263-4:2015, 5.8 – see list in 5.4 of this standard) and to thermal conditioning (EN 16263-4:2015, 5.9.2.1) shall function safely and completely. When a use by date is specified by the manufacturer and is greater than two years after the manufacturing of the article, its correct functioning at the 'use by' date shall be demonstrated by the manufacturer: — either by results of firings of articles at the 'use by' date where available; — or by function test in accordance with EN 16263-4:2015, 5.10, after extension of the thermal conditioning test over a period of time that shall be determined from the 'use by' date according to EN 16263-4:2015, 5.9.2.4. 5.2 Verification of design When tested in accordance with EN 16263-4:2015, 5.2 and 5.3, the pyrotechnic article shall be in accordance with the ma
...
