SIST EN 15388:2020

Agglomerated stone - Slabs and cut-to-size products for vanity and kitchen tops

This document specifies requirements and appropriate test methods for slabs and cut-to-size products of agglomerated stone which are made for use as vanity and kitchen tops, or other similar use in furnishing (e.g. splash zone).
NOTE   "Agglomerated stones" are commercially termed "engineered-stones".
This document does not cover secondary operations including site installation.

Künstlich hergestellter Stein - Platten und auf Maß geschnittene Produkte für Sanitärbereichs- und Küchenarbeitsflächen

Dieses Dokument legt Anforderungen an und entsprechende Prüfverfahren für Platten und auf Maß ge-schnittene Produkte aus künstlich hergestelltem Stein fest, die als Sanitärbereichs  und Küchenarbeits-flächen oder für ähnliche Einrichtungsgegenstände (z. B. Spritzwasserzone) verwendet werden.
ANMERKUNG   Die Handelsbezeichnung für „künstlich hergestellte Steine“ ist „Kunststeine“.
Dieses Dokument behandelt keine sekundären Arbeitsgänge einschließlich des Einbaus auf der Baustelle.

Pierre reconstituée - Plaques et produits coupés sur mesure pour tables de toilette et plans de travail de cuisine

Le présent document spécifie les exigences et méthodes d'essai appropriées relatives aux dalles et produits coupés sur mesure en pierre agglomérée destinés à être utilisés pour des tables de toilette et plans de travail de cuisine ou d'autres utilisations analogues dans l'ameublement (par exemple, zone d'éclaboussure).
NOTE   Les « pierres agglomérées » sont commercialisées sous le nom de « pierres reconstituées ».
Le présent document ne couvre pas les opérations secondaires, dont la pose.

Aglomeriran kamen - Plošče, kopalniški elementi in kuhinjski pulti, izdelani po meri

General Information

• Status: Published
• Public Enquiry End Date: 19-May-2019
• Publication Date: 30-Mar-2020
• ICS: 91.100.15 - Mineral materials and products
• Technical Committee: IKER - Ceramics
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 05-Mar-2020
• Due Date: 10-May-2020
• Completion Date: 31-Mar-2020
• Ref Project: EN 15388:2020 - Agglomerated stone - Slabs and cut-to-size products for vanity and kitchen tops

Relations

• Replaces: SIST EN 15388:2008 - Agglomerated stone - Slabs and cut-to-size products for vanity and kitchen tops
• Effective Date: 01-May-2020

Overview

EN 15388:2020 - Agglomerated stone - Slabs and cut-to-size products for vanity and kitchen tops (CEN) defines the requirements and test methods for agglomerated stone (commercially known as engineered-stone) slabs and cut-to-size products intended for vanity and kitchen tops and similar furnishing uses (e.g., splash zones). It supersedes EN 15388:2008 and applies to factory-produced slabs and panels; secondary operations and site installation are excluded.

Key topics and technical requirements

• Scope and terminology: Defines product types (rough slab, slab, cut-to-size product) and refers to EN 14618 for terminology and classification.
• Dimensions and tolerances: Manufacturers declare dimensions; standard sets typical tolerances (examples include thickness tolerance ≈ ±1.2 mm, squareness ≈ ±0.2%, flatness/curvature limits ≈ ±0.2%). Cut-to-size dimensions are referenced to templates or drawings.
• Surface finish: Surface finishes must be uniform over at least 90% of the visible surface. Acceptable finishes include sandblasted, fine-ground, honed, highly polished and structured surfaces. Gloss levels for polished finishes should be declared by the manufacturer.
• Backside and edge requirements: Unexposed backs must have a regular appearance; calibrated backs have a maximum roughness limit (≤ 0.5 mm). Edge tolerances are to be specified on drawings.
• Declared product characteristics and tests: When required or contracted, the following properties shall be determined and declared using referenced EN test methods:
  • Reaction to fire (EN 13501-1)
  • Apparent density and water absorption (EN 14617‑1)
  • Flexural tensile (bending) strength (EN 14617‑2)
  • Thermal shock resistance (EN 14617‑6)
  • Impact resistance (EN 14617‑9)
  • Chemical resistance (EN 14617‑10)
  • Linear thermal expansion (EN 14617‑11)
• Contact with food: For kitchen tops, occasional contact with food is anticipated; polished and washable surfaces do not promote bacterial growth if maintained. Anti-bacterial additives require laboratory testing.
• Marking and labelling: Each consignment must identify classification per EN 14618, maximum grain size and declared surface finish.

Applications and users

Who uses EN 15388:2020:

• Manufacturers of engineered-stone slabs and cut-to-size kitchen/vanity tops (product specification & quality control)
• Fabricators and fabricating workshops (production tolerances, surface finish control)
• Specifiers, architects, interior designers (material selection, performance requirements)
• Suppliers and distributors (product labelling and documentation)
• Test laboratories and conformity assessors (type testing and factory production control)

Practical benefits: ensures consistent product quality, facilitates contractual specification, supports compliance with fire and hygiene requirements, and helps designers select suitable engineered-stone for kitchens and bathrooms.

Related standards

• EN 14617 series (agglomerated stone test methods)
• EN 14618 (terminology and classification)
• EN 13373 (geometric characteristics)
• EN 13501-1 (reaction to fire)
• EN 15285, EN 15286 (other agglomerated stone product standards)

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2020
Nadomešča:
SIST EN 15388:2008
Aglomeriran kamen - Plošče, kopalniški elementi in kuhinjski pulti, izdelani po
meri
Agglomerated stone - Slabs and cut-to-size products for vanity and kitchen tops
Künstlich hergestellter Stein - Platten und auf Maß geschnittene Produkte für
Sanitärbereichs- und Küchenarbeitsflächen
Pierre reconstituée - Plaques et produits coupés sur mesure pour tables de toilette et
plans de travail de cuisine
Ta slovenski standard je istoveten z: EN 15388:2020
ICS:
91.100.15 Mineralni materiali in izdelki Mineral materials and
products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 15388
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2020
EUROPÄISCHE NORM
ICS 91.100.15 Supersedes EN 15388:2008
English Version
Agglomerated stone - Slabs and cut-to-size products for
vanity and kitchen tops
Pierre agglomérée - Dalles et produits coupés sur Künstlich hergestellter Stein - Platten und auf Maß
mesure pour tables de toilette et plans de travail de geschnittene Produkte für Sanitärbereichs- und
cuisine Küchenarbeitsflächen
This European Standard was approved by CEN on 6 January 2020.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15388:2020 E
worldwide for CEN national Members.

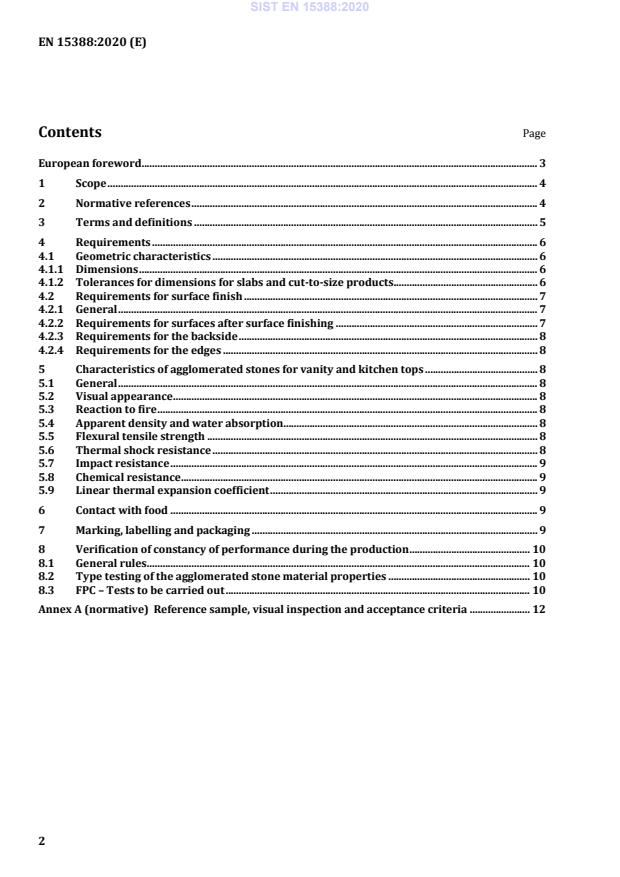

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Requirements . 6
4.1 Geometric characteristics . 6
4.1.1 Dimensions . 6
4.1.2 Tolerances for dimensions for slabs and cut-to-size products . 6
4.2 Requirements for surface finish . 7
4.2.1 General . 7
4.2.2 Requirements for surfaces after surface finishing . 7
4.2.3 Requirements for the backside . 8
4.2.4 Requirements for the edges . 8
5 Characteristics of agglomerated stones for vanity and kitchen tops . 8
5.1 General . 8
5.2 Visual appearance . 8
5.3 Reaction to fire . 8
5.4 Apparent density and water absorption. 8
5.5 Flexural tensile strength . 8
5.6 Thermal shock resistance . 8
5.7 Impact resistance . 9
5.8 Chemical resistance . 9
5.9 Linear thermal expansion coefficient . 9
6 Contact with food . 9
7 Marking, labelling and packaging . 9
8 Verification of constancy of performance during the production . 10
8.1 General rules . 10
8.2 Type testing of the agglomerated stone material properties . 10
8.3 FPC – Tests to be carried out . 10
Annex A (normative) Reference sample, visual inspection and acceptance criteria . 12

European foreword
This document (EN 15388:2020) has been prepared by Technical Committee CEN/TC 246 “Natural
stones”, the secretariat of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2020, and conflicting national standards shall
be withdrawn at the latest by September 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 15388:2008.
This document is one of a series of standards for specifications of agglomerated stone products which
includes the following:
— EN 15285, Agglomerated stone — Modular tiles for flooring and stairs (internal and external),
— EN 15286, Agglomerated stone — Slabs and tiles for wall finishes (internal and external).
The significant changes between this document and the previous edition are listed below:
— addition of the note to Clause 1;
— updating of Clauses 2, 5.3, 6;
— deletion of old Clause 7;
— updating of Tables 1 and 2;
— updating of Annex A.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
1 Scope
This document specifies requirements and appropriate test methods for slabs and cut-to-size products
of agglomerated stone which are made for use as vanity and kitchen tops, or other similar use in
furnishing (e.g. splash zone).
NOTE “Agglomerated stones” are commercially termed “engineered-stones”.
This document does not cover secondary operations including site installation.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 13373, Natural stone test methods - Determination of geometric characteristics on units
EN 13501-1, Fire classification of construction products and building elements - Part 1: Classification using
data from reaction to fire tests
EN 14617-1, Agglomerated stone - Test methods - Part 1: Determination of apparent density and water
absorption
EN 14617-2, Agglomerated stone - Test methods - Part 2: Determination of flexural strength (bending)
EN 14617-6, Agglomerated stone - Test methods - Part 6: Determination of thermal shock resistance
EN 14617-9, Agglomerated stone - Test methods - Part 9: Determination of impact resistance
EN 14617-10, Agglomerated stone - Test methods - Part 10: Determination of chemical resistance
EN 14617-11, Agglomerated stone - Test methods - Part 11: Determination of linear thermal expansion
coefficient
EN 14617-16, Agglomerated stone - Test methods - Part 16: Determination of dimensions, geometric
characteristics and surface quality of modular tiles
EN 14618, Agglomerated stone - Terminology and classification
EN ISO 11664-2, Colorimetry - Part 2: CIE standard illuminants (ISO 11664-2)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 14618 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• ISO Online browsing platform: available at https://www.iso.org/obp
• IEC Electropedia: available at http://www.electropedia.org/
3.1
rough slab
semi-finished agglomerated stone product with edges obtained either by sawing from a block or by
moulding, the size of which is given by nominal dimensions (length - width - thickness, in this order),
expressed in millimetres and the surface of which may or may not be the finished surface
Note 1 to entry: Examples are given in Figure 1.

Key
R1 surface roughness
Figure 1 — Examples of rough slabs
3.2
slab
finished agglomerated product obtained from rough slabs, the dimensions of which are given by length -
width - thickness (in this order), expressed in millimetres according to defined tolerances and the surface
of which is a finished surface ready to use
3.3
cut-to-size product
finished agglomerated product obtained from a rough slab or a slab, the dimensions of which need to be
referred to in a template or a drawing
Note 1 to entry: Examples are given in Figure 2.

Figure 2 — Examples of cut-to-size products
4 Requirements
4.1 Geometric characteristics
4.1.1 Dimensions
The dimensions (len
...
