SIST EN 12560-4:2002

(Main)

Flanges and their joints - Gaskets for Class-designated flantes - Part 4: Corrugated, flat or grooved metallic and filled metallic gaskets for use with steel flanges

Flanges and their joints - Gaskets for Class-designated flantes - Part 4: Corrugated, flat or grooved metallic and filled metallic gaskets for use with steel flanges

This standard specifies the dimensions, types, design and marking requirements of corrugated, flat or grooved metallic filled metallic gaskets for use in conjunction with flanges complying with EN 1759-1 for Class designations 150, 300, 600, 900 and 1500 for sizes up to and including NPS 24 (DN600), and for Class designation 2500 for nominal size designations up to and including NPS 12 (DN300).

Flansche und ihre Verbindungen - Dichtungen für Flansche mit Class-Bezeichnung - Teil 4: Dichtungen aus Metall mit gewelltem, flachem oder gekerbtem Profil für Stahlflansche

Diese Norm legt die Masse und Kennzeichnung von Dichtungen ohne Schraubenlöcher(Dichtung innerhalb des Lochkreisdurchmessers) aus Metall mit gewelltem, flachemoder gekerbtem Profil für Flansche nach prEN 1759-1 fest für Class 150, 300, 600, 900 und 1500 bis NPS 24 für Class 2500 bis NPS 12.

Brides et leurs assemblages - Joints pour les brides désignées Class - Partie 4: Joints métalliques ondulés, plat ou striés et joints métalloplastiques pour utilisation avec des brides en acier

La présente norme prescrit les dimensions et le marquage des joints métallique et métalloplastiques ondulés, plats ou striés de type inscrits (IBC), utilisés conjointement avec les brides conformes a la norme EN 1759-1, pour désignations Class 150, Class 300, Class 600, Class 900 et Class 1500 et des désignations NPS jusqu'a et y compris 24, et pour la dimension Class 2500 jusqu'a et y compris NPS 12.

Prirobnice in prirobnični spoji - Tesnila za prirobnice z oznako Class - 4. del: Valovita, ravna ali rebrasta kovinska tesnila za jeklene prirobnice

General Information

Status
Published
Publication Date
30-Apr-2002
ICS
23.040.60 - Flanges, couplings and joints
23.040.80 - Seals for pipe and hose assemblies
Technical Committee
TLP - Pressure vessels
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-May-2002
Due Date
01-May-2002
Completion Date
01-May-2002
Directive
97/23/EC - Directive 97/23/EC of the European Parliament and of the Council of 29 May 1997 on the approximation of the laws of the Member States concerning pressure equipment
Mandate
M/071 - Mandate to CEN for standardization in the field of Pressure equipment
Ref Project
EN 12560-4:2001 - Flanges and their joints - Gaskets for Class-designated flantes - Part 4: Corrugated, flat or grooved metallic and filled metallic gaskets for use with steel flanges

Buy Standard

EN 12560-4:2002EN 12560-4:2002
PreviousNext
Standard
EN 12560-4:2002
English language
14 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

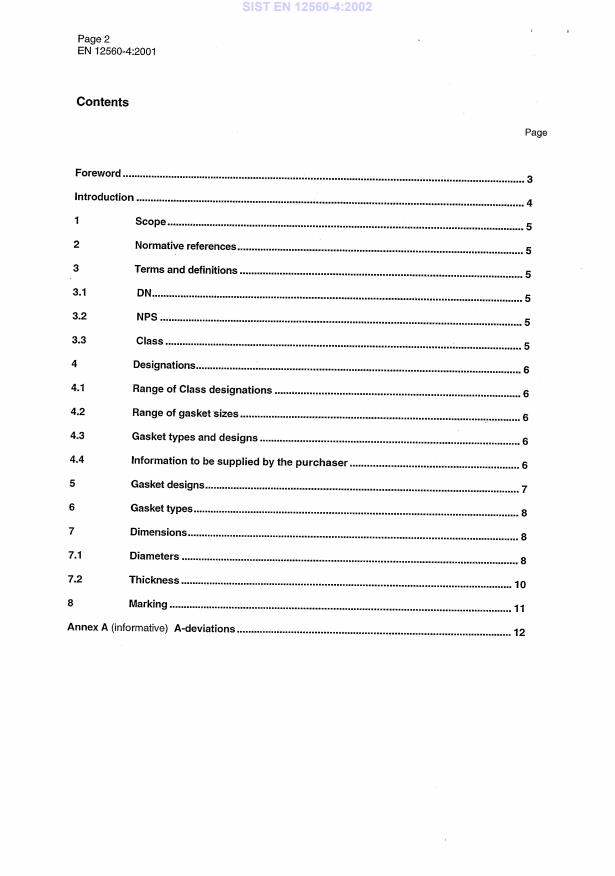

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.FHFlansche und ihre Verbindungen - Dichtungen für Flansche mit Class-Bezeichnung - Teil 4: Dichtungen aus Metall mit gewelltem, flachem oder gekerbtem Profil für StahlflanscheBrides et leurs assemblages - Joints pour les brides désignées Class - Partie 4: Joints métalliques ondulés, plat ou striés et joints métalloplastiques pour utilisation avec des brides en acierFlanges and their joints - Gaskets for Class-designated flantes - Part 4: Corrugated, flat or grooved metallic and filled metallic gaskets for use with steel
...
