SIST EN 301 080 V1.1.1:2003

• Abstract:

  This ETS will cover point to multipoint Digital Radio Relay Systems (DRRS) in the band 3 to 11 GHz using Frequency Division Multiple Access (FDMA) techniques. The frequency bands and channel spacing will also be identified.

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.040.20 - Transmission systems
• ICS: 33.060.30 - Radio relay and fixed satellite communications systems
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI EN 301 080 V1.1.1 (1999-02) - Transmission and Multiplexing (TM); Digital Radio Relay Systems (DRRS); Frequency Division Multiple Access (FDMA); Point-to-multipoint DRRS in the bands allocated to the fixed service in the range from 3 GHz to 11 GHz

SIST EN 301 080 V1.1.1:2003 is the SIST adoption of ETSI EN 301 080 V1.1.1 for point-to-multipoint Digital Radio Relay Systems (DRRS) using Frequency Division Multiple Access (FDMA) in the fixed-service bands from 3 GHz to 11 GHz. It sets minimum technical requirements for the radio system, its interfaces, spectrum use, environmental conditions, synchronization, and radio performance. It is aimed at manufacturers, operators, integrators, and test laboratories that need to design, specify, or verify these access links.

What does SIST EN 301 080 V1.1.1:2003 specify?

SIST EN 301 080 V1.1.1:2003 specifies the minimum requirements for FDMA point-to-multipoint DRRS in the terrestrial Fixed Service (FS) from 3 GHz to 11 GHz. It focuses on radio terminal and radio-relay equipment used to connect subscriber sites to public or private networks.

Clause 1 sets the scope, Clause 2 lists references, Clause 3 defines terms and abbreviations, Clauses 4 and 5 cover general characteristics and system parameters, and Clause 6 lists interface types at the subscriber equipment and network node. The foreword also states that equipment from different manufacturers is not expected to interwork at radio frequency, so this is not a common-air-interface standard.

Table 1 identifies the main CEPT/ERC band plans used for P-MP operation in this range, including the 3.4-3.6 GHz band and the paired 10.15-10.3/10.50-10.65 GHz bands. Table 2 links channel spacing to minimum CRS transmission capacity for different modulation states.

What are the key requirements of SIST EN 301 080 V1.1.1:2003?

Spectrum, channel arrangements and deployment

Clause 4.2 requires the system to fit at least one of the channel arrangements in Table 2, and it allows equivalent modulation schemes if the same capacity is achieved. In practice, this is the planning step: the vendor or operator must choose a channel spacing and modulation set that match the wanted capacity and the licensed spectrum.

Clause 4.3 says there is no requirement for a CRS from one manufacturer to operate with TS and RS equipment from another manufacturer. That means procurement must treat the full radio chain as a matched system unless a supplier declares otherwise.

Installation, power, EMC, synchronization and antennas

Clause 4.4 ties environmental robustness to ETS 300 019 classes, with the manufacturer declaring the class the equipment is designed for. Clause 4.5 requires the power supply interface to follow ETS 300 132, and Clause 4.6 applies ETS 300 385 provisionally for EMC. For buyers, this means indoor/outdoor siting, power feed, and EMC test basis must be stated and checked.

Clause 4.7 requires TMN interfaces, if present, to follow ITU-T G.773. Clause 4.8 requires synchronization methods for digital interfaces and points to ITU-T G.810, G.812, G.823, G.813, and G.825 depending on whether the system uses PDH or SDH interfaces. Clause 4.9A links antenna choice to ETS 300 833 or EN 302 085. In practice, the clocking, jitter, wander, and antenna type all have to match the network design and hop length.

Transmitter, receiver and spectrum limits

Clause 5.1 defines system capacity as the CRS payload bit rate supported over the air, and the manufacturer has to declare the maximum number of simultaneous carriers. Clause 5.2 limits round trip delay for a 64 kbit/s traffic channel to 20 ms, which matters for voice quality and call handling.

Clauses 5.5 and 5.6 set the radio-frequency limits. The maximum mean transmitter output power is capped, ATPC is optional but must be declared if used, and the standard gives spectrum masks, RF tolerance, and spurious emission limits for CRS, TS and RS equipment. These clauses are the main radio conformance checks in type testing.

Performance under load and interference

Clause 5.7 requires the system to maintain BER performance, dynamic level range, BBER, and interference immunity under declared load conditions. Separate thresholds are given for system types A and B, so test results must match the declared system type and modulation order.

Clause 5.7 also covers co-channel and adjacent-channel interference and includes a CW spurious interference check. For users, this is where link robustness, frequency planning, and coexistence with nearby systems are verified.

Clause 5.3 requires transparency, and Clause 5.4 lists voice coding methods such as G.711, G.726, G.728 and G.729. Clause 6 says at least one subscriber or network interface from the listed set has to be implemented.

What terms does SIST EN 301 080 V1.1.1:2003 define?

• Full Capacity Load (FCL) - the maximum number of 64 kbit/s signals or equivalent that a CRS can carry within a specified RF bandwidth while still meeting the stated performance and availability objectives.
• round trip delay - the total delay from point F to G and back from G to F, including repeaters where used.
• nominal output power - the maximum output power of the CRS, TS or RS, referred to point C', as declared by the manufacturer under FLC.
• Central Radio Station (CRS) - the central base station that contains the radio transceiver equipment and connects to the Terminal Station over the air.
• Terminal Station (TS) - the customer-site station that provides the subscriber interfaces.
• Repeater Station (RS) - a station used to extend coverage or route the link, and it may also provide subscriber interfaces.
• Automatic Transmit Power Control (ATPC) - a power-control feature that adjusts transmitted power automatically or under declared control ranges.

Who uses SIST EN 301 080 V1.1.1:2003?

Manufacturers use SIST EN 301 080 V1.1.1:2003 to design CRS, TS and RS equipment and to declare power, spectrum, timing, and interface characteristics. Network operators and planners use it to select band plans, channel spacing, antenna type, and the interface mix needed for access networks. Test laboratories and quality teams use it for conformance testing, radio performance checks, and acceptance of environmental, EMC, and synchronization requirements.

Which standards are used with SIST EN 301 080 V1.1.1:2003?

• ETS 300 019, ETS 300 132, ETS 300 385 - environmental classes, power supply interface, and EMC conditions.
• ITU-T G.773, G.810, G.812, G.823, G.813, G.825 - TMN interfaces and synchronization, jitter, and wander requirements.
• ETS 300 833 and EN 302 085 - antenna requirements for point-to-point and point-to-multipoint use.
• ITU-T G.703, G.711, G.726, G.728, G.729, O.151, O.181, G.131 - digital interface characteristics, voice coding, test equipment, and talker-echo control.
• ITU-R F.696-2, F.697-2, F.1189-1, ITU-T G.821, G.826 - error performance and availability objectives used for the system targets.
• Q.552, Q.553, R.20, G.961, G.962, G.707, G.964, G.965, G.957, ETS 300 012, ETS 300 011, ETS 300 324, ETS 300 347 - subscriber and network interface options such as analogue, ISDN, SDH and V5.x.

What does the SIST EN 301 080 V1.1.1:2003 document contain?

The document contains the system architecture in Figure 1 and the RF reference-point block diagram in Figure 2. It also includes channel plan and channel arrangement tables, antenna and environmental requirements, transmitter and receiver spectrum masks, RF tolerance and spurious emission limits, BER threshold tables for two system types, and interference sensitivity tables.

Clause 6 and Table 13 map subscriber and network interface types to the relevant ITU-T and ETS standards. The formulas in Clause 5.7.2 are used to calculate receive-level thresholds at other bit rates, and the test settings table for spectrum-mask measurement supports laboratory conformance work.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.*+]Transmission and Multiplexing (TM); Digital Radio Relay Systems (DRRS); Frequency Division Multiple Access (FDMA); Point-to-multipoint DRRS in the bands allocated to the fixed service in the range from 3 GHz to 11 GHz33.060.30Radiorelejni in fiksni satelitski komunikacijski sistemiRadio relay and fixed satellite communications systems33.040.20Prenosni sistemTransmission systemsICS:Ta slovenski standard je istoveten z:EN 301 080 Version 1.1.1SIST EN 301 080 V1.1.1:2003en01-december-2003SIST EN 301 080 V1.1.1:2003SLOVENSKI
STANDARD
EN 301 080 V1.1.1 (1999-02)European Standard (Telecommunications series)Transmission and Multiplexing (TM);Digital Radio Relay Systems (DRRS);Frequency Division Multiple Access (FDMA);Point-to-multipoint DRRS in the bands allocated to thefixed service in the range from 3 GHz to 11 GHzSIST EN 301 080 V1.1.1:2003

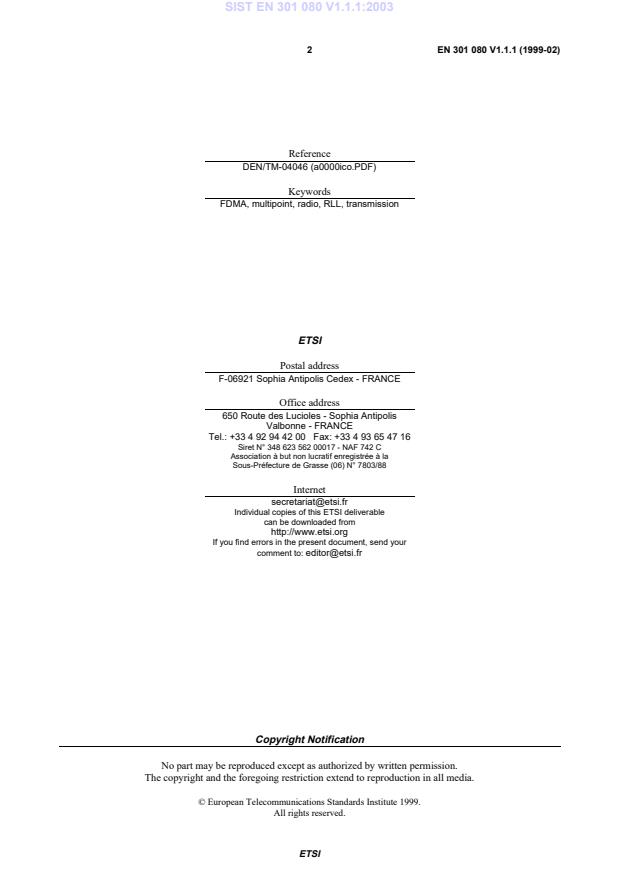

ETSIEN 301 080 V1.1.1 (1999-02)2ReferenceDEN/TM-04046 (a0000ico.PDF)KeywordsFDMA, multipoint, radio, RLL, transmissionETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: [phone]
