Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 4708-001:2019
01-september-2019
Nadomešča:
SIST EN 4708-001:2014
Aeronavtika - Toplotno skrčljiva cev za utrjevanje, izolacijo in identifikacijo - 001.
del: Tehnična specifikacija
Aerospace series - Sleeving, heat-shrinkable, for binding, insulation and identification -
Part 001: Technical specification
Luft- und Raumfahrt - Wärmeschrumpfender Schlauch zur Befestigung, Isolierung und
Identifizierung - Teil 001: Technische Lieferbedingungen
Série aérospatiale - Manchons thermorétractables, de jonction, isolement et identification
- Partie 001 : Spécification technique
Ta slovenski standard je istoveten z: EN 4708-001:2019
ICS:
49.025.40 Guma in polimerni materiali Rubber and plastics
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
SIST EN 4708-001:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 4708-001:2019

---------------------- Page: 2 ----------------------

SIST EN 4708-001:2019


EN 4708-001
EUROPEAN STANDARD

NORME EUROPÉENNE

June 2019
EUROPÄISCHE NORM
ICS 49.060 Supersedes EN 4708-001:2014
English Version

Aerospace series - Sleeving, heat-shrinkable, for binding,
insulation and identification - Part 001: Technical
specification
Série aérospatiale - Manchons thermorétractables, de Luft- und Raumfahrt - Wärmeschrumpfender Schlauch
jonction, isolement et identification - Partie 001 : zur Befestigung, Isolierung und Identifizierung - Teil
Spécification technique 001: Technische Lieferbedingungen
This European Standard was approved by CEN on 8 July 2018.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.





EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4708-001:2019 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN 4708-001:2019
EN 4708-001:2019 (E)

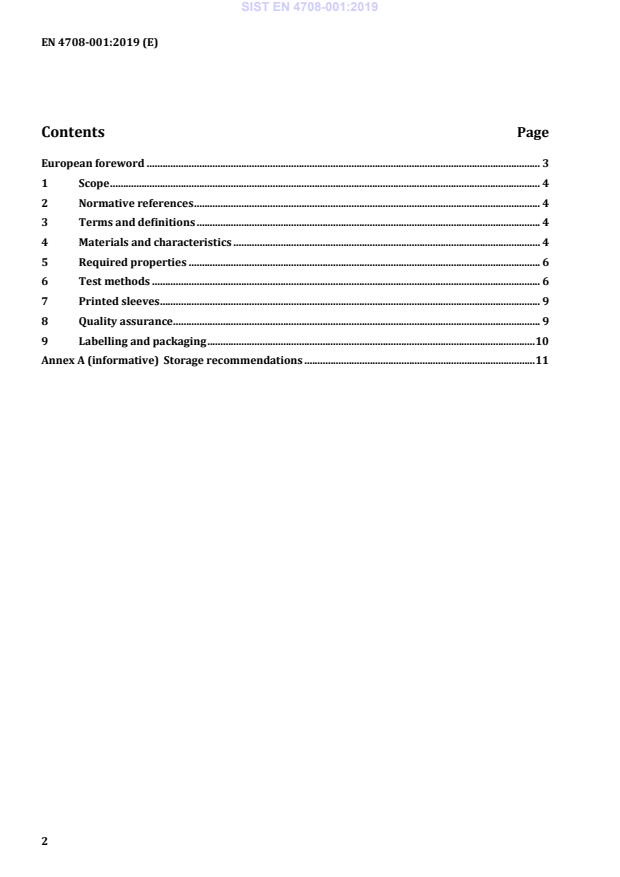

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Materials and characteristics . 4
5 Required properties . 6
6 Test methods . 6
7 Printed sleeves . 9
8 Quality assurance . 9
9 Labelling and packaging . 10
Annex A (informative) Storage recommendations . 11
2

---------------------- Page: 4 ----------------------

SIST EN 4708-001:2019
EN 4708-001:2019 (E)
European foreword
This document (EN 4708-001:2019) has been prepared by the Aerospace and Defence Industries
Association of Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by December 2019, and conflicting national standards shall
be withdrawn at the latest by December 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 4708-001:2014.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
3

---------------------- Page: 5 ----------------------

SIST EN 4708-001:2019
EN 4708-001:2019 (E)
1 Scope
This document specifies the required characteristics, test methods, qualification and production routine
testing of Heat shrinkable sleeving for binding, insulation and identification.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 3475-100, Aerospace series — Cables, electrical, aircraft use — Test methods — Part 100: General
EN 6059-403, Aerospace series — Electrical cables, installation — Protection sleeves — Test methods —
Part 403: Scrape abrasion
EN 9133, Aerospace series — Quality management systems — Qualification procedure for aerospace
standard parts
EN ISO 846, Plastics — Evaluation of the action of microorganisms
EN ISO 4892-2, Aerospace series — Methods of exposure to laboratory light sources — Part 2: Xenon-arc
lamps
1)
IEC 60304, Standard colours for insulation for low-frequency cables and wires
1)

IEC 60684-2, Flexible insulating sleeving — Part 2: Methods of test
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 3475-100 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Materials and characteristics
Sleeving shall be made from materials that ensure the finished sleevings conform to the product standard.
4.1 Material types
See product standards.
4.2 Finish
The sleeving, both before and after unrestricted shrinkage, shall be free from bubbles, pinholes, creases
and other defects that may affect performance.

1) Published by: International Electrotechnical Commission (IEC), http://www.iec.ch/
4

---------------------- Page: 6 ----------------------

SIST EN 4708-001:2019
EN 4708-001:2019 (E)
4.3 Dimensions
See product standard.
4.4 Shrink ratio
See product standard.
4.5 Temperature range
See product standard.
4.6 Shelf life
The use by date is the shelf life when stored under the conditions recommended in Annex A.
The use by date shall be the guaranteed minimum storage time for which the sleeving retains the “as
supplied” internal diameter. Following unrestricted shrinkage in accordance with the product standard,
the sleeving shall conform to the internal diameter and wall thickness requirements as specified in the
product standard.
In the event that the shelf life specimens fail the requirements of the product standard, delivery of any
product still held by the manufacturer or distributors shall be halted until samples of each batch in
storage are tested to confirm that they satisfy the original recovery qualification requirements, after
which release can be resumed. In the event of failure the Approval Authority is to be notified.
4.7 Colours
See product standards for available colours. The colours shall be a reasonable match to one of those
specified in IEC 60304.
4.8 Standard cutting tolerances for cut lengths of sleeving
See Table 1.
Table 1 — Standard cutting tolerances for cut lengths of sleeving
Cut length Standard cutting tolerances
mm
0 to 9,9 ± 0,5
10 to 24,9 ± 1,0
25 to 49,9 ± 1,5
50 to 100 ± 3,0
101 to 150 ± 4,0
151 to 250 ± 5,0
251 to 1 200 ± 12,0
1 201 and over ± 1 %

5

---------------------- Page: 7 ----------------------

SIST EN 4708-001:2019
EN 4708-001:2019 (E)
5 Required properties
The properties of the sleevings, tested according to the methods described hereafter shall comply
...
