SIST EN 61747-10-1:2014

Liquid crystal display devices - Part 10-1: Mechanical test methods

IEC 61747-10-1:2013 lists test methods applicable to liquid crystal display devices. It takes into account, wherever possible, the mechanical robustness test methods as outlined in IEC 60068. The object of this standard is to establish uniform preferred test methods with preferred values for stress levels for judging the mechanical properties of liquid crystal display devices. This first edition of IEC 61747-10-1 cancels and replaces Clauses 1 and 2 of the first edition of IEC 61747-5 published in 1998. This edition constitutes a technical revision.

Flüssigkristall-Anzeige-Bauelemente – Teil 10-1: Umwelt-, Lebensdauer- und mechanische Prüfverfahren – Mechanisch

Dispositifs d'affichage à cristaux liquides - Partie 10-1: Méthodes d'essais mécaniques

La CEI 61747-10-1:2013 répertorie les méthodes d'essais applicables aux dispositifs d'affichage à cristaux liquides. Elle prend en compte, dans la mesure du possible, les méthodes d'essais de robustesse mécanique telles qu'elles sont indiquées dans la CEI 60068. L'objet de la présente norme est d'établir des méthodes d'essais préférentielles uniformes indiquant des valeurs préférentielles pour les niveaux de contraintes, permettant d'estimer les propriétés mécaniques des dispositifs d'affichage à cristaux liquides. Cette première édition de la CEI 61747-10-1 annule et remplace les Articles 1 et 2 de la première édition de la CEI 61747-5 parue en 1998. Cette édition constitue une révision technique.

Prikazovalniki s tekočimi kristali - 10-1. del: Mehanske preskusne metode

Ta del standarda IEC 61747 določa preskusne metode za prikazovalnike s tekočimi kristali. Kadar je to mogoče, upošteva mehanske metode za preskus robustnosti, kot je navedeno v standardu IEC 60068. Cilj tega standarda je vzpostaviti enotne priporočene preskusne metode s prednostnimi vrednostmi za stopnje odpornosti pri ocenjevanju mehanskih lastnosti prikazovalnikov s tekočimi kristali. V primeru neskladij med tem standardom in ustrezno specifikacijo ima prednost specifikacija.

General Information

• Status: Published
• Publication Date: 05-Dec-2013
• ICS: 31.120 - Electronic display devices
• Technical Committee: I11 - Imaginarni 11
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 25-Nov-2013
• Due Date: 30-Jan-2014
• Completion Date: 06-Dec-2013
• Ref Project: EN 61747-10-1:2013 - Liquid crystal display devices - Part 10-1: Environmental, endurance and mechanical test methods – Mechanical

Relations

• Replaces: SIST EN 61747-5:2002 - Liquid crystal and solid-state display devices -- Part 5: Environmental, endurance and mechanical test methods
• Effective Date: 20-Aug-2013
• Refers: SIST EN 12228:2003 - Surfaces for sports areas - Determination of joint strength of synthetic surfaces
• Effective Date: 09-Feb-2026
• Refers: SIST EN 60068-1:2014 - Environmental testing - Part 1: General and guidance
• Effective Date: 03-Feb-2026
• Refers: SIST EN 60068-2-7:2001 - Environmental testing -- Part 2: Tests - Test Ga: Acceleration, steady state
• Effective Date: 03-Feb-2026
• Refers: SIST EN 60068-1:2001 - Environmental testing -- Part 1: General and guidance
• Effective Date: 03-Feb-2026
• Refers: SIST EN 61747-1:2002 - Liquid crystal and solid-state display devices -- Part 1: Generic specification
• Effective Date: 03-Feb-2026
• Refers: SIST EN 60068-2-27:2009 - Environmental testing -- Part 2-27: Tests - Test Ea and guidance: Shock
• Effective Date: 03-Feb-2026
• Refers: SIST EN 60068-4:2001 - Environmental testing -- Part 4: Information for specification writers - Test summaries
• Effective Date: 03-Feb-2026
• Refers: SIST EN 60749-14:2004 - Semiconductor devices - Mechanical and climatic test methods -- Part 14: Robustness of terminations (lead integrity)
• Effective Date: 03-Feb-2026
• Refers: SIST EN 60068-2-6:2008 - Environmental testing - Part 2-6: Tests - Test Fc: Vibration (sinusoidal)
• Effective Date: 03-Feb-2026
• Refers: SIST EN IEC 60068-2-21:2021 - Environmental testing - Part 2-21: Tests - Test U: Robustness of terminations and integral mounting devices
• Effective Date: 03-Feb-2026
• Refers: SIST EN IEC 60068-2-20:2021 - Environmental testing - Part 2-20: Tests - Test T: Test methods for solderability and resistance to soldering heat of devices with leads
• Effective Date: 03-Feb-2026
• Revised: SIST EN 61747-5:2002 - Liquid crystal and solid-state display devices -- Part 5: Environmental, endurance and mechanical test methods
• Effective Date: 07-Jun-2022

Overview

SIST EN 61747-10-1:2014 defines standardized mechanical test methods for liquid crystal display (LCD) devices. Aligned with IEC 61747-10-1:2013, this European and Slovenian standard specifies methods for evaluating the mechanical robustness and reliability of LCD cells and modules. Its main objective is to establish uniform testing procedures and preferred stress values to judge LCD mechanical properties, promoting product durability and consistent quality across electronic display devices.

This standard integrates key elements from the IEC 60068 series on environmental testing, particularly focusing on vibration, shock, and bonding tests. The adoption of harmonized test approaches accelerates the evaluation of mechanical properties for LCD manufacturers, test labs, and product certification bodies.

Key Topics

• Scope and Uniformity: Lists preferred mechanical test methods and stress values for LCD devices, ensuring accurate assessment of product robustness.
• Referenced Testing Protocols: Utilizes standardized environmental and mechanical test methods from IEC 60068, ensuring international compatibility.
• Test Methods Include:
  • Robustness of Terminations: Covers tensile, bending, torsion, and torque tests for LCD lead terminations.
  • Solderability and Heat Resistance: Details methods for assessing the resistance of display terminations to soldering heat.
  • Vibration Testing: Specifies frequency ranges, vibration amplitudes, point tolerances, and endurance durations.
  • Shock Testing: Outlines shock severity levels and specified directions for comprehensive durability evaluation.
  • Steady-State Acceleration: Defines acceleration levels for ruggedness under constant forces.
  • Bond Strength Test: Evaluates the integrity of flexible flat cable bonds essential for flat panel display reliability.
• Standardized Environmental Conditions: Prescribes temperature, humidity, and pressure ranges for accurate, repeatable measurements.

Applications

Adhering to SIST EN 61747-10-1:2014 is vital for organizations involved in the design, manufacturing, quality assurance, and certification of liquid crystal display devices. Practical applications include:

• Product Development: Ensures LCD modules and panels meet mechanical durability expectations required for different industries, including consumer electronics, industrial automation, and automotive displays.
• Quality Assurance: Offers a clear and uniform reference for validating the mechanical resilience of LCD products before market release.
• Compliance & Certification: Serves as a framework for third-party testing and conformity assessment, boosting confidence in product reliability.
• Procurement Specifications: Provides purchasers and system integrators with standardized references when specifying LCD mechanical robustness requirements.
• Failure Analysis: Guides laboratories in replicating real-world mechanical stresses to assess root causes of field failures or warranty claims.

Related Standards

SIST EN 61747-10-1:2014 works in conjunction with several related international and European standards:

• IEC 60068 Series: Core environmental and mechanical test methods for electronic/electrical equipment.
  • IEC 60068-2-6: Sinusoidal vibration testing.
  • IEC 60068-2-7: Acceleration, steady state.
  • IEC 60068-2-20: Solderability and resistance to soldering heat.
  • IEC 60068-2-21: Robustness of terminations and mounting devices.
  • IEC 60068-2-27: Shock testing.
• IEC 61747 Series: Comprehensive standards for LCD devices including generic specifications and specialized tests.
• IEC 60749-14: Mechanical and climatic test methods for semiconductor device terminations.

By utilizing the methodologies prescribed in SIST EN 61747-10-1:2014, professionals can ensure their liquid crystal display devices are rigorously tested for mechanical integrity, facilitating greater reliability in end-user applications and compliance with international best practices.

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2014
1DGRPHãþD
SIST EN 61747-5:2002
3ULND]RYDOQLNLVWHNRþLPLNULVWDOLGHO0HKDQVNHSUHVNXVQHPHWRGH
Liquid crystal display devices - Part 10-1: Mechanical test methods
Dispositifs d'affichage à cristaux liquides - Partie 10-1: Méthodes d'essais mécaniques
Ta slovenski standard je istoveten z: EN 61747-10-1:2013
ICS:
31.120 Elektronske prikazovalne Electronic display devices
naprave
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61747-10-1
NORME EUROPÉENNE
October 2013
EUROPÄISCHE NORM
ICS 31.120 Supersedes EN 61747-5:1998 (partially)

English version
Liquid crystal display devices -
Part 10-1: Environmental, endurance and mechanical test methods -
Mechanical
(IEC 61747-10-1:2013)
Dispositifs d'affichage à cristaux liquides -  Flüssigkristall-Anzeige-Bauelemente -
Partie 10-1: Méthodes d’essais Teil 10-1: Umwelt-, Lebensdauer- und
d’environnement, d’endurance et mechanische Prüfverfahren -
mécaniques - Mechanisch
Essais mécaniques (IEC 61747-10-1:2013)
(CEI 61747-10-1:2013)
This European Standard was approved by CENELEC on 2013-08-14. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61747-10-1:2013 E

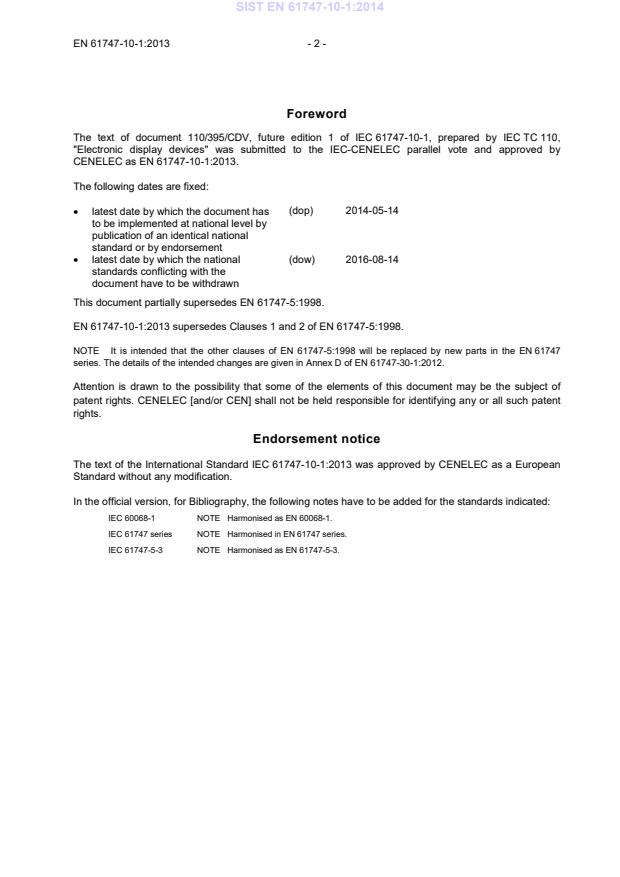

Foreword
The text of document 110/395/CDV, future edition 1 of IEC 61747-10-1, prepared by IEC TC 110,
"Electronic display devices" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN 61747-10-1:2013.
The following dates are fixed:
(dop) 2014-05-14
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-08-14
standards conflicting with the
document have to be withdrawn
This document partially supersedes EN 61747-5:1998.
NOTE It is intended that the other clauses of EN 61747-5:1998 will be replaced by new parts in the EN 61747
series. The details of the intended changes are given in Annex D of EN 61747-30-1:2012.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 61747-10-1:2013 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60068-1 NOTE  Harmonised as EN 60068-1.
IEC 61747 series NOTE  Harmonised in EN 61747 series.
IEC 61747-5-3 NOTE  Harmonised as EN 61747-5-3.

- 3 - EN 61747-10-1:2013
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60068 Series Environmental testing EN 60068 Series

IEC 60068-2-6 - Environmental testing - EN 60068-2-6 -
Part 2-6: Tests - Test Fc: Vibration
(sinusoidal)
IEC 60068-2-7 - Environmental testing - EN 60068-2-7 -
Part 2: Tests. Test Ga: Acceleration, steady
state
IEC 60068-2-20 - Environmental testing - EN 60068-2-20 -
Part 2-20: Tests - Test T: Test methods for
solderability and resistance to soldering heat
of devices with leads
IEC 60068-2-21 - Environmental testing - EN 60068-2-21 -
Part 2-21: Tests - Test U: Robustness of
terminations and integral mounting devices

IEC 60068-2-27 - Environmental testing - EN 60068-2-27 -
Part 2-27: Tests - Test Ea and guidance:
Shock
IEC 60747 Series Semiconductor devices  - -

IEC 60748 Series Semiconductor devices - Integrated circuits - -

IEC 60749-14 - Semiconductor devices - Mechanical and EN 60749-14 -
climatic test methods -
Part 14: Robustness of terminations (lead
integrity)
IEC 61747-1 - Liquid crystal and solid-state display EN 61747-1 -
devices -
Part 1: Generic specification
IEC 61747-10-1 ®
Edition 1.0 2013-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Liquid crystal display devices –

Part 10-1: Environmental, endurance and mechanical test methods – Mechanical

Dispositifs d'affichage à cristaux liquides –

Partie 10-1: Méthodes d’essais d’environnement, d’endurance et mécaniques –

Essais mécaniques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 31.120 ISBN 978-2-8322-0893-9

– 2 – 61747-10-1 © IEC:2013
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and letter symbols . 6
4 Standard atmospheric conditions for measurements and tests: . 6
5 Test methods . 6
5.1 General . 6
5.2 Robustness of terminations . 6
5.2.1 Wire terminations, pins or connectors with pins . 6
5.2.2 Flexible terminations . 7
5.3 Soldering . 7
5.4 Vibration (sinusoidal) . 7
5.4.1 Test Fc . 7
5.4.2 Transverse motion . 7
5.4.3 Distortion . 7
5.4.4 Vibration amplitude tolerance . 7
5.4.5 Severities . 7
5.4.6 Vibration amplitude . 8
5.4.7 Duration of endurance . 8
5.5 Shock . 9
5.6 Acceleration, steady state . 9
5.7 Bond strength test . 10
5.7.1 General . 10
5.7.2 General description of the test . 10
5.7.3 Preconditioning . 10
5.7.4 Initial measurements . 10
5.7.5 Test method (see Figure 1) . 10
5.7.6 Information required in the relevant specification . 11
Bibliography . 12

Figure 1 – Example of bond strength . 11

Table 1 – Frequency range – Lower end . 7
Table 2 – Frequency range – Upper end . 7
Table 3 – Recommended frequency ranges . 8
Table 4 – Recommended vibration amplitudes . 8
Table 5 – Conditions for shock test . 9
Table 6 – Acceleration conditions . 10

61747-10-1 © IEC:2013 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LIQUID CRYSTAL DISPLAY DEVICES –

Part 10-1: Environmental, endurance and
mechanical test methods – Mechanical

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accur
...
