SIST EN ISO 3325:2000/A1:2004

Sintered metal materials, excluding hardmetals - Determination of transverse rupture strength - Amendment 1: Precision statement (ISO 3325:1996/Amd. 1:2001)

Sintermetalle, ausgenommen Hartmetalle - Ermittlung der Biegebruchfestigkeit - Änderung 1: Genauigkeitsangabe (ISO 3325:1996/Amd. 1:2001)

Matériaux métalliques frittés a l'exclusion des métaux-durs - Détermination de la résistance a la rupture transversale - Amendement 1: Données concernant la fidélité (ISO 3325:1996/Amd. 1:2001)

Sintrane kovine brez trdin – Določanje prečne lomne trdnosti – Dopolnilo 1: Izjava o natančnosti (ISO 3325:1996/Amd.1:2001)

General Information

• Status: Published
• Publication Date: 31-Aug-2004
• ICS: 77.040.10 - Mechanical testing of metals
• ICS: 77.160 - Powder metallurgy
• Technical Committee: SS SPL - Technical Board for the general field
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Sep-2004
• Due Date: 01-Sep-2004
• Completion Date: 01-Sep-2004
• Ref Project: EN ISO 3325:1999/A1:2002 - Sintered metal materials, excluding hardmetals - Determination of transverse rupture strength - Amendment 1: Precision statement (ISO 3325:1996/Amd. 1:2001)

Relations

• Amends: SIST EN ISO 3325:2000 - Sintered metal materials, excluding hardmetals - Determination of transverse rupture strength (ISO 3325:1996)
• Effective Date: 22-Dec-2008
• Revised: kSIST FprEN ISO 3325:2025 - Sintered metal materials, excluding hardmetals - Determination of transverse rupture strength (ISO/FDIS 3325:2025)
• Effective Date: 19-Jan-2023

Overview

EN ISO 3325:1999/A1:2002 is an amendment to ISO 3325:1996 that adds a precision statement for the determination of transverse rupture strength (TRS) of sintered metal materials, excluding hardmetals. The amendment clarifies expected measurement variability by giving repeatability (r) and reproducibility (R) limits for representative powder‑metallurgy compositions and refers users to additional guidance (MPIF Standard 41:1998).

Key topics

• Scope: TRS testing of sintered metal materials (hardmetals excluded).
• Precision statement: Defines statistical limits for measurement repeatability (same laboratory, same conditions) and reproducibility (between different laboratories) at a 95% expectation level.
• Example data: Table 1 in the amendment provides sample TRS mean values and associated r and R (in N/mm2) for typical compositions, for example:
  • Iron with 0.5% combined carbon - mean TRS ≈ 490 N/mm2, r = 38, R = 97
  • Iron with 2% Cu, 0.8% combined carbon - mean TRS ≈ 990 N/mm2, r = 86, R = 145
  • Heat‑treated iron with 2% Ni, 0.5% combined carbon - mean TRS ≈ 1320 N/mm2, r = 163, R = 279
• Statistical interpretation: Laboratories can expect their repeated measurements to fall within r 95% of the time; results between different labs are expected to agree within R 95% of the time.
• References: Additional material details and test practice are cross‑referenced to MPIF Standard 41:1998.

Applications

• Quality control and acceptance testing of powder‑metallurgy (PM) parts and sintered components.
• Material specification and supplier verification where TRS is a performance criterion.
• R&D and process development to quantify variability of TRS for different alloying and heat‑treatment conditions.
• Interlaboratory test programs and accreditation activities that require documented precision data.

Who uses this standard

• Metallurgical and materials engineers working with sintered metals.
• Third‑party mechanical testing and calibration laboratories.
• Manufacturers of powder‑metallurgy components and component suppliers.
• Standards bodies and QA teams establishing inspection and contract test criteria.

Related standards

• ISO 3325:1996 - original method for determination of transverse rupture strength.
• MPIF Standard 41:1998 - supplementary details for TRS testing of powder‑metallurgy materials.
• EN ISO 3325:1999 - European adoption of ISO 3325 (amended by A1:2002).

Keywords: sintered metal materials, transverse rupture strength, TRS, repeatability, reproducibility, precision statement, ISO 3325, EN ISO 3325:1999/A1:2002, powder metallurgy testing.

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2004
6LQWUDQHNRYLQHEUH]WUGLQ±'RORþDQMHSUHþQHORPQHWUGQRVWL±'RSROQLOR,]MDYD
RQDWDQþQRVWL,62$PG
Sintered metal materials, excluding hardmetals - Determination of transverse rupture
strength - Amendment 1: Precision statement (ISO 3325:1996/Amd. 1:2001)
Sintermetalle, ausgenommen Hartmetalle - Ermittlung der Biegebruchfestigkeit -
Änderung 1: Genauigkeitsangabe (ISO 3325:1996/Amd. 1:2001)
Matériaux métalliques frittés a l'exclusion des métaux-durs - Détermination de la
résistance a la rupture transversale - Amendement 1: Données concernant la fidélité
(ISO 3325:1996/Amd. 1:2001)
Ta slovenski standard je istoveten z: EN ISO 3325:1999/A1:2002
ICS:
77.040.10 Mehansko preskušanje kovin Mechanical testing of metals
77.160 Metalurgija prahov Powder metallurgy
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 3325:1999/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2002
ICS 77.040.10; 77.160
English version
Sintered metal materials, excluding hardmetals - Determination
of transverse rupture strength - Amendment 1: Precision
statement (ISO 3325:1996/Amd. 1:2001)
Matériaux métalliques frittés à l'exclusion des métaux-durs Sintermetalle, ausgenommen Hartmetalle - Ermittlung der
- Détermination de la résistance à la rupture transversale - Biegebruchfestigkeit - Änderung 1: Genauigkeitsangabe
Amendement 1: Données concernant la fidélité (ISO (ISO 3325:1996/Amd. 1:2001)
3325:1996/Amd. 1:2001)
This amendment A1 modifies the European Standard EN ISO 3325:1999; it was approved by CEN on 3 January 2002.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of this
amendment into the relevant national standard without any alteration. Up-to-date lists and bibliographical references concerning such
national standards may be obtained on application to the Management Centre or to any CEN member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2002 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 3325:1999/A1:2002 E
worldwide for CEN national Members.

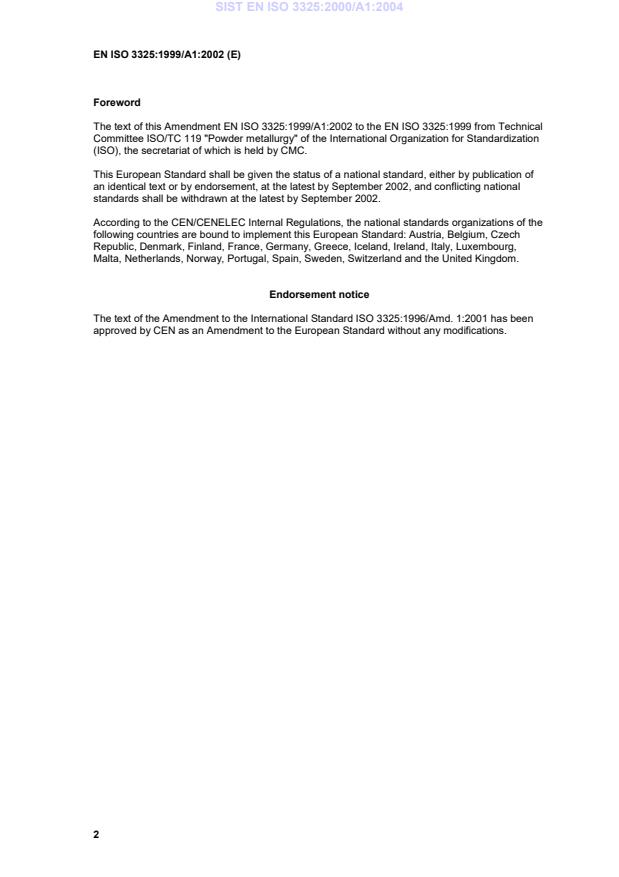

Foreword
The text of this Amendment EN ISO 3325:1999/A1:2002 to the EN ISO 3325:1999 from Technical
Committee ISO/TC 119 "Powder metallurgy" of the International Organization for Standardization
(ISO), the secretariat of which is held by CMC.
This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by September 2002, and conflicting national
standards shall be withdrawn at the latest by September 2002.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Czech
Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg,
Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and the United Kingdom.
Endorsement notice
The text of the Amendment to the International Standard ISO 3325:1996/Amd. 1:2001 has been
approved by CEN as an Amendment to the European Standard without any modifications.
INTERNATIONAL ISO
STANDARD 3325
Second edition
1996-10-31
AMENDMENT 1
2001-02-01
Sintered metal materials, excluding
hardmetals — Determination of transverse
rupture strength
AMENDMENT 1: Precision statement
Matériaux métalliques frittés à l'exclusion des métaux-durs —
Détermination d
...
