Bitumen and bituminous binders - Determination of dynamic viscosity of bitumen and bituminous binders by the cone and plate method

This European Standard specifies a method for determining the dynamic viscosity of a bituminous binder over a range of temperatures by means of a cone and plate viscometer. The test method is intended for all bituminous binders (e.g paving grade bitumen and polymer modified). It is also suitable for recovered bituminous binders according to EN 12697 3 and EN 12697 4 with no or limited amount of filler.
WARNING - The use of this European Standard can involve hazardous materials, operations and equipment. This European Standard does not purport to address all of the safety problems associated with its use. It is the responsibility of the user of this European Standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

Bitumen und bitumenhaltige Bindemittel - Bestimmung der dynamischen Viskosität von Bitumen und bitumenhaltigen Bindemitteln mit dem Platte-Kegel-Verfahren

Diese Europäische Norm legt ein Verfahren zur Bestimmung der dynamischen Viskosität eines bitumenhaltigen Bindemittels über einen bestimmten Temperaturbereich mit einem Platte-Kegel-Viskosimeter fest. Das Verfahren ist für alle bitumenhaltigen Bindemittel (z. B. Straßenbaubitumen und polymermodifizierte Bitumen) vorgesehen. Es eignet sich auch für rückgewonnene bitumenhaltige Bindemittel nach EN 12697 3 und EN 12697 4 mit geringem Fülleranteil oder ganz ohne Füller.
WARNUNG - Die Anwendung dieser Europäischen Norm kann die Anwendung gefährlicher Stoffe, Arbeitsgänge und Geräte mit sich bringen. Diese Europäische Norm beansprucht nicht, alle damit verbundenen Sicherheitsprobleme zu behandeln. Es liegt in der Verantwortung des Anwenders dieser Europäischen Norm, vor ihrer Anwendung geeignete Maßnahmen für die Sicherheit und den Gesundheitsschutz des Personals zu ergreifen, und dafür Sorge zu tragen, dass behördliche und gesetzliche Maßnahmen eingehalten werden.

BItume et liants bitumineux - Détermination de la viscosité dynamique des bitumes modifiés par la méthode cône et plateau

La présente norme européenne prescrit une méthode permettant de déterminer la viscosité dynamique d‘un liant bitumineux sur une plage de températures, au moyen d'un viscosimètre à cône et plateau. La méthode d’essai est applicable à tous les liants bitumineux (bitume routier et bitume modifié par des polymères par exemple). Elle est également applicable pour les liants bitumineux récupérés, conformément aux normes EN 12697-3 et EN 12697-3, avec peu ou pas de filler.
AVERTISSEMENT - L'utilisation de la présente Norme européenne implique l'intervention de produits, d'opérations et d'équipements à caractère dangereux. La présente Norme européenne n'est pas censée aborder tous les problèmes de sécurité concernés par son usage. Il est de la responsabilité de l'utilisateur de consulter et d'établir des règles de sécurité et d'hygiène appropriées et de déterminer l'applicabilité des restrictions réglementaires avant utilisation.

Bitumen in bitumenska veziva - Določevanje dinamične viskoznosti bitumna in bitumenskih veziv z metodo s konusom in ploščo

Ta evropski standard določa metodo za določanje dinamične viskoznosti bitumenskih veziv pri različnih temperaturah s konusnim in ploščatim viskozimetrom. Preskusna metoda se uporablja za vsa bitumenska veziva (cestogradbeni bitumen in s polimeri modificiran bitumen). Uporablja se tudi za ponovno pridobljena bitumenska veziva v skladu s standardoma EN 12697 3 in EN 12697 4 z omejeno količino polnila ali brez njega.
OPOZORILO: Pri uporabi tega evropskega standarda so lahko prisotni nevarni materiali, postopki in oprema. Ta evropski standard ne obravnava vseh varnostnih težav, ki se nanašajo na njegovo uporabo. Za vzpostavitev ustreznih varnostnih in zdravstvenih praks ter za določitev uporabnosti regulativnih omejitev pred uporabo je odgovoren uporabnik tega evropskega standarda.

General Information

Status
Published
Public Enquiry End Date
29-Mar-2016
Publication Date
07-Nov-2018
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
05-Nov-2018
Due Date
10-Jan-2019
Completion Date
08-Nov-2018

RELATIONS

Buy Standard

Standard
SIST EN 13702:2018
English language
8 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bitumen und bitumenhaltige Bindemittel - Bestimmung der dynamischen Viskosität von Bitumen und bitumenhaltigen Bindemitteln mit dem Platte-Kegel-VerfahrenBItume et liants bitumineux - Détermination de la viscosité dynamique des bitumes modifiés par la méthode cône et plateauBitumen and bituminous binders - Determination of dynamic viscosity of bitumen and bituminous binders by the cone and plate method91.100.50Veziva. Tesnilni materialiBinders. Sealing materials75.140Voski, bitumni in drugi naftni proizvodiWaxes, bituminous materials and other petroleum productsICS:Ta slovenski standard je istoveten z:EN 13702:2018SIST EN 13702:2018en,fr,de01-december-2018SIST EN 13702:2018SLOVENSKI

STANDARDSIST EN 13702:20101DGRPHãþD
SIST EN 13702:2018
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13702
October
t r s z ICS
y wä s v râ
{ sä s r rä w r Supersedes EN
s u y r tã t r s rEnglish Version

Bitumen and bituminous binders æ Determination of dynamic viscosity of bitumen and bituminous binders by the cone and plate method Bitumes et liants bitumineux æ Détermination de la viscosité dynamique des bitumes et liants bitumineux par la méthode du cône et plateau

Bitumen und bitumenhaltige Bindemittel æ Bestimmung der dynamischen Viskosität von Bitumen und bitumenhaltigen Bindemitteln mit dem PlatteæKegelæVerfahren This European Standard was approved by CEN on

t y August
t r s zä

egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä

translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels

t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN

s u y r tã t r s z ESIST EN 13702:2018

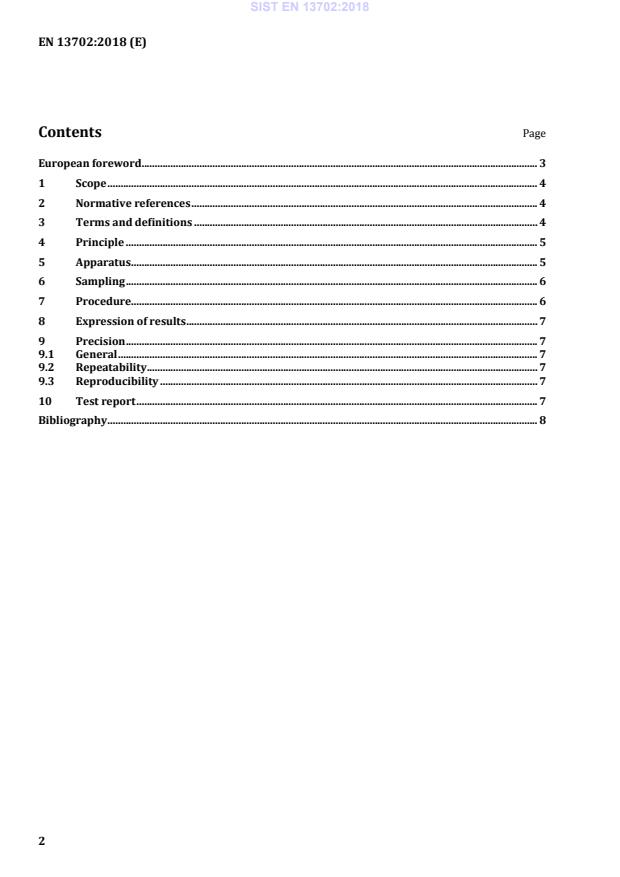

EN 13702:2018 (E) 2 Contents Page European foreword ....................................................................................................................................................... 3 1 Scope .................................................................................................................................................................... 4 2 Normative references .................................................................................................................................... 4 3 Terms and definitions ................................................................................................................................... 4 4 Principle ............................................................................................................................................................. 5 5 Apparatus ........................................................................................................................................................... 5 6 Sampling ............................................................................................................................................................. 6 7 Procedure........................................................................................................................................................... 6 8 Expression of results ...................................................................................................................................... 7 9 Precision ............................................................................................................................................................. 7 9.1 General ................................................................................................................................................................ 7 9.2 Repeatability ..................................................................................................................................................... 7 9.3 Reproducibility ................................................................................................................................................ 7 10 Test report ......................................................................................................................................................... 7 Bibliography .................................................................................................................................................................... 8

SIST EN 13702:2018

EN 13702:2018 (E) 3 European foreword This document (EN 13702:2018) has been prepared by Technical Committee CEN/TC 336 “Bituminous binders”, the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by month year of April 2019, and conflicting national standards shall be withdrawn at the latest by April 2019. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 13702:2010. There are three major changes in this revised standard compared to the former version: — the Scope and title of the test method has been changed so the standard covers bituminous binders and not just modified bitumen; — the requirement in Clause 6 that the sample shall not contain any filler has been deleted. It is not the intention that the test method can be used on bituminous mortars but to accommodate the use of the test method for bituminous binders recovered from asphalt mixtures; — the test method has been changed to a general test method with the conditions at 60 °C, 100 °C and 150 °C given as examples. According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 13702:2018

EN 13702:2018 (E) 4 1 Scope This document specifies a method for determining the dynamic viscosity of a bituminous binder over a range of temperatures by means of a cone and plate viscometer. The test method is intended for all bituminous binders (e.g. paving grade bitumen and polymer modified), unaged or aged. It is also suitable for recovered bituminous binders according to EN 12697-3 [1] and EN 12697-4 [2] with no or limited amount of filler. WARNING — The use of this document may involve hazardous materials, operations and equipment. This document does not purport to address all of the safety problems associated with its use. It is the responsibility of the user of this document to establish appropriate safety and health practices and to determ

...
