EUROPEAN STANDARD EN 61970-453
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2014
ICS 33.200 Supersedes EN 61970-453:2008
English Version
Energy management system application program interface
(EMS-API) -
Part 453: Diagram layout profile
(IEC 61970-453:2014)
Interface de programmation d'application pour système de Schnittstelle für Anwendungsprogramme für
gestion d'énergie (EMS-API) - Netzführungssysteme (EMS-API) -
Partie 453: Profil de disposition du diagramme Teil 453: Diagramm Entwurfsprofile
(CEI 61970-453:2014) (IEC 61970-453:2014)
This European Standard was approved by CENELEC on 2014-04-01. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61970-453:2014 E
---------------------- Page: 3 ----------------------
SIST EN 61970-453:2014

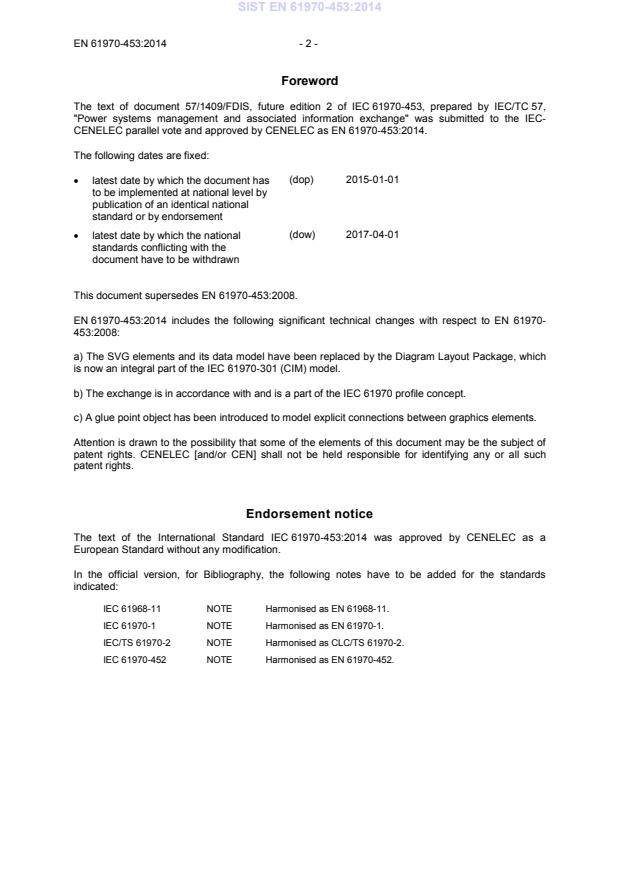

EN 61970-453:2014 - 2 -
Foreword
The text of document 57/1409/FDIS, future edition 2 of IEC 61970-453, prepared by IEC/TC 57,
"Power systems management and associated information exchange" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN 61970-453:2014.
The following dates are fixed:
(dop) 2015-01-01
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2017-04-01
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes EN 61970-453:2008.
EN 61970-453:2014 includes the following significant technical changes with respect to EN 61970-
453:2008:
a) The SVG elements and its data model have been replaced by the Diagram Layout Package, which
is now an integral part of the IEC 61970-301 (CIM) model.
b) The exchange is in accordance with and is a part of the IEC 61970 profile concept.
c) A glue point object has been introduced to model explicit connections between graphics elements.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 61970-453:2014 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 61968-11 NOTE Harmonised as EN 61968-11.
IEC 61970-1 NOTE Harmonised as EN 61970-1.
IEC/TS 61970-2 NOTE Harmonised as CLC/TS 61970-2.
IEC 61970-452 NOTE Harmonised as EN 61970-452.
---------------------- Page: 4 ----------------------
SIST EN 61970-453:2014
- 3 - EN 61970-453:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
IEC 60050 - International Electrotechnical Vocabulary - -
(IEV)
IEC 61970-301 - Energy management system application EN 61970-301 -
program interface (EMS-API) -
Part 301: Common information model (CIM)
base
IEC 61970-501 - Energy management system application EN 61970-501 -
program interface (EMS-API) -
Part 501: Common Information Model
Resource Description Framework (CIM RDF)
schema
IEC/TR 62541-1 - OPC unified architecture - CLC/TR 62541-1 -
Part 1: Overview and concepts
---------------------- Page: 5 ----------------------
SIST EN 61970-453:2014
---------------------- Page: 6 ----------------------
SIST EN 61970-453:2014
IEC 61970-453
®
Edition 2.0 2014-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Energy management system application program interface (EMS-API) –
Part 453: Diagram layout profile
Interface de programmation d'application pour système de gestion d'énergie
(EMS-API) –
Partie 453: Profil de disposition de diagramme
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX U
ICS 33.200 ISBN 978-2-8322-1403-9
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 61970-453:2014
– 2 – 61970-453 © IEC:2014
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Use Cases . 8
4.1 General use cases for diagram exchange . 8
4.2 Simple bay diagram example . 10
5 Diagram layout exchange profile . 12
5.1 General . 12
5.2 Diagram layout profile classes . 13
5.2.1 General . 13
5.2.2 Diagram . 14
5.2.3 DiagramObject . 14
5.2.4 DiagramObjectGluePoint . 15
5.2.5 DiagramObjectPoint . 15
5.2.6 DiagramObjectStyle . 16
5.2.7 TextDiagramObject . 16
5.2.8 VisibilityLayer . 17
5.2.9 Abstract classes – IdentifiedObject . 17
5.2.10 Enumerations – OrientationKind . 18
6 Graphical rendering . 18
6.1 General . 18
6.2 Single point objects . 18
6.3 Multiple point objects . 19
6.4 Gluing points. 20
6.5 Diagram object style . 21
6.6 Diagram layout exchange process . 21
7 Examples . 23
7.1 Data instantiation and encoding . 23
7.2 Simple bay example use case . 25
Annex A (informative) Benefits and format conversion from IEC 61970-453 Edition 1 to
Edition 2 . 27
Bibliography . 28
Figure 1 – System overview . 9
Figure 2 – Bay diagram as rendered . 10
Figure 3 – Bay diagram drawn in GIS style . 11
Figure 4 – Bay diagram drawn in SCADA style. 12
Figure 5 – Diagram layout information model . 13
Figure 6 – Conventions used for representing object instances and associations . 18
Figure 7 – Single point diagram objects . 19
Figure 8 – Multiple point diagram objects . 20
Figure 9 – Disconnector with glue point . 20
Figure 10 – Disconnector and breaker with glue points . 21
---------------------- Page: 8 ----------------------
SIST EN 61970-453:2014
61970-453 © IEC:2014 – 3 –
Figure 11 – Profiles within IEC standards . 22
Figure 12 – Disconnector diagram object instantiation . 23
Figure 13 – IEC 61970-552 Encoding for disconnector diagram data . 24
Figure 14 – Bay diagram example with objects outlined GIS style . 25
Figure 15 – Bay diagram example with objects outlined SCADA/EMS style . 26
---------------------- Page: 9 ----------------------
SIST EN 61970-453:2014
– 4 – 61970-453 © IEC:2014
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ENERGY MANAGEMENT SYSTEM APPLICATION
PROGRAM INTERFACE (EMS-API) –
Part 453: Diagram layout profile
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61970-453 has been prepared by IEC technical committee 57:
Power systems management and associated information exchange.
This second edition cancels and replaces the first edition published in 2008. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) The SVG elements and its data model have been replaced by the Diagram Layout
Package, which is now an integral part of the IEC 61970-301 (CIM) model.
b) The exchange is in accordance with and is a part of the IEC 61970 profile concept.
c) A glue point object has been introduced to model explicit connections between graphics
elements.
---------------------- Page: 10 ----------------------
SIST EN 61970-453:2014
61970-453 © IEC:2014 – 5 –
The text of this standard is based on the following documents:
FDIS Report on voting
57/1409/FDIS 57/1430/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61970 series, published under the general title Energy
management system application program interface (EMS-API), can be found on the IEC
website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
---------------------- Page: 11 ----------------------
SIST EN 61970-453:2014
– 6 – 61970-453 © IEC:2014
INTRODUCTION
This standard is part of the IEC 61970 series that define an application program interface
1 2
(API ) for an Energy Management System (EMS ).
3
The IEC 61970-3x series specify a Common Information Model (CIM ): a logical view of the
physical aspects of EMS information. The IEC 61970-3x series includes IEC 61970-301,
Common Information Model (CIM) Base.
This standard is one of the IEC 61970-4x series that define utility control centre component
4
interface specifications (CIS ). IEC 61970-4x specifies the functional requirements for
interfaces that a component (or application) shall implement to exchange information with
other components (or applications) and/or to access publicly available data in a standard way.
The component interfaces describe the specific message contents and services that can be
used by applications for this purpose. The implementation of these messages in a particular
technology is described in the IEC 61970-5x series.
Energy Management Systems employ a variety of schematic and quasi-geographic
presentations in their user interfaces. These are sometimes generated automatically, but
more often are hand-drawn and require considerable labour to create and maintain. Most of
this labour goes into the arrangement, or ‘layout’ of the power system elements within the
overall diagram. When network models are exchanged, as defined in IEC 61970-452 and
IEC 61968-13 standards, it is desirable to be able to exchange these layouts.
IEC 61970-453 specifies guidelines for the exchange of diagram layout information for
schematic data that is encoded using IEC 61970-552.
___________
1
Footnote 1 applies to the French version only.
2
Footnote 2 applies to the French version only.
3
Footnote 3 applies to the French version only.
4 Footnote 4 applies to the French version only.
---------------------- Page: 12 ----------------------
SIST EN 61970-453:2014
61970-453 © IEC:2014 – 7 –
ENERGY MANAGEMENT SYSTEM APPLICATION
PROGRAM INTERFACE (EMS-API) –
Part 453: Diagram layout profile
1 Scope
This part of IEC 61970 is a member of the IEC 61970-450 to 499 series that, taken as a
whole, defines, at an abstract level, the content and exchange mechanisms used for data
transmitted between control centre components.
Included in this part of IEC 61970 are the general use cases for exchange of diagram layout
data, and guidelines for linking the layout definitions with CIM data. Guidelines for
management of schematic definitions through multiple revisions are also included.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60050, International electrotechnical vocabulary
IEC 61970-301, Energy management system application program interface (EMS-API) –
Part 301: Common information model (CIM) base
IEC 61970-501, Energy management system application program interface (EMS-API) –
Part 501: Common Information Model Resource Description Framework (CIM RDF) schema
IEC/TR 62541-1, OPC Unified Architecture – Part 1: Overview and concepts
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050, as well as
the following, apply.
3.1
5
domain object
6
instance of a class that models a Real-World Object with a unique identity
Note 1 to entry: A domain object inherits from a CIM IdentifiedObject. A domain object is normally not a diagram
object.
3.2
7
diagram
electronic equivalent of a seamless paper plan
___________
5
Footnote 5 applies only to the French version.
6
Footnote 6 applies only to the French version.
7
Footnote 7 applies to the French version only.
---------------------- Page: 13 ----------------------
SIST EN 61970-453:2014
– 8 – 61970-453 © IEC:2014
Note 1 to entry: The diagram is an identified container for the diagram objects. Examples of diagrams include
substation schematics, transportation or distribution network orthogonal schematics, or pseudo-geographical
schematics. A diagram has a well-defined coordinate space.
3.3
8
diagram object
representation of domain objects or static background
Note 1 to entry: The diagram is composed of diagram objects.
Note 2 to entry: An example for domain objects includes breakers. An example for static background object
includes lakes.
3.4
diagram object style
definition of how to render diagram objects possibly based on the state of domain objects
Note 1 to entry: Typically, the diagram object style is resolved in a very specific way for each system.
4 Use Cases
4.1 General use cases for diagram exchange
Figure 1 shows a high-level view of using diagram layout data exchange with potential
systems that can make use of the diagram layout data.
___________
8
Footnote 8 applies to the French version only.
---------------------- Page: 14 ----------------------
SIST EN 61970-453:2014
61970-453 © IEC:2014 – 9 –
IEC 0423/14
Figure 1 – System overview
An examination of the use cases for such exchanges revealed that the diagrams being
exchanged are not fixed graphic presentations. Instead the diagrams vary considerably in
appearance as attributes of CIM objects change, and they support important user interaction.
For example, a SCADA one-line in its creator’s system is supporting live control of the power
system, while in a receiver’s system it is merely used for reference so that a neighbour can
understand what the system looks like beyond its own border. These variations are typically
not easy or appropriate to map between the source and receiving systems because of the
degree of difference in the way those systems are designed.
In the specification of diagrams, one common element is that the style of displaying an object
of a certain kind is usually defined once and then re-used, but the placement of objects must
be adjusted whenever new elements are added to the data model. This placement and
maintenance of placement is where most of the labour investment takes place that users
would like to preserve. As a result, this standard is limited to the exchange of diagram layouts
(meaning the arrangement of CIM objects in a display space) rather than a complete
exchange of all characteristics of a graphic presentation.
With this proposed standard, instead of maintaining duplicate schematics for different
applications, the schematics are exported by one system and imported by the other system.
Diagram layout profile is an extension to the CIM power system model exchange IEC 61970-
452, and will be orchestrated along with the existing CIM XML model exchange and updates
provided using the existing CIM XML Incremental file format as defined in IEC 61970-552.
IEC 61970-552 also describes how payload headers provide information as to how payloads
fit together.
---------------------- Page: 15 ----------------------
SIST EN 61970-453:2014
– 10 – 61970-453 © IEC:2014
This process can be applied for initial schematics construction as well as for continuous
maintenance.
The importing system can create its graphics displays from the imported data, or the diagram
layout data can serve as additional documentation and means of understanding for the
domain data exchange.
4.2 Simple bay diagram example
Diagrams are constructed using different approaches. This subclause illustrates this using a
simple bay drawing. Figure 2 shows a typical representation of a bay.
IEC 0424/14
Figure 2 – Bay diagram as rendered
In a GIS system, lines are typically drawn up to the centre point of the symbol. This is shown
in Figure 3 (transparent symbol is used for illustration). This construction method is
independent if the symbol size, i.e. the drawing looks “pretty” even when the importing system
used a smaller symbol size than the original one.
---------------------- Page: 16 ----------------------
SIST EN 61970-453:2014
61970-453 © IEC:2014 – 11 –
IEC 0425/14
Figure 3 – Bay diagram drawn in GIS style
In a SCADA system, lines are typically drawn to align with the terminals of the object
represented by the symbol. This is shown in Figure 4 (transparent symbol is used for
illustration). This construction method gives a closer representation of the electrical topology,
but depends on a certain symbol size.
---------------------- Page: 17 ----------------------
SIST EN 61970-453:2014
– 12 – 61970-453 © IEC:2014
IEC 0426/14
Figure 4 – Bay diagram drawn in SCADA style
5 Diagram layout exchange profile
5.1 General
Profile namespace: http://iec.ch/TC57/61970-453/DiagramLayout/2#
This standard specifies an exchange profile for schematics with the following characteristics.
• A generic method for linking the diagram object to the domain data. Domain data and
diagram layout data can be exchanged together with the domain data, or separately from
each other with the assumption that domain data will have already been imported should
diagram layout data be imported separately.
• It does not require or imply a specific domain data format. Therefore, it supports domain
data modelled according to the IEC 61970-301 Common information model (CIM) that is
exchanged in the IEC 61970-501 format (CIM RDF schema). Diagram layout data
references domain data in compliance with IEC/TR 62541-1, OPC Unified Architecture).
• The intended usage of this standard is that the source of a diagram will use the standard
to encode the layout of their diagram as they created it. It is then incumbent upon any
receiver to supply the means of using that diagram layout in their system.
– In the simplest situation, if the source uses Switch object placements, the receiver
creates a generic Switch template in the receiver’s system that will be used to render
Switches (i.e. there is no exchange of Switch templates).
– In more complex situations, a 1:1 correspondence may not be desirable, and receivers
may have to create generic transformations in order to use exchanges.
– However, in both situations, it is expected that once an investment is made in a
strategy for rendering, repeated imports may be carried out automatically.
• Supports the exchange of diagram objects that have no relationship to domain data, i.e.,
pure static background objects.
---------------------- Page: 18 ----------------------
SIST EN 61970-453:2014
61970-453 © IEC:2014 – 13 –
• Supports multiple representations of the same domain object in the same or different
diagrams.
• Allows the diagram to be used as the unit of exchange, providing a straightforward
approach to partial exchange, or an exchange between systems that have a separate
model and repository for diagram layout data.
• Supports assignment of diagram objects to layers or other means, for showing or hiding
information based on zoom level and/or user interest.
• A generic method for pro
...
