SIST EN IEC 61076-2-118:2026
(Main)Connectors for electrical and electronic equipment - Product requirements - Part 2-118: Circular connectors - Detail specification for shielded and unshielded, free and fixed connectors with bayonet-locking size B12, B17, B23 and B40, for power, signal and data transmission (IEC 61076-2-118:2026)
- Abstract
This part of IEC 61076 specifies circular connectors with bayonet locking size B12, B17, B23 and B40, typically used for power, signal and data transmissions in industrial applications.
These connectors consist of fixed and free connectors either rewirable or non-rewirable.
NOTE B indicates that the connector is equipped with bayonet locking, while 12, 17, 23, 40 are the approximate dimensions in millimetres of the contact carrier diameter of these circular connectors.
Power contacts of male connectors are round contacts with Ø 1 mm, Ø 1,5 mm, Ø 1,8 mm, Ø 2,25 mm and Ø 4 mm, with current ratings up to 64 A per pole and rated voltage of 50 V, 300 V or 600 V AC/DC. Power contact groups are classified by type and identified throughout this document as “P” followed by two digits “01” through “09” (see 4.3, Table 1).
Signal contacts of male connectors are round contacts with Ø 1 mm and Ø 1,8 mm, with current ratings up to 20 A per pole and rated voltage of 50 V AC/DC. Signal contact groups are classified by type and identified throughout this document as “S” followed by “0”, “1”, or “2” (see 4.3, Table 2).
Male data contacts are round with Ø 0,8 mm and Ø 1 mm, with current ratings up to 4 A and rated voltage of 50 V AC/DC, Data modules are classified by type and identified throughout this document as “D” followed by “1”, or “2” (see 4.3, Table 3). D1 modules provide data transmission with frequencies from 1 MHz to 100 MHz; D2 modules provide data transmission with frequencies from 0,1 MHz to 600 MHz.
Besides the size of their bayonet locking (B12, B17, B23 or B40), connectors according to this document can be identified by data module (D) and complementing power (P) and signal (S) contact groups and optionally by number of poles, and finally by their application.
These connectors are designated for two main target applications, which differ as follows:
– Application A is for data transmission with power over data.
– Application B is for data transmission without power over data.
Connectors with power, signal and data contacts of the same gender are intended to also transmit power over the data contacts (application A), while connectors with data contacts not of the same gender of power and signal contacts are not intended to transmit power over the data contacts (application B).
The codings provided by this document prevent the mating to any other connector with similarly sized interfaces covered by this document.
- Status
- Published
- Public Enquiry End Date
- 26-Dec-2024
- Publication Date
- 28-Oct-2026
- Technical Committee
- I11 - Imaginarni 11
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 28-Oct-2026
- Due Date
- 02-Jan-2027
- Completion Date
- 29-Oct-2026
SIST EN IEC 61076-2-118:2026 is the SIST adoption of IEC 61076-2-118 for circular connectors with bayonet locking sizes B12, B17, B23 and B40. It specifies free and fixed connectors, shielded and unshielded versions, for power, signal and data transmission in industrial applications. The document defines connector sizes, contact groups, interface dimensions, coding, performance requirements and test methods so manufacturers, buyers and test labs can select compatible variants and verify them.
What does SIST EN IEC 61076-2-118:2026 specify?
SIST EN IEC 61076-2-118:2026 covers circular connectors with bayonet locking of sizes B12, B17, B23 and B40. It applies to fixed and free connectors that may be rewirable or non-rewirable, and it organizes the product family by size, contact group and application.
The document uses the bayonet-locking size to define the mechanical interface and then combines it with power, signal and data contact groups. In practice, that means a user can identify a connector by its B-size, the selected power and signal group, the data module, and whether it is intended for application A or application B.
The structure of the document is:
- Scope
- Normative references
- Terms and definitions
- Technical information
- Dimensional information
- Characteristics
- Test schedule
What are the key requirements of SIST EN IEC 61076-2-118:2026?
Connector families and intended use
SIST EN IEC 61076-2-118:2026 distinguishes two target applications: application A for data transmission with power over data, and application B for data transmission without power over data. The gender of the data contacts determines which application applies.
That matters because application A and application B connectors with the same type are not intermateable due to the inverse gender of the data contacts. A designer or purchaser therefore has to match the application type to the intended wiring and mating pair, not just the size.
Contact groups, ratings and type designation
SIST EN IEC 61076-2-118:2026 classifies power contact groups as P01 to P09, signal contact groups as S0 to S2, and data modules as D1 or D2. Clause 4.3 and Tables 1 to 3 assign the contact counts, contact diameters and rated values for each group.
The type designation encodes the connector size first, then the power group, signal group, data module and application type. In practice, this gives a compact order code that should be used consistently in specifications, drawings and procurement documents.
Dimensions, styles and mounting variants
SIST EN IEC 61076-2-118:2026 gives dimensional information for fixed and free connectors, including straight and angled versions, with front or rear mounting where applicable. Clause 5.2 and the following figures and tables define the styles DM, EM, FM, DF, EF, FF, GM, HM, IM, JM, KM, LM, GF, HF, IF, JF, KF and LF.
This is important because the document does not only define one connector body. It defines the practical housing styles that manufacturers and users must match for panel mounting, cable entry and polarity orientation.
Interface dimensions and coding
SIST EN IEC 61076-2-118:2026 provides detailed interface dimensions for B12, B17, B23 and B40, as well as for the D1 and D2 trapezoidal data modules. It also gives bayonet locking dimensions and mechanical coding information so that only the correct mating interface can engage.
For users, this means the standard is not limited to general dimensions. It fixes the mating geometry and coding features that prevent accidental mating with other connector variants covered by the document.
Electrical, transmission and insulation performance
SIST EN IEC 61076-2-118:2026 sets electrical characteristics for voltage proof, rated impulse withstand voltage, current-carrying capacity, contact and shield resistance, insulation resistance and transmission performance. Clause 6.4 and Clause 6.5 use named IEC test methods and define the required performance for the D1 and D2 data modules, including insertion loss, return loss, NEXT, FEXT, TCL, TCTL, transfer impedance, coupling attenuation, PS NEXT, PS AFEXT and propagation delay.
In practice, this means the standard is not only about mechanical fit. It also tells the user what electrical and signal-integrity behaviour the connector must meet for industrial power, signal and data links.
Mechanical endurance and environmental performance
SIST EN IEC 61076-2-118:2026 includes mechanical operations, coupling-device effectiveness, insertion and withdrawal forces, polarization and coding, vibration, shock, IP code and locking torque. Clause 6.6 and 6.7 define the test conditions and the required outcomes for mated and locked connectors.
This matters for equipment that is moved, exposed to vibration or installed in harsh industrial environments. The requirements help users check that the connector remains secure, mates correctly and keeps its protection level.
Safety and marking
SIST EN IEC 61076-2-118:2026 points to IEC 61984 for safety aspects and to IEC 61076-1:2006 for marking of the connector and packaging. It also notes that B12 connectors are only for extra-low voltage (ELV) applications without PE contact.
For procurement and design work, this means the marking and safety rules are part of the selection process, especially when the connector will be used in an equipment safety design.
Test schedule and specimens
SIST EN IEC 61076-2-118:2026 gives a defined test schedule in Clause 7, including preliminary tests, dynamic and climatic tests, mechanical endurance, electrical load, connection-method tests, signal-integrity tests and current-carrying-capacity tests. The schedule also states how specimens are prepared, how long they are conditioned and how results are assessed.
This is the part to use when planning qualification, type testing or verification in a lab. It tells the test engineer what specimen groups are needed and how to sequence the checks.
What terms does SIST EN IEC 61076-2-118:2026 define?
- PE (protective conductor) - A conductor used for safety, for example to protect against electric shock.
- Mounting orientation - The circular mounting position of the connector in relation to the polarization of the mating interface.
- Application A - The connector arrangement used for data transmission with power over data.
- Application B - The connector arrangement used for data transmission without power over data.
- P - The power contact-group designation used throughout the standard, followed by two digits for the group type.
- S - The signal contact-group designation used throughout the standard, followed by a digit for the group type.
- D - The data module designation used throughout the standard, with D1 and D2 as the defined module types.
- PL1, PL2, PL3 - Performance levels used to classify the number of mechanical operations in the test schedule.
Who uses SIST EN IEC 61076-2-118:2026?
SIST EN IEC 61076-2-118:2026 is used by connector manufacturers, cable assembly manufacturers, industrial equipment designers, test laboratories and purchasers who specify industrial circular connectors. It is also relevant to quality managers who need a defined basis for product qualification, inspection and incoming acceptance.
In practice, these users apply it when selecting connector size and style, choosing power, signal and data combinations, defining mounting and termination options, checking mating compatibility, and verifying electrical, mechanical and environmental performance. It is especially useful for industrial automation and equipment where one connector must carry power, signals and data in a controlled interface.
What changed in SIST EN IEC 61076-2-118:2026 from the previous edition?
This publication supersedes 48B/3081/CD and 48B/3102/CC.
Which standards are used with SIST EN IEC 61076-2-118:2026?
- IEC 61076-1:2006 - Provides the generic connector specification, including marking and the intermateability basis referenced by this part.
- IEC 61984 - Covers connector safety requirements and tests; this part uses it for safety aspects.
- IEC 60512 series - Supplies the test methods used for visual examination, dimensions, contact resistance, insulation resistance, voltage proof, mechanical operation, vibration, shock and signal integrity.
- IEC 60352 series - Covers solderless connection techniques such as crimped, insulation displacement, press-in, insulation piercing, spring clamp and ultrasonically welded terminations.
- IEC 60999-1 - Covers screw-type and screwless-type clamping units for conductors.
- IEC 60068-1 - Gives the general environmental testing conditions used for the climatic category and test conditioning.
- IEC 60664-1 - Supports insulation coordination, including rated impulse withstand voltage and pollution degree.
- IEC 60529:1989, IEC 60529:1989/AMD1:1999 and IEC 60529:1989/AMD2:2013 - Define the IP code used for enclosure protection tests.
- IEC 62197-1 - Gives quality assessment requirements that may be applied by agreement between manufacturer and customer.
- IEC 60050-581 - Provides vocabulary used for electromechanical components, including the PE term.
- ISO 11469 - Covers generic identification and marking of plastics products.
- ISO 21920-1:2021 - Gives surface texture indication used for gauge material and finish.
What does the SIST EN IEC 61076-2-118:2026 document contain?
SIST EN IEC 61076-2-118:2026 contains ratings tables for power, signal and data contact groups, a type-designation system, and combination tables that link connector size, contact groups and application type. It also includes dimensional drawings and tables for fixed and free connector styles, plus separate interface dimensions for B12, B17, B23 and B40.
The document further provides bayonet-locking and mechanical coding dimensions, D1 and D2 data-module geometry, and engagement-direction information for mated and locked assemblies. These parts are used for design, tooling and interface control.
For verification work, the document includes gauge details, test conditions, specimen arrangements and the full test schedule. Those elements support product testing, qualification and production validation for mechanical, electrical, environmental and signal-performance checks.
Relations
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
- Effective Date
- 29-Sep-2026
Frequently Asked Questions
SIST EN IEC 61076-2-118:2026 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Connectors for electrical and electronic equipment - Product requirements - Part 2-118: Circular connectors - Detail specification for shielded and unshielded, free and fixed connectors with bayonet-locking size B12, B17, B23 and B40, for power, signal and data transmission (IEC 61076-2-118:2026)". This standard covers: This part of IEC 61076 specifies circular connectors with bayonet locking size B12, B17, B23 and B40, typically used for power, signal and data transmissions in industrial applications. These connectors consist of fixed and free connectors either rewirable or non-rewirable. NOTE B indicates that the connector is equipped with bayonet locking, while 12, 17, 23, 40 are the approximate dimensions in millimetres of the contact carrier diameter of these circular connectors. Power contacts of male connectors are round contacts with Ø 1 mm, Ø 1,5 mm, Ø 1,8 mm, Ø 2,25 mm and Ø 4 mm, with current ratings up to 64 A per pole and rated voltage of 50 V, 300 V or 600 V AC/DC. Power contact groups are classified by type and identified throughout this document as “P” followed by two digits “01” through “09” (see 4.3, Table 1). Signal contacts of male connectors are round contacts with Ø 1 mm and Ø 1,8 mm, with current ratings up to 20 A per pole and rated voltage of 50 V AC/DC. Signal contact groups are classified by type and identified throughout this document as “S” followed by “0”, “1”, or “2” (see 4.3, Table 2). Male data contacts are round with Ø 0,8 mm and Ø 1 mm, with current ratings up to 4 A and rated voltage of 50 V AC/DC, Data modules are classified by type and identified throughout this document as “D” followed by “1”, or “2” (see 4.3, Table 3). D1 modules provide data transmission with frequencies from 1 MHz to 100 MHz; D2 modules provide data transmission with frequencies from 0,1 MHz to 600 MHz. Besides the size of their bayonet locking (B12, B17, B23 or B40), connectors according to this document can be identified by data module (D) and complementing power (P) and signal (S) contact groups and optionally by number of poles, and finally by their application. These connectors are designated for two main target applications, which differ as follows: – Application A is for data transmission with power over data. – Application B is for data transmission without power over data. Connectors with power, signal and data contacts of the same gender are intended to also transmit power over the data contacts (application A), while connectors with data contacts not of the same gender of power and signal contacts are not intended to transmit power over the data contacts (application B). The codings provided by this document prevent the mating to any other connector with similarly sized interfaces covered by this document.
This part of IEC 61076 specifies circular connectors with bayonet locking size B12, B17, B23 and B40, typically used for power, signal and data transmissions in industrial applications. These connectors consist of fixed and free connectors either rewirable or non-rewirable. NOTE B indicates that the connector is equipped with bayonet locking, while 12, 17, 23, 40 are the approximate dimensions in millimetres of the contact carrier diameter of these circular connectors. Power contacts of male connectors are round contacts with Ø 1 mm, Ø 1,5 mm, Ø 1,8 mm, Ø 2,25 mm and Ø 4 mm, with current ratings up to 64 A per pole and rated voltage of 50 V, 300 V or 600 V AC/DC. Power contact groups are classified by type and identified throughout this document as “P” followed by two digits “01” through “09” (see 4.3, Table 1). Signal contacts of male connectors are round contacts with Ø 1 mm and Ø 1,8 mm, with current ratings up to 20 A per pole and rated voltage of 50 V AC/DC. Signal contact groups are classified by type and identified throughout this document as “S” followed by “0”, “1”, or “2” (see 4.3, Table 2). Male data contacts are round with Ø 0,8 mm and Ø 1 mm, with current ratings up to 4 A and rated voltage of 50 V AC/DC, Data modules are classified by type and identified throughout this document as “D” followed by “1”, or “2” (see 4.3, Table 3). D1 modules provide data transmission with frequencies from 1 MHz to 100 MHz; D2 modules provide data transmission with frequencies from 0,1 MHz to 600 MHz. Besides the size of their bayonet locking (B12, B17, B23 or B40), connectors according to this document can be identified by data module (D) and complementing power (P) and signal (S) contact groups and optionally by number of poles, and finally by their application. These connectors are designated for two main target applications, which differ as follows: – Application A is for data transmission with power over data. – Application B is for data transmission without power over data. Connectors with power, signal and data contacts of the same gender are intended to also transmit power over the data contacts (application A), while connectors with data contacts not of the same gender of power and signal contacts are not intended to transmit power over the data contacts (application B). The codings provided by this document prevent the mating to any other connector with similarly sized interfaces covered by this document.
SIST EN IEC 61076-2-118:2026 is classified under the following ICS (International Classification for Standards) categories: 31.220.10 - Plug-and-socket devices. Connectors. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN IEC 61076-2-118:2026 has the following relationships with other standards: It is inter standard links to SIST EN 60352-4:2002/A1:2002, SIST EN 60512-13-2:2006, SIST EN 60352-3:2002, SIST EN 60512-9-1:2010, SIST EN IEC 60664-1:2020, SIST EN 60512-9-2:2012, SIST EN 60512-2-5:2004, SIST EN 60998-2-1:2005, SIST EN 60352-2:2002/A2:2003, SIST EN 60352-4:2002, SIST EN IEC 60512-11-1:2019, SIST EN 60529:1997/A2:2014, SIST EN 60529:1997, SIST EN 60352-2:2006/A1:2014, SIST EN 60512-3-1:2003. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN IEC 61076-2-118:2026 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

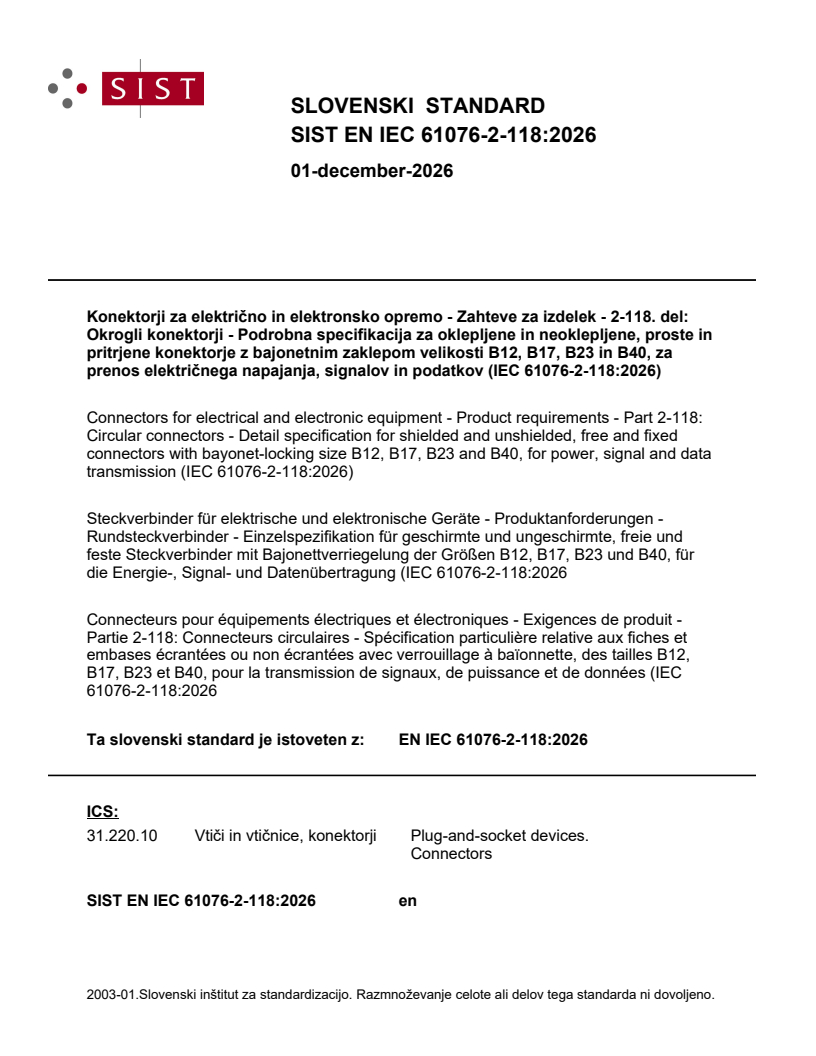

SLOVENSKI STANDARD
01-december-2026
Konektorji za električno in elektronsko opremo - Zahteve za izdelek - 2-118. del:
Okrogli konektorji - Podrobna specifikacija za oklepljene in neoklepljene, proste in
pritrjene konektorje z bajonetnim zaklepom velikosti B12, B17, B23 in B40, za
prenos električnega napajanja, signalov in podatkov (IEC 61076-2-118:2026)
Connectors for electrical and electronic equipment - Product requirements - Part 2-118:
Circular connectors - Detail specification for shielded and unshielded, free and fixed
connectors with bayonet-locking size B12, B17, B23 and B40, for power, signal and data
transmission (IEC 61076-2-118:2026)
Steckverbinder für elektrische und elektronische Geräte - Produktanforderungen -
Rundsteckverbinder - Einzelspezifikation für geschirmte und ungeschirmte, freie und
feste Steckverbinder mit Bajonettverriegelung der Größen B12, B17, B23 und B40, für
die Energie-, Signal- und Datenübertragung (IEC 61076-2-118:2026
Connecteurs pour équipements électriques et électroniques - Exigences de produit -
Partie 2-118: Connecteurs circulaires - Spécification particulière relative aux fiches et
embases écrantées ou non écrantées avec verrouillage à baïonnette, des tailles B12,
B17, B23 et B40, pour la transmission de signaux, de puissance et de données (IEC
61076-2-118:2026
Ta slovenski standard je istoveten z: EN IEC 61076-2-118:2026
ICS:
31.220.10 Vtiči in vtičnice, konektorji Plug-and-socket devices.
Connectors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

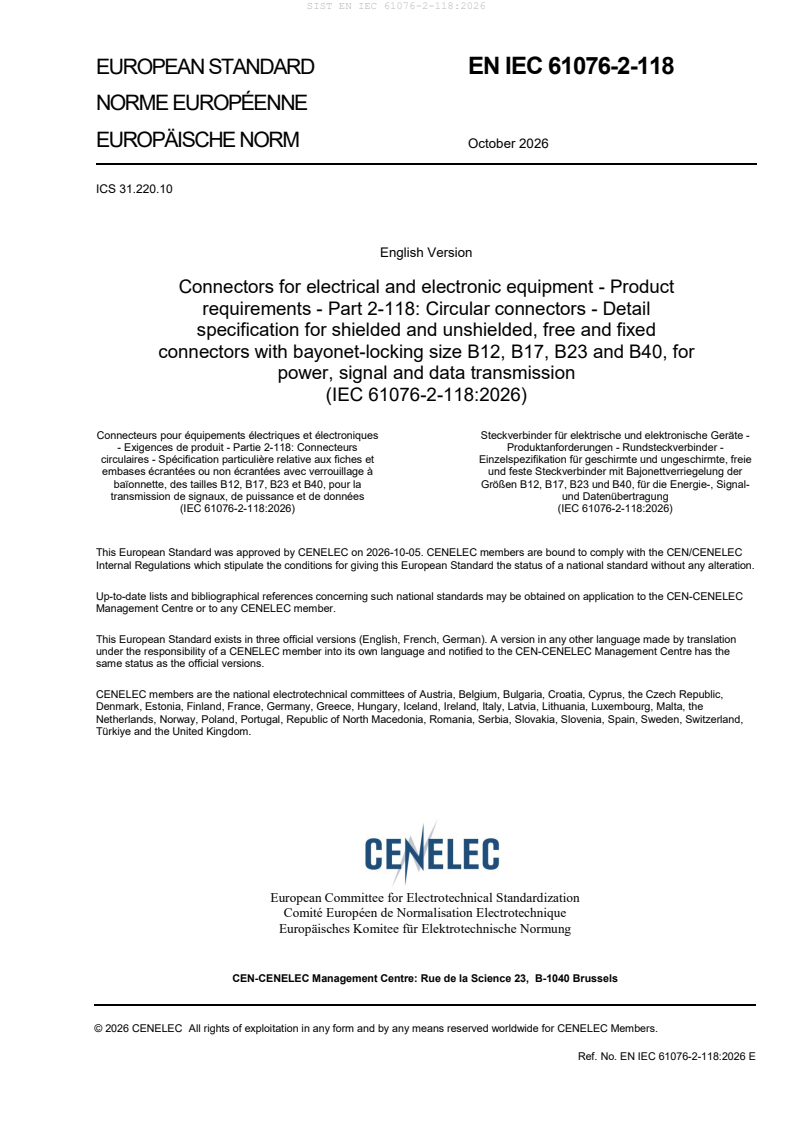

EUROPEAN STANDARD EN IEC 61076-2-118
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2026
ICS 31.220.10
English Version
Connectors for electrical and electronic equipment - Product
requirements - Part 2-118: Circular connectors - Detail
specification for shielded and unshielded, free and fixed
connectors with bayonet-locking size B12, B17, B23 and B40, for
power, signal and data transmission
(IEC 61076-2-118:2026)
Connecteurs pour équipements électriques et électroniques Steckverbinder für elektrische und elektronische Geräte -
- Exigences de produit - Partie 2-118: Connecteurs Produktanforderungen - Rundsteckverbinder -
circulaires - Spécification particulière relative aux fiches et Einzelspezifikation für geschirmte und ungeschirmte, freie
embases écrantées ou non écrantées avec verrouillage à und feste Steckverbinder mit Bajonettverriegelung der
baïonnette, des tailles B12, B17, B23 et B40, pour la Größen B12, B17, B23 und B40, für die Energie-, Signal-
transmission de signaux, de puissance et de données und Datenübertragung
(IEC 61076-2-118:2026) (IEC 61076-2-118:2026)
This European Standard was approved by CENELEC on 2026-10-05. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61076-2-118:2026 E

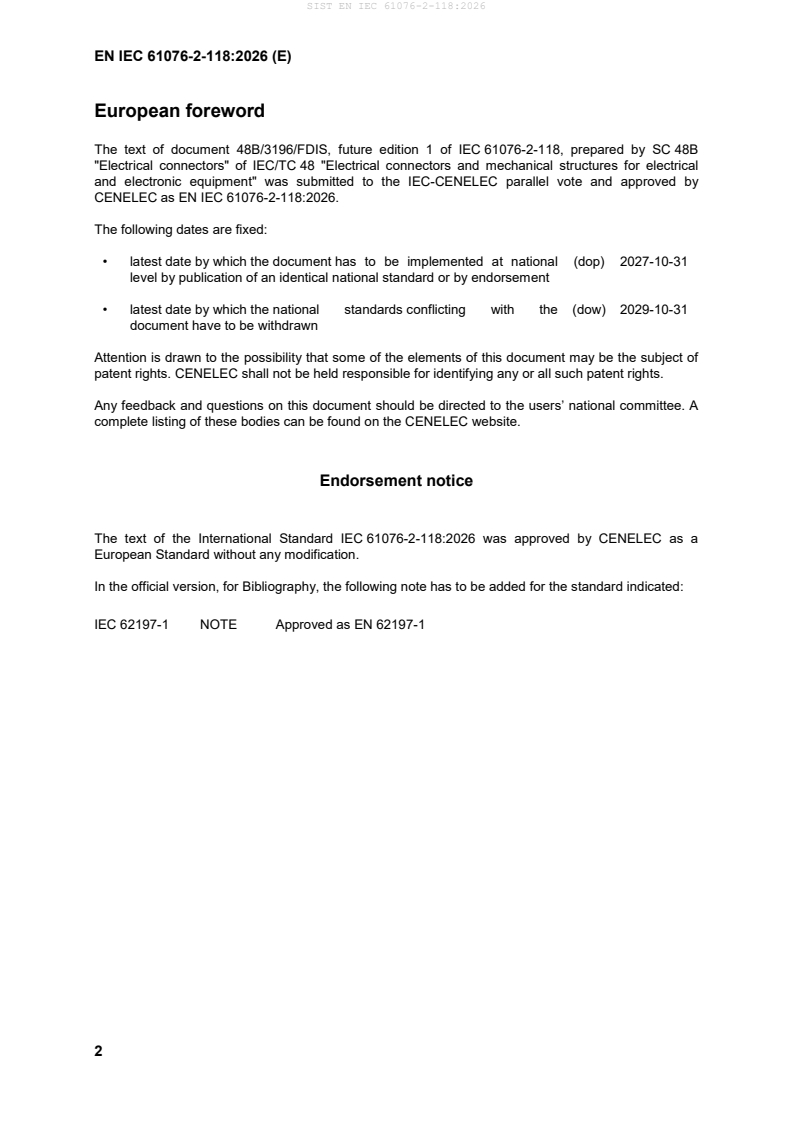

European foreword
The text of document 48B/3196/FDIS, future edition 1 of IEC 61076-2-118, prepared by SC 48B
"Electrical connectors" of IEC/TC 48 "Electrical connectors and mechanical structures for electrical
and electronic equipment" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 61076-2-118:2026.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2027-10-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2029-10-31
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61076-2-118:2026 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 62197-1 NOTE Approved as EN 62197-1
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-1 - Environmental testing - Part 1: General EN 60068-1 -
and guidance
IEC 60352 series Solderless connections EN 60352 series
IEC 60512-1 - Connectors for electrical and electronic EN IEC 60512-1 -
equipment - Tests and measurements -
Part 1: Generic specification
IEC 60512-1-1 - Connectors for electronic equipment - EN 60512-1-1 -
Tests and measurements - Part 1-1:
General examination - Test 1a: Visual
examination
IEC 60512-1-2 - Connectors for electronic equipment - EN 60512-1-2 -
Tests and measurements - Part 1-2:
General examination - Test 1b:
Examination of dimension and mass
IEC 60512-2-1 - Connectors for electronic equipment - EN 60512-2-1 -
Tests and measurements - Part 2-1:
Electrical continuity and contact resistance
tests - Test 2a: Contact resistance -
Millivolt level method
IEC 60512-2-5 - Connectors for electronic equipment - EN 60512-2-5 -
Tests and measurements - Part 2-5:
Electrical continuity and contact resistance
tests - Test 2e: Contact disturbance
IEC 60512-3-1 - Connectors for electronic equipment - EN 60512-3-1 -
Tests and measurements - Part 3-1:
Insulation tests - Test 3a: Insulation
resistance
IEC 60512-4-1 - Connectors for electronic equipment - EN 60512-4-1 -
Tests and measurements - Part 4-1:
Voltage stress tests - Test 4a: Voltage
proof
IEC 60512-5-1 - Connectors for electronic equipment - EN 60512-5-1 -
Tests and measurements - Part 5-1:
Current-carrying capacity tests - Test 5a:
Temperature rise
IEC 60512-6-3 - Connectors for electronic equipment - EN 60512-6-3 -
Tests and measurements - Part 6-3:
Dynamic stress tests - Test 6c: Shock
IEC 60512-6-4 - Connectors for electronic equipment - EN 60512-6-4 -
Tests and measurements - Part 6-4:
Dynamic stress tests - Test 6d: Vibration
(sinusoidal)
IEC 60512-9-1 - Connectors for electronic equipment - EN 60512-9-1 -
Tests and measurements - Part 9-1:
Endurance tests - Test 9a: Mechanical
operation
IEC 60512-9-2 - Connectors for electronic equipment - EN 60512-9-2 -
Tests and measurements - Part 9-2:
Endurance tests - Test 9b: Electrical load
and temperature
IEC 60512-11-1 - Connectors for electrical and electronic EN IEC 60512-11-1 -
equipment - Tests and measurements -
Part 11-1: Climatic tests - Test 11a -
Climatic sequence
IEC 60512-11-4 - Connectors for electronic equipment - EN 60512-11-4 -
Tests and measurements - Part 11-4:
Climatic tests - Test 11d: Rapid change of
temperature
IEC 60512-11-9 - Connectors for electronic equipment - EN 60512-11-9 -
Tests and measurements - Part 11-9:
Climatic tests - Test 11i: Dry heat
IEC 60512-11-10 - Connectors for electronic equipment - EN 60512-11-10 -
Tests and measurements - Part 11-10:
Climatic tests - Test 11j: Cold
IEC 60512-11-12 - Connectors for electronic equipment - EN 60512-11-12 -
Tests and measurements - Part 11-12:
Climatic tests - Test 11m: Damp heat,
cyclic
IEC 60512-13-2 - Connectors for electronic equipment - EN 60512-13-2 -
Tests and measurements - Part 13-2:
Mechanical operation tests - Test 13b:
Insertion and withdrawal forces
IEC 60512-13-5 - Connectors for electronic equipment - EN 60512-13-5 -
Tests and measurements - Part 13-5:
Mechanical operation tests - Test 13e:
Polarizing and keying method
IEC 60512-16-5 - Connectors for electronic equipment - EN 60512-16-5 -
Tests and measurements - Part 16-5:
Mechanical tests on contacts and
terminations - Test 16e: Gauge retention
force (resilient contacts)
IEC 60512-28-100 - Connectors for electrical and electronic EN IEC 60512-28- -
equipment - Tests and measurements - 100
Part 28-100: Signal integrity tests up to 2
000 MHz - Tests 28a to 28g
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
- - + corrigendum May 1993
+ A1 1999 + A1 2000
+ A2 2013 + A2 2013
IEC 60664-1 2020 Insulation coordination for equipment EN IEC 60664-1 2020
within low-voltage supply systems - Part 1:
Principles, requirements and tests
IEC 60998-2-1 - Connecting devices for low-voltage circuits EN 60998-2-1 -
for household and similar purposes - Part
2-1: Particular requirements for connecting
devices as separate entities with screw-
type clamping units
IEC 60999-1 - Connecting devices - Electrical copper EN 60999-1 -
conductors - Safety requirements for
screw-type and screwless-type clamping
units - Part 1: General requirements and
particular requirements for clamping units
for conductors from 0,2 mm2 up to 35 mm2
(included)
IEC 61076-1 - Connectors for electronic equipment - EN 61076-1 -
Product requirements - Part 1: Generic
specification
IEC 61984 2008 Connectors - Safety requirements and EN 61984 2009
tests
ISO 21920-1 - Geometrical product specifications (GPS) - EN ISO 21920-1 -
Surface texture: Profile - Part 1: Indication
of surface texture
IEC 61076-2-118 ®
Edition 1.0 2026-08
INTERNATIONAL
STANDARD
Connectors for electrical and electronic equipment - Product requirements -
Part 2-118: Circular connectors - Detail specification for shielded and
unshielded, free and fixed connectors with bayonet-locking size B12, B17, B23
and B40, for power, signal and data transmission
ICS 31.220.10 ISBN 978-2-8327-1466-9
IEC 61076-2-118:2026-08(en)
IEC 61076-2-118:2026 © IEC 2026
CONTENTS
FOREWORD . 6
INTRODUCTION . 8
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 11
4 Technical information . 12
4.1 Systems of levels . 12
4.1.1 Performance levels . 12
4.1.2 Compatibility levels . 12
4.2 Classification into climatic categories . 12
4.3 Current-carrying capacity . 12
4.4 Type designation . 13
4.5 Marking . 16
4.6 Safety aspects . 16
5 Dimensional information . 16
5.1 General . 16
5.2 Survey of styles and variants . 16
5.2.1 General . 16
5.2.2 Terminations. 16
5.2.3 Fixed connectors . 16
5.2.4 Free connectors. 21
5.3 Interface dimensions . 30
5.3.1 Interface dimensions – B12 . 30
5.3.2 Interface dimensions – B17 . 37
5.3.3 Interface dimensions – B23 . 55
5.3.4 Interface dimensions – B40 . 66
5.3.5 Interface dimensions – Trapezoidal data module . 75
5.3.6 Engagement (mating) direction . 78
5.4 Gauges . 82
6 Characteristics . 83
6.1 General . 83
6.2 Contact assignment and other definitions . 83
6.3 Classification into climatic categories . 83
6.4 Electrical characteristics . 84
6.4.1 General . 84
6.4.2 Voltage proof . 84
6.4.3 Rated impulse withstand voltage – pollution degree . 85
6.4.4 Current-carrying capacity – temperature rise . 85
6.4.5 Contact and shield resistance . 86
6.4.6 Insulation resistance . 86
6.5 Transmission performance . 86
6.5.1 General . 86
6.5.2 Insertion loss . 86
6.5.3 Return loss . 87
6.5.4 Near-end cross talk (NEXT) . 87
6.5.5 Far-end cross talk (FEXT). 87
IEC 61076-2-118:2026 © IEC 2026
6.5.6 Transverse conversion loss (TCL) . 88
6.5.7 Transverse conversion transfer loss (TCTL) . 88
6.5.8 Transfer impedance . 88
6.5.9 Coupling attenuation . 89
6.5.10 Power sum alien (exogenous) NEXT (PS NEXT) . 89
6.5.11 Power sum alien (exogenous) FEXT (PS AFEXT) . 89
6.5.12 Propagation delay . 90
6.6 Mechanical characteristics . 90
6.6.1 Mechanical operations . 90
6.6.2 Effectiveness of connector coupling device . 90
6.6.3 Insertion and withdrawal forces . 91
6.6.4 Polarization and coding . 91
6.7 Other characteristics . 92
6.7.1 Vibration (sinusoidal) . 92
6.7.2 Shock . 92
6.7.3 Degree of protection provided by enclosures (IP code) . 92
6.7.4 Locking and unlocking torque . 92
6.7.5 Environmental aspects – Marking of insulation material (plastics) . 92
7 Test schedule . 93
7.1 General . 93
7.1.1 Overview . 93
7.1.2 Climatic category . 93
7.1.3 Arrangement for contact resistance measurements . 93
7.1.4 Arrangement for dynamic stress tests (vibration) . 94
7.1.5 Wiring of specimens . 95
7.2 Test schedule . 96
7.2.1 Test group P – Preliminary . 96
7.2.2 Test group AP – Dynamic/climatic . 96
7.2.3 Test group BP – Mechanical endurance . 99
7.2.4 Test group CP – Electrical load . 100
7.2.5 Test group DP – Connection method tests . 101
7.2.6 Test group EP – Signal integrity requirements . 101
7.2.7 Test group FP – Current carrying capacity . 102
Bibliography . 103
Figure 1 – Fixed connector with wire ends, male power contacts, male data contacts,
bayonet locking notch, and square flange front mounting . 17
Figure 2 – Fixed connector with wire ends, male power contacts, male data contacts,
bayonet locking notch, single hole front mounting, and keyway orientation . 18
Figure 3 – Fixed connector with wire ends, male power contacts, male data contacts,
bayonet locking notch, single hole rear mounting, and keyway orientation . 19
Figure 4 – Fixed connector with wire ends, female power contacts, female data
contacts, bayonet locking notch, and square flange front mounting . 19
Figure 5 – Fixed connector with wire ends, female power contacts, female data
contacts, bayonet locking notch, single hole front mounting, and keyway orientation . 20
Figure 6 – Fixed connector with wire ends, female power contacts, female data
contacts, bayonet locking notch, single hole rear mounting, and keyway orientation . 21
IEC 61076-2-118:2026 © IEC 2026
Figure 7 – Rewirable connector, male, straight version, with bayonet locking nut . 22
Figure 8 – Rewirable connector, male, angled version, with bayonet locking nut . 23
Figure 9 – Non-rewirable connector, male, straight version, with bayonet locking nut . 24
Figure 10 – Non-rewirable connector, male, angled version, with bayonet locking nut . 24
Figure 11 – Rewirable connector, male, straight version, with bayonet locking notch . 25
Figure 12 – Non-rewirable connector, male, straight version, with bayonet locking notch . 26
Figure 13 – Rewirable connector, female, straight version, with bayonet locking nut . 26
Figure 14 – Rewirable connector, female, angled version, with bayonet locking nut . 27
Figure 15 – Non-rewirable connector, female, straight version, with bayonet locking nut . 27
Figure 16 – Non-rewirable connector, female, angled version, with bayonet locking nut . 28
Figure 17 – Rewirable connector, female, straight version, with bayonet locking notch . 29
Figure 18 – Non-rewirable connector, female, straight version, with bayonet locking notch . 29
Figure 19 – Dimensions of contact positioning of type B1201011 . 31
Figure 20 – Dimensions of contact positioning of type B1201012 . 32
Figure 21 – Dimension of B12 bayonet locking (2 bayonet grooves) . 35
Figure 22 – Dimensions of contact positioning of type B1702011 . 37
Figure 23 – Dimensions of contact positioning of type B1702012 . 38
Figure 24 – Dimensions of contact positioning of type B1703011 . 40
Figure 25 – Dimensions of contact positioning of type B1703012 . 41
Figure 26 – Dimensions of contact positioning of type B1704011 . 43
Figure 27 – Dimensions of contact positioning of type B1704012 . 44
Figure 28 – Dimensions of contact positioning of type B1705011 . 46
Figure 29 – Dimensions of contact positioning of type B1705012 . 47
Figure 30 – Dimension of contact positioning of type B1706211 . 49
Figure 31 – Dimensions of contact positioning of type B1706212 . 50
Figure 32 – Dimension of B17 bayonet locking (2 bayonet grooves) . 53
Figure 33 – Dimensions of contact positioning of type B2307011 . 56
Figure 34 – Dimensions of contact positioning of type B2307012 . 57
Figure 35 – Dimension of contact positioning of type B2308111 . 60
Figure 36 – Dimensions of contact positioning of type B2308112 . 61
Figure 37 – Dimension of B23 bayonet locking (2 bayonet grooves) . 64
Figure 38 – Dimensions of contact positioning of type B4009011 . 67
Figure 39 – Dimensions of contact positioning of type B4009012 . 68
Figure 40 – Dimension of B40 bayonet locking (3 bayonet grooves) . 71
Figure 41 – Dimensions of contact positioning and cross section of D1 data module . 75
Figure 42 – Area for electric contact of shielding of D1 shielded data module . 76
Figure 43 – Dimensions of contact positioning and cross section D2 data module . 77
Figure 44 – Area for electric contact of shielding of D2 shielded data module . 78
Figure 45 – Engagement (mating) information . 79
Figure 46 – Gauge dimension . 83
Figure 47 – Contact resistance arrangement . 94
Figure 48 – Dynamic stress test arrangement . 95
IEC 61076-2-118:2026 © IEC 2026
Table 1 – Ratings of connector power part . 12
Table 2 – Ratings of connector signal part . 13
Table 3 – Ratings of connector data part (data module) . 13
Table 4 – Type designation . 14
Table 5 – Combination possibilities of power, signal and data . 15
Table 6 – Styles of fixed connectors . 17
Table 7 – Dimensions of style DM . 17
Table 8 – Dimensions of style EM . 18
Table 9 – Dimensions of style FM . 19
Table 10 – Dimensions of style DF . 20
Table 11 – Dimensions of style EF . 20
Table 12 – Dimensions of style FF . 21
Table 13 – Styles of free connectors . 22
Table 14 – Dimensions of style GM . 23
Table 15 – Dimensions of style HM . 23
Table 16 – Dimensions of style IM . 24
Table 17 – Dimensions of style JM . 25
Table 18 – Dimensions of style KM . 25
Table 19 – Dimensions of style LM . 26
Table 20 – Dimensions of style GF . 26
Table 21 – Dimensions of style HF . 27
Table 22 – Dimensions of style IF . 28
Table 23 – Dimensions of style JF . 28
Table 24 – Dimensions of style KF . 29
Table 25 – Dimensions of style LF . 30
Table 26 – Dimensions of contact positioning of type B12010 . 33
Table 27 – Type of B12 combined with D1 and D2 as application A . 34
Table 28 – Type of B12 combined with D1 and D2 as application B . 34
Table 29 – Dimensions of B12 bayonet locking . 35
Table 30 – Mechanical codings B12 connectors . 36
Table 31 – Dimensions of B12 mechanical codings . 36
Table 32 – Dimensions of contact positioning of types B17020 . 39
Table 33 – Dimensions of contact positioning of types B17030 . 42
Table 34 – Dimensions of contact positioning of types B17040 . 45
Table 35 – Dimensions of contact positioning of types B17050 . 48
Table 36 – Dimensions of contact positioning of types B17062 . 51
Table 37 – Types of B17 combined with D1 and D2 as application A . 52
Table 38 – Types of B17 combined with D1 and D2 as application B . 52
Table 39 – Dimensions of B17 bayonet locking . 53
Table 40 – Mechanical codings B17 connectors . 54
Table 41 – Dimensions of B17 mechanical codings . 55
Table 42 – Dimensions of contact positioning of types B23070 . 58
Table 43 – Dimensions of contact positioning of types B23081 . 62
IEC 61076-2-118:2026 © IEC 2026
Table 44 – Types of B23 combined with D1 and D2 as application A . 63
Table 45 – Types of B23 combined with D1 as application B . 64
Table 46 – Dimensions of B23 bayonet locking . 65
Table 47 – Mechanical codings of B23 connectors . 65
Table 48 – Dimensions of B23 mechanical codings . 66
Table 49 – Dimensions of contact positioning of types B40090 . 69
Table 50 – Type of B40 combined with D1 and D2 as application A . 70
Table 51 – Type of B40 combined with D1 and D2 as application B . 70
Table 52 – Dimensions of B40 bayonet locking . 72
Table 53 – Mechanical codings of B40 connectors . 72
Table 54 – Dimensions of B40 mechanical codings . 74
Table 55 – Dimensions of contact positioning of the D1 data module . 76
Table 56 – Dimensions of contact positioning of the D2 data module . 78
Table 57 – Connectors dimensions in mated and locked position . 79
Table 58 – Gauges . 83
Table 59 – Climatic category . 84
Table 60 – Voltage proof . 84
Table 61 – Rated impulse voltage and pollution degree . 85
Table 62 – Insertion loss requirements . 86
Table 63 – Return loss requirements . 87
Table 64 – Near-end cross talk requirements . 87
Table 65 – Far-end cross talk requirements . 87
Table 66 – Transverse conversion loss requirements . 88
Table 67 – Transverse conversion transfer loss requirements . 88
Table 68 – Transfer impedance requirements . 88
Table 69 – Coupling attenuation requirements . 89
Table 70 – Power sum alien NEXT requirements . 89
Table 71 – Power sum alien FEXT requirements . 89
Table 72 – Propagation delay requirements . 90
Table 73 – Number of cycles of mechanical operations . 90
Table 74 – Minimum axial test force . 91
Table 75 – Maximum insertion and withdrawal forces . 91
Table 76 – Polarization insertion force . 91
Table 77 – Maximum locking and unlocking torque . 92
Table 78 – Number of test specimens and contacts . 93
Table 79 – Test group P . 96
Table 80 – Test group AP . 96
Table 81 – Test group BP . 99
Table 82 – Test group CP . 100
Table 83 – Test group DP . 101
Table 84 – Test group EP . 101
Table 85 – Test group FP . 102
IEC 61076-2-118:2026 © IEC 2026
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Connectors for electrical and electronic equipment -
Product requirements -
Part 2-118: Circular connectors - Detail specification for free and fixed
connectors with bayonet-locking size B12, B17, B23 and B40, for power,
signal and data transmission
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 61076-2-118 has been prepared by subcommittee 48B: Electrical connectors, of IEC
technical committee 48: Electrical connectors and mechanical structures for electrical and
electronic equipment. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
48B/3196/FDIS 48B/3205/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
IEC 61076-2-118:2026 © IEC 2026
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 61076 series, published under the general title Connectors for
electrical and electronic equipment - Product requirements, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
IEC 61076-2-118:2026 © IEC 2026
INTRODUCTION
IEC SC 48B – Electrical connectors IEC 61076-2-118 ED1
Specification available from:
IEC General secretariat
or from the addresses shown on the inside cover.
DETAIL SPECIFICATION in accordance with IEC 61076-1
Circular connectors
With bayonet-locking
Size B12, B17, B23 and
B40, for power, signal and
data transmission
B12: 2-way power, 2 or
4-way data;
B17: 2 to 5-way power, 0 or
2-way signal, 2 or 4-way
data;
B23: 4 or 5-way power, 0 or
2-way signal, 2 or 4-way
data;
B40: 5-way power, 2 or
4-way data
Female (power and signal) +
male (data) and male (power
and signal) + female (data)
connectors
Female (power and signal)
+ female (data) and male
(power and signal) + male
(data) connectors
Male and female contacts
Rewirable
Non-rewirable
Free connectors, straight
and angled
Fixed connectors, flange
mounting and single hole
mounting
___________
...
