SIST EN 302-5:2023
(Main)Adhesives for load-bearing timber structures - Test methods - Part 5: Determination of maximum assembly time under referenced conditions
Adhesives for load-bearing timber structures - Test methods - Part 5: Determination of maximum assembly time under referenced conditions
This document specifies a laboratory method of determining the maximum assembly time at two spread rate levels in standard atmosphere [20/65].
This document is intended for obtaining a reliable base of comparison of the maximum assembly time between adhesives at referenced conditions.
Klebstoffe für tragende Holzbauteile - Prüfverfahren - Teil 5: Bestimmung der maximalen Wartezeit bei Referenzbedingungen
Dieses Dokument legt ein Labor-Verfahren zur Bestimmung der maximalen Wartezeit von Klebstoffen bei zwei unterschiedlichen aufgetragenen Klebstoffmengen im Normalklima [20/65] fest.
Dieses Dokument dient dazu, eine zuverlässige Grundlage zum Vergleich der maximalen Wartezeit von Klebstoffen unter Referenzbedingungen zu erhalten.
Adhésifs pour structures portantes en bois - Méthodes d'essai - Partie 5 : Détermination du temps d'assemblage maximal dans des conditions de référence
Le présent document spécifie une méthode de laboratoire qui permet de déterminer le temps d’assemblage maximal pour deux niveaux de grammage en atmosphère normale [20/65].
Le présent document s’applique pour obtenir une base fiable de comparaison du temps d’assemblage maximal entre les adhésifs dans des conditions de référence.
Lepila za nosilne lesene konstrukcije - Preskusne metode - 5. del: Določanje najdaljšega časa za montažo (sestavo) pri referenčnih pogojih
Ta dokument določa laboratorijsko metodo za določanje najdaljšega časa za montažo (sestavo) pri dveh hitrostih nanašanja v standardni atmosferi [20/65].
Ta dokument je namenjen za pridobivanje zanesljive podlage za primerjavo najdaljšega časa za montažo med lepili pri referenčnih pogojih.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 302-5:2023
01-april-2023
Lepila za nosilne lesene konstrukcije - Preskusne metode - 5. del: Določanje
najdaljšega časa za montažo (sestavo) pri referenčnih pogojih
Adhesives for load-bearing timber structures - Test methods - Part 5: Determination of
maximum assembly time under referenced conditions
Klebstoffe für tragende Holzbauteile - Prüfverfahren - Teil 5: Bestimmung der maximalen
Wartezeit bei Referenzbedingungen
Adhésifs pour structures portantes en bois - Méthodes d'essai - Partie 5 : Détermination
du temps d'assemblage maximal dans des conditions de référence
Ta slovenski standard je istoveten z: EN 302-5:2023
ICS:
83.180 Lepila Adhesives
91.080.20 Lesene konstrukcije Timber structures
SIST EN 302-5:2023 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 302-5:2023
---------------------- Page: 2 ----------------------
SIST EN 302-5:2023
EN 302-5
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2023
EUROPÄISCHE NORM
ICS 83.180 Supersedes EN 302-5:2013
English Version
Adhesives for load-bearing timber structures - Test
methods - Part 5: Determination of maximum assembly
time under referenced conditions
Adhésifs pour structures portantes en bois - Méthodes Klebstoffe für tragende Holzbauteile - Prüfverfahren -
d'essai - Partie 5 : Détermination du temps Teil 5: Bestimmung der maximalen Wartezeit bei
d'assemblage maximal dans des conditions de Referenzbedingungen
référence
This European Standard was approved by CEN on 18 December 2022.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 302-5:2023 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 302-5:2023
EN 302-5:2023 (E)

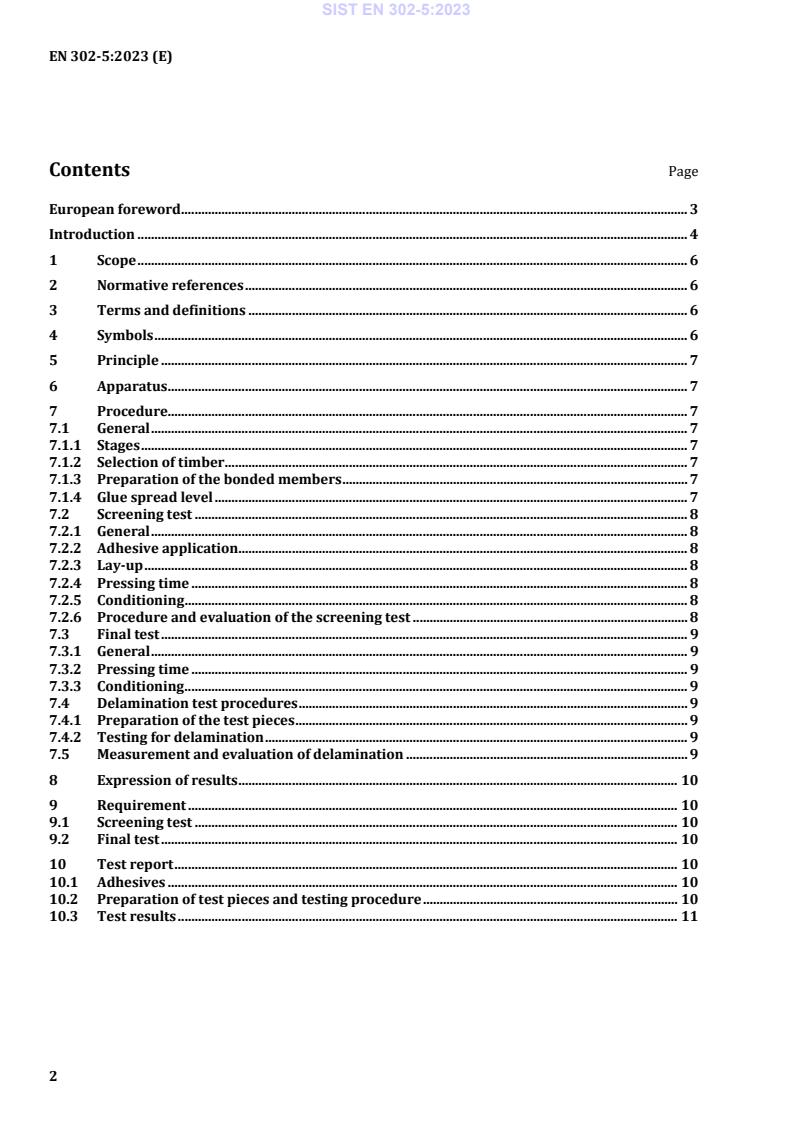

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Symbols . 6
5 Principle . 7
6 Apparatus . 7
7 Procedure. 7
7.1 General . 7
7.1.1 Stages . 7
7.1.2 Selection of timber . 7
7.1.3 Preparation of the bonded members . 7
7.1.4 Glue spread level . 7
7.2 Screening test . 8
7.2.1 General . 8
7.2.2 Adhesive application. 8
7.2.3 Lay-up . 8
7.2.4 Pressing time . 8
7.2.5 Conditioning . 8
7.2.6 Procedure and evaluation of the screening test . 8
7.3 Final test . 9
7.3.1 General . 9
7.3.2 Pressing time . 9
7.3.3 Conditioning . 9
7.4 Delamination test procedures . 9
7.4.1 Preparation of the test pieces . 9
7.4.2 Testing for delamination . 9
7.5 Measurement and evaluation of delamination . 9
8 Expression of results . 10
9 Requirement . 10
9.1 Screening test . 10
9.2 Final test . 10
10 Test report . 10
10.1 Adhesives . 10
10.2 Preparation of test pieces and testing procedure . 10
10.3 Test results . 11
2
---------------------- Page: 4 ----------------------
SIST EN 302-5:2023
EN 302-5:2023 (E)
European foreword
This document (EN 302-5:2023) has been prepared by Technical Committee CEN/TC 193 “Adhesives”,
the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by August 2023, and conflicting national standards shall
be withdrawn at the latest by August 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 302-5:2013.
The main changes compared to the previous edition are listed below:
a) the list of standards in the Introduction has been updated;
b) one new clause (Symbols) has been introduced;
c) Clause 10 has been changed.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
3
---------------------- Page: 5 ----------------------
SIST EN 302-5:2023
EN 302-5:2023 (E)
Introduction
This document is one of a series dealing with adhesives for use with timber structures, and is published
in support of the EN 1995 series, Eurocode 5: Design of timber structures. The series consists of five
classification and performance requirements for adhesives for load-bearing timber structures, phenolic
and aminoplastic adhesives (EN 301), one component polyurethane adhesives (EN 15425), emulsion
polymer isocyanate adhesives (EN 16254), two component epoxy and polyurethane adhesives for glued
in rods (EN 17334) and for on-site repair of cracked timber structures (EN 17418) and all together
twelve test methods (EN 302-1, EN 302-2, EN 302-3, EN 302-4, EN 302-5, EN 302-6, EN 302-7,
EN 302-8, EN 15416-1, EN 15416-3, EN 15416-4 and EN 15416-5).
These European Standards have the following titles:
EN 301, Adhesives, phenolic and aminoplastic, for load-bearing timber structures — Classification and
performance requirements
EN 302, Adhesives for load-bearing timber structures — Test methods:
— Part 1: Determination of longitudinal tensile shear strength
— Part 2: Determination of resistance to delamination
— Part 3: Determination of the effect of acid damage to wood fibres by temperature and humidity
cycling on the transverse tensile strength
— Part 4: Determination of the effects of wood shrinkage on the shear strength
— Part 5: Determination of maximum assembly time under referenced conditions
— Part 6: Determination of the minimum pressing time under referenced conditions
— Part 7: Determination of the working life under referenced conditions
— Part 8: Static load test of multiple bond line specimens in compression shear
EN 15416, Adhesives for load bearing timber structures other than phenolic and aminoplastic — Test
methods:
— Part 1: Long-term tension load test perpendicular to the bond line at varying climate conditions with
specimens perpendicular to the glue line (Glass house test)
— Part 3: Creep deformation test at cyclic climate conditions with specimens loaded in bending shear
— Part 4: Determination of open assembly time under referenced conditions
— Part 5: Determination of minimum pressing time under referenced conditions
EN 15425, Adhesives — One component polyurethane (PUR) for load-bearing timber structures —
Classification and performance requirements
EN 16254, Adhesives — Emulsion polymer isocyanate (EPI) for load-bearing timber structures —
Classification and
...
SLOVENSKI STANDARD
oSIST prEN 302-5:2021
01-november-2021
Nadomešča:
SIST EN 302-5:2013
Lepila za nosilne lesene konstrukcije - Preskusne metode - 5. del: Določanje
najdaljšega časa za montažo (sestavo) pri referenčnih pogojih
Adhesives for load-bearing timber structures - Test methods - Part 5: Determination of
maximum assembly time under referenced conditions
Klebstoffe für tragende Holzbauteile - Prüfverfahren - Teil 5: Bestimmung der maximalen
Wartezeit bei Referenzbedingungen
Adhésifs pour structures portantes en bois - Méthodes d'essai - Partie 5: Détermination
du temps d'assemblage maximal dans des conditions de référence
Ta slovenski standard je istoveten z: prEN 302-5
ICS:
83.180 Lepila Adhesives
91.080.20 Lesene konstrukcije Timber structures
oSIST prEN 302-5:2021 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 302-5:2021
---------------------- Page: 2 ----------------------
oSIST prEN 302-5:2021
DRAFT
EUROPEAN STANDARD
prEN 302-5
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2021
ICS 83.180 Will supersede EN 302-5:2013
English Version
Adhesives for load-bearing timber structures - Test
methods - Part 5: Determination of maximum assembly
time under referenced conditions
Adhésifs pour structures portantes en bois - Méthodes Klebstoffe für tragende Holzbauteile - Prüfverfahren -
d'essai - Partie 5: Détermination du temps Teil 5: Bestimmung der maximalen Wartezeit bei
d'assemblage maximal dans des conditions de Referenzbedingungen
référence
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 193.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 302-5:2021 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 302-5:2021
prEN 302-5:2021 (E)
Contents Page
European foreword . 3
Introduction . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Symbols . 6
5 Principle . 6
6 Apparatus . 7
7 Procedure . 7
7.1 General. 7
7.2 Screening test . 7
7.3 Final test . 8
7.4 Delamination test procedures . 9
7.5 Measurement and evaluation of delamination . 9
8 Expression of results . 9
9 Requirement . 10
9.1 Screening test . 10
9.2 Final test . 10
10 Test report . 10
2
---------------------- Page: 4 ----------------------
oSIST prEN 302-5:2021
prEN 302-5:2021 (E)
European foreword
This document (prEN 302-5:2021) has been prepared by Technical Committee CEN/TC 193 “Adhesives”,
the secretariat of which is held by UNE.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 302-5:2013.
In comparison with the previous edition, the following technical modifications have been made:
— list of standards in Introduction updated;
— one new clause (Symbols) is introduced.
3
---------------------- Page: 5 ----------------------
oSIST prEN 302-5:2021
prEN 302-5:2021 (E)
Introduction
This document is one of a series dealing with adhesives for use with timber structures, and is published
in support of EN 1995, Eurocode 5: Design of timber structures. The series consists of five classification
and performance requirements for adhesives for load-bearing timber structures, phenolic and
aminoplastic adhesives (EN 301), one component polyurethane adhesives (EN 15425), emulsion
polymerised isocyanate adhesives (EN 16254), two component epoxy and polyurethane adhesives for
glued in rods (EN 17334) and for on-site repair of cracked timber structures (EN 17418) and all together
twelve test methods (EN 302 (all parts), EN 15416-1, EN 15416-3, EN 15416-4 and EN 15416-5).
These European Standards have the following titles:
EN 301, Adhesives, phenolic and aminoplastic, for load-bearing timber structures — Classification and
performance requirements
EN 302, Adhesives for load-bearing timber structures — Test methods
— Part 1: Determination of longitudinal tensile shear strength
— Part 2: Determination of resistance to delamination
— Part 3: Determination of the effect of acid damage to wood fibres by temperature and humidity
cycling on the transverse tensile strength
— Part 4: Determination of the effects of wood shrinkage on the shear strength
— Part 5: Determination of maximum assembly time under referenced conditions
— Part 6: Determination of the minimum pressing time under referenced conditions
— Part 7: Determination of the working life under referenced conditions
— Part 8: Static load test of multiple bond line specimens in compression shear
EN 15416, Adhesives for load bearing timber structures other than phenolic and aminoplastic — Test
methods
— Part 1: Long-term tension load test perpendicular to the bond line at varying climate conditions with
specimens loaded perpendicular to the glue line (Glasshouse test)
— Part 3: Creep deformation test at cyclic climate conditions with specimens loaded in bending shear
— Part 4: Determination of open assembly time under referenced conditions
— Part 5: Determination of minimum pressing time under referenced conditions
EN 15425, Adhesives — One component polyurethane (PUR)for load bearing timber structures ―
Classification and performance requirements
EN 16254, Adhesives — Emulsion polymerized isocyanate (EPI) for load-bearing timber structures ―
Classification and performance requirements
EN 17334, Glued-in rods in glued structural timber products ― Testing, requirements, and bond shear
strength classification
EN 17418, Two-component epoxy and polyurethane adhesives for on-site repair of cracked timber
structures ― Testing, requirements, and repair strength verification
4
---------------------- Page: 6 ----------------------
oSIST prEN 302-5:2021
prEN 302-5:2021 (E)
Safety statement
Persons using this document should be familiar with the normal laboratory practice, if applicable. This
document cannot address all of the safety problems, if any, associated with its use. It is the responsibility
of the user to establish appropriate safety and health practices and to ensure compliance with any
regulatory conditions.
Environmental statement
It is understood that some of the material permitted in this standard can have a negative environmental
impact. As technological advantages lead to better alternatives for these materials, they will be eliminated
from this standard to the greatest extent possible.
At the end of the test, it is recommended that the user of the standard take care to carry out an appropriate
disposal of the wastes, according to local regulations.
5
---------------------- Page: 7 ----------------------
oSIST prEN 302-5:2
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
