ElectroMagnetic Compatibility (EMC) standard for radio equipment and services - Part 12: Specific conditions for Very Small Aperture Terminal, Satellite Interactive Earth Stations operated in the frequency ranges between 4 GHz and 30 GHz in the Fixed Satellite Service (FSS) - Harmonised Standard for ElectroMagnetic Compatibility

The present document specifies technical characteristics and methods of measurement for the Earth Stations (ESs) operating in the frequency ranges between 3,625 GHz and 30 GHz in the Fixed Satellite Service (FSS) bands, and associated ancillary equipment in respect of ElectroMagnetic Compatibility (EMC). Technical specifications related to the antenna port and emissions from the enclosure port of the Earth Stations (ESs) are not included in the present document. Such technical specifications are found in the relevant product standards for the effective use of the radio spectrum, see table 1. Emissions requirements in the present document are only specified for frequencies above 9 kHz.
Definitions of the type of Earth Stations (ESs) operating in the frequency ranges between 3,625 GHz and 30 GHz in the Fixed Satellite Service (FSS) covered by the present document are given in annex B. The environmental classification used in the present document is as stated in ETSI EN 301 489-1 [1]. NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive 2014/53/EU [i.5] is given in annex A.

Standard elektromagnetne združljivosti (EMC) za radijsko opremo in storitve - 12. del: Posebni pogoji za satelitske terminale z zelo majhno antensko odprtino, interaktivne satelitske zemeljske postaje, ki delujejo v frekvenčnih pasovih 4 GHz in 30 GHz fiksnih satelitskih storitev (FSS) - Harmonizirani standard za elektromagnetno združljivost

Ta dokument določa tehnične lastnosti in merilne metode v zvezi z elektromagnetno združljivostjo (EMC) za zemeljske postaje (ES), ki delujejo v frekvenčnih pasovih od 3,625 GHz do 30 GHz fiksnih satelitskih storitev (FSS), ter povezano pomožno opremo. Ta dokument ne vključuje tehničnih specifikacij v zvezi z antenskim vhodom in sevanjem iz vhoda na ohišju zemeljskih postaj. Take tehnične specifikacije so navedene v ustreznih standardih za izdelek na področju učinkovite uporabe radijskega spektra (glej preglednico 1). Zahteve glede sevanja v tem dokumentu so določene samo za frekvence nad 9 kHz.
Opredelitve tipa zemeljskih postaj, ki delujejo v frekvenčnih pasovih od 3,625 GHz do 30 GHz fiksnih satelitskih storitev, zajete v tem dokumentu, so podane v dodatku B. Okoljska razvrstitev iz tega dokumenta je navedena v standardu ETSI EN 301 489-1 [1]. OPOMBA: Razmerje med tem dokumentom in bistvenimi zahtevami člena 3.1(b) Direktive 2014/53/EU [i.5] je podano v dodatku A.

General Information

Status
Published
Public Enquiry End Date
21-Jun-2021
Publication Date
06-Dec-2021
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
29-Nov-2021
Due Date
03-Feb-2022
Completion Date
07-Dec-2021

Buy Standard

Standard
SIST EN 301 489-12 V3.2.1:2022
English language
28 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Standard
ETSI EN 301 489-12 V3.2.1 (2021-11) - ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 12: Specific conditions for Very Small Aperture Terminal, Satellite Interactive Earth Stations operated in the frequency ranges between 4 GHz and 30 GHz in the Fixed Satellite Service (FSS); Harmonised Standard for ElectroMagnetic Compatibility
English language
28 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ETSI EN 301 489-12 V3.2.0 (2021-09) - ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 12: Specific conditions for Very Small Aperture Terminal, Satellite Interactive Earth Stations operated in the frequency ranges between 4 GHz and 30 GHz in the Fixed Satellite Service (FSS); Harmonised Standard for ElectroMagnetic Compatibility
English language
28 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ETSI EN 301 489-12 V3.1.2 (2021-03) - ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 12: Specific conditions for Very Small Aperture Terminal, Satellite Interactive Earth Stations operated in the frequency ranges between 4 GHz and 30 GHz in the Fixed Satellite Service (FSS); Harmonised Standard for ElectroMagnetic Compatibility
English language
27 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
oSIST prEN 301 489-12 V3.1.2:2021
English language
27 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

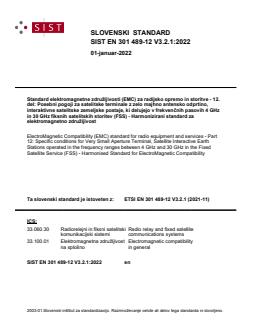

SLOVENSKI STANDARD
SIST EN 301 489-12 V3.2.1:2022
01-januar-2022

Standard elektromagnetne združljivosti (EMC) za radijsko opremo in storitve - 12.

del: Posebni pogoji za satelitske terminale z zelo majhno antensko odprtino,

interaktivne satelitske zemeljske postaje, ki delujejo v frekvenčnih pasovih 4 GHz

in 30 GHz fiksnih satelitskih storitev (FSS) - Harmonizirani standard za
elektromagnetno združljivost

ElectroMagnetic Compatibility (EMC) standard for radio equipment and services - Part

12: Specific conditions for Very Small Aperture Terminal, Satellite Interactive Earth

Stations operated in the frequency ranges between 4 GHz and 30 GHz in the Fixed
Satellite Service (FSS) - Harmonised Standard for ElectroMagnetic Compatibility
Ta slovenski standard je istoveten z: ETSI EN 301 489-12 V3.2.1 (2021-11)
ICS:
33.060.30 Radiorelejni in fiksni satelitski Radio relay and fixed satellite
komunikacijski sistemi communications systems
33.100.01 Elektromagnetna združljivost Electromagnetic compatibility
na splošno in general
SIST EN 301 489-12 V3.2.1:2022 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 301 489-12 V3.2.1:2022
---------------------- Page: 2 ----------------------
SIST EN 301 489-12 V3.2.1:2022

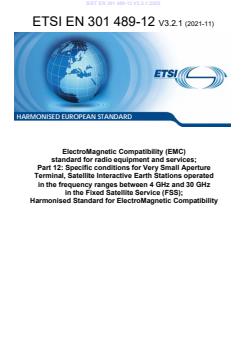

ETSI EN 301 489-12 V3.2.1 (2021-11)
HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 12: Specific conditions for Very Small Aperture
Terminal, Satellite Interactive Earth Stations operated
in the frequency ranges between 4 GHz and 30 GHz
in the Fixed Satellite Service (FSS);
Harmonised Standard for ElectroMagnetic Compatibility
---------------------- Page: 3 ----------------------
SIST EN 301 489-12 V3.2.1:2022

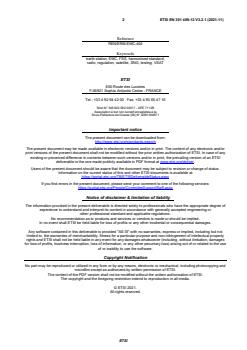

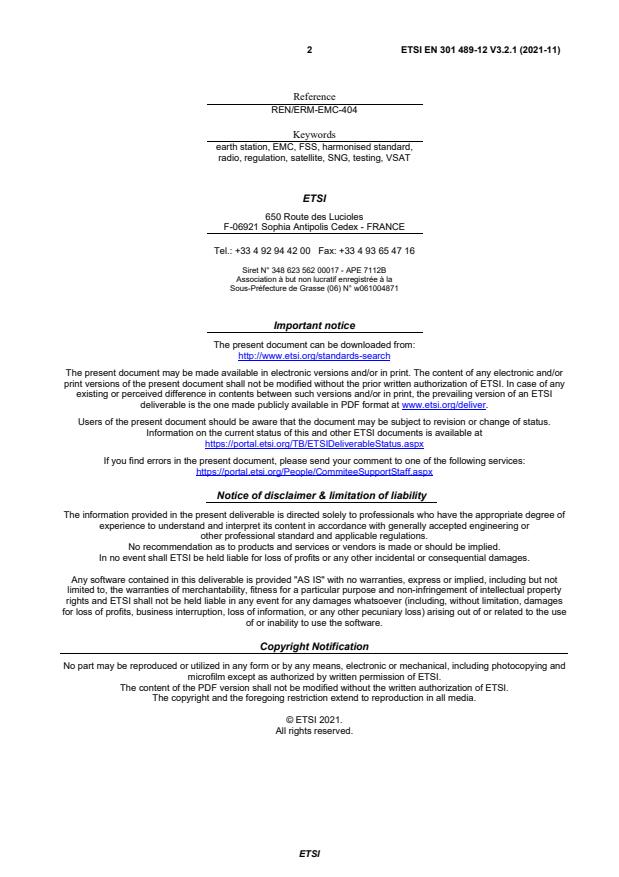

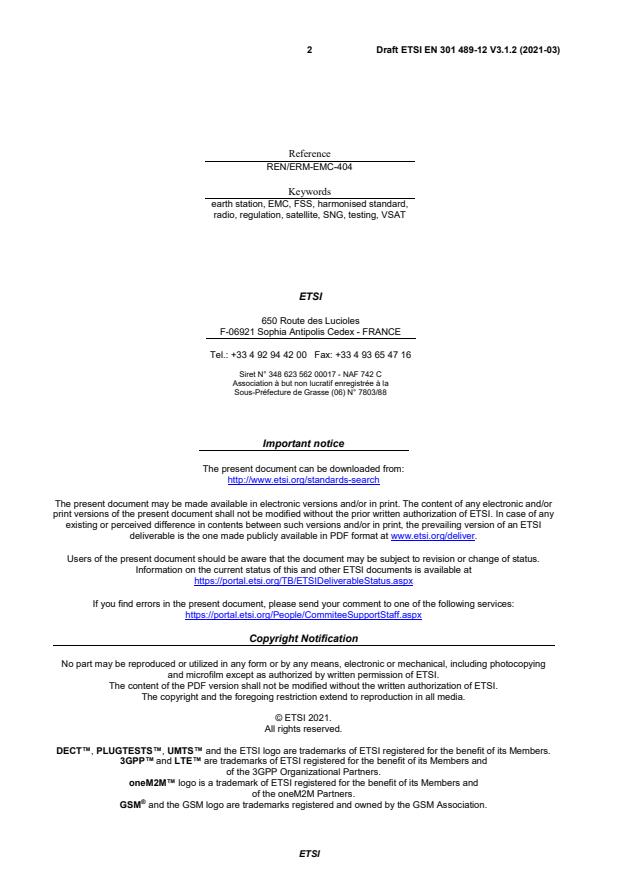

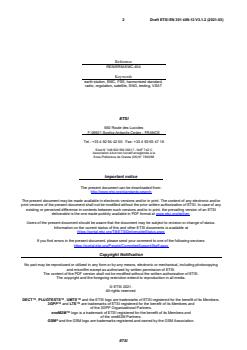

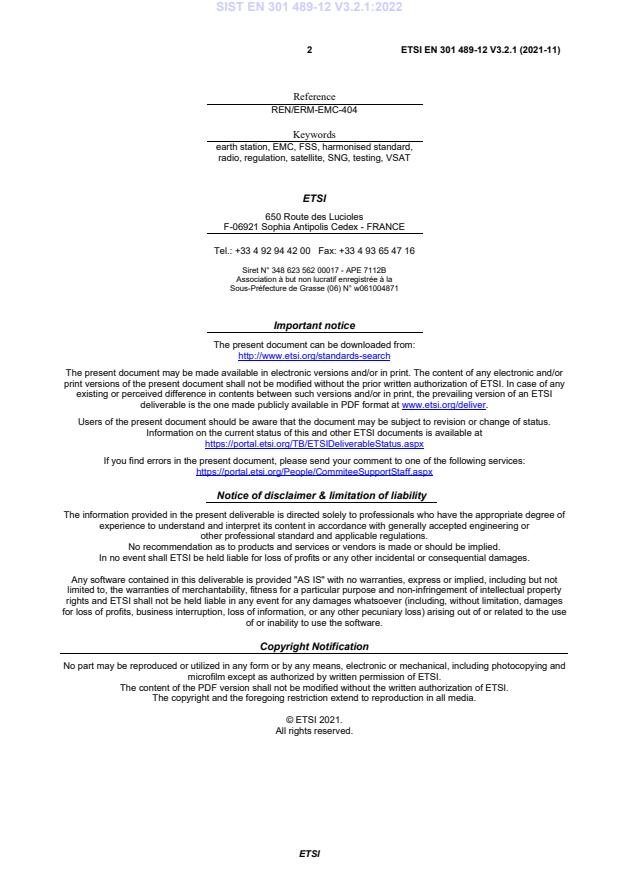

2 ETSI EN 301 489-12 V3.2.1 (2021-11)
Reference
REN/ERM-EMC-404
Keywords
earth station, EMC, FSS, harmonised standard,
radio, regulation, satellite, SNG, testing, VSAT
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI

deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability

The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of

experience to understand and interpret its content in accordance with generally accepted engineering or

other professional standard and applicable regulations.

No recommendation as to products and services or vendors is made or should be implied.

In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not

limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property

rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages

for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use

of or inability to use the software.
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and

microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2021.
All rights reserved.
ETSI
---------------------- Page: 4 ----------------------
SIST EN 301 489-12 V3.2.1:2022
3 ETSI EN 301 489-12 V3.2.1 (2021-11)

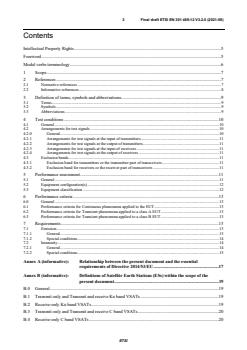

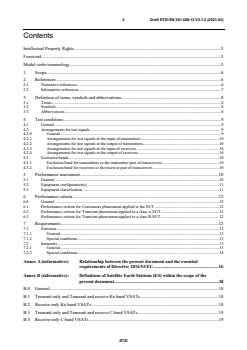

Contents

Intellectual Property Rights ................................................................................................................................ 5

Foreword ............................................................................................................................................................. 5

Modal verbs terminology .................................................................................................................................... 6

1 Scope ........................................................................................................................................................ 7

2 References ................................................................................................................................................ 7

2.1 Normative references ......................................................................................................................................... 7

2.2 Informative references ........................................................................................................................................ 8

3 Definition of terms, symbols and abbreviations ....................................................................................... 9

3.1 Terms .................................................................................................................................................................. 9

3.2 Symbols .............................................................................................................................................................. 9

3.3 Abbreviations ..................................................................................................................................................... 9

4 Test conditions ....................................................................................................................................... 10

4.1 General ............................................................................................................................................................. 10

4.2 Arrangements for test signals ........................................................................................................................... 10

4.2.0 General ........................................................................................................................................................ 10

4.2.1 Arrangements for test signals at the input of transmitters ........................................................................... 11

4.2.2 Arrangements for test signals at the output of transmitters ......................................................................... 11

4.2.3 Arrangements for test signals at the input of receivers ............................................................................... 11

4.2.4 Arrangements for test signals at the output of receivers ............................................................................. 11

4.3 Exclusion bands ................................................................................................................................................ 11

4.3.1 Exclusion band for transmitters or the transmitter part of transceivers....................................................... 11

4.3.2 Exclusion band for receivers or the receiver part of transceivers ............................................................... 11

5 Performance assessment ......................................................................................................................... 11

5.1 General ............................................................................................................................................................. 11

5.2 Equipment configuration(s) .............................................................................................................................. 12

5.3 Equipment classification .................................................................................................................................. 12

6 Performance criteria ............................................................................................................................... 13

6.0 General ............................................................................................................................................................. 13

6.1 Performance criteria for Continuous phenomena applied to the EUT .............................................................. 13

6.2 Performance criteria for Transient phenomena applied to a class A EUT........................................................ 13

6.3 Performance criteria for Transient phenomena applied to a class B EUT ........................................................ 13

7 Requirements .......................................................................................................................................... 13

7.1 Emission ........................................................................................................................................................... 13

7.1.1 General ........................................................................................................................................................ 13

7.1.2 Special conditions ....................................................................................................................................... 14

7.2 Immunity .......................................................................................................................................................... 14

7.2.1 General ........................................................................................................................................................ 14

7.2.2 Special conditions ....................................................................................................................................... 15

Annex A (informative): Relationship between the present document and the essential

requirements of Directive 2014/53/EU ......................................................... 17

Annex B (informative): Definitions of Satellite Earth Stations (ESs) within the scope of the

present document ........................................................................................... 19

B.0 General ................................................................................................................................................... 19

B.1 Transmit only and Transmit and receive Ku band VSATs .................................................................... 19

B.2 Receive-only Ku band VSATs ............................................................................................................... 19

B.3 Transmit only and Transmit and receive C band VSATs ....................................................................... 20

B.4 Receive-only C band VSATs ................................................................................................................. 20

ETSI
---------------------- Page: 5 ----------------------
SIST EN 301 489-12 V3.2.1:2022
4 ETSI EN 301 489-12 V3.2.1 (2021-11)

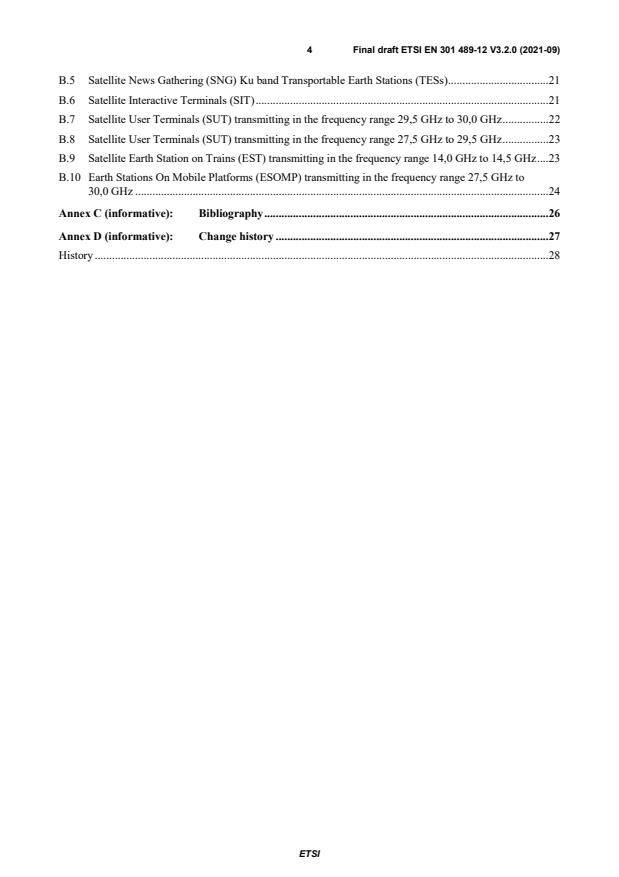

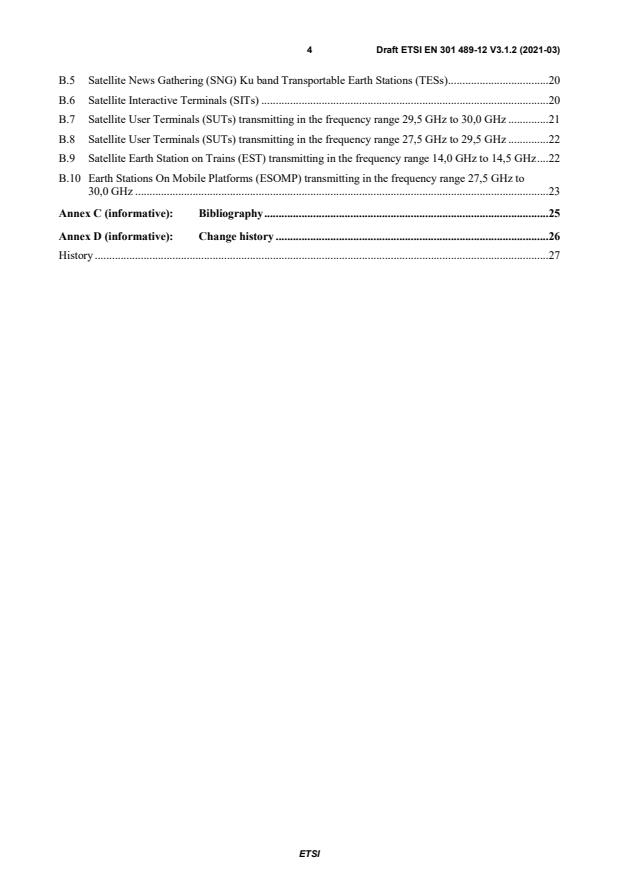

B.5 Satellite News Gathering (SNG) Ku band Transportable Earth Stations (TESs) ................................... 21

B.6 Satellite Interactive Terminals (SIT) ...................................................................................................... 21

B.7 Satellite User Terminals (SUT) transmitting in the frequency range 29,5 GHz to 30,0 GHz ................ 22

B.8 Satellite User Terminals (SUT) transmitting in the frequency range 27,5 GHz to 29,5 GHz ................ 23

B.9 Satellite Earth Station on Trains (EST) transmitting in the frequency range 14,0 GHz to 14,5 GHz .... 23

B.10 Earth Stations On Mobile Platforms (ESOMP) transmitting in the frequency range 27,5 GHz to

30,0 GHz ................................................................................................................................................ 24

Annex C (informative): Bibliography ................................................................................................... 26

Annex D (informative): Change history ............................................................................................... 27

History .............................................................................................................................................................. 28

ETSI
---------------------- Page: 6 ----------------------
SIST EN 301 489-12 V3.2.1:2022
5 ETSI EN 301 489-12 V3.2.1 (2021-11)
Intellectual Property Rights
Essential patents

IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations

pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be

found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to

ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the

ETSI Web server (https://ipr.etsi.org/).

Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,

including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not

referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,

essential to the present document.
Trademarks

The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.

ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no

right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does

not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.

DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP

Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the

oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.

Foreword

This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic

compatibility and Radio spectrum Matters (ERM).

The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.6] to

provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation

of the laws of the Member States relating to the making available on the market of radio equipment and repealing

Directive 1999/5/EC [i.5].

Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with

the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present

document, a presumption of conformity with the corresponding essential requirements of that Directive and associated

EFTA regulations.

The present document is part 12 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].

National transposition dates
Date of adoption of this EN: 19 November 2021
Date of latest announcement of this EN (doa): 28 February 2022
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 August 2022
Date of withdrawal of any conflicting National Standard (dow): 31 August 2023
ETSI
---------------------- Page: 7 ----------------------
SIST EN 301 489-12 V3.2.1:2022
6 ETSI EN 301 489-12 V3.2.1 (2021-11)
Modal verbs terminology

In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and

"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of

provisions).

"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
---------------------- Page: 8 ----------------------
SIST EN 301 489-12 V3.2.1:2022
7 ETSI EN 301 489-12 V3.2.1 (2021-11)
1 Scope

The present document specifies technical characteristics and methods of measurement for the Earth Stations (ESs)

operating in the frequency ranges between 3,625 GHz and 30 GHz in the Fixed Satellite Service (FSS) bands, and

associated ancillary equipment in respect of ElectroMagnetic Compatibility (EMC).

Technical specifications related to the antenna port and emissions from the enclosure port of the Earth Stations (ESs)

are not included in the present document. Such technical specifications are found in the relevant product standards for

the effective use of the radio spectrum, see table 1.

Emissions requirements in the present document are only specified for frequencies above 9 kHz.

Table 1: Radio Technologies in the scope of the present document
Technology ETSI Standard

VSAT for Transmit-only, transmit/receive or receive-only satellite Earth Stations ETSI EN 301 428 [i.7]

operating in the 11/12/14 GHz frequency bands.

ES for Satellite News Gathering Transportable Earth Stations (SNG TESs) operating ETSI EN 301 430 [i.8]

in the 11 GHz to 12 GHz and 13 GHz to 14 GHz frequency bands.

VSAT for Transmit-only, transmit-and-receive, receive-only satellite Earth Stations ETSI EN 301 443 [i.9]

operating in the 4 GHz to 6 GHz frequency bands.

ES for Satellite Interactive Terminals (SIT) and Satellite User Terminals (SUT) ETSI EN 301 459 [i.10]

transmitting towards satellites in geostationary orbit in the 29,5 GHz to 30 GHz
frequency bands.

Satellite Interactive Terminals (SIT) and Satellite User Terminals (SUT) transmitting ETSI EN 301 360 [i.11]

towards satellites in geostationary orbit, operating in the 27,5 GHz to 29,5 GHz
frequency bands.

ES for Earth Stations On Mobile Platforms (ESOMP) transmitting towards satellites in ETSI EN 303 978 [i.12]

geostationary orbit, operating in the 27,5 GHz to 30 GHz frequency bands.

Definitions of the type of Earth Stations (ESs) operating in the frequency ranges between 3,625 GHz and 30 GHz in the

Fixed Satellite Service (FSS) covered by the present document are given in annex B. The environmental classification

used in the present document is as stated in ETSI EN 301 489-1 [1].

NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive

2014/53/EU [i.5] is given in annex A.
2 References
2.1 Normative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

Referenced documents which are not found to be publicly available in the expected location might be found at

https://docbox.etsi.org/Reference/.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are necessary for the application of the present document.

[1] ETSI EN 301 489-1 (V2.2.3) (11-2019): "ElectroMagnetic Compatibility (EMC) standard for

radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for

ElectroMagnetic Compatibility".
[2] Void.
ETSI
---------------------- Page: 9 ----------------------
SIST EN 301 489-12 V3.2.1:2022
8 ETSI EN 301 489-12 V3.2.1 (2021-11)
2.2 Informative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are not necessary for the application of the present document but they assist the

user with regard to a particular subject area.
[i.1] Void.
[i.2] Void.

[i.3] ERC/DEC(00)08: "ERC Decision of 19 October 2000 on the use of the band 10.7 - 12.5 GHz by

the fixed service and Earth stations of the broadcasting-satellite and fixed-satellite Service

(space-to-Earth)".
[i.4] Void.

[i.5] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the

harmonisation of the laws of the Member States relating to the making available on the market of

radio equipment and repealing Directive 1999/5/EC.

[i.6] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request

to the European Committee for Electrotechnical Standardisation and to the European

Telecommunications Standards Institute as regards radio equipment in support of Directive

2014/53/EU of the European Parliament and of the Council.

[i.7] ETSI EN 301 428: "Satellite Earth Stations and Systems (SES); Harmonized EN for Very Small

Aperture Terminal (VSAT); Transmit-only, transmit/receive or receive-only satellite earth stations

operating in the 11/12/14 GHz frequency bands covering essential requirements under article 3.2

of the R&TTE directive".

[i.8] ETSI EN 301 430: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

News Gathering Transportable Earth Stations (SNG TES) operating in the 11 GHz to

12 GHz/13 GHz to 14 GHz frequency bands covering the essential requirements of article 3.2 of

the Directive 2014/53/EU".

[i.9] ETSI EN 301 443: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Very

Small Aperture Terminal (VSAT); Transmit-only, transmit-and-receive, receive-only satellite

earth stations operating in the 4 GHz and 6 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.10] ETSI EN 301 459: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

Interactive Terminals (SIT) and Satellite User Terminals (SUT) transmitting towards satellites in

geostationary orbit, operating in the 29,5 GHz to 30,0 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.11] ETSI EN 301 360: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

Interactive Terminals (SIT) and Satellite User Terminals (SUT) transmitting towards satellites in

geostationary orbit, operating in the 27,5 GHz to 29,5 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.12] ETSI EN 303 978: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Earth

Stations on Mobile Platforms (ESOMP) transmitting towards satellites in geostationary orbit,

operating in the 27,5 GHz to 30,0 GHz frequency bands covering the essential requirements of

article 3.2 of the Directive 2014/53/EU".
[i.13] ITU Radio Regulations (2020).
ETSI
---------------------- Page: 10 ----------------------
SIST EN 301 489-12 V3.2.1:2022
9 ETSI EN 301 489-12 V3.2.1 (2021-11)
3 Definition of terms, symbols and abbreviations
3.1 Terms

For the purposes of the present document, the terms given in ETSI EN 301 489-1 [1] and the following apply:

ancillary equipment: electrical or electronic equipment, that is intended to be used with a receiver or transmitter

NOTE 1: It is considered as an ancillary equipment if:

 the equipment is intended for use with a receiver or transmitter to provide additional operational

and/or control features to the radio equipment (e.g. to extend control to another position or

location);

 the ancillary equipment cannot be used without being connected to radio equipment to provide user

functions independently of a receiver or transmitter; and

 the receiver or transmitter, to which it is connected, is capable of providing some intended

operation such as transmitting and/or receiving without the ancillary equipment (i.e. it is not a

sub-unit of the main equipment essential to the main equipment basic functions).

NOTE 2: An example of ancillary equipment would be a docking station for radio equipment whose interface is

dedicated to a particular product or range of products.

carrier-off state: state in which the ES is authorized to transmit, and when it does not transmit any signal, either

authorized by a Centralized Control and Monitoring Functions (CCMF) or a Network Control Facility (NCF) when

designed for unattended operation or by local control when designed for attended operation

NOTE: The existence of a carrier-off state depends on the system of transmission used. For ES designed for

continuous transmission mode there may be no carrier-off state.

carrier-on state: state in which the ES is authorized to transmit, and when it transmits a signal, either authorized by a

CCMF or a NCF when designed for unattended operation or by local control when designed for attended operation

critical stored data: data that is essential for an EUT to perform a primary function in accordance with that EUT's

specification
NOTE: This may include data previously stored by the user.

drive equipment: equipment used to enable the EUT to operate as intended during the test process

terrestrial port: port for interconnecting earth-based equipment

transmission disabled state: state in which the ES is not authorized to transmit either by a CCMF or a NCF

respectively when designed for unattended operation or by local control when designed for attended operation

3.2 Symbols
For the purposes of the present document, the following symbols apply:
P minimum power required to establish a communication link
min
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
AMSS Aeronautical Mobile Satellite Service
BSS Broadcast Satellite Service
CCMF Centralized Control and Monitoring Functions
CEPT European Conference of Postal and Telecommunications administrations
ETSI
---------------------- Page: 11 ----------------------
SIST EN 301 489-12 V3.2.1:2022
10 ETSI EN 301 489-12 V3.2.1 (2021-11)
DC Direct Current
EFTA European Free Trade Association
EIRP Equivalent Isotropically Radiated Power
EMC ElectroMagnetic Compatibility
EME Externally Mounted Equipment
ERC European Radiocommunications Committee
ES Earth Station
ESOMP Earth Stations On Mobile Platforms
EST Earth Station on Trains
EUT Equipment Under Test
FS Fixed Services
FSS Fixed Satellite Service
IME Internally Mounted Equipment
kV kilo Volt
LMSS Land Mobile Satellite Service
LNB Low Noise Block converter
MMSS Marine Mobile Satellite Service
MSS Mobile Satellite Service
NCF Network Control Facility
QTMA Quality of Transmission Measurement Apparatus
RF Radio Frequency
SIT Satellite Interactive Terminals
SNG Satellite News Gathering
SUT Satellite User Terminals
TES Transportable Earth Station
VSAT Very Small Aperture Terminal
4 Test conditions
4.1 General

For the purposes of the present document, the test conditions of ETSI EN 301 489-1 [1], clause 4 shall apply with the

following additions. Further product type related test conditions for Earth Stations are specified in the present

document.

For Earth Stations with or without ancillary equipment, and/or various terrestrial ports, the selection of test

configurations shall be determined. The assessment shall include sufficient representative configurations of the ES to

adequately exercise the equipment. These configurations shall be recorded in the test report.

In clauses 4.2 and 4.3, the Equipment Under Test (EUT) is an ES with the selected configuration of ancillary

equipment.
4.2 Arrangements for test signals
4.2.0 General

The provisions of ETSI EN 301 489-1 [1], clause 4.2.0 shall apply with the following additions.

In order to measure the system emissions and electromagnetic immunity under operational conditions, the following

arrangements shall be provided:

a) a drive equipment to put the ES terminal in its normal operating mode, and providing the ES with a receive

signal to emulate the operational conditions of reception. This equipment shall control the EUT, when it is

capable of transmission, so that it switches between the transmission disabled, carrier-on and carrier-off states;

b) a Quality of Transmission Measurement Apparatus (QTMA).
ETSI
---------------------- Page: 12 ----------------------
SIST EN 301 4
...

ETSI EN 301 489-12 V3.2.1 (2021-11)
HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 12: Specific conditions for Very Small Aperture
Terminal, Satellite Interactive Earth Stations operated
in the frequency ranges between 4 GHz and 30 GHz
in the Fixed Satellite Service (FSS);
Harmonised Standard for ElectroMagnetic Compatibility
---------------------- Page: 1 ----------------------
2 ETSI EN 301 489-12 V3.2.1 (2021-11)
Reference
REN/ERM-EMC-404
Keywords
earth station, EMC, FSS, harmonised standard,
radio, regulation, satellite, SNG, testing, VSAT
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI

deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability

The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of

experience to understand and interpret its content in accordance with generally accepted engineering or

other professional standard and applicable regulations.

No recommendation as to products and services or vendors is made or should be implied.

In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not

limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property

rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages

for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use

of or inability to use the software.
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and

microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2021.
All rights reserved.
ETSI
---------------------- Page: 2 ----------------------
3 ETSI EN 301 489-12 V3.2.1 (2021-11)
Contents

Intellectual Property Rights ................................................................................................................................ 5

Foreword ............................................................................................................................................................. 5

Modal verbs terminology .................................................................................................................................... 6

1 Scope ........................................................................................................................................................ 7

2 References ................................................................................................................................................ 7

2.1 Normative references ......................................................................................................................................... 7

2.2 Informative references ........................................................................................................................................ 8

3 Definition of terms, symbols and abbreviations ....................................................................................... 9

3.1 Terms .................................................................................................................................................................. 9

3.2 Symbols .............................................................................................................................................................. 9

3.3 Abbreviations ..................................................................................................................................................... 9

4 Test conditions ....................................................................................................................................... 10

4.1 General ............................................................................................................................................................. 10

4.2 Arrangements for test signals ........................................................................................................................... 10

4.2.0 General ........................................................................................................................................................ 10

4.2.1 Arrangements for test signals at the input of transmitters ........................................................................... 11

4.2.2 Arrangements for test signals at the output of transmitters ......................................................................... 11

4.2.3 Arrangements for test signals at the input of receivers ............................................................................... 11

4.2.4 Arrangements for test signals at the output of receivers ............................................................................. 11

4.3 Exclusion bands ................................................................................................................................................ 11

4.3.1 Exclusion band for transmitters or the transmitter part of transceivers....................................................... 11

4.3.2 Exclusion band for receivers or the receiver part of transceivers ............................................................... 11

5 Performance assessment ......................................................................................................................... 11

5.1 General ............................................................................................................................................................. 11

5.2 Equipment configuration(s) .............................................................................................................................. 12

5.3 Equipment classification .................................................................................................................................. 12

6 Performance criteria ............................................................................................................................... 13

6.0 General ............................................................................................................................................................. 13

6.1 Performance criteria for Continuous phenomena applied to the EUT .............................................................. 13

6.2 Performance criteria for Transient phenomena applied to a class A EUT........................................................ 13

6.3 Performance criteria for Transient phenomena applied to a class B EUT ........................................................ 13

7 Requirements .......................................................................................................................................... 13

7.1 Emission ........................................................................................................................................................... 13

7.1.1 General ........................................................................................................................................................ 13

7.1.2 Special conditions ....................................................................................................................................... 14

7.2 Immunity .......................................................................................................................................................... 14

7.2.1 General ........................................................................................................................................................ 14

7.2.2 Special conditions ....................................................................................................................................... 15

Annex A (informative): Relationship between the present document and the essential

requirements of Directive 2014/53/EU ......................................................... 17

Annex B (informative): Definitions of Satellite Earth Stations (ESs) within the scope of the

present document ........................................................................................... 19

B.0 General ................................................................................................................................................... 19

B.1 Transmit only and Transmit and receive Ku band VSATs .................................................................... 19

B.2 Receive-only Ku band VSATs ............................................................................................................... 19

B.3 Transmit only and Transmit and receive C band VSATs ....................................................................... 20

B.4 Receive-only C band VSATs ................................................................................................................. 20

ETSI
---------------------- Page: 3 ----------------------
4 ETSI EN 301 489-12 V3.2.1 (2021-11)

B.5 Satellite News Gathering (SNG) Ku band Transportable Earth Stations (TESs) ................................... 21

B.6 Satellite Interactive Terminals (SIT) ...................................................................................................... 21

B.7 Satellite User Terminals (SUT) transmitting in the frequency range 29,5 GHz to 30,0 GHz ................ 22

B.8 Satellite User Terminals (SUT) transmitting in the frequency range 27,5 GHz to 29,5 GHz ................ 23

B.9 Satellite Earth Station on Trains (EST) transmitting in the frequency range 14,0 GHz to 14,5 GHz .... 23

B.10 Earth Stations On Mobile Platforms (ESOMP) transmitting in the frequency range 27,5 GHz to

30,0 GHz ................................................................................................................................................ 24

Annex C (informative): Bibliography ................................................................................................... 26

Annex D (informative): Change history ............................................................................................... 27

History .............................................................................................................................................................. 28

ETSI
---------------------- Page: 4 ----------------------
5 ETSI EN 301 489-12 V3.2.1 (2021-11)
Intellectual Property Rights
Essential patents

IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations

pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be

found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to

ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the

ETSI Web server (https://ipr.etsi.org/).

Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,

including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not

referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,

essential to the present document.
Trademarks

The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.

ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no

right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does

not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.

DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP

Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the

oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.

Foreword

This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic

compatibility and Radio spectrum Matters (ERM).

The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.6] to

provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation

of the laws of the Member States relating to the making available on the market of radio equipment and repealing

Directive 1999/5/EC [i.5].

Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with

the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present

document, a presumption of conformity with the corresponding essential requirements of that Directive and associated

EFTA regulations.

The present document is part 12 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].

National transposition dates
Date of adoption of this EN: 19 November 2021
Date of latest announcement of this EN (doa): 28 February 2022
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 August 2022
Date of withdrawal of any conflicting National Standard (dow): 31 August 2023
ETSI
---------------------- Page: 5 ----------------------
6 ETSI EN 301 489-12 V3.2.1 (2021-11)
Modal verbs terminology

In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and

"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of

provisions).

"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
---------------------- Page: 6 ----------------------
7 ETSI EN 301 489-12 V3.2.1 (2021-11)
1 Scope

The present document specifies technical characteristics and methods of measurement for the Earth Stations (ESs)

operating in the frequency ranges between 3,625 GHz and 30 GHz in the Fixed Satellite Service (FSS) bands, and

associated ancillary equipment in respect of ElectroMagnetic Compatibility (EMC).

Technical specifications related to the antenna port and emissions from the enclosure port of the Earth Stations (ESs)

are not included in the present document. Such technical specifications are found in the relevant product standards for

the effective use of the radio spectrum, see table 1.

Emissions requirements in the present document are only specified for frequencies above 9 kHz.

Table 1: Radio Technologies in the scope of the present document
Technology ETSI Standard

VSAT for Transmit-only, transmit/receive or receive-only satellite Earth Stations ETSI EN 301 428 [i.7]

operating in the 11/12/14 GHz frequency bands.

ES for Satellite News Gathering Transportable Earth Stations (SNG TESs) operating ETSI EN 301 430 [i.8]

in the 11 GHz to 12 GHz and 13 GHz to 14 GHz frequency bands.

VSAT for Transmit-only, transmit-and-receive, receive-only satellite Earth Stations ETSI EN 301 443 [i.9]

operating in the 4 GHz to 6 GHz frequency bands.

ES for Satellite Interactive Terminals (SIT) and Satellite User Terminals (SUT) ETSI EN 301 459 [i.10]

transmitting towards satellites in geostationary orbit in the 29,5 GHz to 30 GHz
frequency bands.

Satellite Interactive Terminals (SIT) and Satellite User Terminals (SUT) transmitting ETSI EN 301 360 [i.11]

towards satellites in geostationary orbit, operating in the 27,5 GHz to 29,5 GHz
frequency bands.

ES for Earth Stations On Mobile Platforms (ESOMP) transmitting towards satellites in ETSI EN 303 978 [i.12]

geostationary orbit, operating in the 27,5 GHz to 30 GHz frequency bands.

Definitions of the type of Earth Stations (ESs) operating in the frequency ranges between 3,625 GHz and 30 GHz in the

Fixed Satellite Service (FSS) covered by the present document are given in annex B. The environmental classification

used in the present document is as stated in ETSI EN 301 489-1 [1].

NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive

2014/53/EU [i.5] is given in annex A.
2 References
2.1 Normative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

Referenced documents which are not found to be publicly available in the expected location might be found at

https://docbox.etsi.org/Reference/.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are necessary for the application of the present document.

[1] ETSI EN 301 489-1 (V2.2.3) (11-2019): "ElectroMagnetic Compatibility (EMC) standard for

radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for

ElectroMagnetic Compatibility".
[2] Void.
ETSI
---------------------- Page: 7 ----------------------
8 ETSI EN 301 489-12 V3.2.1 (2021-11)
2.2 Informative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are not necessary for the application of the present document but they assist the

user with regard to a particular subject area.
[i.1] Void.
[i.2] Void.

[i.3] ERC/DEC(00)08: "ERC Decision of 19 October 2000 on the use of the band 10.7 - 12.5 GHz by

the fixed service and Earth stations of the broadcasting-satellite and fixed-satellite Service

(space-to-Earth)".
[i.4] Void.

[i.5] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the

harmonisation of the laws of the Member States relating to the making available on the market of

radio equipment and repealing Directive 1999/5/EC.

[i.6] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request

to the European Committee for Electrotechnical Standardisation and to the European

Telecommunications Standards Institute as regards radio equipment in support of Directive

2014/53/EU of the European Parliament and of the Council.

[i.7] ETSI EN 301 428: "Satellite Earth Stations and Systems (SES); Harmonized EN for Very Small

Aperture Terminal (VSAT); Transmit-only, transmit/receive or receive-only satellite earth stations

operating in the 11/12/14 GHz frequency bands covering essential requirements under article 3.2

of the R&TTE directive".

[i.8] ETSI EN 301 430: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

News Gathering Transportable Earth Stations (SNG TES) operating in the 11 GHz to

12 GHz/13 GHz to 14 GHz frequency bands covering the essential requirements of article 3.2 of

the Directive 2014/53/EU".

[i.9] ETSI EN 301 443: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Very

Small Aperture Terminal (VSAT); Transmit-only, transmit-and-receive, receive-only satellite

earth stations operating in the 4 GHz and 6 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.10] ETSI EN 301 459: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

Interactive Terminals (SIT) and Satellite User Terminals (SUT) transmitting towards satellites in

geostationary orbit, operating in the 29,5 GHz to 30,0 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.11] ETSI EN 301 360: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

Interactive Terminals (SIT) and Satellite User Terminals (SUT) transmitting towards satellites in

geostationary orbit, operating in the 27,5 GHz to 29,5 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.12] ETSI EN 303 978: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Earth

Stations on Mobile Platforms (ESOMP) transmitting towards satellites in geostationary orbit,

operating in the 27,5 GHz to 30,0 GHz frequency bands covering the essential requirements of

article 3.2 of the Directive 2014/53/EU".
[i.13] ITU Radio Regulations (2020).
ETSI
---------------------- Page: 8 ----------------------
9 ETSI EN 301 489-12 V3.2.1 (2021-11)
3 Definition of terms, symbols and abbreviations
3.1 Terms

For the purposes of the present document, the terms given in ETSI EN 301 489-1 [1] and the following apply:

ancillary equipment: electrical or electronic equipment, that is intended to be used with a receiver or transmitter

NOTE 1: It is considered as an ancillary equipment if:

 the equipment is intended for use with a receiver or transmitter to provide additional operational

and/or control features to the radio equipment (e.g. to extend control to another position or

location);

 the ancillary equipment cannot be used without being connected to radio equipment to provide user

functions independently of a receiver or transmitter; and

 the receiver or transmitter, to which it is connected, is capable of providing some intended

operation such as transmitting and/or receiving without the ancillary equipment (i.e. it is not a

sub-unit of the main equipment essential to the main equipment basic functions).

NOTE 2: An example of ancillary equipment would be a docking station for radio equipment whose interface is

dedicated to a particular product or range of products.

carrier-off state: state in which the ES is authorized to transmit, and when it does not transmit any signal, either

authorized by a Centralized Control and Monitoring Functions (CCMF) or a Network Control Facility (NCF) when

designed for unattended operation or by local control when designed for attended operation

NOTE: The existence of a carrier-off state depends on the system of transmission used. For ES designed for

continuous transmission mode there may be no carrier-off state.

carrier-on state: state in which the ES is authorized to transmit, and when it transmits a signal, either authorized by a

CCMF or a NCF when designed for unattended operation or by local control when designed for attended operation

critical stored data: data that is essential for an EUT to perform a primary function in accordance with that EUT's

specification
NOTE: This may include data previously stored by the user.

drive equipment: equipment used to enable the EUT to operate as intended during the test process

terrestrial port: port for interconnecting earth-based equipment

transmission disabled state: state in which the ES is not authorized to transmit either by a CCMF or a NCF

respectively when designed for unattended operation or by local control when designed for attended operation

3.2 Symbols
For the purposes of the present document, the following symbols apply:
P minimum power required to establish a communication link
min
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
AMSS Aeronautical Mobile Satellite Service
BSS Broadcast Satellite Service
CCMF Centralized Control and Monitoring Functions
CEPT European Conference of Postal and Telecommunications administrations
ETSI
---------------------- Page: 9 ----------------------
10 ETSI EN 301 489-12 V3.2.1 (2021-11)
DC Direct Current
EFTA European Free Trade Association
EIRP Equivalent Isotropically Radiated Power
EMC ElectroMagnetic Compatibility
EME Externally Mounted Equipment
ERC European Radiocommunications Committee
ES Earth Station
ESOMP Earth Stations On Mobile Platforms
EST Earth Station on Trains
EUT Equipment Under Test
FS Fixed Services
FSS Fixed Satellite Service
IME Internally Mounted Equipment
kV kilo Volt
LMSS Land Mobile Satellite Service
LNB Low Noise Block converter
MMSS Marine Mobile Satellite Service
MSS Mobile Satellite Service
NCF Network Control Facility
QTMA Quality of Transmission Measurement Apparatus
RF Radio Frequency
SIT Satellite Interactive Terminals
SNG Satellite News Gathering
SUT Satellite User Terminals
TES Transportable Earth Station
VSAT Very Small Aperture Terminal
4 Test conditions
4.1 General

For the purposes of the present document, the test conditions of ETSI EN 301 489-1 [1], clause 4 shall apply with the

following additions. Further product type related test conditions for Earth Stations are specified in the present

document.

For Earth Stations with or without ancillary equipment, and/or various terrestrial ports, the selection of test

configurations shall be determined. The assessment shall include sufficient representative configurations of the ES to

adequately exercise the equipment. These configurations shall be recorded in the test report.

In clauses 4.2 and 4.3, the Equipment Under Test (EUT) is an ES with the selected configuration of ancillary

equipment.
4.2 Arrangements for test signals
4.2.0 General

The provisions of ETSI EN 301 489-1 [1], clause 4.2.0 shall apply with the following additions.

In order to measure the system emissions and electromagnetic immunity under operational conditions, the following

arrangements shall be provided:

a) a drive equipment to put the ES terminal in its normal operating mode, and providing the ES with a receive

signal to emulate the operational conditions of reception. This equipment shall control the EUT, when it is

capable of transmission, so that it switches between the transmission disabled, carrier-on and carrier-off states;

b) a Quality of Transmission Measurement Apparatus (QTMA).
ETSI
---------------------- Page: 10 ----------------------
11 ETSI EN 301 489-12 V3.2.1 (2021-11)

For the measurement of the quality of transmission, a communications link shall be established and the wanted input

signal shall be applied to the Radio Frequency (RF) input of the receiver via the antenna.

The QTMA and the source of the wanted input signal shall be located outside the test environment.

4.2.1 Arrangements for test signals at the input of transmitters
The provisions of ETSI EN 301 489-1 [1], clause 4.2.1 shall apply.
4.2.2 Arrangements for test signals at the output of transmitters
The provisions of ETSI EN 301 489-1 [1], clause 4.2.2 shall apply.
4.2.3 Arrangements for test signals at the input of receivers

The provisions of ETSI EN 301 489-1 [1], clause 4.2.3 shall apply with the following addition.

For radiated immunity, the level of the wanted signal at the input of the receiver or the enclosure port of the EUT shall

be 20 dB (±3 dB) above the P for the EUT. For all other tests the level of the wanted signal, required to establish a

min
communication link, shall be representative of the EUT intended use.

NOTE: A simple method to establish the required communication link is to establish a link, reduce power to the

point of link failure then increase by 20 dB.
4.2.4 Arrangements for test signals at the output of receivers
The provisions of ETSI EN 301 489-1 [1], clause 4.2.4 shall apply.
4.3 Exclusion bands
4.3.1 Exclusion band for transmitters or the transmitter part of transceivers
The provisions of ETSI EN 301 489-1 [1], clause 4.3.2 shall apply.
4.3.2 Exclusion band for receivers or the receiver part of transceivers
For EUT that operate above 6 GHz, there is no exclusion band
...

Final draft ETSI EN 301 489-12 V3.2.0 (2021-09)
HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 12: Specific conditions for Very Small Aperture
Terminal, Satellite Interactive Earth Stations operated
in the frequency ranges between 4 GHz and 30 GHz
in the Fixed Satellite Service (FSS);
Harmonised Standard for ElectroMagnetic Compatibility
---------------------- Page: 1 ----------------------
2 Final draft ETSI EN 301 489-12 V3.2.0 (2021-09)
Reference
REN/ERM-EMC-404
Keywords
earth station, EMC, FSS, harmonised standard,
radio, regulation, satellite, SNG, testing, VSAT
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI

deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability

The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of

experience to understand and interpret its content in accordance with generally accepted engineering or

other professional standard and applicable regulations.

No recommendation as to products and services or vendors is made or should be implied.

In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not

limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property

rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages

for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use

of or inability to use the software.
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and

microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2021.
All rights reserved.
ETSI
---------------------- Page: 2 ----------------------
3 Final draft ETSI EN 301 489-12 V3.2.0 (2021-09)
Contents

Intellectual Property Rights ................................................................................................................................ 5

Foreword ............................................................................................................................................................. 5

Modal verbs terminology .................................................................................................................................... 6

1 Scope ........................................................................................................................................................ 7

2 References ................................................................................................................................................ 7

2.1 Normative references ......................................................................................................................................... 7

2.2 Informative references ........................................................................................................................................ 8

3 Definition of terms, symbols and abbreviations ....................................................................................... 9

3.1 Terms .................................................................................................................................................................. 9

3.2 Symbols .............................................................................................................................................................. 9

3.3 Abbreviations ..................................................................................................................................................... 9

4 Test conditions ....................................................................................................................................... 10

4.1 General ............................................................................................................................................................. 10

4.2 Arrangements for test signals ........................................................................................................................... 10

4.2.0 General ........................................................................................................................................................ 10

4.2.1 Arrangements for test signals at the input of transmitters ........................................................................... 11

4.2.2 Arrangements for test signals at the output of transmitters ......................................................................... 11

4.2.3 Arrangements for test signals at the input of receivers ............................................................................... 11

4.2.4 Arrangements for test signals at the output of receivers ............................................................................. 11

4.3 Exclusion bands ................................................................................................................................................ 11

4.3.1 Exclusion band for transmitters or the transmitter part of transceivers....................................................... 11

4.3.2 Exclusion band for receivers or the receiver part of transceivers ............................................................... 11

5 Performance assessment ......................................................................................................................... 11

5.1 General ............................................................................................................................................................. 11

5.2 Equipment configuration(s) .............................................................................................................................. 12

5.3 Equipment classification .................................................................................................................................. 12

6 Performance criteria ............................................................................................................................... 13

6.0 General ............................................................................................................................................................. 13

6.1 Performance criteria for Continuous phenomena applied to the EUT .............................................................. 13

6.2 Performance criteria for Transient phenomena applied to a class A EUT........................................................ 13

6.3 Performance criteria for Transient phenomena applied to a class B EUT ........................................................ 13

7 Requirements .......................................................................................................................................... 13

7.1 Emission ........................................................................................................................................................... 13

7.1.1 General ........................................................................................................................................................ 13

7.1.2 Special conditions ....................................................................................................................................... 14

7.2 Immunity .......................................................................................................................................................... 14

7.2.1 General ........................................................................................................................................................ 14

7.2.2 Special conditions ....................................................................................................................................... 15

Annex A (informative): Relationship between the present document and the essential

requirements of Directive 2014/53/EU ......................................................... 17

Annex B (informative): Definitions of Satellite Earth Stations (ESs) within the scope of the

present document ........................................................................................... 19

B.0 General ................................................................................................................................................... 19

B.1 Transmit only and Transmit and receive Ku band VSATs .................................................................... 19

B.2 Receive-only Ku band VSATs ............................................................................................................... 19

B.3 Transmit only and Transmit and receive C band VSATs ....................................................................... 20

B.4 Receive-only C band VSATs ................................................................................................................. 20

ETSI
---------------------- Page: 3 ----------------------
4 Final draft ETSI EN 301 489-12 V3.2.0 (2021-09)

B.5 Satellite News Gathering (SNG) Ku band Transportable Earth Stations (TESs) ................................... 21

B.6 Satellite Interactive Terminals (SIT) ...................................................................................................... 21

B.7 Satellite User Terminals (SUT) transmitting in the frequency range 29,5 GHz to 30,0 GHz ................ 22

B.8 Satellite User Terminals (SUT) transmitting in the frequency range 27,5 GHz to 29,5 GHz ................ 23

B.9 Satellite Earth Station on Trains (EST) transmitting in the frequency range 14,0 GHz to 14,5 GHz .... 23

B.10 Earth Stations On Mobile Platforms (ESOMP) transmitting in the frequency range 27,5 GHz to

30,0 GHz ................................................................................................................................................ 24

Annex C (informative): Bibliography ................................................................................................... 26

Annex D (informative): Change history ............................................................................................... 27

History .............................................................................................................................................................. 28

ETSI
---------------------- Page: 4 ----------------------
5 Final draft ETSI EN 301 489-12 V3.2.0 (2021-09)
Intellectual Property Rights
Essential patents

IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations

pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be

found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to

ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the

ETSI Web server (https://ipr.etsi.org/).

Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,

including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not

referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,

essential to the present document.
Trademarks

The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.

ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no

right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does

not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.

DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP

Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the

oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.

Foreword

This final draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee

Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the Vote phase of the

ETSI standards EN Approval Procedure.

The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.6] to

provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation

of the laws of the Member States relating to the making available on the market of radio equipment and repealing

Directive 1999/5/EC [i.5].

Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with

the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present

document, a presumption of conformity with the corresponding essential requirements of that Directive and associated

EFTA regulations.

The present document is part 12 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa

Date of withdrawal of any conflicting National Standard (dow): 18 months after doa

ETSI
---------------------- Page: 5 ----------------------
6 Final draft ETSI EN 301 489-12 V3.2.0 (2021-09)
Modal verbs terminology

In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and

"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of

provisions).

"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
---------------------- Page: 6 ----------------------
7 Final draft ETSI EN 301 489-12 V3.2.0 (2021-09)
1 Scope

The present document specifies technical characteristics and methods of measurement for the Earth Stations (ESs)

operating in the frequency ranges between 3,625 GHz and 30 GHz in the Fixed Satellite Service (FSS) bands, and

associated ancillary equipment in respect of ElectroMagnetic Compatibility (EMC).

Technical specifications related to the antenna port and emissions from the enclosure port of the Earth Stations (ESs)

are not included in the present document. Such technical specifications are found in the relevant product standards for

the effective use of the radio spectrum, see table 1.

Emissions requirements in the present document are only specified for frequencies above 9 kHz.

Table 1: Radio Technologies in the scope of the present document
Technology ETSI Standard

VSAT for Transmit-only, transmit/receive or receive-only satellite Earth Stations ETSI EN 301 428 [i.7]

operating in the 11/12/14 GHz frequency bands.

ES for Satellite News Gathering Transportable Earth Stations (SNG TESs) operating ETSI EN 301 430 [i.8]

in the 11 GHz to 12 GHz and 13 GHz to 14 GHz frequency bands.

VSAT for Transmit-only, transmit-and-receive, receive-only satellite Earth Stations ETSI EN 301 443 [i.9]

operating in the 4 GHz to 6 GHz frequency bands.

ES for Satellite Interactive Terminals (SIT) and Satellite User Terminals (SUT) ETSI EN 301 459 [i.10]

transmitting towards satellites in geostationary orbit in the 29,5 GHz to 30 GHz
frequency bands.

Satellite Interactive Terminals (SIT) and Satellite User Terminals (SUT) transmitting ETSI EN 301 360 [i.11]

towards satellites in geostationary orbit, operating in the 27,5 GHz to 29,5 GHz
frequency bands.

ES for Earth Stations On Mobile Platforms (ESOMP) transmitting towards satellites in ETSI EN 303 978 [i.12]

geostationary orbit, operating in the 27,5 GHz to 30 GHz frequency bands.

Definitions of the type of Earth Stations (ESs) operating in the frequency ranges between 3,625 GHz and 30 GHz in the

Fixed Satellite Service (FSS) covered by the present document are given in annex B. The environmental classification

used in the present document is as stated in ETSI EN 301 489-1 [1].

NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive

2014/53/EU [i.5] is given in annex A.
2 References
2.1 Normative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

Referenced documents which are not found to be publicly available in the expected location might be found at

https://docbox.etsi.org/Reference/.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are necessary for the application of the present document.

[1] ETSI EN 301 489-1 (V2.2.3) (11-2019): "ElectroMagnetic Compatibility (EMC) standard for

radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for

ElectroMagnetic Compatibility".
[2] Void.
ETSI
---------------------- Page: 7 ----------------------
8 Final draft ETSI EN 301 489-12 V3.2.0 (2021-09)
2.2 Informative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are not necessary for the application of the present document but they assist the

user with regard to a particular subject area.
[i.1] Void.
[i.2] Void.

[i.3] ERC/DEC(00)08: "ERC Decision of 19 October 2000 on the use of the band 10.7 - 12.5 GHz by

the fixed service and Earth stations of the broadcasting-satellite and fixed-satellite Service

(space-to-Earth)".
[i.4] Void.

[i.5] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the

harmonisation of the laws of the Member States relating to the making available on the market of

radio equipment and repealing Directive 1999/5/EC.

[i.6] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request

to the European Committee for Electrotechnical Standardisation and to the European

Telecommunications Standards Institute as regards radio equipment in support of Directive

2014/53/EU of the European Parliament and of the Council.

[i.7] ETSI EN 301 428: "Satellite Earth Stations and Systems (SES); Harmonized EN for Very Small

Aperture Terminal (VSAT); Transmit-only, transmit/receive or receive-only satellite earth stations

operating in the 11/12/14 GHz frequency bands covering essential requirements under article 3.2

of the R&TTE directive".

[i.8] ETSI EN 301 430: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

News Gathering Transportable Earth Stations (SNG TES) operating in the 11 GHz to

12 GHz/13 GHz to 14 GHz frequency bands covering the essential requirements of article 3.2 of

the Directive 2014/53/EU".

[i.9] ETSI EN 301 443: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Very

Small Aperture Terminal (VSAT); Transmit-only, transmit-and-receive, receive-only satellite

earth stations operating in the 4 GHz and 6 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.10] ETSI EN 301 459: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

Interactive Terminals (SIT) and Satellite User Terminals (SUT) transmitting towards satellites in

geostationary orbit, operating in the 29,5 GHz to 30,0 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.11] ETSI EN 301 360: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

Interactive Terminals (SIT) and Satellite User Terminals (SUT) transmitting towards satellites in

geostationary orbit, operating in the 27,5 GHz to 29,5 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.12] ETSI EN 303 978: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Earth

Stations on Mobile Platforms (ESOMP) transmitting towards satellites in geostationary orbit,

operating in the 27,5 GHz to 30,0 GHz frequency bands covering the essential requirements of

article 3.2 of the Directive 2014/53/EU".
[i.13] ITU Radio Regulations (2020).
ETSI
---------------------- Page: 8 ----------------------
9 Final draft ETSI EN 301 489-12 V3.2.0 (2021-09)
3 Definition of terms, symbols and abbreviations
3.1 Terms

For the purposes of the present document, the terms given in ETSI EN 301 489-1 [1] and the following apply:

ancillary equipment: electrical or electronic equipment, that is intended to be used with a receiver or transmitter

NOTE 1: It is considered as an ancillary equipment if:

 the equipment is intended for use with a receiver or transmitter to provide additional operational

and/or control features to the radio equipment (e.g. to extend control to another position or

location);

 the ancillary equipment cannot be used without being connected to radio equipment to provide user

functions independently of a receiver or transmitter; and

 the receiver or transmitter, to which it is connected, is capable of providing some intended

operation such as transmitting and/or receiving without the ancillary equipment (i.e. it is not a

sub-unit of the main equipment essential to the main equipment basic functions).

NOTE 2: An example of ancillary equipment would be a docking station for radio equipment whose interface is

dedicated to a particular product or range of products.

carrier-off state: state in which the ES is authorized to transmit, and when it does not transmit any signal, either

authorized by a Centralized Control and Monitoring Functions (CCMF) or a Network Control Facility (NCF) when

designed for unattended operation or by local control when designed for attended operation

NOTE: The existence of a carrier-off state depends on the system of transmission used. For ES designed for

continuous transmission mode there may be no carrier-off state.

carrier-on state: state in which the ES is authorized to transmit, and when it transmits a signal, either authorized by a

CCMF or a NCF when designed for unattended operation or by local control when designed for attended operation

critical stored data: data that is essential for an EUT to perform a primary function in accordance with that EUT's

specification
NOTE: This may include data previously stored by the user.

drive equipment: equipment used to enable the EUT to operate as intended during the test process

terrestrial port: port for interconnecting earth-based equipment

transmission disabled state: state in which the ES is not authorized to transmit either by a CCMF or a NCF

respectively when designed for unattended operation or by local control when designed for attended operation

3.2 Symbols
For the purposes of the present document, the following symbols apply:
P minimum power required to establish a communication link
min
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
AMSS Aeronautical Mobile Satellite Service
BSS Broadcast Satellite Service
CCMF Centralized Control and Monitoring Functions
CEPT European Conference of Postal and Telecommunications administrations
ETSI
---------------------- Page: 9 ----------------------
10 Final draft ETSI EN 301 489-12 V3.2.0 (2021-09)
DC Direct Current
EFTA European Free Trade Association
EIRP Equivalent Isotropically Radiated Power
EMC ElectroMagnetic Compatibility
EME Externally Mounted Equipment
ERC European Radiocommunications Committee
ES Earth Station
ESOMP Earth Stations On Mobile Platforms
EST Earth Station on Trains
EUT Equipment Under Test
FS Fixed Services
FSS Fixed Satellite Service
IME Internally Mounted Equipment
kV kilo Volt
LMSS Land Mobile Satellite Service
LNB Low Noise Block converter
MMSS Marine Mobile Satellite Service
MSS Mobile Satellite Service
NCF Network Control Facility
QTMA Quality of Transmission Measurement Apparatus
RF Radio Frequency
SIT Satellite Interactive Terminals
SNG Satellite News Gathering
SUT Satellite User Terminals
TES Transportable Earth Station
VSAT Very Small Aperture Terminal
4 Test conditions
4.1 General

For the purposes of the present document, the test conditions of ETSI EN 301 489-1 [1], clause 4 shall apply with the

following additions. Further product type related test conditions for Earth Stations are specified in the present

document.

For Earth Stations with or without ancillary equipment, and/or various terrestrial ports, the selection of test

configurations shall be determined. The assessment shall include sufficient representative configurations of the ES to

adequately exercise the equipment. These configurations shall be recorded in the test report.

In clauses 4.2 and 4.3, the Equipment Under Test (EUT) is an ES with the selected configuration of ancillary

equipment.
4.2 Arrangements for test signals
4.2.0 General

The provisions of ETSI EN 301 489-1 [1], clause 4.2.0 shall apply with the following additions.

In order to measure the system emissions and electromagnetic immunity under operational conditions, the following

arrangements shall be provided:

a) a drive equipment to put the ES terminal in its normal operating mode, and providing the ES with a receive

signal to emulate the operational conditions of reception. This equipment shall control the EUT, when it is

capable of transmission, so that it switches between the transmission disabled, carrier-on and carrier-off states;

b) a Quality of Transmission Measurement Apparatus (QTMA).
ETSI
---------------------- Page: 10 ----------------------
11 Final draft ETSI EN 301 489-12 V3.2.0 (2021-09)

For the measurement of the quality of transmission, a communications link shall be established and the wanted input

signal shall be applied to the Radio Frequency (RF) input of the receiver via the antenna.

The QTMA and the source of the wanted input signal shall be located outside the test environment.

4.2.1 Arrangements for test signals at the input of transmitters
The provisions of ETSI EN 301 489-1 [1], clause 4.2.1 shall apply.
4.2.2 Arrangements for test signals at the output of transmitters
The provisions of ETSI EN 301 489-1 [1], clause 4.2.2 shall apply.
4.2.3 Arrangements for test signals at the input of receivers

The provisions of ETSI EN 301 489-1 [1], clause 4.2.3 shall apply with the following addition.

For radiated immunity, the level of the wanted signal at the input of the receiver or the enclosure port of the EUT shall

be 20 dB (±3 dB) above the P for the EUT. For all other tests the level of the wanted signal, required to establish a

min
communication link, shall be representative of the EUT intended use.

NOTE: A simple method to establish the required communication link is to establish a link, reduce power to the

point of link failure then increase by 20 dB.
4.2.4 Arrangements for test signals at the output of receivers
The provisions of ETSI EN 301 489-1 [1], clause 4.2.4 shall apply.
4.3 Exclusion bands
4.3.1 Exclusion band for transmitters or the transmit
...

Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 12: Specific conditions for Very Small Aperture
Terminal, Satellite Interactive Earth Stations operated
in the frequency ranges between 4 GHz and 30 GHz
in the Fixed Satellite Service (FSS);
Harmonised Standard for ElectroMagnetic Compatibility
---------------------- Page: 1 ----------------------
2 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
Reference
REN/ERM-EMC-404
Keywords
earth station, EMC, FSS, harmonised standard,
radio, regulation, satellite, SNG, testing, VSAT
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI

deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying

and microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2021.
All rights reserved.

DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.

3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and

of the 3GPP Organizational Partners.

oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and

of the oneM2M Partners.
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
Contents

Intellectual Property Rights ................................................................................................................................ 5

Foreword ............................................................................................................................................................. 5

Modal verbs terminology .................................................................................................................................... 5

1 Scope ........................................................................................................................................................ 6

2 References ................................................................................................................................................ 6

2.1 Normative references ......................................................................................................................................... 6

2.2 Informative references ........................................................................................................................................ 7

3 Definition of terms, symbols and abbreviations ....................................................................................... 8

3.1 Terms .................................................................................................................................................................. 8

3.2 Symbols .............................................................................................................................................................. 8

3.3 Abbreviations ..................................................................................................................................................... 8

4 Test conditions ......................................................................................................................................... 9

4.1 General ............................................................................................................................................................... 9

4.2 Arrangements for test signals ............................................................................................................................. 9

4.2.0 General .......................................................................................................................................................... 9

4.2.1 Arrangements for test signals at the input of transmitters ........................................................................... 10

4.2.2 Arrangements for test signals at the output of transmitters ......................................................................... 10

4.2.3 Arrangements for test signals at the input of receivers ............................................................................... 10

4.2.4 Arrangements for test signals at the output of receivers ............................................................................. 10

4.3 Exclusion bands ................................................................................................................................................ 10

4.3.1 Exclusion band for transmitters or the transmitter part of transceivers....................................................... 10

4.3.2 Exclusion band for receivers or the receiver part of transceivers ............................................................... 10

5 Performance assessment ......................................................................................................................... 10

5.1 General ............................................................................................................................................................. 10

5.2 Equipment configuration(s) .............................................................................................................................. 11

5.3 Equipment classification .................................................................................................................................. 11

6 Performance criteria ............................................................................................................................... 12

6.0 General ............................................................................................................................................................. 12

6.1 Performance criteria for Continuous phenomena applied to the EUT .............................................................. 12

6.2 Performance criteria for Transient phenomena applied to a class A EUT........................................................ 12

6.3 Performance criteria for Transient phenomena applied to a class B EUT ........................................................ 12

7 Requirements .......................................................................................................................................... 12

7.1 Emission ........................................................................................................................................................... 12

7.1.1 General ........................................................................................................................................................ 12

7.1.2 Special conditions ....................................................................................................................................... 13

7.2 Immunity .......................................................................................................................................................... 13

7.2.1 General ........................................................................................................................................................ 13

7.2.2 Special conditions ....................................................................................................................................... 14

Annex A (informative): Relationship between the present document and the essential

requirements of Directive 2014/53/EU ......................................................... 16

Annex B (informative): Definitions of Satellite Earth Stations (ES) within the scope of the

present document ........................................................................................... 18

B.0 General ................................................................................................................................................... 18

B.1 Transmit only and Transmit and receive Ku band VSATs .................................................................... 18

B.2 Receive-only Ku band VSATs ............................................................................................................... 18

B.3 Transmit only and Transmit and receive C band VSATs ....................................................................... 19

B.4 Receive-only C band VSATs ................................................................................................................. 19

ETSI
---------------------- Page: 3 ----------------------
4 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)

B.5 Satellite News Gathering (SNG) Ku band Transportable Earth Stations (TESs) ................................... 20

B.6 Satellite Interactive Terminals (SITs) .................................................................................................... 20

B.7 Satellite User Terminals (SUTs) transmitting in the frequency range 29,5 GHz to 30,0 GHz .............. 21

B.8 Satellite User Terminals (SUTs) transmitting in the frequency range 27,5 GHz to 29,5 GHz .............. 22

B.9 Satellite Earth Station on Trains (EST) transmitting in the frequency range 14,0 GHz to 14,5 GHz .... 22

B.10 Earth Stations On Mobile Platforms (ESOMP) transmitting in the frequency range 27,5 GHz to

30,0 GHz ................................................................................................................................................ 23

Annex C (informative): Bibliography ................................................................................................... 25

Annex D (informative): Change history ............................................................................................... 26

History .............................................................................................................................................................. 27

ETSI
---------------------- Page: 4 ----------------------
5 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
Intellectual Property Rights
Essential patents

IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

server (https://ipr.etsi.org/).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web

server) which are, or may be, or may become, essential to the present document.
Trademarks

The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.

ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no

right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does

not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.

Foreword

This draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic

compatibility and Radio spectrum Matters (ERM), and is now submitted for the combined Public Enquiry and Vote

phase of the ETSI standards EN Approval Procedure.

The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.6] to

provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation

of the laws of the Member States relating to the making available on the market of radio equipment and repealing

Directive 1999/5/EC [i.5].

Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with

the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present

document, a presumption of conformity with the corresponding essential requirements of that Directive and associated

EFTA regulations.

The present document is part 12 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa

Date of withdrawal of any conflicting National Standard (dow): 18 months after doa

Modal verbs terminology

In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and

"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of

provisions).

"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
---------------------- Page: 5 ----------------------
6 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
1 Scope

The present document specifies technical characteristics and methods of measurement for the Earth Stations (ESs)

operating in the frequency ranges between 3,625 GHz and 30 GHz in the Fixed Satellite Service (FSS) bands, and

associated ancillary equipment in respect of ElectroMagnetic Compatibility (EMC).

Technical specifications related to the antenna port and emissions from the enclosure port of the Earth Stations (ESs)

are not included in the present document. Such technical specifications are found in the relevant product standards for

the effective use of the radio spectrum, see table 1.
Table 1: Radio Technologies in scope of the present document
Technology ETSI Standard

VSAT for Transmit-only, transmit/receive or receive-only satellite Earth Stations

ETSI EN 301 428 [i.7]
operating in the 10,70 GHz to 14,50 GHz frequency bands
ES for Satellite News Gathering Transportable Earth Stations (SNG TESs)
ETSI EN 301 430 [i.8]
operating in the 10,70 GHz to 14,50 GHz frequency bands
VSAT for Transmit-only, transmit-and-receive, receive-only satellite Earth
ETSI EN 301 443 [i.9]
Stations operating in the 3,625 GHz to 6,425 GHz frequency bands
ES for Satellite Interactive Terminals (SIT) and Satellite User Terminals (SUT)

transmitting towards satellites in geostationary orbit in the 19,70 GHz to 30,0 GHz ETSI EN 301 459 [i.10]

frequency bands
ES for Satellite User Terminals (SUT) transmitting towards satellites in
ETSI EN 301 360 [i.11]
geostationary orbit in the 17,70 GHz to 29,5 GHz frequency bands
ES for Earth Stations On Mobile Platforms (ESOMP) transmitting towards

satellites in geostationary orbit, operating in the 17,70 GHz to 30,0 GHz ETSI EN 303 978 [i.12]

frequency bands

Definitions of the type of Earth Stations (ESs) operating in the frequency ranges between 3,625 GHz and 30 GHz in the

Fixed Satellite Service (FSS) covered by the present document are given in annex B. The environmental classification

used in the present document are as stated in ETSI EN 301 489-1 [1].

NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive

2014/53/EU [i.5] is given in annex A.
2 References
2.1 Normative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

Referenced documents which are not found to be publicly available in the expected location might be found at

https://docbox.etsi.org/Reference/.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are necessary for the application of the present document.

[1] ETSI EN 301 489-1 (V2.2.3) (11-2019): "ElectroMagnetic Compatibility (EMC) standard for

radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for

ElectroMagnetic Compatibility".

[2] EN 61000-3-3 (2013) + A1 (2019): "Electromagnetic compatibility (EMC) - Part 3-3: Limits -

Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply

systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional

connection", (produced by CENELEC).
ETSI
---------------------- Page: 6 ----------------------
7 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
2.2 Informative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are not necessary for the application of the present document but they assist the

user with regard to a particular subject area.
[i.1] Void.
[i.2] Void.

[i.3] ERC/DEC(00)08: "ERC Decision of 19 October 2000 on the use of the band 10.7 - 12.5 GHz by

the fixed service and Earth stations of the broadcasting-satellite and fixed-satellite Service (space-

to-Earth)".
[i.4] Void.

[i.5] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the

harmonisation of the laws of the Member States relating to the making available on the market of

radio equipment and repealing Directive 1999/5/EC.

[i.6] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request

to the European Committee for Electrotechnical Standardisation and to the European

Telecommunications Standards Institute as regards radio equipment in support of Directive

2014/53/EU of the European Parliament and of the Council.

[i.7] ETSI EN 301 428: "Satellite Earth Stations and Systems (SES); Harmonized Standard for Very

Small Aperture Terminal (VSAT); Transmit-only, transmit/receive or receive-only satellite earth

stations operating in the 11/12/14 GHz frequency bands covering the essential requirements of

article 3.2 of the Directive 2014/53/EU".

[i.8] ETSI EN 301 430: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

News Gathering Transportable Earth Stations (SNG TES) operating in the 11 GHz to 12 GHz/13

GHz to 14 GHz frequency bands covering the essential requirements of article 3.2 of the Directive

2014/53/EU".

[i.9] ETSI EN 301 443: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Very

Small Aperture Terminal (VSAT); Transmit-only, transmit-and-receive, receive-only satellite

earth stations operating in the 4 GHz and 6 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.10] ETSI EN 301 459: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

Interactive Terminals (SIT) and Satellite User Terminals (SUT) transmitting towards satellites in

geostationary orbit, operating in the 29,5 GHz to 30,0 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.11] ETSI EN 301 360: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

Interactive Terminals (SIT) and Satellite User Terminals (SUT) transmitting towards satellites in

geostationary orbit, operating in the 27,5 GHz to 29,5 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.12] ETSI EN 303 978: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Earth

Stations on Mobile Platforms (ESOMP) transmitting towards satellites in geostationary orbit,

operating in the 27,5 GHz to 30,0 GHz frequency bands covering the essential requirements of

article 3.2 of the Directive 2014/53/EU".
[i.13] ITU Radio Regulations (2020).
ETSI
---------------------- Page: 7 ----------------------
8 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
3 Definition of terms, symbols and abbreviations
3.1 Terms

For the purposes of the present document, the terms given in ETSI EN 301 489-1 [1] and the following apply:

ancillary equipment: electrical or electronic equipment, that is intended to be used with a receiver or transmitter

NOTE 1: It is considered as an ancillary equipment if:

 the equipment is intended for use with a receiver or transmitter to provide additional operational

and/or control features to the radio equipment (e.g. to extend control to another position or

location);

 the ancillary equipment cannot be used without being connected to radio equipment to provide user

functions independently of a receiver or transmitter; and

 the receiver or transmitter, to which it is connected, is capable of providing some intended

operation such as transmitting and/or receiving without the ancillary equipment (i.e. it is not a

sub-unit of the main equipment essential to the main equipment basic functions).

NOTE 2: An example of ancillary equipment would be a docking station for radio equipment whose interface is

dedicated to a particular product or range of products.

carrier-off state: state in which the ES is authorized to transmit, and when it does not transmit any signal, either

authorized by a Centralized Control and Monitoring Functions (CCMF) or a Network Control Facility (NCF) when

designed for unattended operation or by local control when designed for attended operation

NOTE: The existence of a carrier-off state depends on the system of transmission used. For ES designed for

continuous transmission mode there may be no carrier-off state.

carrier-on state: state in which the ES is authorized to transmit, and when it transmits a signal, either authorized by a

CCMF or a NCF when designed for unattended operation or by local control when designed for attended operation

critical stored data: data that is essential for an EUT to perform a primary function in accordance with that EUT's

specification
NOTE: This may include data previously stored by the user.

drive equipment: equipment used to enable the EUT to operate as intended during the test process

terrestrial port: a port for interconnecting earth-based equipments

transmission disabled state: state in which the ES is not authorized to transmit either by a CCMF or a NCF

respectively when designed for unattended operation or by local control when designed for attended operation

3.2 Symbols
For the purposes of the present document, the following symbols apply:
P minimum power required to establish a communication link
min
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
AMSS Aeronautical Mobile Satellite Service
BSS Broadcast Satellite Service
CCMF Centralized Control and Monitoring Functions
CEPT European Conference of Postal and Telecommunications administrations
ETSI
---------------------- Page: 8 ----------------------
9 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
DC Direct Current
EFTA European Free Trade Association
EIRP Equivalent Isotropically Radiated Power
EMC ElectroMagnetic Compatibility
EME Externally Mounted Equipment
ES Earth Station
ESOMP Earth Stations On Mobile Platforms
EST Earth Station on Trains
EUT Equipment Under Test
FS Fixed Services
FSS Fixed Satellite Service
IME Internally Mounted Equipment
kV kilo Volt
LMSS Land Mobile Satellite Service
LNB Low Noise Block converter
MMSS Marine Mobile Satellite Service
MSS Mobile Satellite Service
NCF Network Control Facility
QTMA Quality of Transmission Measurement Apparatus
RF Radio Frequency
SIT Satellite Interactive Terminals
SNG Satellite News Gathering
SUT Satellite User Terminals
TES Transportable Earth Station
VSAT Very Small Aperture Terminal
4 Test conditions
4.1 General

For the purposes of the present document, the test conditions of ETSI EN 301 489-1 [1], clause 4 shall apply with the

following additions. Further product type related test conditions for Earth Stations are specified in the present

document.

For Earth Stations with or without ancillary equipment, and/or various terrestrial ports, the selection of test

configurations shall be determined. The assessment shall include sufficient representative configurations of the ES to

adequately exercise the equipment. These configurations shall be recorded in the test report.

In clauses 4.2 and 4.3, the Equipment Under Test (EUT) is an ES with the selected configuration of ancillary

equipment.
4.2 Arrangements for test signals
4.2.0 General

The provisions of ETSI EN 301 489-1 [1], clause 4.2.0 shall apply with the following additions.

In order to measure the system emissions and electromagnetic immunity under operational conditions, the following

arrangements shall be provided:

a) a drive equipment to put the ES terminal in its normal operating mode, and providing the ES with a receive

signal to emulate the operational conditions of reception. This equipment shall control the EUT, when it is

capable of transmission, so that it switches between the transmission disabled, carrier-on and carrier-off states;

b) a Quality of Transmission Measurement Apparatus (QTMA).
ETSI
---------------------- Page: 9 ----------------------
10 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)

For the measurement of the quality of transmission, a communications link shall be established and the wanted input

signal shall be applied to the Radio Frequency (RF) input of the receiver via the antenna.

The QTMA and the source of the wanted input signal shall be located outside the test environment.

4.2.1 Arrangements for test signals at the input of transmitters
The provisions of ETSI EN 301 489-1 [1], clause 4.2.1 shall apply.
4.2.2 Arrangements for test signals at the output of transmitters
The provisions of ETSI EN 301 489-1 [1], clause 4.2.2 shall apply.
4.2.3 Arrangements for test signals at the input of receivers

The provisions of ETSI EN 301 489-1 [1], clause 4.2.3 shall apply with the following addition.

For radiated immunity, the level of the wanted signal at the input of the receiver or the enclosure port of the EUT, shall

be 20 dB (±3 dB) above the P for the EUT. For all other tests the level of the wanted signal, required to establish a

min
communication link, shall be representative of the EUT intended use.

NOTE: A simple method to establish the required communication link is establish link, reduce power to point of

link failure then increase by 20 dB.
4.2.4 Arrangements for test signals at the output of receivers
The provisions of ETSI EN 301 489-1 [1], clause 4.2.4 shall apply.
4.3 Exclusion bands
4.3.1 Exclusion band for transmitters or the transmitter part of transceivers
The provisions of ETSI EN 301 489-1 [1], clause 4.3.2 shall apply.
4.3.2 Exclusion band for receivers or the receiver part of transceivers

For EUT that operate above 6 GHz, there is no exclusion band specified as test ranges stop at 6 GHz.

For EUT that operate below 6 GHz, the provisions of ETSI EN 301 489-1 [1], clause 4.3.3 shall apply.

5 Performance assessment
5.1 General

The provision of ETSI EN 301 489-1 [1], annex C should apply. In addition, the following information should be

recorded in the test report:

• the dedicated class (A or B) for the ES in accordance with the information contained in the instructions

accompanying the ES (see clause 5.3);

• the ranges of the operational parameters, e.g. the power delivered to the antenna, the frequency ranges;

• the minimum quality of transmission, and the method to be used to assess it.

This information shall be in accordance with the documentation accompanying the equipment.

ETSI
---------------------- Page: 10 ----------------------
11 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
5.2 Equipment configuration(s)
For radiation measurements in carrier-on stat
...

SLOVENSKI STANDARD
oSIST prEN 301 489-12 V3.1.2:2021
01-junij-2021

Standard elektromagnetne združljivosti (EMC) za radijsko opremo in storitve - 12.

del: Posebni pogoji za satelitske terminale z zelo majhno antensko odprtino,

interaktivne satelitske zemeljske postaje, ki delujejo v frekvenčnih pasovih 4 GHz

in 30 GHz fiksnih satelitskih storitev (FSS) - Harmonizirani standard za
elektromagnetno združljivost

ElectroMagnetic Compatibility (EMC) standard for radio equipment and services - Part

12: Specific conditions for Very Small Aperture Terminal, Satellite Interactive Earth

Stations operated in the frequency ranges between 4 GHz and 30 GHz in the Fixed
Satellite Service (FSS) - Harmonised Standard for ElectroMagnetic Compatibility
Ta slovenski standard je istoveten z: ETSI EN 301 489-12 V3.1.2 (2021-03)
ICS:
33.060.30 Radiorelejni in fiksni satelitski Radio relay and fixed satellite
komunikacijski sistemi communications systems
33.100.01 Elektromagnetna združljivost Electromagnetic compatibility
na splošno in general
oSIST prEN 301 489-12 V3.1.2:2021 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 301 489-12 V3.1.2:2021
---------------------- Page: 2 ----------------------
oSIST prEN 301 489-12 V3.1.2:2021
Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 12: Specific conditions for Very Small Aperture
Terminal, Satellite Interactive Earth Stations operated
in the frequency ranges between 4 GHz and 30 GHz
in the Fixed Satellite Service (FSS);
Harmonised Standard for ElectroMagnetic Compatibility
---------------------- Page: 3 ----------------------
oSIST prEN 301 489-12 V3.1.2:2021
2 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
Reference
REN/ERM-EMC-404
Keywords
earth station, EMC, FSS, harmonised standard,
radio, regulation, satellite, SNG, testing, VSAT
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI

deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying

and microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2021.
All rights reserved.

DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.

3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and

of the 3GPP Organizational Partners.

oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and

of the oneM2M Partners.
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI
---------------------- Page: 4 ----------------------
oSIST prEN 301 489-12 V3.1.2:2021
3 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
Contents

Intellectual Property Rights ................................................................................................................................ 5

Foreword ............................................................................................................................................................. 5

Modal verbs terminology .................................................................................................................................... 5

1 Scope ........................................................................................................................................................ 6

2 References ................................................................................................................................................ 6

2.1 Normative references ......................................................................................................................................... 6

2.2 Informative references ........................................................................................................................................ 7

3 Definition of terms, symbols and abbreviations ....................................................................................... 8

3.1 Terms .................................................................................................................................................................. 8

3.2 Symbols .............................................................................................................................................................. 8

3.3 Abbreviations ..................................................................................................................................................... 8

4 Test conditions ......................................................................................................................................... 9

4.1 General ............................................................................................................................................................... 9

4.2 Arrangements for test signals ............................................................................................................................. 9

4.2.0 General .......................................................................................................................................................... 9

4.2.1 Arrangements for test signals at the input of transmitters ........................................................................... 10

4.2.2 Arrangements for test signals at the output of transmitters ......................................................................... 10

4.2.3 Arrangements for test signals at the input of receivers ............................................................................... 10

4.2.4 Arrangements for test signals at the output of receivers ............................................................................. 10

4.3 Exclusion bands ................................................................................................................................................ 10

4.3.1 Exclusion band for transmitters or the transmitter part of transceivers....................................................... 10

4.3.2 Exclusion band for receivers or the receiver part of transceivers ............................................................... 10

5 Performance assessment ......................................................................................................................... 10

5.1 General ............................................................................................................................................................. 10

5.2 Equipment configuration(s) .............................................................................................................................. 11

5.3 Equipment classification .................................................................................................................................. 11

6 Performance criteria ............................................................................................................................... 12

6.0 General ............................................................................................................................................................. 12

6.1 Performance criteria for Continuous phenomena applied to the EUT .............................................................. 12

6.2 Performance criteria for Transient phenomena applied to a class A EUT........................................................ 12

6.3 Performance criteria for Transient phenomena applied to a class B EUT ........................................................ 12

7 Requirements .......................................................................................................................................... 12

7.1 Emission ........................................................................................................................................................... 12

7.1.1 General ........................................................................................................................................................ 12

7.1.2 Special conditions ....................................................................................................................................... 13

7.2 Immunity .......................................................................................................................................................... 13

7.2.1 General ........................................................................................................................................................ 13

7.2.2 Special conditions ....................................................................................................................................... 14

Annex A (informative): Relationship between the present document and the essential

requirements of Directive 2014/53/EU ......................................................... 16

Annex B (informative): Definitions of Satellite Earth Stations (ES) within the scope of the

present document ........................................................................................... 18

B.0 General ................................................................................................................................................... 18

B.1 Transmit only and Transmit and receive Ku band VSATs .................................................................... 18

B.2 Receive-only Ku band VSATs ............................................................................................................... 18

B.3 Transmit only and Transmit and receive C band VSATs ....................................................................... 19

B.4 Receive-only C band VSATs ................................................................................................................. 19

ETSI
---------------------- Page: 5 ----------------------
oSIST prEN 301 489-12 V3.1.2:2021
4 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)

B.5 Satellite News Gathering (SNG) Ku band Transportable Earth Stations (TESs) ................................... 20

B.6 Satellite Interactive Terminals (SITs) .................................................................................................... 20

B.7 Satellite User Terminals (SUTs) transmitting in the frequency range 29,5 GHz to 30,0 GHz .............. 21

B.8 Satellite User Terminals (SUTs) transmitting in the frequency range 27,5 GHz to 29,5 GHz .............. 22

B.9 Satellite Earth Station on Trains (EST) transmitting in the frequency range 14,0 GHz to 14,5 GHz .... 22

B.10 Earth Stations On Mobile Platforms (ESOMP) transmitting in the frequency range 27,5 GHz to

30,0 GHz ................................................................................................................................................ 23

Annex C (informative): Bibliography ................................................................................................... 25

Annex D (informative): Change history ............................................................................................... 26

History .............................................................................................................................................................. 27

ETSI
---------------------- Page: 6 ----------------------
oSIST prEN 301 489-12 V3.1.2:2021
5 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
Intellectual Property Rights
Essential patents

IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

server (https://ipr.etsi.org/).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web

server) which are, or may be, or may become, essential to the present document.
Trademarks

The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.

ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no

right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does

not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.

Foreword

This draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic

compatibility and Radio spectrum Matters (ERM), and is now submitted for the combined Public Enquiry and Vote

phase of the ETSI standards EN Approval Procedure.

The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.6] to

provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation

of the laws of the Member States relating to the making available on the market of radio equipment and repealing

Directive 1999/5/EC [i.5].

Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with

the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present

document, a presumption of conformity with the corresponding essential requirements of that Directive and associated

EFTA regulations.

The present document is part 12 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa

Date of withdrawal of any conflicting National Standard (dow): 18 months after doa

Modal verbs terminology

In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and

"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of

provisions).

"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
---------------------- Page: 7 ----------------------
oSIST prEN 301 489-12 V3.1.2:2021
6 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
1 Scope

The present document specifies technical characteristics and methods of measurement for the Earth Stations (ESs)

operating in the frequency ranges between 3,625 GHz and 30 GHz in the Fixed Satellite Service (FSS) bands, and

associated ancillary equipment in respect of ElectroMagnetic Compatibility (EMC).

Technical specifications related to the antenna port and emissions from the enclosure port of the Earth Stations (ESs)

are not included in the present document. Such technical specifications are found in the relevant product standards for

the effective use of the radio spectrum, see table 1.
Table 1: Radio Technologies in scope of the present document
Technology ETSI Standard

VSAT for Transmit-only, transmit/receive or receive-only satellite Earth Stations

ETSI EN 301 428 [i.7]
operating in the 10,70 GHz to 14,50 GHz frequency bands
ES for Satellite News Gathering Transportable Earth Stations (SNG TESs)
ETSI EN 301 430 [i.8]
operating in the 10,70 GHz to 14,50 GHz frequency bands
VSAT for Transmit-only, transmit-and-receive, receive-only satellite Earth
ETSI EN 301 443 [i.9]
Stations operating in the 3,625 GHz to 6,425 GHz frequency bands
ES for Satellite Interactive Terminals (SIT) and Satellite User Terminals (SUT)

transmitting towards satellites in geostationary orbit in the 19,70 GHz to 30,0 GHz ETSI EN 301 459 [i.10]

frequency bands
ES for Satellite User Terminals (SUT) transmitting towards satellites in
ETSI EN 301 360 [i.11]
geostationary orbit in the 17,70 GHz to 29,5 GHz frequency bands
ES for Earth Stations On Mobile Platforms (ESOMP) transmitting towards

satellites in geostationary orbit, operating in the 17,70 GHz to 30,0 GHz ETSI EN 303 978 [i.12]

frequency bands

Definitions of the type of Earth Stations (ESs) operating in the frequency ranges between 3,625 GHz and 30 GHz in the

Fixed Satellite Service (FSS) covered by the present document are given in annex B. The environmental classification

used in the present document are as stated in ETSI EN 301 489-1 [1].

NOTE: The relationship between the present document and essential requirements of article 3.1(b) of Directive

2014/53/EU [i.5] is given in annex A.
2 References
2.1 Normative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

Referenced documents which are not found to be publicly available in the expected location might be found at

https://docbox.etsi.org/Reference/.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are necessary for the application of the present document.

[1] ETSI EN 301 489-1 (V2.2.3) (11-2019): "ElectroMagnetic Compatibility (EMC) standard for

radio equipment and services; Part 1: Common technical requirements; Harmonised Standard for

ElectroMagnetic Compatibility".

[2] EN 61000-3-3 (2013) + A1 (2019): "Electromagnetic compatibility (EMC) - Part 3-3: Limits -

Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply

systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional

connection", (produced by CENELEC).
ETSI
---------------------- Page: 8 ----------------------
oSIST prEN 301 489-12 V3.1.2:2021
7 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
2.2 Informative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are not necessary for the application of the present document but they assist the

user with regard to a particular subject area.
[i.1] Void.
[i.2] Void.

[i.3] ERC/DEC(00)08: "ERC Decision of 19 October 2000 on the use of the band 10.7 - 12.5 GHz by

the fixed service and Earth stations of the broadcasting-satellite and fixed-satellite Service (space-

to-Earth)".
[i.4] Void.

[i.5] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the

harmonisation of the laws of the Member States relating to the making available on the market of

radio equipment and repealing Directive 1999/5/EC.

[i.6] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request

to the European Committee for Electrotechnical Standardisation and to the European

Telecommunications Standards Institute as regards radio equipment in support of Directive

2014/53/EU of the European Parliament and of the Council.

[i.7] ETSI EN 301 428: "Satellite Earth Stations and Systems (SES); Harmonized Standard for Very

Small Aperture Terminal (VSAT); Transmit-only, transmit/receive or receive-only satellite earth

stations operating in the 11/12/14 GHz frequency bands covering the essential requirements of

article 3.2 of the Directive 2014/53/EU".

[i.8] ETSI EN 301 430: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

News Gathering Transportable Earth Stations (SNG TES) operating in the 11 GHz to 12 GHz/13

GHz to 14 GHz frequency bands covering the essential requirements of article 3.2 of the Directive

2014/53/EU".

[i.9] ETSI EN 301 443: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Very

Small Aperture Terminal (VSAT); Transmit-only, transmit-and-receive, receive-only satellite

earth stations operating in the 4 GHz and 6 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.10] ETSI EN 301 459: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

Interactive Terminals (SIT) and Satellite User Terminals (SUT) transmitting towards satellites in

geostationary orbit, operating in the 29,5 GHz to 30,0 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.11] ETSI EN 301 360: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Satellite

Interactive Terminals (SIT) and Satellite User Terminals (SUT) transmitting towards satellites in

geostationary orbit, operating in the 27,5 GHz to 29,5 GHz frequency bands covering the essential

requirements of article 3.2 of the Directive 2014/53/EU".

[i.12] ETSI EN 303 978: "Satellite Earth Stations and Systems (SES); Harmonised Standard for Earth

Stations on Mobile Platforms (ESOMP) transmitting towards satellites in geostationary orbit,

operating in the 27,5 GHz to 30,0 GHz frequency bands covering the essential requirements of

article 3.2 of the Directive 2014/53/EU".
[i.13] ITU Radio Regulations (2020).
ETSI
---------------------- Page: 9 ----------------------
oSIST prEN 301 489-12 V3.1.2:2021
8 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
3 Definition of terms, symbols and abbreviations
3.1 Terms

For the purposes of the present document, the terms given in ETSI EN 301 489-1 [1] and the following apply:

ancillary equipment: electrical or electronic equipment, that is intended to be used with a receiver or transmitter

NOTE 1: It is considered as an ancillary equipment if:

 the equipment is intended for use with a receiver or transmitter to provide additional operational

and/or control features to the radio equipment (e.g. to extend control to another position or

location);

 the ancillary equipment cannot be used without being connected to radio equipment to provide user

functions independently of a receiver or transmitter; and

 the receiver or transmitter, to which it is connected, is capable of providing some intended

operation such as transmitting and/or receiving without the ancillary equipment (i.e. it is not a

sub-unit of the main equipment essential to the main equipment basic functions).

NOTE 2: An example of ancillary equipment would be a docking station for radio equipment whose interface is

dedicated to a particular product or range of products.

carrier-off state: state in which the ES is authorized to transmit, and when it does not transmit any signal, either

authorized by a Centralized Control and Monitoring Functions (CCMF) or a Network Control Facility (NCF) when

designed for unattended operation or by local control when designed for attended operation

NOTE: The existence of a carrier-off state depends on the system of transmission used. For ES designed for

continuous transmission mode there may be no carrier-off state.

carrier-on state: state in which the ES is authorized to transmit, and when it transmits a signal, either authorized by a

CCMF or a NCF when designed for unattended operation or by local control when designed for attended operation

critical stored data: data that is essential for an EUT to perform a primary function in accordance with that EUT's

specification
NOTE: This may include data previously stored by the user.

drive equipment: equipment used to enable the EUT to operate as intended during the test process

terrestrial port: a port for interconnecting earth-based equipments

transmission disabled state: state in which the ES is not authorized to transmit either by a CCMF or a NCF

respectively when designed for unattended operation or by local control when designed for attended operation

3.2 Symbols
For the purposes of the present document, the following symbols apply:
P minimum power required to establish a communication link
min
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
AMSS Aeronautical Mobile Satellite Service
BSS Broadcast Satellite Service
CCMF Centralized Control and Monitoring Functions
CEPT European Conference of Postal and Telecommunications administrations
ETSI
---------------------- Page: 10 ----------------------
oSIST prEN 301 489-12 V3.1.2:2021
9 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)
DC Direct Current
EFTA European Free Trade Association
EIRP Equivalent Isotropically Radiated Power
EMC ElectroMagnetic Compatibility
EME Externally Mounted Equipment
ES Earth Station
ESOMP Earth Stations On Mobile Platforms
EST Earth Station on Trains
EUT Equipment Under Test
FS Fixed Services
FSS Fixed Satellite Service
IME Internally Mounted Equipment
kV kilo Volt
LMSS Land Mobile Satellite Service
LNB Low Noise Block converter
MMSS Marine Mobile Satellite Service
MSS Mobile Satellite Service
NCF Network Control Facility
QTMA Quality of Transmission Measurement Apparatus
RF Radio Frequency
SIT Satellite Interactive Terminals
SNG Satellite News Gathering
SUT Satellite User Terminals
TES Transportable Earth Station
VSAT Very Small Aperture Terminal
4 Test conditions
4.1 General

For the purposes of the present document, the test conditions of ETSI EN 301 489-1 [1], clause 4 shall apply with the

following additions. Further product type related test conditions for Earth Stations are specified in the present

document.

For Earth Stations with or without ancillary equipment, and/or various terrestrial ports, the selection of test

configurations shall be determined. The assessment shall include sufficient representative configurations of the ES to

adequately exercise the equipment. These configurations shall be recorded in the test report.

In clauses 4.2 and 4.3, the Equipment Under Test (EUT) is an ES with the selected configuration of ancillary

equipment.
4.2 Arrangements for test signals
4.2.0 General

The provisions of ETSI EN 301 489-1 [1], clause 4.2.0 shall apply with the following additions.

In order to measure the system emissions and electromagnetic immunity under operational conditions, the following

arrangements shall be provided:

a) a drive equipment to put the ES terminal in its normal operating mode, and providing the ES with a receive

signal to emulate the operational conditions of reception. This equipment shall control the EUT, when it is

capable of transmission, so that it switches between the transmission disabled, carrier-on and carrier-off states;

b) a Quality of Transmission Measurement Apparatus (QTMA).
ETSI
---------------------- Page: 11 ----------------------
oSIST prEN 301 489-12 V3.1.2:2021
10 Draft ETSI EN 301 489-12 V3.1.2 (2021-03)

For the measurement of the quality of transmission, a communications link shall be established and the wanted input

signal shall be applied to the Radio Frequency (RF) input of the receiver via the antenna.

The QTMA and the source of the wanted input signal shall be located outside the test environment.

4.2.1 Arrangements for test signals at the input of transmitters
The provisions of ETSI EN 301 489-1 [1], clause 4.2.1 shall apply.
4.2.2 Arrangements for test signals at the output of transmitters
The provisions of ETSI EN 301 489-1 [1], clause 4.2.2 shall apply.
4.2.3 Arrangements for test signals at the input of receivers

The provisions of ETSI EN 301 489-1 [1], clause 4.2.3 shall apply with the following addition.

For radiated immunity, the level of the wanted signal at the input of the receiver or the enclosure port of the EUT, shall

be 20 d
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
