Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 12: Specific conditions for Very Small Aperture Terminal, Satellite Interactive Earth Stations operated in the frequency ranges between 4 GHz and 30 GHz in the Fixed Satellite Service (FSS)

Revision to EN 301 489-XX( All parts), in order to remove editorial inconsistencies between specific parts of the multi-part EMC standard and between the specific parts and the general part 1

Elektromagnetna združljivost (EMC) in zadeve v zvezi z radijskim spektrom (ERM) - Standard elektromagnetne združljivosti (EMC) za radijsko opremo in storitve - 12. del: Posebni pogoji za satelitske terminale z manjšo anteno, interaktivne zemeljske satelitske postaje, ki delujejo v frekvenčnih pasovih fiksnih satelitskih storitev (FSS) 4 GHz in 30 GHz

General Information

Status
Published
Publication Date
31-Jan-2004
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Feb-2004
Due Date
01-Feb-2004
Completion Date
01-Feb-2004
Mandate

Relations

Buy Standard

Standard
EN 301 489-12 V1.2.1:2004
English language
21 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 12: Specific conditions for Very Small Aperture Terminal, Satellite Interactive Earth Stations operated in the frequency ranges between 4 GHz and 30 GHz in the Fixed Satellite Service (FSS)33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.30Radiorelejni in fiksni satelitski komunikacijski sistemiRadio relay and fixed satellite communications systemsICS:Ta slovenski standard je istoveten z:EN 301 489-12 Version 1.2.1SIST EN 301 489-12 V1.2.1:2004en01-februar-2004SIST EN 301 489-12 V1.2.1:2004SLOVENSKI
STANDARD



SIST EN 301 489-12 V1.2.1:2004



ETSI EN 301 489-12 V1.2.1 (2003-05)Candidate Harmonized European Standard (Telecommunications series) Electromagnetic compatibilityand Radio spectrum Matters (ERM);ElectroMagnetic Compatibility (EMC)standard for radio equipment and services;Part 12: Specific conditions for Very Small ApertureTerminal, Satellite Interactive Earth Stations operatedin the frequency ranges between 4 GHz and 30 GHzin the Fixed Satellite Service (FSS)
SIST EN 301 489-12 V1.2.1:2004

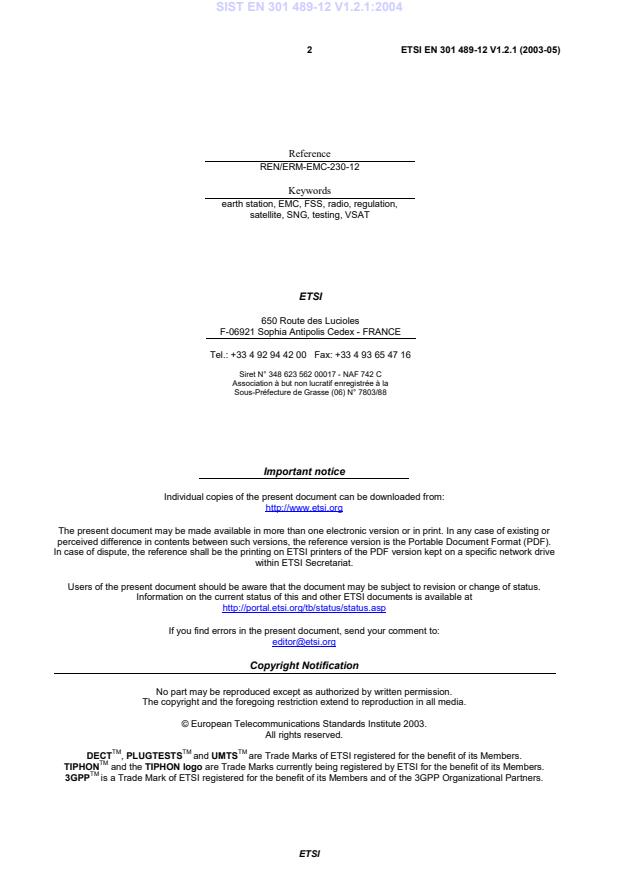

ETSI ETSI EN 301 489-12 V1.2.1 (2003-05) 2
Reference REN/ERM-EMC-230-12 Keywords earth station, EMC, FSS, radio, regulation, satellite, SNG, testing, VSAT ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: editor@etsi.org Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2003. All rights reserved.
DECTTM, PLUGTESTSTM and UMTSTM are Trade Marks of ETSI registered for the benefit of its Members. TIPHONTM and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. SIST EN 301 489-12 V1.2.1:2004



ETSI ETSI EN 301 489-12 V1.2.1 (2003-05) 3
Contents Intellectual Property Rights.5 Foreword.5 1 Scope.6 2 References.6 3 Definitions and abbreviations.7 3.1 Definitions.7 3.2 Abbreviations.7 4 Test conditions.7 4.1 General.7 4.2 Arrangements for test signals.8 4.2.1 Arrangements for test signals at the input of transmitters.8 4.2.2 Arrangements for test signals at the output of transmitters.8 4.2.3 Arrangements for test signals at the input of receivers.8 4.2.4 Arrangements for test signals at the output of receivers.8 4.2.5 Arrangements for testing transmitter and receiver together (as a system).8 4.3 Exclusion bands.8 4.4 Narrow band responses of receivers.8 5 Performance assessment.9 5.1 General.9 5.2 Equipment configuration(s).9 5.3 Equipment classification.10 6 Performance criteria.10 6.1 Performance criteria (C) for Continuous phenomena applied to the EUT.10 6.2 Performance criteria (TA) for Transient phenomena applied to a grade A EUT.11 6.3 Performance criteria (TB) for Transient phenomena applied to a grade B EUT.11 7 Applicability overview.12 7.1 Emission.12 7.1.1 General.12 7.1.2 Special conditions.12 7.2 Immunity.12 7.2.1 General.12 7.2.2 Special conditions.12 Annex A (normative): Definitions of Satellite Earth Stations (ES) within the scope of the present document.14 A.1 Transmit only and Transmit and receive Ku band VSATs.14 A.2 Receive-only Ku band VSATs.14 A.3 Transmit only and Transmit and receive C band VSATs.15 A.4 Receive-only C band VSATs.15 A.5 Satellite News Gathering (SNG) Ku band Transportable Earth Stations (TESs).16 A.6 Satellite Interactive Terminals (SITs).17 A.7 Satellite User Terminals (SUTs) transmitting in the frequency range 29,5 GHz to 30,0 GHz.17 A.8 Satellite User Terminals (SUTs) transmitting in the frequency range 27,5 GHz to 29,5 GHz.18 Annex B (informative): Bibliography.19 Annex C (informative): The EN title in the official languages.20 SIST EN 301 489-12 V1.2.1:2004



ETSI ETSI EN 301 489-12 V1.2.1 (2003-05) 4
History.21
SIST EN 301 489-12 V1.2.1:2004



ETSI ETSI EN 301 489-12 V1.2.1 (2003-05) 5
Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). All published ETSI deliverables shall include information which directs the reader to the above source of information. Foreword This Candidate Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document has been produced by ETSI in response to a mandate from the European Commission issued under Council Directive 98/34/EC [4] (as amended) laying down a procedure for the provision of information in the field of technical standards and regulations. The present document, together with EN 301 489-1 [1], is intended to become a Harmonized Standard, the reference of which will be published in the Official Journal of the European Communities referencing the Council Directive on the approximation of the laws of the Member States relating to electromagnetic compatibility ("the EMC Directive") (89/336/EEC [3] as amended) and Directive 1999/5/EC [2] of the European Parliament and of the Council of
9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity ("the R&TTE Directive"). The present document is part 12 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
National transposition dates Date of adoption of this EN: 25 April 2003 Date of latest announcement of this EN (doa): 31 July 2003 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 January 2004 Date of withdrawal of any conflicting National Standard (dow): 31 July 2006
SIST EN 301 489-12 V1.2.1:2004



ETSI ETSI EN 301 489-12 V1.2.1 (2003-05) 6
1 Scope The present document, together with EN 301 489-1 [1], covers the assessment of Earth Stations (ES) operated in the frequency ranges between 4 GHz and 30 GHz in the Fixed Satellite Service (FSS) and associated ancillary equipment in respect of Electromagnetic Compatibility (EMC). Technical specifications related to the antenna port and emissions from the enclosure port of the Earth Stations (ES) are not included in the present document. Such technical specifications are found in the relevant product standards for the effective use of the radio spectrum. The present document specifies the applicable test conditions, performance assessment and the performance criteria for the ESs, and associated ancillary equipment. Definitions of the type of Earth Stations (ES) operated in the frequency ranges between 4 GHz and 30 GHz in the Fixed Satellite Service (FSS) covered by the present document are given in annex A. In case of differences (for instance concerning special conditions, definitions, abbreviations) between the present document and EN 301 489-1 [1], the provisions of the present document take precedence. The environmental classification and the emission and immunity requirements used in the present document are as stated in EN 301 489-1 [1], except for any special conditions included in the present document. The applicable environments referred to in EN 301 489-1 [1] where equipment covered by the scope of the present document may be used, shall be declared by the manufacturer. 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. [1] ETSI EN 301 489-1: "Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 1: Common technical requirements". [2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (R&TTE Directive). [3] Council Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of the Member States relating to electromagnetic compatibility (EMC Directive). [4] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a procedure for the provision of information in the field of technical standards and regulations. SIST EN 301 489-12 V1.2.1:2004



ETSI ETSI EN 301 489-12 V1.2.1 (2003-05) 7
3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in EN 301 489-1 [1] and the following apply: carrier-on state: transmit ES is in this state when it is authorized to transmit, and when it transmits a signal, either authorized by a Centralized Control and Monitoring Function (CCMF) or a Network Control Facility (NCF) when designed for unattended operation or by local control when designed for attended operation carrier-off state: transmit ES is in this state when it is authorized to transmit, and when it does not transmit any signal, either authorized by a CCMF or a NCF when designed for unattended operation or by local control when designed for attended operation NOTE: The existence of a carrier-off state depends on the system of transmission used. For ES designed for continuous transmission mode there may be no carrier-off state. transmission disabled state: transmit ES is in this state when it is not authorized to transmit either by a CCMF or a NCF respectively when designed for unattended operation or by local control when designed for attended operation 3.2 Abbreviations For the purposes of the present document, the following abbreviations apply: CCMF Centralized Control and Monitoring Functions CMF Control and Monitoring Functions EIRP Equivalent Isotropically Radiated Power EMC ElectroMagnetic Compatibility ES Earth Station EUT Equipment Under Test FSS Fixed Satellite Service LNB Low Noise Block converter NCF Network Control Facility QTMA Quality of Transmission Measurement Apparatus RF Radio Frequency SIT Satellite Interactive Terminals
SNG Satellite News Gathering SUT Satellite User Terminals
TES Transportable Earth Station VSAT Very Small Aperture Terminal 4 Test conditions For the purposes of the present document, the test conditions of EN 301 489-1 [1], clause 4 shall apply as appropriate. Further product type related test conditions for Earth Stations are specified in the present document. 4.1 General For Earth Stations with or without ancillary equipment, and/or various terrestrial ports, the number of test configurations shall be determined. The assessment shall include sufficient representative configurations of the ES to adequately exercise the equipment. These configurations shall be recorded in the test report. In the following clauses, the Equipment Under Test (EUT) is an ES with the selected configuration of ancillary equipment. SIST EN 301 489-12 V1.2.1:2004



ETSI ETSI EN 301 489-12 V1.2.1 (2003-05) 8
4.2 Arrangements for test signals The provisions of EN 301 489-1 [1], clause 4.2 shall apply with the following modifications. In order to measure the unwanted emissions and electromagnetic immunity under operational conditions, the following arrangements shall be provided by the manufacturer: a) a special test equipment to put the ES terminal in its normal operating mode, and providing the ES with a receive signal to emulate the operational conditions of reception. This equipment shall control the EUT, when it is capable of transmission, so that it switches between the transmission disabled, carrier-on and carrier-off states; b) the specific Quality of Transmission Measurement Apparatus (QTMA). For the measurement of the quality of transmission a communications link shall be established and the wanted input signal shall be applied to the Radio Frequency (RF) input of the receiver via the antenna. The special test equipment, the QTMA and the source of the wanted input signal shall be located outside the test environment. Adequate measures shall be taken to protect them from the effects of all the radiated fields within the test environment. 4.2.1 Arrangements for test signals at the input of transmitters The provisions of EN 301 489-1 [1], clause 4.2.1 shall apply. 4.2.2 Arrangements for test signals at the output of transmitters The provisions of EN 301 489-1 [1], clause 4.2.2 shall apply. 4.2.3 Arrangements for test signals at the input of receivers The provisions of EN 301 489-1 [1], clause 4.2.3 shall apply with the following modification. For tests on the receiver, the level of the signal received from the test transmitter shall be as close as possible to the normal operation level of the EUT receiver. 4.2.4 Arrangements for test signals at the output of receivers The provisions of EN 301 489-1 [1], clause 4.2.4 shall apply. 4.2.5 Arrangements for testing transmitter and receiver together (as a system) The provisions of EN 301 489-1 [1], clause 4.2.5 shall apply. 4.3 Exclusion bands There are no exclusion bands for ESs within in the scope of the present document. 4.4 Narrow band responses of receivers Narrow band responses are not allowed for ESs within in the scope of the present document.
SIST EN 301 489-12 V1.2.1:2004



ETSI ETSI EN 301 489-12 V1.2.1 (2003-05) 9
5 Performance assessment 5.1 General The provision of EN 301 489-1 [1], clause 5.1 shall apply. In addition the manufacturer shall provide the following information to be recorded in the test report: - the dedicated grade (A or B) for the ES in accordance with the information contained in the instructions accompanying the ES (see clause 5.3); - the ranges of the operational parameters, e.g. the power delivered to the antenna, the frequency ranges; - the minimum quality of transmission, and the method to be used to assess it. This information shall be in accordance with the documentation accompanying the equipment. 5.2 Equipment configuration(s) For radiation measurements in carrier-on state, the ES shall be put in a continuous transmit mode or to the maximum burst rate where applicable. The ES shall be operated at the highest normal operating Equivalent Isotropically Radiated Power (EIRP) or, if that is the maximum attainable, then 3 dB below such maximum. A suggested test configuration is shown in figure 1.
Figure 1: Suggested test configuration For the tests, the ES antenna reflector and the test antenna may be removed at their flanges and be replaced by one direct wave guide connection. SIST EN 301 489-12 V1.2.1:2004



ETSI ETSI EN 301 489-12 V1.2.1 (2003-05) 10 The following test equipment shall be the means whereby the correct operation of the EUT is verified: a) the power meter measures the output power and is used to confirm the transmission disabled, carrier-on and carrier-off states and output level consistency; b) the frequency counter measures the centre frequency of the radiated carrier in the absence of modulation; c) the spectrum analyser measures the bandwidth of the transmission; d) the test receiver is used to demodulate the transmitted signal; e) the two QTMA are used in conjunction with each other to assess the quality of transmission; f) the test transmitter is used to control the switching between transmission disabled, carrier-on and carrier-off states by transmitting the control and monitoring signals. 5.3 Equipment classification The provisions of EN 301 489-1 [1], clause 5.5 set out for base stations shall apply with the following addition. The equipment are classified into the two grades of service: - grade A of ES for which short interruptions of transmission are accepted during immunity testing with EMC transient phenomena; - grade B of ES for which no short interruption of transmission is accepted during immunity testing with EMC transient phenomena. The applicable grade A or B shall be declared by the manufacturer, it shall be in accordance with the information contained in the instructions accompanying the ES, and shall be recorded in the test report. 6 Performance criteria The definition of the functions of the EUT, including its ancillary equipment, to be checked during and after the EMC tests shall be declared by the manufacturer and recorded in the test report. The equipment shall meet the minimum performance criteria as specified in clauses 6.1, 6.2 and 6.3 and additionally the functions as declared by the manufacturer. 6.1 Performance criteria (C) for Continuous phenomena applied to the EUT The provisions of EN 301 489-1 [1], clause 6.1 shall apply with the following modification. The EUT shall be considered to satisfy the immunity if the following conditions are met during and after the exposure: a) the quality of transmission observed is no worse than that declared by the manufacturer (clause 5.1); b) the EUT is able to be placed in the transmission disabled state, and does not leave that state without being commanded; c) when the EUT is in the transmission disabled state there is no change in the signal level; d) when the EUT is in the carrier-on state there is no change in the signal level or frequency; e) when the EUT is in the carrier-off state there is no increase of the signal level; f) for ESs capable of transmitting, under no circumstances does the transmitter operate unintentionally during the test; g) the EUT operates as intended with no loss of user control functions, stored data and the communications link. SIST EN 301 489-12 V1.2.1:2004



ETSI ETSI EN 301 489-12 V1.2.1 (2003-05) 11 6.2 Performance criteria (TA) for Transient phenomena applied to a grade A EUT The provisions of EN 301 489-1 [1], clause 6.2 shall apply with the following modification. The EUT shall be considered to satisfy the immunity specifications if the following conditions are met:
- during and after the series of individual exposures: a) the EUT is able to be placed in the transmission disabled state, and does not leave that state without being commanded; b) when the EUT is in the transmission disabled state there is no change in the signal level; c) when the EUT is in the carrier-on state there is no change in the signal frequency or increase of the signal level; d) when the EUT is in the carrier-off state there is no increase of the signal level; e) for ESs capable of transmitting, under no circumstances does the transmitter operate unintentionally during the test; - at the conclusion of each exposure the quality of transmission observed shall be no worse than that declared by the manufacturer (clause 5.1); - at the conclusion of the total test comprising the series of individual exposures the EUT shall operate as intended with no loss of user control functions or stored data and the communications link shall remain maintained.
6.3 Performance criteria (TB) for Transient phenomena applied to a grade B EUT The provisions of EN 301 489-1 [1], clause 6.2 shall apply with the following modification. The EUT shall be considered to satisfy the immunity specifications if the following conditions are met during and after the series of individual exposures: a) the quality of transmission observed is no worse than that declared by the manufacturer (clause 5.1); b) under the test conditions the EUT is able to be placed in the transmission disabled state, and does not leave that state without being commanded; c) when the EUT is in the transmission disabled state there is no change in the signal level; d) when the EUT is in the carrier-on state there is no change in the signal level or frequency; e) when the EUT is in the carrier-off state there is no increase of the signal level; f) for ESs capable of transmitting, under no circumstances does the transmitter operate unintentionally during the test; g) the EUT shall operate as intended with no loss of user control functions, stored data and the communications link. SIST EN 301 489-12 V1.2.1:2004



ETSI ETSI EN 301 489-12 V1.2.1 (2003-05) 12 7 Applicability overview 7.1 Emission 7.1.1 General EN 301 489-1 [1], table 2, contains the applicability of EMC emission measurements to the relevant ports of radio and/or associated ancillary equipment. 7.1.2 Special conditions The following special conditions set out in table 1, relate to the emission test methods used in EN 301 489-1 [1], clause 8. Table 1: Special conditions for EMC emission measurements Reference to clauses in
EN 301 489-1 [1] Special product-related conditions, additional to or modifying the test conditions in EN 301 489-1 [1], clause 8 8.2.3 Limits; Enclosure of ancillary equipment measured on a stand alone basis The requirements for radiated emission from the enclosure port is applicable to the complete system. The transmit carrier frequency and the receive carrier frequency shall be selected so that they give the maximum spurious radiation at frequencies below 1 000 MHz.
7.2 Immunity 7.2.1 General EN 301 489-1 [1], table 3, contains the applicability of EMC immunity measurements to the relevant ports of radio and/or associated ancillary equipment. 7.2.2 Special conditions The following special conditions set out in table 2, relate to the immunity test methods and performance criteria used in EN 301 489-1 [1], clause 9. SIST EN 301 489-12 V1.2.1:2004



ETSI ETSI EN 301 489-12 V1.2.1 (2003-05) 13 Table 2: Special conditions for EMC immunity tests Reference to clauses
in EN 301 489-1 [1] Special product-related conditions, additional to or modifying the test conditions in EN 301 489-1 [1], clause 9 9.3.3 Performance criteria; Electrostatic discharge The performance criteria TA (clause 6.2) shall apply to grade A ES. The performance criteria TB (clause 6.3) shall apply to grade B ES 9.4.3 Performance criteria; Fast transient, common mode The performance criteria TA (clause 6.2) shall apply to grade A ES. The performance criteria TB (clause 6.3) shall apply to grade B ES 9.7.3 Performance criteria; Voltage dips and interruptions a) for a voltage dip corresponding to a reduction of the supply voltage of
30 % for 10 ms, the performance criteria C (clause 6.1) shall apply; b) for a voltage dip corresponding to a reduction of the supply voltage of
60 % for 100 ms, the performance criteria TA (clause 6.2) shall apply to
grade A ES, and the performance criteria TB (clause 6.3) shall apply to
grade B ES. c) For a voltage interruption corresponding to a reduction of the supply
voltage of more than 95 % for 5 000 ms, the following performance
criteria shall apply:
- for equipment fitted with or connected to a battery back-up the
performance criteria TA (clause 6.2) shall apply to both grade A and
grade B ES; 9.8.3 Performance criteria; Surges The performance criteria TA (clause 6.2) shall apply to grade A ES. The performance criteria TB (clause 6.3) shall apply to grade B ES
SIST EN 301 489-12 V1.2.1:2004



ETSI ETSI EN 301 489-12 V1.2.1 (2003-05) 14 Annex A (normative): Definitions of Satellite Earth Stations (ES) within the scope of the present document The present document covers types of ES radio equipment as set out in the following clauses. A.1 Transmit only and Transmit and receive Ku band VSATs The present document applies to transmit only and also to transmit and receive Very Small Aperture Terminals (VSATs) operating as part of a satellite network (e.g. star, meshed or point to point) used for the distribution and/or exchange of information
...
