SIST EN 301 489-26 V2.3.2:2005

• Abstract:

  Update part 26 to include PAMR applications and general update.

• Status: Published
• Publication Date: 30-Nov-2005
• ICS: 33.060.20 - Receiving and transmitting equipment
• ICS: 33.100.01 - Electromagnetic compatibility in general
• Technical Committee: RES - Radio equipment and systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2005
• Due Date: 01-Dec-2005
• Completion Date: 01-Dec-2005
• Directive: 1999/5/EC - Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity
• Mandate: M/284
• Mandate: T-353
• Ref Project: ETSI EN 301 489-26 V2.3.2 (2005-07) - Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 26: Specific conditions for CDMA 1x spread spectrum Base Stations, repeaters and ancillary equipment

Overview

SIST EN 301 489-26 V2.3.2:2005 is a harmonized European standard developed by SIST, in association with ETSI, that specifies the requirements for electromagnetic compatibility (EMC) for radio equipment and services. Part 26 of this standard addresses the specific EMC conditions for CDMA 1x spread spectrum base stations, repeaters, and ancillary equipment. The scope of this edition includes an update to cover Public Access Mobile Radio (PAMR) applications and incorporates general updates to align with evolving industry needs.

This standard is critical for manufacturers and operators to ensure that CDMA 1x radio equipment and associated devices operate without causing harmful electromagnetic interference and comply with European regulatory directives, such as the EMC and R&TTE Directives.

Key Topics

• Electromagnetic Compatibility (EMC): Establishes criteria and test methods to minimize electromagnetic interference in CDMA 1x base stations and related equipment.
• CDMA 1x Spread Spectrum Technology: Focuses on equipment utilizing Code Division Multiple Access (CDMA) 1x protocols, including multi-carrier and PAMR systems.
• Performance Assessment: Details procedures to assess Frame Error Rate (FER) during immunity and emission testing, ensuring reliable operation under interference.
• Test Conditions and Exclusion Bands: Defines environmental and technical parameters for testing, including specific exclusion bands for transmitters, receivers, and repeaters.
• Special Conditions for PAMR: Outlines particular EMC performance criteria for base stations supporting PAMR applications.
• Applicability Overview: Provides tables summarizing emission and immunity test applicability across equipment ports.

Applications

SIST EN 301 489-26 V2.3.2:2005 is widely applicable across the telecommunications sector, particularly for organizations involved in:

• Design and Manufacturing: Ensuring that CDMA 1x base stations, repeaters, and ancillary equipment meet EMC regulatory requirements before market deployment.
• Telecommunications Network Operations: Assuring base station infrastructure operates reliably in diverse radio environments, avoiding service interruptions or data loss due to electromagnetic disturbances.
• Compliance Testing Facilities: Laboratories use this standard as a reference for conducting EMC testing of radio equipment covered under its scope.
• PAMR Network Implementation: Facilitates the deployment of Public Access Mobile Radio systems, meeting specific EMC criteria as included in the updated edition.
• Regulatory Conformance: Supporting declarations of conformity with the EMC Directive (89/336/EEC) and the R&TTE Directive (1999/5/EC) for radio equipment in Europe.

Related Standards

To ensure comprehensive EMC compliance, SIST EN 301 489-26 V2.3.2:2005 should be used in conjunction with the following standards:

• EN 301 489-1: Common technical requirements for EMC of radio equipment and services. Part 26 builds upon the general provisions in Part 1, introducing specific conditions for CDMA 1x equipment.
• TIA/EIA/IS-2000.2-1 and TIA-97-E-1: Referenced for definitions and test environment specifications, especially relevant for equipment supporting multi-carrier and PAMR CDMA systems.
• ITU-R SM.329-10: International guidance on unwanted emissions in the spurious domain.
• European Directives: EMC Directive (89/336/EEC), R&TTE Directive (1999/5/EC), and the framework for technical standards (98/34/EC).

These related standards provide a comprehensive framework for assessing and ensuring electromagnetic compatibility of advanced radio infrastructure, supporting robust and interference-free mobile communication networks across Europe.

Keywords: Electromagnetic compatibility, EMC, CDMA 1x, base station, repeater, radio spectrum, PAMR, telecommunications, radio equipment standard, compliance, immunity, emission testing.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Elektromagnetna združljivost in zadeve v zvezi z radijskim spektrom (ERM) – Standard elektromagnetne združljivosti (EMC) za radijsko opremo in storitve – 26. del: Posebni pogoji za bazne postaje s CDMA 1x, repetitorje (ponavljalnike) in pomožno opremo, ki delujejo z razpršenim spektromElectromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 26: Specific conditions for CDMA 1x spread spectrum Base Stations, repeaters and ancillary equipment33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.20Sprejemna in oddajna opremaReceiving and transmitting equipmentICS:Ta slovenski standard je istoveten z:EN 301 489-26 Version 2.3.2SIST EN 301 489-26 V2.3.2:2005en01-december-2005SIST EN 301 489-26 V2.3.2:2005SLOVENSKI
STANDARD

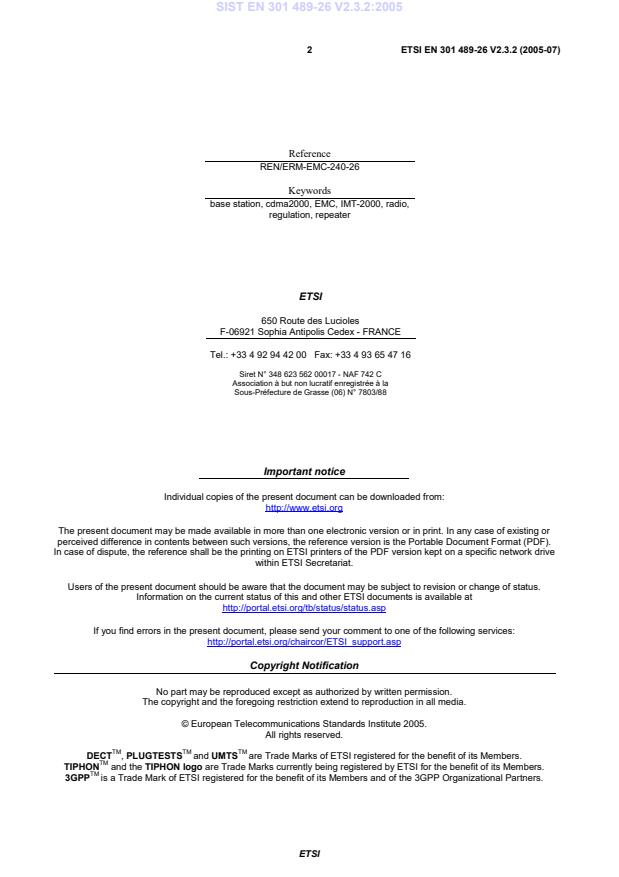

ETSI ETSI EN 301 489-26 V2.3.2 (2005-07) 2
Reference REN/ERM-EMC-240-26 Keywords base station, cdma2000, EMC, IMT-2000, radio, regulation, repeater ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2005. All rights reserved.
DECTTM, PLUGTESTSTM and UMTSTM are Trade Marks of ETSI registered for the benefit of its Members. TIPHONTM and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. SIST EN 301 489-26 V2.3.2:2005

ETSI ETSI EN 301 489-26 V2.3.2 (2005-07) 3
Contents Intellectual Property Rights.5 Foreword.5 1 Scope.6 2 References.6 3 Definitions and abbreviations.7 3.1 Definitions.7 3.2 Abbreviations.7 4 Test conditions.8 4.1 General.8 4.2 Arrangements for test signals.8 4.2.1 Arrangements for test signals at the input of transmitters.8 4.2.2 Arrangements for test signals at the output of transmitters.8 4.2.3 Arrangements for test signals at the input of receivers.8 4.2.4 Arrangements for test signals at the output of receivers.9 4.2.5 Arrangements for test signals for repeaters.9 4.3 Exclusion bands.9 4.3.1 Transmitter exclusion band.9 4.3.2 Receiver exclusion band.9 4.3.3 Repeater exclusion band.9 4.4 Narrow band responses of receivers.9 4.5 Normal test modulation.10 5 Performance assessment.10 5.1 General.10 5.2 Equipment which can provide a continuous communication link.10 5.2.1 Assessment of FER in Forward Link (Downlink).10 5.2.2 Assessment of FER in Reverse Link (Uplink).10 5.2.3 Assessment of RF gain variations of repeaters.10 5.3 Equipment which does not provide a continuous communication link.10 5.4 Ancillary equipment.10 5.5 Equipment classification.10 6 Performance criteria.11 6.1 Performance criteria for continuous phenomena applied to Base Stations (BS) and repeaters.11 6.1.1 Base Stations (BS).11 6.1.2 Repeaters.11 6.2 Performance criteria for transient phenomena for Base Stations (BS) and repeaters.11 6.2.1 Base Stations.11 6.2.2 Repeaters.11 6.2.2.1 Repeaters, Performance criteria for voltage dips (> 60 %) and interruptions.11 6.3 Performance criteria for ancillary equipment tested on a stand alone basis.11 6.3.1 Performance criteria for continuous phenomena for ancillary equipment.12 6.3.2 Performance criteria for transient phenomena for ancillary equipment.12 7 Applicability overview tables.12 7.1 Emission.12 7.1.1 General.12 7.1.2 Special conditions.12 7.2 Immunity.12 7.2.1 General.12 7.2.2 Special conditions.12 Annex A (informative): Examples of base station radio equipment within the scope of the present document.14 SIST EN 301 489-26 V2.3.2:2005

ETSI ETSI EN 301 489-26 V2.3.2 (2005-07) 4
A.1 Base station equipment for the IMT-2000 CDMA Multi-carrier system.14 A.2 Base station equipment for the CDMA -PAMR system.14 A.3 Repeaters.14 Annex B (informative): Bibliography.15 Annex C (informative): The EN title in the official languages.16 History.18
ETSI ETSI EN 301 489-26 V2.3.2 (2005-07) 5
Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Candidate Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document has been produced by ETSI in response to a mandate from the European Commission issued under the Council Directive 98/34/EC [4](as amended) laying down a procedure for the provision of information in the field of technical standards and regulation. The present document is intended to become a Harmonized Standard, the reference of which will be published in the Official Journal of the European Communities referencing the Council Directive on the approximation of the laws of the Member States relating to electromagnetic compatibility ("the EMC Directive") (89/336/EEC [3] as amended) and Directive 1999/5/EC [2] of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity ("the R&TTE Directive"). The present document is part 26 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
National transposition dates Date of adoption of this EN: 8 July 2005 Date of latest announcement of this EN (doa): 31 October 2005 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
30 April 2006 Date of withdrawal of any conflicting National Standard (dow): 30 April 2007
ETSI ETSI EN 301 489-26 V2.3.2 (2005-07) 6
1 Scope The present document, together with EN 301 489-1 [1], covers the assessment of CDMA 1x spread spectrum base station equipment, repeaters and associated ancillary equipment in respect of ElectroMagnetic Compatibility (EMC). Technical specifications related to the antenna port and emissions from the enclosure port of radio equipment (Base Station (BS), and repeaters) are not included in the present document. Such technical specifications are found in the relevant product standards for the effective use of the radio spectrum. The present document specifies the applicable test conditions, performance assessment and performance criteria of CDMA 1x spread spectrum base station radio equipment, repeaters and associated ancillary equipment. Examples of base station equipment covered by the present document are given in annex A. In case of differences (for instance concerning special conditions, definitions, abbreviations) between the present document and EN 301 489-1 [1], the provisions of the present document take precedence. The environmental classification and the emission and immunity requirements used in the present document are as stated in EN 301 489-1 [1], except for any special conditions included in the present document. 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. [1] ETSI EN 301 489-1: "Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements". [2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (R&TTE Directive). [3] Council Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of the Member States relating to electromagnetic compatibility (EMC Directive). [4] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a procedure for the provision of information in the field of technical standards and regulations. [5] TIA/EIA/IS-2000.2-1: "Physical Layer Standard for cdma2000® Spread Spectrum Systems - Addendum 1". [6] TIA-97-E-1: "Base Station Performance Standards for Dual Mode Spread Spectrum Systems". [7] ITU-R Recommendation SM.329-10: "Unwanted emissions in the spurious domain". [8] TIA/EIA/IS-2000 Series, Release A: "CDMA 2000® Series, Release A (2000)". SIST EN 301 489-26 V2.3.2:2005

ETSI ETSI EN 301 489-26 V2.3.2 (2005-07) 7
3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in EN 301 489-1 [1] and the following apply: CDMA-PAMR: term used to denote a PAMR system, based on TIA/EIA/IS-2000 [8] Spreading Rate 1 specifications CDMA 1x Spread Spectrum: term used to denote cdma2000 Spread Spectrum Systems and their evolution with spreading rate 1 forward CDMA channel: CDMA channel from a base station to mobile stations NOTE: The forward CDMA channel contains one or more code channels that are transmitted on a CDMA frequency assignment using a particular pilot PN offset. International Mobile Telecommunications-2000 (IMT-2000): third generation mobile systems which provide access, by means of one or more radio links, to a wide range of telecommunications services supported by the fixed telecommunication networks (e.g. PSTN, ISDN or IP), and to other services which are specific to mobile users necessary bandwidth: as defined in ITU-R Recommendation SM.329-10 [7] Radio Configuration (RC): set of Forward Traffic Channel and Reverse Traffic Channel transmission formats that are characterized by physical layer parameters such as transmission rates, modulation characteristics, and spreading rate reverse CDMA channel: CDMA channel from the mobile station to the base station NOTE: From the base station's perspective, the Reverse CDMA Channel is the sum of all mobile station transmissions on a CDMA frequency assignment. signal and control port: port which carries information or control signals, except from antenna and telecommunication ports traffic channel: communication path between a mobile station and a base station used for user and signalling traffic 3.2 Abbreviations For the purposes of the present document, the following abbreviations apply: BS Base Station CDMA Code Division Multiple Access EMC ElectroMagnetic Compatibility EUT Equipment Under Test FER Frame Error Rate ISDN Integrated Services Digital Network PAMR Public Access Mobile Radio PN Pseudorandom Number PSTN Public Switched Digital Network RC Radio Configuration RF Radio Frequency SIST EN 301 489-26 V2.3.2:2005

ETSI ETSI EN 301 489-26 V2.3.2 (2005-07) 8
4 Test conditions For the purpose of the present document, the test conditions of EN 301 489-1 [1], clause 4, shall apply as appropriate. Further product related test conditions for base station equipment are specified in the present document. 4.1 General The equipment shall be tested in normal test environment defined in TIA-97-E-1 [6]. The test conditions shall be recorded in the test report. For emission and immunity tests, the test arrangements, etc., as specified in the present document, clauses 4.2 to 4.5, shall apply. For an EUT which contains more than one BS or more than one repeater, it is sufficient to perform tests relating to connectors of each representative type of port forming part of the EUT. Precautions should be taken to ensure that the cables connecting antenna connectors to test equipment or termination do not influence the test results. 4.2 Arrangements for test signals The provisions of EN 301 489-1 [1], clause 4.2 shall apply with the following modifications. The wanted RF signal nominal frequency shall be selected by setting the
...
