ASTM E1189-00(2022)

(Specification)

Standard Specification for Micro-Burets (Koch Style)

Standard Specification for Micro-Burets (Koch Style)

ABSTRACT
This specification covers two styles of "Koch" type glass microburets for general laboratory use. Burets shall be made from Type I, Class A or B glass. Both burets shall have permanently attached stopcocks with either glass plugs, or PTFE plugs. Materials shall be tested and the individual grades shall conform to design requirements with the specified values of capacity, scale length, diameter, outflow time, and tolerance.
SCOPE
1.1 This specification covers two styles of glass micro-burets of the “Koch” type for general laboratory use.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
31-Aug-2022
ICS
71.040.20 - Laboratory ware and related apparatus
Technical Committee
E41 - Laboratory Apparatus
Drafting Committee
E41.01 - Laboratory Ware and Supplies
Current Stage
Ref Project

Relations

Refers
ASTM E438-92(2024) - Standard Specification for Glasses in Laboratory Apparatus
Effective Date
01-Feb-2024
Refers
ASTM E694-18(2024) - Standard Specification for Laboratory Glass Volumetric Apparatus
Effective Date
01-Feb-2024
Refers
ASTM E920-97(2019) - Standard Specification for Commercially Packaged Laboratory Apparatus
Effective Date
01-Jul-2019
Refers
ASTM E676-02(2019) - Standard Specification for Interchangeable Taper-Ground Joints
Effective Date
01-Jan-2019
Refers
ASTM E675-02(2019) - Standard Specification for Interchangeable Taper-Ground Stopcocks And Stoppers
Effective Date
01-Jan-2019
Refers
ASTM E438-92(2018) - Standard Specification for Glasses in Laboratory Apparatus
Effective Date
01-Jan-2018
Refers
ASTM E694-18 - Standard Specification for Laboratory Glass Volumetric Apparatus
Effective Date
01-Jan-2018
Refers
ASTM E677-94(2016) - Standard Specification for Interchangeable Spherical Ground Joints
Effective Date
01-Sep-2016
Refers
ASTM E920-97(2013) - Standard Specification for Commercially Packaged Laboratory Apparatus
Effective Date
01-Nov-2013
Refers
ASTM E675-02(2012) - Standard Specification for Interchangeable Taper-Ground Stopcocks And Stoppers
Effective Date
01-Nov-2012
Refers
ASTM E676-02(2012) - Standard Specification for Interchangeable Taper-Ground Joints
Effective Date
01-Nov-2012
Refers
ASTM E438-92(2011) - Standard Specification for Glasses in Laboratory Apparatus
Effective Date
01-Dec-2011
Refers
ASTM E1157-87(2011) - Standard Specification for Sampling and Testing of Reusable Laboratory Glassware
Effective Date
01-Dec-2011
Refers
ASTM E1157-87(2018)e1 - Standard Specification for Sampling and Testing of Reusable Laboratory Glassware
Effective Date
01-Dec-2011
Refers
ASTM E1133-86(2010) - Standard Practice for Performance Testing of Packaged Laboratory Apparatus for United States Government Procurements
Effective Date
01-Sep-2010

Buy Standard

ASTM E1189-00(2022) - Standard Specification for Micro-Burets (Koch Style)ASTM E1189-00(2022) - Standard Specification for Micro-Burets (Koch Style)
PreviousNext
Technical specification
ASTM E1189-00(2022) - Standard Specification for Micro-Burets (Koch Style)
English language
3 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

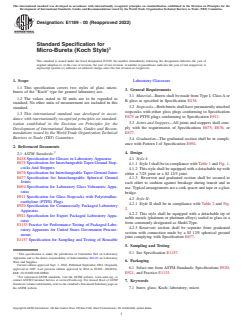

Designation: E1189 −00 (Reapproved 2022)
Standard Specification for
Micro-Burets (Koch Style)
This standard is issued under the fixed designation E1189; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Laboratory Glassware
1.1 This specification covers two styles of glass micro-
3. General Requirements
burets of the “Koch” type for general laboratory use.
3.1 Material—Burets shall be made from Type I, ClassAor
1.2 The values stated in SI units are to be regarded as
B glass as specified in Specification E438.
standard. No other units of measurement are included in this
3.2 Stopcocks—Bothburetsshallhavepermanentlyattached
standard.
stopcocks with either glass plugs conforming to Specification
1.3 This international standard was developed in accor-
E675 or PTFE plugs conforming to Specification E911.
dance with internationally recognized principles on standard-
3.3 Joints and Stoppers—All joints and stoppers shall com-
ization established in the Decision on Principles for the
ply with the requirements of Specifications E675, E676,or
Development of International Standards, Guides and Recom-
E677.
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
3.4 Graduation—The graduated section shall be in compli-
ance with Pattern I of Specification E694.
2. Referenced Documents
4. Design
2.1 ASTM Standards:
E438 Specification for Glasses in Laboratory Apparatus
4.1 Style I:
E675 Specification for Interchangeable Taper-Ground Stop-

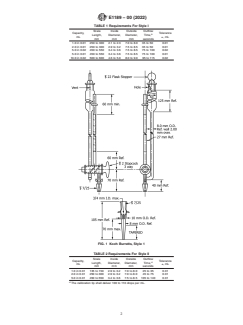

4.1.1 Style I shall be in compliance with Table 1 and Fig. 1.
cocks And Stoppers
4.1.2 This style shall be equipped with a detachable tip with
E676 Specification for Interchangeable Taper-Ground Joints
either a 7/25 joint or a SJ 12/5 joint.
E677 Specification for Interchangeable Spherical Ground
4.1.3 Reservoir and graduated section shall be secured to
Joints
each other to cushion against breakage during transit and in
E694 Specification for Laboratory Glass Volumetric Appa-
use. Typical arrangements are a cork spacer and tape or a glass
ratus
bridge.
E911 Specification for Glass Stopcocks with Polytetrafluo-
4.2 Style II:
roethylene (PTFE) Plugs
4.2.1 Style II shall be in compliance with Table 2 and Fig.
E920 Specification for Commercially Packaged Laboratory
2.
Apparatus
4.2.2 This style shall be equipped with a detachable tip of
E921 Specification for Export Packaged Laboratory Appa-
noble metals (platinum or platinum alloys) sealed to glass in a
ratus
form commonly designated as Shohl-Type.
E1133 Practice for Performance Testing of Packaged Labo-
4.2.3 Reservoir section shall be separate from graduated
ratory Apparatus for United States Government Procure-
section with connection made by a SJ 12/5 spherical ground
ments
joint complying with Specification E677.
E1157 Specification for Sampling and Testing of Reusable
5. Sampling and Testing
5.1 See Specification E1157.
This sp
...
