ASTM E3064-16

(Test Method)

Standard Test Method for Evaluating the Performance of Optical Tracking Systems that Measure Six Degrees of Freedom (6DOF) Pose

Standard Test Method for Evaluating the Performance of Optical Tracking Systems that Measure Six Degrees of Freedom (6DOF) Pose

SIGNIFICANCE AND USE
5.1 Optical tracking systems are used in a wide range of fields including: video gaming, filming, neuroscience, biomechanics, flight/medical/industrial training, simulation, robotics, and automotive applications.
5.2 This standard provides a common set of metrics and a test procedure for evaluating the performance of optical tracking systems and may help to drive improvements and innovations of optical tracking systems.
5.3 Potential users often have difficulty comparing optical tracking systems because of the lack of standard performance metrics and test methods, and therefore must rely on the claims of a vendor regarding the system’s performance, capabilities, and suitability for a particular application. This standard makes it possible for a user to assess and compare the performance of candidate optical tracking systems, and allows the user to determine if the measured performance results are within the specifications with regard to the application requirements.
SCOPE
1.1 Purpose—This test method presents metrics and procedures for measuring, analyzing, and reporting the relative pose error of optical tracking systems that compute the pose (that is, position and orientation) of a rigid object while the object is moving.
1.2 Usage—System vendors may use this test method to determine the performance of their Six Degrees of Freedom (6 DOF) optical tracking system which measures pose. This test method also provides a uniform way to report the measurement errors and measurement capability of the system. System users may use this test method to verify that the system’s performance is within the user’s specific requirements and within the system’s rated performance.
1.3 Test Location—The procedures defined in this standard shall be performed in a facility in which the environmental conditions are within the optical tracking system’s rated conditions.
1.4 Test Volume—This standard shall be used for testing an optical tracking system working volumes of 3000 mm long by 2000 mm wide by 2000 mm high, 6000 mm long by 4000 mm wide by 2000 mm high, or 12 000 mm long by 8000 mm wide by 2000 mm high.
1.5 Units—The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

General Information

Status
Published
Publication Date
31-May-2016
ICS
17.180.30 - Optical measuring instruments
Technical Committee
E57 - 3D Imaging Systems
Drafting Committee
E57.50 - Optical Tracking Systems
Current Stage
Ref Project

Buy Standard

ASTM E3064-16 - Standard Test Method for Evaluating the Performance of Optical Tracking Systems that Measure Six Degrees of Freedom (6DOF) PoseASTM E3064-16 - Standard Test Method for Evaluating the Performance of Optical Tracking Systems that Measure Six Degrees of Freedom (6DOF) Pose
PreviousNext
Standard
ASTM E3064-16 - Standard Test Method for Evaluating the Performance of Optical Tracking Systems that Measure Six Degrees of Freedom (6DOF) Pose
English language
9 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

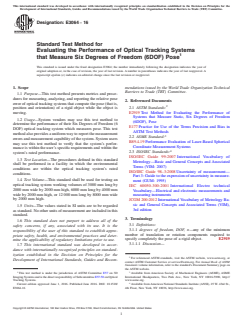

Designation: E3064 − 16
Standard Test Method for
Evaluating the Performance of Optical Tracking Systems
1
that Measure Six Degrees of Freedom (6DOF) Pose
This standard is issued under the fixed designation E3064; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
1.1 Purpose—This test method presents metrics and proce-
dures for measuring, analyzing, and reporting the relative pose
2. Referenced Documents
errorofopticaltrackingsystemsthatcomputethepose(thatis,
2
2.1 ASTM Standards:
position and orientation) of a rigid object while the object is
E2919Test Method for Evaluating the Performance of
moving.
Systems that Measure Static, Six Degrees of Freedom
1.2 Usage—System vendors may use this test method to
(6DOF), Pose
determine the performance of their Six Degrees of Freedom (6
E177Practice for Use of the Terms Precision and Bias in
DOF) optical tracking system which measures pose. This test
ASTM Test Methods
methodalsoprovidesauniformwaytoreportthemeasurement
3
2.2 ASME Standard:
errorsandmeasurementcapabilityofthesystem.Systemusers
B89.4.19Performance Evaluation of Laser-Based Spherical
may use this test method to verify that the system’s perfor-
Coordinate Measurement Systems
manceiswithintheuser’sspecificrequirementsandwithinthe
4
2.3 ISO/IEC Standards:
system’s rated performance.
ISO/IEC Guide 99:2007 International Vocabulary of
1.3 Test Location—The procedures defined in this standard
Metrology—Basic and General Concepts and Associated
shall be performed in a facility in which the environmental
Terms (VIM: 2007)
conditions are within the optical tracking system’s rated
ISO/IEC Guide 98–3:2008Uncertainty of measurement—
conditions.
Part 3: Guide to the expression of uncertainty in measure-
1.4 Test Volume—This standard shall be used for testing an
ment (GUM: 1995)
optical tracking system working volumes of 3000 mm long by
IEC 60050-300:2001 International Electro technical
2000 mm wide by 2000 mm high, 6000 mm long by 4000 mm
Vocabulary—Electrical and electronic measurements and
wide by 2000 mm high, or 12 000 mm long by 8000 mm wide
measuring instruments
by 2000 mm high.
JCGM 200:2012International Vocabulary of Metrology Ba-
sic and General Concepts and Associated Terms (VIM),
1.5 Units—The values stated in SI units are to be regarded
3rd edition
asstandard.Nootherunitsofmeasurementareincludedinthis
standard.
3. Terminology
1.6 This standard does not purport to address all of the
3.1 Definitions:
safety concerns, if any, associated with its use. It is the
3.1.1 degrees of freedom, DOF, n—any of the minimum
responsibility of the user of this standard to establish appro-
number of translation or rotation components required to
priate safety, health, and environmental practices and deter-
specify completely the pose of a rigid object. E2919
mine the applicability of regulatory limitations prior to use.
3.1.1.1 Discussion—
1.7 This international standard was developed in accor-
dance with internationally recognized principles on standard-
ization established in the Decision on Principles for the
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Development of International Standards, Guides and Recom-
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website.
1 3
This test method is under the jurisdiction of ASTM Committee E57 on 3D Available from American Society of Mechanical Engineers (ASME), ASME
ImagingSystemsandisthedirectresponsibilityofSubcommitteeE57.50onOptical International Headquarters, Two Park Ave., New York, NY 10016-5990, http://
Tracking Systems. www.asme.org.
4
Current edition approved June 1, 2016. Published June 2016. DOI: 10.1520/ Available fromAmerican National Standards Institute (ANSI), 25 W. 43rd St.,
E3064-16 4th Floor, New York, NY 10036, http://www.ansi.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
E3064 − 16
(1)In a 3D space, a rigid object can have at most 6DOF,
three translations and three rotations.
(2)The term “degree of freedom” is also used with regard
to statistical testing. It will be clear from the context in which
it is used whether the term rel
...
