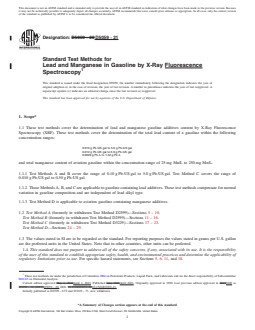

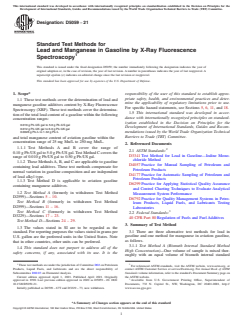

ASTM D5059-21

Standard Test Methods for Lead and Manganese in Gasoline by X-Ray Fluorescence Spectroscopy

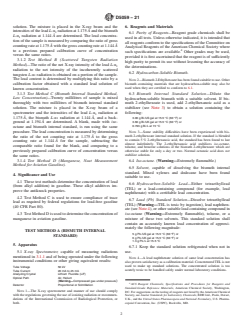

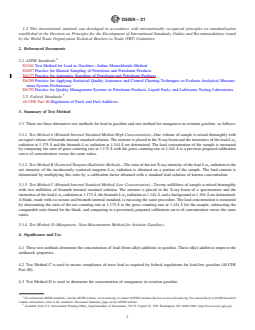

SIGNIFICANCE AND USE
4.1 These test methods determine the concentration of lead (from alkyl addition) in gasoline. These alkyl additives improve the antiknock properties.
4.2 Test Method C is used to ensure compliance of trace lead as required by federal regulations for lead-free gasoline (40 CFR Part 80).
4.3 Test Method D is used to determine the concentration of manganese in aviation gasoline.
SCOPE
1.1 These test methods cover the determination of lead and manganese gasoline additives content by X-Ray Fluorescence Spectroscopy (XRF). These test methods cover the determination of the total lead content of a gasoline within the following concentration ranges:
0.010 g Pb/US gal to 5.0 g Pb/US gal
0.012 g Pb/UK gal to 6.0 g Pb/UK gal
0.0026 g Pb/L to 1.32 g Pb/L and total manganese content of aviation gasoline within the concentration range of 25 mg Mn/L to 250 mg Mn/L.
1.1.1 Test Methods A and B cover the range of 0.10 g Pb/US gal to 5.0 g Pb/US gal. Test Method C covers the range of 0.010 g Pb/US gal to 0.50 g Pb/US gal.
1.1.2 These Methods A, B, and C are applicable to gasoline containing lead additives. These test methods compensate for normal variation in gasoline composition and are independent of lead alkyl type.
1.1.3 Test Method D is applicable to aviation gasoline containing manganese additives.

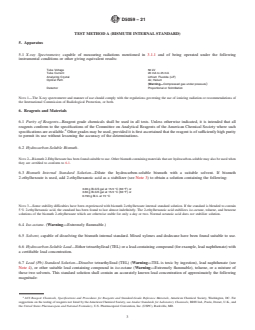

1.2 Test Method A (formerly in withdrawn Test Method D2599)—Sections 5 – 10.

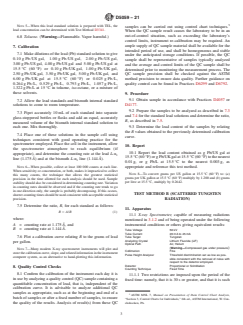

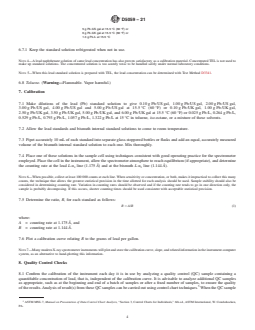

Test Method B (formerly in withdrawn Test Method D2599)—Sections 11 – 16.

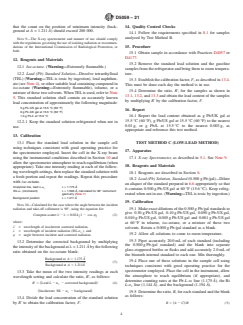

Test Method C (formerly in withdrawn Test Method D3229)—Sections 17 – 23.
Test Method D—Sections 24 – 29.
1.3 The values stated in SI are to be regarded as the standard. For reporting purposes the values stated in grams per U.S. gallon are the preferred units in the United States. Note that in other countries, other units can be preferred.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. For specific hazard statements, see Sections 5, 6, 11, and 18.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
