ASTM B150/B150M-19
(Specification)Standard Specification for Aluminum Bronze Rod, Bar, and Shapes
Standard Specification for Aluminum Bronze Rod, Bar, and Shapes
ABSTRACT
This specification establishes the requirements for rods, bars, and shapes of aluminum bronze with Copper Alloy UNS Nos. C61300, C61400, C61900, C62300, C62400, C63000, C63020, C63200, C64200, and C64210. Products shall be produced in tempers HR50, M10, M20, M30, O20, O25, O30, O32, TQ30, TQ50 and TQ55. Products shall be tested and shall conform to dimensional (mass, diameter, length, thickness, straightness, and edge contour), mechanical (tensile and yield strength, Rockwell hardness, and elongation), and chemical composition requirements. Products should also meet requirements under mercurous nitrate test, ammonia test, and piston finish.
SCOPE
1.1 This specification establishes the requirements for aluminum bronze rod, bar, and shapes for Copper Alloys UNS Nos. C61300, C61400, C61900, C62300, C62400, C63000, C63020, C63200, C64200, and C64210.
Note 1: Product intended for hot forging is described in Specification B124/B124M.
Note 2: Warning—Mercury has been designated by many regulatory agencies as a hazardous substance that can cause serious medical issues. Mercury, or its vapor, has been demonstrated to be hazardous to health and corrosive to materials. Use caution when handling mercury and mercury-containing products. See the applicable product Safety Data Sheet (SDS) for additional information. The potential exists that selling mercury or mercury-containing products, or both, is prohibited by local or national law. Users must determine legality of sales in their location.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory requirements prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

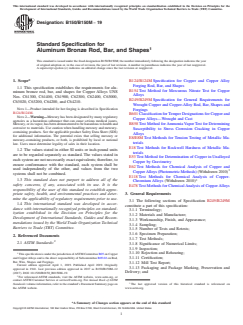

Designation:B150/B150M −19
Standard Specification for
1
Aluminum Bronze Rod, Bar, and Shapes
This standard is issued under the fixed designation B150/B150M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* B124/B124M Specification for Copper and Copper Alloy
Forging Rod, Bar, and Shapes
1.1 This specification establishes the requirements for alu-
B154 Test Method for Mercurous Nitrate Test for Copper
minum bronze rod, bar, and shapes for Copper Alloys UNS
Alloys
Nos. C61300, C61400, C61900, C62300, C62400, C63000,
B249/B249M Specification for General Requirements for
C63020, C63200, C64200, and C64210.
Wrought Copper and Copper-Alloy Rod, Bar, Shapes and
NOTE 1—Product intended for hot forging is described in Specification
Forgings
B124/B124M.
B601 Classification forTemper Designations for Copper and
NOTE 2—Warning—Mercury has been designated by many regulatory
Copper Alloys—Wrought and Cast
agencies as a hazardous substance that can cause serious medical issues.
B858 Test Method forAmmoniaVaporTest for Determining
Mercury,oritsvapor,hasbeendemonstratedtobehazardoustohealthand
corrosive to materials. Use caution when handling mercury and mercury-
Susceptibility to Stress Corrosion Cracking in Copper
containing products. See the applicable product Safety Data Sheet (SDS)
Alloys
for additional information. The potential exists that selling mercury or
E8/E8M Test Methods for Tension Testing of Metallic Ma-
mercury-containing products, or both, is prohibited by local or national
terials
law. Users must determine legality of sales in their location.
E18 Test Methods for Rockwell Hardness of Metallic Ma-
1.2 The values stated in either SI units or inch-pound units
terials
are to be regarded separately as standard. The values stated in
E53 Test Method for Determination of Copper in Unalloyed
each system are not necessarily exact equivalents; therefore, to
Copper by Gravimetry
ensure conformance with the standard, each system shall be
E62 Test Methods for Chemical Analysis of Copper and
used independently of the other, and values from the two
3
CopperAlloys (Photometric Methods) (Withdrawn 2010)
systems shall not be combined.
E118 Test Methods for Chemical Analysis of Copper-
3
1.3 This standard does not purport to address all of the
Chromium Alloys (Withdrawn 2010)
safety concerns, if any, associated with its use. It is the
E478 Test Methods for ChemicalAnalysis of CopperAlloys
responsibility of the user of this standard to establish appro-
priate safety, health, and environmental practices and deter- 3. General Requirements
mine the applicability of regulatory requirements prior to use.
3.1 The following sections of Specification B249/B249M
1.4 This international standard was developed in accor-
constitute a part of this specification:
dance with internationally recognized principles on standard-
3.1.1 Terminology;
ization established in the Decision on Principles for the
3.1.2 Materials and Manufacture;
Development of International Standards, Guides and Recom-
3.1.3 Workmanship, Finish, and Appearance;
mendations issued by the World Trade Organization Technical
3.1.4 Sampling;
Barriers to Trade (TBT) Committee.
3.1.5 Number of Tests and Retests;
3.1.6 Specimen Preparation;
2. Referenced Documents
3.1.7 Test Methods;
2
2.1 ASTM Standards:
3.1.8 Significance of Numerical Limits;
3.1.9 Inspection;
1 3.1.10 Rejection and Rehearing;
ThisspecificationisunderthejurisdictionofASTMCommitteeB05onCopper
and CopperAlloys and is the direct responsibility of Subcommittee B05.02 on Rod,
3.1.11 Certification;
Bar, Wire, Shapes and Forgings.
3.1.12 Mill Test Report;
Current edition approved April 1, 2019. Published April 2019. Originally
3.1.13 Packaging and Package Marking, Preservation and
approved in 1941. Last previous edition approved in 2017 as B150/B150M–12
Delivery; and
(2017). DOI: 10.1520/B0150_B0150M–19.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
3
Standards volume information, refer to the standard’s Document Summary page on The last approved version of this historical standard is referenced on
the ASTM website. www.astm.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ------------
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

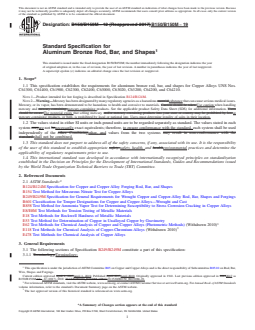

Designation: B150/B150M − 12 (Reapproved 2017) B150/B150M − 19
Standard Specification for
1
Aluminum Bronze Rod, Bar, and Shapes
This standard is issued under the fixed designation B150/B150M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification establishes the requirements for aluminum bronze rod, bar, and shapes for Copper Alloys UNS Nos.
C61300, C61400, C61900, C62300, C62400, C63000, C63020, C63200, C64200, and C64210.
NOTE 1—Product intended for hot forging is described in Specification B124/B124M.
NOTE 2—Warning—Mercury has been designated by many regulatory agencies as a hazardous materialsubstance that can cause serious medical issues.
Mercury, or its vapor, has been demonstrated to be hazardous to health and corrosive to materials. Caution should be taken Use caution when handling
mercury and mercury containing mercury-containing products. See the applicable product Safety Data Sheet (SDS) for additional information. Users
should be aware The potential exists that selling mercury and/or mercury containing products into your state or country may be prohibited by law.or
mercury-containing products, or both, is prohibited by local or national law. Users must determine legality of sales in their location.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each
system mayare not benecessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used
independently of the other. Combiningother, and values from the two systems may result in non-conformance with the
standard.shall not be combined.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory requirements prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
B124/B124M Specification for Copper and Copper Alloy Forging Rod, Bar, and Shapes
B154 Test Method for Mercurous Nitrate Test for Copper Alloys
B249/B249M Specification for General Requirements for Wrought Copper and Copper-Alloy Rod, Bar, Shapes and Forgings
B601 Classification for Temper Designations for Copper and Copper Alloys—Wrought and Cast
B858 Test Method for Ammonia Vapor Test for Determining Susceptibility to Stress Corrosion Cracking in Copper Alloys
E8/E8M Test Methods for Tension Testing of Metallic Materials
E18 Test Methods for Rockwell Hardness of Metallic Materials
E53 Test Method for Determination of Copper in Unalloyed Copper by Gravimetry
3
E62 Test Methods for Chemical Analysis of Copper and Copper Alloys (Photometric Methods) (Withdrawn 2010)
3
E118 Test Methods for Chemical Analysis of Copper-Chromium Alloys (Withdrawn 2010)
E478 Test Methods for Chemical Analysis of Copper Alloys
3. General Requirements
3.1 The following sections of Specification B249/B249M constitute a part of this specification:
3.1.1 Terminology,Terminology;
1
This specification is under the jurisdiction of ASTM Committee B05 on Copper and Copper Alloys and is the direct responsibility of Subcommittee B05.02 on Rod, Bar,
Wire, Shapes and Forgings.
Current edition approved April 1, 2017April 1, 2019. Published April 2017April 2019. Originally approved in 1941. Last previous edition approved in 20122017 as
B150/B150M-12. –12 (2017). DOI: 10.1520/B0150_B0150M-12R17.10.1520/B0150_B0150M–19.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
3
The last approved version of this historical standard is referenced on www.astm.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO B
...
