ASTM A960/A960M-08a

Standard Specification for Common Requirements for Wrought Steel Piping Fittings

ABSTRACT
This specification covers the common requirements that shall apply to wrought steel piping fittings. The material shall consist of forgings, bars, plates, and seamless or welded tubular products. Ferritic steels shall be fully killed. Hollow cylindrically shaped parts up to and including NPS 4 may be machined from bar or seamless tubular material. Elbows, return bends, tees, and header tees shall not be machined directly from bar stock. The following procedures shall be done for heat treatment: full annealing, solution annealing, isothermal annealing, normalizing, tempering and post-weld heat treatment, stress relieving, and quench and temper. Chemical analysis, heat analysis, and product analysis shall also be done. The chemical requirements shall conform to the required compositions of carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, molybdenum, vanadium, columbium, titanium, aluminum, lead, and copper. The following tests shall be done for the mechanical requirements: tension, hardness, impact, and hydrostatic tests.
SCOPE
1.1 This specification covers a group of common requirements that shall apply to wrought steel piping fittings covered in any of the following individual product specifications or any other ASTM specification that invokes this specification or portions thereof: Title of SpecificationASTM
Designation Specification for Piping Fittings of Wrought
Carbon Steel and Alloy Steel for Moderate and
Elevated TemperaturesA 234/A 234M  Specification for Wrought Austenitic Stainless
Steel Piping FittingsA 403/A 403M  Specification for Piping Fittings of Wrought Carbon
Steel and Alloy Steel for Low-Temperature ServiceA 420/A 420M  Specification for Butt-Welding, Wrought-Carbon
Steel, Piping Fittings with Improved Notch ToughnessA 758/A 758M  Specification for As-Welded Wrought Austenitic
Stainless Steel Fittings for General Corrosive
Service at Low and Moderate TemperaturesA 774/A 774M  Specification for Wrought Ferritic, Ferritic/Austenitic,
and Martensitic Stainless Steel Piping FittingsA 815/A 815M  Specification for Heat-Treated Carbon Steel
Fittings for Low-Temperature and Corrosive ServiceA 858/A 858M  Specification for Wrought High-Strength
Low-Alloy Steel Butt-Welded FittingsA 860/A 860M
1.2 In case of conflict between a requirement of the individual product specification and a requirement of this general requirement specification, the requirements of the individual product specification shall prevail over those of this specification.
1.3 By mutual agreement between the purchaser and the supplier, additional requirements may be specified (See 4.1.7). The acceptance of any such additional requirements shall be dependent on negotiations with the supplier and must be included in the order as agreed upon by the purchaser and supplier.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. Within the text and the tables, the SI units are shown in brackets. The values stated in each system may not be exact equivalents; therefore each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the specification. The inch-pound units shall apply unless the “M” designation [SI] of the product specification is specified in the order.

General Information

• Status: Historical
• Publication Date: 30-Apr-2008
• ICS: 23.040.40 - Metal fittings
• ICS: 77.140.20 - Stainless steels
• Technical Committee: A01 - Steel, Stainless Steel and Related Alloys
• Drafting Committee: A01.22 - Steel Forgings and Wrought Fittings for Piping Applications and Bolting Materials for Piping and Special Purpose Applications

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

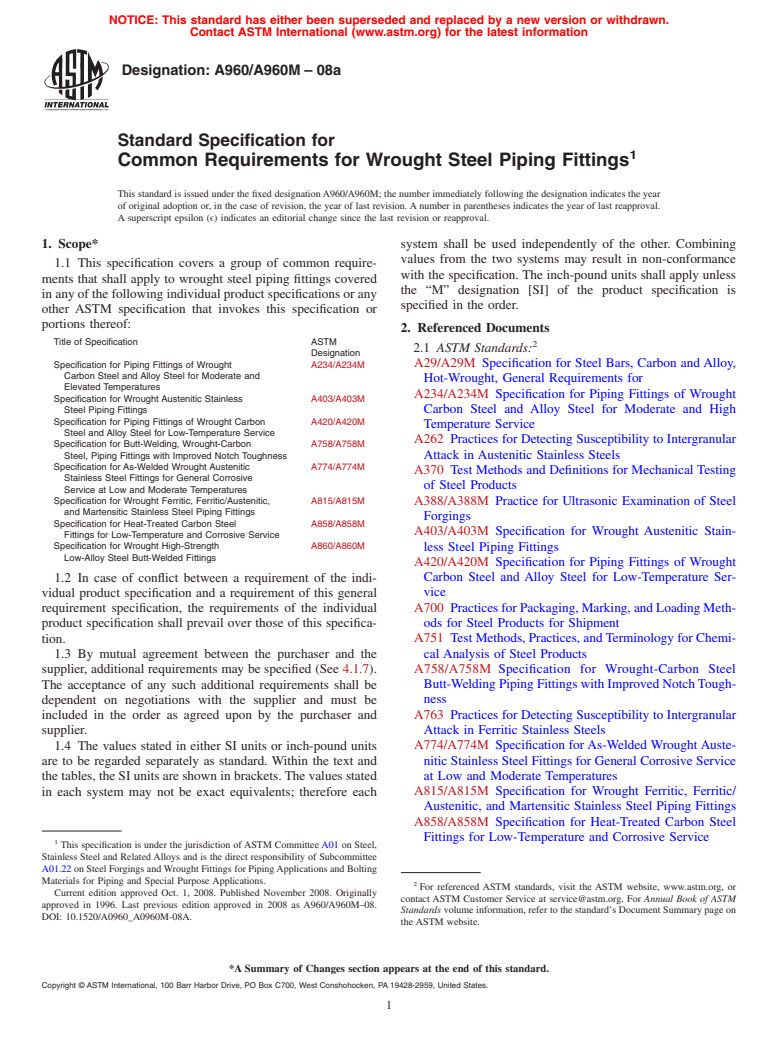

Designation: A960/A960M – 08a
Standard Specification for
1
Common Requirements for Wrought Steel Piping Fittings
This standard is issued under the fixed designationA960/A960M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (ϵ) indicates an editorial change since the last revision or reapproval.
1. Scope* system shall be used independently of the other. Combining
values from the two systems may result in non-conformance
1.1 This specification covers a group of common require-
with the specification. The inch-pound units shall apply unless
ments that shall apply to wrought steel piping fittings covered
the “M” designation [SI] of the product specification is
in any of the following individual product specifications or any
specified in the order.
other ASTM specification that invokes this specification or
portions thereof:
2. Referenced Documents
Title of Specification ASTM
2
2.1 ASTM Standards:
Designation
A29/A29M Specification for Steel Bars, Carbon and Alloy,
Specification for Piping Fittings of Wrought A234/A234M
Carbon Steel and Alloy Steel for Moderate and
Hot-Wrought, General Requirements for
Elevated Temperatures
A234/A234M Specification for Piping Fittings of Wrought
Specification for WroughtAustenitic Stainless A403/A403M
Steel Piping Fittings Carbon Steel and Alloy Steel for Moderate and High
Specification for Piping Fittings of Wrought Carbon A420/A420M
Temperature Service
Steel and Alloy Steel for Low-Temperature Service
A262 Practices for Detecting Susceptibility to Intergranular
Specification for Butt-Welding, Wrought-Carbon A758/A758M
Steel, Piping Fittings with Improved Notch Toughness Attack in Austenitic Stainless Steels
Specification forAs-Welded WroughtAustenitic A774/A774M
A370 Test Methods and Definitions for Mechanical Testing
Stainless Steel Fittings for General Corrosive
of Steel Products
Service at Low and Moderate Temperatures
Specification for Wrought Ferritic, Ferritic/Austenitic, A815/A815M A388/A388M Practice for Ultrasonic Examination of Steel
and Martensitic Stainless Steel Piping Fittings
Forgings
Specification for Heat-Treated Carbon Steel A858/A858M
A403/A403M Specification for Wrought Austenitic Stain-
Fittings for Low-Temperature and Corrosive Service
Specification for Wrought High-Strength A860/A860M
less Steel Piping Fittings
Low-Alloy Steel Butt-Welded Fittings
A420/A420M Specification for Piping Fittings of Wrought
1.2 In case of conflict between a requirement of the indi- Carbon Steel and Alloy Steel for Low-Temperature Ser-
vice
vidual product specification and a requirement of this general
requirement specification, the requirements of the individual A700 PracticesforPackaging,Marking,andLoadingMeth-
ods for Steel Products for Shipment
product specification shall prevail over those of this specifica-
tion. A751 Test Methods, Practices, andTerminology for Chemi-
cal Analysis of Steel Products
1.3 By mutual agreement between the purchaser and the
supplier, additional requirements may be specified (See 4.1.7). A758/A758M Specification for Wrought-Carbon Steel
Butt-WeldingPipingFittingswithImprovedNotchTough-
The acceptance of any such additional requirements shall be
dependent on negotiations with the supplier and must be ness
A763 Practices for Detecting Susceptibility to Intergranular
included in the order as agreed upon by the purchaser and
supplier. Attack in Ferritic Stainless Steels
1.4 The values stated in either SI units or inch-pound units A774/A774M Specification for As-Welded Wrought Auste-
are to be regarded separately as standard. Within the text and nitic Stainless Steel Fittings for General Corrosive Service
the tables, the SI units are shown in brackets.The values stated at Low and Moderate Temperatures
A815/A815M Specification for Wrought Ferritic, Ferritic/
in each system may not be exact equivalents; therefore each
Austenitic, and Martensitic Stainless Steel Piping Fittings
A858/A858M Specification for Heat-Treated Carbon Steel
Fittings for Low-Temperature and Corrosive Service
1
This specification is under the jurisdiction of ASTM Committee A01 on Steel,
Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee
A01.22 on Steel Forgings andWrought Fittings for PipingApplications and Bolting
Materials for Piping and Special Purpose Applications.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Oct. 1, 2008. Published November 2008. Originally
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
approved in 1996. Last previous edition approved in 2008 as A960/A960M–08.
Standards volume information, refer to the standard’s Document Summary page on
DO
...

This document is not anASTM standard and is intended only to provide the user of anASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

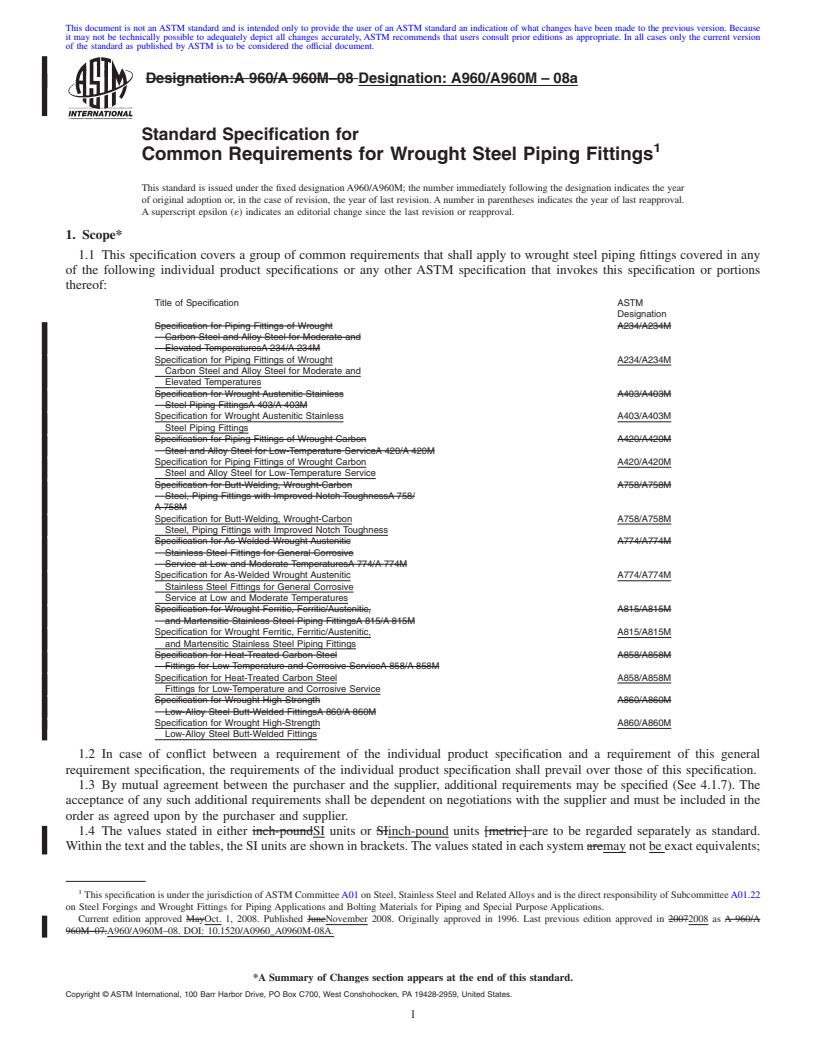

Designation:A 960/A 960M–08 Designation: A960/A960M – 08a
Standard Specification for
1
Common Requirements for Wrought Steel Piping Fittings
This standard is issued under the fixed designationA960/A960M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification covers a group of common requirements that shall apply to wrought steel piping fittings covered in any
of the following individual product specifications or any other ASTM specification that invokes this specification or portions
thereof:
Title of Specification ASTM
Designation
Specification for Piping Fittings of Wrought A234/A234M
Carbon Steel and Alloy Steel for Moderate and
Elevated TemperaturesA 234/A 234M
Specification for Piping Fittings of Wrought A234/A234M
Carbon Steel and Alloy Steel for Moderate and
Elevated Temperatures
Specification for WroughtAustenitic Stainless A403/A403M
Steel Piping FittingsA 403/A 403M
Specification for WroughtAustenitic Stainless A403/A403M
Steel Piping Fittings
Specification for Piping Fittings of Wrought Carbon A420/A420M
Steel and Alloy Steel for Low-Temperature ServiceA 420/A 420M
Specification for Piping Fittings of Wrought Carbon A420/A420M
Steel and Alloy Steel for Low-Temperature Service
Specification for Butt-Welding, Wrought-Carbon A758/A758M
Steel, Piping Fittings with Improved Notch ToughnessA 758/
A 758M
Specification for Butt-Welding, Wrought-Carbon A758/A758M
Steel, Piping Fittings with Improved Notch Toughness
Specification forAs-Welded WroughtAustenitic A774/A774M
Stainless Steel Fittings for General Corrosive
Service at Low and Moderate TemperaturesA 774/A 774M
Specification forAs-Welded WroughtAustenitic A774/A774M
Stainless Steel Fittings for General Corrosive
Service at Low and Moderate Temperatures
Specification for Wrought Ferritic, Ferritic/Austenitic, A815/A815M
and Martensitic Stainless Steel Piping FittingsA 815/A 815M
Specification for Wrought Ferritic, Ferritic/Austenitic, A815/A815M
and Martensitic Stainless Steel Piping Fittings
Specification for Heat-Treated Carbon Steel A858/A858M
Fittings for Low-Temperature and Corrosive ServiceA 858/A 858M
Specification for Heat-Treated Carbon Steel A858/A858M
Fittings for Low-Temperature and Corrosive Service
Specification for Wrought High-Strength A860/A860M
Low-Alloy Steel Butt-Welded FittingsA 860/A 860M
Specification for Wrought High-Strength A860/A860M
Low-Alloy Steel Butt-Welded Fittings
1.2 In case of conflict between a requirement of the individual product specification and a requirement of this general
requirement specification, the requirements of the individual product specification shall prevail over those of this specification.
1.3 By mutual agreement between the purchaser and the supplier, additional requirements may be specified (See 4.1.7). The
acceptance of any such additional requirements shall be dependent on negotiations with the supplier and must be included in the
order as agreed upon by the purchaser and supplier.
1.4 The values stated in either inch-poundSI units or SIinch-pound units [metric] are to be regarded separately as standard.
Withinthetextandthetables,theSIunitsareshowninbrackets.Thevaluesstatedineachsystemaremaynotbeexactequivalents;
1
This specification is under the jurisdiction ofASTM CommitteeA01 on Steel, Stainless Steel and RelatedAlloys and is the direct responsibility of SubcommitteeA01.22
on Steel Forgings and Wrought Fittings for Piping Applications and Bolting Materials for Piping and Special Purpose Applications.
Current edition approved MayOct. 1, 2008. Published JuneNovember 2008. Originally approved in 1996. Last previous edition approved in 20072008 as A 960/A
960M–07.A960/A960M–08. DOI: 10.1520/A0960_A0960M-08A.
*A Summary of Changes section appears at the end of this standard.
Copyright ©ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA19428-2959, United States.
1

---------------------- Page: 1 ----------------------
A960/A960M – 08a
therefore each system mustshall be used independently of the other. Combining values from the two systems may result in
non-conformance with the specification. The inch-pound units shall apply unless the “M” designation [SI] of the product
specification is specified in the order.
2. Referenced Documents
2
2.1 ASTM Standards:
A29/A29M Specification for Steel Bars
...

This document is not anASTM standard and is intended only to provide the user of anASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

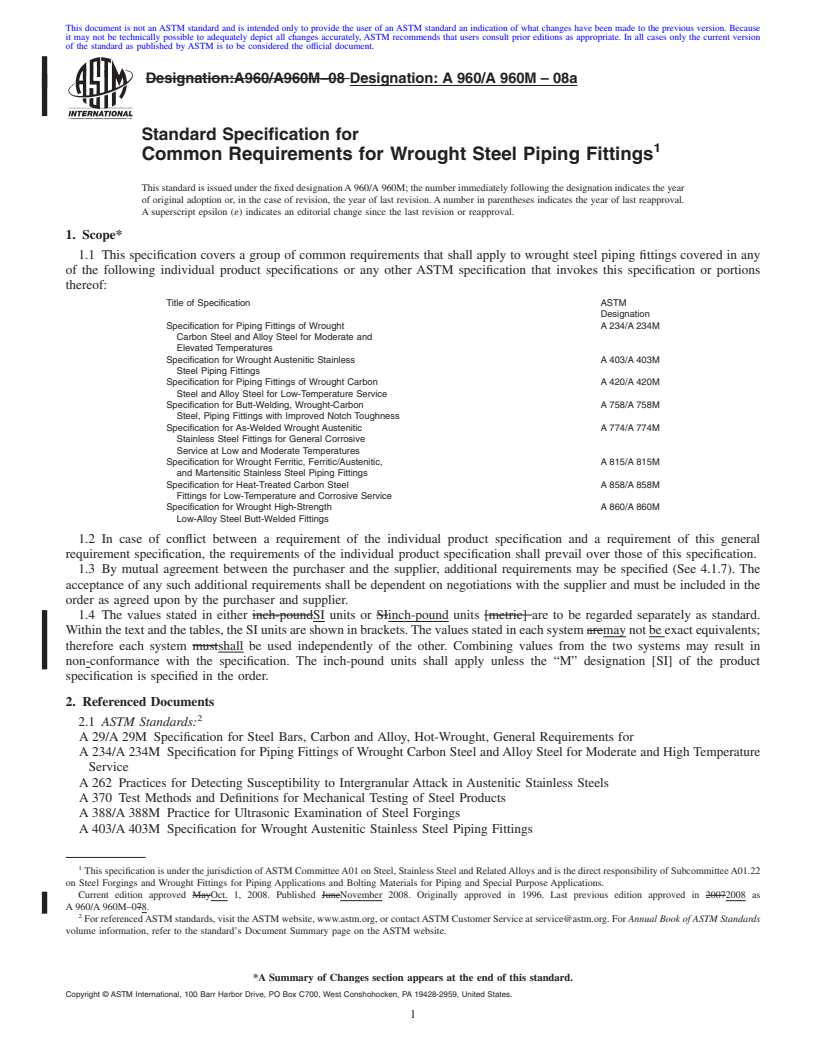

Designation:A960/A960M–08 Designation: A 960/A 960M – 08a
Standard Specification for
1
Common Requirements for Wrought Steel Piping Fittings
This standard is issued under the fixed designationA 960/A 960M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification covers a group of common requirements that shall apply to wrought steel piping fittings covered in any
of the following individual product specifications or any other ASTM specification that invokes this specification or portions
thereof:
Title of Specification ASTM
Designation
Specification for Piping Fittings of Wrought A 234/A 234M
Carbon Steel and Alloy Steel for Moderate and
Elevated Temperatures
Specification for WroughtAustenitic Stainless A 403/A 403M
Steel Piping Fittings
Specification for Piping Fittings of Wrought Carbon A 420/A 420M
Steel and Alloy Steel for Low-Temperature Service
Specification for Butt-Welding, Wrought-Carbon A 758/A 758M
Steel, Piping Fittings with Improved Notch Toughness
Specification forAs-Welded WroughtAustenitic A 774/A 774M
Stainless Steel Fittings for General Corrosive
Service at Low and Moderate Temperatures
Specification for Wrought Ferritic, Ferritic/Austenitic, A 815/A 815M
and Martensitic Stainless Steel Piping Fittings
Specification for Heat-Treated Carbon Steel A 858/A 858M
Fittings for Low-Temperature and Corrosive Service
Specification for Wrought High-Strength A 860/A 860M
Low-Alloy Steel Butt-Welded Fittings
1.2 In case of conflict between a requirement of the individual product specification and a requirement of this general
requirement specification, the requirements of the individual product specification shall prevail over those of this specification.
1.3 By mutual agreement between the purchaser and the supplier, additional requirements may be specified (See 4.1.7). The
acceptance of any such additional requirements shall be dependent on negotiations with the supplier and must be included in the
order as agreed upon by the purchaser and supplier.
1.4 The values stated in either inch-poundSI units or SIinch-pound units [metric] are to be regarded separately as standard.
Withinthetextandthetables,theSIunitsareshowninbrackets.Thevaluesstatedineachsystemaremaynotbeexactequivalents;
therefore each system mustshall be used independently of the other. Combining values from the two systems may result in
non-conformance with the specification. The inch-pound units shall apply unless the “M” designation [SI] of the product
specification is specified in the order.
2. Referenced Documents
2
2.1 ASTM Standards:
A 29/A 29M Specification for Steel Bars, Carbon and Alloy, Hot-Wrought, General Requirements for
A 234/A 234M Specification for Piping Fittings of Wrought Carbon Steel andAlloy Steel for Moderate and High Temperature
Service
A 262 Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steels
A 370 Test Methods and Definitions for Mechanical Testing of Steel Products
A 388/A 388M Practice for Ultrasonic Examination of Steel Forgings
A 403/A 403M Specification for Wrought Austenitic Stainless Steel Piping Fittings
1
This specification is under the jurisdiction ofASTM CommitteeA01 on Steel, Stainless Steel and RelatedAlloys and is the direct responsibility of SubcommitteeA01.22
on Steel Forgings and Wrought Fittings for Piping Applications and Bolting Materials for Piping and Special Purpose Applications.
Current edition approved MayOct. 1, 2008. Published JuneNovember 2008. Originally approved in 1996. Last previous edition approved in 20072008 as
A 960/A 960M–078.
2
For referencedASTM standards, visit theASTM website, www.astm.org, or contactASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard.
Copyright ©ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA19428-2959, United States.
1

---------------------- Page: 1 ----------------------
A 960/A 960M – 08a
A 420/A 420M Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service
A 700 Practices for Packaging, Marking, and Loading Methods for Steel Products for Shipment
A 751 Test Methods, Practices, and
...
