ASTM C1540-20
(Specification)Standard Specification for Heavy-Duty Shielded Couplings Joining Hubless Cast Iron Soil Pipe and Fittings
Standard Specification for Heavy-Duty Shielded Couplings Joining Hubless Cast Iron Soil Pipe and Fittings
ABSTRACT
This specification covers the performance evaluation of heavy duty shielded couplings to join hubless cast iron soil pipe and fittings. Physical properties of all stainless steel and gaskets shall comply with the specified values. Requirements for the elastomeric gasket, clamp assembly, and couplings such as coupling width are detailed. The test apparatus for deflection test, shear test, and unrestrained hydrostatic joint test are illustrated.
SCOPE
1.1 This specification covers the evaluation of the performance of heavy-duty shielded couplings to join hubless cast iron soil pipe and fittings.
1.2 Couplings covered by this standard shall have nominal dimensions as found in Table 1 and Fig. 1.

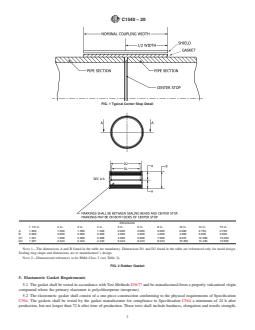

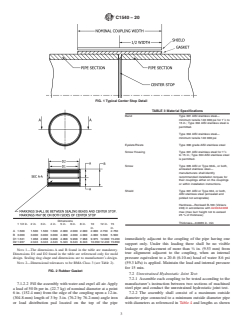

FIG. 1 Typical Center Stop Detail
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.4 The following precautionary caveat pertains only to the test method portion, Section 7, of this specification. This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

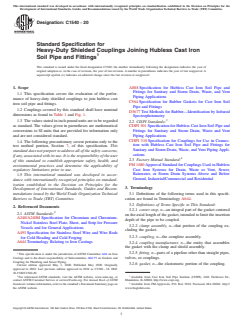

Designation:C1540 −20
Standard Specification for
Heavy-Duty Shielded Couplings Joining Hubless Cast Iron
1
Soil Pipe and Fittings
This standard is issued under the fixed designation C1540; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope A888 Specification for Hubless Cast Iron Soil Pipe and
Fittings for Sanitary and Storm Drain, Waste, and Vent
1.1 This specification covers the evaluation of the perfor-
Piping Applications
mance of heavy-duty shielded couplings to join hubless cast
C564 Specification for Rubber Gaskets for Cast Iron Soil
iron soil pipe and fittings.
Pipe and Fittings
1.2 Couplings covered by this standard shall have nominal
D3677 Test Methods for Rubber—Identification by Infrared
dimensions as found in Table 1 and Fig. 1.
Spectrophotometry
3
1.3 The values stated in inch-pound units are to be regarded 2.2 CISPI Standards:
as standard. The values given in parentheses are mathematical
CISPI 301 Specification for Hubless Cast Iron Soil Pipe and
conversions to SI units that are provided for information only Fittings for Sanitary and Storm Drain, Waste and Vent
and are not considered standard.
Piping Applications
CISPI 310 Specification for Couplings for Use in Connec-
1.4 The following precautionary caveat pertains only to the
tion with Hubless Cast Iron Soil Pipe and Fittings for
test method portion, Section 7, of this specification. This
Sanitary and Storm Drain, Waste, and Vent Piping Appli-
standard does not purport to address all of the safety concerns,
cations
if any, associated with its use. It is the responsibility of the user
4
2.3 Factory Mutual Standard:
of this standard to establish appropriate safety, health, and
FM 1680 Approval Standard for Couplings Used in Hubless
environmental practices and determine the applicability of
Cast Iron Systems for Drain, Waste or Vent, Sewer,
regulatory limitations prior to use.
Rainwater, or Storm Drain Systems Above and Below
1.5 This international standard was developed in accor-
Ground, Industrial/Commercial and Residential
dance with internationally recognized principles on standard-
ization established in the Decision on Principles for the
3. Terminology
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical 3.1 Definitions of the following terms used in this specifi-
Barriers to Trade (TBT) Committee. cation are found in Terminology A644.
3.2 Definitions of Terms Specific to This Standard:
2. Referenced Documents
3.2.1 center stop, n—an integral part of the gasket centered
2
2.1 ASTM Standards:
on the axial length of the gasket, intended to limit the insertion
A240/A240M Specification for Chromium and Chromium-
depth of the pipe to be coupled.
Nickel Stainless Steel Plate, Sheet, and Strip for Pressure
3.2.2 clamp assembly, n—that portion of the coupling ex-
Vessels and for General Applications
cluding the gasket.
A493 Specification for Stainless Steel Wire and Wire Rods
3.2.3 coupling, n—the complete assembly.
for Cold Heading and Cold Forging
A644 Terminology Relating to Iron Castings 3.2.4 coupling manufacturer, n—the entity that assembles
the gasket with the clamp and shield assembly.
1 3.2.5 fitting, n—parts of a pipeline other than straight pipes,
This specification is under the jurisdiction of ASTM Committee A04 on Iron
Castings and is the direct responsibility of Subcommittee A04.75 on Gaskets and
valves, or couplings.
Coupling for Plumbing and Sewer Piping.
3.2.6 gasket, n—the elastomeric portion of the coupling.
Current edition approved May 1, 2020. Published May 2020. Originally
approved in 2002. Last previous edition approved in 2018 as C1540 – 18. DOI:
10.1520/C1540-20.
2 3
For referenced ASTM standards, visit the ASTM website, www.astm.org, or Available from Cast Iron Soil Pipe Institute (CISPI), 2401 Fieldcrest Dr.,
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Mundelein, IL 60060, http://www.cispi.org.
4
Standards volume information, refer to the standard’s Document Summary page on Available from FM Approvals, P.O. Box 9102, Norwood, MA 02062. http://
the ASTM website. www.fmglobal.com.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------

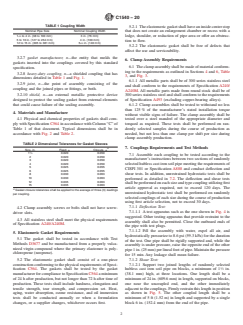

C1540−20
TABLE 1 Coupling Width
5.2.1 Theelastomericgasketshallhaveaninsidecenterstop
Nominal Pipe Size Nominal Coupling Wi
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

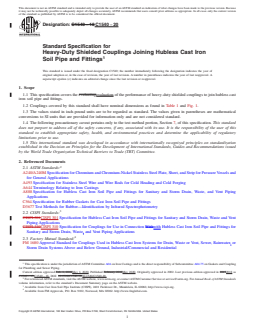

Designation: C1540 − 18 C1540 − 20
Standard Specification for
Heavy-Duty Shielded Couplings Joining Hubless Cast Iron
1
Soil Pipe and Fittings
This standard is issued under the fixed designation C1540; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification covers the evaluatingevaluation of the performance of heavy-duty shielded couplings to join hubless cast
iron soil pipe and fittings.
1.2 Couplings covered by this standard shall have nominal dimensions as found in Table 1 and Fig. 1.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.4 The following precautionary caveat pertains only to the test method portion, Section 7, of this specification. This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory
limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
A240/A240M Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and
for General Applications
A493 Specification for Stainless Steel Wire and Wire Rods for Cold Heading and Cold Forging
A644 Terminology Relating to Iron Castings
A888 Specification for Hubless Cast Iron Soil Pipe and Fittings for Sanitary and Storm Drain, Waste, and Vent Piping
Applications
C564 Specification for Rubber Gaskets for Cast Iron Soil Pipe and Fittings
D3677 Test Methods for Rubber—Identification by Infrared Spectrophotometry
3
2.2 CISPI Standards:
CISPI-301CISPI 301 Specification for Hubless Cast Iron Soil Pipe and Fittings for Sanitary and Storm Drain, Waste and Vent
Piping Applications
CISPI-310CISPI 310 Specification for Couplings for Use in Connection Withwith Hubless Cast Iron Soil Pipe and Fittings for
Sanitary and Storm Drain, Waste, and Vent Piping Applications
4
2.3 Factory Mutual Standard:
FM 1680 Approval Standard for Couplings Used in Hubless Cast Iron Systems for Drain, Waste or Vent, Sewer, Rainwater, or
Storm Drain Systems Above and Below Ground, Industrial/Commercial and Residential
1
This specification is under the jurisdiction of ASTM Committee A04 on Iron Castings and is the direct responsibility of Subcommittee A04.75 on Gaskets and Coupling
for Plumbing and Sewer Piping.
Current edition approved Feb. 1, 2018May 1, 2020. Published February 2018May 2020. Originally approved in 2002. Last previous edition approved in 20152018 as
C1540 – 15.C1540 – 18. DOI: 10.1520/C1540-18.10.1520/C1540-20.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
3
Available from Cast Iron Soil Pipe Institute (CISPI), 2401 Fieldcrest Dr., Mundelein, IL 60060, http://www.cispi.org.
4
Available from FM Approvals, P.O. Box 9102, Norwood, MA 02062. http://www.fmglobal.com.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------

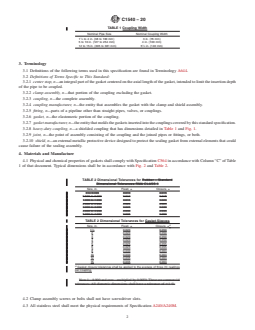

C1540 − 20
TABLE 1 Coupling Width
Nominal Pipe Size Nominal Coupling Width
1
1 ⁄2 to 4 in. (38 to 100 mm) 3 in. (76 mm)
5 to 10 in. (127 to 254 mm) 4 in. (100 mm)
1
12 to 15 in. (305 to 381 mm) 5 ⁄2 in. (140 mm)
3. Terminology
3.1 Definitions of the following terms used in this specification are found in Terminology A644.
3.2 Definitions of Terms Specific to This Standard:
3.2.1 center stop, n—an integral part of the gasket centered on the axial length of the gasket, intended to limit the insertion depth
of the pipe to be coupled.
3.2.2 clamp assembly, n—that portion of the coupling excluding the
...
