ASTM A1103/A1103M-16

Standard Specification for Seamless Cold-Finished Carbon Steel Structural Frame Tubing for Automotive Racing Applications

ABSTRACT
This specification covers seamless cold-finished carbon steel round structural frame tubing for automotive racing applications. Tubing may be used for other applications requiring similar tolerances and properties. The tubing is intended to be bent and joined by welding. The welding procedure shall be suitable for the grade, the condition of the components, and the intended service.
This specification includes requirements for materials and manufacturing process to be used, the chemical composition of carbon steel, heat treatment, product analysis, tensile properties, additional mechanical testing (flare test, flatten test), nondestructive eddy current test, workmanship, finish, and appearance. It also provides guidance for coating, packaging, and product and package marking.
SCOPE
1.1 This specification is for seamless cold-finished carbon steel round structural frame tubing for automotive racing applications. The chemical requirements are listed in Table 1. Tubing may be used for other applications requiring similar tolerances and properties. The specification includes requirements for heat treatment and mechanical properties to meet the needs for the application. The tubing is intended to be bent and joined by welding. The welding procedure shall be suitable for the grade, the condition of the components, and the intended service. (A) The ranges and limits given in this table apply to heat analysis; except as required by 6.1, product analyses are subject to the applicable additional tolerances given in Table 2.(B) Columbium (Cb) and Niobium (Nb) are alternate names for element 41 in the Periodic Table of the Elements.
1.2 The tubing outside diameter size range is from 0.625 to 2.0 in. [16 to 50 mm]. The wall thickness shall be specified as a minimum wall.
1.3 Optional supplementary requirements may be provided and, when one or more of these are desired, each shall be so stated in the order.
1.4 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. The inch-pound units shall apply unless the “M” designation of this specification is specified in the order.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

General Information

• Status: Historical
• Publication Date: 30-Nov-2016
• ICS: 23.040.10 - Iron and steel pipes
• ICS: 43.040.60 - Bodies and body components
• Technical Committee: A01 - Steel, Stainless Steel and Related Alloys
• Drafting Committee: A01.09 - Carbon Steel Tubular Products

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

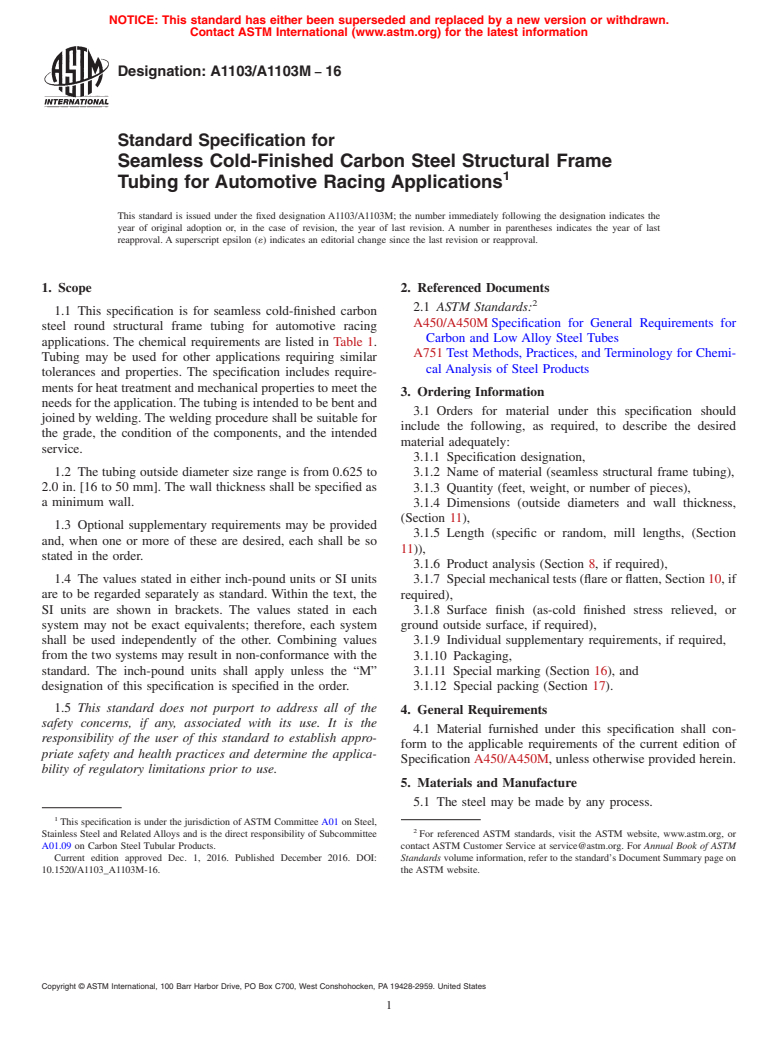

Designation:A1103/A1103M −16
Standard Specification for
Seamless Cold-Finished Carbon Steel Structural Frame
1
Tubing for Automotive Racing Applications
This standard is issued under the fixed designation A1103/A1103M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
2
2.1 ASTM Standards:
1.1 This specification is for seamless cold-finished carbon
A450/A450M Specification for General Requirements for
steel round structural frame tubing for automotive racing
Carbon and Low Alloy Steel Tubes
applications. The chemical requirements are listed in Table 1.
A751 Test Methods, Practices, and Terminology for Chemi-
Tubing may be used for other applications requiring similar
cal Analysis of Steel Products
tolerances and properties. The specification includes require-
ments for heat treatment and mechanical properties to meet the
3. Ordering Information
needs for the application.The tubing is intended to be bent and
3.1 Orders for material under this specification should
joined by welding. The welding procedure shall be suitable for
include the following, as required, to describe the desired
the grade, the condition of the components, and the intended
material adequately:
service.
3.1.1 Specification designation,
1.2 The tubing outside diameter size range is from 0.625 to 3.1.2 Name of material (seamless structural frame tubing),
2.0 in. [16 to 50 mm]. The wall thickness shall be specified as
3.1.3 Quantity (feet, weight, or number of pieces),
a minimum wall. 3.1.4 Dimensions (outside diameters and wall thickness,
(Section 11),
1.3 Optional supplementary requirements may be provided
3.1.5 Length (specific or random, mill lengths, (Section
and, when one or more of these are desired, each shall be so
11)),
stated in the order.
3.1.6 Product analysis (Section 8, if required),
1.4 The values stated in either inch-pound units or SI units
3.1.7 Special mechanical tests (flare or flatten, Section 10,if
are to be regarded separately as standard. Within the text, the required),
SI units are shown in brackets. The values stated in each 3.1.8 Surface finish (as-cold finished stress relieved, or
system may not be exact equivalents; therefore, each system ground outside surface, if required),
shall be used independently of the other. Combining values 3.1.9 Individual supplementary requirements, if required,
from the two systems may result in non-conformance with the 3.1.10 Packaging,
standard. The inch-pound units shall apply unless the “M” 3.1.11 Special marking (Section 16), and
designation of this specification is specified in the order. 3.1.12 Special packing (Section 17).
1.5 This standard does not purport to address all of the
4. General Requirements
safety concerns, if any, associated with its use. It is the
4.1 Material furnished under this specification shall con-
responsibility of the user of this standard to establish appro-
form to the applicable requirements of the current edition of
priate safety and health practices and determine the applica-
Specification A450/A450M, unless otherwise provided herein.
bility of regulatory limitations prior to use.
5. Materials and Manufacture
5.1 The steel may be made by any process.
1
This specification is under the jurisdiction of ASTM Committee A01 on Steel,
2
Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee For referenced ASTM standards, visit the ASTM website, www.astm.org, or
A01.09 on Carbon Steel Tubular Products. contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
Current edition approved Dec. 1, 2016. Published December 2016. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/A1103_A1103M-16. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
A1103/A1103M−16
TABLE 1 Chemical Requirements of Carbon Steel
A
Grade Chemical Composition Limits, %
Designation
B
Carbon Manganese Phosphorous, Sulfur, max Nickel, max Chromium, Niobium, Vanadium, Titanium,
max
max max max max
1018 0.15–0.20 0.60–0.90 0.020 0.015 0.20 0.15 0.008 0.008 0.025
A
The ranges and limits given in this table apply to heat analysis; except as required by 6.1, product analyses are subject to the applicable additional tolerances given in
Table 2.
B
Columbium (Cb) and Niobium (Nb) are alternate names for element 41 in the Periodic Table of the Elements.
5.2 If a specific type of melting is required by the purchaser, product of one remelted ingot of eac
...
