ASTM D8321-22

Standard Practice for Development and Validation of Multivariate Analyses for Use in Predicting Properties of Petroleum Products, Liquid Fuels, and Lubricants based on Spectroscopic Measurements

SIGNIFICANCE AND USE
5.1 This practice can be used to establish the validity of the results obtained by an infrared (IR) spectrophotometer or Raman spectrometer at the time the calibration is developed. The ongoing validation of PPTMRs produced by analysis of unknown samples using the multivariate model is covered separately (see for example, Practice D6122).
5.2 The multivariate calibration procedures define the range over which measurements are valid and demonstrate whether the accuracy and precision of the analysis outputs meet user requirements.
5.3 This practice describes sampling procedures that must be followed to ensure that the sample which is analyzed by the spectrophotometer or spectrometer is the same as the sample analyzed by the PTM. The sampling procedures apply to analyses done on lab analyzers, at-line analyzers, and online analyzers.
SCOPE
1.1 This practice covers a guide for the multivariate calibration of infrared (IR) spectrophotometers and Raman spectrometers used in determining the physical, chemical, and performance properties of petroleum products, liquid fuels including biofuels, and lubricants. This practice is applicable to analyses conducted in the near infrared (NIR) spectral region (roughly 780 nm to 2500 nm) through the mid infrared (MIR) spectral region (roughly 4000 cm-1 to 40 cm-1). For Raman analyses, this practice is generally applied to Stokes shifted bands that occur roughly 400 cm-1 to 4000 cm-1 below the frequency of the excitation.
Note 1: While the practice described herein deals specifically with mid-infrared, near-infrared, and Raman analysis, much of the mathematical and procedural detail contained herein is also applicable for multivariate quantitative analysis done using other forms of spectroscopy. The user is cautioned that typical and best practices for multivariate quantitative analysis using other forms of spectroscopy may differ from the practice described herein for mid-infrared, near-infrared, and Raman spectroscopies.
1.2 Procedures for collecting and treating data for developing IR and Raman calibrations are outlined. Definitions, terms, and calibration techniques are described. The calibration establishes a multivariate correlation between the spectral features and the properties to be predicted. This correlation is herein referred to as the multivariate model. Criteria for validating the performance of the multivariate model are described. The properties against which a multivariate model is calibrated and validated are measured by Primary Test Methods (PTMs) and the results of the PTM measurement are herein referred to as Primary Test Method Results (PTMR). The analysis of the spectra using the multivariate model produces a Predicted Primary Test Method Result (PPTMR).
1.3 The implementation of this practice requires that the IR spectrophotometer or Raman spectrometer has been installed in compliance with the manufacturer's specifications. In addition, it assumes that, at the time of calibration, validation, and analysis, the analyzer is operating at the conditions specified by the manufacturer. The practice includes instrument performance tests which define the instrument performance at the time of calibration, and which qualify the instrument by demonstrating comparable performance during validation and analysis.
1.4 This practice covers techniques that are routinely applied for online, at-line, and laboratory quantitative analysis. The practice outlined covers the general cases for liquids and solids that are single phase homogeneous samples when presented to the analyzers. Online application is limited by sample viscosity and the ability to introduce sample to the analyzer. All techniques covered require the use of a computer for data collection and analysis.
1.5 This practice is most typically applied when the spectra and the PTMR against which the analysis is calibrated are measured on the same sample. However, for some applic...

General Information

• Status: Published
• Publication Date: 31-Mar-2022
• ICS: 75.080 - Petroleum products in general
• Technical Committee: D02 - Petroleum Products, Liquid Fuels, and Lubricants
• Drafting Committee: D02.25 - Performance Assessment and Validation of Process Stream Analyzer Systems

Relations

• Refers: ASTM D2699-24 - Standard Test Method for Research Octane Number of Spark-Ignition Engine Fuel
• Effective Date: 01-Mar-2024
• Refers: ASTM D4175-23a - Standard Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
• Effective Date: 15-Dec-2023
• Refers: ASTM D1265-23a - Standard Practice for Sampling Liquefied Petroleum (LP) Gases, Manual Method
• Effective Date: 01-Dec-2023
• Refers: ASTM D6299-23a - Standard Practice for Applying Statistical Quality Assurance and Control Charting Techniques to Evaluate Analytical Measurement System Performance
• Effective Date: 01-Dec-2023
• Refers: ASTM D2699-23b - Standard Test Method for Research Octane Number of Spark-Ignition Engine Fuel
• Effective Date: 01-Nov-2023
• Refers: ASTM D6792-23c - Standard Practice for Quality Management Systems in Petroleum Products, Liquid Fuels, and Lubricants Testing Laboratories
• Effective Date: 01-Nov-2023
• Refers: ASTM D6792-23b - Standard Practice for Quality Management Systems in Petroleum Products, Liquid Fuels, and Lubricants Testing Laboratories
• Effective Date: 01-Oct-2023
• Refers: ASTM D5842-23 - Standard Practice for Sampling and Handling of Fuels for Volatility Measurement
• Effective Date: 01-Oct-2023
• Refers: ASTM D2699-23a - Standard Test Method for Research Octane Number of Spark-Ignition Engine Fuel
• Effective Date: 01-Oct-2023
• Refers: ASTM D4175-23e1 - Standard Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
• Effective Date: 01-Jul-2023
• Refers: ASTM D6122-23 - Standard Practice for Validation of the Performance of Multivariate Online, At-Line, Field and Laboratory Infrared Spectrophotometer, and Raman Spectrometer Based Analyzer Systems
• Effective Date: 01-Jul-2023
• Refers: ASTM E456-13a(2022)e1 - Standard Terminology Relating to Quality and Statistics
• Effective Date: 01-Apr-2022
• Refers: ASTM D5842-19 - Standard Practice for Sampling and Handling of Fuels for Volatility Measurement
• Effective Date: 01-Nov-2019
• Refers: ASTM D6122-19b - Standard Practice for Validation of the Performance of Multivariate Online, At-Line, and Laboratory Infrared Spectrophotometer Based Analyzer Systems
• Effective Date: 01-Jun-2019
• Refers: ASTM D6122-19a - Standard Practice for Validation of the Performance of Multivariate Online, At-Line, and Laboratory Infrared Spectrophotometer Based Analyzer Systems
• Effective Date: 01-May-2019

Overview

ASTM D8321-22 is a standard practice established by ASTM International that provides guidelines for the development and validation of multivariate analyses used to predict properties of petroleum products, liquid fuels (including biofuels), and lubricants through spectroscopic measurements. This standard primarily applies to analyses using infrared (IR) and Raman spectroscopy within the near infrared (NIR) and mid infrared (MIR) spectral regions, as well as Raman Stokes shifted bands. The practice outlines essential procedures for calibrating and validating multivariate models to ensure accurate prediction of physical, chemical, and performance properties using spectral data.

Key Topics

• Scope of Application

  • Multivariate calibration of IR spectrophotometers and Raman spectrometers for the analysis of petroleum products, liquid fuels, and lubricants.
  • Applicability to both NIR (780 nm - 2500 nm) and MIR (4000 cm⁻¹ - 40 cm⁻¹) regions, as well as specific Raman spectral ranges.
  • Can be extended to other spectroscopic techniques with adaptations.

• Multivariate Calibration & Validation

  • Procedures for data collection, calibration sample selection, and treatment of spectral data.
  • Establishes mathematical correlations (multivariate models) linking spectral features to sample properties.
  • Criteria for validating model accuracy and precision against results from Primary Test Methods (PTMs).

• Sampling Procedures

  • Guidance to ensure the analyzed sample matches across spectroscopic and reference methods.
  • Applicable for laboratory, at-line, and online analyzer systems.

• Instrument Performance

  • Requires compliance with manufacturer specifications for IR or Raman instruments.
  • Includes performance qualification tests to demonstrate instrument reliability during calibration and application.

Applications

• Quality Control in Petroleum Industry

  • Enables rapid and non-destructive testing of key product attributes such as density, sulfur content, octane number, and more.
  • Supports real-time process control for refining and blending operations, improving efficiency and product consistency.

• Biofuel and Additive Analysis

  • Facilitates the validation of finished biofuel blends, blendstocks, and additized petroleum products.
  • Addresses scenarios where spectral analysis and primary test methods are performed on blends or constituent basestocks.

• Versatile Analysis Techniques

  • Standard practice suited for single-phase liquids and solids in both laboratory and process environments.
  • Techniques outlined are essential for online, at-line, and laboratory quantitative analysis regimes.
  • Requires computer-aided data collection and model computation.

• Model Validation and Compliance

  • Establishes protocols for confirming multivariate model reliability using independent validation samples.
  • Ensures predictive results from spectroscopic analysis align with established laboratory test methods.

Related Standards

ASTM D8321-22 references or connects with several key standards supporting best practices in sampling, measurement, quality assurance, and analyzer system validation, including:

• ASTM D6122 - Validation of performance for multivariate analyzer systems.
• ASTM D3764 - Performance assessment for process stream analyzer systems.
• ASTM D4057 / D4177 - Manual and automatic sampling of petroleum products.
• ASTM E1655 - Practices for infrared quantitative analysis.
• ASTM D5845, D6277 - Surrogate methods for components in fuels.
• ASTM D6792 - Quality management in petroleum testing laboratories.
• ASTM D8340 - Performance-based qualification of spectroscopic analyzer systems.

These references provide additional frameworks and terminology for implementing robust, validated spectroscopic analysis systems in the petroleum industry and related sectors.

---

Keywords: ASTM D8321-22, multivariate analysis, petroleum products, infrared spectroscopy, Raman spectroscopy, calibration, validation, lubricants, liquid fuels, spectroscopic measurement, quality control, analyzer system, laboratory testing, process control, biofuels.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

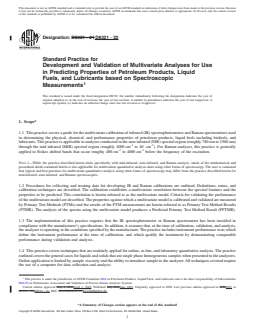

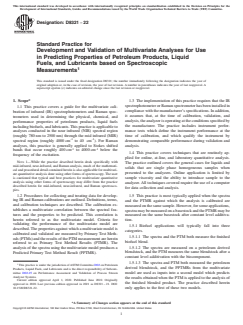

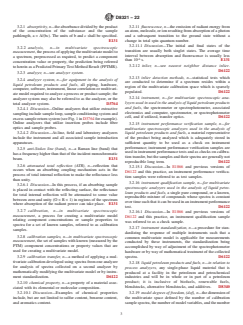

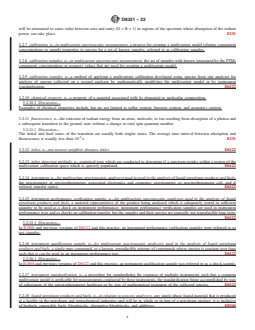

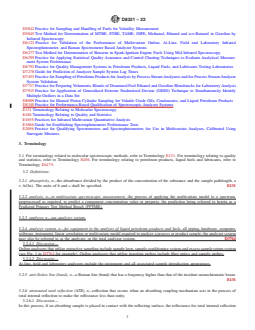

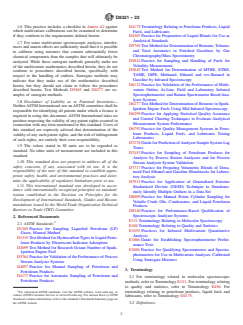

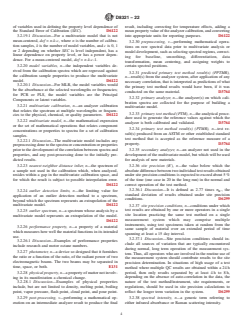

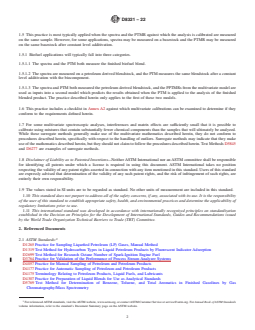

Designation: D8321 − 22
