Standards Content (Sample)


This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

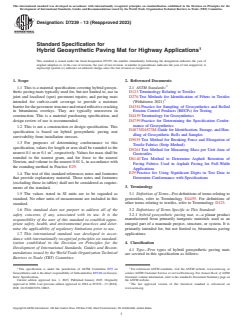

Designation:D7239 −13 (Reapproved 2023)
Standard Specification for
Hybrid Geosynthetic Paving Mat for Highway Applications
This standard is issued under the fixed designation D7239; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
1.1 This is a material specification covering hybrid geosyn- 2.1 ASTM Standards:
thetic paving mats typically used for, but not limited to, use in D123 Terminology Relating to Textiles
joint and localized (spot) pavement repairs; and paving mats D276 Test Methods for Identification of Fibers in Textiles
intended for curb-to-curb coverage to provide a moisture (Withdrawn 2021)
barrierforthepavementstructureandretardreflectivecracking D4354 Practice for Sampling of Geosynthetics and Rolled
in bituminous overlays. They are typically nonwoven in Erosion Control Products (RECPs) for Testing
construction. This is a material purchasing specification, and D4439 Terminology for Geosynthetics
design review of use is recommended. D4759 Practice for Determining the Specification Confor-
mance of Geosynthetics
1.2 This is not a construction or design specification. This
D4873/D4873M Guide for Identification, Storage, and Han-
specification is based on hybrid geosynthetic paving mat
dling of Geosynthetic Rolls and Samples
survivability from installation stresses.
D5035 Test Method for Breaking Force and Elongation of
1.3 For purposes of determining conformance to this
Textile Fabrics (Strip Method)
specification, values for length or area shall be rounded to the
D5261 Test Method for Measuring Mass per Unit Area of
nearest 0.1 m or 0.1 m , respectively. Values for mass shall be
Geotextiles
rounded to the nearest gram, and for force to the nearest
D6140 Test Method to Determine Asphalt Retention of
Newton, and volume to the nearest 0.01 L, in accordance with
Paving Fabrics Used in Asphalt Paving for Full-Width
the rounding method in Practice E29.
Applications
E29 Practice for Using Significant Digits in Test Data to
1.4 The text of this standard references notes and footnotes
that provide explanatory material. These notes and footnotes Determine Conformance with Specifications
(excluding those in tables) shall not be considered as require-
3. Terminology
ments of the standard.
3.1 Definition of Terms—For definitions of terms relating to
1.5 The values stated in SI units are to be regarded as
geotextiles, refer to Terminology D4439. For definitions of
standard. No other units of measurement are included in this
other terms relating to textiles, refer to Terminology D123.
standard.
1.6 This standard does not purport to address all of the 3.2 Definitions of Terms Specific to This Standard:
safety concerns, if any, associated with its use. It is the 3.2.1 hybrid geosynthetic paving mat, n—a planar product
responsibility of the user of this standard to establish appro- manufactured from primarily inorganic materials used as an
priate safety, health, and environmental practices and deter- integral part of a manmade project, structure, or system. It is
mine the applicability of regulatory limitations prior to use. primarily intended for, but not limited to, bituminous paving
1.7 This international standard was developed in accor- applications.
dance with internationally recognized principles on standard-
4. Classification
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
4.1 Type—Five types of hybrid geosynthetic paving mats
mendations issued by the World Trade Organization Technical
are covered in this specification as follows:
Barriers to Trade (TBT) Committee.
1 2
This specification is under the jurisdiction of ASTM Committee D35 on For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Geosynthetics and is the direct responsibility of Subcommittee D35.06 on Geosyn- contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
thetic Specifications. Standards volume information, refer to the standard’s Document Summary page on
Current edition approved Jan. 1, 2023. Published January 2023. Originally the ASTM website.
approved in 2006. Last previous edition approved in 2018 as D7239 – 13 (2018). The last approved version of this historical standard is referenced on
DOI: 10.1520/D7239-13R23. www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

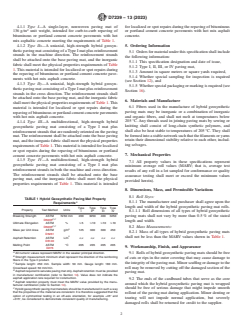

D7239−13 (2023)
4.1.1 Type I—A single-layer, nonwoven paving mat of for localized or spot repairs during the repaving of bituminous
136 g⁄m unit weight, intended for curb-to-curb repaving of or portland cement concrete pavements with hot mix asphalt
bituminous or portland cement concrete pavements with hot concrete.
mix asphaltic concrete meeting the requirements of Table 1.
4.1.2 Type IIx—A uniaxial, high-strength hybrid geosyn-
5. Ordering Information
thetic paving mat consisting of aType I mat plus reinforcement
5.1 Orders for material under this specification shall include
strands in the machine direction. The reinforcement strands
the following information:
shall be attached onto the base paving mat, and the inorganic
5.1.1 This specification designation and date of issue,
fabric shall meet the physical properties requirements of Table
5.1.2 Type I, II, III, or IV paving mat,
1. This material is intended for localized or spot repairs during
5.1.3 Amount in square meters or square yards required,
the repaving of bituminous or portland cement concrete pave-
5.1.4 Whether special sampling for inspection is required
ments with hot mix asphalt concrete.
(see Section 12), and
4.1.3 Type IIy—A uniaxial, high-strength hybrid geosyn-
5.1.5 Whether special packaging or marking is required (see
thetic paving mat consisting of aType I mat plus reinforcement
Section 16).
strands in the cross direction. The reinforcement strands shall
be attached onto the base paving mat, and the inorganic fabric
6. Materials and Manufacture
shallmeetthephysicalpropertiesrequirementsofTable1.This
6.1 Fibers used in the manufacture of hybrid geosynthetic
material is intended for localized or spot repairs during the
paving mats may be inorganic or a combination of inorganic
repaving of bituminous or portland cement concrete pavements
and organic fibers, and shall not melt at temperatures below
with hot mix asphalt concrete.
205 °C.Any threads used in joining paving mats by sewing or
4.1.4 Type III—A multidirectional, high-strength hybrid
knitting shall consist of long-chain synthetic polymers, and
geosynthetic paving mat consisting of a Type I mat plus
shall also be heat stable to temperatures of 205 °C. They shall
reinforcement strands that are randomly oriented on the paving
beformedintoastablenetworksuchthatthefilamentsoryarns
mat. The reinforcement shall be attached onto the base paving
retain their dimensional stability relative to each other, includ-
mat, and the inorganic fabric shall meet the physical properties
ing selvages.
requirements of Table 1. This material is intended for localized
or spot repairs during the repaving of bituminous or portland
7. Mechanical Properties
cement concrete pavements with hot mix asphalt concrete.
4.1.5 Type IV—A multidirectional, high-strength hybrid
7.1 All property values in these specifications represent
geosynthetic paving mat consisting of a Type I mat plus
minimum average roll values (MARV; that is, average test
reinforcement strands in both the machine and cross direction.
results of any roll in a lot sampled for conformance or quality
The reinforcement strands shall be attached onto the base
assurance testing shall meet or exceed the minimum values
paving mat, and the inorganic fabric shall meet the physical
provided herein).
properties requirements of Table 1. This material is intended
8. Dimensions, Mass, and Permissible Variations
8.1 Roll Sizes:
TABLE 1 Hybrid Geosynthetic Paving Mat Property
A
...

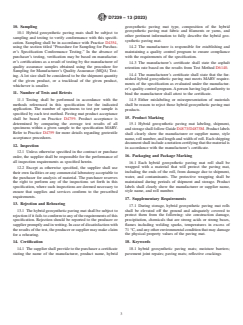

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM D7007-24(Practice)
Standard Practices for Electrical Methods for Locating Leaks in Geomembranes Covered with Water or Earthen Materials

SIGNIFICANCE AND USE
4.1 Geomembranes are used as impermeable barriers to prevent liquids from leaking from landfills, ponds, and other containments. The liquids may contain contaminants that, if released, can cause damage to the environment. Leaking liquids can erode the subgrade, causing further damage. Leakage can result in product loss or otherwise prevent the installation from performing its intended containment purpose. For these reasons, it is desirable that the geomembrane have as little leakage as practical.
4.2 Geomembrane leaks can be caused by poor quality of the subgrade, poor quality of the material placed on the geomembrane, accidents, poor workmanship, manufacturing defects, and carelessness.
4.3 The most significant causes of leaks in geomembranes that are covered with only water are related to construction activities, including pumps and equipment placed on the geomembrane, accidental punctures, and punctures caused by traffic over rocks or debris on the geomembrane or in the subgrade.
4.4 The most significant cause of leaks in geomembranes covered with earthen materials is construction damage caused by machinery that occurs while placing the earthen material on the geomembrane. Such damage also can breach additional layers of the lining system such as geosynthetic clay liners.
4.5 Electrical leak location methods are an effective final quality assurance measure to detect and locate leaks. If any of the requirements for survey area preparation is not adhered to, then leak sensitivity could be diminished. Optimal survey area conditions are described in Section 6.
SCOPE
1.1 These practices cover standard procedures for using electrical methods to locate leaks in geomembranes covered with water or earthen materials. For clarity, this practice uses the term “leak” to mean holes, punctures, tears, knife cuts, seam defects, cracks, and similar breaches in an installed geomembrane (as defined in 3.2.9).
1.2 These practices are intended to ensure that leak location surveys are performed with a standardized level of leak detection capability. To allow further innovations, and because various leak location practitioners use a wide variety of procedures and equipment to perform these surveys, performance-based protocol are also used that specify minimum leak detection criteria.
1.3 The survey shall then be conducted using the demonstrated equipment, procedures, and survey parameters. In the absence of the minimum signal strength during leak detection distance testing, a minimum measurement density specification is provided. Alternatively, the minimum measurement density may simply be used.
1.4 Separate procedures are given for leak location surveys for geomembranes covered with water and for geomembranes covered with earthen materials. Separate procedures are given for leak detection distance tests using actual and artificial leaks.
1.5 Examples of methods of data analysis for soil-covered surveys are provided as guidance in Appendix X1.
1.6 Leak location surveys can be used on geomembranes installed in basins, ponds, tanks, ore and waste pads, landfill cells, landfill caps, and other containment facilities. The procedures are applicable for geomembranes made of materials such as polyethylene, polypropylene, polyvinyl chloride, chlorosulfonated polyethylene, bituminous material, and other electrically insulating materials.
1.7 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.8 (Warning—The electrical methods used for geomembrane leak location could use high voltages, resulting in the potential for electrical shock or electrocution. This hazard might be increased because operations might be conducted in or near water. In particular, a high voltage could exist between the water or earthen material and earth ground, or any grounded conductor. These procedures are potentially VERY DANGEROUS, and can re...

  • Standard
    14 pages
    English language
    sale 15% off
  • Standard
    14 pages
    English language
    sale 15% off
ASTM
ASTM D4439-24(Terminology)
Standard Terminology for Geosynthetics
  • Standard
    7 pages
    English language
    sale 15% off
  • Standard
    7 pages
    English language
    sale 15% off
ASTM
ASTM D7005/D7005M-16(2024)(Test Method)
Standard Test Method for Determining the Bond Strength (Ply Adhesion) of Geocomposites

SIGNIFICANCE AND USE
5.1 This test method is to be used as a quality control or quality assurance test. As a manufacturing quality control (MQC) test, it would generally be used by the geocomposite product manufacturer or fabricator. As a construction quality assurance (CQA) test, it would be used by certification or inspection organizations.
5.2 This test method can also be used to verify if the adhesion or bond strength varies after exposure to various incubation media in durability or chemical resistance testing, or both.
5.3 Whatever use is to be associated with the test, it should be understood that this is an index test.
Note 2: There have been numerous attempts to relate the results of this test to the interface shearing resistance of the respective materials determined per Test Method D5321/D5321M. To date, no relationships have been established between the two properties.
5.4 Test Method D7005/D7005M for determining the bond strength (ply adhesion) strength may be used as an acceptance test of commercial shipments of geocomposites, but caution is advised since information about between-laboratory precision is incomplete. Comparative tests as directed in 5.4.1 are advisable.
5.4.1 In the case of a dispute arising from differences in reported test results when using the procedure in Test Method D7005/D7005M for acceptance of commercial shipments, the purchaser and the supplier should first confirm that the tests were conducted using comparable test parameters including specimen conditioning, grip faces, grip size, etc. Comparative tests should then be conducted to determine if there is a statistical bias between their laboratories. Competent statistical assistance is recommended for the investigation of bias. As a minimum, the two parties should take a group of test specimens that are as homogeneous as possible and that are from a lot of the material in question. The test specimens should be randomly assigned to each laboratory for testing. The average results from ...
SCOPE
1.1 It has been widely discussed in the literature that bond strength of flexible multi-ply materials is difficult to measure with current technology. The above is recognized and accepted, since all known methods of measurement include the force required to bend the separated layers, in addition to that required to separate them. However, useful information can be obtained when one realizes that the bending force is included and that direct comparison between different materials, or even between the same materials of different thickness, cannot be made. Also, conditioning that affects the moduli of the plies will be reflected in the bond strength measurement.
1.2 This index test method defines a procedure for comparing the bond strength or ply adhesion of geocomposites. The focus is on geotextiles bonded to geonets or other types of drainage cores, for example, geomats, geospacers, etc. Other possible uses are geotextiles adhered or bonded to themselves, geomembranes, geogrids, or other dissimilar materials. Various processes can make such laminates: adhesives, thermal bonding, stitch bonding, needling, spread coating, etc.
1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific precautionary statements are given in 11.1.1.
1.5 This international standard was developed in accordance with internationally recognized principles on ...

  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM D4595/D4595M-24(Test Method)
Standard Test Method for Tensile Properties of Geotextiles by the Wide-Width Method

SIGNIFICANCE AND USE
5.1 The determination of the wide-width force-elongation properties of geotextiles provides design parameters for reinforcement type applications, for example, design of reinforced roadways/pavements, reinforced embankments over soft subgrades, reinforced soil retaining walls, and reinforcement of slopes. When strength is not necessarily a design consideration, an alternative test method may be used for acceptance testing. Test Method D4595/D4595M for the determination of the wide-width tensile properties of geotextiles may be used for the acceptance testing of commercial shipments of geotextiles, but caution is advised since information about between-laboratory precision is incomplete (Note 3). Comparative tests as directed in 5.1.1 may be advisable.
5.1.1 In cases of a dispute arising from differences in reported test results when using Test Method D4595/D4595M for acceptance testing of commercial shipments, the purchaser and the supplier should conduct comparative tests to determine if there is a statistical bias between their laboratories. Competent statistical assistance is recommended for the investigation of bias. At a minimum, the two parties should take a group of test specimens which are as homogeneous as possible and which are from a lot of material of the type in question. The test specimens should then be randomly assigned in equal numbers to each laboratory for testing. The average results from the two laboratories should be compared using Student's t-test for unpaired data and an acceptable probability level chosen by the two parties before the testing began. If a bias is found, either its cause must be found and corrected or the purchaser and the supplier must agree to interpret future test results in light of the known bias.
5.2 Most geotextiles can be tested by this test method. Some modification of clamping techniques may be necessary for a given geotextile depending upon its structure. Special clamping adaptions may be necessary with strong...
SCOPE
1.1 This test method covers the measurement of tensile properties of geotextiles using a wide-width specimen tensile method. This test method is applicable to most geotextiles that include woven geotextiles, nonwoven geotextiles, layered fabrics, and knit fabrics that are used for geotextile applications.
1.2 This test method covers the measurement of tensile strength and elongation of geotextiles and includes directions for the calculation of initial modulus, offset modulus, secant modulus, and breaking toughness.
1.3 Procedures for measuring the tensile properties of both conditioned and wet geotextiles by the wide-width method are included.
1.4 The basic distinction between this test method and other methods for measuring strip tensile properties is the width of the specimen. Some fabrics used in geotextile applications have a tendency to contract (neck down) under a force in the gage length area. The greater width of the specimen specified in this test method minimizes the contraction effect of those fabrics and provides a closer relationship to expected geotextile behavior in the field and a standard comparison.
1.5 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Developme...

  • Standard
    10 pages
    English language
    sale 15% off
  • Standard
    10 pages
    English language
    sale 15% off
ASTM
ASTM D6637/D6637M-15(2023)(Test Method)
Standard Test Method for Determining Tensile Properties of Geogrids by the Single or Multi-Rib Tensile Method

SIGNIFICANCE AND USE
5.1 The determination of the tensile force-elongation values of geogrids provides index property values. This test method shall be used for quality control and acceptance testing of commercial shipments of geogrids.
5.2 In cases of dispute arising from differences in reported test results when using this test method for acceptance testing of commercial shipments, the purchaser and supplier should conduct comparative tests to determine if there is a statistical bias between their laboratories. Competent statistical assistance is recommended for the investigation of bias. As a minimum, the two parties should take a group of test specimens which are as homogeneous as possible and which are from a lot of material of the type in question. The test specimens should then be randomly assigned in equal numbers to each laboratory for testing. The average results from the two laboratories should be compared using Student's t-test for unpaired data and an acceptable probability level chosen by the two parties before the testing began. If a bias is found, either its cause must be found and corrected or the purchaser and supplier must agree to interpret future test results in light of the known bias.
5.3 All geogrids can be tested by any of these methods. Some modification of techniques may be necessary for a given geogrid depending upon its physical makeup. Special adaptations may be necessary with strong geogrids, multiple layered geogrids, or geogrids that tend to slip in the clamps or those which tend to be damaged by the clamps.
SCOPE
1.1 This test method covers the determination of the tensile strength properties of geogrids by subjecting strips of varying width to tensile loading.
1.2 Three alternative procedures are provided to determine the tensile strength, as follows:
1.2.1 Method A—Testing a single geogrid rib in tension (N or lbf).
1.2.2 Method B—Testing multiple geogrid ribs in tension (kN/m or lbf/ft).
1.2.3 Method C—Testing multiple layers of multiple geogrid ribs in tension (kN/m or lbf/ft).
1.3 This test method is intended for quality control and conformance testing of geogrids.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM D5820-95(2023)(Practice)
Standard Practice for Pressurized Air Channel Evaluation of Dual-Seamed Geomembranes

SIGNIFICANCE AND USE
5.1 The increased use of geomembranes as barrier materials to restrict liquid or gas movement, and the common use of dual-track seams in joining these sheets, has created a need for a standard nondestructive test by which the quality of the seams can be assessed for continuity and watertightness. The test is not intended to provide any indication of the physical strength of the seam.
5.2 This practice recommends an air pressure test within the channel created between dual-seamed tracks whereby the presence of unbonded sections or channels, voids, nonhomogenities, discontinuities, foreign objects, and the like, in the seamed region can be identified.
5.3 This technique is intended for use on seams between geomembrane sheets formulated from the appropriate polymers and compounding ingredients to form a plastic or elastomer sheet material that meets all specified requirements for the end use of the product.
SCOPE
1.1 This practice covers a nondestructive evaluation of the continuity of parallel geomembrane seams separated by an unwelded air channel. The unwelded air channel between the two distinct seamed regions is sealed and inflated with air to a predetermined pressure. Long lengths of seam can be evaluated by this practice more quickly than by other common nondestructive tests.
1.2 This practice should not be used as a substitute for destructive testing. Used in conjunction with destructive testing, this method can provide additional information regarding the seams undergoing testing.
1.3 This practice supercedes Practice D4437/D4437M for geomembrane seams that include an air channel. Practice D4437/D4437M may continue to be used for other types of seams. The user is referred to the referenced standards or to EPA/530/SW-91/051 for additional information regarding geomembrane seaming techniques and construction quality assurance.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM D5884/D5884M-23(Test Method)
Standard Test Method for Determining Tearing Strength of Internally Reinforced Geomembranes

SIGNIFICANCE AND USE
5.1 Since tear resistance may be affected to a large degree by mechanical fibering of the membrane under stress, as well as by stress distribution, strain rate, and size of specimen, the results obtained in a tear resistance test can only be regarded as a measure of the resistance under the conditions of that particular test and not necessarily as having any direct relation to service value. This test method measures the force required to tear a reinforced geomembrane along a reasonably defined course such as that the tear propagates across the width of the specimen. The values may vary between types of reinforcement used within a geomembrane.
5.2 The tongue tear method is useful for estimating the relative tear resistance of different reinforcing textiles or different directions in the same reinforcing textiles.
5.3 Disputes—In case of a dispute arising from differences in reported test results when using this test method for acceptance testing of commercial shipments, the purchaser and the supplier should conduct comparative tests to determine if there is a statistical difference between their laboratories.
SCOPE
1.1 This test method covers a uniform procedure for determining the tear strength of flexible geomembranes internally reinforced with a textile, using the tongue tear method.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    4 pages
    English language
    sale 15% off
  • Standard
    4 pages
    English language
    sale 15% off
ASTM
ASTM D5617-23(Test Method)
Standard Test Method for Multi-Axial Elongation of Geomembranes

SIGNIFICANCE AND USE
5.1 Installed geomembranes are subjected to forces from more than one direction, including forces perpendicular to the surfaces of the geomembrane. Out-of-plane deformation of a geomembrane may be useful in evaluating materials for caps where subsidence of the subsoil may be problematic.
5.2 Failure mechanisms on this test may be different compared to other relatively small-scale index tests and may be beneficial for design purposes.
5.3 In applications where local subsidence is expected, this test can be considered a performance test.
5.4 For applications where geomembranes cannot be deformed in the fashion this test method prescribes, this test method should be considered an index test.
5.5 Due to the time involved to perform this test, it is not considered practical as a quality control test.
SCOPE
1.1 This test method covers the measurement of the out-of-plane response of a geomembrane to a force that is applied perpendicular to the initial plane of the sample.
1.2 When the geomembrane deforms to a prescribed geometric shape (arc of a sphere or ellipsoid), formulations are provided to convert the test data to biaxial tensile stress-strain values. These formulations cannot be used for other geometric shapes. With other geometric shapes, comparative data on deformation versus pressure is obtained.
1.3 This test method requires a large-diameter pressure vessel (610 mm). Information obtained from this test method may be more appropriate for design purposes than many small-scale index tests.
1.4 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM D7747/D7747M-11(2023)(Test Method)
Standard Test Method for Determining Integrity of Seams Produced Using Thermo-Fusion Methods for Reinforced Geomembranes by the Strip Tensile Method

SIGNIFICANCE AND USE
4.1 The use of reinforced geomembranes as barrier materials has created a need for a standard test method to evaluate the quality of seams produced by thermo-fusion methods. This test method is used for quality control purposes and is intended to provide quality control and quality assurance personnel with data to evaluate seam quality.
4.2 This standard arose from the need for a destructive test method for evaluating seams of reinforced geomembranes. Standards written for destructive testing of nonreinforced geomembranes do not include all break codes (Fig. 1) applicable to reinforced geomembranes.
FIG. 1 Break Codes for Dual Hot Wedge and Hot Air Seams of Reinforced Geomembranes Tested for Seam Strength in Shear and Peel Modes
4.3 When reinforcement occurs in directions other than machine and cross-machine, scrim are cut at specimen edges, generally lowering results. To partially compensate for this, testing can be performed according to Test Method D7749 or the 2 in. wide strip specimen specified in this method can be utilized. Testing of 1 in. and 2 in. specimens is Method A and Method B, respectively.
4.4 The shear test outlined in this method correlates to strength of parent material measured according to Test Method D7003/D7003M only if reinforcement is parallel to TD. For other materials, seam strength and parent material strength can be compared through Test Methods D7749 and D7004/D7004M. Values obtained with the strip methods shall not be compared to values obtained with grab methods.
SCOPE
1.1 This test method describes destructive quality control tests used to determine the integrity of thermo-fusion seams made with reinforced geomembranes. Test procedures are described for seam tests for peel and shear properties using strip specimens.
1.2 The types of thermal field and factory seaming techniques used to construct geomembrane seams include the following:
1.2.1 Hot Air—This technique introduces high-temperature air between two geomembrane surfaces to facilitate melting. Pressure is applied to the top or bottom geomembrane, forcing together the two surfaces to form a continuous bond.
1.2.2 Hot Wedge—This technique melts the two geomembrane surfaces to be seamed by running a hot metal wedge between them. Pressure is applied to the top and bottom geomembrane to form a continuous bond. Some seams of this kind are made with dual tracks separated by a non-bonded gap. These seams are sometimes referred to as dual hot wedge seams or double-track seams.
1.2.3 Extrusion—This technique encompasses extruding molten resin between two geomembranes or at the edge of two overlapped geomembranes to effect a continuous bond.
1.2.4 Radio Frequency (RF) or Dielectric—High-frequency dielectric equipment is used to generate heat and pressure to form an overlap seam in factory fabrication.
1.2.5 Impulse—Clamping bars heated by wires or a ribbon melt the sheets clamped between them. A cooling period while still clamped allows the polymer to solidify before being released.
1.3 The types of materials covered by this test method include, but are not limited to, reinforced geomembranes made from the following polymers:
1.3.1 Very low-density polyethylene (VLDPE).
1.3.2 Linear low-density polyethylene (LLDPE).
1.3.3 Flexible polypropylene (fPP).
1.3.4 Polyvinyl chloride (PVC).
1.3.5 Chlorosulfonated polyethylene (CSPE).
1.3.6 Ethylene interpolymer alloy (EIA).
1.4 Units—The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish ap...

  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM D5101-23(Test Method)
Standard Test Method for Measuring the Filtration Compatibility of Soil-Geotextile Systems

SIGNIFICANCE AND USE
5.1 This test method is recommended for the evaluation of the performance of water-saturated soil-geotextile systems under unidirectional flow conditions. The results obtained may be used as an indication of the compatibility of the soil-geotextile system with respect to both particle retention and flow capacity.
5.2 This test method is intended to evaluate the performance of specific on-site soils and geotextiles at the design stage of a project, or to provide qualitative data that may help identify causes of failure (for example, clogging, particle loss). It is not appropriate for acceptance testing of geotextiles. It is also improper to utilize the results from this test for job specifications or manufacturers' certifications.
5.3 This test method is intended for site-specific investigation therefore is not an index property of the geotextile, and thus is not intended to be requested of the manufacturer or supplier of the geotextile.
SCOPE
1.1 This test method covers performance tests applicable for determining the compatibility of geotextiles with various types of water-saturated soils under unidirectional flow conditions.
1.2 Two evaluation methods may be used to investigate soil-geotextile filtration behavior, depending on the soil type:
1.2.1 For soils with a plasticity index lower than 5, the systems compatibility shall be evaluated per this standard.
1.2.2 For soils with a plasticity index of 5 or more, it is recommended to use Test Method D5567 (‘HCR,’ Hydraulic Conductivity Ratio) instead of this test method.
1.2.3 If the plasticity index of the soil is close to 5, the involved parties shall agree on the selection of the appropriate method prior to conducting the test. This task may require comparison of the permeability of the soil-geotextile system to the detection limits of the HCR and Gradient Ratio Test (GRT) test apparatus being used.
1.3 The values stated in SI units are to be regarded as standard. The values in parentheses are for information only.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    8 pages
    English language
    sale 15% off
  • Standard
    8 pages
    English language
    sale 15% off
