ASTM D4472-23

Standard Guide for Recordkeeping for Reverse Osmosis and Nanofiltration Systems

SIGNIFICANCE AND USE
4.1 Proper operation and maintenance of RO and NF systems are key factors in obtaining successful performance. This guide provides the necessary input for the evaluation of the performance of the RO and NF systems, the pretreatment system, and the mechanical equipment in the plant.
4.2 This guide is for general guidance only and must not be used in place of the operating manual for a particular plant.
4.3 Site-dependent factors prevent specific recommendations for all recordkeeping. Thus, only the more general recordkeeping is covered by this guide.
4.4 This guide can be used for both brackish and seawater systems which contain either spiral-wound or hollow-fiber devices.
SCOPE
1.1 This guide covers procedures for well-defined recordkeeping of reverse osmosis (RO) and nanofiltration (NF) systems.
1.2 This guide includes a start-up report, recordkeeping of RO and NF operating data, recordkeeping of pretreatment operating data, and a maintenance log.
1.3 This guide is applicable to waters including brackish waters and seawaters but is not necessarily applicable to wastewaters.
1.4 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 14-Dec-2023
• Technical Committee: D19 - Water
• Drafting Committee: D19.08 - Membranes and Ion Exchange Materials

Relations

• Replaces: ASTM D4472-08(2014) - Standard Guide for Recordkeeping for Reverse Osmosis and Nanofiltration Systems (Withdrawn 2023)
• Effective Date: 15-Dec-2023
• Refers: ASTM D1129-13(2020)e2 - Standard Terminology Relating to Water
• Effective Date: 01-May-2020
• Refers: ASTM D1129-13(2020)e1 - Standard Terminology Relating to Water
• Effective Date: 01-May-2020
• Referred By: ASTM D7601-19 - Standard Practice for Pressure Driven Membrane Separation Element/Bundle Evaluation
• Effective Date: 15-Dec-2023

Overview

ASTM D4472-23, Standard Guide for Recordkeeping for Reverse Osmosis and Nanofiltration Systems, provides comprehensive guidance on maintaining accurate and consistent records for reverse osmosis (RO) and nanofiltration (NF) water treatment systems. Developed by ASTM, this international standard outlines best practices for recordkeeping that support optimal system performance, help evaluate system health, and meet regulatory and operational requirements.

This guide applies broadly to brackish water and seawater systems-both spiral-wound and hollow-fiber device configurations-but is not specifically intended for wastewater applications. The document covers procedures for collecting, recording, and maintaining data related to system start-up, daily operation, pretreatment, and ongoing maintenance.

Key Topics

• Recordkeeping Framework:
  Detailed requirements for documenting operating data, maintenance events, system incidents, and calibration records for RO and NF systems.

• Start-Up Reports:
  Guidelines for compiling comprehensive start-up documentation, including a plant description, flow diagrams, and equipment lists.

• Operating Data Collection:
  Instructions on recording key parameters such as flows, pressures, temperatures, pH, conductivity, the Silt Density Index (SDI), and other relevant water quality indicators. Data collection frequency is outlined to ensure consistent monitoring.

• Pretreatment System Records:
  Recommendations on documenting pretreatment processes, including filter pressures, chemical consumption, and specific site-dependent factors.

• Maintenance Logs:
  Procedures for maintaining logs of routine maintenance, equipment calibrations, mechanical failures, cleaning cycles, and replacements for both system components and filter elements.

• Calibration Requirements:
  Regular documentation and calibration of instruments and meters at least every three months, following manufacturer recommendations.

• Incident and Anomaly Tracking:
  Guidance for recording unusual incidents, system upsets, shutdowns, or anomalies to support troubleshooting and maintenance planning.

Applications

Proper recordkeeping as outlined in ASTM D4472-23 is essential for:

• Operational Optimization:
  Continuous monitoring and documentation help operators analyze patterns, detect inefficiencies, and respond to emerging issues in RO and NF systems.

• Performance Evaluation:
  Enables systematic comparison of daily operating data to baseline performance, supporting preventative maintenance and early issue detection.

• Regulatory Compliance:
  Well-maintained records ensure readiness for audits and help demonstrate adherence to industry and governmental water quality standards.

• Asset Management:
  Documented maintenance, calibration, and replacement histories extend system longevity and support effective asset lifecycle management.

• Quality Assurance:
  Comprehensive records provide a basis for consistent water quality and allow for improved process control, particularly in critical applications such as drinking water, desalination, and industrial water purification.

Related Standards

For comprehensive water treatment recordkeeping and operational assessment, consider referencing these related ASTM standards:

• ASTM D1125: Test Methods for Electrical Conductivity and Resistivity of Water
• ASTM D1253: Test Method for Residual Chlorine in Water
• ASTM D3739: Practice for Calculation and Adjustment of the Langelier Saturation Index for Reverse Osmosis
• ASTM D4189: Test Method for Silt Density Index (SDI) of Water
• ASTM D4194: Test Methods for Operating Characteristics of Reverse Osmosis and Nanofiltration Devices
• ASTM D4195: Guide for Water Analysis for Reverse Osmosis and Nanofiltration Application
• ASTM D4582: Practice for Calculation and Adjustment of the Stiff and Davis Stability Index for Reverse Osmosis
• ASTM D6161: Terminology Used for Microfiltration, Ultrafiltration, Nanofiltration, and Reverse Osmosis Membrane Processes

Effective implementation of ASTM D4472-23 supports the reliability, efficiency, and compliance of reverse osmosis and nanofiltration systems, making it a critical reference for water treatment professionals and plant operators.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

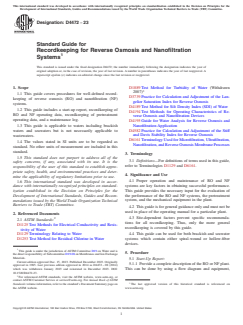

Designation: D4472 − 23
Standard Guide for
Recordkeeping for Reverse Osmosis and Nanofiltration
Systems
This standard is issued under the fixed designation D4472; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope D1889 Test Method for Turbidity of Water (Withdrawn
2007)
1.1 This guide covers procedures for well-defined record-
D3739 Practice for Calculation and Adjustment of the Lan-
keeping of reverse osmosis (RO) and nanofiltration (NF)
gelier Saturation Index for Reverse Osmosis
systems.
D4189 Test Method for Silt Density Index (SDI) of Water
1.2 This guide includes a start-up report, recordkeeping of
D4194 Test Methods for Operating Characteristics of Re-
RO and NF operating data, recordkeeping of pretreatment
verse Osmosis and Nanofiltration Devices
operating data, and a maintenance log.
D4195 Guide for Water Analysis for Reverse Osmosis and
1.3 This guide is applicable to waters including brackish Nanofiltration Application
D4582 Practice for Calculation and Adjustment of the Stiff
waters and seawaters but is not necessarily applicable to
wastewaters. and Davis Stability Index for Reverse Osmosis
D6161 Terminology Used for Microfiltration, Ultrafiltration,
1.4 The values stated in SI units are to be regarded as
Nanofiltration, and Reverse Osmosis Membrane Processes
standard. No other units of measurement are included in this
standard.
3. Terminology
1.5 This standard does not purport to address all of the
3.1 Definitions—For definitions of terms used in this guide,
safety concerns, if any, associated with its use. It is the
refer to Terminologies D1129 and D6161.
responsibility of the user of this standard to establish appro-
priate safety, health, and environmental practices and deter-
4. Significance and Use
mine the applicability of regulatory limitations prior to use.
4.1 Proper operation and maintenance of RO and NF
1.6 This international standard was developed in accor-
dance with internationally recognized principles on standard- systems are key factors in obtaining successful performance.
ization established in the Decision on Principles for the This guide provides the necessary input for the evaluation of
Development of International Standards, Guides and Recom- the performance of the RO and NF systems, the pretreatment
mendations issued by the World Trade Organization Technical system, and the mechanical equipment in the plant.
Barriers to Trade (TBT) Committee.
4.2 This guide is for general guidance only and must not be
used in place of the operating manual for a particular plant.
2. Referenced Documents
4.3 Site-dependent factors prevent specific recommenda-
2.1 ASTM Standards:
tions for all recordkeeping. Thus, only the more general
D1125 Test Methods for Electrical Conductivity and Resis-
recordkeeping is covered by this guide.
tivity of Water
D1129 Terminology Relating to Water 4.4 This guide can be used for both brackish and seawater
systems which contain either spiral-wound or hollow-fiber
D1253 Test Method for Residual Chlorine in Water
devices.
This guide is under the jurisdiction of ASTM Committee D19 on Water and is
5. Procedure
the direct responsibility of Subcommittee D19.08 on Membranes and Ion Exchange
Materials.
5.1 Start-Up Report:
Current edition approved Dec. 15, 2023. Published December 2023. Originally
5.1.1 Provide a complete description of the RO or NF plant.
approved in 1985. Last previous edition approved in 2014 as D4472 – 08 (2014)
which was withdrawn January 2023 and reinstated in December 2023. DOI: This can be done by using a flow diagram and equipment,
10.1520/D4472-23.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on The last approved version of this historical standard is referenced on
the ASTM website. www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

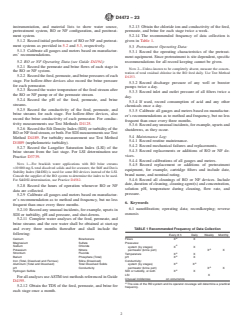

D4472 − 23
instrumentation, and material lists to show water source, 5.2.13 Obtain the chloride ion and conductivity of the feed,
pretreatment system, RO or NF configuration, and posttreat- permeate, and brine for each stage twice a week.
ment system. 5.2.14 The recommended frequency of data collection is
5.1.2 Record initial performance of RO or NF and pretreat- given in Table 1.
ment systems as provided in 5.2 and 5.3, respectively.
5.3 Pretreatment Operating Data:
5.1.3 Calibrate all gauges and meters based on manufactur-
5.3.1 Record the operating characteristics of the pretreat-
ers’ recommendations.
ment equipment. Since pretreatment is site dependent, specific
5.2 RO or NF Operating Data (see Guide D4194): recommendations for all record keeping cannot be given.
5.2.1 Record the permeate and brine flow
...
