ASTM D4067-23

Standard Classification System and Basis for Specification for Reinforced and Filled Poly(Phenylene Sulfide) (PPS) Injection Molding and Extrusion Materials Using ASTM Methods

ABSTRACT
This classification system covers reinforced and filled poly(phenylene sulfide) (PPS) materials suitable for injection molding and extrusion. This classification system is not intended for the selection of materials, but only as a means to call out plastic materials to be used for the manufacture of parts. The physical properties of the materials must meet the required tensile strength, flexural modulus, Izod impact strength, flexural strength, and density.
SCOPE
1.1 This classification system covers reinforced and filled poly(phenylene sulfide) materials suitable for injection molding and extrusion.
1.2 This classification system is not intended for the selection of materials, but only as a means to call out plastic materials to be used for the manufacture of parts. The selection of these materials shall be made by personnel with expertise in the plastics field where the environment, inherent properties of the materials, performance of the parts, part design, manufacturing process, and economics are considered.
1.3 The properties included in this classification system are those required to identify the compositions covered. If necessary, other requirements identifying particular characteristics important to specific applications shall be designated by using the suffixes given in Section 5 or Classification System D4000.
1.4 The values stated in SI units are to be regarded as the standard.
Note 1: There is no known ISO equivalent to this standard.
Note 2: ASTM Standard D6358 provides a classification system for the same materials covered in this standard, along with additional PPS materials, with the major difference being its use of ISO test methods, versus the use of ASTM test methods in this standard. The user of this standard is encouraged to evaluate switching to the use of Standard D6358 as it is more up to date with current practices.
1.5 This precautionary statement pertains only to the test method portion of this classification system, Section 12. This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-Jan-2023
• ICS: 83.120 - Reinforced plastics
• Technical Committee: D20 - Plastics
• Drafting Committee: D20.15 - Thermoplastic Materials

Relations

• Refers: ASTM D883-24 - Standard Terminology Relating to Plastics
• Effective Date: 01-Feb-2024
• Refers: ASTM D1238-23a - Standard Test Method for Melt Flow Rates of Thermoplastics by Extrusion Plastometer
• Effective Date: 15-Nov-2023
• Refers: ASTM D883-23 - Standard Terminology Relating to Plastics
• Effective Date: 01-Nov-2023
• Refers: ASTM D883-20 - Standard Terminology Relating to Plastics
• Effective Date: 01-Jan-2020
• Refers: ASTM D883-19c - Standard Terminology Relating to Plastics
• Effective Date: 01-Aug-2019
• Refers: ASTM D883-19a - Standard Terminology Relating to Plastics
• Effective Date: 15-Apr-2019
• Refers: ASTM D6358-19 - Standard Classification System and Basis for Specification for Poly (Phenylene Sulfide) (PPS) Injection Molding, Extrusion and Blow Molding Materials Using ISO Methods
• Effective Date: 01-Apr-2019
• Refers: ASTM D6358-19e1 - Standard Classification System and Basis for Specification for Poly (Phenylene Sulfide) (PPS) Injection Molding, Extrusion and Blow Molding Materials Using ISO Methods
• Effective Date: 01-Apr-2019
• Refers: ASTM D883-19 - Standard Terminology Relating to Plastics
• Effective Date: 01-Feb-2019
• Refers: ASTM E662-18 - Standard Test Method for Specific Optical Density of Smoke Generated by Solid Materials
• Effective Date: 01-Dec-2018
• Refers: ASTM D883-18a - Standard Terminology Relating to Plastics
• Effective Date: 01-Dec-2018
• Refers: ASTM D883-18 - Standard Terminology Relating to Plastics
• Effective Date: 01-Nov-2018
• Refers: ASTM D648-18 - Standard Test Method for Deflection Temperature of Plastics Under Flexural Load in the Edgewise Position
• Effective Date: 01-Apr-2018
• Refers: ASTM D1600-18 - Standard Terminology for Abbreviated Terms Relating to Plastics (Withdrawn 2024)
• Effective Date: 01-Jan-2018
• Refers: ASTM D883-17 - Standard Terminology Relating to Plastics
• Effective Date: 15-Aug-2017

Overview

ASTM D4067-23 is the internationally recognized standard for the classification and basis of specification for reinforced and filled poly(phenylene sulfide) (PPS) materials used in injection molding and extrusion processes. Published by ASTM International, this standard provides a system for designating PPS plastics based on key physical properties, ensuring clarity in material call-outs for manufacturing parts. It specifically addresses reinforced and filled PPS materials, offering an industry-accepted framework for specifying composition, reinforcement type and amount, and primary material properties. This standard is widely utilized in manufacturing sectors that require dependable, high-performance thermoplastics.

Key Topics

• Material Classification: Defines reinforced and filled PPS materials, allowing for precise identification and specification in production documents and procurement.
• Designation System: Uses an alphanumeric system to indicate base material, reinforcement type (e.g., glass, carbon fiber, minerals), filler content, and performance metrics such as tensile strength, flexural modulus, impact strength, flexural strength, and density.
• Physical Property Requirements: Ensures the materials meet minimum standards for mechanical performance, using recognized ASTM test methods.
• Suffix System: Allows for additional application-specific requirements, such as electrical properties, flammability ratings, or heat deflection temperatures, through standardized suffixes.
• Testing and Conformance: Outlines appropriate sample preparation, conditioning, and test methods for statistical control and quality assurance, referencing established ASTM protocols.
• Packaging and Marking: Details recommended practices for packaging and marking shipments to maintain material integrity and traceability.

Applications

ASTM D4067-23 serves a critical role in industries relying on high-performance engineering plastics:

• Automotive: Used for producing durable parts exposed to heat, chemicals, and mechanical stress, such as connectors, housings, and under-hood components.
• Electrical and Electronics: Specifies PPS grades where electrical insulation, flame resistance, and dimensional stability are vital, making the standard essential for circuit boards, insulators, and connectors.
• Aerospace: Employed for lightweight, strong, chemically resistant parts needing precise material specifications, including outgassing and smoke requirements.
• Industrial Equipment: Utilized in pumps, valves, and corrosion-resistant applications where reinforced PPS is specified for its mechanical and thermal stability.
• General Manufacturing: Supports procurement and compliance in any setting requiring well-defined, consistent PPS material properties for injection molding or extrusion.

By providing a common language for specifying reinforced and filled PPS plastics, the standard streamlines the supply chain, supports regulatory compliance, and ensures end-product reliability.

Related Standards

• ASTM D4000: General classification system for specifying plastic materials, which is referenced for more detailed suffix tables and additional characteristic requirements in ASTM D4067-23.
• ASTM D6358: Offers a similar classification system for PPS materials but utilizes ISO test methods, recommended for those seeking alignment with international testing practices.
• ASTM D638 / D790 / D256 / D792: Standardized methods referenced for testing tensile properties, flexural properties, impact resistance, and density of plastics, respectively.
• Military Standards: MIL-P-46174 and MIL-M-24519 (now largely replaced or cross-referenced to ASTM D4067-23) for PPS plastics in defense applications.
• ISO 527–2 / ISO 3451: International equivalents for tensile property and ash content determination, often referenced for procurement outside the U.S.

Practical Value

Implementing ASTM D4067-23 in procurement and manufacturing:

• Reduces Ambiguity: Clear designation and properties control help prevent material mix-ups and enable transparent communication throughout the value chain.
• Supports Quality Assurance: Standardized test requirements and statistical sampling ensure consistent material performance.
• Facilitates Regulatory Compliance: Alignment with global trade principles and cross-referencing to military and ISO standards supports legal and industry-mandated requirements.

Keywords: ASTM D4067-23, PPS, poly(phenylene sulfide), reinforced plastics, injection molding, extrusion materials, material classification, filled PPS, ASTM standard, thermoplastics specification, plastics standards.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

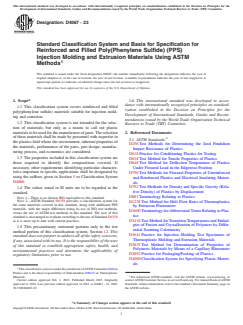

Designation: D4067 − 23
Standard Classification System and Basis for Specification for
Reinforced and Filled Poly(Phenylene Sulfide) (PPS)
Injection Molding and Extrusion Materials Using ASTM
Methods
This standard is issued under the fixed designation D4067; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope* 1.6 This international standard was developed in accor-
dance with internationally recognized principles on standard-
1.1 This classification system covers reinforced and filled
ization established in the Decision on Principles for the
poly(phenylene sulfide) materials suitable for injection mold-
Development of International Standards, Guides and Recom-
ing and extrusion.
mendations issued by the World Trade Organization Technical
1.2 This classification system is not intended for the selec-
Barriers to Trade (TBT) Committee.
tion of materials, but only as a means to call out plastic
materials to be used for the manufacture of parts. The selection
2. Referenced Documents
of these materials shall be made by personnel with expertise in
2.1 ASTM Standards:
the plastics field where the environment, inherent properties of
D256 Test Methods for Determining the Izod Pendulum
the materials, performance of the parts, part design, manufac-
Impact Resistance of Plastics
turing process, and economics are considered.
D618 Practice for Conditioning Plastics for Testing
1.3 The properties included in this classification system are
D638 Test Method for Tensile Properties of Plastics
those required to identify the compositions covered. If
D648 Test Method for Deflection Temperature of Plastics
necessary, other requirements identifying particular character-
Under Flexural Load in the Edgewise Position
istics important to specific applications shall be designated by
D790 Test Methods for Flexural Properties of Unreinforced
using the suffixes given in Section 5 or Classification System
and Reinforced Plastics and Electrical Insulating Materi-
D4000.
als
D792 Test Methods for Density and Specific Gravity (Rela-
1.4 The values stated in SI units are to be regarded as the
tive Density) of Plastics by Displacement
standard.
D883 Terminology Relating to Plastics
NOTE 1—There is no known ISO equivalent to this standard.
NOTE 2—ASTM Standard D6358 provides a classification system for
D1238 Test Method for Melt Flow Rates of Thermoplastics
the same materials covered in this standard, along with additional PPS
by Extrusion Plastometer
materials, with the major difference being its use of ISO test methods,
D1600 Terminology for Abbreviated Terms Relating to Plas-
versus the use of ASTM test methods in this standard. The user of this
tics
standard is encouraged to evaluate switching to the use of Standard D6358
D3418 Test Method for Transition Temperatures and Enthal-
as it is more up to date with current practices.
pies of Fusion and Crystallization of Polymers by Differ-
1.5 This precautionary statement pertains only to the test
ential Scanning Calorimetry
method portion of this classification system, Section 12. This
D3641 Practice for Injection Molding Test Specimens of
standard does not purport to address all of the safety concerns,
Thermoplastic Molding and Extrusion Materials
if any, associated with its use. It is the responsibility of the user
D3835 Test Method for Determination of Properties of
of this standard to establish appropriate safety, health, and
Polymeric Materials by Means of a Capillary Rheometer
environmental practices and determine the applicability of
D3892 Practice for Packaging/Packing of Plastics
regulatory limitations prior to use.
D4000 Classification System for Specifying Plastic Materi-
als
This classification system is under the jurisdiction of ASTM Committee D20 on
Plastics and is the direct responsibility of Subcommittee D20.15 on Thermoplastic
Materials. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Feb. 1, 2023. Published March 2023. Originally contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
approved in 1982. Last previous edition approved in 2021 as D4067 – 21. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/D4067-23. the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

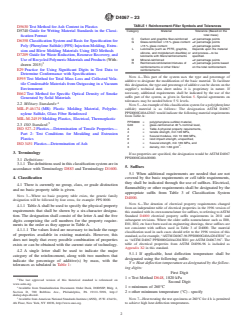

D4067 − 23
TABLE 1 Reinforcement-Filler Symbols and Tolerances
D5630 Test Method for Ash Content in Plastics
D5740 Guide for Writing Material Standards in the Classi- Category Material Tolerance (Based on the
total mass)
fication Format
C Carbon and graphite fiber-reinforced ±2 percentage points
D6358 Classification System and Basis for Specification for
G Glass-reinforced #15 % glass content ±2 percentage points
Poly (Phenylene Sulfide) (PPS) Injection Molding, Extru- >15 % glass content ±3 percentage points
L Lubricants (such as PTFE, graphite, Depends upon the material
sion and Blow Molding Materials Using ISO Methods
silicone, and molybdenum disulfide) or and process—to be
D7209 Guide for Waste Reduction, Resource Recovery, and
lubricants with fillers/reinforcements specified.
M Mineral-reinforced ±2 percentage points
Use of Recycled Polymeric Materials and Products (With-
R Reinforced-combination/mixtures of ±3 percentage points based
drawn 2015)
reinforcements or other fillers/ on the total reinforcement.
E29 Practice for Using Significant Digits in Test Data to
reinforcements.
Determine Conformance with Specifications
NOTE 4—This part of the system uses the type and percentage of
E595 Test Method for Total Mass Loss and Collected Vola-
additive to designate the modification of the basic material. To facilitate
tile Condensable Materials from Outgassing in a Vacuum
this designation, the type and percentage of additive can be shown on the
Environment supplier’s technical data sheet unless it is proprietary in nature. If
necessary, additional requirements shall be indicated by the use of the
E662 Test Method for Specific Optical Density of Smoke
suffix part of the system, as given in Section 5. Special agreements on
Generated by Solid Materials
tolerances may be needed below 5 % levels.
2.2 Military Standards:
NOTE 5—An example of this classification system for a poly(phenylene
sulfide) material is as follows: The designation ASTM D4067
MIL-P-46174 (MR) Plastic Molding Material, Polyphe-
PPS0000G40A42043 would indicate the following material requirements
nylene Sulfide, Glass Fiber Reinforced
from Table A:
MIL-M-24519 Molding Plastics, Electrical, Thermoplastic
PPS0000 = poly(phenylene sulfide) material,
2.3 ISO Standard:
G40 = glass-reinforced at 40 % nominal level,
A = Table A physical property requirements,
ISO 527–2 Plastics—Determination of Tensile Properties—
4 = tensile strength, min 120 MPa,
Part 2: Test Conditions for Moulding and Extrusion
2 = flexural modulus, min 10 000 MPa,
Plastics
0 = Izod impact strength, unspecified,
4 = flexural strength, min 165 MPa, and
ISO 3451 Plastics—Determination of Ash
3 = density, min 1.60 g/cm .
3. Terminology
If no properties are specified, the designation would be ASTM D4067
PPS0000G40A00000.
3.1 Definitions:
3.1.1 The definitions used in this classification system are in
5. Suffixes
accordance with Terminology D883 and Terminology D1600.
5.1 When additional requirements are needed that are not
4. Classification covered by the basic requirements or cell table requirements,
they shall be indicated through the use of suffixes. Electrical,
4.1 There is currently no group, class, or grade distinction
flammability or other requirements shall be designated by the
and no basic property table is given.
appropriate suffix from Table 3 of Classification System
NOTE 3—Where no basic property table exists, the generic family
D4000.
designation will be followed by four zeros, for example: PPS 0000.
NOTE 6—The denotion of electrical property requirements changed
4.1.1 Table A shall be used to specify the physical property
from an independent table of electrical properties in the 1996 version of
requirements that shall be shown by a six-character designa-
this standard with its own nomenclature for suffixes, to referring to ASTM
tion. The designation shall consist of the letter A and the five
Standard D4000 electrical property suffix requirements in 2011 and
subsequent revisions. Where the older suffix nomenclature such as E00,
digits comprising the cell numbers for the property require-
E01, E02, etc have been used on engineering drawings, these suffixes are
ments in the order as they appear in Table A.
not consistent with suffixes used in Table 3 of D4000. The material
4.1.1.1 The values listed are necessary to include the range
classification used in such cases should refer to the 1996 version of this
of properties available in existing materials. However, this
standard, as for example, “ASTM D4067-96 PPS0000G40A42043E01” or
does not imply that every possible combination of properties as “ASTM D4067 PPS0000G40A42043E01 per ASTM D4067-96”. The
table of electrical properties from ASTM D4096-96 is included as
exists or can be obtained with the current state of technology.
Appendix X2 in this standard.
4.2 A single letter shall be used to indicate the major
5.1.1 If applicable, heat deflection temperature shall be
category of the reinforcement, along with two numbers that
designated using the following suffix:
indicate the percentage of additive(s) by mass, with the
Y = Heat deflection temperature as designated by the follow-
tolerances as tabulated in Table 1:
ing digits:
First Digit
1 = Test Method D648, 1820 kPa
The last approved version of this historical standard is referenced on
Second Digit
www.astm.org.
1 = minimum of 260°C
Available from Standardization Documents Order Desk, DODSSP, Bldg. 4,
Section D, 700 Robbins Ave., Philadelphia, PA 19111-5098, http://
2 = other minimum temperature (°C) - specify
dodssp.daps.dla.mil.
Available from American National Standards Institute (ANSI), 25 W. 43rd St., NOTE 7—Heat treating the test specimens at 260°C for 4 h is permitted
4th Floor, New York, NY 10036, http://www.ansi.org. to achieve high heat deflection temperatures.
D4067 − 23

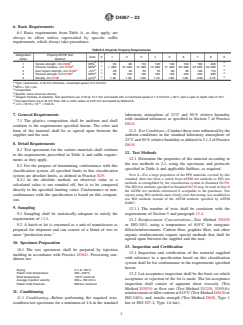

6. Basic Requirements
6.1 Basic requirements from Table A, as they apply, are
always in effect unless superseded by specific suffix
requirements, which always take precedence.

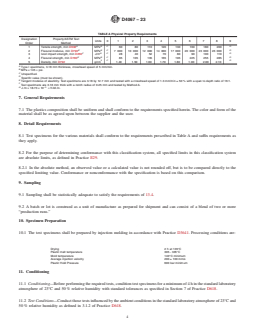

TABLE A Physical Property Requirements
Designation Property/ASTM Test
Units 0 1 2 3 4 5 6 7 8 9
Order Method
A B C D
1 Tensile strength, min D638 MPa 60 80 110 120 130 160 180 200
E B C D
2 Flexural modulus, min D790 MPa 7 000 10 000 12 000 14 000 17 000 20 000 23 000 26 000
F G C D
3 Izod impact strength, min D256 J/m 28 40 52 70 80 90 100 110
E B C D
4 Flexural strength, min D790 MPa 85 105 135 165 195 225 255 285
3 C D
5 Density, min D792 g/cm 1.40 1.50 1.60 1.70 1.80 1.90 2.00 2.10
A
Type I specimens, 3.18 mm thickness, crosshead speed of 5 mm/min.
B
MPa × 145 = psi.
C
Unspecified.
D
Specific value (must be shown).
E
Tangent modulus of elasticity. Test specimens are 3.18 by 12.7 mm and tested with a crosshead speed of 1.3 mm/min ± 50 % with a span to depth ratio of 16:1.
F
Test specimens are 3.18 mm thick with a notch radius of 0.25 mm and tested by Method A.
G −3
J ⁄m × 18.73 × 10 = ft·lbf ⁄in.
7. General Requirements laboratory atmosphere of 23°C and 50 % relative humidity
with standard tolerances as specified in Section 7 of Practice
7.1 The plastics composition shall be uniform and shall
D618.
conform to the requirements specified herein. The color and
form of the material shall be as agreed upon between the 11.2 Test Conditions—Conduct those tests influenced by the
supplier and the user. ambient conditions in the standard laboratory atmosphere of
23°C and 50 % relative humidity as defined in 3.1.2 of Practice
8. Detail Requirements
D618.
8.1 Test specimens for the various materials shall conform
12. Test Methods
to the requirements prescribed in Table A and suffix require-
12.1 Determine the properties of the material according to
ments as they apply.
the test methods in 2.1, using the specimens and protocols
8.2 For the purpose of determining conformance with this
specified in Table A and applicable Suffixes, as required.
classification system, all specified limits in this
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

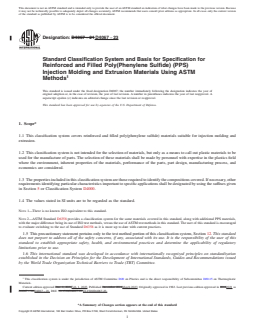

Designation: D4067 − 21 D4067 − 23
Standard Classification System and Basis for Specification for
Reinforced and Filled Poly(Phenylene Sulfide) (PPS)
Injection Molding and Extrusion Materials Using ASTM
Methods
This standard is issued under the fixed designation D4067; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
1.1 This classification system covers reinforced and filled poly(phenylene sulfide) materials suitable for injection molding and
extrusion.
1.2 This classification system is not intended for the selection of materials, but only as a means to call out plastic materials to be
used for the manufacture of parts. The selection of these materials shall be made by personnel with expertise in the plastics field
where the environment, inherent properties of the materials, performance of the parts, part design, manufacturing process, and
economics are considered.
1.3 The properties included in this classification system are those required to identify the compositions covered. If necessary, other
requirements identifying particular characteristics important to specific applications shall be designated by using the suffixes given
in Section 5 or Classification System D4000.
1.4 The values stated in SI units are to be regarded as the standard.
NOTE 1—There is no known ISO equivalent to this standard.
NOTE 2—ASTM Standard D6358 provides a classification system for the same materials covered in this standard, along with additional PPS materials,
with the major difference being its use of ISO test methods, versus the use of ASTM test methods in this standard. The user of this standard is encouraged
to evaluate switching to the use of Standard D6358 as it is more up to date with current practices.
1.5 This precautionary statement pertains only to the test method portion of this classification system, Section 12. This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory
limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
This classification system is under the jurisdiction of ASTM Committee D20 on Plastics and is the direct responsibility of Subcommittee D20.15 on Thermoplastic
Materials.
Current edition approved Dec. 1, 2021Feb. 1, 2023. Published December 2021March 2023. Originally approved in 1982. Last previous edition approved in 20162021 as
D4067 – 16.D4067 – 21. DOI: 10.1520/D4067-21.10.1520/D4067-23.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D4067 − 23

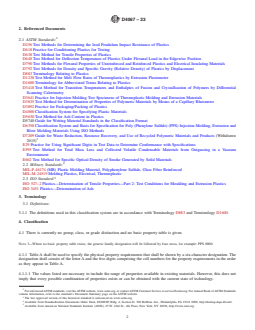

2. Referenced Documents
2.1 ASTM Standards:
D256 Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics
D618 Practice for Conditioning Plastics for Testing
D638 Test Method for Tensile Properties of Plastics
D648 Test Method for Deflection Temperature of Plastics Under Flexural Load in the Edgewise Position
D790 Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
D792 Test Methods for Density and Specific Gravity (Relative Density) of Plastics by Displacement
D883 Terminology Relating to Plastics
D1238 Test Method for Melt Flow Rates of Thermoplastics by Extrusion Plastometer
D1600 Terminology for Abbreviated Terms Relating to Plastics
D3418 Test Method for Transition Temperatures and Enthalpies of Fusion and Crystallization of Polymers by Differential
Scanning Calorimetry
D3641 Practice for Injection Molding Test Specimens of Thermoplastic Molding and Extrusion Materials
D3835 Test Method for Determination of Properties of Polymeric Materials by Means of a Capillary Rheometer
D3892 Practice for Packaging/Packing of Plastics
D4000 Classification System for Specifying Plastic Materials
D5630 Test Method for Ash Content in Plastics
D5740 Guide for Writing Material Standards in the Classification Format
D6358 Classification System and Basis for Specification for Poly (Phenylene Sulfide) (PPS) Injection Molding, Extrusion and
Blow Molding Materials Using ISO Methods
D7209 Guide for Waste Reduction, Resource Recovery, and Use of Recycled Polymeric Materials and Products (Withdrawn
2015)
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
E595 Test Method for Total Mass Loss and Collected Volatile Condensable Materials from Outgassing in a Vacuum
Environment
E662 Test Method for Specific Optical Density of Smoke Generated by Solid Materials
2.2 Military Standards:
MIL-P-46174 (MR) Plastic Molding Material, Polyphenylene Sulfide, Glass Fiber Reinforced
MIL-M-24519 Molding Plastics, Electrical, Thermoplastic
2.3 ISO Standard:
ISO 527–2 Plastics—Determination of Tensile Properties—Part 2: Test Conditions for Moulding and Extrusion Plastics
ISO 3451 Plastics—Determination of Ash
3. Terminology
3.1 Definitions:
3.1.1 The definitions used in this classification system are in accordance with Terminology D883 and Terminology D1600.
4. Classification
4.1 There is currently no group, class, or grade distinction and no basic property table is given.
NOTE 3—Where no basic property table exists, the generic family designation will be followed by four zeros, for example: PPS 0000.
4.1.1 Table A shall be used to specify the physical property requirements that shall be shown by a six-character designation. The
designation shall consist of the letter A and the five digits comprising the cell numbers for the property requirements in the order
as they appear in Table A.
4.1.1.1 The values listed are necessary to include the range of properties available in existing materials. However, this does not
imply that every possible combination of properties exists or can be obtained with the current state of technology.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
The last approved version of this historical standard is referenced on www.astm.org.
Available from Standardization Documents Order Desk, DODSSP, Bldg. 4, Section D, 700 Robbins Ave., Philadelphia, PA 19111-5098, http://dodssp.daps.dla.mil.
Available from American National Standards Institute (ANSI), 25 W. 43rd St., 4th Floor, New York, NY 10036, http://www.ansi.org.
D4067 − 23

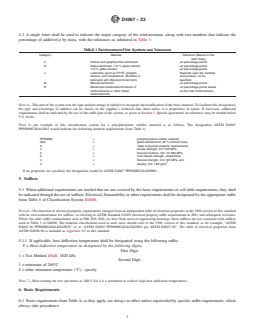

4.2 A single letter shall be used to indicate the major category of the reinforcement, along with two numbers that indicate the
percentage of additive(s) by mass, with the tolerances as tabulated in Table 1:
TABLE 1 Reinforcement-Filler Symbols and Tolerances
Category Material Tolerance (Based on the
total mass)
C Carbon and graphite fiber-reinforced ±2 percentage points
G Glass-reinforced #15 % glass content ±2 percentage points
>15 % glass content ±3 percentage points
L Lubricants (such as PTFE, graphite, Depends upon the material
silicone, and molybdenum disulfide) or and process—to be
lubricants with fillers/reinforcements specified.
M Mineral-reinforced ±2 percentage points
R Reinforced-combination/mixtures of ±3 percentage points based
reinforcements or other fillers/ on the total reinforcement.
reinforcements.
NOTE 4—This part of the system uses the type and percentage of additive to designate the modification of the basic material. To facilitate this designation,
the type and percentage of additive can be shown on the supplier’s technical data sheet unless it is proprietary in nature. If necessary, additional
requirements shall be indicated by the use of the suffix part of the system, as given in Section 5. Special agreements on tolerances may be needed below
5 % levels.
NOTE 5—An example of this classification system for a poly(phenylene sulfide) material is as follows: The designation ASTM D4067
PPS0000G40A42043 would indicate the following material requirements from Table A:
PPS0000 = poly(phenylene sulfide) material,
G40 = glass-reinforced at 40 % nominal level,
A = Table A physical property requirements,
4 = tensile strength, min 120 MPa,
2 = flexural modulus, min 10 000 MPa,
0 = Izod impact strength, unspecified,
4 = flexural strength, min 165 MPa, and
3 = density, min 1.60 g/cm .
If no properties are specified, the designation would be ASTM D4067 PPS0000G40A00000.
5. Suffixes
5.1 When additional requirements are needed that are not covered by the basic requirements or cell table requirements, they shall
be indicated through the use of suffixes. Electrical, flammability or other requirements shall be designated by the appropriate suffix
from Table 3 of Classification System D4000.
NOTE 6—The denotion of electrical property requirements changed from an independent table of electrical properties in the 1996 version of this standard
with its own nomenclature for suffixes, to referring to ASTM Standard D4000 electrical property suffix requirements in 2011 and subsequent revisions.
Where the older suffix nomenclature such as E00, E01, E02, etc have been used on engineering drawings, these suffixes are not consistent with suffixes
used in Table 3 of D4000. The material classification used in such cases should refer to the 1996 version of this standard, as for example, “ASTM
D4067-96 PPS0000G40A42043E01” or as “ASTM D4067 PPS0000G40A42043E01 per ASTM D4067-96”. The table of electrical properties from
ASTM D4096-96 is included as Appendix X2 in this standard.
5.1.1 If applicable, heat deflection temperature shall be designated using the following suffix:
Y = Heat deflection temperature as designated by the following digits:
First Digit
1 = Test Method D648, 1820 kPa
Second Digit
1 = minimum of 260°C
2 = other minimum temperature (°C) - specify
NOTE 7—Heat treating the test specimens at 260°C for 4 h is permitted to achieve high heat deflection temperatures.
6. Basic Requirements
6.1 Basic requirements from Table A, as they apply, are always in effect unless superseded by specific suffix requirements, which
always take precedence.
D4067 − 23
TABLE A Physical Property Requirements
Designation Property/ASTM Test
Units 0 1 2 3 4 5 6 7 8 9
Order Method
A B C D
1 Tensile strength, min D638 MPa 60 80 110 120 130 160 180 200
E B C D
2 Flexural modulus, min D790 MPa 7 000 10 000 12 000 14 000 17 000 20 000 23 000 26 000
F G C D
3 Izod impact strength, min D256 J/m 28 40 52 70 80 90 100 110
E B C D
4 Flexural strength, min D790 MPa 85 105 135 165 195 225 255 285
3 C D
5 Density, min D792 g/cm 1.40 1.50 1.60 1.70 1.80 1.90 2.00 2.10
A
Type I specimens, 3.18 mm thickness, crosshead speed of 5 mm/min.
B
MPa × 145 = psi.
C
Unspecified.
D
Specific value (must be shown).
E
Tangent modulus of elasticity. Test specimens are 3.18 by 12.7 mm and tested with a crosshead speed of 1.3 mm/min ± 50 % with a span to depth ratio of 16:1.
F
Test specimens are 3.18 mm thick with a notch radius of 0.25 mm and tested by Method A.
G −3
J ⁄m × 18.73 × 10 = ft·lbf ⁄in.
7. General Requirements
7.1 The plastics composition shall be uniform and shall conform to the requirements specified herein. The color and form of the
material shall be as agreed upon between the supplier and the user.
8. Detail Requirements
8.1 Test specimens for the various materials shall conform to the requirements prescribed in Table A and suffix requirements as
they apply.
8.2 For the purpose of determining conformance with this classification system, all specified limits in this classification system
are absolute limits, as defined in Practice E29.
8.2.1 In the absolute method, an observed value or a calculated value is not rounded off, but is to be compared directly to the
specified limiting value. Conformance or nonconformance with the specification is based on this comparison.
9. Sampling
9.1 Sampling shall be statistically adequate to satisfy the requirements of 13.4.
9.2 A batch or lot is construed as a unit of manufacture as prepared for shipment and can consist of a blend of two or more
“production runs.”
10. Specimen Preparation
10.1 The test specimens shall be prepared by injection molding in accordance with Practice D3641. Processing conditions are:
Drying 2 h at 135°C
Plastic melt temperature 305 - 335°C
Mold temperature 140
...
