ASTM A1045-08
(Specification)Standard Specification for Flexible Poly (Vinyl Chloride) (PVC) Gaskets used in Connection of Water Closets to Sanitary Drainage System
Standard Specification for Flexible Poly (Vinyl Chloride) (PVC) Gaskets used in Connection of Water Closets to Sanitary Drainage System
SCOPE
1.1 This specification covers material and performance requirements for plasticized PVC compression gaskets used in the connection of residential and commercial water closets to 3 and 4-in. sanitary drainage pipe. These type gaskets are inserted into and compress against the inside diameter of the sewer pipe while attaching to the water closet with a flexible adhesive. The result is a gas- and water-tight seal.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, is any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and to determine the applicability of regulatory limitations prior to use.
General Information
Relations
Buy Standard
Standards Content (Sample)
NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

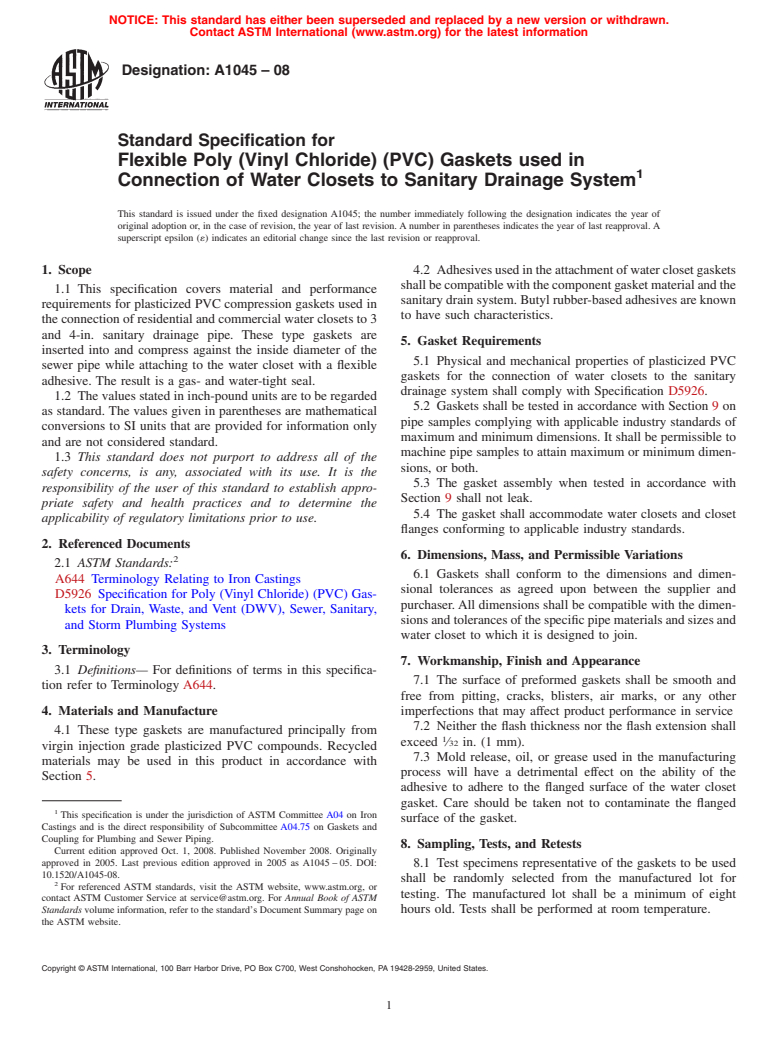

Designation: A1045 – 08
Standard Specification for
Flexible Poly (Vinyl Chloride) (PVC) Gaskets used in
1
Connection of Water Closets to Sanitary Drainage System
This standard is issued under the fixed designation A1045; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 4.2 Adhesivesusedintheattachmentofwaterclosetgaskets
shallbecompatiblewiththecomponentgasketmaterialandthe
1.1 This specification covers material and performance
sanitary drain system. Butyl rubber-based adhesives are known
requirements for plasticized PVC compression gaskets used in
to have such characteristics.
the connection of residential and commercial water closets to 3
and 4-in. sanitary drainage pipe. These type gaskets are
5. Gasket Requirements
inserted into and compress against the inside diameter of the
5.1 Physical and mechanical properties of plasticized PVC
sewer pipe while attaching to the water closet with a flexible
gaskets for the connection of water closets to the sanitary
adhesive. The result is a gas- and water-tight seal.
drainage system shall comply with Specification D5926.
1.2 The values stated in inch-pound units are to be regarded
5.2 Gaskets shall be tested in accordance with Section 9 on
as standard. The values given in parentheses are mathematical
pipe samples complying with applicable industry standards of
conversions to SI units that are provided for information only
maximum and minimum dimensions. It shall be permissible to
and are not considered standard.
machine pipe samples to attain maximum or minimum dimen-
1.3 This standard does not purport to address all of the
sions, or both.
safety concerns, is any, associated with its use. It is the
5.3 The gasket assembly when tested in accordance with
responsibility of the user of this standard to establish appro-
Section 9 shall not leak.
priate safety and health practices and to determine the
5.4 The gasket shall accommodate water closets and closet
applicability of regulatory limitations prior to use.
flanges conforming to applicable industry standards.
2. Referenced Documents
6. Dimensions, Mass, and Permissible Variations
2
2.1 ASTM Standards:
6.1 Gaskets shall conform to the dimensions and dimen-
A644 Terminology Relating to Iron Castings
sional tolerances as agreed upon between the supplier and
D5926 Specification for Poly (Vinyl Chloride) (PVC) Gas-
purchaser.All dimensions shall be compatible with the dimen-
kets for Drain, Waste, and Vent (DWV), Sewer, Sanitary,
sionsandtolerancesofthespecificpipematerialsandsizesand
and Storm Plumbing Systems
water closet to which it is designed to join.
3. Terminology
7. Workmanship, Finish and Appearance
3.1 Definitions— For definitions of terms in this specifica-
7.1 The surface of preformed gaskets shall be smooth and
tion refer to Terminology A644.
free from pitting, cracks, blisters, air marks, or any other
4. Materials and Manufacture imperfections that may affect product performance in service
7.2 Neither the flash thickness nor the flash extension shall
4.1 These type gaskets are manufactured principally from
1
exceed ⁄32 in. (1 mm).
virgin injection grade plasticized PVC compounds. Recycled
7.3 Mold release, oil, or grease used in the manufacturing
materials may be used in this product in accordance with
process will have a detrimental effect on the ability of the
Section 5.
adhesive to adhere to the flanged surface of the water closet
gasket. Care should be taken not to contaminate the flanged
1
This specification is under the jurisdiction of ASTM Committee A04 on Iron
surface of the gasket.
Castings and is the direct responsibility of Subcommittee A04.75 on Gaskets and
Coupling for Plumbing and Sewer Piping.
8. Sampling, Tests, and Retests
Current edition approved Oct. 1, 2008. Published November 2008. Originally
approved in 2005. Last previous edition approved in 2005 as A1045 – 05. DOI:
8.1 Test specimens representative of the gaskets to be used
10.1520/A1045-08.
shall be randomly selected from the manufactured lot for
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
testing. The manufactured lot shall be a minimum of eight
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on hours old. Tests shall be performed at room temperature.
the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
1
---------------------- Page: 1 ----------------------
A1045 – 08
8.2 Wherethereisafailureintheoriginaltest,theen
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

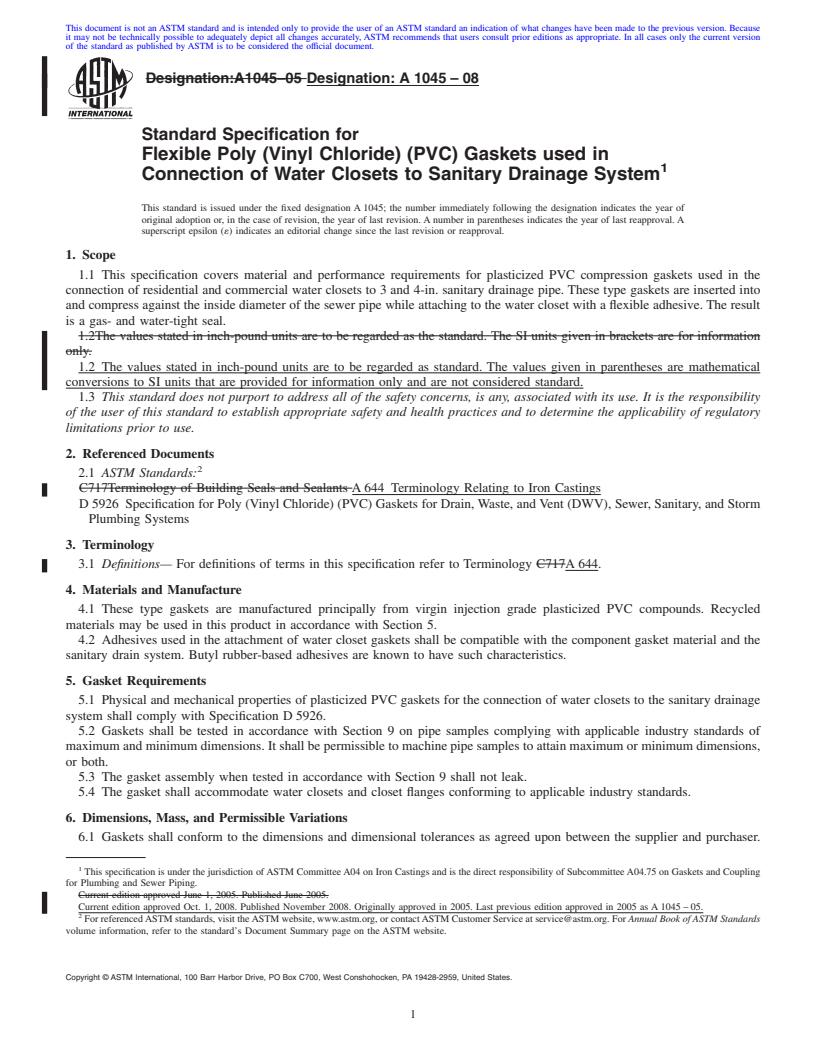

Designation:A1045–05 Designation: A 1045 – 08
Standard Specification for
Flexible Poly (Vinyl Chloride) (PVC) Gaskets used in
1
Connection of Water Closets to Sanitary Drainage System
This standard is issued under the fixed designation A 1045; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification covers material and performance requirements for plasticized PVC compression gaskets used in the
connection of residential and commercial water closets to 3 and 4-in. sanitary drainage pipe. These type gaskets are inserted into
and compress against the inside diameter of the sewer pipe while attaching to the water closet with a flexible adhesive. The result
is a gas- and water-tight seal.
1.2The values stated in inch-pound units are to be regarded as the standard. The SI units given in brackets are for information
only.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, is any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and to determine the applicability of regulatory
limitations prior to use.
2. Referenced Documents
2
2.1 ASTM Standards:
C717Terminology of Building Seals and Sealants A 644 Terminology Relating to Iron Castings
D 5926 Specification for Poly (Vinyl Chloride) (PVC) Gaskets for Drain, Waste, and Vent (DWV), Sewer, Sanitary, and Storm
Plumbing Systems
3. Terminology
3.1 Definitions— For definitions of terms in this specification refer to Terminology C717A 644.
4. Materials and Manufacture
4.1 These type gaskets are manufactured principally from virgin injection grade plasticized PVC compounds. Recycled
materials may be used in this product in accordance with Section 5.
4.2 Adhesives used in the attachment of water closet gaskets shall be compatible with the component gasket material and the
sanitary drain system. Butyl rubber-based adhesives are known to have such characteristics.
5. Gasket Requirements
5.1 Physical and mechanical properties of plasticized PVC gaskets for the connection of water closets to the sanitary drainage
system shall comply with Specification D 5926.
5.2 Gaskets shall be tested in accordance with Section 9 on pipe samples complying with applicable industry standards of
maximum and minimum dimensions. It shall be permissible to machine pipe samples to attain maximum or minimum dimensions,
or both.
5.3 The gasket assembly when tested in accordance with Section 9 shall not leak.
5.4 The gasket shall accommodate water closets and closet flanges conforming to applicable industry standards.
6. Dimensions, Mass, and Permissible Variations
6.1 Gaskets shall conform to the dimensions and dimensional tolerances as agreed upon between the supplier and purchaser.
1
This specification is under the jurisdiction ofASTM CommitteeA04 on Iron Castings and is the direct responsibility of SubcommitteeA04.75 on Gaskets and Coupling
for Plumbing and Sewer Piping.
Current edition approved June 1, 2005. Published June 2005.
Current edition approved Oct. 1, 2008. Published November 2008. Originally approved in 2005. Last previous edition approved in 2005 as A 1045 – 05.
2
For referencedASTM standards, visit theASTM website, www.astm.org, or contactASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
1
---------------------- Page: 1 ----------------------
A1045–08
All dimensions shall be compatible with the dimensions and tolerances of the specific pipe materials and sizes and water closet
to which it is designed to join.
7. Workmanship, Finish and Appearance
7.1 The surface of preformed gaskets shall be smooth and free from pitting, cracks, blisters, air marks, or any other
imperfections that may affect product performance in service
1
7.2 Neither the flash thickness nor the flash extension shall exceed ⁄32 in. (1 mm).
7.3 Mold release, oil, or grease used
...
