ASTM D7265-23

Standard Specification for Hydrogen Thermophysical Property Tables

SCOPE
1.1 The thermophysical property tables for normal hydrogen are for use in the calculation of the pressure-volume-temperature (PVT), thermodynamic, and transport properties of hydrogen for process design and operations, particularly as they relate to hydrogen fuel cell applications. Tables are provided for gaseous hydrogen at temperatures between 50 K and 500 K at pressures to 500 MPa. These tables were developed by the National Institute of Standards and Technology from a Standard Reference Database product REFPROP, version 10.02.
1.2 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-Oct-2023
• ICS: 27.075 - Hydrogen technologies
• Technical Committee: D03 - Gaseous Fuels
• Drafting Committee: D03.08 - Thermophysical Properties

Relations

• Replaces: ASTM D7265-12(2018) - Standard Specification for Hydrogen Thermophysical Property Tables
• Effective Date: 01-Nov-2023
• Referred By: ASTM D7941/D7941M-23 - Standard Test Method for Hydrogen Purity Analysis Using a Continuous Wave Cavity Ring-Down Spectroscopy Analyzer
• Effective Date: 01-Nov-2023

Overview

ASTM D7265-23 defines the standard specification for hydrogen thermophysical property tables, providing critical data for calculating pressure-volume-temperature (PVT), thermodynamic, and transport properties of normal hydrogen. These extensive tables, developed by the National Institute of Standards and Technology (NIST) based on their REFPROP software database, cover gaseous hydrogen at temperatures from 50 K to 500 K and pressures up to 500 MPa. The standard is intended for use in process design and operations, with a strong focus on hydrogen fuel cell applications.

Key Topics

• Hydrogen Thermophysical Data: The standard offers detailed values for key properties, including:

  • Molar density
  • Molar volume
  • Molar enthalpy
  • Molar entropy
  • Constant volume molar heat capacity (Cv)
  • Constant pressure molar heat capacity (Cp)
  • Speed of sound
  • Viscosity
  • Thermal conductivity

• Reference States: The property tables use standard reference states for enthalpy and entropy at 298.15 K and 0.101325 MPa, ensuring consistency and accuracy in calculations.

• Comprehensive Coverage: Tables are provided for a wide range of pressures and temperatures, including newly added tables for 35 MPa (350 bar) and 70 MPa (700 bar) - typical hydrogen fuel cell vehicle pressures.

• Intended Use: While the data is strictly for pure gaseous hydrogen, the tables can be valuable in developing mathematical models for hydrogen-containing mixtures.

• Standardized Approach: The document adheres to internationally recognized principles of standardization in line with World Trade Organization (WTO) guidelines on technical barriers to trade.

Applications

• Hydrogen Fuel Cell Systems: Essential for the design and operational analysis of hydrogen storage and dispensing systems in fuel cell vehicles and stationary applications.

• Process Design in Industry: Provides a reliable foundation for engineering calculations involving hydrogen, such as pipeline transport, storage facilities, and energy systems.

• Research and Development: Enables consistent thermodynamic and transport property data for simulation and modeling in academic and industrial research settings.

• Safety and Compliance: Facilitates adherence to safety standards by providing accurate hydrogen property data for risk assessment and engineering controls.

• Software Integration: The property tables are compatible with engineering software applications, particularly those utilizing the NIST REFPROP database, supporting automated calculations and system optimization.

Related Standards

To support and complement the use of ASTM D7265-23, consider the following related standards:

• ASTM D4150: Terminology Relating to Gaseous Fuels
• REFPROP (NIST Reference Fluid Thermodynamic and Transport Properties Database): The foundational data source for creating the property tables in D7265-23
• Additional hydrogen-related standards issued by ASTM Committee D03 on Gaseous Fuels

Practical Value

Engineers, researchers, and designers in the hydrogen energy sector rely on accurate, standardized data to achieve efficient, safe, and innovative solutions. ASTM D7265-23 fulfills this need by providing trusted property tables that underpin wide-ranging hydrogen applications, particularly in the rapidly growing sector of hydrogen fuel cell technology.

Keywords: ASTM D7265-23, hydrogen thermophysical properties, hydrogen property tables, hydrogen fuel cells, hydrogen gas data, thermodynamic properties of hydrogen, transport properties, NIST REFPROP, hydrogen process design.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

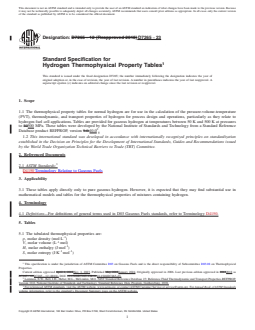

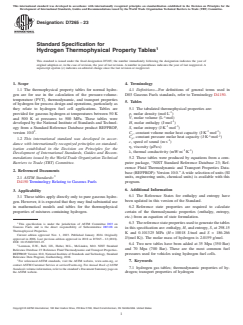

Designation: D7265 − 23
Standard Specification for
Hydrogen Thermophysical Property Tables
This standard is issued under the fixed designation D7265; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 4. Terminology
1.1 The thermophysical property tables for normal hydro- 4.1 Definitions—For definitions of general terms used in
gen are for use in the calculation of the pressure-volume- D03 Gaseous Fuels standards, refer to Terminology D4150.
temperature (PVT), thermodynamic, and transport properties
5. Tables
of hydrogen for process design and operations, particularly as
they relate to hydrogen fuel cell applications. Tables are 5.1 The tabulated thermophysical properties are:
-1
ρ, molar density (mol·L )
provided for gaseous hydrogen at temperatures between 50 K
-1
and 500 K at pressures to 500 MPa. These tables were V, molar volume (L ·mol)
-1
H, molar enthalpy (J·mol )
developed by the National Institute of Standards and Technol-
-1 -1
ogy from a Standard Reference Database product REFPROP, S, molar entropy (J·K ·mol )
2 -1 -1
C , constant volume molar heat capacity (J·K ·mol )
version 10.0 .
v
-1 -1
C , constant pressure molar heat capacity (J·K ·mol )
p
1.2 This international standard was developed in accor-
-1
c, speed of sound (m·s )
dance with internationally recognized principles on standard-
η, viscosity (μPa·s)
ization established in the Decision on Principles for the
-1 -1
λ, thermal conductivity (mW·m ·K )
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical 5.2 These tables were produced by equations from a com-
Barriers to Trade (TBT) Committee. puter package, “NIST Standard Reference Database 23; Ref-
erence Fluid Thermodynamic and Transport Properties Data-
2. Referenced Documents
base (REFPROP): Version 10.0.” A wide selection of units (SI
units, engineering units, chemical units) is available with this
2.1 ASTM Standards:
program.
D4150 Terminology Relating to Gaseous Fuels

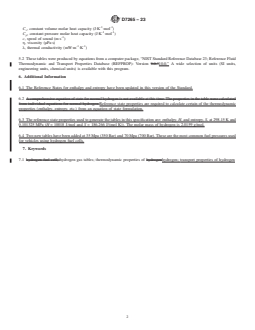

6. Additional Information
3. Applicability
6.1 The Reference States for enthalpy and entropy have
3.1 These tables apply directly only to pure gaseous hydro-
been updated in this version of the Standard.
gen. However, it is expected that they may find substantial use
in mathematical models and tables for the thermophysical
6.2 Reference state properties are required to calculate
properties of mixtures containing hydrogen.
certain of the thermodynamic properties (enthalpy, entropy,
etc.) from an equation of state formulation.
6.3 The reference state properties used to generate the tables
This specification is under the jurisdiction of ASTM Committee D03 on
Gaseous Fuels and is the direct responsibility of Subcommittee D03.08 on
in this specification are: enthalpy, H, and entropy, S, at 298.15
Thermophysical Properties.
K and 0.101325 MPa (H = 10018 J ⁄mol and S = 186.266
Current edition approved Nov. 1, 2023. Published January 2024. Originally
J/(mol K)). The molar mass of hydrogen is 2.0159 g/mol.
approved in 2006. Last previous edition approved in 2018 as D7265 – 12 (2018).
DOI: 10.1520/D7265-23.
6.4 Two new tables have been added at 35 Mpa (350 Bar)
Lemmon, E.W., Bell, I.H., Huber, M.L., McLinden, M.O. NIST Standard
and 70 Mpa (700 Bar). These are the most common fuel
Reference Database 23: Reference Fluid Thermodynamic and Transport Properties-
REFPROP, Version 10.0, National Institute of Standards and Technology, Standard pressures used for vehicles using hydrogen fuel cells.
Reference Data Program, Gaithersburg, 2018.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or 7. Keywords
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
7.1 hydrogen gas tables; thermodynamic properties of hy-
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. drogen; transport properties of hydrogen
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D7265 − 23

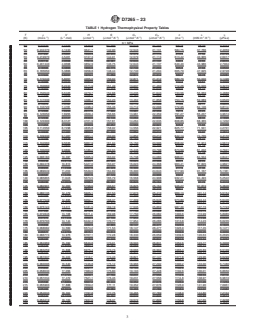

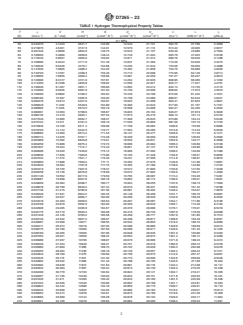

TABLE 1 Hydrogen Thermophysical Property Tables
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
0.1 MPa
50 0.242470 4.1243 3641.7 142.90 12.543 21.131 584.75 37.766 2.4059
55 0.219970 4.5461 3747.3 144.91 12.579 21.113 613.42 40.905 2.6017
60 0.201340 4.9668 3852.9 146.75 12.643 21.137 640.40 43.986 2.7904
65 0.185650 5.3866 3958.8 148.44 12.740 21.204 665.79 47.025 2.9728
70 0.172240 5.8057 4065.0 150.02 12.871 21.312 689.70 50.040 3.1496
75 0.160660 6.2244 4171.9 151.49 13.037 21.460 712.26 53.046 3.3215
80 0.150540 6.6426 4279.7 152.88 13.235 21.643 733.56 56.059 3.4888
85 0.141630 7.0605 4388.4 154.20 13.462 21.858 753.75 59.089 3.6520
90 0.133720 7.4781 4498.3 155.46 13.712 22.098 772.95 62.146 3.8114
95 0.126650 7.8955 4609.4 156.66 13.981 22.359 791.27 65.237 3.9674
100 0.120300 8.3127 4721.9 157.81 14.264 22.635 808.85 68.365 4.1202
105 0.114550 8.7298 4835.8 158.92 14.556 22.921 825.77 71.531 4.2701
110 0.109330 9.1467 4951.1 160.00 14.852 23.212 842.14 74.735 4.4172
115 0.104560 9.5635 5067.9 161.04 15.150 23.506 858.02 77.974 4.5619
120 0.100200 9.9802 5186.2 162.04 15.446 23.798 873.50 81.242 4.7041
125 0.096183 10.397 5305.9 163.02 15.738 24.086 888.61 84.534 4.8441
130 0.092478 10.813 5427.0 163.97 16.023 24.368 903.41 87.845 4.9821
135 0.089049 11.230 5549.6 164.89 16.300 24.643 917.93 91.167 5.1181
140 0.085865 11.646 5673.5 165.79 16.568 24.908 932.21 94.493 5.2522
145 0.082901 12.063 5798.6 166.67 16.825 25.164 946.27 97.819 5.3846
150 0.080135 12.479 5925.1 167.53 17.073 25.410 960.13 101.14 5.5154
155 0.077549 12.895 6052.7 168.37 17.309 25.645 973.80 104.44 5.6446
160 0.075124 13.311 6181.5 169.19 17.535 25.869 987.30 107.73 5.7723
165 0.072846 13.728 6311.4 169.98 17.750 26.082 1000.6 110.99 5.8985
170 0.070703 14.144 6442.3 170.77 17.954 26.285 1013.8 114.23 6.0235
175 0.068682 14.560 6574.2 171.53 18.147 26.477 1026.9 117.45 6.1471
180 0.066774 14.976 6707.1 172.28 18.330 26.659 1039.8 120.63 6.2695
185 0.064969 15.392 6840.8 173.01 18.503 26.831 1052.6 123.77 6.3908
190 0.063259 15.808 6975.4 173.73 18.666 26.994 1065.3 126.89 6.5109
195 0.061637 16.224 7110.7 174.43 18.821 27.147 1077.8 129.96 6.6299
200 0.060096 16.640 7246.8 175.12 18.966 27.292 1090.2 133.00 6.7480
205 0.058630 17.056 7383.6 175.80 19.103 27.428 1102.6 136.01 6.8650
210 0.057234 17.472 7521.1 176.46 19.231 27.556 1114.8 138.97 6.9810
215 0.055903 17.888 7659.2 177.11 19.352 27.676 1126.9 141.90 7.0961
220 0.054633 18.304 7797.8 177.75 19.465 27.789 1138.9 144.80 7.2104
225 0.053419 18.720 7937.0 178.37 19.572 27.895 1150.8 147.65 7.3238
230 0.052258 19.136 8076.8 178.99 19.672 27.994 1162.6 150.47 7.4363
235 0.051146 19.552 8217.0 179.59 19.765 28.087 1174.4 153.26 7.5481
240 0.050081 19.968 8357.6 180.18 19.852 28.174 1186.0 156.01 7.6591
245 0.049059 20.384 8498.7 180.77 19.934 28.255 1197.6 158.73 7.7693
250 0.048078 20.799 8640.2 181.34 20.010 28.331 1209.0 161.42 7.8788
255 0.047136 21.215 8782.0 181.90 20.081 28.402 1220.4 164.07 7.9876
260 0.046229 21.631 8924.2 182.45 20.148 28.468 1231.7 166.70 8.0957
265 0.045357 22.047 9066.7 182.99 20.209 28.529 1242.9 169.29 8.2032
270 0.044518 22.463 9209.5 183.53 20.267 28.587 1254.1 171.86 8.3100
275 0.043709 22.879 9352.5 184.05 20.320 28.640 1265.1 174.40 8.4162
280 0.042928 23.295 9495.9 184.57 20.370 28.689 1276.1 176.91 8.5218
285 0.042175 23.710 9639.4 185.08 20.416 28.735 1287.0 179.39 8.6268
290 0.041449 24.126 9783.2 185.58 20.458 28.777 1297.9 181.85 8.7313
295 0.040746 24.542 9927.2 186.07 20.498 28.817 1308.6 184.29 8.8351
300 0.040067 24.958 10071 186.55 20.534 28.853 1319.3 186.70 8.9385
305 0.039411 25.374 10216 187.03 20.568 28.886 1329.9 189.09 9.0413
310 0.038775 25.790 10360 187.50 20.599 28.917 1340.5 191.45 9.1435
315 0.038160 26.205 10505 187.96 20.628 28.946 1351.0 193.80 9.2453
320 0.037564 26.621 10650 188.42 20.654 28.972 1361.4 196.12 9.3466
325 0.036986 27.037 10795 188.87 20.679 28.996 1371.8 198.43 9.4474
330 0.036426 27.453 10940 189.31 20.701 29.018 1382.0 200.72 9.5478
335 0.035883 27.869 11085 189.75 20.722 29.039 1392.3 202.98 9.6476
340 0.035355 28.284 11230 190.18 20.740 29.057 1402.4 205.24 9.7471
345 0.034843 28.700 11375 190.60 20.758 29.075 1412.5 207.47 9.8461
350 0.034345 29.116 11521 191.02 20.773 29.090 1422.6 209.69 9.9446
355 0.033862 29.532 11666 191.43 20.788 29.105 1432.5 211.89 10.043
360 0.033392 29.948 11812 191.84 20.801 29.118 1442.4 214.08 10.141
365 0.032934 30.363 11957 192.24 20.813 29.130 1452.3 216.25 10.238
370 0.032490 30.779 12103 192.64 20.824 29.141 1462.1 218.41 10.335
375 0.032057 31.195 12249 193.03 20.834 29.151 1471.8 220.55 10.431
380 0.031635 31.611 12395 193.42 20.843 29.160 1481.5 222.69 10.528
385 0.031224 32.026 12540 193.80 20.852 29.168 1491.1 224.81 10.623
390 0.030824 32.442 12686 194.18 20.859 29.175 1500.7 226.91 10.719
395 0.030434 32.858 12832 194.55 20.866 29.182 1510.2 229.01 10.814\
400 0.030054 33.274 12978 194.91 20.873 29.189 1519.6 231.09 10.909
405 0.029683 33.689 13124 195.28 20.878 29.194 1529.0 233.17 11.003
410 0.029321 34.105 13270 195.63 20.884 29.200 1538.4 235.23 11.097
D7265 − 23

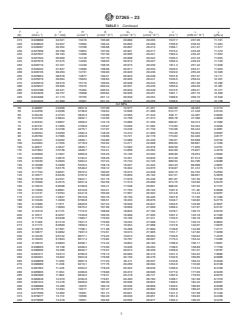

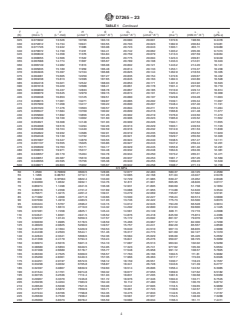

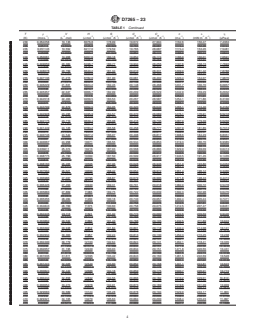

TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
415 0.028968 34.521 13416 195.99 20.889 29.205 1547.7 237.29 11.191
420 0.028623 34.937 13562 196.34 20.893 29.209 1556.9 239.33 11.284
425 0.028287 35.352 13708 196.68 20.897 29.213 1566.1 241.37 11.377
430 0.027958 35.768 13854 197.03 20.901 29.217 1575.2 243.40 11.470
435 0.027637 36.184 14000 197.36 20.905 29.221 1584.3 245.42 11.562
440 0.027323 36.600 14146 197.70 20.908 29.224 1593.4 247.43 11.655
445 0.027016 37.015 14293 198.03 20.912 29.227 1602.3 249.43 11.746
450 0.026716 37.431 14439 198.35 20.915 29.230 1611.3 251.42 11.838
455 0.026422 37.847 14585 198.68 20.917 29.233 1620.2 253.41 11.929
460 0.026135 38.263 14731 199.00 20.920 29.236 1629.0 255.40 12.020
465 0.025854 38.678 14877 199.31 20.923 29.238 1637.8 257.37 12.111
470 0.025579 39.094 15023 199.63 20.926 29.241 1646.5 259.34 12.201
475 0.025310 39.510 15170 199.94 20.928 29.244 1655.2 261.30 12.292
480 0.025047 39.926 15316 200.24 20.931 29.246 1663.9 263.26 12.381
485 0.024788 40.341 15462 200.54 20.933 29.249 1672.5 265.21 12.471
490 0.024536 40.757 15608 200.84 20.936 29.251 1681.1 267.16 12.560
495 0.024288 41.173 15755 201.14 20.939 29.254 1689.6 269.10 12.649
500 0.024045 41.589 15901 201.44 20.941 29.256 1698.0 271.03 12.738
0.2 MPa
50 0.48887 2.0456 3631.6 137.00 12.577 21.451 583.60 38.363 2.4174
55 0.44256 2.2596 3738.6 139.04 12.606 21.366 612.77 41.449 2.6124
60 0.40446 2.4724 3845.3 140.89 12.665 21.343 640.11 44.487 2.8003
65 0.37253 2.6844 3952.1 142.60 12.758 21.374 665.78 47.490 2.9820
70 0.34534 2.8957 4059.2 144.19 12.886 21.456 689.91 50.474 3.1582
75 0.32191 3.1065 4166.8 145.67 13.050 21.582 712.63 53.454 3.3294
80 0.30149 3.3168 4275.1 147.07 13.246 21.749 734.06 56.444 3.4961
85 0.28354 3.5269 4384.3 148.40 13.472 21.950 754.35 59.453 3.6587
90 0.26762 3.7366 4494.6 149.66 13.721 22.179 773.62 62.493 3.8177
95 0.25341 3.9462 4606.1 150.86 13.989 22.430 792.01 65.568 3.9732
100 0.24064 4.1555 4718.9 152.02 14.271 22.698 809.63 68.681 4.1256
105 0.22911 4.3647 4833.1 153.14 14.562 22.978 826.59 71.835 4.2751
110 0.21864 4.5738 4948.7 154.21 14.858 23.264 842.99 75.027 4.4219
115 0.20909 4.7827 5065.8 155.25 15.156 23.552 858.90 78.254 4.5662
120 0.20034 4.9916 5184.2 156.26 15.451 23.840 874.39 81.513 4.7082
125 0.19230 5.2003 5304.2 157.24 15.742 24.125 889.52 84.796 4.8480
130 0.18488 5.4090 5425.5 158.19 16.027 24.404 904.33 88.098 4.9857
135 0.17801 5.6176 5548.2 159.12 16.304 24.675 918.87 91.412 5.1215
140 0.17164 5.8261 5672.2 160.02 16.572 24.938 933.15 94.732 5.2554
145 0.16571 6.0346 5797.6 160.90 16.829 25.192 947.21 98.051 5.3876
150 0.16018 6.2431 5924.1 161.76 17.076 25.436 961.07 101.36 5.5182
155 0.15500 6.4515 6051.9 162.59 17.313 25.669 974.75 104.66 5.6472
160 0.15015 6.6598 6180.8 163.41 17.538 25.891 988.25 107.94 5.7747
165 0.14560 6.8681 6310.8 164.21 17.753 26.103 1001.6 111.20 5.9009
170 0.14131 7.0764 6441.8 165.00 17.957 26.304 1014.8 114.44 6.0257
175 0.13727 7.2847 6573.8 165.76 18.150 26.495 1027.8 117.65 6.1492
180 0.13346 7.4929 6706.8 166.51 18.333 26.676 1040.7 120.82 6.2715
185 0.12985 7.7011 6840.6 167.24 18.506 26.847 1053.5 123.96 6.3927
190 0.12643 7.9093 6975.2 167.96 18.669 27.009 1066.2 127.07 6.5127
195 0.12319 8.1175 7110.6 168.66 18.823 27.162 1078.7 130.15 6.6316
200 0.12011 8.3257 7246.8 169.35 18.968 27.305 1091.2 133.18 6.7495
205 0.11718 8.5338 7383.7 170.03 19.105 27.441 1103.5 136.18 6.8665
210 0.11439 8.7419 7521.2 170.69 19.234 27.568 1115.7 139.15 6.9824
215 0.11173 8.9500 7659.3 171.34 19.354 27.688 1127.8 142.07 7.0975
220 0.10919 9.1581 7798.1 171.98 19.468 27.800 1139.8 144.96 7.2117
225 0.10677 9.3662 7937.3 172.61 19.574 27.905 1151.7 147.82 7.3250
230 0.10445 9.5742 8077.1 173.22 19.674 28.004 1163.6 150.64 7.4375
235 0.10223 9.7823 8217.4 173.82 19.767 28.097 1175.3 153.42 7.5492
240 0.10010 9.9903 8358.1 174.42 19.854 28.183 1186.9 156.17 7.6601
245 0.098055 10.198 8499.2 175.00 19.936 28.264 1198.5 158.89 7.7703
250 0.096095 10.406 8640.7 175.57 20.012 28.339 1209.9 161.57 7.8797
255 0.094211 10.614 8782.6 176.13 20.083 28.410 1221.3 164.22 7.9885
260 0.092401 10.822 8924.8 176.68 20.150 28.476 1232.6 166.85 8.0966
265 0.090658 11.030 9067.3 177.23 20.211 28.537 1243.8 169.44 8.2040
270 0.088980 11.238 9210.1 177.76 20.269 28.594 1254.9 172.00 8.3108
275 0.087364 11.446 9353.2 178.29 20.322 28.646 1266.0 174.54 8.4169
280 0.085805 11.654 9496.6 178.80 20.372 28.696 1277.0 177.05 8.5225
285 0.084300 11.862 9640.2 179.31 20.418 28.741 1287.9 179.53 8.6275
290 0.082848 12.070 9784.0 179.81 20.460 28.783 1298.7 181.99 8.7319
295 0.081444 12.278 9928.0 180.30 20.500 28.822 1309.5 184.42 8.8357
300 0.080088 12.486 10072 180.79 20.536 28.858 1320.2 186.83 8.9390
305 0.078776 12.694 10217 181.27 20.570 28.892 1330.8 189.22 9.0418
310 0.077506 12.902 10361 181.74 20.601 28.922 1341.3 191.58 9.1440
315 0.076277 13.110 10506 182.20 20.630 28.951 1351.8 193.93 9.2458
320 0.075086 13.318 10651 182.66 20.656 28.977 1362.2 196.25 9.3470
D7265 − 23
TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
325 0.073932 13.526 10796 183.10 20.680 29.001 1372.6 198.56 9.4478
330 0.072812 13.734 10941 183.55 20.703 29.023 1382.9 200.84 9.5481
335 0.071726 13.942 11086 183.98 20.723 29.043 1393.1 203.11 9.6480
340 0.070672 14.150 11231 184.41 20.742 29.062 1403.2 205.36 9.7474
345 0.069649 14.358 11376 184.84 20.759 29.079 1413.3 207.59 9.8464
350 0.068655 14.566 11522 185.26 20.775 29.094 1423.3 209.81 9.9449
355 0.067688 14.774 11667 185.67 20.789 29.108 1433.3 212.01 10.043
360 0.066749 14.982 11813 186.08 20.802 29.121 1443.2 214.20 10.141
365 0.065835 15.189 11959 186.48 20.814 29.133 1453.1 216.37 10.238
370 0.064946 15.397 12104 186.88 20.825 29.144 1462.9 218.53 10.335
375 0.064081 15.605 12250 187.27 20.835 29.154 1472.6 220.67 10.432
380 0.063238 15.813 12396 187.65 20.845 29.163 1482.3 222.80 10.528
385 0.062418 16.021 12542 188.03 20.853 29.171 1491.9 224.92 10.623
390 0.061618 16.229 12688 188.41 20.861 29.178 1501.4 227.03 10.719
395 0.060839 16.437 12833 188.78 20.867 29.185 1510.9 229.12 10.814
400 0.060079 16.645 12979 189.15 20.874 29.191 1520.4 231.21 10.909
405 0.059338 16.853 13125 189.51 20.880 29.197 1529.8 233.28 11.003
410 0.058615 17.061 13271 189.87 20.885 29.202 1539.1 235.34 11.097
415 0.057909 17.268 13417 190.22 20.890 29.207 1548.4 237.40 11.191
420 0.057220 17.476 13563 190.57 20.894 29.211 1557.6 239.44 11.284
425 0.056547 17.684 13709 190.92 20.899 29.216 1566.8 241.48 11.377
430 0.055890 17.892 13856 191.26 20.902 29.219 1576.0 243.50 11.470
435 0.055248 18.100 14002 191.60 20.906 29.223 1585.0 245.52 11.562
440 0.054621 18.308 14148 191.93 20.909 29.226 1594.1 247.53 11.655
445 0.054008 18.516 14294 192.26 20.913 29.229 1603.1 249.53 11.746
450 0.053408 18.724 14440 192.59 20.916 29.232 1612.0 251.53 11.838
455 0.052822 18.932 14586 192.91 20.919 29.235 1620.9 253.52 11.929
460 0.052248 19.139 14732 193.23 20.921 29.238 1629.7 255.50 12.020
465 0.051687 19.347 14879 193.55 20.924 29.240 1638.5 257.47 12.111
470 0.051137 19.555 15025 193.86 20.927 29.243 1647.2 259.44 12.201
475 0.050599 19.763 15171 194.17 20.929 29.245 1655.9 261.40 12.291
480 0.050073 19.971 15317 194.48 20.932 29.248 1664.6 263.36 12.381
485 0.049557 20.179 15464 194.78 20.934 29.250 1673.2 265.31 12.471
490 0.049051 20.387 15610 195.08 20.937 29.253 1681.7 267.26 12.560
495 0.048556 20.595 15756 195.38 20.940 29.255 1690.2 269.20 12.649
500 0.048071 20.803 15902 195.67 20.942 29.258 1698.7 271.13 12.738
0.5 MPa
50 1.2530 0.79809 3600.5 128.96 12.677 22.483 580.37 40.125 2.4560
55 1.1266 0.88761 3712.1 131.08 12.685 22.168 611.04 43.047 2.6478
60 1.0248 0.97584 3822.4 133.00 12.729 21.985 639.47 45.952 2.8328
65 0.94060 1.0632 3932.1 134.76 12.811 21.901 665.95 48.846 3.0117
70 0.86974 1.1498 4041.6 136.38 12.931 21.895 690.69 51.738 3.1854
75 0.80916 1.2358 4151.2 137.89 13.088 21.955 713.88 54.640 3.3544
80 0.75671 1.3215 4261.2 139.31 13.279 22.069 735.67 57.562 3.5191
85 0.71082 1.4068 4371.9 140.66 13.500 22.227 756.24 60.513 3.6800
90 0.67030 1.4919 4483.5 141.93 13.746 22.422 775.73 63.500 3.8373
95 0.63424 1.5767 4596.2 143.15 14.012 22.645 794.29 66.528 3.9914
100 0.60193 1.6613 4710.0 144.32 14.292 22.890 812.04 69.600 4.1425
105 0.57281 1.7458 4825.1 145.44 14.581 23.149 829.11 72.716 4.2908
110 0.54641 1.8301 4941.5 146.52 14.876 23.418 845.59 75.874 4.4366
115 0.52237 1.9143 5059.3 147.57 15.172 23.692 861.57 79.070 4.5799
120 0.50039 1.9985 5178.5 148.59 15.466 23.967 877.12 82.300 4.7209
125 0.48020 2.0825 5299.0 149.57 15.757 24.241 892.29 85.557 4.8599
130 0.46159 2.1664 5420.9 150.53 16.040 24.510 907.13 88.835 4.9968
135 0.44438 2.2503 5544.1 151.46 16.317 24.773 921.69 92.127 5.1319
140 0.42843 2.3341 5668.6 152.36 16.584 25.029 936.00 95.426 5.2652
145 0.41358 2.4179 5794.3 153.24 16.841 25.276 950.07 98.725 5.3969
150 0.39974 2.5016 5921.3 154.10 17.087 25.513 963.94 102.02 5.5269
155 0.38680 2.5853 6049.5 154.95 17.323 25.741 977.62 105.30 5.6554
160 0.37468 2.6689 6178.7 155.77 17.548 25.958 991.12 108.57 5.7825
165 0.36330 2.7525 6309.0 156.57 17.763 26.166 1004.5 111.81 5.9082
170 0.35260 2.8361 6440.3 157.35 17.966 26.363 1017.7 115.03 6.0326
175 0.34251 2.9197 6572.6 158.12 18.159 26.551 1030.7 118.23 6.1557
180 0.33298 3.0032 6705.8 158.87 18.341 26.728 1043.6 121.39 6.2777
185 0.32397 3.0867 6839.9 159.60 18.514 26.896 1056.4 124.52 6.3985
190 0.31544 3.1701 6974.8 160.32 18.677 27.055 1069.0 127.62 6.5182
195 0.30735 3.2536 7110.4 161.03 18.831 27.205 1081.6 130.68 6.6369
200 0.29967 3.3370 7246.8 161.72 18.976 27.346 1094.0 133.71 6.7545
205 0.29236 3.4204 7383.9 162.40 19.112 27.480 1106.3 136.70 6.8712
210 0.28540 3.5038 7521.6 163.06 19.241 27.605 1118.5 139.65 6.9869
215 0.27877 3.5872 7659.9 163.71 19.361 27.723 1130.6 142.57 7.1017
220 0.27244 3.6706 7798.8 164.35 19.475 27.833 1142.6 145.45 7.2157
225 0.26639 3.7539 7938.2 164.98 19.581 27.937 1154.5 148.30 7.3288
230 0.26060 3.8373 8078.2 165.59 19.680 28.034 1166.3 151.11 7.4411
D7265 − 23
TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
235 0.25506 3.9206 8218.6 166.19 19.773 28.125 1178.0 153.89 7.5526
240 0.24975 4.0040 8359.4 166.79 19.861 28.210 1189.6 156.63 7.6634
245 0.24466 4.0873 8500.7 167.37 19.942 28.290 1201.2 159.34 7.7734
250 0.23978 4.1706 8642.3 167.94 20.018 28.364 1212.6 162.02 7.8827
255 0.23508 4.2539 8784.3 168.50 20.089 28.434 1224.0 164.67 7.9913
260 0.23057 4.3372 8926.6 169.06 20.155 28.498 1235.3 167.28 8.0992
265 0.22622 4.4205 9069.3 169.60 20.217 28.559 1246.5 169.87 8.2065
270 0.22204 4.5037 9212.2 170.14 20.274 28.615 1257.6 172.43 8.3132
275 0.21801 4.5870 9355.4 170.66 20.328 28.667 1268.6 174.96 8.4192
280 0.21412 4.6703 9498.9 171.18 20.377 28.715 1279.6 177.46 8.5246
285 0.21037 4.7535 9642.6 171.69 20.423 28.760 1290.5 179.94 8.6295
290 0.20675 4.8368 9786.5 172.19 20.465 28.801 1301.3 182.39 8.7338
295 0.20325 4.9200 9930.6 172.68 20.505 28.839 1312.0 184.82 8.8375
300 0.19987 5.0033 10075 173.16 20.541 28.875 1322.7 187.23 8.9407
305 0.19660 5.0865 10219 173.64 20.575 28.908 1333.3 189.61 9.0434
310 0.19343 5.1697 10364 174.11 20.606 28.938 1343.8 191.97 9.1456
315 0.19037 5.2530 10509 174.58 20.634 28.966 1354.3 194.31 9.2472
320 0.18740 5.3362 10654 175.03 20.661 28.991 1364.7 196.63 9.3484
325 0.18452 5.4194 10799 175.48 20.685 29.015 1375.0 198.93 9.4491
330 0.18173 5.5026 10944 175.92 20.707 29.036 1385.3 201.21 9.5494
335 0.17902 5.5859 11089 176.36 20.727 29.056 1395.5 203.48 9.6491
340 0.17640 5.6691 11234 176.79 20.746 29.074 1405.6 205.72 9.7485
345 0.17384 5.7523 11380 177.22 20.763 29.091 1415.7 207.95 9.8474
350 0.17137 5.8355 11525 177.64 20.779 29.106 1425.7 210.17 9.9459
355 0.16896 5.9187 11671 178.05 20.793 29.120 1435.7 212.36 10.044
360 0.16661 6.0019 11816 178.46 20.806 29.132 1445.6 214.55 10.142
365 0.16434 6.0851 11962 178.86 20.818 29.144 1455.4 216.72 10.239
370 0.16212 6.1683 12108 179.25 20.829 29.154 1465.2 218.87 10.336
375 0.15996 6.2515 12254 179.65 20.839 29.164 1474.9 221.01 10.432
380 0.15786 6.3347 12399 180.03 20.848 29.172 1484.6 223.14 10.528
385 0.15582 6.4179 12545 180.41 20.857 29.180 1494.2 225.26 10.624
390 0.15382 6.5011 12691 180.79 20.864 29.187 1503.7 227.36 10.719
395 0.15188 6.5842 12837 181.16 20.871 29.194 1513.2 229.45 10.814
400 0.14998 6.6674 12983 181.53 20.878 29.200 1522.6 231.54 10.909
405 0.14813 6.7506 13129 181.89 20.883 29.205 1532.0 233.61 11.003
410 0.14633 6.8338 13275 182.25 20.889 29.210 1541.4 235.67 11.097
415 0.14457 6.9170 13421 182.60 20.893 29.215 1550.6 237.72 11.191
420 0.14285 7.0001 13567 182.95 20.898 29.219 1559.9 239.76 11.284
425 0.14118 7.0833 13713 183.30 20.902 29.223 1569.0 241.79 11.377
430 0.13954 7.1665 13860 183.64 20.906 29.226 1578.1 243.82 11.470
435 0.13794 7.2497 14006 183.98 20.909 29.230 1587.2 245.83 11.563
440 0.13637 7.3328 14152 184.31 20.913 29.233 1596.2 247.84 11.655
445 0.13484 7.4160 14298 184.64 20.916 29.236 1605.2 249.84 11.746
450 0.13335 7.4992 14444 184.97 20.919 29.238 1614.1 251.84 11.838
455 0.13189 7.5824 14590 185.29 20.922 29.241 1623.0 253.82 11.929
460 0.13045 7.6655 14737 185.61 20.925 29.244 1631.8 255.80 12.020
465 0.12905 7.7487 14883 185.93 20.927 29.246 1640.6 257.77 12.111
470 0.12768 7.8319 15029 186.24 20.930 29.248 1649.3 259.74 12.201
475 0.12634 7.9150 15175 186.55 20.932 29.251 1658.0 261.70 12.291
480 0.12503 7.9982 15322 186.86 20.935 29.253 1666.6 263.66 12.381
485 0.12374 8.0813 15468 187.16 20.938 29.256 1675.2 265.60 12.471
490 0.12248 8.1645 15614 187.46 20.940 29.258 1683.8 267.55 12.560
495 0.12125 8.2477 15760 187.76 20.943 29.260 1692.3 269.49 12.649
500 0.12004 8.3308 15907 188.05 20.945 29.263 1700.7 271.42 12.738
1.0 MPa
50 2.6174 0.38206 3546.7 122.45 12.837 24.482 576.10 43.028 2.5365
55 2.3238 0.43034 3666.8 124.74 12.810 23.649 609.15 45.633 2.7187
60 2.0958 0.47715 3783.7 126.78 12.830 23.135 639.26 48.298 2.8958
65 1.9122 0.52296 3898.5 128.62 12.895 22.823 666.97 51.002 3.0684
70 1.7605 0.56803 4012.2 130.30 13.002 22.654 692.63 53.740 3.2366
75 1.6325 0.61255 4125.3 131.86 13.149 22.591 716.50 56.512 3.4009
80 1.5229 0.65663 4238.2 133.32 13.332 22.611 738.82 59.323 3.5616
85 1.4278 0.70036 4351.5 134.69 13.547 22.695 759.79 62.178 3.7189
90 1.3444 0.74382 4465.3 135.99 13.788 22.830 779.59 65.082 3.8730
95 1.2706 0.78705 4579.8 137.23 14.049 23.005 798.39 68.036 4.0243
100 1.2047 0.83010 4695.4 138.42 14.326 23.208 816.34 71.042 4.1730
105 1.1455 0.87298 4812.0 139.55 14.612 23.434 833.55 74.099 4.3190
110 1.0920 0.91572 4929.7 140.65 14.904 23.674 850.15 77.204 4.4628
115 1.0435 0.95835 5048.7 141.71 15.199 23.923 866.21 80.351 4.6043
120 0.99912 1.0009 5169.0 142.73 15.491 24.178 881.82 83.537 4.7437
125 0.95847 1.0433 5290.5 143.72 15.780 24.433 897.05 86.753 4.8812
130 0.92107 1.0857 5413.3 144.69 16.063 24.686 911.93 89.994 5.0167
135 0.88653 1.1280 5537.3 145.62 16.337 24.935 926.52 93.251 5.1506
140 0.85453 1.1702 5662.6 146.53 16.603 25.178 940.84 96.518 5.2827
D7265 − 23
TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
145 0.82480 1.2124 5789.1 147.42 16.860 25.413 954.93 99.787 5.4133
150 0.79709 1.2546 5916.7 148.29 17.105 25.641 968.80 103.05 5.5424
155 0.77122 1.2967 6045.5 149.13 17.341 25.860 982.48 106.31 5.6700
160 0.74699 1.3387 6175.3 149.96 17.565 26.069 995.98 109.55 5.7962
165 0.72425 1.3807 6306.2 150.76 17.778 26.269 1009.3 112.77 5.9212
170 0.70287 1.4227 6438.0 151.55 17.981 26.460 1022.5 115.97 6.0448
175 0.68274 1.4647 6570.8 152.32 18.174 26.642 1035.5 119.15 6.1673
180 0.66373 1.5066 6704.4 153.07 18.356 26.814 1048.4 122.29 6.2887
185 0.64576 1.5486 6838.9 153.81 18.528 26.977 1061.2 125.40 6.4089
190 0.62875 1.5904 6974.2 154.53 18.691 27.131 1073.8 128.48 6.5280
195 0.61263 1.6323 7110.2 155.24 18.844 27.277 1086.3 131.53 6.6462
200 0.59731 1.6742 7246.9 155.93 18.989 27.414 1098.7 134.54 6.7634
205 0.58275 1.7160 7384.3 156.61 19.125 27.544 1111.0 137.52 6.8796
210 0.56888 1.7578 7522.3 157.27 19.253 27.666 1123.2 140.46 6.9949
215 0.55566 1.7996 7660.9 157.92 19.373 27.780 1135.3 143.36 7.1093
220 0.54305 1.8414 7800.1 158.56 19.486 27.888 1147.2 146.23 7.2229
225 0.53100 1.8832 7939.8 159.19 19.592 27.989 1159.1 149.07 7.3356
230 0.51948 1.9250 8080.0 159.81 19.691 28.084 1170.9 151.87 7.4476
235 0.50845 1.9668 8220.6 160.41 19.784 28.173 1182.6 154.63 7.5588
240 0.49788 2.0085 8361.7 161.01 19.871 28.256 1194.2 157.36 7.6692
245 0.48774 2.0503 8503.2 161.59 19.952 28.333 1205.7 160.06 7.7790
250 0.47801 2.0920 8645.0 162.16 20.028 28.406 1217.1 162.73 7.8880
255 0.46867 2.1337 8787.2 162.73 20.099 28.473 1228.4 165.37 7.9963
260 0.45968 2.1754 8929.8 163.28 20.165 28.536 1239.7 167.98 8.1040
265 0.45103 2.2171 9072.6 163.82 20.226 28.595 1250.9 170.55 8.2111
270 0.44270 2.2588 9215.7 164.36 20.283 28.649 1262.0 173.10 8.3175
275 0.43468 2.3005 9359.1 164.89 20.337 28.700 1273.0 175.63 8.4233
280 0.42694 2.3422 9502.7 165.40 20.386 28.747 1283.9 178.12 8.5286
285 0.41948 2.3839 9646.5 165.91 20.432 28.790 1294.8 180.59 8.6332
290 0.41227 2.4256 9790.6 166.41 20.474 28.831 1305.6 183.04 8.7373
295 0.40531 2.4673 9934.9 166.91 20.513 28.868 1316.3 185.46 8.8409
300 0.39857 2.5089 10079 167.39 20.549 28.902 1326.9 187.86 8.9439
305 0.39206 2.5506 10224 167.87 20.583 28.934 1337.5 190.23 9.0464
310 0.38576 2.5923 10369 168.34 20.614 28.963 1348.0 192.59 9.1484
315 0.37966 2.6339 10513 168.80 20.642 28.990 1358.5 194.92 9.2500
320 0.37375 2.6756 10659 169.26 20.668 29.015 1368.8 197.24 9.3510
325 0.36802 2.7172 10804 169.71 20.692 29.037 1379.1 199.53 9.4515
330 0.36247 2.7589 10949 170.15 20.715 29.058 1389.4 201.81 9.5517
335 0.35708 2.8005 11094 170.59 20.735 29.077 1399.6 204.06 9.6513
340 0.35185 2.8422 11240 171.02 20.753 29.094 1409.7 206.31 9.7505
345 0.34676 2.8838 11385 171.45 20.771 29.110 1419.7 208.53 9.8493
350 0.34183 2.9254 11531 171.87 20.786 29.125 1429.7 210.74 9.9477
355 0.33703 2.9671 11676 172.28 20.800 29.138 1439.7 212.93 10.0460
360 0.33237 3.0087 11822 172.69 20.813 29.150 1449.5 215.11 10.1430
365 0.32783 3.0503 11968 173.09 20.825 29.161 1459.3 217.27 10.2400
370 0.32342 3.0919 12114 173.49 20.836 29.171 1469.1 219.42 10.3370
375 0.31913 3.1336 12260 173.88 20.846 29.180 1478.8 221.56 10.4330
380 0.31494 3.1752 12406 174.26 20.855 29.188 1488.4 223.68 10.5300
385 0.31087 3.2168 12551 174.65 20.863 29.195 1498.0 225.80 10.6250
390 0.30690 3.2584 12697 175.02 20.871 29.202 1507.5 227.90 10.7200
395 0.30303 3.3000 12844 175.39 20.877 29.208 1517.0 229.99 10.8150
400 0.29925 3.3416 12990 175.76 20.884 29.214 1526.4 232.06 10.9100
405 0.29557 3.3833 13136 176.13 20.889 29.219 1535.8 234.13 11.0040
410 0.29198 3.4249 13282 176.48 20.895 29.223 1545.1 236.19 11.0980
415 0.28848 3.4665 13428 176.84 20.899 29.227 1554.3 238.24 11.1920
420 0.28506 3.5081 13574 177.19 20.904 29.231 1563.5 240.27 11.2850
425 0.28172 3.5497 13720 177.53 20.908 29.235 1572.7 242.30 11.3780
430 0.27845 3.5913 13866 177.88 20.912 29.238 1581.8 244.33 11.4710
435 0.27526 3.6329 14013 178.21 20.915 29.241 1590.8 246.34 11.5630
440 0.27215 3.6745 14159 178.55 20.918 29.244 1599.8 248.34 11.6550
445 0.26910 3.7161 14305 178.88 20.921 29.246 1608.8 250.34 11.7470
450 0.26612 3.7577 14451 179.21 20.924 29.249 1617.7 252.33 11.8380
455 0.26321 3.7993 14597 179.53 20.927 29.251 1626.5 254.31 11.9290
460 0.26036 3.8409 14744 179.85 20.930 29.253 1635.3 256.29 12.0200
465 0.25757 3.8825 14890 180.16 20.933 29.256 1644.1 258.26 12.1110
470 0.25484 3.9241 15036 180.48 20.935 29.258 1652.8 260.22 12.2010
475 0.25217 3.9656 15183 180.79 20.938 29.260 1661.5 262.18 12.2910
480 0.24955 4.0072 15329 181.09 20.940 29.262 1670.1 264.13 12.3810
485 0.24698 4.0488 15475 181.40 20.943 29.264 1678.7 266.08 12.4710
490 0.24447 4.0904 15622 181.70 20.945 29.266 1687.2 268.02 12.5600
495 0.24201 4.1320 15768 181.99 20.948 29.268 1695.7 269.96 12.6490
500 0.23960 4.1736 15914 182.29 20.950 29.271 1704.1 271.89 12.7380
2.0 MPa
50 5.7345 0.17438 3432.2 115.07 13.1370 29.720 575.26 49.217 2.7767
D7265 − 23
TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
55 4.9415 0.20237 3573.7 117.77 13.0370 27.145 611.25 50.851 2.9133
60 4.3752 0.22856 3705.5 120.07 13.0130 25.692 643.47 52.877 3.0602
65 3.9430 0.25362 3831.5 122.08 13.0470 24.800 672.73 55.120 3.2107
70 3.5988 0.27787 3954.0 123.90 13.1320 24.240 699.53 57.505 3.3619
75 3.3162 0.30155 4074.3 125.56 13.2620 23.898 724.26 59.997 3.5125
80 3.0789 0.32479 4193.3 127.10 13.4320 23.710 747.22 62.578 3.6618
85 2.8762 0.34768 4311.6 128.53 13.6350 23.635 768.67 65.240 3.8096
90 2.7005 0.37030 4429.8 129.88 13.8670 23.644 788.84 67.978 3.9557
95 2.5465 0.39269 4548.1 131.16 14.1210 23.717 807.91 70.789 4.1000
100 2.4102 0.41490 4667.0 132.38 14.3910 23.838 826.05 73.669 4.2424
105 2.2886 0.43695 4786.6 133.55 14.6730 23.994 843.41 76.615 4.3831
110 2.1792 0.45887 4907.0 134.67 14.9610 24.177 860.11 79.620 4.5220
115 2.0804 0.48068 5028.4 135.75 15.2510 24.377 876.25 82.678 4.6593
120 1.9905 0.50239 5150.8 136.79 15.5400 24.589 891.91 85.782 4.7948
125 1.9083 0.52402 5274.3 137.80 15.8260 24.807 907.16 88.924 4.9288
130 1.8329 0.54557 5398.8 138.77 16.1060 25.029 922.05 92.097 5.0613
135 1.7635 0.56706 5524.5 139.72 16.3790 25.250 936.64 95.291 5.1922
140 1.6993 0.58849 5651.3 140.64 16.6430 25.468 950.95 98.500 5.3218
145 1.6397 0.60987 5779.2 141.54 16.8970 25.682 965.02 101.72 5.4500
150 1.5843 0.63121 5908.1 142.42 17.1410 25.890 978.86 104.93 5.5768
155 1.5326 0.65250 6038.1 143.27 17.3750 26.091 992.51 108.14 5.7025
160 1.4842 0.67376 6169.0 144.10 17.5980 26.285 1006.0 111.34 5.8268
165 1.4389 0.69498 6300.9 144.91 17.8100 26.471 1019.3 114.52 5.9501
170 1.3963 0.71618 6433.7 145.70 18.0120 26.649 1032.4 117.68 6.0721
175 1.3562 0.73734 6567.4 146.48 18.2030 26.819 1045.4 120.82 6.1931
180 1.3184 0.75849 6701.9 147.24 18.3840 26.980 1058.2 123.93 6.3131
185 1.2827 0.77961 6837.2 147.98 18.5560 27.134 1070.9 127.01 6.4320
190 1.2489 0.80070 6973.2 148.70 18.7180 27.279 1083.5 130.06 6.5500
195 1.2169 0.82178 7110.0 149.41 18.8700 27.416 1096.0 133.08 6.6670
200 1.1865 0.84285 7247.4 150.11 19.0140 27.546 1108.3 136.06 6.7831
205 1.1576 0.86389 7385.4 150.79 19.1500 27.669 1120.6 139.01 6.8983
210 1.1300 0.88492 7524.1 151.46 19.2770 27.784 1132.7 141.93 7.0127
215 1.1038 0.90594 7663.3 152.12 19.3970 27.893 1144.7 144.81 7.1263
220 1.0788 0.92694 7803.0 152.76 19.5090 27.995 1156.6 147.66 7.2390
225 1.0549 0.94793 7943.2 153.39 19.6140 28.091 1168.4 150.47 7.3510
230 1.0321 0.96891 8083.9 154.01 19.7130 28.181 1180.2 153.25 7.4622
235 1.0102 0.98989 8225.0 154.61 19.8050 28.265 1191.8 155.99 7.5727
240 0.98927 1.0108 8366.5 155.21 19.8920 28.344 1203.3 158.71 7.6825
245 0.96918 1.0318 8508.4 155.79 19.9730 28.418 1214.8 161.39 7.7916
250 0.94990 1.0527 8650.7 156.37 20.0480 28.486 1226.1 164.04 7.9000
255 0.93138 1.0737 8793.3 156.93 20.1180 28.550 1237.4 166.66 8.0078
260 0.91357 1.0946 8936.2 157.49 20.1840 28.610 1248.6 169.25 8.1150
265 0.89644 1.1155 9079.4 158.03 20.2450 28.666 1259.7 171.81 8.2215
270 0.87994 1.1364 9222.8 158.57 20.3020 28.717 1270.8 174.35 8.3274
275 0.86405 1.1573 9366.6 159.10 20.3550 28.765 1281.7 176.86 8.4328
280 0.84872 1.1782 9510.5 159.62 20.4040 28.809 1292.6 179.34 8.5376
285 0.83393 1.1991 9654.6 160.13 20.4490 28.851 1303.4 181.80 8.6418
290 0.81965 1.2200 9799.0 160.63 20.4910 28.888 1314.2 184.23 8.7455
295 0.80585 1.2409 9943.5 161.12 20.5300 28.923 1324.8 186.64 8.8487
300 0.79252 1.2618 10088 161.61 20.5660 28.956 1335.4 189.02 8.9514
305 0.77962 1.2827 10233 162.09 20.5990 28.985 1345.9 191.39 9.0535
310 0.76713 1.3036 10378 162.56 20.6300 29.013 1356.4 193.73 9.1552
315 0.75504 1.3244 10523 163.02 20.6580 29.038 1366.8 196.05 9.2564
320 0.74333 1.3453 10668 163.48 20.6840 29.061 1377.1 198.36 9.3571
325 0.73198 1.3662 10814 163.93 20.7080 29.082 1387.4 200.64 9.4574
330 0.72097 1.3870 10959 164.38 20.7300 29.101 1397.6 202.91 9.5572
335 0.71029 1.4079 11105 164.81 20.7500 29.119 1407.7 205.16 9.6566
340 0.69993 1.4287 11250 165.25 20.7680 29.135 1417.8 207.39 9.7555
345 0.68986 1.4496 11396 165.67 20.7850 29.149 1427.8 209.60 9.8540
350 0.68008 1.4704 11542 166.09 20.8000 29.162 1437.7 211.80 9.9522
355 0.67057 1.4913 11688 166.50 20.8140 29.174 1447.6 213.99 10.050
360 0.66133 1.5121 11834 166.91 20.8270 29.185 1457.4 216.16 10.147
365 0.65234 1.5329 11980 167.32 20.8390 29.195 1467.2 218.31 10.244
370 0.64359 1.5538 12126 167.71 20.8490 29.204 1476.9 220.45 10.341
375 0.63508 1.5746 12272 168.10 20.8590 29.212 1486.5 222.58 10.437
380 0.62678 1.5954 12418 168.49 20.8680 29.219 1496.1 224.70 10.533
385 0.61871 1.6163 12564 168.87 20.8760 29.225 1505.6 226.80 10.628
390 0.61084 1.6371 12710 169.25 20.8830 29.231 1515.1 228.90 10.723
395 0.60316 1.6579 12856 169.62 20.8900 29.236 1524.6 230.98 10.818
400 0.59568 1.6788 13002 169.99 20.8960 29.241 1533.9 233.05 10.912
405 0.58838 1.6996 13149 170.35 20.9020 29.245 1543.2 235.11 11.007
410 0.58126 1.7204 13295 170.71 20.9070 29.249 1552.5 237.16 11.100
415 0.57431 1.7412 13441 171.07 20.9110 29.252 1561.7 239.20 11.194
420 0.56752 1.7620 13587 171.42 20.9160 29.255 1570.9 241.24 11.287
D7265 − 23
TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
425 0.56090 1.7829 13734 171.76 20.9190 29.258 1580.0 243.26 11.380
430 0.55442 1.8037 13880 172.11 20.9230 29.261 1589.0 245.27 11.472
435 0.54810 1.8245 14026 172.45 20.9260 29.263 1598.0 247.28 11.564
440 0.54192 1.8453 14173 172.78 20.9300 29.265 1607.0 249.28 11.656
445 0.53587 1.8661 14319 173.11 20.9330 29.267 1615.9 251.27 11.748
450 0.52996 1.8869 14465 173.44 20.9350 29.269 1624.8 253.26 11.839
455 0.52418 1.9077 14612 173.76 20.9380 29.271 1633.6 255.23 11.930
460 0.51853 1.9285 14758 174.08 20.9410 29.273 1642.4 257.20 12.021
465 0.51299 1.9493 14904 174.40 20.9430 29.274 1651.1 259.17 12.111
470 0.50757 1.9702 15051 174.71 20.9460 29.276 1659.7 261.13 12.202
475 0.50227 1.9910 15197 175.02 20.9480 29.278 1668.4 263.08 12.292
480 0.49708 2.0118 15343 175.33 20.9500 29.279 1677.0 265.03 12.381
485 0.49199 2.0326 15490 175.63 20.9530 29.281 1685.5 266.97 12.471
490 0.48700 2.0534 15636 175.93 20.9550 29.283 1694.0 268.91 12.560
495 0.48212 2.0742 15783 176.23 20.9570 29.284 1702.4 270.84 12.649
500 0.47733 2.0950 15929 176.52 20.9600 29.286 1710.8 272.77 12.738
5.0 MPa
50 16.759 0.059668 3122.0 103.03 13.534 41.832 694.08 76.818 4.3324
55 13.815 0.072386 3318.9 106.79 13.460 36.915 693.11 71.551 4.0097
60 11.813 0.084656 3493.1 109.82 13.399 33.009 708.27 69.334 3.8964
65 10.385 0.096288 3651.2 112.36 13.393 30.397 728.55 68.848 3.8844
70 9.3129 0.10738 3798.5 114.54 13.441 28.666 750.04 69.362 3.9249
75 8.4718 0.11804 3938.8 116.48 13.541 27.502 771.30 70.497 3.9949
80 7.7904 0.12836 4074.2 118.22 13.684 26.715 791.81 72.050 4.0828
85 7.2245 0.13842 4206.3 119.83 13.866 26.188 811.41 73.906 4.1820
90 6.7450 0.14826 4336.3 121.31 14.079 25.846 830.10 75.995 4.2886
95 6.3324 0.15792 4465.0 122.70 14.317 25.640 847.96 78.271 4.4002
100 5.9726 0.16743 4592.9 124.02 14.573 25.535 865.07 80.702 4.5150
105 5.6556 0.17682 4720.5 125.26 14.842 25.505 881.54 83.264 4.6321
110 5.3735 0.18610 4848.1 126.45 15.119 25.531 897.45 85.938 4.7505
115 5.1207 0.19529 4975.9 127.59 15.400 25.599 912.89 88.707 4.8699
120 4.8925 0.20440 5104.1 128.68 15.681 25.698 927.91 91.556 4.9897
125 4.6853 0.21344 5232.9 129.73 15.959 25.819 942.58 94.471 5.1097
130 4.4961 0.22241 5362.3 130.74 16.232 25.956 956.95 97.441 5.2297
135 4.3226 0.23134 5492.5 131.73 16.499 26.103 971.04 100.45 5.3494
140 4.1629 0.24022 5623.4 132.68 16.758 26.256 984.89 103.50 5.4689
145 4.0152 0.24905 5755.0 133.60 17.007 26.411 998.53 106.56 5.5879
150 3.8782 0.25785 5887.5 134.50 17.247 26.568 1012.0 109.64 5.7064
155 3.7508 0.26661 6020.7 135.37 17.476 26.722 1025.2 112.72 5.8243
160 3.6318 0.27534 6154.7 136.22 17.696 26.874 1038.3 115.80 5.9417
165 3.5206 0.28405 6289.4 137.05 17.904 27.023 1051.3 118.87 6.0585
170 3.4162 0.29272 6424.9 137.86 18.103 27.166 1064.1 121.93 6.1746
175 3.3181 0.30138 6561.1 138.65 18.291 27.305 1076.7 124.98 6.2901
180 3.2257 0.31001 6698.0 139.42 18.470 27.438 1089.3 128.00 6.4050
185 3.1385 0.31862 6835.5 140.18 18.638 27.565 1101.7 131.00 6.5192
190 3.0561 0.32722 6973.6 140.91 18.798 27.686 1114.0 133.97 6.6327
195 2.9780 0.33580 7112.3 141.63 18.948 27.802 1126.2 136.91 6.7457
200 2.9039 0.34436 7251.6 142.34 19.090 27.911 1138.3 139.83 6.8579
205 2.8336 0.35291 7391.4 143.03 19.223 28.015 1150.2 142.71 6.9695
210 2.7667 0.36144 7531.7 143.71 19.349 28.113 1162.1 145.57 7.0805
215 2.7029 0.36997 7672.5 144.37 19.467 28.206 1173.9 148.39 7.1909
220 2.6421 0.37848 7813.8 145.02 19.577 28.293 1185.5 151.18 7.3007
225 2.5841 0.38698 7955.5 145.65 19.681 28.375 1197.1 153.94 7.4098
230 2.5286 0.39547 8097.5 146.28 19.778 28.451 1208.6 156.67 7.5184
235 2.4755 0.40396 8240.0 146.89 19.869 28.523 1220.0 159.37 7.6264
240 2.4247 0.41243 8382.8 147.49 19.954 28.591 1231.3 162.04 7.7338
245 2.3759 0.42090 8525.9 148.08 20.034 28.654 1242.6 164.67 7.8407
250 2.3291 0.42935 8669.3 148.66 20.108 28.712 1253.7 167.28 7.9470
255 2.2841 0.43781 8813.0 149.23 20.177 28.767 1264.8 169.86 8.0527
260 2.2409 0.44625 8957.0 149.79 20.241 28.818 1275.8 172.42 8.1580
265 2.1993 0.45469 9101.2 150.34 20.301 28.865 1286.7 174.94 8.2627
270 2.1593 0.46312 9245.6 150.88 20.357 28.908 1297.5 177.44 8.3669
275 2.1207 0.47155 9390.2 151.41 20.409 28.949 1308.3 179.92 8.4706
280 2.0835 0.47997 9535.1 151.93 20.457 28.986 1319.0 182.36 8.5738
285 2.0476 0.48839 9680.1 152.45 20.501 29.020 1329.6 184.79 8.6766
290 2.0129 0.49680 9825.3 152.95 20.542 29.052 1340.2 187.19 8.7788
295 1.9794 0.50520 9970.6 153.45 20.580 29.081 1350.6 189.57 8.8806
300 1.9470 0.51361 10116 153.94 20.615 29.107 1361.1 191.93 8.9820
305 1.9157 0.52201 10262 154.42 20.648 29.131 1371.4 194.27 9.0829
310 1.8854 0.53040 10407 154.89 20.678 29.153 1381.7 196.58 9.1833
315 1.8560 0.53879 10553 155.36 20.705 29.174 1391.9 198.88 9.2834
320 1.8275 0.54718 10699 155.82 20.730 29.192 1402.1 201.16 9.3830
325 1.8000 0.55557 10845 156.27 20.753 29.208 1412.1 203.42 9.4822
330 1.7732 0.56395 10991 156.72 20.774 29.223 1422.2 205.66 9.5810
D7265 − 23
TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
335 1.7473 0.57233 11137 157.16 20.794 29.237 1432.1 207.89 9.6794
340 1.7220 0.58070 11284 157.59 20.812 29.249 1442.0 210.10 9.7774
345 1.6976 0.58908 11430 158.02 20.828 29.260 1451.9 212.29 9.8750
350 1.6738 0.59745 11576 158.44 20.842 29.269 1461.7 214.47 9.9723
355 1.6507 0.60582 11723 158.85 20.856 29.278 1471.4 216.64 10.069
360 1.6282 0.61418 11869 159.26 20.868 29.285 1481.1 218.79 10.166
365 1.6063 0.62255 12015 159.67 20.879 29.292 1490.7 220.93 10.262
370 1.5850 0.63091 12162 160.07 20.889 29.298 1500.3 223.05 10.358
375 1.5643 0.63927 12308 160.46 20.899 29.303 1509.8 225.16 10.453
380 1.5441 0.64763 12455 160.85 20.907 29.307 1519.2 227.26 10.548
385 1.5244 0.65598 12601 161.23 20.914 29.311 1528.6 229.35 10.643
390 1.5053 0.66434 12748 161.61 20.921 29.314 1537.9 231.43 10.737
395 1.4866 0.67269 12895 161.98 20.927 29.317 1547.2 233.49 10.832
400 1.4683 0.68104 13041 162.35 20.933 29.319 1556.5 235.55 10.925
405 1.4506 0.68939 13188 162.71 20.938 29.321 1565.6 237.59 11.019
410 1.4332 0.69774 13334 163.07 20.943 29.323 1574.8 239.63 11.112
415 1.4163 0.70608 13481 163.43 20.947 29.324 1583.9 241.66 11.205
420 1.3997 0.71443 13628 163.78 20.951 29.325 1592.9 243.67 11.298
425 1.3836 0.72277 13774 164.13 20.954 29.326 1601.9 245.68 11.390
430 1.3678 0.73111 13921 164.47 20.957 29.326 1610.8 247.69 11.482
435 1.3523 0.73946 14067 164.81 20.960 29.327 1619.7 249.68 11.574
440 1.3373 0.74779 14214 165.15 20.963 29.327 1628.5 251.67 11.665
445 1.3225 0.75613 14361 165.48 20.966 29.328 1637.3 253.65 11.756
450 1.3081 0.76447 14507 165.80 20.968 29.328 1646.0 255.62 11.847
455 1.2940 0.77281 14654 166.13 20.970 29.328 1654.7 257.58 11.938
460 1.2802 0.78114 14801 166.45 20.972 29.328 1663.4 259.54 12.028
465 1.2667 0.78948 14947 166.77 20.975 29.328 1672.0 261.50 12.118
470 1.2534 0.79781 15094 167.08 20.977 29.329 1680.5 263.44 12.208
475 1.2405 0.80614 15241 167.39 20.979 29.329 1689.1 265.39 12.297
480 1.2278 0.81448 15387 167.70 20.981 29.329 1697.5 267.32 12.387
485 1.2154 0.82281 15534 168.00 20.983 29.330 1706.0 269.25 12.476
490 1.2032 0.83114 15681 168.30 20.985 29.330 1714.3 271.18 12.565
495 1.1912 0.83947 15827 168.60 20.987 29.331 1722.7 273.10 12.653
500 1.1795 0.84780 15974 168.89 20.989 29.331 1731.0 275.02 12.742
10.0 MPa
50 26.210 0.038154 3007.7 96.196 13.588 31.588 1012.9 107.86 6.8973
55 23.640 0.042301 3168.5 99.261 13.628 32.559 963.49 102.68 6.2316
60 21.293 0.046963 3331.6 102.10 13.661 32.552 932.19 98.225 5.7612
65 19.247 0.051957 3492.9 104.68 13.705 31.900 915.83 94.781 5.4443
70 17.509 0.057115 3650.2 107.01 13.772 30.980 910.09 92.394 5.2419
75 16.046 0.062321 3802.7 109.12 13.872 30.047 911.29 90.965 5.1217
80 14.813 0.067510 3950.8 111.03 14.007 29.227 916.81 90.340 5.0600
85 13.765 0.072648 4095.2 112.78 14.176 28.559 924.96 90.371 5.0401
90 12.866 0.077721 4236.7 114.40 14.375 28.042 934.69 90.932 5.0501
95 12.088 0.082728 4375.9 115.90 14.598 27.657 945.37 91.923 5.0823
100 11.407 0.087669 4513.4 117.32 14.840 27.383 956.61 93.265 5.1308
105 10.805 0.092549 4649.9 118.65 15.095 27.199 968.19 94.898 5.1917
110 10.270 0.097374 4785.6 119.91 15.360 27.087 979.96 96.772 5.2622
115 9.7898 0.10215 4920.8 121.11 15.629 27.032 991.86 98.847 5.3400
120 9.3568 0.10687 5055.9 122.26 15.900 27.021 1003.8 101.09 5.4236
125 8.9638 0.11156 5191.1 123.37 16.168 27.044 1015.8 103.47 5.5117
130 8.6053 0.11621 5326.4 124.43 16.433 27.093 1027.8 105.97 5.6034
135 8.2768 0.12082 5462.1 125.45 16.691 27.161 1039.8 108.56 5.6980
140 7.9743 0.12540 5598.1 126.44 16.942 27.243 1051.7 111.23 5.79
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D7265 − 12 (Reapproved 2018) D7265 − 23
Standard Specification for
Hydrogen Thermophysical Property Tables
This standard is issued under the fixed designation D7265; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 The thermophysical property tables for normal hydrogen are for use in the calculation of the pressure-volume-temperature
(PVT), thermodynamic, and transport properties of hydrogen for process design and operations, particularly as they relate to
hydrogen fuel cell applications. Tables are provided for gaseous hydrogen at temperatures between 50 K and 500 K at pressures
to 50500 MPa. These tables were developed by the National Institute of Standards and Technology from a Standard Reference
Database product REFPROP, version 9.0.10.0 .
1.2 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D4150 Terminology Relating to Gaseous Fuels
3. Applicability
3.1 These tables apply directly only to pure gaseous hydrogen. However, it is expected that they may find substantial use in
mathematical models and tables for the thermophysical properties of mixtures containing hydrogen.
4. Terminology
4.1 Definitions—For definitions of general terms used in D03 Gaseous Fuels standards, refer to Terminology D4150.
5. Tables
5.1 The tabulated thermophysical properties are:
-1
ρ, molar density (mol·L )
-1
V, molar volume (L ·mol)
-1
H, molar enthalpy (J·mol )
-1 -1
S, molar entropy (J·K ·mol )
This specification is under the jurisdiction of ASTM Committee D03 on Gaseous Fuels and is the direct responsibility of Subcommittee D03.08 on Thermophysical
Properties.
Current edition approved April 1, 2018Nov. 1, 2023. Published May 2018January 2024. Originally approved in 2006. Last previous edition approved in 20122018 as
D7265 - 12.D7265 – 12 (2018). DOI: 10.1520/D7265-12R18.10.1520/D7265-23.
Lemmon, E.W., Bell, I.H., Huber, M.L., McLinden, M.O. NIST Standard Reference Database 23: Reference Fluid Thermodynamic and Transport Properties-REFPROP,
Version 10.0, National Institute of Standards and Technology, Standard Reference Data Program, Gaithersburg, 2018.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D7265 − 23
-1 -1
C , constant volume molar heat capacity (J·K ·mol )
v
-1 -1
C , constant pressure molar heat capacity (J·K ·mol )
p
-1
c, speed of sound (m·s )
η, viscosity (μPa·s)
-1 -1
λ, thermal conductivity (mW·m ·K )
5.2 These tables were produced by equations from a computer package, “NIST Standard Reference Database 23; Reference Fluid
Thermodynamic and Transport Properties Database (REFPROP): Version 9.0.”10.0.” A wide selection of units (SI units,
engineering units, chemical units) is available with this program.
6. Additional Information
6.1 The Reference States for enthalpy and entropy have been updated in this version of the Standard.
6.2 A comprehensive equation of state for normal hydrogen is not available at this time. The properties in the table were calculated
from individual equations for normal hydrogen.Reference state properties are required to calculate certain of the thermodynamic
properties (enthalpy, entropy, etc.) from an equation of state formulation.
6.3 The reference state properties used to generate the tables in this specification are: enthalpy, H, and entropy, S, at 298.15 K and
0.101325 MPa (H = 10018 J ⁄mol and S = 186.266 J/(mol K)). The molar mass of hydrogen is 2.0159 g/mol.
6.4 Two new tables have been added at 35 Mpa (350 Bar) and 70 Mpa (700 Bar). These are the most common fuel pressures used
for vehicles using hydrogen fuel cells.
7. Keywords
7.1 hydrogen fuel cell; hydrogen gas tables; thermodynamic properties of hydrogenhydrogen; transport properties of hydrogen
D7265 − 23
TABLE 1 Hydrogen Thermophysical Property Tables
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
0.1 MPa
50 0.24247 4.1243 1549.8 64.230 12.543 21.131 584.8 38.40 2.4717
50 0.242470 4.1243 3641.7 142.90 12.543 21.131 584.75 37.766 2.4059
55 0.21997 4.5461 1655.4 66.243 12.579 21.113 613.4 41.52 2.6729
55 0.219970 4.5461 3747.3 144.91 12.579 21.113 613.42 40.905 2.6017
60 0.20134 4.9668 1761.0 68.081 12.643 21.137 640.4 44.60 2.8655
60 0.201340 4.9668 3852.9 146.75 12.643 21.137 640.40 43.986 2.7904
65 0.18565 5.3866 1866.8 69.775 12.740 21.204 665.8 47.68 3.0502
65 0.185650 5.3866 3958.8 148.44 12.740 21.204 665.79 47.025 2.9728
70 0.17224 5.8057 1973.1 71.350 12.871 21.312 689.7 50.78 3.2281
70 0.172240 5.8057 4065.0 150.02 12.871 21.312 689.70 50.040 3.1496
75 0.16066 6.2244 2080.0 72.825 13.037 21.460 712.3 53.61 3.3999
75 0.160660 6.2244 4171.9 151.49 13.037 21.460 712.26 53.046 3.3215
80 0.15054 6.6426 2187.7 74.216 13.235 21.643 733.6 56.47 3.5663
80 0.150540 6.6426 4279.7 152.88 13.235 21.643 733.56 56.059 3.4888
85 0.14163 7.0605 2296.5 75.534 13.462 21.858 753.8 59.35 3.7280
85 0.141630 7.0605 4388.4 154.20 13.462 21.858 753.75 59.089 3.6520
90 0.13372 7.4781 2406.4 76.791 13.712 22.098 773.0 62.17 3.8855
90 0.133720 7.4781 4498.3 155.46 13.712 22.098 772.95 62.146 3.8114
95 0.12665 7.8955 2517.5 77.992 13.981 22.359 791.3 65.26 4.0392
95 0.126650 7.8955 4609.4 156.66 13.981 22.359 791.27 65.237 3.9674
100 0.12030 8.3127 2630.0 79.146 14.264 22.635 808.9 68.33 4.1896
100 0.120300 8.3127 4721.9 157.81 14.264 22.635 808.85 68.365 4.1202
105 0.11455 8.7298 2743.9 80.257 14.556 22.921 825.8 71.65 4.3368
105 0.114550 8.7298 4835.8 158.92 14.556 22.921 825.77 71.531 4.2701
110 0.10933 9.1467 2859.2 81.330 14.852 23.212 842.1 74.97 4.4813
110 0.109330 9.1467 4951.1 160.00 14.852 23.212 842.14 74.735 4.4172
115 0.10456 9.5635 2976.0 82.369 15.150 23.506 858.0 78.22 4.6232
115 0.104560 9.5635 5067.9 161.04 15.150 23.506 858.02 77.974 4.5619
120 0.10020 9.9802 3094.2 83.375 15.446 23.798 873.5 81.48 4.7629
120 0.100200 9.9802 5186.2 162.04 15.446 23.798 873.50 81.242 4.7041
125 0.09618 10.3970 3214.0 84.352 15.738 24.086 888.6 84.78 4.9004
125 0.096183 10.397 5305.9 163.02 15.738 24.086 888.61 84.534 4.8441
130 0.09248 10.8130 3335.1 85.303 16.023 24.368 903.4 88.09 5.0359
130 0.092478 10.813 5427.0 163.97 16.023 24.368 903.41 87.845 4.9821
135 0.08905 11.2300 3457.6 86.228 16.300 24.643 917.9 91.36 5.1696
135 0.089049 11.230 5549.6 164.89 16.300 24.643 917.93 91.167 5.1181
140 0.08587 11.6460 3581.5 87.129 16.568 24.908 932.2 94.62 5.3015
140 0.085865 11.646 5673.5 165.79 16.568 24.908 932.21 94.493 5.2522
145 0.08290 12.0630 3706.7 88.007 16.825 25.164 946.3 97.79 5.4318
145 0.082901 12.063 5798.6 166.67 16.825 25.164 946.27 97.819 5.3846
150 0.08014 12.4790 3833.1 88.864 17.073 25.410 960.1 100.96 5.5606
150 0.080135 12.479 5925.1 167.53 17.073 25.410 960.13 101.14 5.5154
155 0.07755 12.8950 3960.8 89.701 17.309 25.645 973.8 104.24 5.6880
155 0.077549 12.895 6052.7 168.37 17.309 25.645 973.80 104.44 5.6446
160 0.07512 13.3110 4089.6 90.519 17.535 25.869 987.3 107.51 5.8140
160 0.075124 13.311 6181.5 169.19 17.535 25.869 987.30 107.73 5.7723
165 0.07285 13.7280 4219.4 91.318 17.750 26.082 1000.6 110.74 5.9387
165 0.072846 13.728 6311.4 169.98 17.750 26.082 1000.6 110.99 5.8985
170 0.07070 14.1440 4350.4 92.100 17.954 26.285 1013.8 113.98 6.0622
170 0.070703 14.144 6442.3 170.77 17.954 26.285 1013.8 114.23 6.0235
175 0.06868 14.5600 4482.3 92.865 18.147 26.477 1026.9 117.11 6.1845
175 0.068682 14.560 6574.2 171.53 18.147 26.477 1026.9 117.45 6.1471
180 0.06677 14.9760 4615.1 93.613 18.330 26.659 1039.8 120.25 6.3056
180 0.066774 14.976 6707.1 172.28 18.330 26.659 1039.8 120.63 6.2695
185 0.06497 15.3920 4748.8 94.346 18.503 26.831 1052.6 123.34 6.4257
185 0.064969 15.392 6840.8 173.01 18.503 26.831 1052.6 123.77 6.3908
190 0.06326 15.8080 4883.4 95.064 18.666 26.994 1065.3 126.44 6.5447
190 0.063259 15.808 6975.4 173.73 18.666 26.994 1065.3 126.89 6.5109
195 0.06164 16.2240 5018.8 95.767 18.821 27.147 1077.8 129.44 6.6627
195 0.061637 16.224 7110.7 174.43 18.821 27.147 1077.8 129.96 6.6299
200 0.06010 16.6400 5154.9 96.456 18.966 27.292 1090.2 132.44 6.7798
200 0.060096 16.640 7246.8 175.12 18.966 27.292 1090.2 133.00 6.7480
205 0.05863 17.0560 5291.7 97.132 19.103 27.428 1102.6 135.39 6.8958
205 0.058630 17.056 7383.6 175.80 19.103 27.428 1102.6 136.01 6.8650
210 0.05723 17.4720 5429.1 97.794 19.231 27.556 1114.8 138.34 7.0110
210 0.057234 17.472 7521.1 176.46 19.231 27.556 1114.8 138.97 6.9810
215 0.05590 17.8880 5567.2 98.444 19.352 27.676 1126.9 141.20 7.1253
215 0.055903 17.888 7659.2 177.11 19.352 27.676 1126.9 141.90 7.0961
220 0.05463 18.3040 5705.9 99.082 19.465 27.789 1138.9 144.07 7.2387
220 0.054633 18.304 7797.8 177.75 19.465 27.789 1138.9 144.80 7.2104
225 0.05342 18.7200 5845.1 99.707 19.572 27.895 1150.8 146.88 7.3513
225 0.053419 18.720 7937.0 178.37 19.572 27.895 1150.8 147.65 7.3238
230 0.05226 19.1360 5984.8 100.320 19.672 27.994 1162.6 149.70 7.4631
D7265 − 23
TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
230 0.052258 19.136 8076.8 178.99 19.672 27.994 1162.6 150.47 7.4363
235 0.05115 19.5520 6125.0 100.920 19.765 28.087 1174.4 152.46 7.5741
235 0.051146 19.552 8217.0 179.59 19.765 28.087 1174.4 153.26 7.5481
240 0.05008 19.9680 6265.7 101.520 19.852 28.174 1186.0 155.24 7.6843
240 0.050081 19.968 8357.6 180.18 19.852 28.174 1186.0 156.01 7.6591
245 0.04906 20.3840 6406.7 102.100 19.934 28.255 1197.6 157.91 7.7938
245 0.049059 20.384 8498.7 180.77 19.934 28.255 1197.6 158.73 7.7693
250 0.04808 20.8000 6548.2 102.670 20.010 28.331 1209.0 160.59 7.9025
250 0.048078 20.799 8640.2 181.34 20.010 28.331 1209.0 161.42 7.8788
255 0.04714 21.2150 6690.0 103.230 20.081 28.402 1220.4 163.21 8.0105
255 0.047136 21.215 8782.0 181.90 20.081 28.402 1220.4 164.07 7.9876
260 0.04623 21.6310 6832.2 103.780 20.148 28.468 1231.7 165.84 8.1178
260 0.046229 21.631 8924.2 182.45 20.148 28.468 1231.7 166.70 8.0957
265 0.04536 22.0470 6974.7 104.330 20.209 28.529 1242.9 168.43 8.2245
265 0.045357 22.047 9066.7 182.99 20.209 28.529 1242.9 169.29 8.2032
270 0.04452 22.4630 7117.5 104.860 20.267 28.587 1254.1 171.01 8.3305
270 0.044518 22.463 9209.5 183.53 20.267 28.587 1254.1 171.86 8.3100
275 0.04371 22.8790 7260.6 105.390 20.320 28.640 1265.1 173.50 8.4358
275 0.043709 22.879 9352.5 184.05 20.320 28.640 1265.1 174.40 8.4162
280 0.04293 23.2950 7403.9 105.900 20.370 28.689 1276.1 175.99 8.5405
280 0.042928 23.295 9495.9 184.57 20.370 28.689 1276.1 176.91 8.5218
285 0.04218 23.7110 7547.5 106.410 20.416 28.735 1287.0 178.48 8.6445
285 0.042175 23.710 9639.4 185.08 20.416 28.735 1287.0 179.39 8.6268
290 0.04145 24.1260 7691.2 106.910 20.459 28.777 1297.9 180.97 8.7480
290 0.041449 24.126 9783.2 185.58 20.458 28.777 1297.9 181.85 8.7313
295 0.04075 24.5420 7835.2 107.400 20.498 28.817 1308.6 183.37 8.8508
295 0.040746 24.542 9927.2 186.07 20.498 28.817 1308.6 184.29 8.8351
300 0.04007 24.9580 7979.4 107.890 20.534 28.853 1319.3 185.76 8.9531
300 0.040067 24.958 10071 186.55 20.534 28.853 1319.3 186.70 8.9385
305 0.03941 25.3740 8123.8 108.360 20.568 28.886 1329.9 188.16 9.0548
305 0.039411 25.374 10216 187.03 20.568 28.886 1329.9 189.09 9.0413
310 0.03878 25.7900 8268.3 108.830 20.599 28.917 1340.5 190.56 9.1559
310 0.038775 25.790 10360 187.50 20.599 28.917 1340.5 191.45 9.1435
315 0.03816 26.2050 8412.9 109.300 20.628 28.946 1351.0 192.86 9.2565
315 0.038160 26.205 10505 187.96 20.628 28.946 1351.0 193.80 9.2453
320 0.03756 26.6210 8557.7 109.750 20.654 28.972 1361.4 195.17 9.3566
320 0.037564 26.621 10650 188.42 20.654 28.972 1361.4 196.12 9.3466
325 0.03699 27.0370 8702.6 110.200 20.679 28.996 1371.8 197.72 9.4561
325 0.036986 27.037 10795 188.87 20.679 28.996 1371.8 198.43 9.4474
330 0.03643 27.4530 8847.7 110.650 20.701 29.018 1382.0 200.28 9.5551
330 0.036426 27.453 10940 189.31 20.701 29.018 1382.0 200.72 9.5478
335 0.03588 27.8690 8992.8 111.080 20.722 29.039 1392.3 202.79 9.6536
335 0.035883 27.869 11085 189.75 20.722 29.039 1392.3 202.98 9.6476
340 0.03536 28.2840 9138.1 111.510 20.740 29.058 1402.4 205.30 9.7515
340 0.035355 28.284 11230 190.18 20.740 29.057 1402.4 205.24 9.7471
345 0.03484 28.7000 9283.4 111.940 20.758 29.075 1412.5 207.81 9.8490
345 0.034843 28.700 11375 190.60 20.758 29.075 1412.5 207.47 9.8461
350 0.03435 29.1160 9428.8 112.360 20.773 29.090 1422.6 210.32 9.9461
350 0.034345 29.116 11521 191.02 20.773 29.090 1422.6 209.69 9.9446
355 0.03386 29.5320 9574.3 112.770 20.788 29.105 1432.5 212.79 10.0430
355 0.033862 29.532 11666 191.43 20.788 29.105 1432.5 211.89 10.043
360 0.03339 29.9480 9719.9 113.180 20.801 29.118 1442.4 215.26 10.1390
360 0.033392 29.948 11812 191.84 20.801 29.118 1442.4 214.08 10.141
365 0.03293 30.3630 9865.5 113.580 20.813 29.130 1452.3 217.58 10.2340
365 0.032934 30.363 11957 192.24 20.813 29.130 1452.3 216.25 10.238
370 0.03249 30.7790 10011.0 113.970 20.824 29.141 1462.1 219.90 10.3300
370 0.032490 30.779 12103 192.64 20.824 29.141 1462.1 218.41 10.335
375 0.03206 31.1950 10157.0 114.360 20.834 29.151 1471.8 222.32 10.4240
375 0.032057 31.195 12249 193.03 20.834 29.151 1471.8 220.55 10.431
380 0.03164 31.6110 10303.0 114.750 20.843 29.160 1481.5 224.74 10.5190
380 0.031635 31.611 12395 193.42 20.843 29.160 1481.5 222.69 10.528
385 0.03122 32.0260 10448.0 115.130 20.852 29.168 1491.1 227.07 10.6130
385 0.031224 32.026 12540 193.80 20.852 29.168 1491.1 224.81 10.623
390 0.03082 32.4420 10594.0 115.510 20.859 29.175 1500.7 229.40 10.7060
390 0.030824 32.442 12686 194.18 20.859 29.175 1500.7 226.91 10.719
395 0.03043 32.8580 10740.0 115.880 20.866 29.182 1510.2 231.72 10.7990
395 0.030434 32.858 12832 194.55 20.866 29.182 1510.2 229.01 10.814\
400 0.03005 33.2740 10886.0 116.250 20.873 29.189 1519.6 234.06 10.8920
400 0.030054 33.274 12978 194.91 20.873 29.189 1519.6 231.09 10.909
405 0.02968 33.6900 11032.0 116.610 20.878 29.194 1529.0 236.14 10.9840
405 0.029683 33.689 13124 195.28 20.878 29.194 1529.0 233.17 11.003
410 0.02932 34.1050 11178.0 116.970 20.884 29.200 1538.4 238.22 11.0760
410 0.029321 34.105 13270 195.63 20.884 29.200 1538.4 235.23 11.097
415 0.02897 34.5210 11324.0 117.320 20.889 29.205 1547.7 240.56 11.1680
D7265 − 23
TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
415 0.028968 34.521 13416 195.99 20.889 29.205 1547.7 237.29 11.191
420 0.02862 34.9370 11470.0 117.670 20.893 29.209 1556.9 242.89 11.2590
420 0.028623 34.937 13562 196.34 20.893 29.209 1556.9 239.33 11.284
425 0.02829 35.3530 11616.0 118.020 20.897 29.213 1566.1 245.23 11.3500
425 0.028287 35.352 13708 196.68 20.897 29.213 1566.1 241.37 11.377
430 0.02796 35.7680 11762.0 118.360 20.901 29.217 1575.2 247.57 11.4400
430 0.027958 35.768 13854 197.03 20.901 29.217 1575.2 243.40 11.470
435 0.02764 36.1840 11908.0 118.700 20.905 29.221 1584.3 249.91 11.5300
435 0.027637 36.184 14000 197.36 20.905 29.221 1584.3 245.42 11.562
440 0.02732 36.6000 12054.0 119.030 20.908 29.224 1593.4 252.26 11.6200
440 0.027323 36.600 14146 197.70 20.908 29.224 1593.4 247.43 11.655
445 0.02702 37.0160 12201.0 119.360 20.912 29.227 1602.3 254.60 11.7090
445 0.027016 37.015 14293 198.03 20.912 29.227 1602.3 249.43 11.746
450 0.02672 37.4310 12347.0 119.690 20.915 29.230 1611.3 256.95 11.7980
450 0.026716 37.431 14439 198.35 20.915 29.230 1611.3 251.42 11.838
455 0.02642 37.8470 12493.0 120.010 20.917 29.233 1620.2 259.30 11.8870
455 0.026422 37.847 14585 198.68 20.917 29.233 1620.2 253.41 11.929
460 0.02614 38.2630 12639.0 120.330 20.920 29.236 1629.0 261.65 11.9750
460 0.026135 38.263 14731 199.00 20.920 29.236 1629.0 255.40 12.020
465 0.02585 38.6790 12785.0 120.650 20.923 29.238 1637.8 264.00 12.0630
465 0.025854 38.678 14877 199.31 20.923 29.238 1637.8 257.37 12.111
470 0.02558 39.0940 12931.0 120.960 20.926 29.241 1646.5 266.35 12.1510
470 0.025579 39.094 15023 199.63 20.926 29.241 1646.5 259.34 12.201
475 0.02531 39.5100 13078.0 121.270 20.928 29.244 1655.2 268.71 12.2390
475 0.025310 39.510 15170 199.94 20.928 29.244 1655.2 261.30 12.292
480 0.02505 39.9260 13224.0 121.580 20.931 29.246 1663.9 271.06 12.3260
480 0.025047 39.926 15316 200.24 20.931 29.246 1663.9 263.26 12.381
485 0.02479 40.3420 13370.0 121.880 20.933 29.249 1672.5 273.42 12.4130
485 0.024788 40.341 15462 200.54 20.933 29.249 1672.5 265.21 12.471
490 0.02454 40.7570 13516.0 122.180 20.936 29.251 1681.1 275.78 12.4990
490 0.024536 40.757 15608 200.84 20.936 29.251 1681.1 267.16 12.560
495 0.02429 41.1730 13663.0 122.480 20.939 29.254 1689.6 278.14 12.5860
495 0.024288 41.173 15755 201.14 20.939 29.254 1689.6 269.10 12.649
500 0.02405 41.5890 13809.0 122.770 20.941 29.256 1698.0 280.50 12.6720
500 0.024045 41.589 15901 201.44 20.941 29.256 1698.0 271.03 12.738
0.2 MPa
50 0.48886 2.0456 1539.6 58.330 12.577 21.451 583.6 38.74 2.4854
50 0.48887 2.0456 3631.6 137.00 12.577 21.451 583.60 38.363 2.4174
55 0.44256 2.2596 1646.6 60.370 12.606 21.366 612.8 41.83 2.6855
55 0.44256 2.2596 3738.6 139.04 12.606 21.366 612.77 41.449 2.6124
60 0.40446 2.4724 1753.4 62.228 12.665 21.343 640.1 44.89 2.8770
60 0.40446 2.4724 3845.3 140.89 12.665 21.343 640.11 44.487 2.8003
65 0.37252 2.6844 1860.2 63.937 12.758 21.374 665.8 47.94 3.0609
65 0.37253 2.6844 3952.1 142.60 12.758 21.374 665.78 47.490 2.9820
70 0.34534 2.8957 1967.2 65.524 12.886 21.456 689.9 51.02 3.2381
70 0.34534 2.8957 4059.2 144.19 12.886 21.456 689.91 50.474 3.1582
75 0.32191 3.1065 2074.8 67.008 13.050 21.582 712.6 53.85 3.4093
75 0.32191 3.1065 4166.8 145.67 13.050 21.582 712.63 53.454 3.3294
80 0.30149 3.3168 2183.1 68.406 13.246 21.749 734.1 56.72 3.5752
80 0.30149 3.3168 4275.1 147.07 13.246 21.749 734.06 56.444 3.4961
85 0.28354 3.5269 2292.3 69.731 13.472 21.950 754.4 59.62 3.7364
85 0.28354 3.5269 4384.3 148.40 13.472 21.950 754.35 59.453 3.6587
90 0.26762 3.7366 2402.7 70.992 13.721 22.179 773.6 62.43 3.8935
90 0.26762 3.7366 4494.6 149.66 13.721 22.179 773.62 62.493 3.8177
95 0.25341 3.9462 2514.2 72.197 13.989 22.430 792.0 65.50 4.0468
95 0.25341 3.9462 4606.1 150.86 13.989 22.430 792.01 65.568 3.9732
100 0.24064 4.1555 2627.0 73.355 14.271 22.698 809.6 68.57 4.1968
100 0.24064 4.1555 4718.9 152.02 14.271 22.698 809.63 68.681 4.1256
105 0.22911 4.3647 2741.2 74.469 14.562 22.978 826.6 71.88 4.3437
105 0.22911 4.3647 4833.1 153.14 14.562 22.978 826.59 71.835 4.2751
110 0.21864 4.5738 2856.8 75.544 14.858 23.264 843.0 75.19 4.4878
110 0.21864 4.5738 4948.7 154.21 14.858 23.264 842.99 75.027 4.4219
115 0.20909 4.7827 2973.8 76.585 15.156 23.552 858.9 78.43 4.6295
115 0.20909 4.7827 5065.8 155.25 15.156 23.552 858.90 78.254 4.5662
120 0.20034 4.9916 3092.3 77.593 15.451 23.840 874.4 81.67 4.7689
120 0.20034 4.9916 5184.2 156.26 15.451 23.840 874.39 81.513 4.7082
125 0.19230 5.2003 3212.2 78.572 15.742 24.125 889.5 84.97 4.9061
125 0.19230 5.2003 5304.2 157.24 15.742 24.125 889.52 84.796 4.8480
130 0.18488 5.4090 3333.5 79.524 16.027 24.404 904.3 88.28 5.0414
130 0.18488 5.4090 5425.5 158.19 16.027 24.404 904.33 88.098 4.9857
135 0.17801 5.6176 3456.2 80.450 16.304 24.675 918.9 91.53 5.1749
135 0.17801 5.6176 5548.2 159.12 16.304 24.675 918.87 91.412 5.1215
140 0.17164 5.8261 3580.3 81.352 16.572 24.938 933.2 94.79 5.3066
140 0.17164 5.8261 5672.2 160.02 16.572 24.938 933.15 94.732 5.2554
D7265 − 23
TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
145 0.16571 6.0346 3705.6 82.232 16.829 25.192 947.2 97.96 5.4368
145 0.16571 6.0346 5797.6 160.90 16.829 25.192 947.21 98.051 5.3876
150 0.16018 6.2431 3832.2 83.090 17.076 25.436 961.1 101.12 5.5654
150 0.16018 6.2431 5924.1 161.76 17.076 25.436 961.07 101.36 5.5182
155 0.15500 6.4515 3959.9 83.928 17.313 25.669 974.8 104.39 5.6926
155 0.15500 6.4515 6051.9 162.59 17.313 25.669 974.75 104.66 5.6472
160 0.15015 6.6598 4088.8 84.746 17.538 25.891 988.3 107.67 5.8185
160 0.15015 6.6598 6180.8 163.41 17.538 25.891 988.25 107.94 5.7747
165 0.14560 6.8682 4218.8 85.546 17.753 26.103 1001.6 110.89 5.9431
165 0.14560 6.8681 6310.8 164.21 17.753 26.103 1001.6 111.20 5.9009
170 0.14131 7.0764 4349.9 86.329 17.957 26.304 1014.8 114.12 6.0664
170 0.14131 7.0764 6441.8 165.00 17.957 26.304 1014.8 114.44 6.0257
175 0.13727 7.2847 4481.9 87.094 18.150 26.496 1027.8 117.25 6.1886
175 0.13727 7.2847 6573.8 165.76 18.150 26.495 1027.8 117.65 6.1492
180 0.13346 7.4929 4614.8 87.843 18.333 26.676 1040.7 120.39 6.3096
180 0.13346 7.4929 6706.8 166.51 18.333 26.676 1040.7 120.82 6.2715
185 0.12985 7.7012 4748.6 88.576 18.506 26.848 1053.5 123.48 6.4296
185 0.12985 7.7011 6840.6 167.24 18.506 26.847 1053.5 123.96 6.3927
190 0.12643 7.9093 4883.3 89.294 18.669 27.009 1066.2 126.57 6.5485
190 0.12643 7.9093 6975.2 167.96 18.669 27.009 1066.2 127.07 6.5127
195 0.12319 8.1175 5018.7 89.998 18.823 27.162 1078.7 129.56 6.6664
195 0.12319 8.1175 7110.6 168.66 18.823 27.162 1078.7 130.15 6.6316
200 0.12011 8.3257 5154.9 90.687 18.968 27.305 1091.2 132.56 6.7833
200 0.12011 8.3257 7246.8 169.35 18.968 27.305 1091.2 133.18 6.7495
205 0.11718 8.5338 5291.7 91.363 19.105 27.441 1103.5 135.51 6.8993
205 0.11718 8.5338 7383.7 170.03 19.105 27.441 1103.5 136.18 6.8665
210 0.11439 8.7419 5429.3 92.026 19.234 27.568 1115.7 138.47 7.0144
210 0.11439 8.7419 7521.2 170.69 19.234 27.568 1115.7 139.15 6.9824
215 0.11173 8.9500 5567.4 92.676 19.354 27.688 1127.8 141.32 7.1286
215 0.11173 8.9500 7659.3 171.34 19.354 27.688 1127.8 142.07 7.0975
220 0.10919 9.1581 5706.1 93.314 19.468 27.800 1139.8 144.18 7.2420
220 0.10919 9.1581 7798.1 171.98 19.468 27.800 1139.8 144.96 7.2117
225 0.10677 9.3662 5845.4 93.940 19.574 27.905 1151.7 146.99 7.3545
225 0.10677 9.3662 7937.3 172.61 19.574 27.905 1151.7 147.82 7.3250
230 0.10445 9.5743 5985.2 94.554 19.674 28.004 1163.6 149.81 7.4662
230 0.10445 9.5742 8077.1 173.22 19.674 28.004 1163.6 150.64 7.4375
235 0.10223 9.7823 6125.4 95.158 19.767 28.097 1175.3 152.57 7.5771
235 0.10223 9.7823 8217.4 173.82 19.767 28.097 1175.3 153.42 7.5492
240 0.10010 9.9904 6266.1 95.750 19.854 28.183 1186.9 155.34 7.6873
240 0.10010 9.9903 8358.1 174.42 19.854 28.183 1186.9 156.17 7.6601
245 0.09806 10.1980 6407.2 96.332 19.936 28.264 1198.5 158.02 7.7967
245 0.098055 10.198 8499.2 175.00 19.936 28.264 1198.5 158.89 7.7703
250 0.09610 10.4060 6548.7 96.904 20.012 28.339 1209.9 160.69 7.9054
250 0.096095 10.406 8640.7 175.57 20.012 28.339 1209.9 161.57 7.8797
255 0.09421 10.6140 6690.6 97.466 20.083 28.410 1221.3 163.32 8.0133
255 0.094211 10.614 8782.6 176.13 20.083 28.410 1221.3 164.22 7.9885
260 0.09240 10.8220 6832.8 98.018 20.150 28.476 1232.6 165.95 8.1206
260 0.092401 10.822 8924.8 176.68 20.150 28.476 1232.6 166.85 8.0966
265 0.09066 11.0300 6975.4 98.561 20.211 28.537 1243.8 168.53 8.2272
265 0.090658 11.030 9067.3 177.23 20.211 28.537 1243.8 169.44 8.2040
270 0.08898 11.2380 7118.2 99.095 20.269 28.594 1254.9 171.11 8.3331
270 0.088980 11.238 9210.1 177.76 20.269 28.594 1254.9 172.00 8.3108
275 0.08736 11.4460 7261.3 99.620 20.322 28.646 1266.0 173.60 8.4384
275 0.087364 11.446 9353.2 178.29 20.322 28.646 1266.0 174.54 8.4169
280 0.08580 11.6540 7404.7 100.140 20.372 28.696 1277.0 176.08 8.5430
280 0.085805 11.654 9496.6 178.80 20.372 28.696 1277.0 177.05 8.5225
285 0.08430 11.8620 7548.3 100.650 20.418 28.741 1287.9 178.57 8.6470
285 0.084300 11.862 9640.2 179.31 20.418 28.741 1287.9 179.53 8.6275
290 0.08285 12.0700 7692.1 101.150 20.460 28.783 1298.7 181.06 8.7505
290 0.082848 12.070 9784.0 179.81 20.460 28.783 1298.7 181.99 8.7319
295 0.08144 12.2780 7836.1 101.640 20.500 28.822 1309.5 183.46 8.8533
295 0.081444 12.278 9928.0 180.30 20.500 28.822 1309.5 184.42 8.8357
300 0.08009 12.4860 7980.3 102.120 20.536 28.858 1320.2 185.85 8.9555
300 0.080088 12.486 10072 180.79 20.536 28.858 1320.2 186.83 8.9390
305 0.07878 12.6940 8124.7 102.600 20.570 28.892 1330.8 188.25 9.0571
305 0.078776 12.694 10217 181.27 20.570 28.892 1330.8 189.22 9.0418
310 0.07751 12.9020 8269.2 103.070 20.601 28.922 1341.3 190.65 9.1582
310 0.077506 12.902 10361 181.74 20.601 28.922 1341.3 191.58 9.1440
315 0.07628 13.1100 8413.9 103.530 20.630 28.951 1351.8 192.95 9.2588
315 0.076277 13.110 10506 182.20 20.630 28.951 1351.8 193.93 9.2458
320 0.07509 13.3180 8558.7 103.990 20.656 28.977 1362.2 195.26 9.3588
320 0.075086 13.318 10651 182.66 20.656 28.977 1362.2 196.25 9.3470
325 0.07393 13.5260 8703.6 104.440 20.680 29.001 1372.6 197.81 9.4583
325 0.073932 13.526 10796 183.10 20.680 29.001 1372.6 198.56 9.4478
D7265 − 23
TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
330 0.07281 13.7340 8848.7 104.880 20.703 29.023 1382.9 200.36 9.5572
330 0.072812 13.734 10941 183.55 20.703 29.023 1382.9 200.84 9.5481
335 0.07173 13.9420 8993.9 105.320 20.723 29.043 1393.1 202.87 9.6557
335 0.071726 13.942 11086 183.98 20.723 29.043 1393.1 203.11 9.6480
340 0.07067 14.1500 9139.1 105.750 20.742 29.062 1403.2 205.38 9.7537
340 0.070672 14.150 11231 184.41 20.742 29.062 1403.2 205.36 9.7474
345 0.06965 14.3580 9284.5 106.170 20.759 29.079 1413.3 207.89 9.8511
345 0.069649 14.358 11376 184.84 20.759 29.079 1413.3 207.59 9.8464
350 0.06866 14.5660 9429.9 106.590 20.775 29.094 1423.4 210.40 9.9481
350 0.068655 14.566 11522 185.26 20.775 29.094 1423.3 209.81 9.9449
355 0.06769 14.7740 9575.4 107.000 20.789 29.108 1433.3 212.87 10.0450
355 0.067688 14.774 11667 185.67 20.789 29.108 1433.3 212.01 10.043
360 0.06675 14.9820 9721.0 107.410 20.802 29.121 1443.2 215.34 10.1410
360 0.066749 14.982 11813 186.08 20.802 29.121 1443.2 214.20 10.141
365 0.06584 15.1890 9866.6 107.810 20.814 29.133 1453.1 217.65 10.2360
365 0.065835 15.189 11959 186.48 20.814 29.133 1453.1 216.37 10.238
370 0.06495 15.3970 10012.0 108.210 20.825 29.144 1462.9 219.97 10.3310
370 0.064946 15.397 12104 186.88 20.825 29.144 1462.9 218.53 10.335
375 0.06408 15.6050 10158.0 108.600 20.835 29.154 1472.6 222.40 10.4260
375 0.064081 15.605 12250 187.27 20.835 29.154 1472.6 220.67 10.432
380 0.06324 15.8130 10304.0 108.990 20.845 29.163 1482.3 224.82 10.5210
380 0.063238 15.813 12396 187.65 20.845 29.163 1482.3 222.80 10.528
385 0.06242 16.0210 10450.0 109.370 20.853 29.171 1491.9 227.14 10.6140
385 0.062418 16.021 12542 188.03 20.853 29.171 1491.9 224.92 10.623
390 0.06162 16.2290 10596.0 109.740 20.861 29.178 1501.4 229.47 10.7080
390 0.061618 16.229 12688 188.41 20.861 29.178 1501.4 227.03 10.719
395 0.06084 16.4370 10741.0 110.120 20.868 29.185 1510.9 231.80 10.8010
395 0.060839 16.437 12833 188.78 20.867 29.185 1510.9 229.12 10.814
400 0.06008 16.6450 10887.0 110.480 20.874 29.191 1520.4 234.13 10.8940
400 0.060079 16.645 12979 189.15 20.874 29.191 1520.4 231.21 10.909
405 0.05934 16.8530 11033.0 110.850 20.880 29.197 1529.8 236.21 10.9860
405 0.059338 16.853 13125 189.51 20.880 29.197 1529.8 233.28 11.003
410 0.05862 17.0610 11179.0 111.200 20.885 29.202 1539.1 238.29 11.0780
410 0.058615 17.061 13271 189.87 20.885 29.202 1539.1 235.34 11.097
415 0.05791 17.2680 11325.0 111.560 20.890 29.207 1548.4 240.63 11.1690
415 0.057909 17.268 13417 190.22 20.890 29.207 1548.4 237.40 11.191
420 0.05722 17.4760 11471.0 111.910 20.894 29.212 1557.6 242.97 11.2600
420 0.057220 17.476 13563 190.57 20.894 29.211 1557.6 239.44 11.284
425 0.05655 17.6840 11618.0 112.250 20.899 29.216 1566.8 245.30 11.3510
425 0.056547 17.684 13709 190.92 20.899 29.216 1566.8 241.48 11.377
430 0.05589 17.8920 11764.0 112.600 20.902 29.219 1576.0 247.64 11.4420
430 0.055890 17.892 13856 191.26 20.902 29.219 1576.0 243.50 11.470
435 0.05525 18.1000 11910.0 112.930 20.906 29.223 1585.0 249.98 11.5320
435 0.055248 18.100 14002 191.60 20.906 29.223 1585.0 245.52 11.562
440 0.05462 18.3080 12056.0 113.270 20.909 29.226 1594.1 252.33 11.6210
440 0.054621 18.308 14148 191.93 20.909 29.226 1594.1 247.53 11.655
445 0.05401 18.5160 12202.0 113.600 20.913 29.229 1603.1 254.67 11.7110
445 0.054008 18.516 14294 192.26 20.913 29.229 1603.1 249.53 11.746
450 0.05341 18.7240 12348.0 113.920 20.916 29.232 1612.0 257.02 11.8000
450 0.053408 18.724 14440 192.59 20.916 29.232 1612.0 251.53 11.838
455 0.05282 18.9320 12494.0 114.250 20.919 29.235 1620.9 259.37 11.8890
455 0.052822 18.932 14586 192.91 20.919 29.235 1620.9 253.52 11.929
460 0.05225 19.1400 12640.0 114.570 20.921 29.238 1629.7 261.71 11.9770
460 0.052248 19.139 14732 193.23 20.921 29.238 1629.7 255.50 12.020
465 0.05169 19.3470 12787.0 114.880 20.924 29.240 1638.5 264.07 12.0650
465 0.051687 19.347 14879 193.55 20.924 29.240 1638.5 257.47 12.111
470 0.05114 19.5550 12933.0 115.200 20.927 29.243 1647.2 266.42 12.1530
470 0.051137 19.555 15025 193.86 20.927 29.243 1647.2 259.44 12.201
475 0.05060 19.7630 13079.0 115.510 20.929 29.245 1655.9 268.77 12.2400
475 0.050599 19.763 15171 194.17 20.929 29.245 1655.9 261.40 12.291
480 0.05007 19.9710 13225.0 115.810 20.932 29.248 1664.6 271.13 12.3270
480 0.050073 19.971 15317 194.48 20.932 29.248 1664.6 263.36 12.381
485 0.04956 20.1790 13372.0 116.110 20.934 29.250 1673.2 273.49 12.4140
485 0.049557 20.179 15464 194.78 20.934 29.250 1673.2 265.31 12.471
490 0.04905 20.3870 13518.0 116.410 20.937 29.253 1681.7 275.84 12.5010
490 0.049051 20.387 15610 195.08 20.937 29.253 1681.7 267.26 12.560
495 0.04856 20.5950 13664.0 116.710 20.940 29.255 1690.2 278.20 12.5870
495 0.048556 20.595 15756 195.38 20.940 29.255 1690.2 269.20 12.649
500 0.04807 20.8030 13810.0 117.010 20.942 29.258 1698.7 280.57 12.6730
500 0.048071 20.803 15902 195.67 20.942 29.258 1698.7 271.13 12.738
0.5 MPa
50 1.25300 0.7981 1508.6 50.290 12.677 22.483 580.4 39.86 2.5283
50 1.2530 0.79809 3600.5 128.96 12.677 22.483 580.37 40.125 2.4560
55 1.12660 0.8876 1620.1 52.417 12.685 22.169 611.0 42.82 2.7243
D7265 − 23
TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
55 1.1266 0.88761 3712.1 131.08 12.685 22.168 611.04 43.047 2.6478
60 1.02480 0.9758 1730.5 54.337 12.729 21.985 639.5 45.78 2.9126
60 1.0248 0.97584 3822.4 133.00 12.729 21.985 639.47 45.952 2.8328
65 0.94060 1.0632 1840.1 56.093 12.811 21.901 666.0 48.75 3.0938
65 0.94060 1.0632 3932.1 134.76 12.811 21.901 665.95 48.846 3.0117
70 0.86974 1.1498 1949.6 57.715 12.931 21.895 690.7 51.76 3.2687
70 0.86974 1.1498 4041.6 136.38 12.931 21.895 690.69 51.738 3.1854
75 0.80916 1.2358 2059.2 59.228 13.088 21.955 713.9 54.59 3.4379
75 0.80916 1.2358 4151.2 137.89 13.088 21.955 713.88 54.640 3.3544
80 0.75671 1.3215 2169.2 60.648 13.279 22.069 735.7 57.48 3.6021
80 0.75671 1.3215 4261.2 139.31 13.279 22.069 735.67 57.562 3.5191
85 0.71082 1.4068 2280.0 61.990 13.500 22.227 756.2 60.43 3.7618
85 0.71082 1.4068 4371.9 140.66 13.500 22.227 756.24 60.513 3.6800
90 0.67030 1.4919 2391.6 63.266 13.746 22.422 775.7 63.21 3.9175
90 0.67030 1.4919 4483.5 141.93 13.746 22.422 775.73 63.500 3.8373
95 0.63424 1.5767 2504.2 64.484 14.012 22.645 794.3 66.23 4.0696
95 0.63424 1.5767 4596.2 143.15 14.012 22.645 794.29 66.528 3.9914
100 0.60193 1.6613 2618.1 65.652 14.292 22.890 812.0 69.26 4.2185
100 0.60193 1.6613 4710.0 144.32 14.292 22.890 812.04 69.600 4.1425
105 0.57281 1.7458 2733.2 66.775 14.581 23.149 829.1 72.53 4.3643
105 0.57281 1.7458 4825.1 145.44 14.581 23.149 829.11 72.716 4.2908
110 0.54641 1.8301 2849.6 67.858 14.876 23.418 845.6 75.81 4.5075
110 0.54641 1.8301 4941.5 146.52 14.876 23.418 845.59 75.874 4.4366
115 0.52237 1.9143 2967.3 68.905 15.172 23.692 861.6 79.02 4.6483
115 0.52237 1.9143 5059.3 147.57 15.172 23.692 861.57 79.070 4.5799
120 0.50039 1.9985 3086.5 69.919 15.466 23.967 877.1 82.25 4.7869
120 0.50039 1.9985 5178.5 148.59 15.466 23.967 877.12 82.300 4.7209
125 0.48020 2.0825 3207.0 70.903 15.757 24.241 892.3 85.52 4.9234
125 0.48020 2.0825 5299.0 149.57 15.757 24.241 892.29 85.557 4.8599
130 0.46159 2.1664 3328.9 71.859 16.040 24.510 907.1 88.81 5.0580
130 0.46159 2.1664 5420.9 150.53 16.040 24.510 907.13 88.835 4.9968
135 0.44438 2.2503 3452.1 72.789 16.317 24.773 921.7 92.04 5.1909
135 0.44438 2.2503 5544.1 151.46 16.317 24.773 921.69 92.127 5.1319
140 0.42842 2.3341 3576.6 73.695 16.584 25.029 936.0 95.29 5.3220
140 0.42843 2.3341 5668.6 152.36 16.584 25.029 936.00 95.426 5.2652
145 0.41358 2.4179 3702.4 74.577 16.841 25.276 950.1 98.44 5.4517
145 0.41358 2.4179 5794.3 153.24 16.841 25.276 950.07 98.725 5.3969
150 0.39974 2.5016 3829.4 75.438 17.087 25.513 963.9 101.59 5.5798
150 0.39974 2.5016 5921.3 154.10 17.087 25.513 963.94 102.02 5.5269
155 0.38680 2.5853 3957.5 76.279 17.323 25.741 977.6 104.84 5.7065
155 0.38680 2.5853 6049.5 154.95 17.323 25.741 977.62 105.30 5.6554
160 0.37468 2.6689 4086.7 77.099 17.548 25.958 991.1 108.10 5.8320
160 0.37468 2.6689 6178.7 155.77 17.548 25.958 991.12 108.57 5.7825
165 0.36330 2.7525 4217.1 77.901 17.763 26.166 1004.5 111.32 5.9561
165 0.36330 2.7525 6309.0 156.57 17.763 26.166 1004.5 111.81 5.9082
170 0.35260 2.8361 4348.4 78.685 17.966 26.363 1017.7 114.53 6.0791
170 0.35260 2.8361 6440.3 157.35 17.966 26.363 1017.7 115.03 6.0326
175 0.34251 2.9197 4480.7 79.452 18.159 26.551 1030.7 117.66 6.2009
175 0.34251 2.9197 6572.6 158.12 18.159 26.551 1030.7 118.23 6.1557
180 0.33298 3.0032 4613.9 80.203 18.342 26.728 1043.6 120.78 6.3216
180 0.33298 3.0032 6705.8 158.87 18.341 26.728 1043.6 121.39 6.2777
185 0.32397 3.0867 4747.9 80.937 18.514 26.896 1056.4 123.86 6.4412
185 0.32397 3.0867 6839.9 159.60 18.514 26.896 1056.4 124.52 6.3985
190 0.31544 3.1701 4882.8 81.657 18.677 27.055 1069.0 126.94 6.5598
190 0.31544 3.1701 6974.8 160.32 18.677 27.055 1069.0 127.62 6.5182
195 0.30735 3.2536 5018.5 82.362 18.831 27.205 1081.6 129.93 6.6774
195 0.30735 3.2536 7110.4 161.03 18.831 27.205 1081.6 130.68 6.6369
200 0.29967 3.3370 5154.9 83.052 18.976 27.346 1094.0 132.92 6.7941
200 0.29967 3.3370 7246.8 161.72 18.976 27.346 1094.0 133.71 6.7545
205 0.29236 3.4204 5291.9 83.729 19.112 27.480 1106.3 135.86 6.9098
205 0.29236 3.4204 7383.9 162.40 19.112 27.480 1106.3 136.70 6.8712
210 0.28540 3.5038 5429.7 84.393 19.241 27.605 1118.5 138.81 7.0247
210 0.28540 3.5038 7521.6 163.06 19.241 27.605 1118.5 139.65 6.9869
215 0.27877 3.5872 5568.0 85.044 19.361 27.723 1130.6 141.66 7.1387
215 0.27877 3.5872 7659.9 163.71 19.361 27.723 1130.6 142.57 7.1017
220 0.27244 3.6706 5706.9 85.682 19.475 27.833 1142.6 144.51 7.2518
220 0.27244 3.6706 7798.8 164.35 19.475 27.833 1142.6 145.45 7.2157
225 0.26639 3.7539 5846.3 86.309 19.581 27.937 1154.5 147.32 7.3641
225 0.26639 3.7539 7938.2 164.98 19.581 27.937 1154.5 148.30 7.3288
230 0.26060 3.8373 5986.2 86.924 19.680 28.034 1166.3 150.13 7.4756
230 0.26060 3.8373 8078.2 165.59 19.680 28.034 1166.3 151.11 7.4411
235 0.25506 3.9206 6126.6 87.528 19.773 28.125 1178.0 152.89 7.5863
235 0.25506 3.9206 8218.6 166.19 19.773 28.125 1178.0 153.89 7.5526
240 0.24975 4.0040 6267.5 88.121 19.861 28.211 1189.6 155.65 7.6963
D7265 − 23
TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
240 0.24975 4.0040 8359.4 166.79 19.861 28.210 1189.6 156.63 7.6634
245 0.24466 4.0873 6408.7 88.704 19.942 28.290 1201.2 158.32 7.8055
245 0.24466 4.0873 8500.7 167.37 19.942 28.290 1201.2 159.34 7.7734
250 0.23977 4.1706 6550.4 89.276 20.018 28.364 1212.6 160.99 7.9140
250 0.23978 4.1706 8642.3 167.94 20.018 28.364 1212.6 162.02 7.8827
255 0.23508 4.2539 6692.4 89.838 20.089 28.434 1224.0 163.61 8.0218
255 0.23508 4.2539 8784.3 168.50 20.089 28.434 1224.0 164.67 7.9913
260 0.23056 4.3372 6834.7 90.391 20.155 28.499 1235.3 166.23 8.1289
260 0.23057 4.3372 8926.6 169.06 20.155 28.498 1235.3 167.28 8.0992
265 0.22622 4.4205 6977.3 90.934 20.217 28.559 1246.5 168.81 8.2353
265 0.22622 4.4205 9069.3 169.60 20.217 28.559 1246.5 169.87 8.2065
270 0.22204 4.5037 7120.3 91.469 20.274 28.615 1257.6 171.39 8.3411
270 0.22204 4.5037 9212.2 170.14 20.274 28.615 1257.6 172.43 8.3132
275 0.21801 4.5870 7263.5 91.994 20.328 28.667 1268.6 173.87 8.4462
275 0.21801 4.5870 9355.4 170.66 20.328 28.667 1268.6 174.96 8.4192
280 0.21412 4.6703 7406.9 92.511 20.377 28.715 1279.6 176.35 8.5507
280 0.21412 4.6703 9498.9 171.18 20.377 28.715 1279.6 177.46 8.5246
285 0.21037 4.7535 7550.6 93.020 20.423 28.760 1290.5 178.84 8.6546
285 0.21037 4.7535 9642.6 171.69 20.423 28.760 1290.5 179.94 8.6295
290 0.20675 4.8368 7694.5 93.520 20.465 28.801 1301.3 181.33 8.7579
290 0.20675 4.8368 9786.5 172.19 20.465 28.801 1301.3 182.39 8.7338
295 0.20325 4.9200 7838.6 94.013 20.505 28.840 1312.0 183.72 8.8606
295 0.20325 4.9200 9930.6 172.68 20.505 28.839 1312.0 184.82 8.8375
300 0.19987 5.0033 7982.9 94.498 20.541 28.875 1322.7 186.11 8.9627
300 0.19987 5.0033 10075 173.16 20.541 28.875 1322.7 187.23 8.9407
305 0.19660 5.0865 8127.4 94.976 20.575 28.908 1333.3 188.50 9.0642
305 0.19660 5.0865 10219 173.64 20.575 28.908 1333.3 189.61 9.0434
310 0.19343 5.1697 8272.0 95.446 20.606 28.938 1343.8 190.90 9.1652
310 0.19343 5.1697 10364 174.11 20.606 28.938 1343.8 191.97 9.1456
315 0.19037 5.2530 8416.7 95.909 20.634 28.966 1354.3 193.20 9.2656
315 0.19037 5.2530 10509 174.58 20.634 28.966 1354.3 194.31 9.2472
320 0.18740 5.3362 8561.6 96.366 20.661 28.991 1364.7 195.50 9.3655
320 0.18740 5.3362 10654 175.03 20.661 28.991 1364.7 196.63 9.3484
325 0.18452 5.4194 8706.7 96.815 20.685 29.015 1375.0 198.05 9.4649
325 0.18452 5.4194 10799 175.48 20.685 29.015 1375.0 198.93 9.4491
330 0.18173 5.5026 8851.8 97.258 20.707 29.036 1385.3 200.60 9.5638
330 0.18173 5.5026 10944 175.92 20.707 29.036 1385.3 201.21 9.5494
335 0.17902 5.5859 8997.0 97.695 20.727 29.056 1395.5 203.10 9.6621
335 0.17902 5.5859 11089 176.36 20.727 29.056 1395.5 203.48 9.6491
340 0.17640 5.6691 9142.3 98.126 20.746 29.074 1405.6 205.61 9.7600
340 0.17640 5.6691 11234 176.79 20.746 29.074 1405.6 205.72 9.7485
345 0.17384 5.7523 9287.8 98.550 20.763 29.091 1415.7 208.12 9.8574
345 0.17384 5.7523 11380 177.22 20.763 29.091 1415.7 207.95 9.8474
350 0.17137 5.8355 9433.2 98.969 20.779 29.106 1425.7 210.63 9.9543
350 0.17137 5.8355 11525 177.64 20.779 29.106 1425.7 210.17 9.9459
355 0.16896 5.9187 9578.8 99.382 20.793 29.120 1435.7 213.09 10.0510
355 0.16896 5.9187 11671 178.05 20.793 29.120 1435.7 212.36 10.044
360 0.16661 6.0019 9724.4 99.789 20.807 29.132 1445.6 215.56 10.1470
360 0.16661 6.0019 11816 178.46 20.806 29.132 1445.6 214.55 10.142
365 0.16434 6.0851 9870.1 100.190 20.819 29.144 1455.4 217.87 10.2420
365 0.16434 6.0851 11962 178.86 20.818 29.144 1455.4 216.72 10.239
370 0.16212 6.1683 10016.0 100.590 20.829 29.154 1465.2 220.19 10.3370
370 0.16212 6.1683 12108 179.25 20.829 29.154 1465.2 218.87 10.336
375 0.15996 6.2515 10162.0 100.980 20.839 29.164 1474.9 222.61 10.4320
375 0.15996 6.2515 12254 179.65 20.839 29.164 1474.9 221.01 10.432
380 0.15786 6.3347 10308.0 101.370 20.848 29.172 1484.6 225.03 10.5260
380 0.15786 6.3347 12399 180.03 20.848 29.172 1484.6 223.14 10.528
385 0.15581 6.4179 10453.0 101.750 20.857 29.180 1494.2 227.35 10.6200
385 0.15582 6.4179 12545 180.41 20.857 29.180 1494.2 225.26 10.624
390 0.15382 6.5011 10599.0 102.120 20.864 29.187 1503.7 229.68 10.7130
390 0.15382 6.5011 12691 180.79 20.864 29.187 1503.7 227.36 10.719
395 0.15188 6.5842 10745.0 102.500 20.871 29.194 1513.2 232.00 10.8060
395 0.15188 6.5842 12837 181.16 20.871 29.194 1513.2 229.45 10.814
400 0.14998 6.6674 10891.0 102.860 20.878 29.200 1522.6 234.33 10.8990
400 0.14998 6.6674 12983 181.53 20.878 29.200 1522.6 231.54 10.909
405 0.14813 6.7506 11037.0 103.230 20.883 29.205 1532.0 236.41 10.9910
405 0.14813 6.7506 13129 181.89 20.883 29.205 1532.0 233.61 11.003
410 0.14633 6.8338 11183.0 103.580 20.889 29.210 1541.4 238.49 11.0830
410 0.14633 6.8338 13275 182.25 20.889 29.210 1541.4 235.67 11.097
415 0.14457 6.9170 11329.0 103.940 20.893 29.215 1550.6 240.83 11.1740
415 0.14457 6.9170 13421 182.60 20.893 29.215 1550.6 237.72 11.191
420 0.14285 7.0002 11475.0 104.290 20.898 29.219 1559.9 243.16 11.2660
420 0.14285 7.0001 13567 182.95 20.898 29.219 1559.9 239.76 11.284
425 0.14118 7.0833 11622.0 104.630 20.902 29.223 1569.0 245.50 11.3560
D7265 − 23
TABLE 1 Continued
T ρ V H S C C c λ η
v p
-1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
(K) (mol·L ) (L ·mol) (J·mol ) (J·mol ·K ) (J·mol ·K ) (J·mol ·K ) (m·s ) (mW·m ·K ) (μPa·s)
425 0.14118 7.0833 13713 183.30 20.902 29.223 1569.0 241.79 11.377
430 0.13954 7.1665 11768.0 104.980 20.906 29.226 1578.1 247.84 11.4470
430 0.13954 7.1665 13860 183.64 20.906 29.226 1578.1 243.82 11.470
435 0.13794 7.2497 11914.0 105.310 20.909 29.230 1587.2 250.18 11.5370
435 0.13794 7.2497 14006 183.98 20.909 29.230 1587.2 245.83 11.563
440 0.13637 7.3329 12060.0 105.650 20.913 29.233 1596.2 252.52 11.6260
440 0.13637 7.3328 14152 184.31 20.913 29.233 1596.2 247.84 11.655
445 0.13484 7.4160 12206.0 105.980 20.916 29.236 1605.2 254.86 11.7160
445 0.13484 7.4160 14298 184.64 20.916 29.236 1605.2 249.84 11.746
450 0.13335 7.4992 12352.0 106.300 20.919 29.238 1614.1 257.20 11.8050
450 0.13335 7.4992 14444 184.97 20.919 29.238 1614.1 251.84 11.838
455 0.13188 7.5824 12499.0 106.630 20.922 29.241 1623.0 259.55 11.8930
455 0.13189 7.5824 14590 185.29 20.922 29.241 1623.0 253.82 11.929
460 0.13045 7.6655 12645.0 106.950 20.925 29.244 1631.8 261.90 11.9820
460 0.13045 7.6655 14737 185.61 20.925 29.244 1631.8 255.80 12.020
465 0.12905 7.7487 12791.0 107.260 20.927 29.246 1640.6 264.25 12.0700
465 0.12905 7.7487 14883 185.93 20.927 29.246 1640.6 257.77 12.111
470 0.12768 7.8319 12937.0 107.580 20.930 29.248 1649.3 266.60 12.1570
470 0.12768 7.8319 15029 186.24 20.930 29.248 1649.3 259.74 12.201
475 0.12634 7.9150 13083.0 107.890 20.932 29.251 1658.0 268.95 12.2450
475 0.12634 7.9150 15175 186.55 20.932 29.251 1658.0 261.70 12.291
480 0.12503 7.9982 13230.0 108.190 20.935 29.253 1666.6 271.31 12.3320
480 0.12503 7.9982 15322 186.86 20.935 29.253 1666.6 263.66 12.381
485 0.12374 8.0814 13376.0 108.500 20.938 29.256 1675.2 273.66 12.4190
485 0.12374 8.0813 15468 187.16 20.938 29.256 1675.2 265.60 12.471
490 0.12248 8.1645 13522.0 108.800 20.940 29.258 1683.8 276.02 12.5050
490 0.12248 8.1645 15614 187.46 20.940 29.258 1683.8 267.55 12.560
495 0.12125 8.2477 13669.0 109.090 20.943 29.260 1692.3 278.38 12.5910
495 0.12125 8.2477 15760 187.76 20.943 29.260 1692.3 269.49 12.649
500 0.12004 8.3308 13815.0 109.390 20.945 29.263 1700.7 280.74 12.6770
500 0.12004 8.3308 15907 188.05 20.945 29.263 1700.7 271.42 12.738
1.0 MPa
50 2.61740 0.3821 1454.7 43.785 12.837 24.482 576.1 42.10 2.6078
50 2.6174 0.38206 3546.7 122.45 12.837 24.482 576.10 43.028 2.5365
55 2.32380 0.4303 1574.9 46.076 12.810 23.649 609.2 44.74 2.7944
55 2.3238 0.43034 3666.8 124.74 12.810 23.649 609.15 45.633 2.7187
60 2.09580 0.4772 1691.7 48.110 12.830 23.135 639.3 47.46 2.9756
60 2.0958 0.47715 3783.7 126.78 12.830 23.135 639.26 48.298 2.8958
65 1.91220 0.5230 1806.6 49.949 12.895 22.823 667.0 50.26 3.1512
65 1.9122 0.52296 3898.5 128.62 12.895 22.823 666.97 51.002 3.0684
70 1.76050 0.5680 1920.
...
