ASTM F3588-22

(Guide)

Standard Guide for Set of Objects used with A-UGVs

Standard Guide for Set of Objects used with A-UGVs

SIGNIFICANCE AND USE
4.1 A-UGVs navigate, dock, or perform other tasks, or combinations thereof, within for example manufacturing, warehouse, hospital, and other environments. Objects (defined in Terminology F3200 as anything in the environment that is not infrastructure) and obstacles (defined in Terminology F3200 as static or moving objects that obstruct the intended movement) are common within these environments. Objects can cause A-UGV challenges in navigation, docking, etc. (see Test Method F3244, Guide F3470) where the object detection systems must provide the highest level of performance to allow safe and productive vehicle use. ASTM Committee F45 surveyed the A-UGV community of manufacturers, users, and researchers, and determined that a relatively short list of objects are the most common objects that their vehicles must detect and avoid. Additionally, ANSI/ITSDF B56.5 includes three test pieces that represent (1) the human body torso lying horizontally and (2) standing human leg, both with worst case, flat black coatings, and (3) flat objects (for example, boxes, doors, manufactured materials), including a worst case, highly (optically) reflective coating. The survey results are listed here and are considered example objects found in warehousing/manufacturing, healthcare, domestic, and retail environments:
4.1.1 Pallets, racking, wheeled carts;
4.1.2 Other A-UGVs or AMRs;
4.1.3 Steps or stairs;
4.1.4 Tables or desks, ladders;
4.1.5 Cables or hoses, or both;
4.1.6 Chairs, overhangs (that is, on objects);
4.1.7 IV poles; and
4.1.8 Forklifts/forklift tines.
As some objects may not be cost-effectively available for only A-UGV object detection tests (for example, 4.1.2, 4.1.3, and 4.1.8), the remaining objects are potentially more cost-effective as objects and are described in this guide as the standard set of objects.
4.2 The objects can vary greatly within their category. For example, pallets can be made of wood, plastic, or metal; have a variety of ...
SCOPE
1.1 This standard guide provides a standard set of reference objects for use with automatic, automated, or autonomous unmanned ground vehicles (A-UGVs). The objects set includes typical objects found within industrial areas including, but not limited to: warehouses, hospitals, office spaces, and manufacturing facilities. Also, the objects set includes three test pieces from ANSI/ITSDF B56.5. The objects set is intended for use by A-UGV manufacturers and users to test the performance of A-UGVs when near the object(s). The objects set is minimized to include characteristics that have proven to cause interrupted A-UGV operation. Beyond this set of objects, Test Method F3418 is used to record most any object.
1.2 The objects set contains one each of the following items: pallet, racking, ladder, cable cover, table, cart, intravenous (IV) pole, chair, forklift tines, and test pieces shown in ANSI/ITSDF B56.5, including a horizontal cylinder, vertical cylinder, and flat plate. The objects set is not intended to be exhaustive.
1.3 It is intended that the objects set mainly includes off-the-shelf items. This standard guide provides a reporting method to provide obstacle information (for example, model, serial number, photograph) to allow obstacle use for exact replication of tests.
1.4 The values stated in SI units are to be regarded as the standard. The values given in parentheses are not precise mathematical conversion to imperial units. They are close approximate equivalents for the purpose of specifying material dimensions or quantities that are readily available to avoid excessive fabrication costs of test apparatuses while maintaining repeatability and reproducibility of the test method results. These values given in parentheses are provided for information only and are not considered standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the re...

General Information

Status
Published
Publication Date
30-Sep-2022
ICS
35.240.60 - IT applications in transport
43.020 - Road vehicles in general
Technical Committee
F45 - Robotics, Automation, and Autonomous Systems
Drafting Committee
F45.03 - A-UGV Object Detection and Protection
Current Stage
Ref Project

Buy Standard

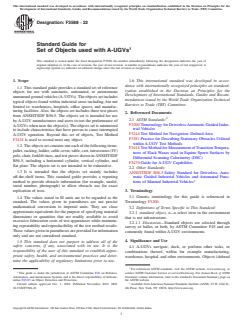

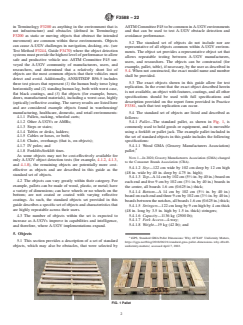

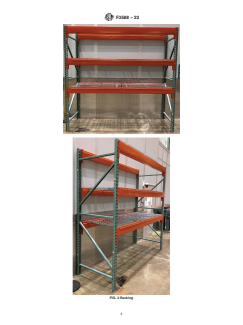

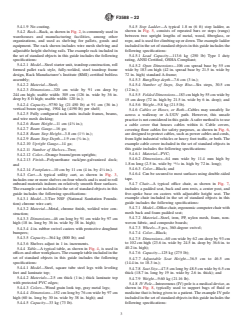

ASTM F3588-22 - Standard Guide for Set of Objects used with A-UGVsASTM F3588-22 - Standard Guide for Set of Objects used with A-UGVs
