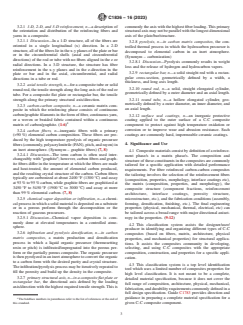

SIGNIFICANCE AND USE
4.1 Composite materials consist by definition of a reinforcement phase/s in a matrix phase/s. The composition and structure of these constituents in the composites are commonly tailored for a specific application with detailed performance requirements. For fiber reinforced carbon-carbon composites the tailoring involves the selection of the reinforcement fibers (composition, properties, morphology, interface coatings etc), the matrix (composition, properties, and morphology), the composite structure (component fractions, reinforcement architecture, interface coatings, porosity structure, microstructure, etc.), and the fabrication conditions (assembly, forming, densification, finishing, etc.). The final engineering properties (physical, mechanical, thermal, electrical, etc) can be tailored across a broad range with major directional anisotropy in the properties. (9-12)
4.2 This classification system assists the designer/user/producer in identifying and organizing different types of C-C composites (based on fibers, matrix, architecture, physical properties, and mechanical properties) for structural applications. It assists the composites community in developing, selecting, and using C-C composites with the appropriate composition, construction, and properties for a specific application.
4.3 This classification system is a top level identification tool which uses a limited number of composites properties for high level classification. It is not meant to be a complete, detailed material specification, because it does not cover the full range of composition, architecture, physical, mechanical, fabrication, and durability requirements commonly defined in a full design specification. Guide C1783 provides direction and guidance in preparing a complete material specification for a given C-C composite component.

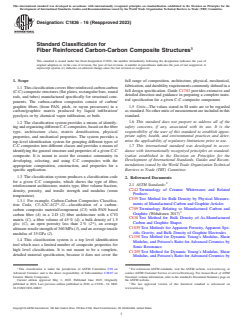

SCOPE
1.1 This classification covers fiber reinforced carbon-carbon (C-C) composite structures (flat plates, rectangular bars, round rods, and tubes) manufactured specifically for structural components. The carbon-carbon composites consist of carbon/graphite fibers (from PAN, pitch, or rayon precursors) in a carbon/graphite matrix produced by liquid infiltration/pyrolysis or by chemical vapor infiltration, or both.
1.2 The classification system provides a means of identifying and organizing different C-C composites, based on the fiber type, architecture class, matrix densification, physical properties, and mechanical properties. The system provides a top-level identification system for grouping different types of C-C composites into different classes and provides a means of identifying the general structure and properties of a given C-C composite. It is meant to assist the ceramics community in developing, selecting, and using C-C composites with the appropriate composition, construction, and properties for a specific application.
1.3 The classification system produces a classification code for a given C-C composite, which shows the type of fiber, reinforcement architecture, matrix type, fiber volume fraction, density, porosity, and tensile strength and modulus (room temperature).
1.3.1 For example, Carbon-Carbon Composites Classification Code, C3-A2C-4C2*-32—classification of a carbon-carbon composite material/component (C3) with PAN based carbon fiber (A) in a 2-D (2) fiber architecture with a CVI matrix (C), a fiber volume of 45 % (4), a bulk density of 1.5 g/cc (C), an open porosity less than 2 % (2*), an average ultimate tensile strength of 360 MPa (3), and an average tensile modulus of 35 GPa (2).
1.4 This classification system is a top level identification tool which uses a limited number of composite properties for high level classification. It is not meant to be a complete, detailed material specification, because it does not cover the full range of composition, architecture, physical, mechanical, fabrication, and durability requirements commonly defined in a full de...
