ASTM D6028/D6028M-20

Standard Practice for (Analytical Procedure) Determining Hydraulic Properties of a Confined Aquifer Taking into Consideration Storage of Water in Leaky Confining Beds by Modified Hantush Method

SIGNIFICANCE AND USE
5.1 Assumptions:
5.1.1 The control well discharges at a constant rate, Q.
5.1.2 The control well is of infinitesimal diameter and fully penetrates the aquifer.
5.1.3 The aquifer is homogeneous, isotropic, and areally extensive.
Note 1: Slug and pumping tests implicitly assume a porous medium. Fractured rock and carbonate settings may not provide meaningful data and information.
5.1.4 The aquifer remains saturated (that is, water level does not decline below the top of the aquifer).
5.1.5 The aquifer is overlain or underlain, or both, everywhere by confining beds individually having uniform hydraulic conductivities, specific storages, and thicknesses. The confining beds are bounded on the distal sides by one of the cases shown in Fig. 1.
5.1.6 Flow in the aquifer is two-dimensional and radial in the horizontal plane.
5.2 The geometry of the well and aquifer system is shown in Fig. 1.
5.3 Implications of Assumptions:
5.3.1 Paragraph 5.1.1 indicates that the discharge from the control well is at a constant rate. Paragraph 8.1 of Test Method D4050 discusses the variation from a strictly constant rate that is acceptable. A continuous trend in the change of the discharge rate could result in misinterpretation of the water-level change data unless taken into consideration.
Note 2: The quality of the result produced by this standard is dependent on the competence of the personnel performing it, and the suitability of the equipment and facilities used. Agencies that meet the criteria of Practice D3740 are generally considered capable of competent and objective testing/sampling/inspection/etc. Users of this standard are cautioned that compliance with Practice D3740 does not in itself assure reliable results. Reliable results depend on many factors; Practice D3740 provides a means of evaluating some of those factors.
5.3.2 The leaky confining bed problem considered by the modified Hantush method requires that the control well has an infinite...
SCOPE
1.1 This practice covers an analytical procedure for determining the transmissivity and storage coefficient of a confined aquifer taking into consideration the change in storage of water in overlying or underlying confining beds, or both. This practice is used to analyze water-level or head data collected from one or more observation wells or piezometers during the pumping of water from a control well at a constant rate. With appropriate changes in sign, this practice also can be used to analyze the effects of injecting water into a control well at a constant rate.
1.2 This analytical procedure is used in conjunction with Test Method D4050.
1.3 Limitations—The valid use of the modified Hantush method (1)2 is limited to the determination of hydraulic properties for aquifers in hydrogeologic settings with reasonable correspondence to the assumptions of the Hantush-Jacob method (Practice D6029/D6029M) with the exception that in this case the gain or loss of water in storage in the confining beds is taken into consideration (see 5.1). All possible combinations of impermeable beds and source beds (for example, beds in which the head remains uniform) are considered on the distal side of the leaky beds that confine the aquifer of interest (see Fig. 1).

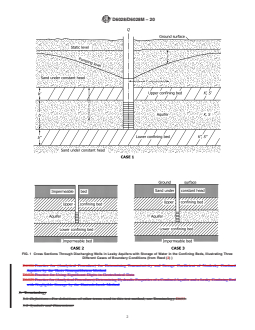

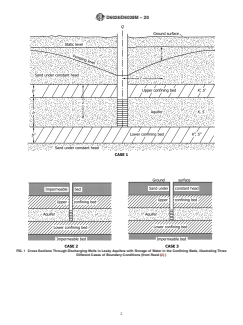

FIG. 1 Cross Sections Through Discharging Wells in Leaky Aquifers with Storage of Water in the Confining Beds, Illustrating Three Different Cases of Boundary Conditions (from Reed (2) )
1.4 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026.
1.4.1 The procedures used to specify how data are collected/recorded and calculated in the standard are regarded as the industry standard. In addition, they are representative of the significant digits that generally should be retained. The procedures used do not consider material variation, purpose for obtaining the data, special purpose studies,...
