EN 13763-9:2025
(Main)Explosives for civil uses - Detonators and detonating cord relays - Part 9: Verification of resistance to bending of detonators
Explosives for civil uses - Detonators and detonating cord relays - Part 9: Verification of resistance to bending of detonators
This document specifies a method for determining the resistance of the electric detonators, non-electric detonators, plain detonators and electronic detonators to bending.
This document applies to explosives for civil uses.
Explosivstoffe für zivile Zwecke - Zünder und Sprengschnurverzögerer - Teil 9: Überprüfung des Widerstandes von Zündern gegen Biegespannung
Dieses Dokument legt ein Verfahren für die Bestimmung des Widerstands von elektrischen Zündern, nichtelektrischen Zündern, Sprengkapseln und elektronischen Zündern gegenüber Biegespannung fest.
Dieses Dokument gilt für Explosivstoffe für zivile Zwecke.
Explosifs à usage civil - Détonateurs et relais pour cordeau détonant - Partie 9 : Vérification de la résistance à la flexion des détonateurs
Le présent document spécifie une méthode d’essai pour la vérification de la résistance à la flexion des détonateurs.
Le présent document s’applique aux détonateurs électriques, non électriques, pyrotechniques, semi-finis et électroniques.
Le présent document ne s’applique pas aux relais pour cordeau détonant, aux connecteurs de surface, aux fils d’amorce, aux tubes à transmission d’ondes de choc, aux manchons d’accouplement et aux systèmes d’amorçage électroniques.
Eksplozivi za civilno uporabo - Detonatorji in zakasnilniki - 9. del: Preverjanje odpornosti detonatorjev proti upogibanju
General Information
Relations
Standards Content (Sample)

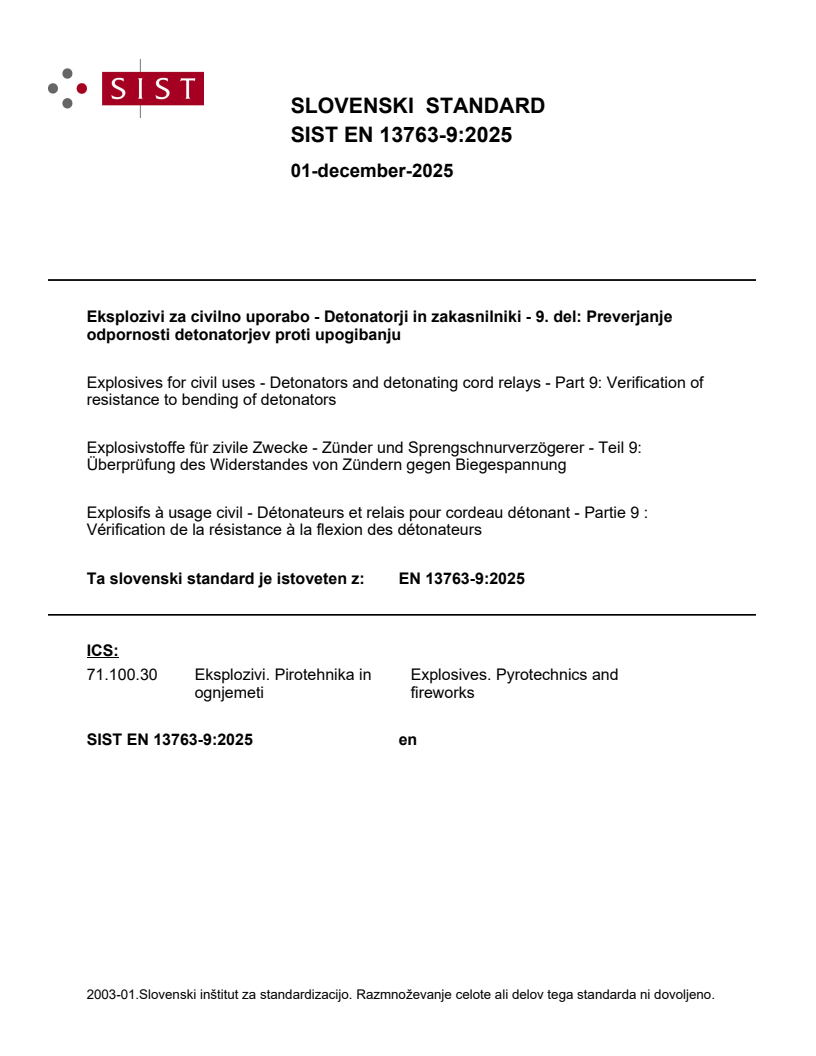

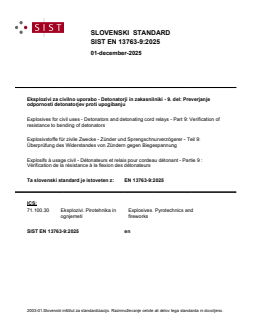

SLOVENSKI STANDARD
01-december-2025
Eksplozivi za civilno uporabo - Detonatorji in zakasnilniki - 9. del: Preverjanje
odpornosti detonatorjev proti upogibanju
Explosives for civil uses - Detonators and detonating cord relays - Part 9: Verification of
resistance to bending of detonators
Explosivstoffe für zivile Zwecke - Zünder und Sprengschnurverzögerer - Teil 9:
Überprüfung des Widerstandes von Zündern gegen Biegespannung
Explosifs à usage civil - Détonateurs et relais pour cordeau détonant - Partie 9 :
Vérification de la résistance à la flexion des détonateurs
Ta slovenski standard je istoveten z: EN 13763-9:2025
ICS:
71.100.30 Eksplozivi. Pirotehnika in Explosives. Pyrotechnics and
ognjemeti fireworks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

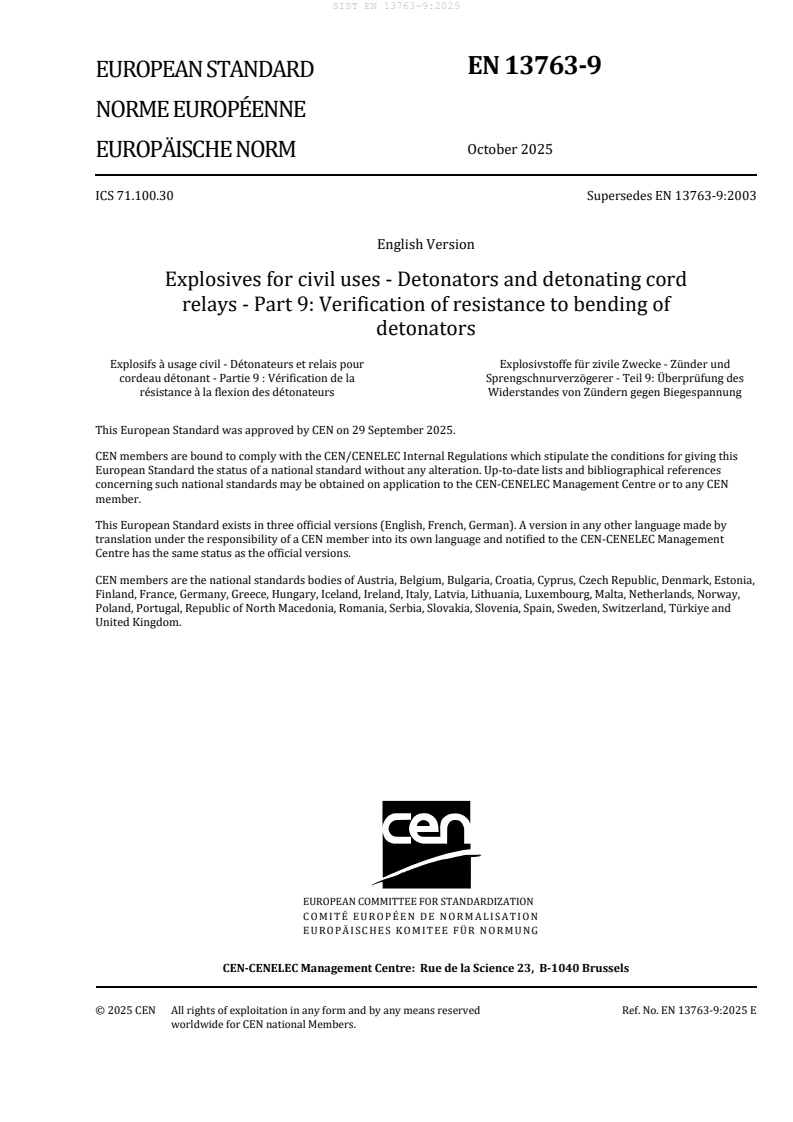

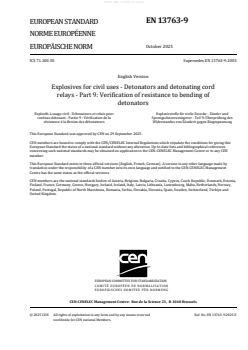

EN 13763-9
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2025
EUROPÄISCHE NORM
ICS 71.100.30 Supersedes EN 13763-9:2003
English Version
Explosives for civil uses - Detonators and detonating cord
relays - Part 9: Verification of resistance to bending of
detonators
Explosifs à usage civil - Détonateurs et relais pour Explosivstoffe für zivile Zwecke - Zünder und
cordeau détonant - Partie 9 : Vérification de la Sprengschnurverzögerer - Teil 9: Überprüfung des
résistance à la flexion des détonateurs Widerstandes von Zündern gegen Biegespannung
This European Standard was approved by CEN on 29 September 2025.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13763-9:2025 E
worldwide for CEN national Members.

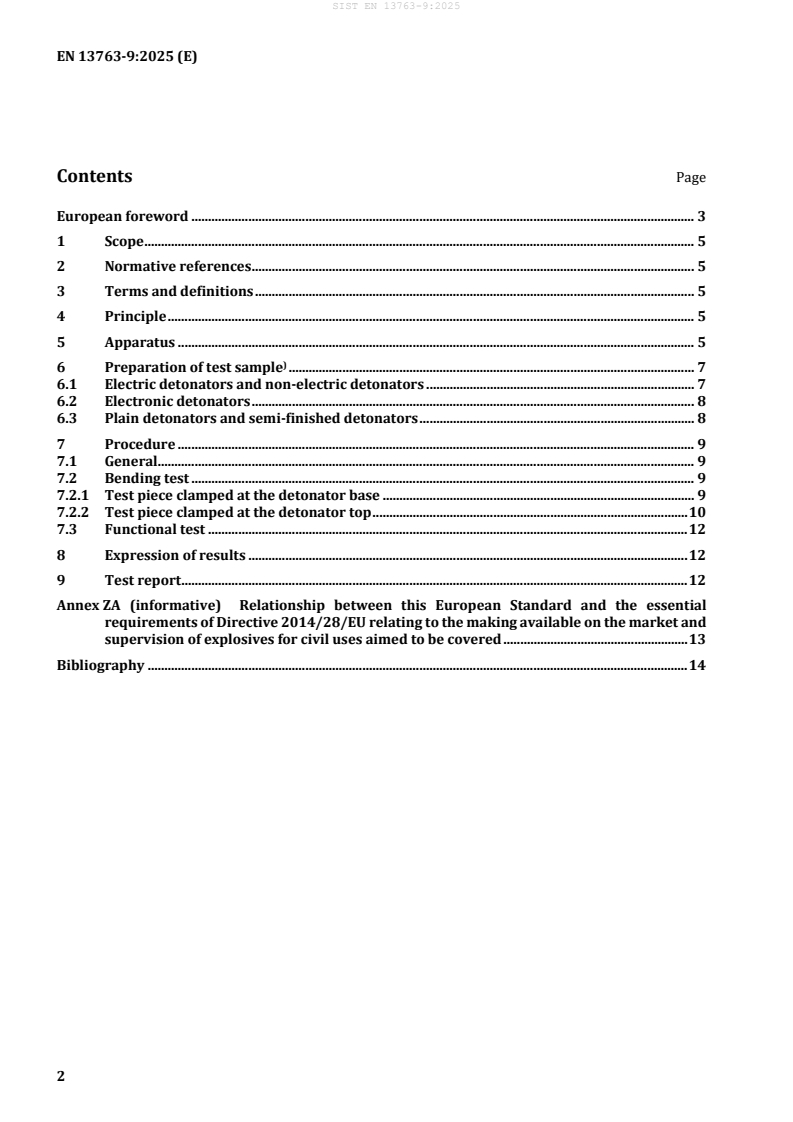

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 5
5 Apparatus . 5
)
6 Preparation of test sample . 7
6.1 Electric detonators and non-electric detonators . 7
6.2 Electronic detonators . 8
6.3 Plain detonators and semi-finished detonators . 8
7 Procedure . 9
7.1 General. 9
7.2 Bending test . 9
7.2.1 Test piece clamped at the detonator base . 9
7.2.2 Test piece clamped at the detonator top . 10
7.3 Functional test . 12
8 Expression of results . 12
9 Test report . 12
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/28/EU relating to the making available on the market and
supervision of explosives for civil uses aimed to be covered . 13
Bibliography . 14
European foreword
This document (EN 13763-9:2025) has been prepared by Technical Committee CEN/TC 321 “Explosives
for civil uses”, the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2026, and conflicting national standards shall be
withdrawn at the latest by April 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13763-9:2003.
EN 13763-9:2003:
a) the document title has been changed from “Detonators and relays — Part 9: Determination of
resistance to bending of detonators” to “Detonators and detonating cord relays — Part 9: Verification
of resistance to bending of detonators”;
b) the Introduction has been removed;
c) the Scope has been revised to clarify the covered and not covered explosives;
d) the normative references have been updated;
e) the terminology entry 3.1 has been removed;
f) the Clause 4 “Principle” has been added;
g) the Clause “Apparatus” has been revised;
h) the Clause “Test pieces” is now called “Preparation of test sample” and has been enlarged to include
electronic and semi-finished detonators and to provide revised specifications for the marking of the
test pieces for the bending test that was formerly part of the “Procedure” clause;
i) the Clause “Procedure” has been revised and now contains the specifications for the two types of the
bending test and a functional test (7.3) has been added;
j) the Clause 8 “Expression of results” has been added;
k) the Clause “Test report” does no longer require conformity with EN ISO/IEC 17025 and the
information to be provided has been revised and enlarged;
l) the former Annex A “Range of applicability of the test method” has been removed;
m) the Annex ZA has been updated;
n) the Bibliography has been added and lists EN ISO/IEC 17025:2017.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
A list of all parts in the EN 13763 series, published under the general title Explosives for civil uses —
Detonators and detonating cord relays, can be found on the CEN website.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies a test method for the verification of the resistance to bending of detonators.
This document applies to electric detonators, non-electric detonators, plain detonators, semi-finished
detonators and electronic detonators.
This document does not apply to detonating cord relays, surface connectors, leading wires, shock tubes,
coupling accessory and electronic initiation systems.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 13763-1:2025, Explosives for civil uses — Detonators and detonating cord relays — Part 1:
Requirements
EN 13857-1:2025, Explosives for civil uses — Part 1: Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13857-1:2025 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
• ISO Online browsing platform: available at https://www.iso.org/obp
• IEC Electropedia: available at https://www.electropedia.org/
4 Principle
During use, detonators can be subjected to bending during the loading of boreholes. Bending of a
detonator could cause inadvertent initiation or misfire.
For the verification of the resistance to bending, a test piece is subjected to a bending force by clamping
one end of it and attaching a weight at the other end. Two types of tests are performed, one where the
test piece is clamped at the base and another one where the test piece is clamped at the top. It is observed
whether the test piece explodes during the test and if cracking or breakage of the shell occurs. After being
subjected to the bending force, the test piece is initiated to verify whether it detonates.
5 Apparatus
5.1 Steel block, as shown in Figure 1, with a hole of at least 30 mm in length. The diameter of the hole
shall not exceed the diameter of the detonator by more than 0,1 mm. The radius for the edge of the hole
shall be (2 ± 0,1) mm.
Dimensions in millimetres
Key
R radius for the edge of the hole
dh diameter of the hole
lh length of the hole
Figure 1 — Steel block
5.2 Weight, of (50 ± 0,1) N.
5.3 Steel ring and wire. The steel ring (see Figure 2) shall have an inner diameter that is just wide
enough to fit around the test piece as shown in Figures 6 and 7. It shall be possible to attach the wire to
the weight (5.2) and to the steel ring.
Dimensions in millimetres
Key
d inner diameter of the steel ring
i
Figure 2 — Steel ring – profile and top view
5.4 Movable support table, capable of being adjusted mechanically in height.
5.5 Marking tool, for marking on the outside of the shell of the test pieces.
5.6 Means of initiation, as specified for the tested detonator in accordance with EN 13763-1:2025,
4.2.1.4 (for electric detonators), 4.3.1.4 (for non-electric detonators), 4.6.1.3 (for plain detonators),
4.5.1.2.3 (for semi-finished detonators) or 4.4.1.4 (for electronic detonators).
1)
6 Preparation of test sample
6.1 Electric detonators and non-electric detonators
Select 26 test pieces of the detonator to be tested.
In case that the detonator to be tested has a delay element, the test pieces shall be chosen from the
detonators having the longest shell.
Take 13 test pieces and mark on the outside of the shell of the test pieces the upper edge of the base
charge as shown in Figure 3 (item 5) using the marking tool (5.5). In case that the detonator to be tested
has a delay element, mark the lower edge of the delay element as shown in Figure 4 (item 4) instead.
These test pieces shall be subjected to the bending test with the test piece clamped at the base in
accordance with 7.2.1.
Take the remaining 13 test pieces and mark on the outside of the shell of the test pieces the midpoint
between the crimp and the upper edge of the primary charge as shown in Figure 3 (item 5) using the
marking tool (5.5). In case that the detonator to be tested has a delay element, the midpoint between the
crimp and the upper edge of the delay element as shown in Figure 4 (item 3) instead. These test pieces
shall be subjected to the bending test with the test piece clamped at the top in accordance with 7.2.2.
Key
1 test piece without delay element
2 primary charge
3 base charge
4 position of the mar
...
