EN 13564-2:2002

Anti-flooding devices for buildings - Part 2: Test methods

This part of this European Standard specifies test methods for anti-flooding devices for buildings according to prEN XXXXX-1.

Rückstauverschlüsse für Gebäude - Teil 2: Prüfverfahren

Diese Europäische Norm legt Prüfverfahren für Rückstauverschlüsse für Gebäude nach prEN XXXXX-1 fest.

Clapets anti-retour pour les bâtiments - Partie 2: Méthodes d'essais

La présente norme spécifie les méthodes d'essai concernant les clapets anti-retour pour les bâtiments selon l'EN 13564-1:2002.

Naprave za preprečevanje poplav v stavbah - 2. del: Preskusne metode

General Information

• Status: Published
• Publication Date: 19-Nov-2002
• ICS: 91.140.80 - Drainage systems
• Technical Committee: CEN/TC 165 - Waste water engineering
• Drafting Committee: CEN/TC 165/WG 11 - Waste fittings
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 13-Jun-2024
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/118 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on waste water engineering products
• Ref Project: SIST EN 13564-2:2003 - Anti-flooding devices for buildings - Part 2: Test methods

Overview

EN 13564-2:2002 (CEN) - Anti-flooding devices for buildings - Part 2: Test methods - defines standardized laboratory and in‑situ test procedures used to verify the performance, durability and watertightness of anti‑flooding and backflow prevention devices fitted to building drainage systems. It complements EN 13564-1:2002 (requirements) and is intended for use by manufacturers, test laboratories and compliance bodies to demonstrate that devices resist surcharge, backflow and environmental stresses.

Key topics and technical requirements

• Scope and references
  • Test methods are specified in accordance with EN 13564-1:2002; EN 1253-2 is referenced for some drainage tests.
• Temperature cycling
  • Types 4 & 5: alternating hot/cold cycles (10 l/min at 93 ±2 °C / 30 l/min at 15 ±5 °C) repeated 1 500 times (100 h).
  • Types 0–3: similar cycling at 75 ±2 °C / 15 ±5 °C repeated 600 times (40 h).
  • Purpose: check for deformation or surface changes that impair fitness for use.
• Watertightness
  • Types 0–3: body sealed and subjected to 50 kPa hydraulic pressure for 5 minutes - no leakage allowed.
  • Types 4–5: tested per EN 1253-2.
• Effectiveness (performance under surcharge/backflow)
  • Test arrangement simulates inflow and backflow (1 kPa and 50 kPa conditions).
  • Long‑term test: uses a defined test medium (plastics, leatherette shreds, sticks, wax granules, peat) in a sequence of cycles (30 cycles A, 5 cycles B). Acceptance: ≤ 500 cm³ leakage per cycle through automatic closure device; emergency devices tested to 50 kPa with ≤ 1 000 cm³ over 30 minutes.
  • Textile test for Type 3: floor‑cloth procedure under 50 kPa for 5 cycles B to verify clogging and sealing behaviour.
  • In‑situ testing: water backflow at 1 kPa for 10 minutes; leakage through automatic device ≤ 500 cm³.

Applications and users

• Who uses EN 13564-2: manufacturers, R&D and quality labs, certification bodies, building services engineers, installers, consulting engineers and specifiers.
• Practical uses:
  • Type approval and product certification of anti‑flooding/backflow devices.
  • R&D validation of material resilience (temperature cycling) and sealing performance.
  • Installation commissioning and routine in‑situ verification of backflow protection on building drainage systems.
  • Tender and specification text for procurement of compliant devices.

Related standards

• EN 13564-1:2002 - Anti‑flooding devices for buildings - Part 1: Requirements
• EN 1253-2 - Gullies for buildings - Part 2: Test methods (referenced for types 4 and 5)
• CEN/TC 165 (Wastewater engineering) is the responsible technical committee.

Keywords: EN 13564-2, anti-flooding devices, test methods, backflow prevention, building drainage, watertightness, temperature cycling, effectiveness testing.

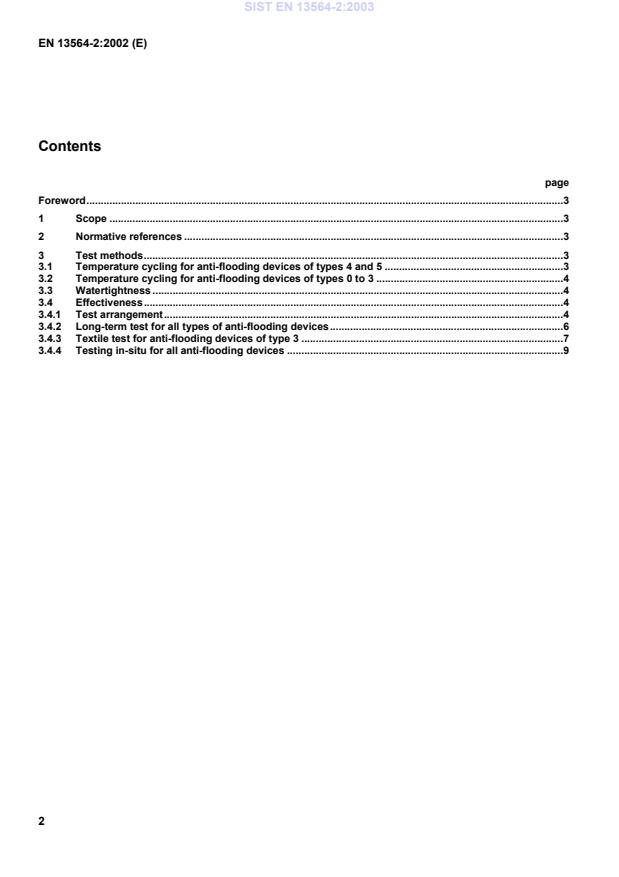

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.RGHRückstauverschlüsse für Gebäude - Teil 2: PrüfverfahrenClapets anti-retour pour les bâtiments - Partie 2: Méthodes d'essaisAnti-flooding devices for buildings - Part 2: Test methods91.140.80Drenažni sistemiDrainage systemsICS:Ta slovenski standard je istoveten z:EN 13564-2:2002SIST EN 13564-2:2003en01-oktober-2003SIST EN 13564-2:2003SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13564-2November 2002ICS 91.140.80English versionAnti-flooding devices for buildings - Part 2: Test methodsClapets anti-retour pour les bâtiments - Partie 2: Méthodesd'essaisRückstauverschlüsse für Gebäude - Teil 2: PrüfverfahrenThis European Standard was approved by CEN on 9 October 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13564-2:2002 ESIST EN 13564-2:2003
...
