prEN 13160-3
(Main)Leak detection systems - Part 3: Requirements and test/assessment methods for liquid systems for tanks
Leak detection systems - Part 3: Requirements and test/assessment methods for liquid systems for tanks
This document gives requirements and the corresponding test/assessment methods applicable to leak detectors based on the drop of the liquid level in the leak detection liquid reservoir. Leak detectors are intended to be used with double skin, underground or above ground, non-pressurized tanks designed for water polluting liquids.
The liquid leak detectors are usually composed of:
- sensing device (liquid sensor);
- evaluation device;
- alarm device.
Leckanzeigesysteme - Teil 3: Anforderungen und Prüf-/Bewertungsmethoden für Flüssigkeitssysteme für Tanks
Dieses Dokument legt Anforderungen an und die einschlägigen Prüf/Bewertungsverfahren für Leckdetektoren, die auf dem Absinken des Flüssigkeitsspiegels im Leckanzeigeflüssigkeitsbehälter des Leckanzeigers basieren, fest. Leckdetektoren sind für den Einsatz an doppelwandigen, unterirdischen oder oberirdischen, nicht druckbeaufschlagten Tanks für wassergefährdende Flüssigkeiten bestimmt.
Die Flüssigkeitsleckdetektoren bestehen in der Regel aus:
- Messeinrichtung (Flüssigkeitssensor);
- Auswerteeinrichtung;
- Alarmeinrichtung.
Systèmes de détection de fuites - Partie 3 : Exigences et méthodes ďessai/ďévaluation des systèmes à liquide pour des réservoirs
La présent document fixe les exigences et les méthodes d'essai/d'évaluation applicables aux détecteurs de fuites, fondées sur la baisse du niveau de liquide dans le réservoir de liquide de la détection de fuites. Les détecteurs de fuites sont destinés à être utilisés avec des réservoirs à double paroi, souterrains ou aériens, sous pression ou non, conçus pour des liquides polluant l'eau.
Les détecteurs à liquide de fuites sont généralement constitués des éléments suivants :
- dispositif de détection (détecteur de liquide) ;
- dispositif d'évaluation ;
- dispositifs d'alarme.
Sistemi za kontrolo tesnosti - 3. del: Zahteve in metode za preskušanje in ocenjevanje sistemov s tekočino za rezervoarje
General Information
Relations
Standards Content (Sample)

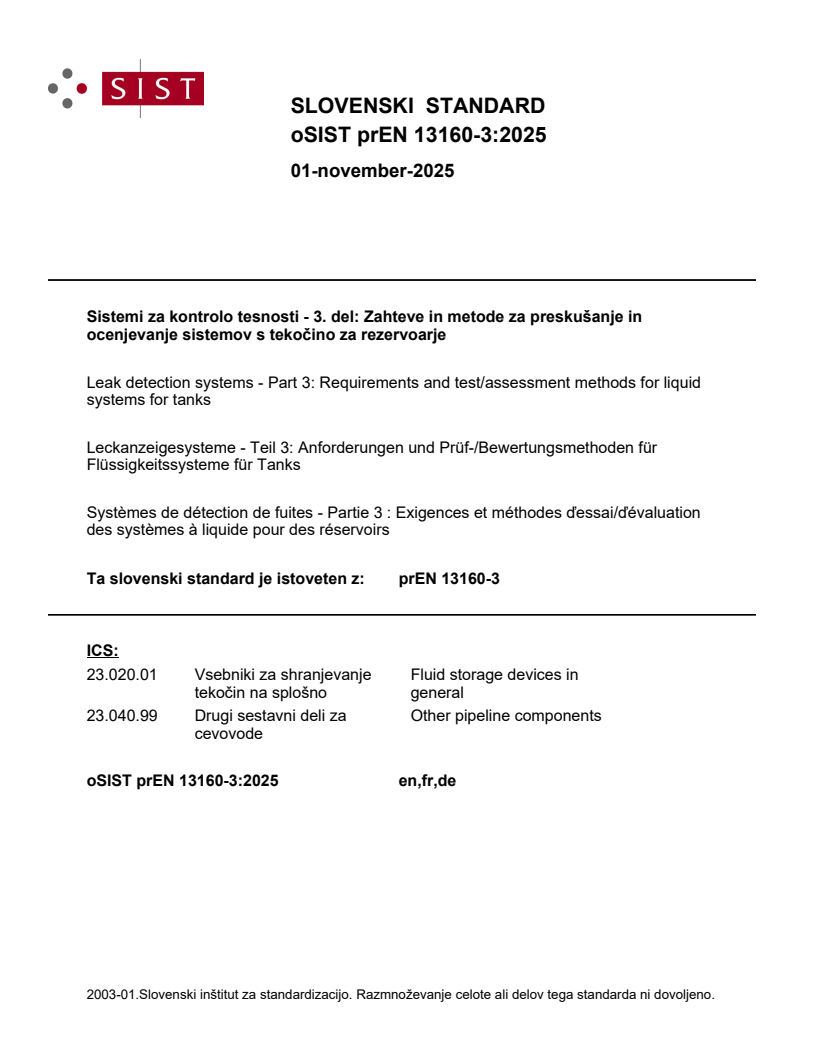

SLOVENSKI STANDARD
01-november-2025
Sistemi za kontrolo tesnosti - 3. del: Zahteve in metode za preskušanje in
ocenjevanje sistemov s tekočino za rezervoarje
Leak detection systems - Part 3: Requirements and test/assessment methods for liquid
systems for tanks
Leckanzeigesysteme - Teil 3: Anforderungen und Prüf-/Bewertungsmethoden für
Flüssigkeitssysteme für Tanks
Systèmes de détection de fuites - Partie 3 : Exigences et méthodes ďessai/ďévaluation
des systèmes à liquide pour des réservoirs
Ta slovenski standard je istoveten z: prEN 13160-3
ICS:
23.020.01 Vsebniki za shranjevanje Fluid storage devices in
tekočin na splošno general
23.040.99 Drugi sestavni deli za Other pipeline components
cevovode
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

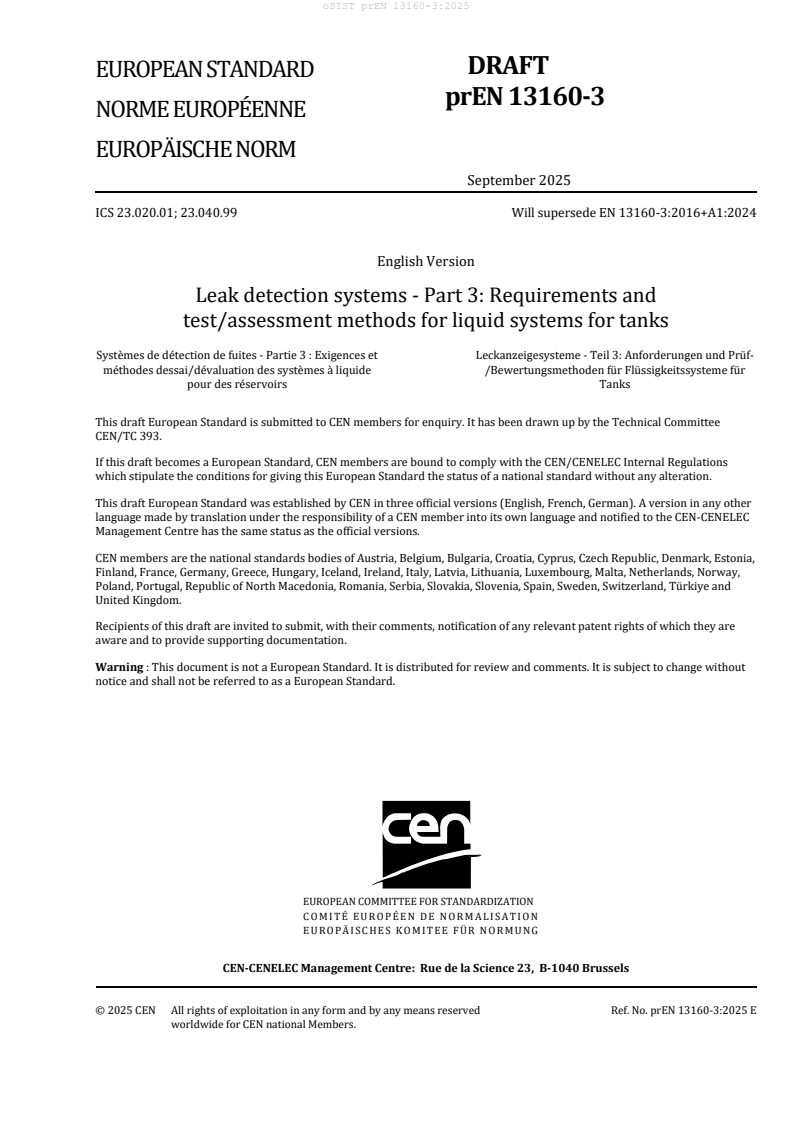

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2025
ICS 23.020.01; 23.040.99 Will supersede EN 13160-3:2016+A1:2024
English Version
Leak detection systems - Part 3: Requirements and
test/assessment methods for liquid systems for tanks
Systèmes de détection de fuites - Partie 3 : Exigences et Leckanzeigesysteme - Teil 3: Anforderungen und Prüf-
méthodes dessai/dévaluation des systèmes à liquide /Bewertungsmethoden für Flüssigkeitssysteme für
pour des réservoirs Tanks
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 393.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 13160-3:2025 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Requirements . 5
4.1 Effectiveness . 5
4.1.1 General. 5
4.1.2 Leak detector . 5
4.1.3 Measurement of the level change (sensing device) . 6
4.1.4 Requirements for software (only if provided) . 8
4.2 Durability of effectiveness . 8
4.2.1 Durability of effectiveness against temperature . 8
4.2.2 Durability of effectiveness against chemical attack . 9
4.2.3 Durability of effectiveness against microbiological growth . 9
5 Testing, assessment and sampling methods . 9
5.1 Effectiveness of leak detectors . 9
5.1.1 General function . 9
5.1.2 Leak detector . 9
5.1.3 Measure the level change (sensing device) . 10
5.1.4 Software . 14
5.2 Durability of effectiveness . 15
5.2.1 Durability of effectiveness against temperature . 15
5.2.2 Durability of effectiveness against chemical attack . 17
5.2.3 Durability of effectiveness against microbiological growth . 18
6 Checking the functionality and durability . 20
6.1 General. 20
6.2 Type testing . 20
6.2.1 General. 20
6.2.2 Test samples and testing . 20
6.2.3 Test reports . 21
6.3 Factory production control . 21
6.3.1 General. 21
6.3.2 Scope of testing . 21
6.3.3 Customised products manufactured in very small quantities. 21
7 Marking, labelling and packaging . 22
8 Environmental aspects . 22
Annex A (normative) Test of the compatibility of leak detection liquids with metals . 23
Bibliography . 27
European foreword
This document (prEN 13160-3:2025) has been prepared by Technical Committee CEN/TC 393
“Equipment for storage tanks and for service stations”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 13160-3:2016+A1:2024.
This document includes the following significant technical changes with respect to EN 13160-
3:2016+A1:2024:
— The coefficient of thermal expansion has been adapted in 4.1.3.2.6
— The R phrase has been replaced by an H phrase in Clause 8;
— Clause 6 has been revised and renamed to Checking the functionality and durability;
The EN 13160 series, under the general title Leak detection systems, is composed of the following parts:
— Part 1: General principles
— Part 2: Requirements and test/assessment methods for pressure and vacuum systems
— Part 3: Requirements and test/assessment methods for liquid systems for tanks
— Part 4: Requirements and test/assessment methods for sensor-based leak detection systems
— Part 5: Requirements and test/assessment methods for in-tank gauge systems and pressurized
pipework systems
— Part 6: Sensors in monitoring wells
— Part 7: Requirements and test/assessment methods for interstitial spaces, leak detection linings and
leak detection jackets
1 Scope
This document gives requirements and the corresponding test/assessment methods applicable to leak
detectors based on the drop of the liquid level in the leak detection liquid reservoir. Leak detectors are
intended to be used with double skin, underground or above ground, non-pressurized tanks designed for
water polluting liquids.
The liquid leak detectors are usually composed of:
— sensing device (liquid sensor);
— evaluation device;
— alarm device.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 981:1996+A1:2008, Safety of machinery — System of auditory and visual danger and information
signals
EN 1412, Copper and copper alloys — European numbering system
EN 1652, Copper and copper alloys — Plate, sheet, strip and circles for general purposes
EN 10027-1, Designation systems for steels — Part 1: Steel names
EN 12285-1, Workshop fabricated steel tanks — Part 1: Horizontal cylindrical single skin and double skin
tanks for the underground storage of flammable and nonflammable water polluting liquids other than for
heating and cooling of buildings
EN 12285-2, Workshop fabricated steel tanks — Part 2: Horizontal cylindrical single skin and double skin
tanks for the aboveground storage of flammable and non-flammable water polluting liquids
EN 13160-1:2016, Leak detection systems — Part 1: General Principles
EN 13160-7, Leak detection systems — Part 7: Requirements and test/assessment methods for interstitial
spaces, leak detection linings and leak detection jackets
EN 13341:2005+A1:2011, Static thermoplastic tanks for above ground storage of domestic heating oils,
kerosene and diesel fuels — Blow moulded and rotationally moulded polyethylene tanks and rotationally
moulded tanks made of anionically polymerized polyamide 6 — Requirements and test methods
EN 27888, Water quality — Determination of electrical conductivity (ISO 7888)
EN 61672-1, Electroacoustics — Sound level meters — Part 1: Specifications
EN ISO 175:2010, Plastics — Methods of test for the determination of the effects of immersion in liquid
chemicals (ISO 175:2010)
EN ISO 2719, Determination of flash point — Pensky-Martens closed cup method (ISO 2719)
EN ISO 3104, Petroleum products — Transparent and opaque liquids — Determination of kinematic
viscosity and calculation of dynamic viscosity (ISO 3104)
EN ISO 12185, Crude petroleum, petroleum products and related products — Determination of density —
Laboratory density meter with an oscillating U-tube sensor (ISO 12185)
EN IEC 60079-0:2012 , Explosive atmospheres — Part 0: Equipment — General requirements
(IEC 60079-0:2011, modified + Cor.:2012)
ISO 431 , Copper refinery shapes
ISO 48-4, Rubber, vulcanized or thermoplastic — Determination of hardness — Part 4: Indentation
hardness by durometer method (Shore hardness)
ASTM D 1177, Standard Test Method for Freezing Point of Aqueous Engine Coolants
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13160-1:2016 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
4 Requirements
4.1 Effectiveness
4.1.1 General
This type of leak detector is classified according to EN 13160-1:2016 as class II.
The general requirements on leak detection systems according to EN 13160-1:2016 Clause 5 shall be met.
The interstitial space shall be in accordance with EN 13160-7, EN 12285-1 or EN 12285-2.
NOTE To ensure the effectiveness of the system a liquid leak detector can only serve one ta
...
