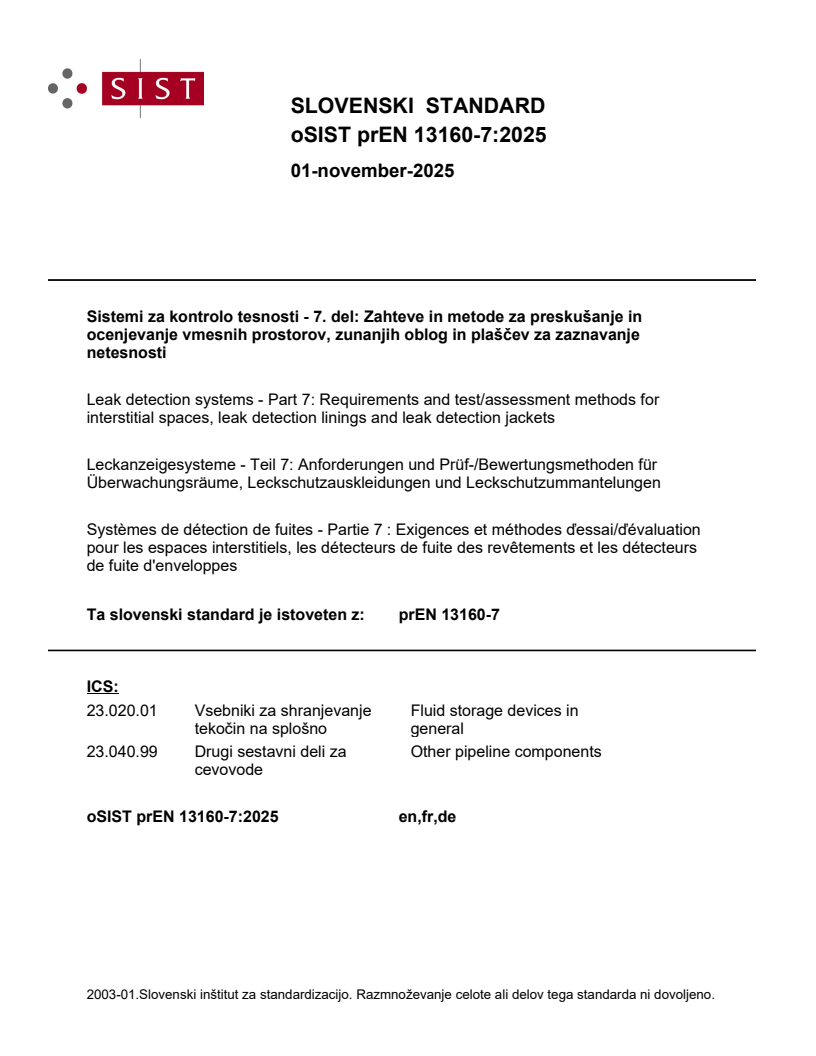

SLOVENSKI STANDARD
01-november-2025
Sistemi za kontrolo tesnosti - 7. del: Zahteve in metode za preskušanje in
ocenjevanje vmesnih prostorov, zunanjih oblog in plaščev za zaznavanje
netesnosti
Leak detection systems - Part 7: Requirements and test/assessment methods for
interstitial spaces, leak detection linings and leak detection jackets
Leckanzeigesysteme - Teil 7: Anforderungen und Prüf-/Bewertungsmethoden für
Überwachungsräume, Leckschutzauskleidungen und Leckschutzummantelungen
Systèmes de détection de fuites - Partie 7 : Exigences et méthodes ďessai/ďévaluation
pour les espaces interstitiels, les détecteurs de fuite des revêtements et les détecteurs
de fuite d'enveloppes
Ta slovenski standard je istoveten z: prEN 13160-7
ICS:
23.020.01 Vsebniki za shranjevanje Fluid storage devices in
tekočin na splošno general
23.040.99 Drugi sestavni deli za Other pipeline components
cevovode
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

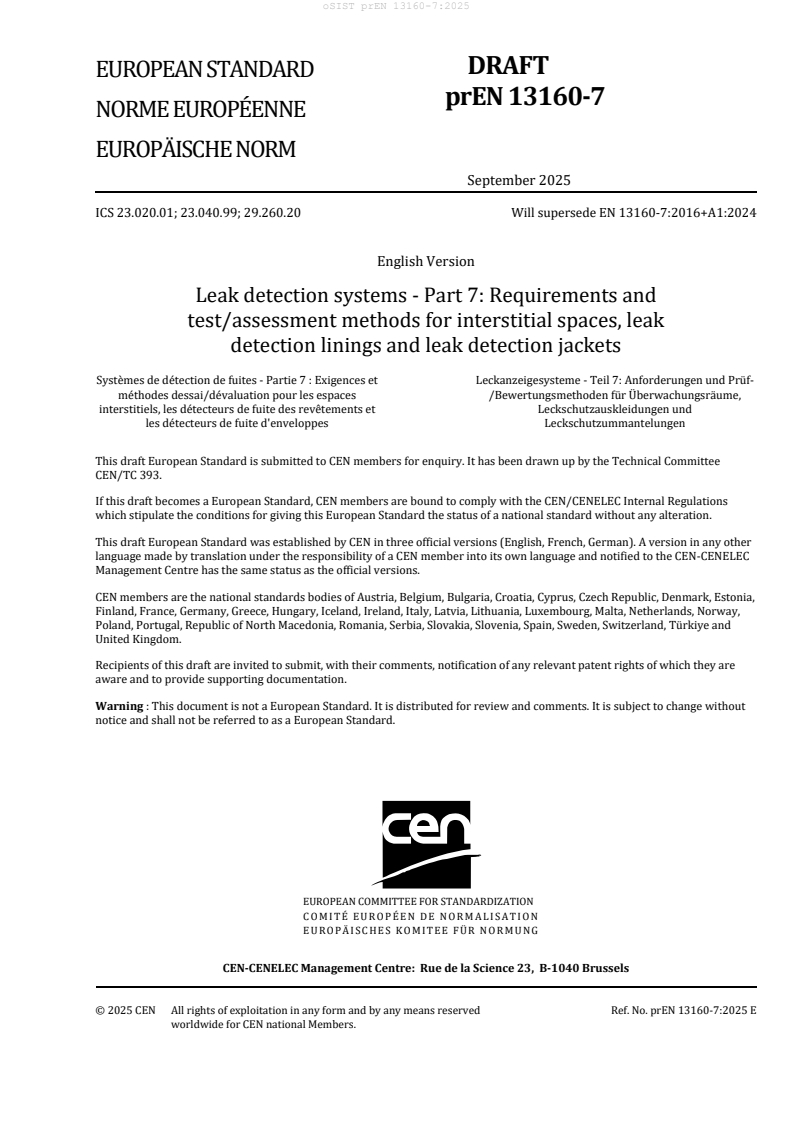

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2025
ICS 23.020.01; 23.040.99; 29.260.20 Will supersede EN 13160-7:2016+A1:2024
English Version
Leak detection systems - Part 7: Requirements and
test/assessment methods for interstitial spaces, leak
detection linings and leak detection jackets
Systèmes de détection de fuites - Partie 7 : Exigences et Leckanzeigesysteme - Teil 7: Anforderungen und Prüf-
méthodes dessai/dévaluation pour les espaces /Bewertungsmethoden für Überwachungsräume,
interstitiels, les détecteurs de fuite des revêtements et Leckschutzauskleidungen und
les détecteurs de fuite d'enveloppes Leckschutzummantelungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 393.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 13160-7:2025 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Requirements . 5
4.1 Effectiveness of leak detection linings and leak detection jackets . 5
4.1.1 Tightness against liquid and vapour. 5
4.1.2 Permeability of leak detection linings and leak detection jackets . 5
4.1.3 Free passage of liquid into the interstitial space . 6
4.1.4 Free passage of air . 6
4.1.5 Pressure decrease during passage of air after ingress of stored product . 6
4.1.6 Mechanical resistance against the imposed load by the stored product . 6
4.1.7 Chemical resistance . 12
4.2 Durability of effectiveness . 12
4.2.1 Temperature resistance . 12
4.2.2 Resistance to chemical attacks . 13
4.2.3 Resistance to mechanical load . 13
5 Sampling, testing and assessment methods . 13
5.1 Effectiveness of leak detection linings and leak detection jackets . 13
5.1.1 Liquid and gas tightness . 13
5.1.2 Permeability . 14
5.1.3 Free passage of liquid into the interstitial space on the sample . 16
5.1.4 Free passage of air . 19
5.1.5 Pressure decrease during passage of air after ingress of stored products . 22
5.1.6 Mechanical resistance against the load imposed by the stored product . 24
5.1.7 Chemical resistance . 24
5.2 Durability of effectiveness . 25
5.2.1 Temperature resistance . 25
5.2.2 Resistance to chemical attacks . 25
5.2.3 Resistance to mechanical load . 25
6 Checking the functionality and durability . 27
6.1 General. 27
6.2 Type testing . 27
6.2.1 General. 27
6.2.2 Test samples and testing . 27
6.2.3 Test reports . 28
6.3 Factory production control . 28
6.3.1 General. 28
6.3.2 Scope of testing . 28
6.3.3 Customised products manufactured in very small quantities. 29
7 Marking, labelling and packaging . 29
Annex A (normative) Determining the volume of the interstitial space for class I systems. 30
Bibliography . 33
European foreword
This document (prEN 13160-7:2025) has been prepared by Technical Committee CEN/TC 393
“Equipment for storage tanks and for filling stations”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 13160-7:2016+A1:2024.
This document includes the following significant technical changes with respect to
EN 13160-7:2016+A1:2024:
— in 4.1.2, the test with deionised water has been deleted from Table 1 and Table 2;
— in 4.1.3, a distinction has been made between the permeability test with liquid in accordance with the
requirements of class I and class II;
— in 4.1.6.2 (Table 7 and Table 8), the number of samples has been reduced;
— in 5.1.1.4, it has been clarified in a note that the leak test of this document applies to a type test and
for final production tests or tests after commissioning the values are defined in 6.3;
— in 5.1.2.2, the requirements for the sample have been specified more precisely;
— in 5.1.3, the test procedure for the passage of liquids has been clarified;
— in 5.1.4.1, the test of the intermediate layer(s) has been modified and specified more precisely;
— in 5.1.4.2.3, an option for the test of passage of air has been added;
— in 6.2.2, the number of samples has been modified;
— the tolerances of the measuring devices have been modified throughout the document;
— the term “flow resistance” has been replaced with “pressure decrease” throughout the document;
— Clause 6 has been revised and renamed in Checking the functionality and durability.
The EN 13160 series, under the general title Leak detection systems, is composed of the following parts:
— Part 1: General principles
— Part 2: Requirements and test/assessment methods for pressure and vacuum systems
— Part 3: Requirements and test/assessment methods for liquid systems for tanks
— Part 4: Requirements and test/assessment methods for sensor-based leak detection systems
— Part 5: Requirements and test/assessment methods for in-tank gauge systems and pressurized pipework
systems
— Part 6: Sensors in monitoring wells
— Part 7: Requirements and test/assessment methods for interstitial spaces, leak detection linings and leak
detection jackets
1 Scope
This document specifies requirements and the corresponding test/assessment methods applicable to
leak detection linings and leak detection jackets. Leak detection linings and leak detection jackets are
intended to be used, in conjunction with leak detection kits, to create an interstitial space or leakage
containment in single skin underground or above ground, non-pressurized tanks designed for water
polluting liquids.
For leak detection kits, see EN 13160-2, EN 13160-3 and EN 13160-4.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 228, Automotive fuels — Unleaded petrol — Requirements and test methods
EN 495-5, Flexible sheets for waterproofing — Determination of foldability at low temperature —
Part 5: Plastic and rubber sheets for roof waterproofing
EN 1107-2, Flexible sheets for waterproofing — Determination of dimensional stability — Part 2: Plastic
and rubber sheets for roof waterproofing
EN 1849-2, Flexible sheets for waterproofing — Determination of thickness and mass per unit area —
Part 2: Plastics and rubber sheets for roof waterproofing
EN 10300:2005, Steel tubes and fittings for onshore and offshore pipelines — Bituminous hot applied
materials for external coating
EN 13121-1, GRP tanks and vessels for use above ground — Part 1: Raw materials — Specification
conditions and acceptance criteria
EN 13121-2:2003, GRP tanks and vessels for use above ground — Part 2: Composite materials — Chemical
resistance
EN 13160-1:2016, Leak detection systems — Part 1: General principles
EN 13160-2:— , Leak detection systems — Part 2: Requirements and test/assessment methods for pressure
and vacuum systems
EN 14879-4:2007, Organic coating systems and linings for protection of industrial apparatus and plants
against corrosion caused by aggressive media — Part 4: Linings on metallic components
EN ISO 62, Plastic
...
