Thermal insulation products for buildings - Factory made expanded polystyrene (EPS) products - Specification

This European Standard specifies the requirements for factory made expanded polystyrene products, with or without rigid or flexible facings or coatings, which are used for the thermal insulation of buildings. The products are manufactured in the form of boards or rolls or other preformed ware (flat, tapered, tongue and grooves, shiplap, profiled etc.).
Products covered by this standard are also used for sound insulation and in prefabricated thermal insulation systems and composite panels; the performance of systems incorporating these products is not covered.
This standard describes product characteristics and includes procedures for testing, evaluation of conformity, marking and labelling.
This standard does not specify the required class or level of a given property to be achieved by a product to demonstrate fitness for purpose in a particular application. The classes and levels required for a given application are to be found in regulations or non-conflicting standards.
Products with a declared thermal resistance lower than 0,25 m²⋅K/W or a declared thermal conductivity at 10 °C greater than 0,060 W/(m⋅K) are not covered by this standard.
This standard does not cover in-situ insulation products (covered by EN 16025-1 and -2), products intended to be used for the insulation of building equipment and industrial installations (covered by EN 14309), products intended to be used in civil engineering applications (covered by EN 14933) and products intended to be used in beam and block systems in floors (covered by EN 15037-4).

Wärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus expandiertem Polystyrol (EPS) - Spezifikation

Produits isolants thermiques pour le bâtiment - Produits manufacturés en polystyrène expansé (EPS) - Spécification

Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz ekspandiranega polistirena (EPS) - Specifikacija

Ta evropski standard določa zahteve za proizvode iz ekspandiranega polistirena (EPS) s trdno ali prožno površinsko prevleko ali lakom ali brez, ki se uporabljajo za toplotno izolacijo stavb. Proizvodi so izdelani v obliki plošč ali kolutov ali v drugih oblikah (ploščati, konusni, z utori in jezički, s prekrivnimi deli, profilirani itd.).
Proizvodi iz tega standarda se uporabljajo tudi za zvočno izolacijo ter v predizdelanih sistemih toplotne izolacije in vezanih ploščah; lastnosti sistemov iz teh proizvodov niso opisane.
Ta standard opisuje lastnosti proizvodov ter zajema postopke za preskušanje, vrednotenje skladnosti, označevanje in etiketiranje.
Ta standard ne določa zahtevanega razreda ali ravni določene lastnosti, ki jo mora proizvod doseči, da se dokaže njegova primernost namenu za posamezno vrsto uporabe. Zahtevani razredi in ravni za posamezno uporabo so določeni v uredbah ali standardih, ki niso v nasprotju s tem standardom.
Proizvodi z deklarirano toplotno upornostjo, nižjo od 0,25 m²⋅K/W, ali deklarirano toplotno prevodnostjo, višjo od 0,060 W/(m⋅K) pri 10 °C, v tem standardu niso zajeti.
Ta standard ne zajema izolacijskih proizvodov, izdelanih na kraju samem (zajeti so v standardu EN 16025-1 in -2), za izolacijo gradbene opreme in industrijskih napeljav (zajema jih standard EN 14309), proizvodov za inženirske objekte (zajema jih standard EN 14933) ter proizvodov za nosilne in blokovne sisteme v tleh (zajema jih standard EN 15037-4).

General Information

Status
Published
Publication Date
01-Nov-2016
Current Stage
9020 - Submission to 2 Year Review Enquiry - Review Enquiry
Due Date
15-Jul-2021
Completion Date
15-Jul-2021

RELATIONS

Buy Standard

Standard
EN 13163:2013+A2:2017
English language
65 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz ekspandiranega polistirena (EPS) - SpecifikacijaWärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus expandiertem Polystyrol (EPS) - SpezifikationProduits isolants thermiques pour le bâtiment - Produits manufacturés en polystyrène expansé (EPS) - SpécificationThermal insulation products for buildings - Factory made expanded polystyrene (EPS) products - Specification91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 13163:2012+A2:2016SIST EN 13163:2013+A2:2017en,fr,de01-januar-2017SIST EN 13163:2013+A2:2017SLOVENSKI

STANDARDSIST EN 13163:2013+A1:20151DGRPHãþD
SIST EN 13163:2013+A2:2017
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13163:2012+A2
November 2016 ICS 91.100.60 Supersedes EN 13163:2012+A1:2015
English Version

Thermal insulation products for buildings - Factory made expanded polystyrene (EPS) products - Specification

Produits isolants thermiques pour le bâtiment - Produits manufacturés en polystyrène expansé (EPS) - Spécification

Wärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus expandiertem Polystyrol (EPS) - Spezifikation This European Standard was approved by CEN on 6 October 2012 and includes Amendment 1 approved by CEN on 15 December 2014 and Amendment 2 approved by CEN on 11 July 2016.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2016 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13163:2012+A2:2016 E SIST EN 13163:2013+A2:2017

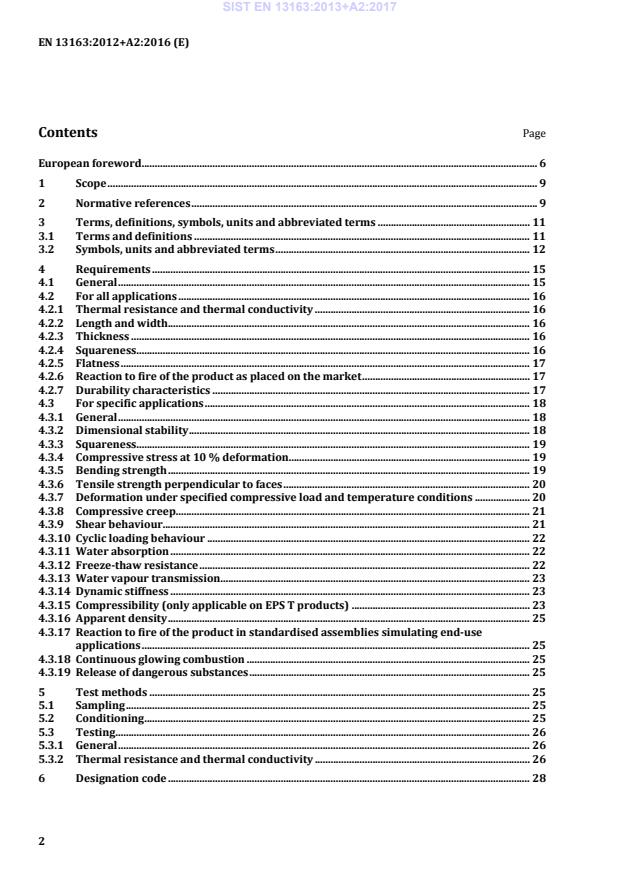

EN 13163:2012+A2:2016 (E) 2 Contents Page European foreword ....................................................................................................................................................... 6 1 Scope .................................................................................................................................................................... 9 2 Normative references .................................................................................................................................... 9 3 Terms, definitions, symbols, units and abbreviated terms .......................................................... 11 3.1 Terms and definitions ................................................................................................................................ 11 3.2 Symbols, units and abbreviated terms ................................................................................................. 12 4 Requirements ................................................................................................................................................ 15 4.1 General ............................................................................................................................................................. 15 4.2 For all applications ...................................................................................................................................... 16 4.2.1 Thermal resistance and thermal conductivity .................................................................................. 16 4.2.2 Length and width .......................................................................................................................................... 16 4.2.3 Thickness ........................................................................................................................................................ 16 4.2.4 Squareness ...................................................................................................................................................... 16 4.2.5 Flatness ............................................................................................................................................................ 17 4.2.6 Reaction to fire of the product as placed on the market ................................................................ 17 4.2.7 Durability characteristics ......................................................................................................................... 17 4.3 For specific applications ............................................................................................................................ 18 4.3.1 General ............................................................................................................................................................. 18 4.3.2 Dimensional stability .................................................................................................................................. 18 4.3.3 Squareness ...................................................................................................................................................... 19 4.3.4 Compressive stress at 10 % deformation ............................................................................................ 19 4.3.5 Bending strength .......................................................................................................................................... 19 4.3.6 Tensile strength perpendicular to faces .............................................................................................. 20 4.3.7 Deformation under specified compressive load and temperature conditions ..................... 20 4.3.8 Compressive creep....................................................................................................................................... 21 4.3.9 Shear behaviour............................................................................................................................................ 21 4.3.10 Cyclic loading behaviour ........................................................................................................................... 22 4.3.11 Water absorption ......................................................................................................................................... 22 4.3.12 Freeze-thaw resistance .............................................................................................................................. 22 4.3.13 Water vapour transmission...................................................................................................................... 23 4.3.14 Dynamic stiffness ......................................................................................................................................... 23 4.3.15 Compressibility (only applicable on EPS T products) .................................................................... 23 4.3.16 Apparent density .......................................................................................................................................... 25 4.3.17 Reaction to fire of the product in standardised assemblies simulating end-use applications .................................................................................................................................................... 25 4.3.18 Continuous glowing combustion ............................................................................................................ 25 4.3.19 Release of dangerous substances ........................................................................................................... 25 5 Test methods ................................................................................................................................................. 25 5.1 Sampling .......................................................................................................................................................... 25 5.2 Conditioning ................................................................................................................................................... 25 5.3 Testing .............................................................................................................................................................. 26 5.3.1 General ............................................................................................................................................................. 26 5.3.2 Thermal resistance and thermal conductivity .................................................................................. 26 6 Designation code .......................................................................................................................................... 28 SIST EN 13163:2013+A2:2017
