EN 14223:2017

Flexible sheets for waterproofing - Waterproofing of concrete bridge decks and other concrete surfaces trafficable by vehicles - Determination of water absorption

This European Standard specifies a test method for the determination of water absorption in reinforced bitumen sheets which could influence the functional behaviour of these sheets.
NOTE   It is primarily the reinforcement's ability to absorb water which is examined by this test.

Abdichtungsbahnen - Abdichtung von Betonbrücken und anderen Verkehrsflächen aus Beton - Bestimmung der Wasserabsorption

Diese Europäische Norm legt ein Prüfverfahren zur Bestimmung der Wasserabsorption von Abdichtungsbahnen fest, die das Funktionsvermögen solcher Bahnen beeinträchtigen könnte.
ANMERKUNG Es ist hauptsächlich die Fähigkeit der Trägereinlage zur Aufnahme und Einlagerung von Wasser, die bei dieser Prüfung untersucht wird.

Feuilles souples d'étanchéité - Étanchéité des tabliers de ponts en béton et autres surfaces en béton circulables par les véhicules - Détermination de l'absorption d'eau

La présente Norme européenne spécifie une méthode d'essai permettant de déterminer comment l'absorption d'eau dans les feuilles d'étanchéité pourrait avoir une influence sur le comportement fonctionnel de ces feuilles.
NOTE Cet essai évalue principalement l'aptitude de l'armature à absorber l'eau.

Hidroizolacijski trakovi - Hidroizolacija betonskih premostitvenih objektov in drugih betonskih povoznih površin - Določanje sposobnosti vpijanja vode

Ta evropski standard določa preskusno metodo za določanje sposobnosti vpijanja vode pri ojačenih hidroizolacijskih bitumenskih trakovih, ki lahko vpliva na funkcionalnost teh trakov.
OPOMBA: Gre predvsem za zmožnost vpijanja vode pri ojačitvi, kar je predmet tega preskusa.

General Information

• Status: Published
• Publication Date: 28-Mar-2017
• Withdrawal Date: 29-Sep-2017
• ICS: 91.100.50 - Binders. Sealing materials
• Technical Committee: CEN/TC 254 - Flexible sheets for water proofing
• Drafting Committee: CEN/TC 254/WG 6 - Bridge deck waterproofing
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 26-Jan-2024
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Mandate: M/124 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on road construction products
• Ref Project: SIST EN 14223:2017 - Flexible sheets for waterproofing - Waterproofing of concrete bridge decks and other concrete surfaces trafficable by vehicles - Determination of water absorption

Relations

• Replaces: EN 14223:2005 - Flexible sheets for waterproofing - Waterproofing of concrete bridge decks and other concrete surfaces trafficable by vehicles - Determination of water absorption
• Effective Date: 08-Jun-2022

Overview

EN 14223:2017 (CEN) - "Flexible sheets for waterproofing - Waterproofing of concrete bridge decks and other concrete surfaces trafficable by vehicles - Determination of water absorption" defines a standardized laboratory test method to measure the water absorption of reinforced waterproofing sheets (historically bitumen sheets). The standard focuses primarily on the reinforcement’s ability to absorb water, a factor that can influence the long‑term functional behaviour of waterproofing membranes used on bridge decks and other trafficked concrete surfaces.

Key topics and requirements

• Scope: Test method for water absorption of reinforced waterproofing sheets (reinforcement absorption is primary focus).
• Specimen sampling: Take specimens in accordance with EN 13416; cut five test specimens 200 × 200 mm (±1 mm) from the roll, at least 1 m from roll ends and 100 mm from sheet edges.
• Preparation: Remove loose mineral surfacing gently with a steel wire brush; remove protective films as per EN 1109 when applicable.
• Drying & conditioning: Dry for 24 h ± 30 min at 50 ± 3 °C, then condition 1 h ± 5 min at 23 ± 3 °C and 50 ± 5 % RH. Specimens are hung vertically with ≥20 mm spacing.
• Immersion procedure: Weigh specimen (m1), immerse vertically in distilled or de‑ionized water for 28 days ± 4 h at 23 ± 3 °C, ensuring full coverage. After immersion air‑dry 5 h ± 5 min at 23 ± 3 °C and 50 ± 5 % RH, then reweigh (m2).
• Calculation: Water absorption w (%) = (m2 − m1) / m1 × 100. Record mean of five specimens.
• Precision: Repeatability and reproducibility expressed as functions of w:
  • r = 0.0995·w + 0.0766
  • R = 0.1540·w + 0.1048
  • Repeat test if wmax − wmin > 0.3098·wmean + 0.2385.
    Precision data are based on round‑robin tests for water absorption values between 0.2 % and 5.1 % and currently for bitumen sheets only.

Applications and users

• Practical for: manufacturers of reinforced waterproofing sheets, independent testing laboratories, quality control teams, bridge engineers, specifiers, contractors and procurement authorities.
• Use cases: product qualification, production quality control, performance verification for bridge deck waterproofing systems, compliance with project specifications and tender documentation.
• Benefits: consistent measurement of reinforcement water uptake helps predict membrane behaviour under trafficable, wet conditions and supports durable waterproofing design.

Related standards

• EN 1109 (flexibility at low temperature)
• EN 13416 (sampling rules)
• EN 14695 / prEN 17048 (definitions and characteristics for reinforced sheets)
• ISO 5725‑2 (precision/reproducibility methodology)

Keywords: EN 14223:2017, waterproofing, flexible sheets, water absorption, reinforced bitumen sheets, bridge decks, test method, CEN.

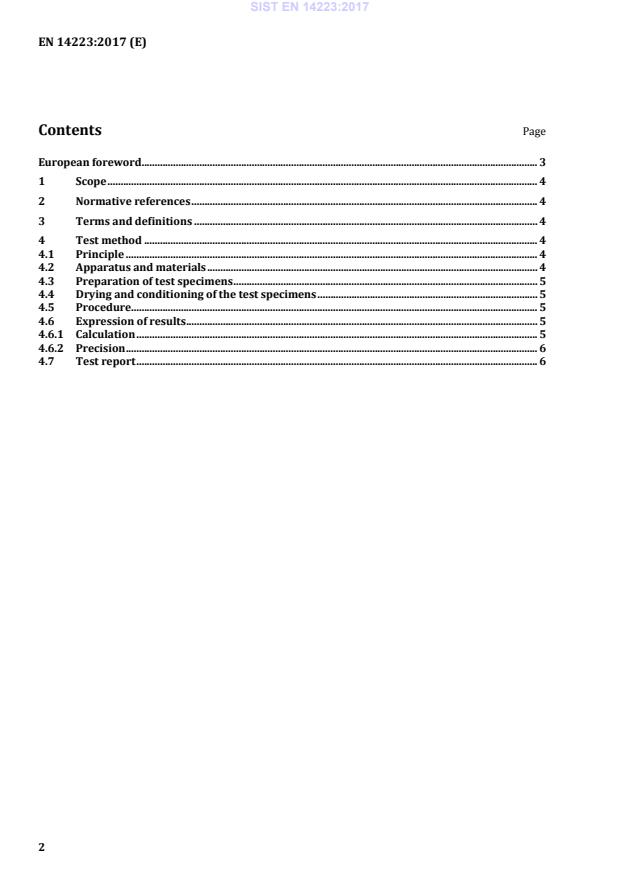

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Abdichtungsbahnen - Abdichtung von Betonbrücken und anderen Verkehrsflächen aus Beton - Bestimmung der WasserabsorptionFeuilles souples d'étanchéité - Étanchéité des tabliers de ponts en béton et autres surfaces en béton circulables par les véhicules - Détermination de l'absorption d'eauFlexible sheets for waterproofing - Waterproofing of concrete bridge decks and other concrete surfaces trafficable by vehicles - Determination of water absorption91.100.50Veziva. Tesnilni materialiBinders. Sealing materialsICS:Ta slovenski standard je istoveten z:EN 14223:2017SIST EN 14223:2017en,fr,de01-september-2017SIST EN 14223:2017SLOVENSKI
STANDARDSIST EN 14223:20061DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14223
March
t r s y ICS
{ sä s r rä w r Supersedes EN
s v t t uã t r r wEnglish Version
Flexible sheets for waterproofing æ Waterproofing of concrete bridge decks and other concrete surfaces trafficable by vehicles æ Determination of water absorptionFeuilles souples d 5étanchéité æ Étanchéité des tabliers de ponts en béton et autres surfaces en béton circulables par les véhicules æ Détermination de l 5absorption d 5eau
Abdichtungsbahnen æ Abdichtung von Betonbrücken und anderen Verkehrsflächen aus Beton æ Bestimmung der Wasserabsorption This European Standard was approved by CEN on
x February
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s v t t uã t r s y ESIST EN 14223:2017

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement t
...
