Construction products: Assessment of release of dangerous substances - Part 1: Guidance for the determination of leaching tests and additional testing steps

(1) This document allows the identification of the appropriate leaching test method for the determination of the release of RDS from construction products into soil, surface water and groundwater. This document provides a stepwise procedure for the determination of appropriate release tests, including:
a)   determination of the test method based on general product properties;
b)   choice of the test method using specific product properties.
(2) Furthermore, this document gives general guidance for CEN Technical Product Committees and EOTA WGs on basic aspects (sampling, sample preparation and storage, eluate treatment, analysis of eluates and documentation) to be specified in the relevant product standards or ETAs.
(3) Metallic products and coatings on metallic products are not considered in the determination scheme of this document since the test methods in prEN 16637 2:—1) (tank test) and prEN 16637 3:—2) (column test) are not appropriate for the testing of these construction products due to a different release mechanism (solubility control).
NOTE   See Annex F.
(4) It is assumed that intermittent contact with water (e.g. exposure to rainwater) is tested – by convention – as permanent contact. For some coatings, (e.g. some renders with organic binders according to EN 15824 [7]) in intermittent contact to water, physical and chemical properties might be altered in permanent contact with water. These products are not considered in the determination scheme of this document since the test method in prEN 16637 2 is not appropriate for the testing of these construction products (in this case EN 16105 [8] might be an alternative method).

Bauprodukte - Bewertung der Freisetzung von gefährlichen Stoffen - Teil 1: Leitfaden für die Festlegung von Auslaugprüfungen und zusätzlichen Prüfschritten

Dieses Dokument ermöglicht die Identifizierung des geeigneten Auslaugprüfverfahrens für die Bestimmung der Freisetzung regulierter gefährlicher Stoffe aus Bauprodukten in den Boden, das Oberflächenwasser und das Grundwasser. Dieses Dokument enthält ein schrittweises Verfahren zur Ermittlung geeigneter Freisetzungsprüfungen, einschließlich:
a)   Bestimmung des Prüfverfahrens auf der Grundlage allgemeiner Produkteigenschaften;
b)   Wahl des Prüfverfahrens durch Anwendung spezieller Produkteigenschaften.
Darüber hinaus enthält dieses Dokument einen Leitfaden für die Technischen Produktkomitees von CEN und Arbeitsgruppen (WG) der Europäischen Organisation für Technische Bewertung EOTA zu grundlegenden Aspekten (Probenahme, Probenvorbereitung und -lagerung, Eluatbehandlung, Analyse von Eluaten und Dokumentation), die in den maßgebenden Produktnormen oder Europäischen Technischen Bewertungen (ETA) festzulegen sind.
Metallische Produkte und Beschichtungen auf metallischen Produkten werden in diesem Dokument nicht berücksichtigt, da die Prüfverfahren in EN 16637 2 (Trog-Prüfverfahren) und EN 16637 3 (Perkolationsprüfung) für die Prüfung dieser Bauprodukte aufgrund eines anderen Freisetzungsmechanismus (Löslichkeitssteuerung) nicht geeignet sind.
ANMERKUNG   Siehe Anhang F.
Es wird angenommen, dass der zeitweilige Kontakt mit Wasser (z. B. Beanspruchung durch Regenwasser) nach Vereinbarung als dauerhafter Kontakt geprüft wird. Bei einigen Beschichtungen (z. B. einige Putze mit organischen Bindemitteln nach EN 15824 [7]), die zeitweilig mit Wasser in Berührung kommen, könnten physikalische und chemische Eigenschaften sich bei dauerhaftem Kontakt mit Wasser verändern. Diese Produkte werden nicht in diesem Dokument berücksichtigt, da das Prüfverfahren in EN 16637 2 für die Prüfung dieser Bauprodukte nicht geeignet ist (in diesem Fall könnte EN 16105 [8] ein geeignetes alternatives Prüfverfahren sein.)

Produits de construction - Évaluation du relargage de substances dangereuses - Partie 1 : Guide pour la spécification des essais de lixiviation et des étapes supplémentaires d’essai

Le présent document permet l’identification de la méthode d’essai de lixiviation appropriée pour déterminer le relargage de SDR issues de produits de construction dans le sol, les eaux de surface et les eaux souterraines. Le présent document fournit un mode opératoire par étapes pour la détermination des essais de relargage appropriés, comprenant :
a)   la détermination de la méthode d’essai basée sur les propriétés générales du produit ;
b)   le choix de la méthode d’essai reposant sur des propriétés spécifiques du produit.
En outre, le présent document donne des recommandations générales pour les Comités techniques de produits du CEN et les groupes de travail de l’EOTA sur des aspects de base (échantillonnage, préparation des échantillons et stockage, traitement des éluats, analyse des éluats et documentation) à spécifier dans les normes de produits ou évaluations techniques européennes (ETE) correspondantes.
Les produits métalliques et revêtements de produits métalliques ne sont pas pris en compte dans le schéma de détermination du présent document, car les méthodes d’essai de l’EN 16637 2 (essai en réacteur) et de l’EN 16637 3 (essai en colonne) ne sont pas appropriées pour les essais de ces produits de construction du fait d’un mécanisme de relargage différent (contrôle de la solubilité).
NOTE   Voir l’Annexe F.
Il est présumé que le contact intermittent avec l’eau (par exemple, exposition à l’eau de pluie) est considéré, par convention, comme un contact permanent. Pour certains revêtements (tels que certains enduits de maçonnerie organiques conformément à l’EN 15824[7]) en contact intermittent avec l’eau, certaines propriétés physiques et chimiques peuvent être altérées en cas de contact permanent avec l’eau. Ces produits ne sont pas pris en compte dans le schéma de détermination du présent document, car la méthode d’essai dans l’EN 16637 2 n’est pas appropriée pour les essais de ces produits de construction (dans ce cas, l’EN 16105[8] peut être une méthode alternative).

Gradbeni proizvodi - Ocenjevanje sproščanja nevarnih snovi - 1. del: Navodilo za določanje preskusov izluževanja in dodatnih korakov preskušanja

(1) Ta evropski standard omogoča opredelitev ustrezne preskusne metode izluževanja za določanje sproščanja reguliranih nevarnih snovi (RDS) iz gradbenih proizvodov v tla, površinsko vodo in podtalnico. Ta dokument določa korake postopka za določanje ustreznih preskusov sproščanja, vključno z:
a) določanjem preskusne metode na podlagi splošnih lastnosti proizvodov;
b) izbiro preskusne metode z uporabo posebnih lastnosti proizvodov.
(2) Poleg tega ta evropski standard določa splošna navodila za tehnične odbore za proizvode CEN in delovne skupine EOTA v zvezi z osnovnimi vidiki (vzorčenje, priprava vzorcev in shramba, obdelava izlužkov, analiza izlužkov in dokumentacija), ki se določijo v ustreznih standardih za proizvode ali evropskih tehničnih soglasjih ETA.
(3) Kovinski proizvodi in premazi na kovinskih proizvodih niso obravnavani v shemi določanja te tehnične specifikacije, saj preskusne metode iz standarda EN 16637-2 (preskus s cisterno) in EN 16637-3 (preskus v stolpcu) niso primerne za preskušanje teh gradbenih proizvodov zaradi drugačnega mehanizma sproščanja (nadzor topljivosti).
OPOMBA: glej dodatek F.
4) Domneva se, da je občasen stik z vodo (npr. izpostavljenost deževnici) preskušen – po dogovoru – kot stalen stik.
Pri nekaterih premazih (npr. nekateri ometi z organskimi vezivi v skladu s standardom EN 15824 [4]) v občasnem stiku z vodo se lahko fizikalne in kemijske lastnosti spremenijo ob stalnem stiku z vodo. Ti proizvodi niso obravnavani v shemi določanja te tehnične specifikacije, saj preskusna metoda iz standarda EN 16637-2 ni primerna za preskušanje teh gradbenih proizvodov (v tem primeru je lahko standard EN 16105 alternativna metoda).

General Information

Status
Published
Publication Date
31-Oct-2023
Withdrawal Date
09-May-2022
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
01-Nov-2023
Due Date
17-Dec-2021
Completion Date
01-Nov-2023

Relations

Buy Standard

Standard
EN 16637-1:2024
English language
55 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

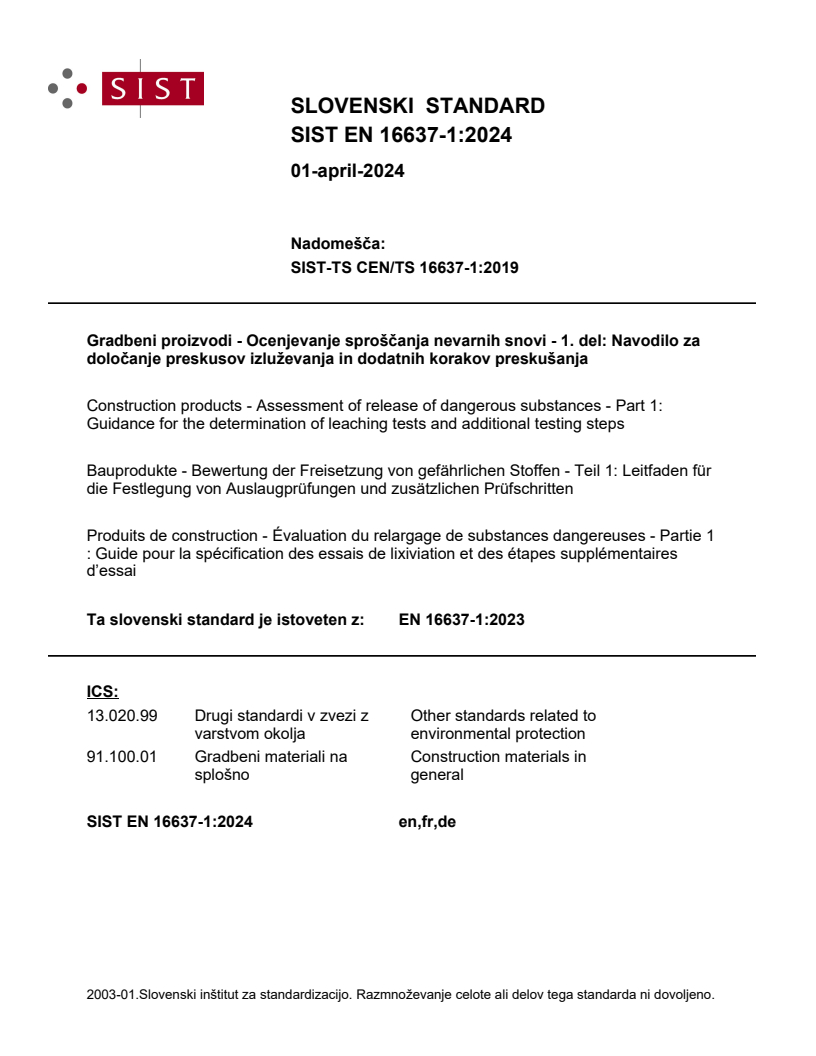

SLOVENSKI STANDARD
01-april-2024
Nadomešča:
SIST-TS CEN/TS 16637-1:2019
Gradbeni proizvodi - Ocenjevanje sproščanja nevarnih snovi - 1. del: Navodilo za
določanje preskusov izluževanja in dodatnih korakov preskušanja
Construction products - Assessment of release of dangerous substances - Part 1:
Guidance for the determination of leaching tests and additional testing steps
Bauprodukte - Bewertung der Freisetzung von gefährlichen Stoffen - Teil 1: Leitfaden für
die Festlegung von Auslaugprüfungen und zusätzlichen Prüfschritten
Produits de construction - Évaluation du relargage de substances dangereuses - Partie 1
: Guide pour la spécification des essais de lixiviation et des étapes supplémentaires
d’essai
Ta slovenski standard je istoveten z: EN 16637-1:2023
ICS:
13.020.99 Drugi standardi v zvezi z Other standards related to
varstvom okolja environmental protection
91.100.01 Gradbeni materiali na Construction materials in
splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 16637-1
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2023
EUROPÄISCHE NORM
ICS 91.100.01 Supersedes CEN/TS 16637-1:2018
English Version
Construction products: Assessment of release of
dangerous substances - Part 1: Guidance for the
determination of leaching tests and additional testing
steps
Produits de construction - Évaluation du relargage de Bauprodukte - Bewertung der Freisetzung von
substances dangereuses - Partie 1 : Guide pour la gefährlichen Stoffen - Teil 1: Leitfaden für die
spécification des essais de lixiviation et des étapes Festlegung von Auslaugprüfungen und zusätzlichen
supplémentaires d'essai Prüfschritten
This European Standard was approved by CEN on 30 July 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16637-1:2023 E
worldwide for CEN national Members.

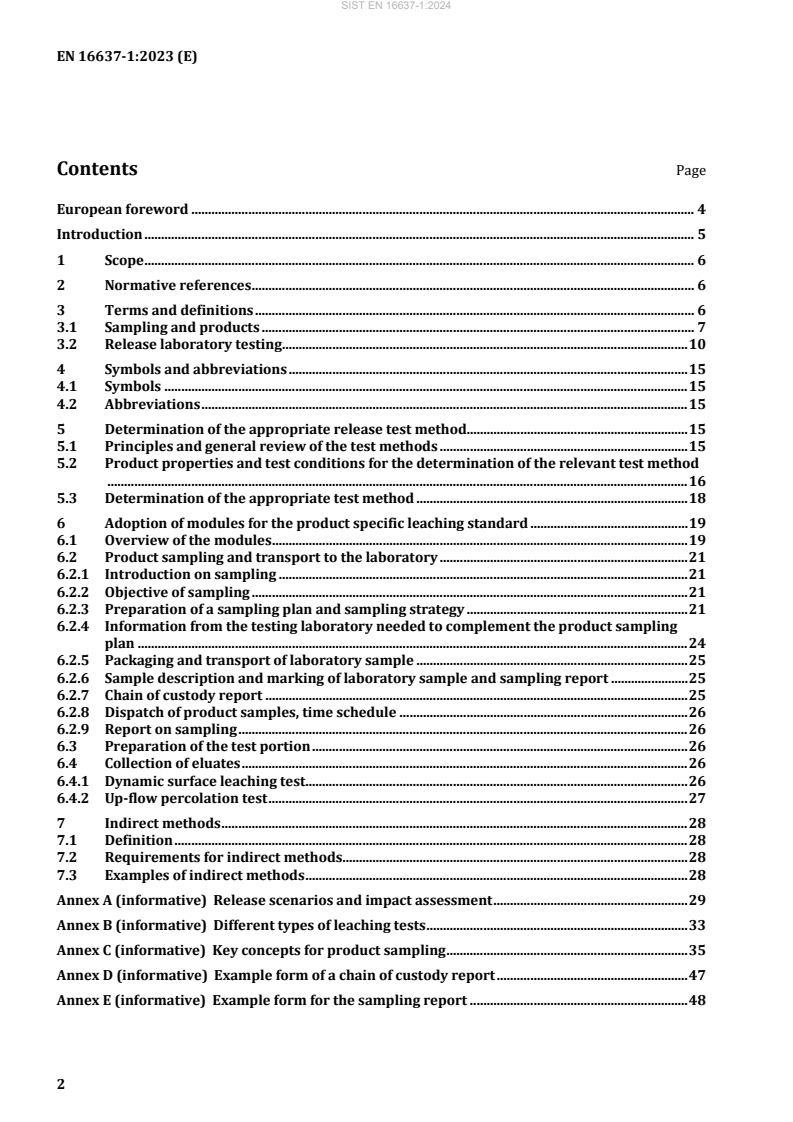

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
3.1 Sampling and products . 7
3.2 Release laboratory testing . 10
4 Symbols and abbreviations . 15
4.1 Symbols . 15
4.2 Abbreviations . 15
5 Determination of the appropriate release test method. 15
5.1 Principles and general review of the test methods . 15
5.2 Product properties and test conditions for the determination of the relevant test method
............................................................................................................................................................................. 16
5.3 Determination of the appropriate test method . 18
6 Adoption of modules for the product specific leaching standard . 19
6.1 Overview of the modules . 19
6.2 Product sampling and transport to the laboratory . 21
6.2.1 Introduction on sampling . 21
6.2.2 Objective of sampling . 21
6.2.3 Preparation of a sampling plan and sampling strategy . 21
6.2.4 Information from the testing laboratory needed to complement the product sampling
plan . 24
6.2.5 Packaging and transport of laboratory sample . 25
6.2.6 Sample description and marking of laboratory sample and sampling report . 25
6.2.7 Chain of custody report . 25
6.2.8 Dispatch of product samples, time schedule . 26
6.2.9 Report on sampling . 26
6.3 Preparation of the test portion . 26
6.4 Collection of eluates . 26
6.4.1 Dynamic surface leaching test . 26
6.4.2 Up-flow percolation test . 27
7 Indirect methods . 28
7.1 Definition . 28
7.2 Requirements for indirect methods. 28
7.3 Examples of indirect methods . 28
Annex A (informative) Release scenarios and impact assessment . 29
Annex B (informative) Different types of leaching tests . 33
Annex C (informative) Key concepts for product sampling . 35
Annex D (informative) Example form of a chain of custody report . 47
Annex E (informative) Example form for the sampling report . 48
Annex F (informative) Metallic products . 49
Annex G (informative) Guidance on how to identify and handle unexpected test results and how
to recognize heterogeneous products . 50
Bibliography . 53

European foreword
This document (EN 16637-1:2023) has been prepared by Technical Committee CEN/TC 351
“Construction products: Assessment of release of dangerous substances”, the secretariat of which is held
by NEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2024 and conflicting national standards shall be
withdrawn at the latest by May 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes CEN/TS 16637-1:2018.
The main changes compared to the previous edition are as follows:
— transfer of technical specification into a European Standard;
— addition of guidance on how to identify and handle unexpected test results and how to recognize
heterogeneous products (see Annex G);
— updating of normative and informative cross-references.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
This document deals with the determination and use of test methods for leaching of construction
products taking specific situations into account. It specifies preconditions under which leaching tests for
monolithic products and for granular products need to be selected.
EN 16637, Construction products: Assessment of release of dangerous substances, consists of the following
parts:
— Part 1: Guidance for the determination of leaching tests and additional testing steps;
— Part 2: Horizontal dynamic surface leaching test;
— Part 3: Horizontal up-flow percolation test.
Background information on characterization of leaching behaviour of construction products can be found
in Technical Reports provided by CEN/TC 351 (i.e. CEN/TR 16098 [1], CEN/TR 16496 [2]).
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
The European Standards EN 16637-1, EN 16637-2 and EN 16637-3 are developed to assess the release
of regulated dangerous substances (RDS) from construction products into soil, surface water and
groundwater in the framework of Mandate M/366. The horizontal test methods developed under the
Mandate M/366 are intended to be used to show compliance with notified regulations. The tests cover
the release of substances from construction products and in particular, those that are regulated in
notified regulations in one or more EU Member States.
EN 16637-1 specifies how the CEN Technical Product Committees and EOTA experts should determine
the appropriate leaching test for the determination of the release of RDS from a construction product into
soil, surface water and groundwater. EN 16637-1 gives background information for CEN Technical
Product Committees on the following aspects:
— description of the intended conditions of use of the construction product (e.g. above ground exposed
to the precipitation, or shielded from direct infiltration, in surface or groundwater) with respect to
the release of RDS into soil, surface water and groundwater;
— identification of main release mechanisms, and the appropriate leaching test for a given construction
product.
EN 16637-2 specifies a horizontal test to assess surface dependent release from monolithic, plate-like or
sheet-like construction products (tank test).
EN 16637-3 specifies a horizontal test to assess release from granular construction products.
The test methods can be used for both steps in the hierarchy (type testing (TT) and factory production
control (FPC)) and form the reference tests for the intended uses and conditions specified in EN 16637-1.
In this hierarchy of testing conditionally “indirect
...
