EN ISO 15110:2013
(Main)Paints and varnishes - Artificial weathering including acidic deposition (ISO 15110:2013)
Paints and varnishes - Artificial weathering including acidic deposition (ISO 15110:2013)
ISO 15110:2013 specifies a so-called acid dew and fog test (ADF test) as a time-compressed laboratory test method for simulating, by the use of artificial acidic precipitation, the damaging effects of acidic atmospheric precipitation in association with UV radiation, neutral condensed precipitation, and changing temperature and humidity. This test method is intended to be used in evaluating, on the basis of relative performance rankings, the suitability of polymeric materials for use in outdoor environments with acidic precipitation. It is not intended to generate the same extent of damage or the same damage pattern as in outdoor weathering, but rather to give a ranking which is similar to that which would be obtained in outdoor weathering. The method produces damage which is more homogeneous, allows fewer specimens to be exposed (and hence more rapid testing) and enables evaluation of the exposed specimens to be carried out using methods which are more objective than visual assessment.
Beschichtungsstoffe - Künstliches Bewittern mit saurer Beanspruchung (ISO 15110:2013)
Diese Internationale Norm legt einen sogenannten Acid-Dew-and-Fog-Test (ADF-Test) als zeitraffendes Laborprüfverfahren zum Simulieren der schädigenden Wirkung saurer atmosphärischer Niederschläge im Zusammenwirken mit UV-Strahlung, neutralen Niederschlägen und wechselnder Temperatur und relativer Luftfeuchte unter Verwendung eines künstlichen sauren Niederschlages fest. Dieses Prüfverfahren ist geeignet, auf der Grundlage einer relativen Rangfolge eine Auswahl von Polymerwerkstoffen für den Einsatz in einer durch saure Niederschläge belasteten Umwelt zu erarbeiten. Der ADF-Test beabsichtigt nicht, gleiche Schädigungsgröße und -muster wie bei der Bewitterung im Freien zu erzeugen, sondern eine ähnliche Rangfolge der Schädigung wie bei der Bewitterung im Freien zu ergeben. Das Verfahren ergibt eine gleichförmige Schädigung, erlaubt kleinere Probengrößen (und damit eine schnellere Durchführung) und ermöglicht im Gegensatz zur bisher üblichen subjektiven visuellen Beurteilung das Anwenden objektiver Beurteilungsverfahren.
Peintures et vernis - Viellissement artificiel comportant un dépôt acide (ISO 15110:2013)
L'ISO 15110:2013 spécifie un essai dit à la rosée et au brouillard acides (essai ADF), une méthode d'essai accéléré en laboratoire qui simule, par l'utilisation de précipitations acides artificielles, la détérioration sous l'effet de précipitations atmosphériques acides combinées au rayonnement UV, à la condensation de précipitations neutres et aux variations de température et d'humidité. Cette méthode d'essai est destinée à évaluer l'adéquation de matériaux polymères à leur mise en oeuvre dans des environnements extérieurs comportant des précipitations acides en les classant selon leurs performances relatives. Son but n'est pas de reproduire des détériorations de même étendue ou le même mode de détérioration que dans le cas du vieillissement en extérieur, mais d'établir un classement analogue à celui qui serait obtenu dans des conditions de vieillissement en extérieur. Les détériorations engendrées par cette méthode sont plus homogènes, ce qui permet d'exposer un nombre moins important d'éprouvettes (et donc de réduire la durée des essais). Cela permet également d'évaluer les éprouvettes exposées à l'aide de méthodes plus objectives que l'examen visuel.
Barve in laki - Umetno klimatsko preskušanje, vključno s kislinskimi usedlinami (ISO 15110:2013)
Ta mednarodni standard določa tako imenovani test ADF, ki je pospešena laboratorijska preskusna metoda za simulacijo škodljivih vplivov kislih atmosferskih padavin v povezavi z ultravijoličnim sevanjem, nevtralnimi kondenziranimi padavinami ter spremenljivo temperaturo in vlažnostjo z uporabo umetnih kislih padavin. Ta preskusna metoda se uporablja pri vrednotenju ustreznosti polimernih materialov za uporabo v zunanjem okolju s kislimi padavinami na podlagi njihove relativne uspešnosti. Ni namenjena temu, da bi povzročila enak obseg poškodb ali enak vzorec poškodb kot pri zunanjem klimatskem preskušanju, ampak temu, da zagotovi razvrščanje, ki je podobno razvrščanju pri zunanjem klimatskem preskušanju. Metoda povzroči poškodbe, ki so bolj homogene, izpostavi manj vzorcev (zato je preskušanje hitrejše) in omogoča, da se vrednotenje izpostavljenih vzorcev opravi po metodah, ki so objektivnejše od vizualne ocene.
General Information
Relations
Standards Content (Sample)

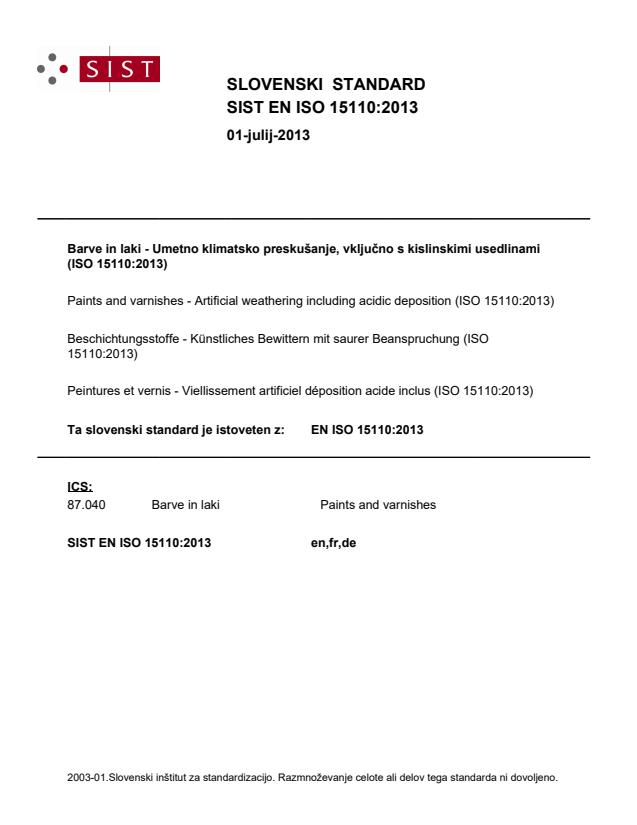

SLOVENSKI STANDARD
01-julij-2013
%DUYHLQODNL8PHWQRNOLPDWVNRSUHVNXãDQMHYNOMXþQRVNLVOLQVNLPLXVHGOLQDPL
,62
Paints and varnishes - Artificial weathering including acidic deposition (ISO 15110:2013)
Beschichtungsstoffe - Künstliches Bewittern mit saurer Beanspruchung (ISO
15110:2013)
Peintures et vernis - Viellissement artificiel déposition acide inclus (ISO 15110:2013)
Ta slovenski standard je istoveten z: EN ISO 15110:2013
ICS:
87.040 Barve in laki Paints and varnishes
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN ISO 15110
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2013
ICS 87.040
English Version
Paints and varnishes - Artificial weathering including acidic
deposition (ISO 15110:2013)
Peintures et vernis - Viellissement artificiel comportant un Beschichtungsstoffe - Künstliches Bewittern mit saurer
dépôt acide (ISO 15110:2013) Beanspruchung (ISO 15110:2013)
This European Standard was approved by CEN on 2 February 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 15110:2013: E
worldwide for CEN national Members.
Contents Page
Foreword .3
Foreword
This document (EN ISO 15110:2013) has been prepared by Technical Committee ISO/TC 35 “Paints and
varnishes” in collaboration with Technical Committee CEN/TC 139 “Paints and varnishes” the secretariat of
which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by September 2013, and conflicting national standards shall be
withdrawn at the latest by September 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 15110:2013 has been approved by CEN as EN ISO 15110:2013 without any modification.
INTERNATIONAL ISO
STANDARD 15110
First edition
2013-03-15
Paints and varnishes — Artificial
weathering including acidic deposition
Peintures et vernis — Vieillissement artificiel comportant un dépôt acide
Reference number
ISO 15110:2013(E)
©
ISO 2013
ISO 15110:2013(E)
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved
ISO 15110:2013(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Principle . 1
4 Apparatus . 2
4.1 General . 2
4.2 Laboratory radiation sources . 2
4.3 Test chamber . 2
4.4 Wetting system. 2
4.5 Specimen holders . 2
4.6 Black-standard thermometer . 2
4.7 Humidity sensor . 2
4.8 Acid spray device . 2
4.9 Radiometer . 3
5 Solutions for artificial acidic deposition . 3
6 Test specimens. 3
6.1 General . 3
6.2 Specimen size . 3
6.3 Corrosion of the substrates . 3
6.4 Reference specimens . 4
7 Designation of type of test . 4
8 Procedure. 4
8.1 General . 4
8.2 Wetting and relative humidity . 4
8.3 Acid spraying . 5
8.4 Weathering cycles . 5
8.5 Test duration . 6
8.6 Further weathering of specimens . 7
9 Assessment of results . 7
10 Precision . 7
10.1 General . 7
10.2 Repeatability . 7
11 Test report . 8
Annex A (informative) Background information .10
Bibliography .13
ISO 15110:2013(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 15110 was prepared by Technical Committee ISO/TC 35, Paints and varnishes, Subcommittee SC 9,
General test methods for paints and varnishes.
iv © ISO 2013 – All rights reserved
ISO 15110:2013(E)
Introduction
This International Stan
...
