EN ISO 105-E01:2013

Textiles - Tests for colour fastness - Part E01: Colour fastness to water (ISO 105-E01:2013)

ISO 105-E01:2013 specifies a method for determining the resistance of the colour of textiles of all kinds and in all forms to immersion in water.

Textilien - Farbechtheitsprüfungen - Teil E01: Farbechtheit gegen Wasser (ISO 105-E01:2013)

Dieser Teil von ISO 105 legt ein Verfahren zur Bestimmung der Widerstandsfähigkeit der Farben von Textilien aller Art und in allen Verarbeitungszuständen gegen das Eintauchen in Wasser fest.

Textiles - Essais de solidité des coloris - Partie E01: Solidité des coloris à l'eau (ISO 105-E01:2013)

L'ISO 105-E01:2013 spécifie une méthode de détermination de la solidité des coloris sur les textiles de toute nature, à tous leurs stades de transformation, à l'immersion dans l'eau.

Tekstilije - Preskušanje barvne obstojnosti - Del E01: Barvna obstojnost proti vodi (ISO 105-E01:2013)

Ta del standarda ISO 105 opisuje metodo za določevanje odpornosti barve vseh vrst in oblik tekstilij proti potopitvi v vodo.

General Information

• Status: Published
• Publication Date: 19-Mar-2013
• Withdrawal Date: 29-Sep-2013
• ICS: 59.080.01 - Textiles in general
• Technical Committee: CEN/TC 248 - Textiles and textile products
• Drafting Committee: CEN/TC 248 - Textiles and textile products
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 20-Mar-2013
• Completion Date: 20-Mar-2013
• Ref Project: SIST EN ISO 105-E01:2013 - Textiles - Tests for colour fastness - Part E01: Colour fastness to water (ISO 105-E01:2013)

Overview - EN ISO 105-E01:2013 (Colour fastness to water)

EN ISO 105-E01:2013 (ISO 105‑E01:2013) is the international / European test method for determining the colour fastness of textiles to immersion in water. It specifies how to prepare specimens, carry out a controlled water immersion and pressure exposure, and assess both change in colour of the test sample and staining of adjacent fabrics. The method applies to textiles of all kinds and in all forms.

Key topics and technical requirements

• Scope: Resistance of textile colour to immersion in water (all fibres and textile forms).
• Specimen preparation: Composite specimens (40 ± 2 mm × 100 ± 2 mm) are joined to either a multifibre adjacent fabric (ISO 105‑F10) or two single‑fibre adjacent fabrics (ISO 105‑F01–F06). Yarn/loose fibre procedures are also defined.
• Reagents and water quality: Use Grade 3 water in accordance with ISO 3696.
• Immersion step: Composite specimen is thoroughly wetted at a liquor ratio of approximately 50:1 and left at room temperature for 30 minutes to ensure uniform penetration.
• Pressure and test device: After draining, specimens are placed between glass or acrylic plates and subjected to a nominal pressure of 12.5 ± 0.9 kPa using a specified stainless‑steel weight-piece and plates (approx. 60 × 115 mm).
• Temperature and duration: The loaded specimens are heated in an oven at 37 ± 2 °C for 4 hours (device orientation horizontal or vertical as appropriate).
• Drying and assessment: Specimens are air‑dried (≤ 60 °C). Colour change and staining are evaluated using the grey scales (ISO 105‑A02 / A03) and/or instrumentally with spectrophotometer / colorimeter methods (ISO 105‑A04 / A05).
• Reporting: Test reports must reference ISO 105‑E01:2013 and include sample ID, grey scale numerical ratings and/or instrumental data, adjacent fabrics used, any deviations and the option used.

Practical applications and users

This standard is used by:

• Textile and apparel manufacturers for quality control of dyed and printed goods.
• Dye houses and colorists to validate dye fixation and process changes.
• Independent test laboratories performing colourfastness testing and certification.
• Product developers, brand quality teams and retailers for compliance checks and supplier verification.
• Research and development teams evaluating new dyes, finishes or washing treatments.

Key benefits: consistent, reproducible evaluation of water‑induced colour change and staining; compatibility with multifibre adjacent fabrics to reveal cross‑dyeing; objective evaluation via instrumental methods.

Related standards

• ISO 105 general series (ISO 105‑A01, A02, A03, A04, A05)
• ISO 105‑F01 to F06, F10 (adjacent fabric specifications)
• ISO 3696 (water for analytical use)
• AATCC TM 107 (similar colourfastness to water method)

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2013
1DGRPHãþD
kSIST FprEN ISO 105-E01:2010
Tekstilije - Preskušanje barvne obstojnosti - Del E01: Barvna obstojnost proti vodi
(ISO 105-E01:2013)
Textiles - Tests for colour fastness - Part E01: Colour fastness to water (ISO 105-
E01:2013)
Textilien - Farbechtheitsprüfungen - Teil E01: Farbechtheit gegen Wasser (ISO 105-
E01:2013)
Textiles - Essais de solidité des coloris - Partie E01: Solidité des coloris à l'eau (ISO 105-
E01:2013)
Ta slovenski standard je istoveten z: EN ISO 105-E01:2013
ICS:
59.080.01 Tekstilije na splošno Textiles in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 105-E01
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2013
ICS 59.080.01 Supersedes EN ISO 105-E01:2010
English Version
Textiles - Tests for colour fastness - Part E01: Colour fastness
to water (ISO 105-E01:2013)
Textiles - Essais de solidité des coloris - Partie E01: Textilien - Farbechtheitsprüfungen - Teil E01: Farbechtheit
Solidité des coloris à l'eau (ISO 105-E01:2013) gegen Wasser (ISO 105-E01:2013)
This European Standard was approved by CEN on 14 January 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 105-E01:2013: E
worldwide for CEN national Members.

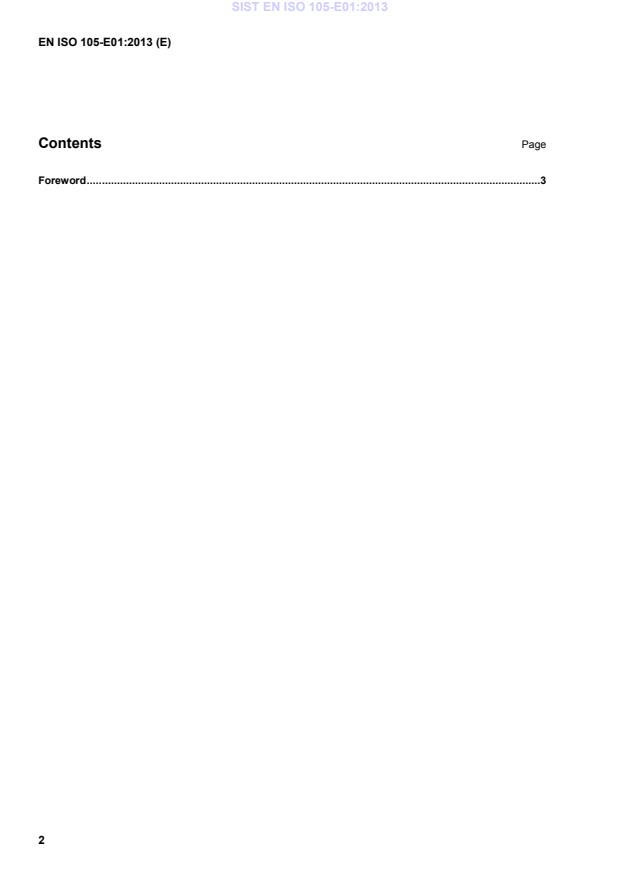

Contents Page
Foreword . 3

Foreword
This document (EN ISO 105-E01:2013) has been prepared by Technical Committee ISO/TC 38 "Textiles" in
collaboration with Technical Committee CEN/TC 248 “Textiles and textile products” the secretariat of which is
held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by September 2013, and conflicting national standards shall be
withdrawn at the latest by September 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 105-E01:2010.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 105-E01:2013 has been approved by CEN as EN ISO 105-E01:2013 without any modification.

INTERNATIONAL ISO
STANDARD 105-E01
Sixth edition
2013-03-15
Textiles — Tests for colour fastness —
Part E01:
Colour fastness to water
Textiles — Essais de solidité des coloris —
Partie E01: Solidité des coloris à l’eau
Reference number
ISO 105-E01:2013(E)
©
ISO 2013
ISO 105-E01:2013(E)
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

ISO 105-E01:2013(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Principle . 1
4 Apparatus and materials. 2
5 Reagents . 3
6 Test specimen . 3
7 Procedure. 3
8 Test report . 4
Bibliography . 5
ISO 105-E01:2013(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 105-E01 was prepared by Technical Committee IS
...
