EN 754-2:2013

Aluminium and aluminium alloys - Cold drawn rod/bar and tube - Part 2: Mechanical properties

This European Standard specifies the mechanical property limits resulting from tensile testing applicable to aluminium and aluminium alloy cold drawn rod/bar and tube.
Technical conditions for inspection and delivery, including product and testing requirements, are specified in EN 754-1. Temper designations are defined in EN 515. The chemical composition limits for these materials are given in EN 573-3.

Aluminium und Aluminiumlegierungen - Gezogene Stangen und Rohre - Teil 2: Mechanische Eigenschaften

Diese Europäische Norm legt die Grenzwerte für die mechanischen Eigenschaften von gezogenen Stangen und Rohren aus Aluminium und Aluminiumlegierungen fest.
Die technischen Lieferbedingungen, einschließlich Erzeugnis  und Prüfanforderungen, sind in EN 754 1 festgelegt. Die Bezeichnungen der Werkstoffzustände sind in EN 515 definiert. In EN 573 3 sind die Grenzen der chemischen Zusammensetzung für diese Werkstoffe angegeben.

Aluminium et alliages d'aluminium - Barres et tubes étirés - Partie 2: Caractéristiques mécaniques

La présente Norme européenne spécifie les limites des caractéristiques mécaniques provenant de l’essai de traction applicables aux barres et tubes étirés en aluminium et alliages d’aluminium.
Les conditions techniques de contrôle et de livraison, y compris les produits et les exigences d’essai, sont spécifiées dans l’EN 754-1. La désignation des états métallurgiques sont définis dans l’EN 515. Les limites de composition chimique de ces matériaux sont données dans l’EN 573-3.

Aluminij in aluminijeve zlitine - Hladno vlečene palice/drogovi in cevi - 2. del: Mehanske lastnosti

General Information

• Status: Withdrawn
• Publication Date: 01-Oct-2013
• Withdrawal Date: 13-Apr-2025
• ICS: 77.150.10 - Aluminium products
• Technical Committee: CEN/TC 132 - Aluminium and aluminium alloys
• Drafting Committee: CEN/TC 132 - Aluminium and aluminium alloys
• Current Stage: 9960 - Withdrawal effective - Withdrawal
• Start Date: 09-Nov-2016
• Completion Date: 14-Apr-2025
• Ref Project: SIST EN 754-2:2014 - Aluminium and aluminium alloys - Cold drawn rod/bar and tube - Part 2: Mechanical properties

Relations

• Replaces: EN 754-2:2008 - Aluminium and aluminium alloys - Cold drawn rod/bar and tube - Part 2: Mechanical properties
• Effective Date: 09-Oct-2013
• Replaced By: EN 754-2:2016 - Aluminium and aluminium alloys - Cold drawn rod/bar and tube - Part 2: Mechanical properties
• Effective Date: 08-Jun-2022

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2014
1DGRPHãþD
SIST EN 754-2:2008
$OXPLQLMLQDOXPLQLMHYH]OLWLQH+ODGQRYOHþHQHSDOLFHGURJRYLLQFHYLGHO
0HKDQVNHODVWQRVWL
Aluminium and aluminium alloys - Cold drawn rod/bar and tube - Part 2: Mechanical
properties
Aluminium und Aluminiumlegierungen - Gezogene Stangen und Rohre - Teil 2:
Mechanische Eigenschaften
Aluminium et alliages d'aluminium - Barres et tubes étirés - Partie 2: Caractéristiques
mécaniques
Ta slovenski standard je istoveten z: EN 754-2:2013
ICS:
77.150.10 Aluminijski izdelki Aluminium products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 754-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2013
ICS 77.150.10 Supersedes EN 754-2:2008
English Version
Aluminium and aluminium alloys - Cold drawn rod/bar and tube -
Part 2: Mechanical properties
Aluminium et alliages d'aluminium - Barres et tubes étirés - Aluminium und Aluminiumlegierungen - Gezogene Stangen
Partie 2: Caractéristiques mécaniques und Rohre - Teil 2: Mechanische Eigenschaften
This European Standard was approved by CEN on 22 August 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 754-2:2013: E
worldwide for CEN national Members.

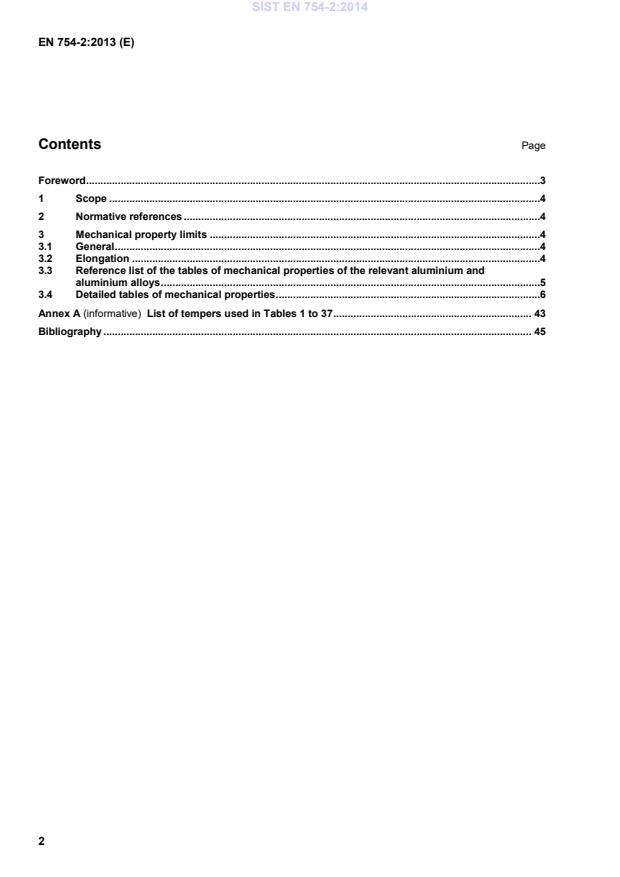

Contents Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Mechanical property limits .4
3.1 General .4
3.2 Elongation .4
3.3 Reference list of the tables of mechanical properties of the relevant aluminium and
aluminium alloys .5
3.4 Detailed tables of mechanical properties .6
Annex A (informative) List of tempers used in Tables 1 to 37 . 43
Bibliography . 45

Foreword
This document (EN 754-2:2013) has been prepared by Technical Committee CEN/TC 132 “Aluminium and
aluminium alloys”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by April 2014, and conflicting national standards shall be withdrawn at the
latest by April 2014.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
CEN/TC 132 affirms its policy that if a patentee refuses to grant licenses on standardized products under
reasonable and not discriminatory conditions, this product will be removed from the corresponding document.
This document supersedes EN 754-2:2008.
CEN/TC 132 has decided to revise this European Standard as follows:
 addition of the alloys EN AW-6026 in a new Table 24 and EN AW-6064A in a new Table 31;
 EN 10002-1 was replaced by EN ISO 6892-1.
EN 754 comprises the following parts under the general title "Aluminium and aluminium alloys — Cold drawn
rod/bar and tube":
 Part 1: Technical conditions for inspection and delivery
 Part 2: Mechanical properties
 Part 3: Round bars, tolerances on dimensions and form
 Part 4: Square bars, tolerances on dimensions and form
 Part 5: Rectangular bars, tolerances on dimensions and form
 Part 6: Hexagonal bars, tolerances on dimensions and form
 Part 7: Seamless tubes, tolerances on dimensions and form
 Part 8: Porthole tubes, tolerances on dimensions and form
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

1 Scope
This European Standard specifies the mechanical property limits resulting from tensile testing applicable to
aluminium and aluminium alloy cold drawn rod/bar and tube.
Technical conditions for inspection and delivery, including product and testing requirements, are specified in
EN 754-1. Temper designations are defined in EN 515. The chemical composition limits for these materials
are given in EN 573-3.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 754-1:2008, Aluminium and aluminium alloys — Cold drawn rod/bar and tube — Part 1: Technical
conditions for inspection and delivery
EN ISO 6892-1, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
(ISO 6892-1)
3 Mechanical property limits
3.1 General
The mechanical properties shall be in conformity with those specified in Table 1 to Table 37 or those agreed
upon between supplier and purchaser and stated in the order document.
For all alloys the condition F (as fabricated) can be used, but without guaranteed mechanical properties.
Table 1 to Table 37 contain limits of mechanical property values obtained by tensile testing according to
EN ISO 6892-1 after sampling and test piece preparation according to EN 754-1.
NOTE The mechanical properties refer to test pieces taken in the longitudinal direction. Mechanical properties of test
pieces taken in other directions can differ from those for the longitudinal direction quoted in this standard.
Brinell hardness values given in Table 1 to Table 37 expressed as HBW values are for information only.
3.2 Elongation
If not otherwise agreed, the A value shall be used.
The A value for elongation is the % elongation measured over a gauge length of 5,65 S (where S is the initial
0 0
cross-sectional area of the test-piece), and expressed in percent.
For certain products the supplier may choose (if not otherwise specified in the order documents) to use the
elongation based on A Consequently, values for the A are included in the following tables.
50mm. 50mm
The A value is the elongation measured over a gauge length of 50 mm and expressed in percent.
50mm
Test pieces and their location in the specimen are given in EN 754-1.
3.3 Reference list of the tables of mechanical properties of the relevant aluminium and
aluminium alloys
Page
Table 1  : Aluminium EN AW-1050A [Al 99,5] 6
Table 2  : Aluminium EN AW-1200 [AI 99,0] 7
Table 3  : Alloy EN AW-2007 [Al Cu4PbMgMn] 8
Table 4  : Alloy EN AW-2011 [AI Cu6BiPb] 9
Table 5  : Alloy EN AW-2011A [AI Cu6BiPb(A)]
Table 6  : Alloy EN AW-2014 [AI Cu4SiMg] 11
Table 7  : Alloy EN AW-2014A [AI Cu4SiMg(A)] 12
Table 8  : Alloy EN AW-2017A [AI Cu4MgSi(A)] 13
Table 9  : Alloy EN AW-2024 [AI Cu4Mg1] 14
Table 10 : Alloy EN AW-2030 [AI Cu4PbMg] 15
Table 11 : Alloy EN AW-3003 [AI Mn1Cu] 16
Table 12 : Alloy EN AW-3103 [AI Mn1]
Table 13 : Alloy EN AW-5005 [AI Mg1(B)]
Table 14 : Alloy EN AW-5005A [AI Mg1(C)] 19
Table 15 : Alloy EN AW-5019 [AI Mg5] 20
Table 16 : Alloy EN AW-5049 [Al Mg2Mn0,8] 21
Table 17 : Alloy EN AW-5251 [AI Mg2Mn0,3]
Table 18 : Alloy EN AW-5052 [AI Mg2,5] 23
Table 19 : Alloy EN AW-5154A [AI Mg3,5(A)] 24
Table 20 : Alloy EN AW-5754 [AI Mg3]
Table 21 : Alloy EN AW-5083 [AI Mg4,5Mn0,7] 26
Table 22 : Alloy EN AW-5086 [AI Mg4]
Table 23 : Alloy EN AW-6012 [AI MgSiPb] 28
Table 24 : Alloy EN AW-6026 [AI MgSiBi] 29
Table 25 : Alloy EN AW-6060 [AI MgSi] 30
Table 26 : Alloy EN AW-6061 [AI Mg1SiCu] 31

Table 27 : Alloy EN AW-6262 [AI Mg1SiPb]
Table 28 : Alloy EN AW-6262A [AI Mg1SiSn] 33

Table 29 : Alloy EN AW-6063 [AI Mg0,7Si] 34
Table 30 : Alloy EN AW-6063A [AI Mg0,7Si(A)] 35
Table 31 : Alloy EN AW-6064A [AI Mg1SiBi] 36
Table 32 : Alloy EN AW-6065 [AI Mg1Bi1Si] 37
Table 33 : Alloy EN AW-6082 [AI Si1MgMn] 38
Table 34 : Alloy EN AW-7020 [AI Zn4,5Mg1] 39
Table 35 : Alloy EN AW-7022 [AI Zn5Mg3Cu] 40
Table 36 : Alloy EN AW-7049A [AI Zn8MgCu]
Table 37 : Alloy EN AW-7075 [AI Zn5,5MgCu]
3.4 Detailed tables of mechanical properties
Table 1 — Aluminium EN AW-1050A [Al 99,5]
Drawn rod/bar
R R
Dimensions
m p0,2
A A
50 mm HBW
mm MPa MPa
Temper % %
Typical
a b value
min. min.
D S min. max. min. max.
O, H111 ≤ 80 ≤ 60 60 95 - - 25 22 20
H14 ≤ 40 ≤ 10 100 135 70 - 6 5 30
H16 ≤ 15 ≤ 5 120 160 105 - 4 3 35
H18 ≤ 10 ≤ 3 145 - 125 - 3 3 43
Drawn tube
R R
m p0,2
Wall thickness A A
HBW
50 mm
MPa MPa
Temper t % %
Typical
value
mm min.
min.
min. max. min. max.
O, H111 ≤ 20 60 95 - - 25 22 20
H14 ≤ 10 100 135 70 - 6 5 30
H16 ≤ 5 120 160 105 - 4 3 35
H18 ≤ 3 145 - 125 - 3 3 43
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.

Table 2 — Aluminium EN AW-1200 [Al 99,0]
Drawn rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
min. min. value
D S min. max. min. max.
O, H111 ≤ 80 ≤ 60 70 105 - - 20 16 23
H14 ≤ 40 ≤ 10 110 145 80 - 5 4 37
H16 ≤ 15 ≤ 5 135 170 115 - 3 3 45
H18 ≤ 10 ≤ 3 150 - 130 - 3 3 50
Drawn tube
R R
m p0,2 A A
Wall thickness HBW
50 mm
MPa MPa
Temper t % %
Typical
value
mm min. min.
min. max. min. max.
O, H111 ≤ 20 70 105 - - 20 16 23
H14 ≤ 10 110 145 80 - 5 4 37
H16 ≤ 5 135 170 115 - 3 3 45
H18 ≤ 3 150 - 130 - 3 3 50
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.

Table 3 — Alloy EN AW-2007 [Al CuPbMgMn]
Drawn rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
min. min. value
D S min. max. min. max.
≤ 30 ≤ 30 370 240 7 95
c
T3 - -
30 < D ≤ 80 30 < S ≤ 80 340 220 6 - 95
c
T351 ≤ 80 ≤ 80 370 - 240 - 5 3 95
Drawn tube
R R
Wall thickness m p0,2 A A
HBW
50 mm
MPa MPa
Temper t % %
Typical
value
mm min.
min.
min. max. min. max.
c
T3 ≤ 20 370 - 250 - 7 95
T3510
≤ 20 370 - 240 - 5 3 95
c
T3511
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.
Table 4 — Alloy EN AW-2011 [Al Cu6BiPb]
Drawn rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
min. min. value
D S min. max. min. max.
≤ 40 ≤ 40 320 - 270 - 10 8 90
T3 40 < D ≤ 50 40 < S ≤ 50 300 - 250 - 10 - 90
280 - 210 - 10 - 90
50 < D ≤ 80 50 < S ≤ 80
T8 ≤ 80 ≤ 80 370 - 270 - 8 6 115
Drawn tube
R R
m p0,2
Wall thickness A A
50 mm HBW
MPa MPa
Temper t
% % Typical
value
mm min. min.
min. max. min. max.
≤ 5 310 - 260 - 10 90
c
T3
290 - 240 - 8 90
5 < t ≤ 20
T8 ≤ 20 370 - 275 - 8 6 115
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.

Table 5 — Alloy EN AW-2011A [Al Cu6BiPb(A)]
Drawn rod/bar
R
Dimensions R
m p0,2
A A
50 mm HBW
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
≤ 40 ≤ 40
320 - 270 - 10 8 90
T3 40 < D ≤ 50 300 - 250 - 10 - 90
40 < S ≤ 50
280 - 210 - 10 - 90
50 < D ≤ 80 50 < S ≤ 80
T8 ≤ 80 ≤ 80 370 - 270 - 8 6 115
Drawn tube
R R
Wall thickness m p0,2 A A
HBW
50 mm
MPa MPa
Temper t % %
Typical
value
mm min.
min.
min. max. min. max.
≤ 5 310 - 260 - 10 90
c
T3
5 < t ≤ 20 290 - 240 - 8 90
T8 ≤ 20 370 - 275 - 8 6 115
a
D = Diameter for round bar.
c
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.
Table 6 — Alloy EN AW-2014 [Al Cu4SiMg]
Drawn rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
value
a b min. min.
D S min. max. min. max.
O, H111 ≤ 80 ≤ 80 - 240 - 125 12 10 45
T3 ≤ 80 ≤ 80 380 - 290 - 8 6 110
T351 ≤ 80 ≤ 80 380 - 290 - 6 4 110
T4 ≤ 80 ≤ 80 380 - 220 - 12 10 110
T451 ≤ 80 ≤ 80 380 - 220 - 10 8 110
T6 ≤ 80 ≤ 80 450 - 380 - 8 6 140
T651 ≤ 80 ≤ 80 450 - 380 - 6 4 140
Drawn tube
R R
m p0,2
A A
Wall thickness HBW
50 mm
MPa MPa
Temper t % %
Typical
value
mm min. min.
min. max. min. max.
O, H111 ≤ 20 - 240 - 125 12 10 45
T3 380 - 290 - 8 6 110
≤ 20
T3510,
≤ 20 380 - 290 - 6 4 110
T3511
T4 380 - 240 - 12 10 110
≤ 20
T4510,
≤ 20 380 - 240 - 10 8 110
T4511
T6 450 - 380 - 8 6 140
≤ 20
T6510,
≤ 20 450 - 380 - 6 4 140
T6511
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.

Table 7 — Alloy EN AW-2014A [Al Cu4SiMg(A)]
Drawn rod/bar
Dimensions R R
m p0,2 A
A HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
O, H111 ≤ 80 ≤ 80 - 240 - 125 12 10 45
T3 380 - 290 - 8 6 110
≤ 80 ≤ 80
T351 ≤ 80 ≤ 80 380 - 290 - 6 4 110
T4 380 - 220 - 12 10 110
≤ 80 ≤ 80
T451 ≤ 80 ≤ 80 380 - 220 - 10 8 110
T6 450 - 380 - 8 6 140
≤ 80 ≤ 80
T651 ≤ 80 ≤ 80 450 - 380 - 6 4 140
Drawn tube
R R
m p0,2
Wall thickness A A
50 mm HBW
MPa MPa
Temper t % %
Typical
value
mm min. min.
min. max. min. max.
O, H111 ≤ 20 - 240 - 125 12 10 45
T3 ≤ 20 380 - 290 - 8 6 110
T3510,
≤ 20 380 - 290 - 6 4 110
T3511
T4 ≤ 20 380 - 240 - 12 10 110
T4510,
≤ 20 380 - 240 - 10 8 110
T4511
T6 ≤ 20 450 - 380 - 8 6 140
T6510,
450 - 380 - 6 4 140
≤ 20
T6511
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.

Table 8 — Alloy EN AW-2017A [Al Cu4MgSi(A)]
Drawn rod/bar
R R
Dimensions
m p0,2
A A
50 mm HBW
mm MPa MPa
Temper % %
Typical
a b value
min. min.
D S min. max. min. max.
O, H111 ≤ 80 ≤ 80 - 240 - 125 12 10 45
c
T3 ≤ 80 ≤ 80 400 - 250 - 10 8 105
c
T351 ≤ 80 ≤ 80 400 - 250 - 8 6 105
Drawn tube
R R
m p0,2
Wall thickness A A
50 mm HBW
MPa MPa
t
Temper % %
Typical
value
mm min. min.
min. max. min. max.
O, H111 ≤ 20 - 240 - 125 12 10 45
c
T3 ≤ 20 400 - 250 - 10 8 105
T3510,
≤ 20 400 - 250 - 8 6 105
c
T3511
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.

Table 9 — Alloy EN AW-2024 [AlCu4Mg1]
Drawn rod/bar
Dimensions R R
m p0,2 A
A HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
O, H111 ≤ 80 ≤ 80 - 250 - 150 12 10 47
≤ 10 ≤ 10 425 310 10 8 120
T3 - -
425 290 9 7 120
10 < D ≤ 80 10 < S ≤ 80
T351 ≤ 80 ≤ 80 425 - 310 - 8 6 120
T6 425 - 315 - 5 4 125
≤ 80 ≤ 80
T651 ≤ 80 ≤ 80 425 - 315 - 4 3 125
T8 455 - 400 - 4 3 130
≤ 80 ≤ 80
T851 ≤ 80 ≤ 80 455 - 400 - 3 2 130
Drawn tube
R R
m p0,2
Wall thickness A A
50 mm HBW
MPa MPa
Temper t % %
Typical
value
mm min. min.
min. max. min. max.
O, H111 ≤ 20 - 240 - 140 12 10 47
≤ 5 440 290 10 8 120
T3 - -
420 270 10 8 120
5 < t ≤ 20
T3510,
≤ 20 420 - 290 - 8 6 120
T3511
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.

Table 10 — Alloy EN AW-2030 [Al Cu4PbMg]
Drawn rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
≤ 30 ≤ 30 370 240 7 5 115
c
T3 - -
340 220 6 - 115
30 < D ≤ 80 30 < S ≤ 80
c
T351 ≤ 80 ≤ 80 370 - 240 - 5 3 115
Drawn tube
R R
m p0,2
Wall thickness A A
HBW
50 mm
MPa MPa
Temper t % %
Typical
value
mm min. min.
min. max. min. max.
c
T3 ≤ 20 370 - 240 - 7 5 115
T3510,
370 - 240 - 5 3 115
≤ 20
c
T3511
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.
c
Properties may be obtained by press quenching.

Table 11 — Alloy EN AW-3003 [Al Mn1Cu]
Drawn rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
O, H111 ≤ 80 ≤ 60 95 130 35 - 25 20 29
H14 ≤ 40 ≤ 10 130 165 110 - 6 4 40
H16 ≤ 15 ≤ 5 160 195 130 - 4 3 47
H18 ≤ 10 ≤ 3 180 - 145 - 3 2 55
Drawn tube
R R
m p0,2 A A
Wall thickness
50 mm HBW
MPa MPa
Temper t % %
Typical
value
mm min. min.
min. max. min. max.
O, H111 ≤ 20 95 130 35 - 25 20 29
H11 ≤ 17 105 140 55 - 20 16 32
H12 ≤ 15 115 150 75 - 14 12 35
H13 ≤ 12 125 160 95 - 11 8 38
H14 ≤ 10 130 165 110 - 6 4 40
H15 ≤ 7 145 180 120 - 5 4 44
H16 ≤ 5 160 195 130 - 4 3 47
H17 170 205 140 - 3 2 51
≤ 4
H18 ≤ 3 180 - 145 - 3 2 55
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.

Table 12 — Alloy EN AW-3103 [Al Mn1]
Drawn rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
value
min. min.
D S min. max. min. max.
O, H111 ≤ 80 ≤ 60 95 130 35 - 25 20 29
H14 ≤ 40 ≤ 10 130 165 110 - 6 4 40
H16 ≤ 15 ≤ 5 160 195 130 - 4 3 47
H18 ≤ 10 ≤ 3 180 - 145 - 3 2 55
Drawn tube
R R
m p0,2 A A
Wall thickness
50 mm HBW
MPa MPa
Temper t % %
Typical
value
mm min. min.
min. max. min. max.
O, H111 95 130 35 - 25 20 29
≤ 20
H11 105 140 55 - 20 16 32
≤ 17
H12 115 150 75 - 14 12 35
≤ 15
H13 125 160 95 - 11 8 38
≤ 12
H14 130 165 110 - 6 4 40
≤ 10
H15 145 180 120 - 5 4 44
≤ 7
H16 160 195 130 - 4 3 47
≤ 5
H17 170 205 140 - 3 2 51
≤ 4
H18 180 - 145 - 3 2 55
≤ 3
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.

Table 13 — Alloy EN AW-5005 [Al Mg1(B)]
Drawn rod/bar
Dimensions R R
m p0,2 A A
HBW
50 mm
mm MPa MPa
Temper % %
Typical
a b
min. min. value
D S min. max. min. max.
O, H111 ≤ 80 ≤ 60 100 145 40 - 18 16 30
H14 ≤ 40 ≤ 10 140 - 110 - 6 4 45
H18 ≤ 15 ≤ 2 185 - 155 - 4 2 55
Drawn tube
R R
Wall thickness m p0,2 A A
HBW
50 mm
MPa MPa
Temper t % %
Typical
value
mm min.
min.
min. max. min. max.
O, H111 ≤ 20 100 145 40 - 18 16 30
H14 ≤ 5 140 - 110 - 6 4 45
H18 ≤ 3 185 - 155 - 4 2 55
a
D = Diameter for round bar.
b
S = Width across flats for square and hexagonal bar, thickness for rectangular bar.

EN
...
