prEN ISO 19014-4

(Main)

Earth-moving machinery - Functional safety - Part 4: Design and evaluation of software and data transmission for safety-related parts of the control system (ISO/DIS 19014-4:2024)

Earth-moving machinery - Functional safety - Part 4: Design and evaluation of software and data transmission for safety-related parts of the control system (ISO/DIS 19014-4:2024)

This document specifies general principles for software development and signal transmission requirements of safety-related parts of machine-control systems (MCS) in earth-moving machinery (EMM) and its equipment, as defined in ISO 6165. In addition, this document addresses the significant hazards as defined in ISO 12100 related to the software embedded within the machine control system. The significant hazards being addressed are the incorrect machine control system output responses from machine control system inputs.
Cyber security is out of the scope of this document.
NOTE For guidance on cybersecurity, see an appropriate security standard.
This document is not applicable to EMM manufactured before the date of its publication.

Erdbaumaschinen - Funktionale Sicherheit - Teil 4: Gestaltung und Beurteilung von Software und Datenübertragung für sicherheitsrelevante Steuerungssysteme (ISO/DIS 19014-4:2024)

Dieses Dokument legt allgemeine Grundsätze für Anforderungen an Software-Entwicklung und Signalübertragung von sicherheitsbezogenen Teilen von Maschinensteuerungssystemen (MCS, en: machine-control systems) in Erdbaumaschinen (EMM, en: earth-moving machinery) und deren Ausrüstung, wie in ISO 6165:2012 definiert, fest. Zudem behandelt dieses Dokument die in ISO 12100 festgelegten signifikanten Gefährdungen in Bezug auf die im Maschinensteuerungssystem eingebettete Software. Bei den behandelten signifikanten Gefährdungen handelt es sich um das falsche Ansprechen der Ausgabe von Maschinensteuerungssystemen auf Eingaben in Maschinensteuerungssystemen.
Cybersicherheit liegt außerhalb des Anwendungsbereichs dieses Dokuments.
ANMERKUNG   Hinweise zur Cybersicherheit sind in einer geeigneten Sicherheitsnorm zu finden.
Dieses Dokument gilt nicht für EMM, die vor dem Veröffentlichungsdatum dieses Dokuments hergestellt wurden.

Engins de terrassement - Sécurité fonctionnelle - Partie 4: Conception et évaluation du logiciel et de la transmission des données pour les parties relatives à la sécurité du système de commande (ISO/DIS 19014-4:2024)

Le présent document spécifie les principes généraux applicables aux exigences en matière de développement de logiciel et de transmission des signaux des parties relatives à la sécurité des systèmes de commande de la machine (MCS) dans les engins de terrassement et leur équipement tels que définis dans l'ISO 6165. De plus, le présent document traite des phénomènes dangereux significatifs tels que définis dans l'ISO 12100 en rapport avec les logiciels intégrés dans le système de commande de la machine. Les phénomènes dangereux significatifs traités sont les réponses incorrectes du système de commande de la machine aux entrées du système de commande de la machine.
La cybersécurité n'est pas couverte par le présent document.
NOTE Voir une norme appropriée relative à la sécurité pour des recommandations à propos de la cybersécurité.
Le présent document n'est pas applicable aux engins de terrassement fabriqués avant la date de sa publication.

Stroji za zemeljska dela - Funkcijska varnost - 4. del: Načrtovanje in vrednotenje programske opreme in prenosa podatkov za dele krmilnega sistema, povezane z varnostjo (ISO/DIS 19014-4:2024)

General Information

Status
Not Published
Publication Date
24-Aug-2025
ICS
53.100 - Earth-moving machinery
Technical Committee
CEN/TC 151 - Construction equipment and building material machines - Safety
Drafting Committee
CEN/TC 151/WG 1 - Earth-moving machinery - Safety
Current Stage
4060 - Closure of enquiry - Enquiry
Start Date
19-Apr-2024
Completion Date
19-Apr-2024
Ref Project
oSIST prEN ISO 19014-4:2024 - Earth-moving machinery - Functional safety - Part 4: Design and evaluation of software and data transmission for safety-related parts of the control system (ISO/DIS 19014-4:2024)

Relations

Revises
EN ISO 19014-4:2020 - Earth-moving machinery - Functional safety - Part 4: Design and evaluation of software and data transmission for safety-related parts of the control system (ISO 19014-4:2020)
Effective Date
04-Oct-2023

Buy Standard

prEN ISO 19014-4:2024 - BARVEprEN ISO 19014-4:2024 - BARVE
PreviousNext
Draft
prEN ISO 19014-4:2024 - BARVE
English language
46 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
oSIST prEN ISO 19014-4:2024
01-marec-2024
Stroji za zemeljska dela - Funkcijska varnost - 4. del: Načrtovanje in vrednotenje
programske opreme in prenosa podatkov za dele krmilnega sistema, povezane z
varnostjo (ISO/DIS 19014-4:2024)
Earth-moving machinery - Functional safety - Part 4: Design and evaluation of software
and data transmission for safety-related parts of the control system (ISO/DIS 19014-
4:2024)
Erdbaumaschinen - Funktionale Sicherheit - Teil 4: Gestaltung und Beurteilung von
Software und Datenübertragung für sicherheitsrelevante Steuerungssysteme (ISO/DIS
19014-4:2024)
Engins de terrassement - Sécurité fonctionnelle - Partie 4: Conception et évaluation du
logiciel et de la transmission des données pour les parties relatives à la sécurité du
système de commande (ISO/DIS 19014-4:2024)
Ta slovenski standard je istoveten z: prEN ISO 19014-4
ICS:
35.080 Programska oprema Software
53.100 Stroji za zemeljska dela Earth-moving machinery
oSIST prEN ISO 19014-4:2024 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN ISO 19014-4:2024

---------------------- Page: 2 ----------------------
oSIST prEN ISO 19014-4:2024

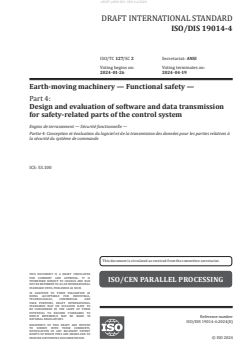

DRAFT INTERNATIONAL STANDARD
