EN 13745:2004

Surfaces for sports areas - Determination of specular reflectance

This European Standard specifies a method  for the determination of the specular reflectance of certain surfaces for indoor sports areas.

Sportböden - Bestimmung der gerichteten Reflexion

Diese Europäische Norm legt ein Verfahren zur Bestimmung der gerichteten Reflexion bestimmter Sportböden für den Innenbereich fest.

Sols sportifs - Détermination de la réflectance spéculaire

La présente Norme européenne spécifie une méthode d'essai qui permet de déterminer la réflexion spéculaire de certaines surfaces de sols sportifs.

Podloge za športne dejavnosti – Ugotavljanje odboja svetlobe

General Information

• Status: Published
• Publication Date: 10-Feb-2004
• ICS: 59.080.60 - Textile floor coverings
• ICS: 97.150 - Floor coverings
• ICS: 97.220.10 - Sports facilities
• Technical Committee: CEN/TC 217 - Surfaces for sport areas
• Drafting Committee: CEN/TC 217/WG 2 - Surfaces of sports halls
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 08-Sep-2025
• Completion Date: 23-Sep-2025
• Ref Project: SIST EN 13745:2004 - Surfaces for sports areas - Determination of specular reflectance

Overview

EN 13745:2004 - Surfaces for sports areas - Determination of specular reflectance is a CEN method for measuring the specular (directed) reflectance of certain indoor sports floor surfaces. The standard defines the apparatus, test-piece preparation, conditioning, measurement procedure and reporting format so that specular reflectance values are reproducible and comparable across laboratories and manufacturers.

Key topics and technical requirements

• Scope: Method for determination of specular reflectance of indoor sports-area surfaces.
• Principle: A collimated incident beam illuminates a test piece mounted in an integrating sphere; the total reflected flux is measured by a photoelectric cell.
• Apparatus:
  • Integrating sphere with matt white interior and baffles; sample and entrance ports centered on the same great circle with at least 170° arc between them.
  • Sample port limited to ≤ 4% of the sphere’s internal reflecting area and subtending ~8° at the entrance port.
  • Baffles and a reflectance standard integrated into the sphere wall to prevent direct light paths.
  • Light source: tungsten or tungsten–halogen with filters to match one of the CIE illuminants (A, C or D65) per ISO/CIE 10526. The beam must be substantially unidirectional (max ray angle ≈ 3°).
  • Photoelectric cell(s) positioned about 90° ± 10° from the entrance port with spectral response approximating V(λ).
• Mounting & geometry: Angle of incidence on the test piece between 80° and 85° to capture specular reflection while avoiding light loss through the entrance port.
• Test pieces & conditioning: Three circular specimens (diameter = sample port) conditioned ≥ 3 hours at 23 °C ± 3 °C, unless otherwise specified.
• Procedure & results: Measurements include dark reading, a trapped-beam reference, incident intensity and reflected intensity for each specimen. Reflectance is expressed as a percentage using the measured photoelectric outputs and the mean of three specimens.
• Reporting: Test reports must reference EN 13745:2004 and include surface ID, light source/filter, instrument make/model, test temperature and mean reflectance.

Applications

• Assessing floor finishes, coatings and materials for indoor sports halls where glare, visual comfort and lighting performance matter.
• Quality control in manufacturing of sports flooring and coatings.
• Specification and verification during procurement and installation for sports facilities, gyms and indoor arenas.

Who uses this standard

• Flooring manufacturers and product developers
• Test laboratories and quality-control engineers
• Facility managers, architects and specifiers responsible for indoor sports installations
• Regulatory and conformity assessment bodies within CEN member countries

Related standards

• ISO/CIE 10526 (CIE standard illuminants for colorimetry) - normative reference for illuminant specifications used in EN 13745:2004.

Keywords: EN 13745:2004, specular reflectance, surfaces for sports areas, integrating sphere, hazemeter, indoor sports surfaces, reflectance measurement, CEN, ISO/CIE 10526.

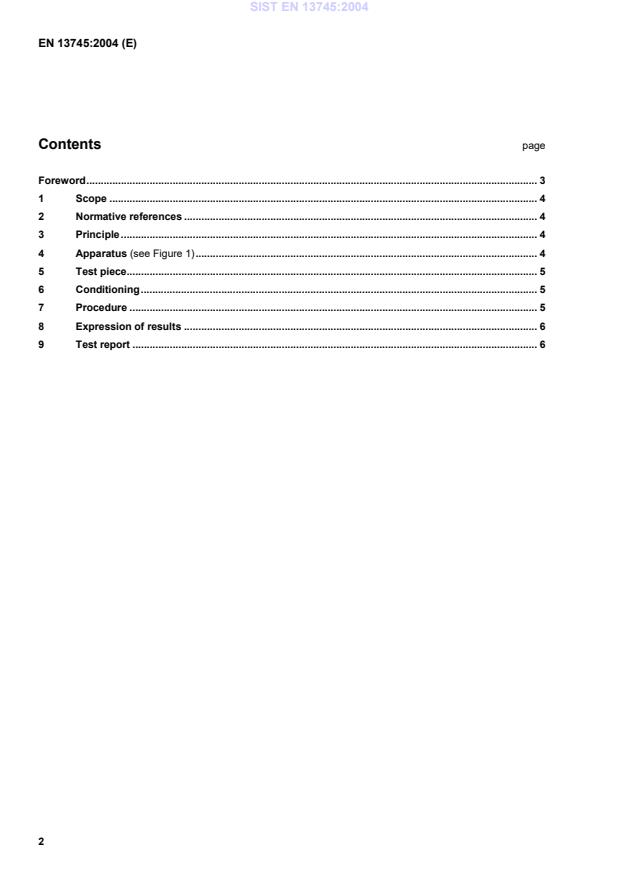

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Podloge za športne dejavnosti – Ugotavljanje odboja svetlobeSportböden - Bestimmung der gerichteten ReflexionSols sportifs - Détermination de la réflectance spéculaireSurfaces for sports areas - Determination of specular reflectance97.220.10Športni objektiSports facilitiesICS:Ta slovenski standard je istoveten z:EN 13745:2004SIST EN 13745:2004en,fr,de01-oktober-2004SIST EN 13745:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13745February 2004ICS 59.080.60; 97.150; 97.220.10English versionSurfaces for sports areas - Determination of specularreflectanceSols sportifs - Détermination de la réflectance spéculaireSportböden - Bestimmung der gerichteten ReflexionThis European Standard was approved by CEN on 10 December 2003.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13745:2004: ESIST EN 13745:2004
...
