EN 10223-6:2012

Steel wire and wire products for fencing and netting - Part 6: Steel wire chain link fencing

This European Standard specifies dimensions, properties and coatings of steel wire chain link fencing.

Stahldraht und Drahterzeugnisse für Zäune und Drahtgeflechte - Teil 6: Stahldrahtgeflecht mit viereckigen Maschen

Diese Europäische Norm legt Maße, Eigenschaften und Überzüge für Stahldrahtgeflecht mit viereckigen Maschen fest.

Fils et produits tréfilés en acier pour clôtures et grillages - Partie 6: Grillage à simple torsion en acier

La présente Norme européenne spécifie les dimensions, caractéristiques et revêtements des grillages à simple torsion en acier.

Jeklena žica in žični izdelki za ograje - 6. del: Jeklen žični pletež s štirikotnimi zankami

Ta evropski standard določa dimenzije, lastnosti in prevleke jeklenega žičnega pleteža s štirikotnimi zankami.

General Information

• Status: Published
• Publication Date: 27-Nov-2012
• Withdrawal Date: 30-May-2013
• ICS: 77.140.65 - Steel wire, wire ropes and link chains
• Technical Committee: ECISS/TC 106 - Wire rod and wires
• Drafting Committee: ECISS/TC 106 - Wire rod and wires
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 06-Feb-2025
• Completion Date: 14-Apr-2025
• Ref Project: SIST EN 10223-6:2013 - Steel wire and wire products for fences - Part 6: Steel wire chain link fencing

Relations

• Replaces: EN 10223-6:1998 - Steel wire and wire products for fences - Part 6: Steel wire chain link fencing
• Effective Date: 22-Dec-2008

Overview

EN 10223-6:2012 (CEN) specifies the dimensions, material properties and coating requirements for steel wire chain link fencing. The standard covers manufacturing, testing, sampling, inspection documentation and packaging to ensure consistent performance for boundary, security and civil applications. It forms Part 6 of the EN 10223 series for steel wire and wire products for fencing and netting.

Why it matters: EN 10223-6:2012 provides purchasers and manufacturers with a clear specification framework for chain link fencing - defining mesh sizes, wire tensile classes, coating classes and acceptable tolerances to deliver reliable, corrosion-resistant fences.

Key Topics

• Scope and definitions: Chain link fencing is described as interlocking steel wire helices producing approximately square meshes (mesh size measured at right angles between adjacent parallel wires).
• Base metal: Wire is produced from low carbon steel in accordance with EN ISO 16120-1 and EN ISO 16120-2. Wire is supplied as either low tensile (≤ 600 N/mm2) or high tensile (> 600 N/mm2); tensile spread within a lot shall not exceed 150 N/mm2.
• Coating options: Zinc or Zn95/Al5 alloy coatings (per EN 10244-1 / EN 10244-2) and subsequent organic coatings (per EN 10245 series) are specified. Coating classes A, B, C and D are referenced with wrap/adherence quality requirements.
• Dimensions and tolerances: Typical mesh sizes, nominal wire diameters and height tolerances are given (see standard Table 1). Typical fence heights include 0.5 m, 0.8 m, 0.9 m, 1.0 m, 1.2 m, 1.4 m, 1.5 m, 1.8 m, 2.0 m, 2.1 m, 2.4 m, 2.5 m, 3.0 m, 3.5 m, 3.6 m and 4.0 m.
• Manufacture & presentations: Fencing may be supplied knuckled or with barbed ends and fabricated from coated or bright wire with extruded or sintered organic finishes where required.
• Testing & sampling: Tensile testing per EN 10218-1; coating tests per EN 10244 series and EN 10245 parts for organic coatings. Manufacturer sampling can use statistical control or agreed sampling (one roll/reel per week or one per production change).
• Packaging: Standard roll lengths are 12.5 m or 25 m with a tolerance of +20%/−0% unless otherwise agreed.

Applications

• Perimeter and boundary fencing for residential, commercial and industrial sites
• Security fencing where defined tensile and coating classes are required
• Civil works, temporary site enclosures and sports/recreation areas where consistent mesh geometry and corrosion protection are important

Related Standards

• EN 10021 - General technical delivery conditions for steel products
• EN 10204 - Types of inspection documents
• EN 10218-1 / EN 10218-2 - Test methods, wire dimensions and tolerances
• EN 10244-1 / EN 10244-2 - Non‑ferrous metallic coatings on steel wire (zinc and zinc‑alloy)
• EN 10245-1 / EN 10245-2 / EN 10245-3 - Organic coatings on steel wire (PVC, PE, general rules)
• EN ISO 16120-1 / EN ISO 16120-2 - Wire rod requirements for conversion to wire

For procurement and compliance, reference EN 10223-6:2012 in orders and specify required coating class, mesh, wire size, tensile range and inspection documentation to ensure the delivered chain link fencing meets application needs.

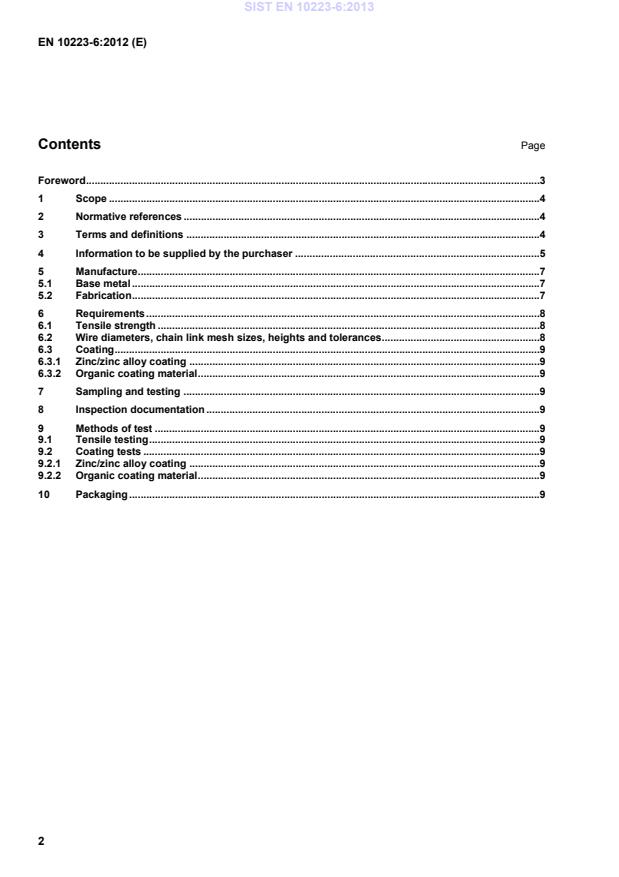

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.]DQNDPLStahldraht und Erzeugnisse aus Stahldraht fûr Zäune - Teil 6: Stahldrahtgeflecht mit viereckigen MaschenFils et produits tréfilés en acier pour clôtures - Partie 6: Grillage à simple torsionSteel wire and wire products for fences - Part 6: Steel wire chain link fencing91.090Konstrukcije zunaj stavbExternal structures77.140.65Jeklene žice, jeklene vrvi in verigeSteel wire, wire ropes and link chainsICS:Ta slovenski standard je istoveten z:EN 10223-6:2012SIST EN 10223-6:2013en,fr,de01-marec-2013SIST EN 10223-6:2013SLOVENSKI
STANDARDSIST EN 10223-6:20001DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10223-6
November 2012 ICS 77.140.65 Supersedes EN 10223-6:1998English Version
Steel wire and wire products for fencing and netting - Part 6: Steel wire chain link fencing
Fils et produits tréfilés en acier pour clôtures et grillages - Partie 6: Grillage à simple torsion en acier
Stahldraht und Drahterzeugnisse für Zäune und Drahtgeflechte - Teil 6: Stahldrahtgeflecht mit viereckigen Maschen This European Standard was approved by CEN on 13 October 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 10223-6:2012: ESIST EN 10223-6:2013
...
