Aerospace series - Rod-end with bearing per EN 4614 with self lubricating liner in corrosion resisting steel with external threaded shank - Dimensions and loads - Inch series

This European standard specifies the characteristics of adjustable rod-ends consisting of:
-   a self aligning ball bearing with self lubricating liner (EN 4614);
-   a rod end with threaded shank with an optional longitudinal groove for locking purposes.
They are intended for use in fixed or moving parts of the aircraft structure and their control mechanisms.

Luft- und Raumfahrt - Ösenkopf mit Gelenklager nach EN 4614 mit selbstschmierender Beschichtung aus korrosionsbeständigem Stahl mit Außengewinde - Maße und Belastungen - Inch Reihe

Série aérospatiale - Embout à rotule lisse suivant EN 4614, en acier résistant à la corrosion, à garniture autolubrifiante, avec filetage extérieur - Dimensions et charges - Série en inches

Aeronavtika - Končnik z očesom in ležajem po EN 4614 s samomazalno oblogo, iz korozijsko odpornega jekla, z zunanjo navojno ročico - Mere in obremenitve - Palčne mere

Ta evropski standard določa karakteristike nastavljivih končnikov z očesom, ki so sestavljeni iz:
 samoporavnalnega krogličnega ležaja s samomazalno oblogo (EN 4614);
 končnika z očesom in navojno ročico z izbirnim vzdolžnim utorom za zaklepanje.
Namenjeni so za uporabo v fiksnih ali premikajočih se delih ogrodja letala in njihovih nadzornih mehanizmih.

General Information

Status
Published
Publication Date
30-Apr-2019
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
01-May-2019
Completion Date
01-May-2019

Buy Standard

Standard
EN 6056:2019
English language
16 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 6056:2019
01-julij-2019
Aeronavtika - Končnik z očesom in ležajem po EN 4614 s samomazalno oblogo, iz
korozijsko odpornega jekla, z zunanjo navojno ročico - Mere in obremenitve -
Palčne mere

Aerospace series - Rod-end with bearing per EN 4614 with self lubricating liner in

corrosion resisting steel with external threaded shank - Dimensions and loads - Inch

series

Luft- und Raumfahrt - Ösenkopf mit Gelenklager nach EN 4614 mit selbstschmierender

Beschichtung aus korrosionsbeständigem Stahl mit Aussengewinde - Maße und
Belastungen - Inch Reihe

Série aérospatiale - Embout à rotule lisse EN 4614 en acier resistant a la corrosion à

garniture autolubrifiante avec le filetage extérieur - Dimensions et charges - Série en

inches
Ta slovenski standard je istoveten z: EN 6056:2019
ICS:
49.035 Sestavni deli za letalsko in Components for aerospace
vesoljsko gradnjo construction
SIST EN 6056:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 6056:2019
---------------------- Page: 2 ----------------------
SIST EN 6056:2019
EN 6056
EUROPEAN STANDARD
NORME EUROPÉENNE
May 2019
EUROPÄISCHE NORM
ICS 49.035
English Version
Aerospace series - Rod-end with bearing per EN 4614 with
self lubricating liner in corrosion resisting steel with
external threaded shank - Dimensions and loads - Inch
series

Série aérospatiale - Embout à rotule lisse suivant EN Luft- und Raumfahrt - Ösenkopf mit Gelenklager nach

4614, en acier résistant à la corrosion, à garniture EN 4614 mit selbstschmierender Beschichtung aus

autolubrifiante, avec filetage extérieur - Dimensions et korrosionsbeständigem Stahl mit Außengewinde -

charges - Série en inches Maße und Belastungen - Inch Reihe
This European Standard was approved by CEN on 5 November 2018.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 6056:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 6056:2019
EN 6056:2019 (E)

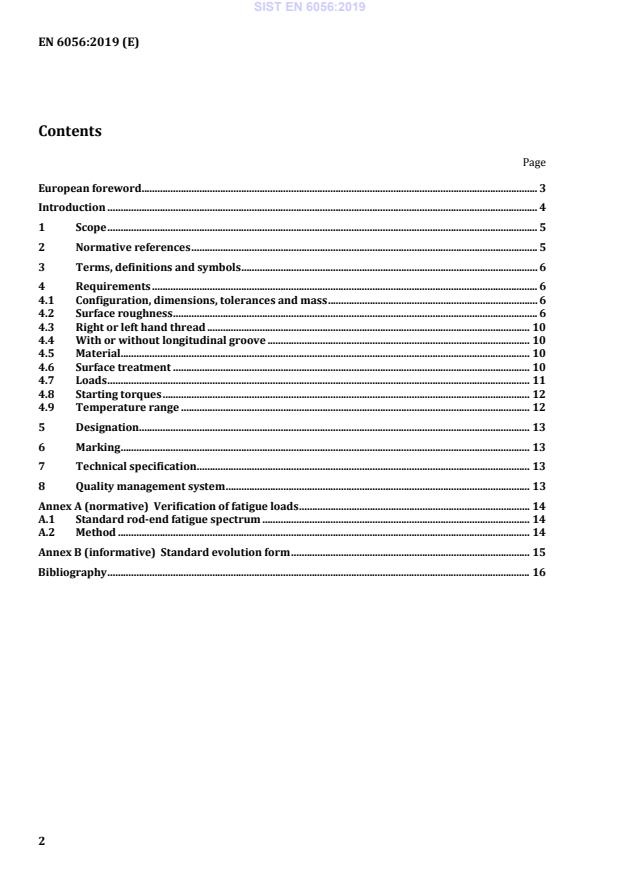

Contents
Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms, definitions and symbols ................................................................................................................. 6

4 Requirements ................................................................................................................................................... 6

4.1 Configuration, dimensions, tolerances and mass ................................................................................ 6

4.2 Surface roughness ........................................................................................................................................... 6

4.3 Right or left hand thread ........................................................................................................................... 10

4.4 With or without longitudinal groove .................................................................................................... 10

4.5 Material ............................................................................................................................................................ 10

4.6 Surface treatment ........................................................................................................................................ 10

4.7 Loads ................................................................................................................................................................. 11

4.8 Starting torques ............................................................................................................................................ 12

4.9 Temperature range ..................................................................................................................................... 12

5 Designation..................................................................................................................................................... 13

6 Marking ............................................................................................................................................................ 13

7 Technical specification ............................................................................................................................... 13

8 Quality management system .................................................................................................................... 13

Annex A (normative) Verification of fatigue loads ........................................................................................ 14

A.1 Standard rod-end fatigue spectrum ...................................................................................................... 14

A.2 Method ............................................................................................................................................................. 14

Annex B (informative) Standard evolution form ........................................................................................... 15

Bibliography ................................................................................................................................................................. 16

---------------------- Page: 4 ----------------------
SIST EN 6056:2019
EN 6056:2019 (E)
European foreword

This document (EN 6056:2019) has been prepared by the Aerospace and Defence Industries

Association of Europe - Standardization (ASD-STAN).

After enquiries and votes carried out in accordance with the rules of this Association, this Standard has

received the approval of the National Associations and the Official Services of the member countries of

ASD, prior to its presentation to CEN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by November 2019, and conflicting national standards

shall be withdrawn at the latest by November 2019.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

According to the CEN-CENELEC Internal Regulations, the national standards organizations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,

France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,

Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 6056:2019
EN 6056:2019 (E)
Introduction

This document is published at edition P2. Former P1 and drafts may exist of Airbus development only

but without any ASD-STAN official publication. In consequence configuration management

discrepancies with these unofficial documents are under Airbus responsibility.
---------------------- Page: 6 ----------------------
SIST EN 6056:2019
EN 6056:2019 (E)
1 Scope

This European standard specifies the characteristics of adjustable rod-ends consisting of:

 a self-aligning ball bearing with self-lubricating liner (EN 4614);

 a rod-end with threaded shank with an optional longitudinal groove for locking purposes.

They are intended for use in fixed or moving parts of the aircraft structure and their control

mechanisms.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 2068, Aerospace series — Rod ends with self-lubricating, self-aligning bearings — Technical

specification

EN 2133, Aerospace series — Cadmium plating of steels with specified tensile strength ≤ 1 450 MPa,

copper, copper alloys and nickel alloys
EN 2424, Aerospace series — Marking of aerospace products

EN 4614, Aerospace series — Spherical plain bearing in corrosion resisting steel with self-lubricating liner,

wide series — Dimensions and loads — Inch series
ISO 1132-1, Rolling bearings — Tolerances — Part 1: Terms and definitions
ISO 3161, Aerospace — UNJ threads — General requirements and limit dimensions

ISO 3353-1, Aerospace — Lead and runout threads — Part 1: Rolled external threads

ISO 3353-2, Aerospace — Lead and runout threads — Part 2: Internal threads
ISO 8074, Aerospace — Surface treatment of austenitic stainless steel parts
NAS 559, Lock-rod end (key type)
SAE AMS 5643, Steel, corrosion resistant, bars wire, forgings, tubing and rings
16Cr-4.0Ni-0.30(Cb+Ta)-4.0Cu solution heat treated, precipitation hardenable

TR 4475, Bearings and mechanical transmissions for airframe applications — Vocabulary

1 Published by: Aerospace Industr
...
