EN 4708-201:2022
(Main)Aerospace series - Sleeves, heat-shrinkable, for binding, insulation and identification - Part 201: Polyolefin identification sleeves - Operating Temperature range -55 °C to 135 °C - Product standard
Aerospace series - Sleeves, heat-shrinkable, for binding, insulation and identification - Part 201: Polyolefin identification sleeves - Operating Temperature range -55 °C to 135 °C - Product standard
This document specifies the required characteristics for heat-shrinkable polyolefin identification
sleeving for use in aircraft electrical systems at operating temperatures between −55 °C and 135 °C.
This specification is for the characterisation of identification sleeves only.
This sleeving is flexible and flame retarded, and is available with 2:1 and 3:1 shrink ratios.
The product is normally supplied with internal diameters up to 57 mm.
The standard colours are white or yellow.
Sizes or colours other than those specifically listed in this standard may be available. These items are
considered to comply with this document if they comply with the property requirements listed in tables 3
and 4 except for dimensions and mass.
As the sleeving to be tested is a printed article the complete system is to be recorded as part of the
evaluation. The sleeve will only be considered as meeting the requirements of this document if printed
with the printer, ribbon, inks, and settings referenced within the test report.
Mark adherence and print permanence are determined in this document using method EN 6059-407.
Luft- und Raumfahrt - Wärmeschrumpfender Schlauch zur Befestigung, Isolierung und Identifizierung - Teil 201: Kennzeichnungsschlauch aus Polyolefin, Betriebstemperaturbereich -55 °C bis 135 °C - Produktnorm
Série aérospatiale - Manchons thermorétractables, de jonction, isolement et identification - Partie 201 : Manchons d'identification en polyoléfine - Températures d'utilisation -55 °C à 135 °C - Norme de produit
Le présent document spécifie les caractéristiques requises pour les manchons d’identification thermorétractables en polyoléfine destinés à une utilisation dans les systèmes électriques des aéronefs à des températures de fonctionnement comprises entre –55 °C et 135 °C.
Cette spécification est uniquement destinée à la caractérisation des manchons d’identification.
Ce type de manchon est flexible et ignifugé, et est proposé avec des coefficients de rétreint de 2:1 et 3:1.
Le produit est normalement fourni avec des diamètres intérieurs allant jusqu’à 57 mm.
Les couleurs usuelles sont le blanc ou le jaune.
D’autres tailles ou d’autres couleurs que celles mentionnées spécifiquement dans la présente norme peuvent être disponibles. Ces articles doivent être considérés comme conformes au présent document s’ils répondent aux exigences de propriétés présentées dans le Tableau 3 et le Tableau 4, exception faite des dimensions et masses.
Étant donné que le manchon à soumettre à essai est un article imprimé, il est nécessaire d’enregistrer le système complet en tant que partie intégrante de l’évaluation. Le manchon ne sera considéré comme respectant les exigences de la présente spécification que s’il est marqué à l’aide de l’imprimante, du ruban, des encres et des paramètres référencés dans le rapport d’essai.
L’adhérence du marquage et la permanence de l'impression sont déterminées dans le présent document à l’aide de la méthode EN 6059-407.
Aeronavtika - Toplotno skrčljive cevke za povezovanje, izolacijo in prepoznavanje - 201. del: Poliolefinske identifikacijske cevke - Obratovalno temperaturno območje med –55 °C in 135 °C - Standard za proizvod
Ta dokument določa zahtevane lastnosti za toplotno skrčljive poliolefinske identifikacijske cevke za uporabo v električnih sistemih letal pri obratovalnih temperaturah med −55 °C in 135 °C.
Ta specifikacija je namenjena samo določanju lastnosti identifikacijskih cevk.
Te cevke so prožne in ognjeodporne ter so na voljo v razmerjih krčenja 2:1 in 3:1.
Izdelek je običajno dobavljiv z notranjimi premeri do 57 mm.
Standardna barva je bela ali rumena.
Na voljo so lahko tudi druge velikosti in barve, ki niso posebej navedene v tem standardu. Te postavke so obravnavne kot skladne s tem dokumentom, če izpolnjujejo zahteve za lastnosti v preglednicah 3 in 4, razen zahtev za mere in maso.
Cevke za preskušanje so natisnjen izdelek, zato je treba pri ocenjevanju zabeležiti celoten sistem. Cevka izpolnjuje zahteve tega dokumenta le, če je natisnjena
s tiskalnikom, trakom, črnilom in nastavitvami, navedenimi v poročilu o preskusu.
Oprijemljivost oznak in obstojnost odtisov sta v tem dokumentu določena z uporabo metode iz standarda EN 6059-407.
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-2023
Aeronavtika - Toplotno skrčljive cevke za povezovanje, izolacijo in prepoznavanje
- 201. del: Poliolefinske identifikacijske cevke - Obratovalno temperaturno
območje med –55 °C in 135 °C - Standard za proizvod
Aerospace series - Sleeves, heat-shrinkable, for binding, insulation and identification -
Part 201: Polyolefin identification sleeves - Operating Temperature range -55 °C to 135
°C - Product standard
Luft- und Raumfahrt - Wärmeschrumpfender Schlauch zur Befestigung, Isolierung und
Identifizierung - Teil 201: Kennzeichnungsschlauch aus Polyolefin,
Betriebstemperaturbereich -55 °C bis 135 °C - Produktnorm
Série aérospatiale - Manchons thermo rétractables, de jonction, isolement et
identification - Partie 201 : Identification Manchons Polyoléfine - Températures
d'utilisation -55 °C à 13 °C - Norme de produit
Ta slovenski standard je istoveten z: EN 4708-201:2022
ICS:
49.025.40 Guma in polimerni materiali Rubber and plastics
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 4708-201
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2022
EUROPÄISCHE NORM
ICS 49.035; 49.060
English Version
Aerospace series - Sleeves, heat-shrinkable, for binding,
insulation and identification - Part 201: Polyolefin
identification sleeves - Operating Temperature range -55
°C to 135 °C - Product standard
Série aérospatiale - Manchons thermo rétractables, de Luft- und Raumfahrt - Wärmeschrumpfender Schlauch
jonction, isolement et identification - Partie 201 : zur Befestigung, Isolierung und Identifizierung - Teil
Identification Manchons Polyoléfine - Températures 201: Kennzeichnungsschlauch aus Polyolefin,
d'utilisation -55 °C à 13 °C - Norme de produit Betriebstemperaturbereich -55 °C bis 135 °C -
Produktnorm
This European Standard was approved by CEN on 24 July 2022.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4708-201:2022 E
worldwide for CEN national Members.

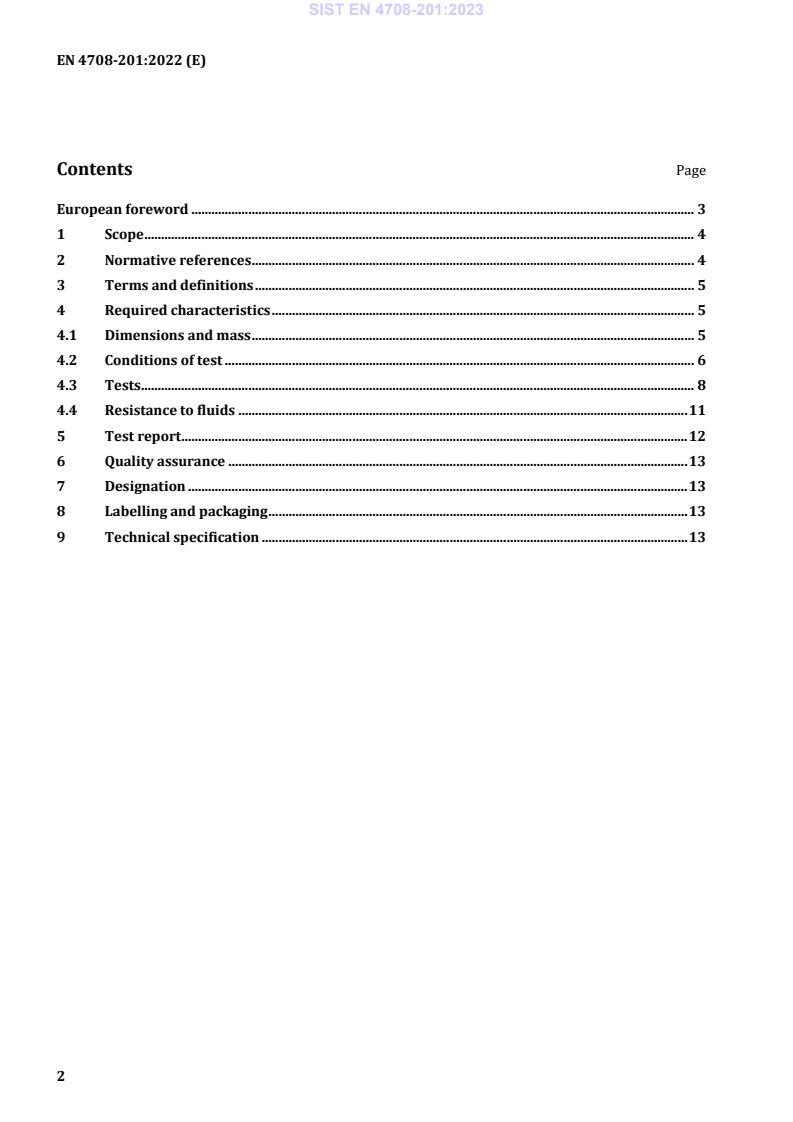

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Required characteristics . 5
4.1 Dimensions and mass . 5
4.2 Conditions of test . 6
4.3 Tests . 8
4.4 Resistance to fluids . 11
5 Test report . 12
6 Quality assurance . 13
7 Designation . 13
8 Labelling and packaging . 13
9 Technical specification . 13
European foreword
This document (EN 4708-201:2022) has been prepared by the Aerospace and Defence Industries
Association of Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this document
has received the approval of the National Associations and the Official Services of the member
countries of ASD-STAN, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2023, and conflicting national standards shall
be withdrawn at the latest by June 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards
body. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
1 Scope
This document specifies the required characteristics for heat-shrinkable polyolefin identification
sleeving for use in aircraft electrical systems at operating temperatures between −55 °C and 135 °C.
This specification is for the characterisation of identification sleeves only.
This sleeving is flexible and flame retarded, and is available with 2:1 and 3:1 shrink ratios.
The product is normally supplied with internal diameters up to 57 mm.
The standard colours are white or yellow.
Sizes or colours other than those specifically listed in this standard may be available. These items are
considered to comply with this document if they comply with the property requirements listed in tables 3
and 4 except for dimensions and mass.
As the sleeving to be tested is a printed article the complete system is to be recorded as part of the
evaluation. The sleeve will only be considered as meeting the requirements of this document if printed
with the printer, ribbon, inks, and settings referenced within the test report.
Mark adherence and print permanence are determined in this document using method EN 6059-407.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 3909:2016, Aerospace series — Test fluids and test methods for electrical and optical components and
sub-assemblies
EN 4708-001:2019, Aerospace series — Sleeving, heat-shrinkable, for binding, insulation and
identification — Part 001: Technical specification
EN 6059-407:2019, Aerospace series — Electrical cables, installation — Protection sleeves — Test
methods —Part 407: Mark adherence and print permanence
EN 60684-1, Flexible insulating sleeving — Part 1: Definitions and general requirements
EN 60684-2:2011, Flexible insulating sleeving — Part 2: Methods of test
IEC 60757, Code for designation of colours
ISO 846:2019, Plastics — Evaluation of the action of microorganisms
ISO 1817:2022, Rubber, vulcanized or thermoplastic — Determination of the effect of liquids
ISO 11075, Aircraft — De-icing/anti-icing fluids — ISO type I
ISO 11078, Aircraft — De-icing/anti-icing fluids — ISO type II, III and IV
AMS1428, Fluid, Airc
...
