EN 12810-1:2003

Façade scaffolds made of prefabricated components - Part 1: Products specifications

This European Standard specifies the performance requirements and the general requirements of structural design and assessment for prefabricated façade scaffold systems. The façade scaffolds are intended for use while connected to the façade with ties. Scaffold systems are classified by six criteria, see Table 1
It is limited to façade scaffold systems that have standards made of steel or aluminium alloy and have other elements made of these materials or timber based materials.
It defines a standard set of system configurations under which the structural design is carried out. Other configurations may be possible with some systems, but they are outside the scope.
This standard should be read in conjunction with prEN 12811-1, prEN 12811-2, EN 12811-3 and prEN 12810-2 which specify certain of the requirements.
This standard does not specify requirements for protection fans. It does not give information about erection, use, dismantling or maintenance.

Fassadengerüste aus vorgefertigten Bauteilen - Teil 1: Produktfestlegungen

Die vorliegende Europäische Norm legt die Anforderungen an die Ausführung und den Nachweis der Tragfähigkeit für vorgefertigte Fassaden-Gerüstsysteme fest.Sie sind für Anwendungen bis zu einer Höhe von 24 m vorgesehen, wobei sie an der Gebäudefassade verankert sind. Diese Norm gilt in Verbindung mit prEN xxx (WI 13):1996, die zusätzliche Anforderungen enthält. Sie klassifiziert die Gerüstsysteme nach 5 Kriterie: Verkehrslasten, Breite, lichte Höhe, Ausstattung und Art des vertikalen Zugangs.

Echafaudages de façade à composants préfabriqués - Partie 1: Spécifications des produits

La présente Norme européenne spécifie les exigences de performance et les exigences générales relatives à la conception des structures et à l'évaluation des systèmes d'échafaudages de façade à composants préfabriqués. Les échafaudages de façade sont destinés à être utilisés tout en étant fixés à la façade à l'aide d'éléments d'amarrage. Les systèmes d'échafaudages sont classés selon six critères, voir Tableau 1.
Elle se limite aux systèmes d'échafaudages de façade disposant de montants en acier ou en alliage d'aluminium ainsi que d'autres composants fabriqués à partir de ces matériaux ou de matériaux à base de bois.
Elle définit un ensemble type de configurations du système selon lequel est réalisée la conception des structures. D'autres configurations peuvent être possibles avec certains systèmes, mais celles-ci ne relèvent pas du domaine d'application concerné.
Il convient de consulter la présente norme en liaison avec le EN 12811-1, le prEN 12811-2, l'EN 12811-3 et le EN 12810-2 qui spécifient certaines exigences.
La présente norme ne spécifie pas les exigences relatives aux auvents de protection. Elle ne fournit aucune information concernant le montage, l'utilisation, le démontage ou la maintenance.

Fasadni odri iz predizdelanih elementov – 1. del: Specifikacije za proizvod

General Information

• Status: Published
• Publication Date: 09-Dec-2003
• Withdrawal Date: 29-Jun-2004
• ICS: 91.220 - Construction equipment
• Technical Committee: CEN/TC 53 - Temporary works equipment
• Drafting Committee: CEN/TC 53/WG 2 - Facade scaffolds made of prefabricated elements
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 03-Sep-2024
• Completion Date: 14-Apr-2025
• Ref Project: SIST EN 12810-1:2004 - Façade scaffolds made of prefabricated components - Part 1: Products specifications

Relations

• Replaces: HD 1000:1988 - Service and working scaffolds made of prefabricated elements - Materials, dimensions, design loads and safety requirements
• Effective Date: 22-Dec-2008

Overview

EN 12810-1:2003 (CEN) specifies product and performance requirements for façade scaffolds made of prefabricated components. The standard covers the structural design and assessment of façade scaffold systems intended to be connected to the building façade with ties. It applies only to systems manufactured from steel or aluminium alloy and may include other elements made of these metals or timber-based materials. EN 12810-1 defines a standard set of system configurations for design; alternative configurations may exist but are outside the standard’s scope.

Key topics and requirements

• Performance requirements: Defines minimum structural performance the prefabricated façade scaffold products must meet for safe use when tied to façades.
• Design and assessment principles: Specifies general requirements for the structural design and evaluation of systems under the standard configurations.
• Material scope: Limited to scaffold systems composed of steel, aluminium alloy, and compatible timber-based elements.
• System classification: Systems are classified by six criteria (see Table 1 in the standard) to standardize design assumptions and testing regimes.
• Standard configurations: Establishes a set of predefined system configurations used for structural calculations and product specification; other layouts fall outside the document.
• Scope exclusions:
  • Does not cover protection fans (as stated in the document).
  • Does not provide instructions for erection, use, dismantling or maintenance.

Applications

EN 12810-1 is primarily a product-focused standard used to:

• Guide manufacturers of prefabricated façade scaffold systems in product design, testing, and documentation.
• Help structural engineers and designers assess scaffold structural capacity when tied to façades.
• Support specifiers, procurement teams and compliance officers in selecting scaffold systems that meet European performance requirements.
• Inform certification bodies and test laboratories about the classification and configuration basis for product evaluation.

Typical use cases include specifying façade-access scaffolding for building façades, façade refurbishment projects, and planning safe temporary access systems where product-level performance and structural assessment are required.

Related standards

• prEN 12811-1, prEN 12811-2, EN 12811-3, prEN 12810-2 - these documents specify additional performance, procedural or complementary requirements and should be read in conjunction with EN 12810-1:2003 for comprehensive guidance.

Keywords: EN 12810-1:2003, façade scaffolds, prefabricated components, scaffold systems, steel scaffolding, aluminium alloy scaffolds, structural design, performance requirements, CEN.

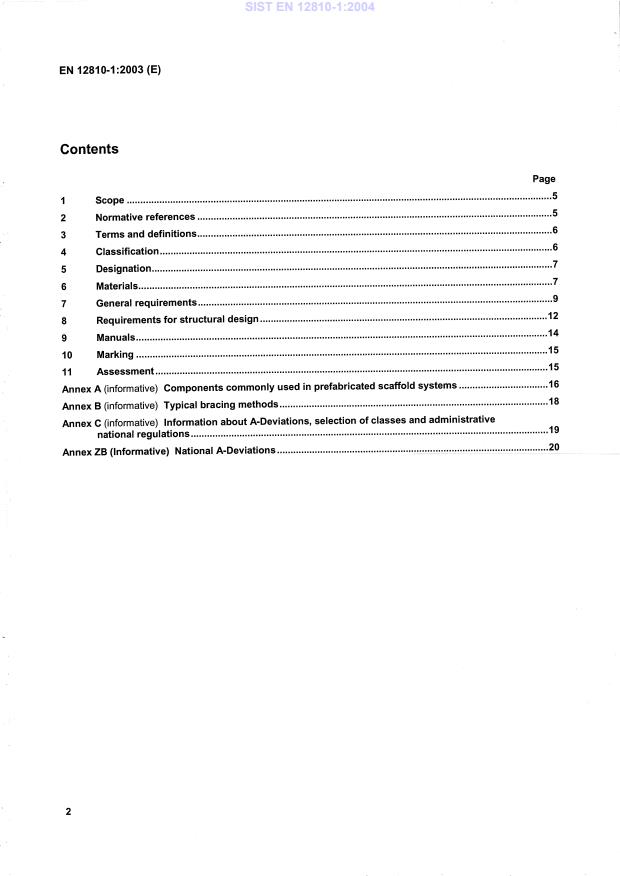

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Fasadni odri iz predizdelanih elementov – 1. del: Specifikacije za proizvodFassadengerüste aus vorgefertigten Bauteilen - Teil 1: ProduktfestlegungenEchafaudages de façade a composants préfabriqués - Partie 1: Spécifications des produitsFaçade scaffolds made of prefabricated components - Part 1: Products specifications91.220Gradbena opremaConstruction equipmentICS:Ta slovenski standard je istoveten z:EN 12810-1:2003SIST EN 12810-1:2004en01-maj-2004SIST EN 12810-1:
...
