EN 1004-1:2020
(Main)Mobile access and working towers made of prefabricated elements - Part 1: Materials, dimensions, design loads, safety and performance requirements
Mobile access and working towers made of prefabricated elements - Part 1: Materials, dimensions, design loads, safety and performance requirements
This document applies to the design of mobile access and working towers made of prefabricated elements with dimensions which are fixed by the design and with a height up to 12 m (indoors) and up to 8 m (outdoors). This document applies to mobile access and working towers used as temporary work equipment.
This document:
- gives guidelines for the choice of the main dimensions and stabilizing methods,
- gives safety and performance requirements, and
- gives information on complete towers.
This product standard does not apply to scaffolds according to EN 12810-1 and EN 12811-1.
Fahrbare Arbeitsbühnen aus vorgefertigten Bauteilen - Teil 1: Werkstoffe, Maße, Lastannahmen und sicherheitstechnische Anforderungen
Dieses Dokument gilt für die Konstruktion und Bemessung von fahrbaren Arbeitsbühnen aus vorgefertigten Bauteilen, mit Abmessungen die durch Konstruktion und Bemessung festgelegt sind und mit einer Höhe bis zu 12 m (innerhalb von Gebäuden) und bis zu 8 m (außerhalb von Gebäuden). Dieses Dokument gilt für fahrbare Arbeitsbühnen, die als temporäre Arbeitsmittel eingesetzt werden.
Dieses Dokument
- gibt Empfehlungen für die Auswahl der Hauptmaße und Stabilisierungsverfahren,
- stellt Sicherheits- und Leistungsanforderungen und
- enthält Angaben über die Gesamtkonstruktion der Arbeitsbühnen.
Diese Produktnorm gilt nicht für Gerüste nach EN 12810 1 und EN 12811 1.
Échafaudages roulants en éléments préfabriqués - Partie 1 : Matériaux, dimensions, calculs de charge, exigences de performance et de sécurité
Le présent document s’applique à la conception des échafaudages roulants constitués d'éléments préfabriqués dont les dimensions sont fixées par la conception et, d’une hauteur allant jusqu’à 12,0 m (à l'intérieur) et jusqu’à 8,0 m (à l'extérieur). Le présent document s'applique aux échafaudages roulants utilisés comme équipement de travail temporaire.
Ce document :
- donne des directives pour le choix des dimensions principales et des méthodes de stabilisation ;
- donne les exigences de sécurité et de performance, et
- donne des informations concernant les échafaudages roulants complets.
Cette norme produit ne s'applique pas aux échafaudages conformes aux EN 12810-1 et EN 12811-1.
Pomični delovni odri na kolesih iz predizdelanih tipskih elementov - 1. del: Materiali, mere, obtežbe in varnostne zahteve
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2021
Nadomešča:
SIST EN 1004:2005
Pomični delovni odri na kolesih iz predizdelanih tipskih elementov - 1. del:
Materiali, mere, obtežbe in varnostne zahteve
Mobile access and working towers made of prefabricated elements - Part 1: Materials,
dimensions, design loads, safety and performance requirements
Fahrbare Arbeitsbühnen aus vorgefertigten Bauteilen - Werkstoffe, Maße,
Lastannahmen und sicherheitstechnische Anforderungen
Tours d'accès et de travail roulantes en éléments préfabriqués - Matériaux, dimensions,
charges de calcul et exigences de sécurité
Ta slovenski standard je istoveten z: EN 1004-1:2020
ICS:
91.220 Gradbena oprema Construction equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 1004-1
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2020
EUROPÄISCHE NORM
ICS 91.220 Supersedes EN 1004:2004
English Version
Mobile access and working towers made of prefabricated
elements - Part 1: Materials, dimensions, design loads,
safety and performance requirements
Échafaudages roulants en éléments préfabriqués - Fahrbare Arbeitsbühnen aus vorgefertigten Bauteilen -
Partie 1 : Matériaux, dimensions, calculs de charge, Werkstoffe, Maße, Lastannahmen und
exigences de performance et de sécurité sicherheitstechnische Anforderungen
This European Standard was approved by CEN on 14 March 2020.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1004-1:2020 E
worldwide for CEN national Members.

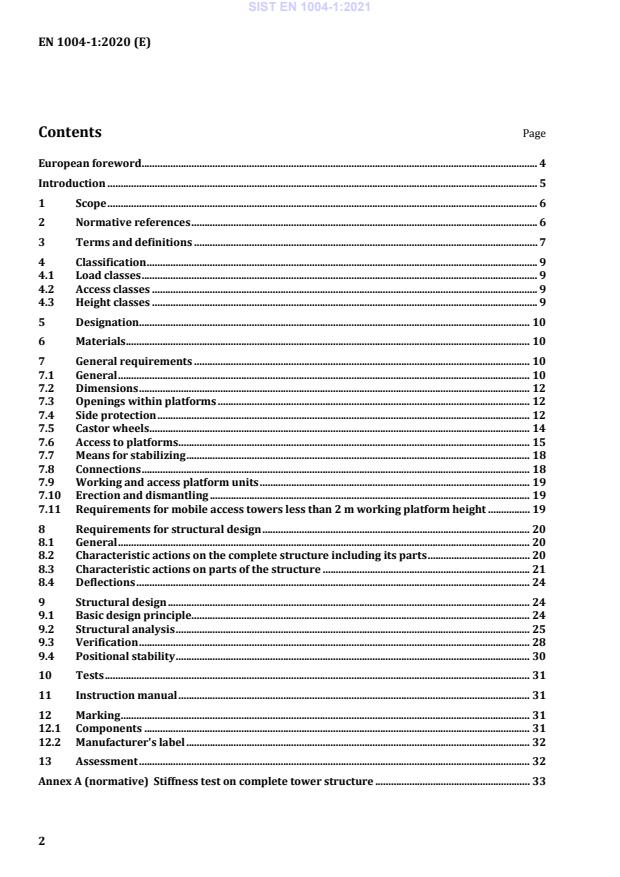

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Classification . 9
4.1 Load classes . 9
4.2 Access classes . 9
4.3 Height classes . 9
5 Designation. 10
6 Materials . 10
7 General requirements . 10
7.1 General . 10
7.2 Dimensions . 12
7.3 Openings within platforms . 12
7.4 Side protection . 12
7.5 Castor wheels . 14
7.6 Access to platforms . 15
7.7 Means for stabilizing . 18
7.8 Connections . 18
7.9 Working and access platform units . 19
7.10 Erection and dismantling . 19
7.11 Requirements for mobile access towers less than 2 m working platform height . 19
8 Requirements for structural design . 20
8.1 General . 20
8.2 Characteristic actions on the complete structure including its parts . 20
8.3 Characteristic actions on parts of the structure . 21
8.4 Deflections . 24
9 Structural design . 24
9.1 Basic design principle . 24
9.2 Structural analysis . 25
9.3 Verification . 28
9.4 Positional stability . 30
10 Tests . 31
11 Instruction manual . 31
12 Marking . 31
12.1 Components . 31
12.2 Manufacturer's label . 32
13 Assessment . 32
Annex A (normative) Stiffness test on complete tower structure . 33
Annex B (informative) A-deviations . 36
Annex C (informative) Reduction of the wind load to equal members being upwind . 37
Bibliography . 40
European foreword
This document (EN 1004-1:2020) has been prepared by WG4 “Mobile access towers” under the
direction of Technical Committee CEN/TC 53 “Temporary works equipment”, the secretariat of which is
held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2021, and conflicting national standards shall be
withdrawn at the latest by November 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 1004:2004.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Introduction
The development of mobile access and working towers systems is from the following two roots:
— scaffold manufacturers placed prefabricated unanchored scaffolds on four legs and castors;
— ladder manufacturers began to construct mobile access towers with light-weight ladders using
aluminium frames and castors.
Taking this into account, CEN/TC53 decided in 1980 to standardize the manufacture of mobile access
and working towers in parallel with the European standardization of prefabricated service and working
scaffolds EN 12810-2 and EN 12811-3.
For materials, this document refers only to valid documents. However, a large stock of equipment made
of materials conforming to documents no longer valid is in use. This document does not cover this
equipment.
Attention is drawn to the requirements of the European Council Directive 2009/104/EC (provisions
concerning the use of work equipment provided for temporary work at a height).
The average height of people continues to increase and that consideration will have to be given in later
revisions to altering vertical dimensions.
The wind load requirements of this standard (0,1 kN/m ).
Consider the fact that mobile access towers are generally intended for shorter duration tasks and may
be re-located or quickly dismantled. Attention is drawn to 3.1, Note 2 and to the requirements of
EN 1298 regarding information relating to wind conditions.
Mobile access and working towers are not anchor points for personal fall arrest equipment unless they
are specifically designed in accordance with relevant European standards by the manufacturer for that
purpose.
1 Scope
This document applies to the design of mobile access and working towers made of prefabricated
elements with dimensions which are fixed by the design and with a height up to 12 m (indoors) and up
to 8 m (outdoors). This document applies to mobile access and working towers used as temporary work
equipment.
This document:
— gives guidelines for the choice of the main dimensions and stabilizing methods,
— gives safety and performance requirements, and
— gives information on complete towers.
This product standard does not apply to scaffolds according to EN 12810-1 and EN 12811-1.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 131-2, Ladders — Part 2: Requirements, testing, marking
EN 1298, Mobile access and working towers — Rules and guidelines for the preparation of an instruction
manual
1)
EN 1991-1-4:2005, Eurocode 1: Actions on structures — Part 1-4: General actions - Wind actions
EN 1993-1-1, Eurocode 3: Design of steel structures — Part 1-1: General rules and rules for buildings
EN 1995-1-1, Eurocode 5: Design of timber structures — Part 1-1: General — Common rules and rules for
buildings
2)
EN 1999-1-1 , Eurocode 9: Design of aluminium structures — Part 1-1: General structural rules
EN 12810-2:2003, Façade scaffolds made of prefabricated components — Part 2: Particular methods of
structural design
EN 12811-1, Tempo
...
