EN ISO 14341:2020
(Main)Welding consumables - Wire electrodes and weld deposits for gas shielded metal arc welding of non alloy and fine grain steels - Classification (ISO 14341:2020)
Welding consumables - Wire electrodes and weld deposits for gas shielded metal arc welding of non alloy and fine grain steels - Classification (ISO 14341:2020)
This document specifies requirements for classification of wire electrodes and weld deposits in the as-welded condition and in the post-weld heat-treated condition for gas shielded metal arc welding of non alloy and fine grain steels with a minimum yield strength of up to 500 MPa or a minimum tensile strength of up to 570 MPa. One wire electrode can be tested and classified with different shielding gases.
This document constitutes a combined specification providing classification utilizing a system based upon the yield strength and the average impact energy of 47 J of all-weld metal, or utilizing a system based upon the tensile strength and the average impact energy of 27 J of all-weld metal.
a) Clauses and tables which carry the suffix letter "A" are applicable only to wire electrodes classified to the system based on the yield strength and the average impact energy of 47 J of all-weld metal in accordance with this document.
b) Clauses and tables which carry the suffix letter "B" are applicable only to wire electrodes classified to the system based on the tensile strength and the average impact energy of 27 J of all-weld metal in accordance with this document.
c) Clauses and tables which have neither the suffix letter "A" nor the suffix letter "B" are applicable to all wire electrodes classified in accordance with this document.
Schweißzusätze - Drahtelektroden und Schweißgut zum Metall-Schutzgasschweißen von unlegierten Stählen und Feinkornstählen - Einteilung (ISO 14341:2020)
Dieses Dokument legt Anforderungen zur Einteilung von Drahtelektroden und Schweißgut zum Metall-Schutzgasschweißen von unlegierten Stählen und Feinkornbaustählen mit einer Mindeststreckgrenze bis 500 MPa oder einer Mindestzugfestigkeit bis 570 MPa im Schweißzustand und nach einer Wärme-nachbehandlung fest. Eine Drahtelektrode kann mit verschiedenen Schutzgasen geprüft und eingeteilt werden.
Dieses Dokument enthält eine gemeinsame Spezifikation zur Einteilung entweder nach der Streckgrenze und der durchschnittlichen Kerbschlagarbeit von 47 J des reinen Schweißgutes oder nach der Zugfestigkeit und der durchschnittlichen Kerbschlagarbeit von 27 J des reinen Schweißgutes.
a) Abschnitte und Tabellen, gekennzeichnet durch ein nachgestelltes „A“, sind nur für Drahtelektroden anwendbar, die dem System basierend auf der Streckgrenze und der durchschnittlichen Kerbschlagarbeit von 47 J des reinen Schweißgutes nach diesem Dokument zugeordnet sind.
b) Abschnitte und Tabellen, gekennzeichnet durch ein nachgestelltes „B“, sind nur für Drahtelektroden anwendbar, die dem System basierend auf der Zugfestigkeit und der durchschnittlichen Kerbschlagarbeit von 27 J des reinen Schweißgutes nach diesem Dokument zugeordnet sind.
c) Abschnitte und Tabellen, die kein nachgestelltes „A“ oder „B“ enthalten, sind für alle nach diesem Dokument eingeteilten Drahtelektroden anwendbar.
Produits consommables pour le soudage - Fils-électrodes et métaux d'apport déposés en soudage à l'arc sous protection gazeuse des aciers non alliés et à grains fins - Classification (ISO 14341:2020)
Le présent document spécifie les exigences de classification des fils-électrodes et métaux d'apport déposés dans l'état brut de soudage et à l'état traité thermiquement après soudage, en soudage à l'arc sous protection gazeuse des aciers non alliés et à grains fins ayant une limite d'élasticité minimale pouvant atteindre 500 MPa ou une résistance à la traction minimale pouvant atteindre 570 MPa. Un même fil-électrode peut être soumis à essai et classifié avec des gaz de protection différents.
Le présent document constitue une spécification combinée permettant une classification utilisant un système fondé sur la limite d'élasticité et l'énergie de rupture moyenne de 47 J d'un métal fondu hors dilution, ou utilisant un système fondé sur la résistance à la traction et l'énergie de rupture moyenne de 27 J d'un métal fondu hors dilution.
a) Les articles et les tableaux portant le suffixe «A» s'appliquent uniquement aux fils-électrodes classifiés selon le système fondé sur la limite d'élasticité et l'énergie de rupture moyenne de 47 J d'un métal fondu hors dilution, conformément au présent document.
b) Les articles et les tableaux portant le suffixe «B» s'appliquent uniquement aux fils-électrodes classifiés selon le système fondé sur la résistance à la traction et l'énergie de rupture moyenne de 27 J d'un métal fondu hors dilution, conformément à la présente Norme internationale.
c) Les articles et les tableaux ne comportant ni le suffixe «A» ni le suffixe «B» s'appliquent à tous les fils-électrodes classifiés selon la présente Norme internationale.
Dodajni in pomožni materiali za varjenje - Žične elektrode in čisti vari za obločno varjenje nelegiranih in drobnozrnatih jekel v zaščitnem plinu - Razvrstitev (ISO 14341:2020)
General Information
Relations
Standards Content (Sample)

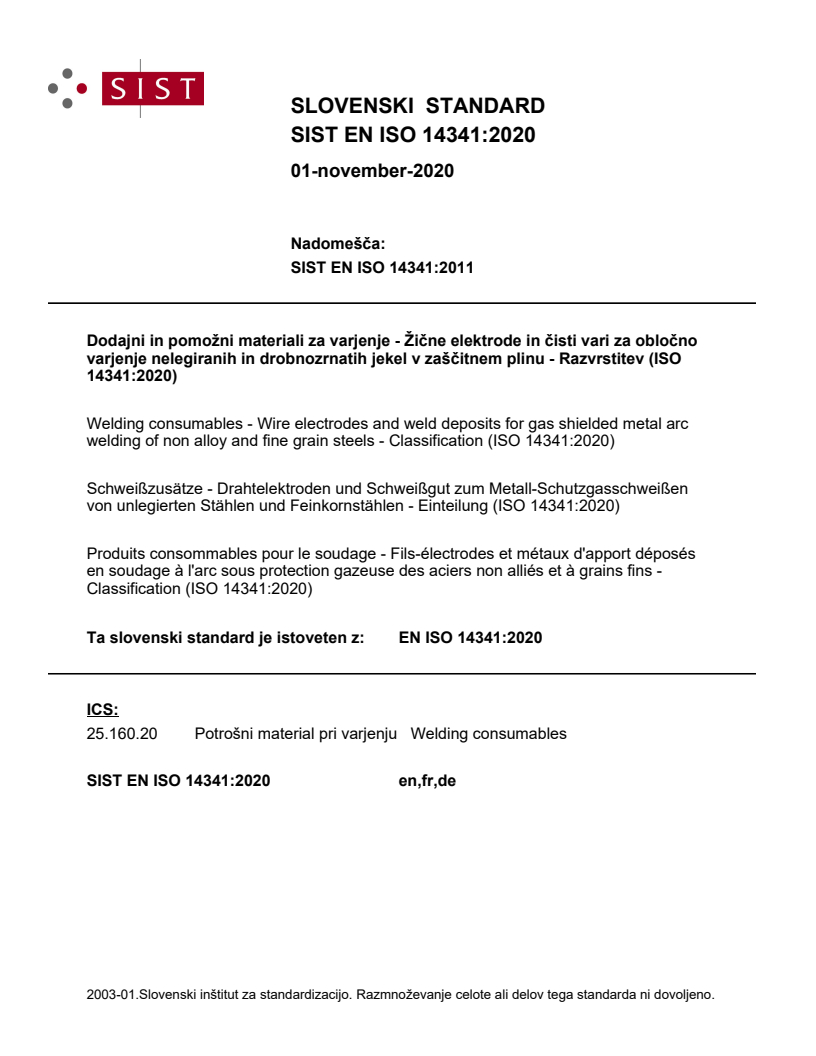

SLOVENSKI STANDARD
01-november-2020
Nadomešča:
SIST EN ISO 14341:2011
Dodajni in pomožni materiali za varjenje - Žične elektrode in čisti vari za obločno
varjenje nelegiranih in drobnozrnatih jekel v zaščitnem plinu - Razvrstitev (ISO
14341:2020)
Welding consumables - Wire electrodes and weld deposits for gas shielded metal arc
welding of non alloy and fine grain steels - Classification (ISO 14341:2020)
Schweißzusätze - Drahtelektroden und Schweißgut zum Metall-Schutzgasschweißen
von unlegierten Stählen und Feinkornstählen - Einteilung (ISO 14341:2020)
Produits consommables pour le soudage - Fils-électrodes et métaux d'apport déposés
en soudage à l'arc sous protection gazeuse des aciers non alliés et à grains fins -
Classification (ISO 14341:2020)
Ta slovenski standard je istoveten z: EN ISO 14341:2020
ICS:
25.160.20 Potrošni material pri varjenju Welding consumables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN ISO 14341
EUROPEAN STANDARD
NORME EUROPÉENNE
September 2020
EUROPÄISCHE NORM
ICS 25.160.20 Supersedes EN ISO 14341:2011
English Version
Welding consumables - Wire electrodes and weld deposits
for gas shielded metal arc welding of non alloy and fine
grain steels - Classification (ISO 14341:2020)
Produits consommables pour le soudage - Fils- Schweißzusätze - Drahtelektroden und Schweißgut
électrodes et métaux d'apport déposés en soudage à zum Metall-Schutzgasschweißen von unlegierten
l'arc sous protection gazeuse des aciers non alliés et à Stählen und Feinkornstählen - Einteilung (ISO
grains fins - Classification (ISO 14341:2020) 14341:2020)
This European Standard was approved by CEN on 14 July 2020.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 14341:2020 E
worldwide for CEN national Members.
Contents Page
European foreword . 3
European foreword
This document (EN ISO 14341:2020) has been prepared by Technical Committee ISO/TC 44 "Welding
and allied processes" in collaboration with Technical Committee CEN/TC 121 “Welding and allied
processes” the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by March 2021, and conflicting national standards shall
be withdrawn at the latest by March 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 14341:2011.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Endorsement notice
The text of ISO 14341:2020 has been approved by CEN as EN ISO 14341:2020 without any modification.
INTERNATIONAL ISO
STANDARD 14341
Third edition
2020-08
Welding consumables — Wire
electrodes and weld deposits for
gas shielded metal arc welding of
non alloy and fine grain steels —
Classification
Produits consommables pour le soudage — Fils-électrodes et métaux
d'apport déposés en soudage à l'arc sous protection gazeuse des
aciers non alliés et à grains fins — Classification
Reference number
ISO 14341:2020(E)
©
ISO 2020
ISO 14341:2020(E)
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
ISO 14341:2020(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Classification . 2
5 Symbols and requirements . 2
5.1 Symbol for product/process . 2
5.2 Symbol for strength and elongation of all-weld metal . 3
5.3 Symbol for impact properties of all-weld metal . 3
5.4 Symbol for shielding gas . 4
5.5 Symbol for chemical composition of wire electrodes. 4
6 Mechanical tests . 8
6.1 Preheating and interpass temperatures . 8
6.2 Welding conditions and pass sequence . 9
6.3 Post-weld heat-treated (PWHT) condition .10
7 Chemical analysis .10
8 Rounding procedure .11
9 Retests .11
10 Technical delivery conditions .11
11 Examples of designation .11
Bibliography .14
ISO 14341:2020(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 44, Welding and allied processes],
Subcommittee SC 3, Welding consumables, in collaboration with the European Committee for
Standardization (CEN) Technical Committee CEN/TC 121, Welding, in accordance with the Agreement
on technical cooperation between ISO and CEN (Vienna Agreement).
This third edition cancels and replaces the second edition (ISO 14341:2010), which has been technically
revised. The main changes compared to the previous edition are as follows:
— all references have been updated;
— in Table 3A, the footnote for Cu that appeared in the 2008 edition has been reintroduced;
— in Table 3B and Table 4B, a new symbol S8 has been added;
— in Table 3B, Ni, Cr, Mo and V values have been added for symbols S2, S3, S4, S5, S6, and S7;
— Clause 8 has been updated to the latest agreed text;
— in Clause 11, an example for a Z classification has been added as Example 2A.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
Official interpretations of ISO/TC 44 documents, where they exist, are available from this page: https://
committee .iso .org/ sites/ tc44/ home/ interpretation .html.
iv © ISO 2020 – All rights reserved
ISO 14341:2020(E)
Introduction
This document recognizes that there are two somewhat different approaches in the global market to
classifying a given wire electrode, and allows for either or both to be used, to suit a particular market
need. Application of either type of classification designation (or both where suitable) identifies a
product as classified in accordance with this document.
This document provides a classification in order to designate wire electrodes in terms of their chemical
composition and, where required, in terms of the yield strength, tensile strength and elongation of
the all-weld metal. The ratio of yield strength to tensile strength of weld metal is generally higher
than that of parent metal. Users should note that matching weld metal yield strength to parent metal
yield strength does not necessarily ensure that the weld metal tensile strength matches that of the
parent material. Therefore, where the application requires matching tensile strength, selection of the
consumable should be made by reference to column 3 of Table 1A or 1B.
It should be noted that the mechanical properties of all-weld metal test specimens used to classify the
electrodes vary from those obtained in production joints because of differences in welding procedures
such as electrode size, width of weave, welding position and material composition.
INTERNATIONAL STANDARD ISO 14341:2020(E)
Welding consumables — Wire electrodes and weld
deposits for gas shielded metal arc welding of non alloy
and fine grain steels — Classification
1 Scope
This document specifies requirements for classification of wire electrodes and weld deposits in the
as-welded condition and in the post-weld heat-treated condition for gas shielded metal arc welding of
non alloy and fine grain steels with a minimum yield strength of up to 500 MPa or a minimum tensile
strength of up to 570 MPa. One wire electrode can be tested and classified with different shielding gases.
This document constitutes a combined specification providing classification utilizing a system based
upon the yield strength and the average impact energy of 47 J of all-weld metal, or utilizing a system
based upon the tensile strength and the average impact energy of 27 J of all-weld metal.
a) Clauses and tables which carry the suffix letter “A” are applicable only to wire electrodes classified
to the system based on the yield strength and the average impact energy of 47 J of all-weld metal in
accordance with this document.
b) Clauses and tables which carry the suffix letter “B” are applicable only to wire electrodes classified
to the system based on the tensile strength and the average impact energy of 27 J of all-weld metal
in accordance with this document.
c) Clauses and tables which have neither the suffix letter “A” nor the suffix letter “B” are applicable to
all wire electrodes classified in accordance with this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 544, Welding consumables — Technical delivery conditions for filler materials and fluxes — Type of
product, dimensions, tolerances and markings
ISO 14175:2008, Welding consumables — Gases and gas mixtures for fusion welding and allied processes
ISO 14344, Welding consumables — Procurement of filler materials and fluxes
ISO 15792-1:2020, Welding consumables — Test methods — Part 1: Test methods for all-weld metal test
specimens in steel, nickel and nickel alloys
ISO 80000-1:2009, Quantities and units — Part 1: General. Corrected by ISO 80000-1:2009/Cor 1:2011
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
ISO 14341:2020(E)
4 Classification
Classification designations are based upon two approaches to indicate the tensile properties and
the impact properties of the all-weld metal obtained with a given electrode. The two designation
approaches include additional designators for some other classification requirements, but not all, as
will be clear from the following subclauses. In most cases, a given commercial product can be classified
in both systems. Then either or both classification designations can be used for the product.
A wire electrode shall be classified according to its chemical composition as in Table 3A or Table 3B. A
weld deposit shall be classified with additional symbols according to the mechanical properties of its
all-weld metal, using a shielding gas from a specific group.
4A Classification by yield strength and 47 J 4B Classification by tensile strength and 27 J
impact energy impact energy
The classification is divided into five parts: The classification is divided into five parts:
1) the first part gives a symbol indicating the 1) the first part gives a symbol indicating the
product/process to be identified; product/process to be identified;
2) the second part gives a symbol indicating 2) the second part gives a symbol indicating
the strength and elongation of the all-weld the strength and elongation of the all-weld
metal (see Table 1A); metal in either the as-welded or post-weld
heat-treated condition (see Table 1B);
3) the third part gives a symbol indicating the 3) the third part gives a symbol indicating
impact properties of the all-weld metal (see the impact properties of the all-weld metal
Table 2); in the same condition as specified for the
tensile strength (see Table 2). The letter U
after this symbol indicates that the deposit
meets an average optional requirement
of 47 J at the designated impact test
temperature;
4) the fourth part gives a symbol indicating the 4) the fourth part gives a symbol indicating the
shielding gas used (see 5.4); shielding gas used (see 5.4);
5) the fifth part gives a symbol indicating the 5) the fifth part gives a symbol indicating the
chemical composition of the wire electrode chemical composition of the wire electrode
used (see Table 3A). used (see Table 3B).
5 Symbols and requirements
5.1 Symbol for product/process
The symbol for a weld deposit produced by gas shielded metal arc welding shall be the letter G placed at
the beginning of the designation.
The symbol for a wire electrode for use in gas shielded metal arc welding shall be the letter G placed at
the beginning of the wire electrode designation.
2 © ISO 2020 – All rights reserved
ISO 14341:2020(E)
5.2 Symbol for strength and elongation of all-weld metal
5.2A Classification by yield strength and 47 J 5.2B Classification by tensile strength and
impact energy 27 J impact energy
The symbols in Table 1A indicate the yield strength, The symbols in Table 1B indicate the yield strength,
tensile strength, and elongation of the all-weld tensile strength, and elongation of the all-weld
metal in the as-welded condition determined in metal in the as-welded condition or in the post-weld
accordance with Clause 6. heat-treated condition determined in accordance
with Clause 6.
Table 1A — Symbols for strength Table 1B — Symbols for strength and
and elongation of all-weld metal elongation of all-weld metal
Minimum Minimum
Tensile Minimum Tensile Minimum
a
Symbol yield
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
