Ventilation for buildings - Performance measurement and checks for residential ventilation systems

This document specifies checks and measurement methods in order to verify the fitness for purpose of installed ventilation systems in dwellings. It can be applied to commissioning of new systems and performance testing of existing systems. It provides choice between simple test methods, when sufficient, and extensive measurements, when necessary.
Considering that this document has been developed for large scale application and considering the practical conditions of field measurements, no correction regarding ambient conditions (temperature and barometric pressure) is applied to functional measurements.
This document deals with items d), e), f), and g) of the following list giving the different stages of the design, installation, checking and measuring of a ventilation system:
a)   design and dimensioning of residential system;
b)   installation of system;
c)   balancing and adjustment of system;
d)   pre-checks on system;
e)   functional checks on system;
f)   functional measurements on system;
g)   special measurements on system if required.
This document applies to ventilation systems (mechanical, hybrid, natural) comprising any of the following elements:
- air terminal devices (supply, extract, intake and exhaust);
- air transfer devices (externally mounted, internally mounted);
- controls;
- ducts;
- fans;
- filters;
- heat recovery;
- heating/cooling of supply air;
- recirculation air;
- cooker hood;
- cowls;
- dampers;
- sound reduction devices.
In case of multi-functional units, the checking and measuring only apply to the ventilation part. Therefore, this document does not apply to:
- heating systems and their control;
- refrigerating systems and their control;
- electrical power supply systems.
It does not cover the following points:
- airtightness of the building envelope; the whole dwelling and the individual room ventilation rates can be influenced by air infiltration through the building envelope (see EN ISO 9972);
- effect of the ventilation system on indoor air speed within the occupied zone (see for example EN 15726).

Lüftung von Gebäuden - Leistungsprüfung und Funktionsprüfungen von Lüftungsanlagen in Wohnungen

Dieses Dokument legt Funktionsprüfungs- und Messverfahren zum Nachweis der Gebrauchstauglichkeit von in Wohnungen installierten Lüftungsanlagen fest. Es kann auf die Inbetriebnahme neuer Anlagen und die Leistungsprüfung bestehender Anlagen angewendet werden. Es bietet die Wahl zwischen einfachen Prüf¬verfahren, wenn aus¬reichend, und aufwändigen Messungen, wenn erforderlich.
Da dieses Dokument für die großtechnische Anwendung erarbeitet wurde, sowie aufgrund der prak¬tischen Bedingungen bei Feldmessungen werden Funktionsmessungen nicht hinsichtlich Umgebungs¬bedingungen (Temperatur und Luftdruck) korrigiert.
Dieses Dokument behandelt die Punkte d), e), f) und g) der nachstehenden Liste, in der die verschiedenen Stufen von Entwurf, Installation, Prüfung und Messung einer Lüftungsanlage angegeben sind:
a)   Entwurf und Bemessung der Wohnungsanlage;
b)   Einbau der Anlage;
c)   Abgleichen und Einstellen der Anlage;
d)   Vorprüfungen an der Anlage;
e)   Funktionsprüfungen an der Anlage;
f)   Funktionsmessungen an der Anlage;
g)   Sondermessungen an der Anlage, sofern erforderlich.
Dieses Dokument gilt für Lüftungsanlagen (ventilatorgestützt, hybrid, frei), die mindestens eines der folgen¬den Elemente umfassen:
-   Luftdurchlässe (Zuluft, Abluft, Außenluft und Fortluft);
-   (Außenwand-, Überström-)Luftdurchlässe;
-   Stellteile;
-   Luftleitungen;
-   Ventilatoren;
-   Filter;
-   Wärmerückgewinnung;
-   Heizung/Kühlung von Zuluft;
-   Umluft;
-   Dunstabzugshaube;
-   Hauben;
-   Dämpfer;
-   Schalldämpfungseinrichtungen.
Bei multifunktionalen Einheiten gilt das Prüfen und Messen nur für die Lüftungseinheit. Daher gilt dieses Dokument nicht für:
-   wärmeerzeugende Anlagen und deren Regelung;
-   Kälteanlagen und deren Regelung;
-   elektrische Stromversorgungssysteme.
Es deckt Folgendes nicht ab:
-   Luftdichtheit der Gebäudehülle; die Lüftungsrate der gesamten Wohnung und der Einzelräume kann durch Infiltration von Luft durch die Gebäudehülle beeinflusst werden (siehe EN ISO 9972);
-   Einwirkung der Lüftungsanlage auf die Raumluftgeschwindigkeit innerhalb des Aufenthaltsbereichs (siehe z. B. EN 15726).

Ventilation des bâtiments - Mesure de la performance et vérifications des systèmes de ventilation résidentiels

Le présent document spécifie les vérifications et les méthodes de mesure permettant de vérifier l'aptitude à l'emploi des systèmes de ventilation installés dans les logements. Il peut être appliqué pour la mise en service de nouveaux systèmes et l'essai de performances de systèmes existants. Il permet de choisir entre des méthodes d'essai simples, lorsqu'elles suffisent, et des mesures plus importantes, lorsqu'elles sont nécessaires.
Compte tenu que le présent document a été développé pour les applications à grande échelle et compte tenu des conditions pratiques de mesure en champ, aucune correction relative aux conditions ambiantes (température et pression barométrique) n’est appliquée aux mesures fonctionnelles.
Le présent document traite des points d), e), f), et g) de la liste suivante donnant les différentes étapes de la conception, l’installation, les vérifications et les mesures d’un système de ventilation :
a)   conception et dimensionnement d’un système résidentiel ;
b)   installation d’un système ;
c)   équilibrage et ajustement d’un système ;
d)   pré-inspection d’un système ;
e)   vérifications fonctionnelles d’un système ;
f)   mesures fonctionnelles d’un système ;
g)   mesures spéciales d’un système, le cas échéant.
Le présent document s'applique aux systèmes de ventilation (mécanique, hybride, naturelle), comprenant n’importe lequel des éléments suivants :
-   bouches d'air (soufflage, extraction, prise d’air et rejet d’air) ;
-   dispositifs de transfert d'air (montés en extérieur, montés en intérieur) ;
-   contrôles ;
-   conduits ;
-   ventilateurs ;
-   filtres ;
-   récupération de chaleur ;
-   chauffage/refroidissement de l’air fourni ;
-   recirculation d’air ;
-   hottes de cuisine ;
-   extracteurs ;
-   registres ;
-   atténuateurs acoustiques.
Dans le cas d'appareils multifonctions, le contrôle et la mesure s'appliquent uniquement à la partie ventilation. Par conséquent, le présent document ne s'applique pas :
-   aux systèmes de chauffage et à leur commande ;
-   aux systèmes réfrigérants et à leur commande ;
-   aux systèmes d'alimentation électrique.
Il ne couvre pas les points suivants :
-   étanchéité à l'air de l'enveloppe du bâtiment ; les taux de ventilation du logement dans son ensemble et de chaque pièce peuvent être influencés par l'infiltration d'air à travers l'enveloppe du bâtiment (voir l’EN ISO 9972) ;
-   effet du système de ventilat-ion sur la vitesse de l'air intérieur au sein de la zone d'occupation (voir par exemple l’EN 15726).

Prezračevanje stavb - Preskušanje lastnosti in kontrola vgrajenih stanovanjskih sistemov prezračevanja

Ta evropski standard določa kontrole in preskusne metode za preverjanje primernosti za namestitev sistemov prezračevanja v stanovanjskih stavbah. Lahko se uporablja za prevzem novih sistemov in preskus lastnosti obstoječih sistemov. Ta standard omogoča izbiro med preprostimi preskusnimi metodami, kadar zadoščajo, in obsežnimi meritvami, kadar so potrebne. Standard se uporablja za mehanske in nemehanske (naravne) sisteme prezračevanja, ki jih sestavljajo: – pasivni prezračevalni kanali, – zračne naprave (dovod, odvod), itd.

General Information

Status
Published
Publication Date
26-Feb-2019
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
27-Feb-2019
Completion Date
27-Feb-2019

RELATIONS

Buy Standard

Standard
EN 14134:2019
English language
33 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 14134:2019
01-julij-2019
Nadomešča:
SIST EN 14134:2004
Prezračevanje stavb - Preskušanje lastnosti in kontrola vgrajenih stanovanjskih
sistemov prezračevanja
Ventilation for buildings - Performance measurement and checks for residential
ventilation systems
Lüftung von Gebäuden - Leistungsprüfung und Einbaukontrollen von Lüftungsanlagen
von Wohnungen

Ventilation des bâtiments - Essais de performances et contrôles d'installation des

systèmes de ventilation résidentiels
Ta slovenski standard je istoveten z: EN 14134:2019
ICS:
91.140.30 Prezračevalni in klimatski Ventilation and air-
sistemi conditioning systems
SIST EN 14134:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 14134:2019
---------------------- Page: 2 ----------------------
SIST EN 14134:2019
EN 14134
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2019
EUROPÄISCHE NORM
ICS 91.140.30 Supersedes EN 14134:2004
English Version
Ventilation for buildings - Performance measurement and
checks for residential ventilation systems

Ventilation des bâtiments - Mesure de la performance Lüftung von Gebäuden - Leistungsprüfung und

et vérifications des systèmes de ventilation résidentiels Funktionsprüfungen von Lüftungsanlagen in

Wohnungen
This European Standard was approved by CEN on 14 December 2018.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14134:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)

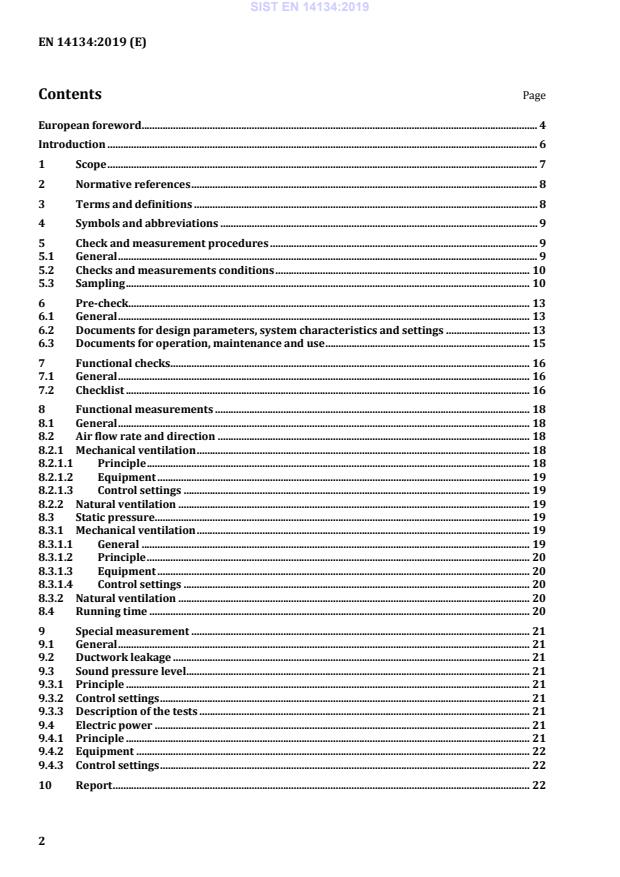

Contents Page

European foreword ....................................................................................................................................................... 4

Introduction .................................................................................................................................................................... 6

1 Scope .................................................................................................................................................................... 7

2 Normative references .................................................................................................................................... 8

3 Terms and definitions ................................................................................................................................... 8

4 Symbols and abbreviations ......................................................................................................................... 9

5 Check and measurement procedures ...................................................................................................... 9

5.1 General ................................................................................................................................................................ 9

5.2 Checks and measurements conditions ................................................................................................. 10

5.3 Sampling .......................................................................................................................................................... 10

6 Pre-check......................................................................................................................................................... 13

6.1 General ............................................................................................................................................................. 13

6.2 Documents for design parameters, system characteristics and settings ................................ 13

6.3 Documents for operation, maintenance and use .............................................................................. 15

7 Functional checks ......................................................................................................................................... 16

7.1 General ............................................................................................................................................................. 16

7.2 Checklist .......................................................................................................................................................... 16

8 Functional measurements ........................................................................................................................ 18

8.1 General ............................................................................................................................................................. 18

8.2 Air flow rate and direction ....................................................................................................................... 18

8.2.1 Mechanical ventilation ............................................................................................................................... 18

8.2.1.1 Principle .................................................................................................................................................. 18

8.2.1.2 Equipment .............................................................................................................................................. 19

8.2.1.3 Control settings .................................................................................................................................... 19

8.2.2 Natural ventilation ...................................................................................................................................... 19

8.3 Static pressure ............................................................................................................................................... 19

8.3.1 Mechanical ventilation ............................................................................................................................... 19

8.3.1.1 General .................................................................................................................................................... 19

8.3.1.2 Principle .................................................................................................................................................. 20

8.3.1.3 Equipment .............................................................................................................................................. 20

8.3.1.4 Control settings .................................................................................................................................... 20

8.3.2 Natural ventilation ...................................................................................................................................... 20

8.4 Running time ................................................................................................................................................. 20

9 Special measurement ................................................................................................................................. 21

9.1 General ............................................................................................................................................................. 21

9.2 Ductwork leakage ........................................................................................................................................ 21

9.3 Sound pressure level ................................................................................................................................... 21

9.3.1 Principle .......................................................................................................................................................... 21

9.3.2 Control settings ............................................................................................................................................. 21

9.3.3 Description of the tests .............................................................................................................................. 21

9.4 Electric power ............................................................................................................................................... 21

9.4.1 Principle .......................................................................................................................................................... 21

9.4.2 Equipment ...................................................................................................................................................... 22

9.4.3 Control settings ............................................................................................................................................. 22

10 Report ............................................................................................................................................................... 22

---------------------- Page: 4 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)

10.1 General ............................................................................................................................................................. 22

10.2 General information .................................................................................................................................... 22

10.3 Pre-check ......................................................................................................................................................... 22

10.4 Functional checks ......................................................................................................................................... 22

10.5 Air flow measurement ................................................................................................................................ 23

10.6 Static pressure measurement .................................................................................................................. 23

10.7 Running time measurement ..................................................................................................................... 23

10.8 Ductwork leakage ......................................................................................................................................... 23

10.9 Sound pressure level ................................................................................................................................... 24

10.10 Electric power ................................................................................................................................................ 24

Annex A (informative) Check lists ......................................................................................................................... 25

Annex B (informative) Test pressures for air leakage measurement ...................................................... 32

Bibliography ................................................................................................................................................................. 33

---------------------- Page: 5 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)
European foreword

This document (EN 14134:2019) has been prepared by Technical Committee CEN/TC 156 “Ventilation

for buildings”, the secretariat of which is held by BSI.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by August 2019, and conflicting national standards shall be

withdrawn at the latest by August 2019.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN 14134:2004.
In comparison to EN 14134:2004 the following changes have been made:

— modification of the title to be in accordance with terms defined in this document;

— modification of the scope to delete identification of responsible people;

— modification of the scope to define the on-site and large scale use of this document;

— modification of the definitions to complete them;
— addition of preliminary requirements for the application of this document;
— modification of methods to delete steps order;

— modification of sampling method to be applicable to all checks and measurement defined in this

document;
— modification of sampling method to explain the different levels;

— modification of pre-check and functional check methods to be more exhaustive and more detailed;

— additional pre-check for Ecodesign requirements and product labelling;
— addition of requirements for equipment uncertainties;
— removal of requirement for global measurement uncertainties;

— modification of methods for air flow measurement and for ductwork air leakage measurement to be

consistent with existing European standards;

— removal of method for control measurement to be consistent with on-site measurement conditions;

— modification of method for noise measurement;
— replacement of Annex A to give example of checklists;
— replacement of Annex B to give example of test pressures;
— removal of Annex C.
---------------------- Page: 6 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,

Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France,

Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands,

Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

the United Kingdom.
---------------------- Page: 7 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)
Introduction

The purpose of a residential ventilation system is to supply air to and extract air from rooms in a dwelling.

The ventilation system should be designed to achieve the purpose whilst minimizing energy use and

possible discomfort (e.g. noise, draught).

The performance requirements of the ventilation system are laid down by the designer in the dwelling

specifications.
---------------------- Page: 8 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)
1 Scope

This document specifies checks and measurement methods in order to verify the fitness for purpose of

installed ventilation systems in dwellings. It can be applied to commissioning of new systems and

performance testing of existing systems. It provides choice between simple test methods, when sufficient,

and extensive measurements, when necessary.

Considering that this document has been developed for large scale application and considering the

practical conditions of field measurements, no correction regarding ambient conditions (temperature

and barometric pressure) is applied to functional measurements.

This document deals with items d), e), f), and g) of the following list giving the different stages of the

design, installation, checking and measuring of a ventilation system:
a) design and dimensioning of residential system;
b) installation of system;
c) balancing and adjustment of system;
d) pre-checks on system;
e) functional checks on system;
f) functional measurements on system;
g) special measurements on system if required.

This document applies to ventilation systems (mechanical, hybrid, natural) comprising any of the

following elements:
— air terminal devices (supply, extract, intake and exhaust);
— air transfer devices (externally mounted, internally mounted);
— controls;
— ducts;
— fans;
— filters;
— heat recovery;
— heating/cooling of supply air;
— recirculation air;
— cooker hood;
— cowls;
— dampers;
— sound reduction devices.
---------------------- Page: 9 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)

In case of multi-functional units, the checking and measuring only apply to the ventilation part. Therefore,

this document does not apply to:
— heating systems and their control;
— refrigerating systems and their control;
— electrical power supply systems.
It does not cover the following points:

— airtightness of the building envelope; the whole dwelling and the individual room ventilation rates

can be influenced by air infiltration through the building envelope (see EN ISO 9972);

— effect of the ventilation system on indoor air speed within the occupied zone (see for example

EN 15726).
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 1507, Ventilation for buildings - Sheet metal air ducts with rectangular section - Requirements for

strength and leakage

EN 12237, Ventilation for buildings - Ductwork - Strength and leakage of circular sheet metal ducts

EN 12792, Ventilation for buildings - Symbols, terminology and graphical symbols

EN ISO 16032, Acoustics - Measurement of sound pressure level from service equipment in buildings -

Engineering method (ISO 16032)
3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 12792 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
check

observation of the operation of a system or devices, against a specification without resorting to specific

measurements
[SOURCE: EN 12792:2003; definition 193]
3.2
pre-check

verification of the documentation of a system or devices intended to be used during the check process

---------------------- Page: 10 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)
3.3
measurement

process of experimentally obtaining one or more quantity values that can reasonably be attributed to a

quantity
[SOURCE: JCGM 200:2012; definition 2.1, modified – Notes have been removed.]
3.4
run-on timer

device which ensures that air flow through a ventilation system or an air terminal device (ATD) continues

for a specific time period after a user operated control has been turned off

Note 1 to entry: Run-on-timers are commonly used to control extract fans which are activated by the room light

switch in internal rooms.
3.5
maximum permissible measurement error

extreme value of measurement error, with respect to a known reference quantity value, permitted by

specifications or regulations for a given measurement, measuring instrument, or measuring system

[SOURCE: JCGM 200:2012; definition 4.26, modified – Notes have been removed.]
3.6
housing estate
group of homes and other buildings built together as a single development

Note 1 to entry: The exact form can vary from country to country. A housing estate is usually built by a single

contractor, with only a few styles of houses or building design, so they tend to be uniform in appearance.

4 Symbols and abbreviations

For the purpose of this document, the symbols given in EN 12792 and the following (see Table 1) apply.

Table 1 — Symbols
Symbol Designation
e sampling error (decimal value)
L A-weighted installation sound pressure level
n sample size
N total numbers of apartments or houses
SL1 Sampling level
5 Check and measurement procedures
5.1 General
This document includes procedures for:
— pre-check;
— functional checks;
---------------------- Page: 11 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)
— functional measurements;
— special measurements.

Checks and measurements to be performed shall be defined beforehand to meet the needs.

The installation work should be completed and the system should be adjusted before starting checks and

measurements.

Safe access to the ventilation system is required for on-site checks and measurement.

5.2 Checks and measurements conditions
Checks and measurements conditions are as follows:
— the mechanical ventilation system shall be switched on;
— the system settings shall remain unchanged during measurements;
— all external and internal doors, and windows shall be closed;

— all other ventilation provisions such as externally and internally mounted air transfer devices should

be set in their intended position which shall be recorded in the report;

— as set points of control devices have an impact on the performances of the system, they shall be

recorded in the report.

— in the case of occupancy control or demand control and as the value of the relevant parameters has

an impact on the performances of the system, these parameters or any overriding of the controls

should be recorded in the report.
5.3 Sampling

Checks and measurements for ventilation systems of the same type (example of types are natural

ventilation, unidirectional ventilation or bidirectional ventilation) within apartments belonging to the

same building or within houses belonging to the same housing estate can be performed on a sample of

these apartments or houses.

NOTE The basic assumption behind the authorization for sampling is that ventilation systems that belong to

such groups (same type and same building or same housing estate) and that are considered together for the purpose

of measurement and checks (for example because of same owner or same general contractor or same installer) have

enough similarities to make sampling relevant.

The sample size depends on the selected sampling level and the total number of apartments or houses of

the considered group. Table 2 gives the sampling error for each sampling level for a level of confidence

of 95 %. Table 3 gives the sample size as a function of the total number of apartments or houses for each

sampling level. For total numbers of apartments or houses that are not in Table 3, the sample size is

calculated using Formula (1).
---------------------- Page: 12 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)
Table 2 — Sampling error of sampling levels for a level of confidence of 95 %
Sampling level Sampling error
%
SL1 0
SL2 5
SL3 10
SL4 20
SL5 30
SL6 40
SL7 50
2 2
N⋅⋅1,96 0,5
(1)
2 2 2
Ne-1 ⋅+ 1,96 ⋅ 0,5
( )
where
n is the sample size;
N is the total number of apartments or houses;
e is the sampling error (decimal value).

NOTE Details of the formula can be found in “Theory and problems of statistics” (confidence intervals for

proportions) by M.R. Spiegel edited by Schaum's Outlines (ISBN 0-07-060281–6).

By default, the sampling level is SL1. Different sampling levels may be selected for different types of

checks or measurements. Checks or measurements at the same sampling level shall be carried out within

the same sample.

EXAMPLE 1 Sampling level SL3 is chosen for flow measurements and pressure measurements. In this case these

two types of measurement are performed on the same sample.
Smaller samples shall only include apartments or houses from larger samples.

EXAMPLE 2 Sampling level SL3 is chosen for flow measurements and sampling level SL4 is chosen for acoustic

measurements. In this case the sample for acoustic measurements is chosen within the sample for flow

measurements.

Sampling is not applicable for checks and measurements within a single house or apartment.

EXAMPLE 3 An apartment with 10 air terminal devices is part of a sample for flow measurements. In this case,

all 10 air terminal devices are measured whatever the sampling level.
---------------------- Page: 13 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)

Table 3 — Sample size as a function of the total number of apartments or houses for each

sampling level
Sample size
Total number of
houses or
apartments
SL1 SL2 SL3 SL4 SL5 SL6 SL7
1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2
3 3 3 3 3 3 2 2
4 4 4 4 4 3 3 2
5 5 5 5 4 4 3 2
6 6 6 6 5 4 3 3
7 7 7 7 6 4 4 3
8 8 8 7 6 5 4 3
9 9 9 8 7 5 4 3
10 10 10 9 7 5 4 3
11 11 11 10 8 6 4 3
12 12 12 11 8 6 4 3
13 13 13 12 9 6 4 3
14 14 14 12 9 6 4 3
15 15 14 13 9 6 5 3
16 16 15 14 10 7 5 3
17 17 16 15 10 7 5 3
18 18 17 15 11 7 5 3
19 19 18 16 11 7 5 3
20 20 19 17 11 7 5 3
21 21 20 17 11 7 5 3
22 22 21 18 12 7 5 3
23 23 22 19 12 8 5 3
24 24 23 19 12 8 5 3
25 25 24 20 13 8 5 3
30 30 28 23 14 8 5 4
---------------------- Page: 14 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)
Sample size
Total number of
houses or
apartments
SL1 SL2 SL3 SL4 SL5 SL6 SL7
40 40 36 28 15 9 5 4
50 50 44 33 16 9 5 4
60 60 52 37 17 9 6 4
70 70 59 41 18 9 6 4
80 80 66 44 19 10 6 4
90 90 73 47 19 10 6 4
100 100 80 49 20 10 6 4
200 200 132 65 22 10 6 4
300 300 169 73 22 10 6 4
400 400 196 78 23 10 6 4
500 500 217 81 23 10 6 4
600 600 234 83 23 11 6 4
700 700 248 85 23 11 6 4
800 800 260 86 23 11 6 4
900 900 269 87 23 11 6 4
1000 1000 278 88 23 11 6 4
6 Pre-check
6.1 General

The aim of the pre-check is to collate and assess all relevant documentation relating to the building and

the installed ventilation systems with particular regard to:
— design parameters, system characteristics and settings; and
— operation, maintenance and use.
6.2 Documents for design parameters, system characteristics and settings
The following documents shall be collated:
— general building drawings with the positions and the functions of all rooms;
— ventilation system design specification;
— fiche with product technical data.
---------------------- Page: 15 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)

It shall be checked that the design specification contains the following elements:

— type of ventilation system (e.g. central or decentral, natural, fan assisted natural, mechanical

supply/exhaust/balanced or a combination of these);
— air flow control strategy (central, zonal or room based);
— type of controls (if any):
— manual control (the system runs according to a manually controlled switch);
— time control (the system runs staged according to a given time schedule);
— presence control (the system runs dependent on the presence of people);

— demand control (the system runs staged dependent on any indicator for the need of ventilation);

— location of the control devices;

— specification of the control devices (e.g. range and response of humidity sensor);

— design air flow rates for the ventilation system as a whole, for individual rooms and for individual air

terminals (or equivalent information for natural ventilation systems (e.g. duct sizes, equivalent areas

of air transfer devices));
— designed range of static pressure available at ATD;

— information on the different components of the ventilation system as given in Table 4.

Table 4 — Information for each component of a ventilation system
Component Information
ducted air terminal devices — location;
(inside)
— reference and name;
— intended pressure range;
— intended air flow range.
internally and/or externally — location;
mounted air transfer devices
— type;
— size;
— reference pressure;
— intended air flow.
ductworks — type and nature;
— intended airtightness class;
— thermal insulation;
— drawing.
---------------------- Page: 16 ----------------------
SIST EN 14134:2019
EN 14134:2019 (E)
Component Information
air handling unit — location;
— reference;
— SFP class;
— design settings.
heat recovery systems — location;
— reference and type;
— minimum efficiency;
— thermal bypass facility;
— type of frost protection.
filters — location;
— type;
— class;
— visual filter warning.
air intake and discharge openings — location;
(outside)
— type;
— size;
— intended air flow rates.
control devices — location;
— type;
— specification.
sound attenuators — location;
— type;
— specification.
other components — location;
— type.
6.3 Documents for operation, maintenance and use

It shall be checked that the documents for operation, maintenance and use contain instructions to the

occupants on how and when to use the ventilation system and how and when components of the

...
